LD LDP82 User manual

LD PROSERIES
PA SPEAKER ACTIVE / PASSIVE
USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D`UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D‘ USO

ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
2
Thank you for choosing LD-Systems!
We have designed this product to operate reliably over many years. Therefore LD-Systems guarantees for high
quality products with its name and many years of experience as a producer.
Please, take a few moments to read these instructions carefully, as we want you to enjoy your new LD-Systems
products quickly and to the fullest.
For information about LD-Systems check out our website WWW.LD-SYSTEMS.COM

LD PROSERIES
PA SPEAKER ACTIVE / PASSIVE
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
3

ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
4
1. Please read this information carefully.
2. Keep all information and instructions in a safe place.
3. Please follow the instructions.
4. Please observe all warnings. Don‘t remove safety instructions or any other information located on the device.
5. Use the device only in the intended manner.
6. Use only stable and appropriate stands and/or mounts when the device is permanently installed. Make certain
that wall brackets are firmly secured. Make certain that the unit is installed securely and cannot fall down.
7. When installing please observe the corresponding safety standards for your country.
8. Do not install the device near radiators, heat accumulators, ovens or other sources of heat. Make certain that
the device is always installed so that is cooled sufficiently and cannot overheat.
9. Do not place open sources of ignition, e.g., burning candles, on the device.
10. Do not cover ventilation slots.
11. Do not operate the device in the immediate vicinity of water. Do not expose this equipment to combustible
materials, liquids or gases.
12. Please make certain that dripping or splashing water cannot get inside the device. Do not put objects filled
with fluids, such as vases or drinking vessels, on top of the device.
13. Make certain that objects cannot fall into the device.
14. Use the device only with accessories with which the manufacturer intends the device to be used.
15. CAUTION: If this device has a mains connector equipped with protective earth, it must be connected to a
mains socket with a protective ground connection. Never disable the function of the protective ground connection
of the included power cord.
16. Do not turn on the device immediately if it was exposed to strong temperature fluctuations (for example after
transportation). Moisture and condensation may damage the device. Leave the device switched off until it has
reached room temperature.
17. Do not open the device and do not make any changes to the device.
18. Before connecting to mains power, make certain that the mains voltage and the mains frequency are the
same as the operating values of the device (see type label). If the device is equipped with a supply voltage selec-
tor switch, make certain that the values of the device match the values of the mains power before connecting.
If the plug on the included cord does not fit your mains outlet, contact your electrician.
19. Make certain that the power cord is not stepped on. Protect the power cord against pinching, especially at
the device plug and the power plug.
20. In order to prevent damage or accidents, for example, due to tripping hazards, check all connections once
you have connected the device.
21. When connecting the device, make certain that the power plug remains readily accessible.
Always pull out the power plug when the device is not in use or when you clean the device. Disconnect the
power cord by pulling the plug not the cable.
22. Avoid switching the device on and off at short intervals, because it may shorten the durability of the device.
23. IMPORTANT: Replace fuse only by fuse of same type and rating! If fuse blows repeatedly please contact
authorized service center!
24. In order to disconnect the device completely from the mains voltage, the power plug must be unplugged.
25. If your device is equipped with a Volex power connector, the matching Volex device plug must be unlocked
in order to disconnect it. This also means that a tug on the power cord can pull the device out of place, thus
causing personal injuries and/or property damage. Thus please make certain to route your cables carefully.
PREVENTIVE MEASURES:

ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
55
26. If there is a risk of lightning strike or during extended periods of disuse, unplug the power plug.
27. During transport, make certain that the equipment being transported cannot fall down and possibly
cause personal injuries and/or property damage.
28. If your device no longer works properly, if it has been exposed to liquids or an object has fallen inside it or
if it has been damaged in some other manner, turn the device off immediately und unplug the power plug. This
device should be repaired only by authorized experts.
29. Use only a dry cloth to clean the device.
30. Comply with all of the disposal laws that are applicable in your country. During disposal, please separate
plastic and paper/cardboard.
31. Plastic bags must be kept out of the reach of children.
CAUTION
RISK OF ELECTRIC S HOCK
DO NOT O PEN
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer
servicing to qualified personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product´s enclosure that may be
of sufficient magnitude to constitute a risk to persons.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
CAUTION! HIGH VOLUME!
You will operate this transmission system for professional use. Therefore the commercial use of this equipment
is liable to the rules and regulations of the Accident Prevention & Insurance Association of your industry sector.
Adam Hall as a manufacturer is bound to inform you formally about the existence of eventual sanitary risks.
Risk of hearing damage due to prolonged exposure to excessive volumes: The loudspeaker is easily capable of
generating sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers, production
crew and audience members. Caution should be taken to avoid prolonged exposure SPL in excess of 90 dB.

DESCRIPTION:
The LD PRO series of speaker cabinets are designed as universal two-way systems for full-range operation.
Eight versions (4 passive and 4 active) are available:
• LDP82 with a 8" bass chassis and 1" HF compression driver, 100 W RMS, 8 Ω
• LDP82A, like LDP82, but with built-in bi-amping amplifier 80 + 40 W RMS
• LDP102 with a 10" bass chassis and 1" HF compression driver, 150 W RMS, 8 Ω
• LDP102A, like LDP102, but with built-in bi-amping amplifier 140 + 40 W RMS
• LDPN1222 with a 12" bass chassis and a 1" HF compression driver, 250 W RMS, 8 Ω
• LDPN122A2 , like LDPN1222, but with built-in bi-amping amplifier 190 + 60 W RMS
• LDPN1522 with a 15" bass chassis and a 1" HF compression driver, 300 W RMS, 8 Ω
• LDPN152A2 , like LDPN1522, but with built-in bi-amping amplifier 220 + 60 W RMS
Decisive modifications and improvements have once again been made to the 12" and 15" versions in the LD
Pro series, which encompasses four active and four passive models. In addition, a switchable bass boost was
integrated in the 12" and 15" active versions, which has a positive influence on the sound in the LF range at
low to moderate volumes. Now as ever, all four models are manufactured with the same time-tested, rugged
cabinets. The active versions still operate in bi-amping mode, which ensures high operational reliability, and
boast features that are unique in this price class. There are now wall brackets in addition to the optional monitor
feet available.
Recessed flanges make the cabinets suitable for mounting on speaker stands, but they can also be flown thanks
to the lashing points provided. Optionally, plastic feet that permit simple use of the cabinet as a floor monitor can
be ordered separately. All cabinets are manufactured of high-quality plastic.
SETUP
Indoors, you can position the cabinet however you see fit. Use the built-in flange for a speaker stand, the
recessed threads on the top of the cabinet (each covered with a rubber cap) for flyware, or the optional monitor
stand. Outdoors, you must ensure that the cabinet is protected against direct exposure to rain and water spray.
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
6

The passive versions of the cabinets have 2 Speakon compatible sockets; one socket is used for looping through
the signal to the next cabinet. The active version is first connected to the 230 V AC power mains with a power
cord. The following audio inputs are available:
LDP82A, LDP102A, LDPN122A2 and LDPN152A2 - balanced line input via XLR and unbalanced line input via
2 cinch sockets (RCA), balanced microphone input via XLR and unbalanced microphone input via 6.3mm TRS
plug. The sensitivity of each can be adjusted using the adjacent level control.
The LDPN152A2 has two microphone inputs with separate volume controls.
The XLR line input is balanced. Unbalanced line signals can be connected via the RCA sockets. There are two
connectors (L & R) for a stereo signal that is mixed down to mono internally. The volume is determined by the
adjacent level controls. Of course, the line and microphone inputs can be used at the same time. The master
volume is controlled by the third volume control below the other two. A shared 2-band tone control affects treble
and bass. A bass boost switch on the LDPN122A2 and LDPN152A2 additionally permits a boost of 3 dB @ 100
Hz (LDPN122A2) and 6 dB @ 100 Hz (LDPN152A2). At high volumes, it is advisable to deactivate the bass boost,
because otherwise the power amplifier enters the clipping range sooner.
Before turning on the unit with the power switch (the green power LED serves as an indicator lamp), all level
controls should be set to the MIN position. Otherwise, connected microphones may cause unintended feedback.
Start with the tone controls in the centre position. The levels of the various sources are balanced with one
another using the associated level knobs; the master volume is determined with the third level control (master
volume). The red clip LED lights up to indicate when the amplifier reaches the clipping range. This should be
avoided. If you connect mains-powered instruments that are grounded by a protective contact to the inputs of
the active cabinet, a ground loop may result due to double grounding. You can eliminate this low-frequency hum
by activating the ground-lift switch. All cabinets have a blue signal LED on the front which lights up as soon as a
signal is connected to the cabinet.
CONNECTIONS:
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
7

REAR PANEL PASSIVE:
LDP82 (shown) / LDP102 / LDPN1222 / LDPN1522
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
8

LDP82 LDP102 LDPN1222 LDPN1522
Type Bass reflex Bass reflex Bass reflex Bass reflex
Woofer 8" woofer 10" woofer 12" woofer 15" woofer
Tweeter 1" tweeter 1" tweeter 1" tweeter 1" tweeter
HF driver Custom made Custom made Custom made Custom made
Dimensions [WxHxD] 295 x 420 x 235 mm 360 x 500 x 270 mm 430 x 580 x 315 mm 450 x 685 x 380 mm
Weight 8,2 kg 10,9 kg 16,5 kg 22 kg
Impedance 8 Ω 8 Ω 8 Ω 8 Ω
Max. load
(RMS / peak) 100 W / 200 W 150 W / 300 W 250 W / 500 W 300 W / 600 W
SPL[1W / 1m] 92 dB 93 dB 98 dB 99 dB
SPL max. 112 dB 115 dB 120 dB 122 dB
Frequency range 80 - 15.000 Hz 75 - 16.000 Hz 60 - 18.000 Hz 55 - 18.000 Hz
Dispersion angle H/V 90° x 40° 90° x 40° 90° x 40° 90° x 40°
Connectors 2 x Speakon compatible
Features Trapezoidal plastic cabinet with integral speaker stand mount (36 mm).
Our products are subject to a continuous process of development and improvement. Thus technical characteristics are subject
to change without notice.
SPECIFICATIONS PASSIVE:
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
9

LDP82A
REAR PANEL ACTIVE:
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
10
1
3
4
5
6
7
8
9
10
11
12
13
2

REAR PANEL ACTIVE:
LDP102A
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
11
1
2
3
4
5
6
7
8
9
10
11
12
13

REAR PANEL ACTIVE:
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
12

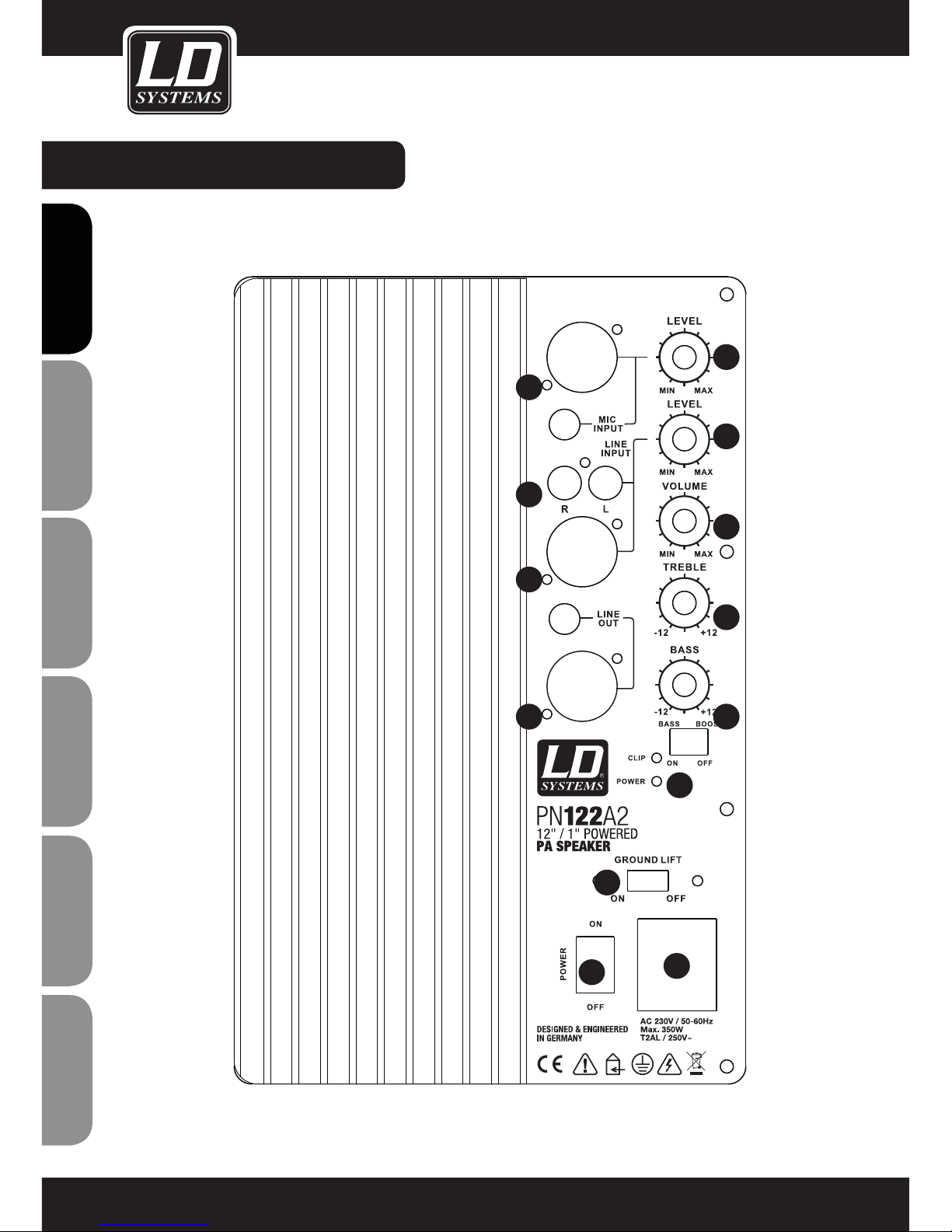

LDPN122A2
1
2
3
4
5
6
7
8
9
10
11
12
13

REAR PANEL ACTIVE:
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
13

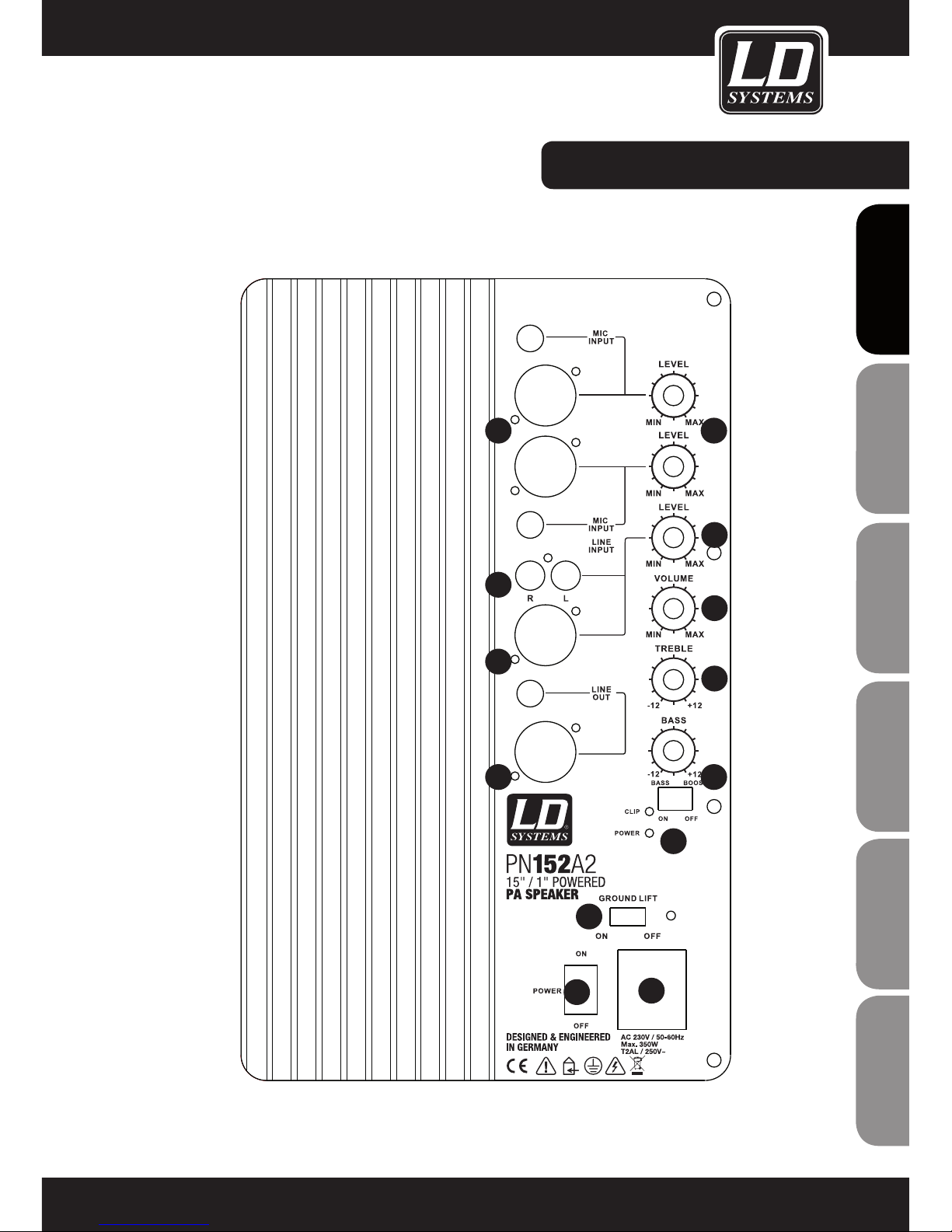

LDPN152A2
1 2
3
4
5
6
7
8
9
10
11
12
13

1MICROPHONE INPUT
Balanced XLR/jack microphone input
2GAIN MICRO
Adjust the input sensitivity of the microphone
input with this gain control. Please note that
microphones that require phantom power
(condenser microphones, for example) will not
work on these inputs because they do not supply
phantom power.
3LINE INPUTS
Balanced XLR/jack mono line input.
4LINE INPUTS
Unbalanced stereo RCA line inputs.
5GAIN LINE
Adjust the input sensitivity of the line input with
this gain control.
6LINE OUTPUTS
Balanced XLR and jack mono outputs. The mixed
input signals are split before the power amplifier
unit and sent to this output. You can use this
output, for example, to drive additional active
speakers or amplifiers with the mixed input
signals.
Important: This output signal is sent before the
master tone control and the master volume, so
it is unaffected by these settings.
7VOLUME MASTER
Use this control to adjust the overall volume of the
power amplifier.
8TREBLE
With the treble control, you can boost or decrease
the treble in the output signal by 12 dB.
9BASS
With the bass control, you can boost or decrease
the bass in the output signal by 12 dB.
The bass boost switch on the LDPN122A2 and
LDPN152A2 additionally permits a boost of 3
dB @ 100 Hz (LDPN122A2) and 6 dB @ 100
Hz (LDPN152A2).
10 POWER / CLIP
The power LED lights up green when the unit is
on. The red clip LED starts to light up when the
amplifier overloads, in other words, when signal
modulation reaches the clipping range. You should
avoid constant illumination of this LED by reducing
the master volume (control no. 7 in the picture)
until the clip LED goes out.
11 GROUND-LIFT SWITCH
If you connect mains-powered instruments that
are grounded by a protective contact to the inputs
of the active cabinet, a ground loop may result
due to double grounding. You can eliminate the
resulting low-frequency hum by activating the
ground-lift switch.
12 AC INPUT
This power socket is used to connect the power
cord.
13 ON / OFF
On/off switch
CONTROLS:
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
14

SPECIFICATIONS ACTIVE:
LDP82A LDP102A LDPN122A2 LDPN152A2
Type Bass reflex Bass reflex Bass reflex Bass reflex
Woofer 8" woofer 10" woofer 12" woofer 15" woofer
Tweeter 1" tweeter 1" tweeter 1" tweeter 1" tweeter
HF driver Custom made Custom made Custom made Custom made
Dimensions (WxHxD)
(mm) 295 x 420 x 235 360 x 500 x 270 430 x 580 x 315 450 x 685 x 380
Weight 10 kg 14 kg 20,5 kg 26 kg
Output power
(RMS / peak)
80 W + 40 W /
240 W
140 W + 40 W /
340 W
190 W + 60 W /
500 W 220 W + 60 W / 560 W
Power amp module Class A/B Class A/B Class A/B Class A/B
SPL max. 112dB 115dB 120dB 122dB
Frequency range 80 - 15.000 Hz 75 - 16.000 Hz 60 - 18.000 Hz 55 - 18.000 Hz
Dispersion angle H/V 90° x 40° 90° x 40° 90° x 40° 90° x 40°
Indicators / controls Power, Clip, Signal, Mic Level (2x for LDPN152A2), Line Level, Main Volume, Treble, Bass
In- and outputs Inputs: XLR / 6.3 mm TRS mic in, XLR / cinch line in
Outputs: XLR / 6.3 mm TRS line out
Features Trapezoidal plastic cabinet with integral speaker stand mount (36 mm). Compatible with all IECC
plugs and sockets.
Our products are subject to a continuous process of development and improvement. Thus technical characteristics are
subject to change without notice.
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
15

TRANSPORTACCESSORIES /SETUP:
WALL BRACKET
LDP82WB for LDP82(A)
LDP102WB for LDP102(A)
LDP122WB for LDPN1222 / LDPN122A2
LDP152WB for LDPN1522 / LDPN152A2
MONITOR FEET
LDP10MS for LDP102(A)
LDP12MS for LDPN1222 / LDPN122A2
LDP15MS for LDPN1522 / LDPN152A2
TRANSPORT BAG
LDP10B for LDP102(A)
LDP12B for LDPN1222 / LDPN122A2
LDP15B for LDPN1522 / LDPN152A2
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
16

TRANSPORT BAG
LDP10B for LDP102(A)
LDP12B for LDPN1222 / LDPN122A2
LDP15B for LDPN1522 / LDPN152A2
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
17
MANUFACTURER´S DECLARATIONS:
LIMITED WARRANTY
This Limited Warranty applies to the Adam Hall, LD Systems,LD Premium, Defender, Palmer, Cameo and Eminence
branded products.
The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justies, additional
independent warranty claims towards Adam Hall.
Adam Hall warrants that the Adam Hall product you have purchased from Adam Hall or from an Adam Hall autho-
rized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years from
the date of purchase.
The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required
to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your
proof of the purchase date. Should products of the brands named above be in need of repair within the limited war-
ranty period, you are entitled to warranty services according to the terms and conditions stated in this document.
This Limited Warranty extends only to the original purchaser of this Adam Hall branded product and is not trans-
ferable to anyone who obtains ownership of the Adam Hall branded product from the original purchaser. During
the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. All
component parts or hardware products removed under this Limited Warranty become the property of Adam Hall.
In the unlikely event that your Adam Hall product has a recurring failure, Adam Hall, at its discretion, may elect to
provide you with a replacement unit of Adam Hall´s choice that is at least equivalent to your Adam Hall branded
product in hardware performance.
Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not
responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam
Hall branded product.
This Limited Warranty does not apply,
-to wear parts (e.g. accumulator)
-to any product from which the serial number has been removed or that has been damaged or rendered defecti-
ve as the result of an accident
-in case of, misuse, abuse, or other external causes
-by operation outside the usage parameters stated in the user´s documentation shipped with the product by use
of spare parts not manufactured or sold by Adam Hall
-by modication or service by anyone other than Adam Hall
These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam
Hall regarding the Adam Hall branded product you have purchased.

ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
18
LIMITATION OF LIABILITY
If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy
shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited
to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware
components that malfunction in conditions of normal use.
Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost
prots or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by
a third party or made by you for a third party.
This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty
or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limi-
tation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if
you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages.
This limitation of liability however, will not apply to claims for personal injury.
This Limited Warranty gives you specic legal rights. You may also have other rights that may vary from state to
state or from country to country. You are advised to consult applicable state or country laws for a full determina-
tion of your rights.
REQUESTING WARRANTY-SERVICE
To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which
you purchased the product.
CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncon-
trolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
ofce, for details on where and how they can recycle this item in an enviromentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal.
MANUFACTURER´S DECLARATIONS:

ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
19
MANUFACTURER´S DECLARATIONS:
WEEE-DECLARATION
Your LD-Systems product was developed and manufactured with high quality materials and components wich
can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed
of separately from normal waste at the end of its operational lifetime.
Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment.
This will help to protect the environment in which we all live.
BATTERIES AND ACCUMULATORS
The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or
return them to your specialist dealer. In order to protect the environment, only dispose exhausted batteries.
ECOLOGY AND ENERGY SAVING
Saving electric energy helps to protect the environment. Please turn off all electrical equipment when it is not in
use. To avoid power consumption in idle mode, disconnect all electrical equipment from mains when not in use.
Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject
to modications. The photocopying, the translation, and all other forms of copying of fragments or of the integral-
ity of this user’s manual is prohibited.

ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
20
Sie haben die richtige Wahl getroffen!
Diese LD-Systems Produkte werden Sie lange Jahre durch Zuverlässigkeit, Wirtschaftlichkeit und einfaches
Handling überzeugen. Dafür garantiert LD-Systems mit seinem Namen und seiner in vielen Jahren erworbenen
Kompetenz als Hersteller hochwertiger Geräte.
Nehmen Sie sich nun ein paar Minuten Zeit, diese Anleitung zu lesen. Wir möchten, dass Sie einfach
und schnell in den Genuss dieser Technik kommen.
Mehr Informationen zu LD-SYSTEMS nden Sie auf unserer Internetseite WWW.LD-SYSTEMS.COM
