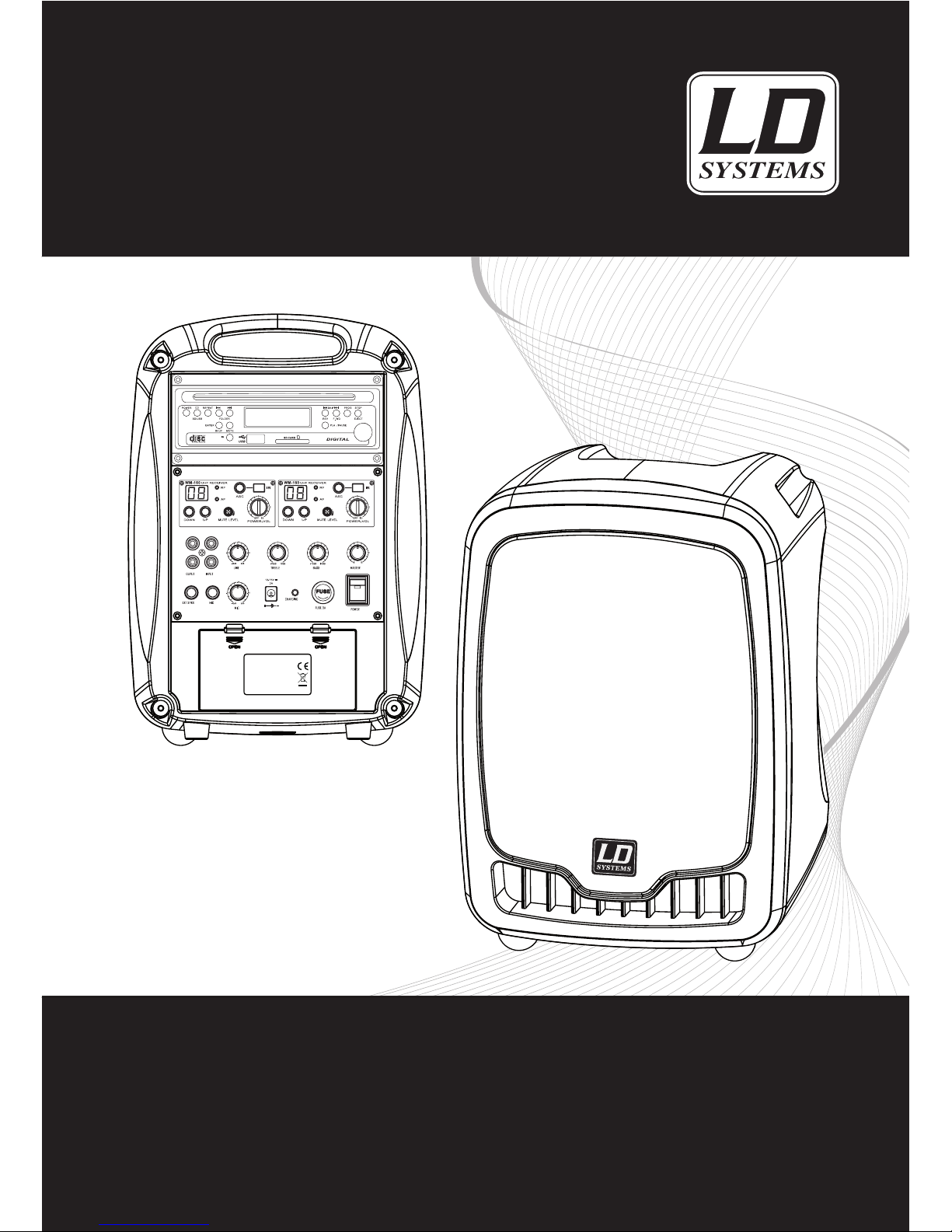

LD LD ROADBOY 6.5 User manual

LD ROADBOY 6.5
PORTABLE SOUND SYSTEM 25 W
USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D`UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D‘ USO
MODEL: LDRB65
SERIAL NO:
Adam Hall GmbH
1
Y

Thank you for choosing LD-Systems!
We have designed this product to operate reliably over many years. Therefore LD-Systems guarantees for high
quality products with its name and many years of experience as a producer.
Please, take a few moments to read these instructions carefully, as we want you to enjoy your new LD-Systems
products quickly and to the fullest.
For information about LD-Systems check out our website WWW.LD-SYSTEMS.COM
2
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

MODEL: LDRB65
SERIAL NO:
Adam Hall GmbH
1
Y
3
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
LD ROADBOY 6.5
PORTABLE SOUND SYSTEM 25 W

PREVENTIVE MEASURES:
1. Please read the attached safety instructions as well as the following instructions carefully.
2. Please keep all the instructions.
3. Please use the device only as intended.
4. Please respect the valid waste management rules. Please deliver the packaging divided into plastic and
paper/ cardboard to the recycling management.
5. Please refer all servicing to qualified personel only if the device is damaged, exposed to liquid/rain or if it does
not operate normally.
6. Please, do not expose to any kind of heat such as ovens, radiators, or any other devices (incl. amplifiers).
Please check for enough distance between amplifiers and walls, racks, etc. to prevent overheating.
7. After connection please check the wiring to prevent any kind of accident or damage.
Please never use any kind of damaged cable and wiring.
8. Only use authorized and stable stands, brackets, shelfs, tables etc.. for installations. Please check for
adequate stability against collapse.
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer
servicing to qualified personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product´s enclosure that may be
of sufficient magnitude to constitute a risk to persons.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
CAUTION! HIGH VOLUME!
You will operate this system for professional use. Therefore the commercial use of this equipment is liable to the
rules and regulations of the Accident Prevention & Insurance Association of your industry sector. Adam Hall as a
manufacturer is bound to inform you formally about the existence of eventual sanitary risks.
These speakers are able to induce high acoustic sound pressure levels. 85 db is by law the maximum audio
pressure level which your ear can be exposed to during a work day. It was set according to the technical exper-
tise of the occupational medicine as a basis for the noise rating level. Higher sound levels or longer exposition
times could damage your ear. The time of exposition by higher sound pressure levels should be shortened in
order to prevent from ear damages. Here are a few reliable warning signals which show that you have exposed
yourself for a too long period to excessive sound pressure levels:
- You hear bell- or whistling sounds!
- You have the impression that you can’t hear high tones anymore!
CAUTION
RISK OF ELECTRIC S HOCK
DO NOT OPEN
4
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

1
2
3
MODEL: LDRB65
SERIAL NO:
Adam Hall GmbH
1
Y
5
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
BACK PANEL:
1CD PLAYER
Digital Slot-In CD Player with USB memory stick input
and SD card slot. CD Player with anti-shock function.
Supported files (CD Player, USB Player, SD card reader):
Audio CD, MP3, WMA.
2WIRELESS RECEIVER MODULE
The Roadboy 6.5 is equipped with one wireless receiver
module. You can install a second receiver module if you
wish to use a second wireless microphone simultane-
ously.
3CONTROL PANEL
Volume Control: Master, Wired Mic, Line-In
EQ: Bass, Treble
In & Out
Powered output for external speaker
LED Indicator: Low Battery power (red), battery char-
ging (green blinking), battery fully charged (green).

6
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
SYSTEM COMPONENTS:
Roadboy
Handheld Microphone
Remote Control
Power Supply

7
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
OPTIONAL ACCESSORIES:
Transport Bag (LDSB21)
Belt Pack Transmitter (LDWS1616BP)
Headset mic skin colour (LDWS100MH3)
Speaker stand (SPS56B)
Headset mic black (LDWS100MH1)
Additional Receiver (LDRM102R)

12
13
14
1
2345
6
7
8
9
10
11
8
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
CD PLAYER:
1POWER/VOL
On / Off, Volume control
2PLAY / PAUSE
3STOP
Stop, return to the main menu
4FOLDER
Available in USB, MP3 CD and SD Card Mode
In Stop Mode: Use the FOLDER (LEFT/RIGHT)
Buttons to go to the previous/next folder.
In Play Mode: Use the FOLDER (LEFT/RIGHT) But-
tons to go to the first file of the previous/next folder.
5SKIP (LEFT/RIGHT) BUTTONS
In Play and Stop Mode, press SKIP (LEFT/RIGHT)
to go to the previous /next track.
In Play Mode keep the SKIP button pressed to fast
forward (SKIP RIGHT) or fast reverse (SKIP LEFT)
a track.
6PROG
Function not available
7MODE
Press this button to switch between SD / USB /
CD mode
8REPEAT
Press once to repeat the current track.
Press twice to repeat all tracks.
9SHUF
Random play
10 EJECT
Remove disc
11 MUTE
Mutes the volume of the SD / USB / CD Player.
12 SD CARD SLOT
13 USB 2.0
Memory stick input
14 IR
Remote control receiver module

4
3
2
1
8 7 10 12 13 16 19 20 23 17 25
5 6 9 11 14 15 18 21 22 24
9
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
REMOTE CONTROL:
1POWER BUTTON: Power switch
2MODE BUTTON: Mode switch button
3BUTTON: Pause / play button
4BUTTON: Repeated short press to clear and
restore the sound.
5BND/SYS
Function not available
6BUTTON:
Function not available
7TITLE BUTTON:
Function not available
8SUB-T BUTTON:
Function not available
9ENTER BUTTON:
Function not available
10 SETUP BUTTON:
Function not available
11 BUTTON:
Stop button
12 ANGLE BUTTON:
Function not available
13 SLOW BUTTON:
Function not available
14 AMS / RPT BUTTON:
Press once to repeat the current track.
Press twice to repeat all tracks.
15 ST / PROG BUTTON:
Function not available
The Roadboy 6.5 is equipped with two remote control infrared receiver modules. One on the front and one on the rear
panel of the unit. You can therefore use the remote control in front of or behind the speaker.

10
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
CD REMOTE CONTROL:
16 ZOOM BUTTON:
Function not available
17 VOL+VOL-BUTTON:
Increase or decrease the volume.
18 „LOC / RDM“ BUTTON
LOC / RDM“ button, random play.
19 SEL BUTTON:
Press this button to switch between SD / USB / CD
mode
20 BUTTON:
In Play and Stop Mode, press SKIP (LEFT/RIGHT) to
go to the previous /next track.
In Play Mode keep the SKIP button pressed to fast
forward (SKIP RIGHT) or fast reverse (SKIP LEFT)
a track..
21 PBC BUTTON:
Function not available
22 OSD BUTTON:
Available in Audio CD Mode.
Without pressing: Display shows track running time
Press once:
Display shows remaining time for the current track
Press twice:
Display shows the CD running time
Press three times:
Display shows remaining CD time
23 AUDIO LEFT / RIGHT STEREO ADJUSTMENT:
Function not available
24 1-10+BUTTON:
Function not available
25 GOTO BUTTON:
Function not available

5
6
234
1
7
11
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
1ANTENNA
2GAIN SETTINGS
Mic: Microphone
0: Guitar with passive pickup
-10 dB: Guitar with active pickups
3POWER LED
Green: operating
Red: Battery low
Blinking red: IR transmission is in progress
4MINI XLR MIC INPUT
5POWER ON / OFF BUTTON
6ASC BUTTON (ACTIVATE SYNC)
Press this button to activate the infrared connection
between transmitter and receiver
7IR PORT
Receives the infrared frequencies sent by the recei-
ver in order to synchronize transmitter and receiver.
WEARING THE BELTPACK TRANSMITTER
Clip the receiver to a belt. For ultimate results, clip the
receiver onto a belt by pushing the receiver down onto
the belt as far as it goes.
For guitarists, attach the guitar strap ”through” the
receiver clip.
CHANGING THE BATTERIES
Expected life for two alkaline batteries is approxima-
tively 8 hours.
When the battery status indicator flashes red the
batteries should be changed immediately as show on
the left side. Please Insert 2 AA Alkaline batteries (LR6
1,5 V)
BELT PACK TRANSMITTER:

8769 5 4 321
12
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
WIRELESS RECEIVER MODULE:
1IR WINDOW
Sends infrared signals to the transmitter (handheld
mic) in order to synchronize the frequencies
2POWER
Power switch and Volume controller
3ASC
After selecting a transmitting frequency in the
receiver, press ASC to sync the transmitter. Hold the
IR port of the microphone in front of the IR port of
the receiver. (Sync with beltpack: Press ASC on the
beltpack and on the receiver to activate sync.
4MUTE LEVEL
Adjusting the receiver squelch setting:
This function suppresses noise when the trans-
mitter is off or when the receiver is no longer able
to receive a sufficiently strong signal from the
transmitter.
The squelch setting of the receiver is adjusted at
the factory so that the system functions optimally.
Normally, no further adjustment is required.
If readjustment does become necessary, the
squelch level should be set so that no noise is de
5tected in the receiver when the transmitter is off.
This makes it possible to suppress interference, but
it may also reduce system range under some
circumstances. If the squelch level is reduced,
interference can increasingly affect transmission
quality. However, this may increase system range
under some circumstances.
5AF
Shows if the module receives an audio signal
6RF
Shows if the module receives a radio signal
7UP
Channel Up
8DIGITAL DISPLAY
Digital channel display
9DOWN
Channel Down

910 11 12 13 14 15 1 2
8 7 6 5 4 3
13
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
CONTROL PANEL:
1POWER SWITCH
This is the general power switch (ON/OFF for the
whole system)
2LED INDICATOR
When red, the system is in operation. Turned ON.
3MASTER VOLUME
General volume control of the system
4BASS
BASS / LOW TONE Equalizer
5TREBLE
TREBLE / HIGH TONE Equalizer
6LINE VOLUME
Line input (RCA) volume control
7RCA LINE IN
8RCA LINE OUT
9EXTERNAL SPEAKER OUTPUT
Use this Output to plug a further passive speaker.
When using this output the sound comes out of both
the Roadboy and the passive speaker. (min 4 Ω)
10 MICROPHONE INPUT
11 MICROPHONE VOLUME CONTROL
12 DC POWER INPUT PLUG
13 CHARGING / LOW BAT INDICATOR
LED Indicator: Low Battery power (red), battery
charging (green blinking), battery fully charged
(green).
14 FUSE 3A
15 VOICE PRIORITY FUNCTION SWITCH
When Music is playing, turning on the Voice Priority
function will automatically decrease the volume of
the music when you speak in the microphone.
As soon as you stop talking the music volume
increases again. It is the so called “Talk Over”
function.

1
4
5
6
7
2
3
14
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
HANDHELD TRANSMITTER:
1MICROPHONE HEADGRILLE
2GAIN
Use this controller to adjust the microphone sensitivity
Left decrease, Right increase.
Factory settings should give you complete satisfaction.
3RF POWER SWITCH
H stands for High power signal, L for Low power
signal.
4IR PORT
Receives the infrared frequencies sent by the recei-
ver in order to synchronize transmitter and receiver.
5BATTERIES RACK
Please Insert 2 AA Alkaline batteries (LR 6 1,5 V)
6POWER/ASC
Green light: Power On
Green flash: IR transmission in progress
Red flash: battery low
7ON/OFF SWITCH
CHANGING BATTERIES
Battery life is about 8 hours. If the Low Battery indica-
tor glows then change the batteries immediately.

15
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
SYSTEM SETTINGS AND OPERATIONS:
USING THE WIRED MICROPHONE INPUT
Plug the 6.3 mm Jack connector of your microphone cable into the MIC Jack input. You will find this input on the
back panel of your Roadboy. Make sure that the other end of your cable is correctly connected to the microphone.
If your microphone features an ON / OFF switch, please set it to the ON position. Now use the MIC gain knob to set
the balance between the MIC and LINE inputs. Too much MIC level can cause distortion (Overdrive).
USING WIRELESS MODULE
Start by setting the MASTER level knob of your Roadboy on the zero position. Then turn the POWER-VOL knob of
the wireless module to twelve o’clock position. Now you can synchronize the transmitter (handheld mic or Belt
Pack) with the integrated receiver thanks to the ASC function: Press the ASC button of the wireless receiver modu-
le, the ASC LED now flashes red.
If you are using a handheld transmitter: The Infrared sensor (IR) is placed in the battery compartment under
the capsule. Hold it close to the IR sensor of the wireless receiver module.
If you are using a Belt Pack transmitter: You need to activate the ASC function on the Belt Pack also. Then
hold the Infrared sensor (IR on the rear side) of the belt pack transmitter close to the IR window of the wireless
receiver module. The synchronization lasts a few seconds. If you have installed a second wireless module (opti-
onal), make sure that you are not running both modules on the same frequency in order to avoid any interference
(see frequency list). A flashing RF light shows that your system is functioning and that the synchronization was
successful. You can now increase the MASTER volume of your Roadboy to the desired volume.
Maximum distance between the wireless microphone (or Belt Pack transmitter) and the receiver module is around
60 m in an open space.
USING THE „EXT. SPEAKER“ OUTPUT
Use a speaker cable with 6.3 mm Jack connector to connect the external loudspeaker. Use a speaker with impe-
dance between 4 and 8 Ohm with a minimal power output of 25 W.
CHARGING ROADBOY
Plug the power supply (16 V / 3 A) which is included with your Roadboy to operate your system without batteries
or in order to charge the batteries. The charging time is 8 hours. The charging procedure stops automatically when
the battery is fully charged. You can also keep the Roadboy connected to the AC current and operate it as long as
you wish.
IMPORTANT!
When connecting the battery for the first time or when replacing the battery you MUST mind the
polarity! Red = + (plus) // Black = - (minus).
When the Roadboy is charged for the first time, charging time should be 15 hours. This increases both
battery life and capacity. This procedure should be repeated every 2-3 months. Before this charging
procedure the battery should be empty.

BASIC SPECIFICATIONS
Output power: MAX 25 W RMS / 4 Ω
Frequency response: 80 Hz - 15 kHz
Maximum sound pressure: 110 dB
Speaker: 6.5 - inch full range
Power: 200 V - 250 V Switching power supply
DC 16 V / 3 A
Batteries: 12 V / 2.9 AH
THD: <0,5 %
Size (W x H x D): 300 x 200 x 230 mm
Weight: 5 kg
Receiver module: 863 - 865 MHz
Operating time: 5 hours
CD PLAYER
Product type:
Compact disc digital audio system with mechanic &
electronic anti-shock CD, CD-R, CD-R/W, MP3, WMA,
USB, SD, MP3, WMA available.
Disc loading: Slot-in Type
Supply voltage: DC 12 V (10 ~ 14 V)
Power consumption: Within 5 W
Dimensions (W x H x D): 160 x 147.4 x 68.5 mm
Weight: 1.2 kg
RECEIVER
Channels: 16
Carrier frequency range: 863 - 865 MHz
Audio bandwidth: 60 Hz - 16 kHz
THD: <1%
Signal/noise ratio: >100 dB
Modulation: FM
Dimensions: 212 x 160 x 44 mm
Net weight: 860 g
Power requirements: 12 - 18 V DC / 300 mA,
ext. power supply
HANDHELD TRANSMITTER
Channels: 16
Carrier frequency range: 863 - 865 MHz
Capsule type: Dynamic
Polar pattern: Cardioid
RF Output power: 10 mW
Audio bandwidth: 60 Hz - 16 kHz
Signal/noise ratio: >102 dB
Modulation: FM
Dimensions: 235 x 54 mm
Net weight: 280 g
Power requirements: 2 x „AA“ -batteries
Battery Life: >10 hours
BELT PACK TRANSMITTER
Channels: 16
Carrier frequency range: 863 - 865 MHz
RF Output power: 6 mW
Max. input level: 6 mV
Audio bandwidth: 60 Hz - 16 kHz
Signal/noise ratio: >102 dB
Modulation: FM
Dimensions: 85 x 65 x 24 mm
Net weight: 80 g
Power requirements: 2 x „AA“ -batteries
Battery Life: >10 hours, depending on batteries
Since all our products are constantly controlled and
improved, technical changes are possible without prior
notice.
16
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
TECHNICAL SPECIFICATIONS:

Nr.
1 863,100 X
2 863,900
3 864,500
4 864,900
5 863,200
6 863,300
7 863,400
8 863,500
9 863,600
10 863,700 X
11 863,800
12 864,000
13 864,100 X
14 864,200
15 864,300
16 864,400
17
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
TECHNICAL SPECIFICATIONS:
LDWS1616 / Roadman / Roadboy
Frequency list for intermodulation free use of up to three wireless microphones simultaneously.
Frequency MHz Simultaneous

Adam Hall GmbH | Daimlerstr. 9 | D-61267 Neu-Anspach | Tel. [phone] | Fax [phone]
web : www.adamhall.com e-mail : [e-mail]
EC Declaration of Conformity
EG Konformitäts-Erklärung
Déclaration CE de Conformité
We / Wir / Nous Adam Hall GmbH
Daimlerstr. 9
D- Neu-Anspach
declare in exclusive responsibility that the product
erklären in alleiniger Verantwortung, dass das Produkt
déclarons sous notre seule responsabilité que le produit
Model LD Portable PA Systems
Modell LD Portable PA Systems
modèle LD Portable PA Systems
Type / Typenbezeichnung / type
LD Roadmen / Roadboy
to which this declaration relates is in conformity with the following standards:
auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt:
auquel se réfère cette déclaration est conforme aux normes:
EN 50371
EN 60065: 2002
EN 300422-1
EN 300422-2
EN 301489-1
EN 301489-9
following the provisions of directive
gemäß den Bestimmungen der Richtlinie
conformément aux dispositions de directive
89 / 336 / EEC (Electromagnetic compatibility)
(Elektromagnetische Verträglichkeit)
73 / 23 / EEC (Low Voltage Equipment)
(Niederspannungsrichtlinie)
1999/5/EC European R&TTE Directive 1999/5/EC of 9
th
March, 1999.
Neu-Anspach, 01.09.2009 Neu-Anspach, 01.08.2009
Markus Jahnel Michael Rösch
Vertriebsleiter / Sales Manager / Chef des ventes Qualitäts Prüfer / Quality Manager / Calidad Director
18
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

LIMITED WARRANTY
This Limited Warranty applies to the Adam Hall, LD Systems, Defender, Palmer and Eminence branded products.
The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional
independent warranty claims towards Adam Hall.
Adam Hall warrants that the Adam Hall product you have purchased from Adam Hall or from an Adam Hall autho-
rized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years from
the date of purchase.
The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required
to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your
proof of the purchase date. Should products of the brands named above be in need of repair within the limited war-
ranty period, you are entitled to warranty services according to the terms and conditions stated in this document.
This Limited Warranty extends only to the original purchaser of this Adam Hall branded product and is not trans-
ferable to anyone who obtains ownership of the Adam Hall branded product from the original purchaser. During
the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. All
component parts or hardware products removed under this Limited Warranty become the property of Adam Hall.
In the unlikely event that your Adam Hall product has a recurring failure, Adam Hall, at its discretion, may elect to
provide you with a replacement unit of Adam Hall´s choice that is at least equivalent to your Adam Hall branded
product in hardware performance.
Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not
responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam
Hall branded product.
This Limited Warranty does not apply,
- to wear parts (e.g. accumulator)
- to any product from which the serial number has been removed or that has been damaged or rendered defec
tive as the result of an accident
- in case of, misuse, abuse, or other external causes
- by operation outside the usage parameters stated in the user´s documentation shipped with the
product
- by use of spare parts not manufactured or sold by Adam Hall
- by modification or service by anyone other than Adam Hall
These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam
Hall regarding the Adam Hall branded product you have purchased.
MANUFACTURER´S DECLARATIONS:
19
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

LIMITATION OF LIABILITY
If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy
shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited
to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware
components that malfunction in conditions of normal use.
Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost
profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by
a third party or made by you for a third party.
This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty
or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limi-
tation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if
you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages.
This limitation of liability however, will not apply to claims for personal injury.
This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to
state or from country to country. You are advised to consult applicable state or country laws for a full determina-
tion of your rights.
REQUESTING WARRANTY-SERVICE
To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which
you purchased the product.
EG-DECLARATION OF CONFIRMITY
These products meet the essential requirements as well as the further standards of the EU Directives 199/5/EU,
89/336/EU.
CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncon-
trolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an enviromentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal
MANUFACTURER´S DECLARATIONS:
20
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
