LD WATS 1 User manual

AF LEVEL AF LEVEL
MIN MINMAX MAX
- 6 -3 0 3 - 6 -3 0 3
POWER
UHF PLL DUAL CHANNEL Audio Transmission Wireless System
WATS1 850.050 & 861.050 MHZ* (WATS2 863.900 &864.900 MHz*)
Telekommunikationsbehörde.
n
WATS 1(2) User Manualwww.ld-systems.com
UHF W irele ss Rece iver
WATS-R
UHF W irele ss Rece iver
WATS-R
WATS- T UHF DUAL CHANNEL WIRELE SS TRAN SMITT ER
*Registration or licensing not required in most EU countries. Please inform yourself at your local market surveillance authorities
for telecommunication

D.C .12-1 8V IN
300 mA
D.C .12-1 8V IN
300 mA
ANT ENN A-AANT ENN A-AANT ENN A-BANT ENN A-B
AF IN PUT MODE
AF IN PUT MODE
A+B A+B STE REO STE REO
+
CH- B AF INPUTCH- B AF INPUT CH- B AF INPUTCH- B AF INPUT
1 2 3 5
POWER
AF LEVEL AF LEVEL
MIN MINMAX MAX
-6 -3 0 3 -6 -3 0 3
ON/STANBY
POWER
TRIM TRIM
CH CH -A -A CH-B CH-B
3
1
1
2
2
3
3
4
5
4
5
6
1 2 3 4 5 6
2
-
+
-
+
POWER
AF LEVEL AF LEVEL
MIN MINMAX MAX
- 6 - 3 0 3 - 6 - 3 0 3
ON/STANBY
POWER
TRIM TRIM
CH CH -A -A CH-B CH-B
46
6
UHF W irele ss Rece iver
2x Receiver
2"AA" Batteries
Power Supply
User's Manual
2x Adapter Cable 3,5mm
Mini Jack > XLR male
Transmitter
Antenna

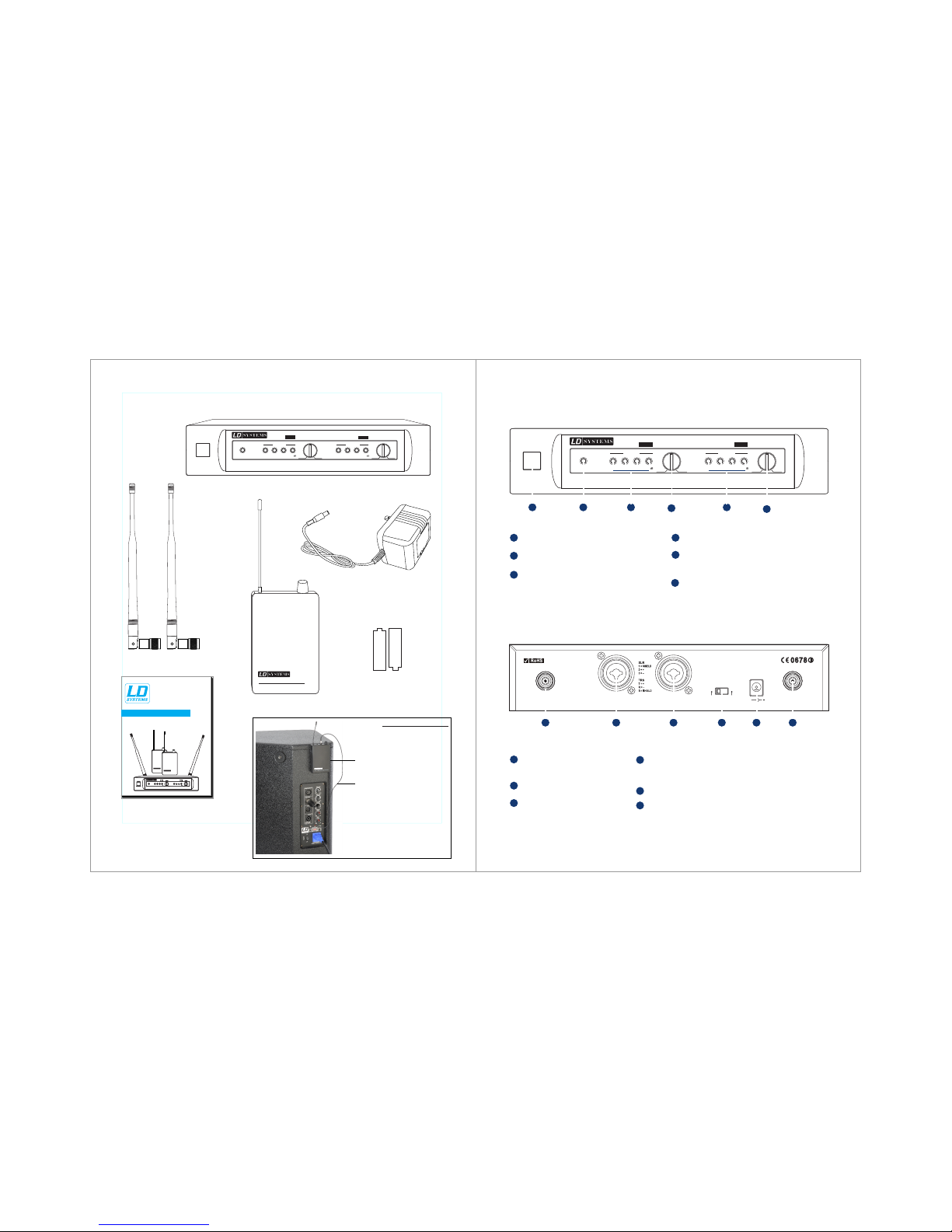

System Parts：
Rear Panel:
WATS-T Transmitter Features:
Front Panel:
On/Off switch
Power indication light
Channel A audio input jack
Channel B audio input jack
Antenna jack B 50Ω
Antenna jack A 50Ω
AC adapter jack
Channel A audio input level control
Channel B audio input level control
Channel A audio level indicator light
Channel B audio level indicator light
Channel A input audio-signal intensity.
Channel B input audio-signal intensity.
Audio Input transfer switch
Switch to the left, Channel A and Channel B input together
Swtich to the right, Channel A and Channel B input seperately.
WATS-R
WATS- T UHF DUAL C HANNE L WIREL ESS TRA NSMIT TER
AF LEVEL AF LEVEL
MIN MINMAX MAX
-6 -3 0 3 -6 -3 0 3
POWER
UHF PLL True Diversity Audio Transmission Wireless System
WATS1 850.050 & 861.050 MHZ* (WATS2 863.900 &864.900 MHz*)
WATS 1(2) User Manual
UHF Wireless S tereo R eceiv er
WATS1-R
UHF Wireless S tereo R eceiv er
WATS1-R
WATS-T UHF DUAL CHAN NEL WIR ELESS T RANSM ITTER
WATS-T UHF DU AL CHANNEL WI RELES S TRANS MITTE R
2x Velcro Hook and Loop
Picture of Application
WA S1-
TR

4
124
WT
AS-R
Hr l s e ei er
UF Wi e es R c v
3
-
+
+
-
Specifications
Frequency Range and Transmitter Output Level
Operating Range Under Typical Conditions
> 50m
Note: actual range depends on RF signal
Frequency Range:
WATS1 850.050 & 861.050 Mhz
WATS2 863.900 & 864.900 Mhz
Transmitter Output Level: 10dBm
absorption, reflection and interference
Audio Frequency Response (+/-3dB)
30Hz~20KHz
Total Harmonic Distortion (+/-30KHz deviation
1KHz tone)
<1%
Dynamic Range
>90dB A-weighted
Operating Temperature Range
-10 C to +50 C
Note: battery characteristics may limit this range
Max Audio input level
+12dBV
Gain Adjustment Range
40dB
Input Impedance
100K
Dimensions
44mm H * 212mm W*160mm D
Weight
905 gr.
Power Requirements
2 size alkaline or rechargeable
batteries
“AA”
Battery Life
>10 hours
Max. Audio Output Level
+3dBV
XLR input
Impedance balanced
Pin1：Ground(cable shield)
Pin2：Audio
Pin3：No Audio
Sensitivity
-94dBm for 30dB SINAD, typical
Image Rejection
>70dB
Dimensions
95mm H*65mm W*25mm D
Weight
90 gr. (Without batteries
Power Requirements
12-18 V dc at 400mA，supplied by external
power supply
Bodypack Receiver
System
Transmitter

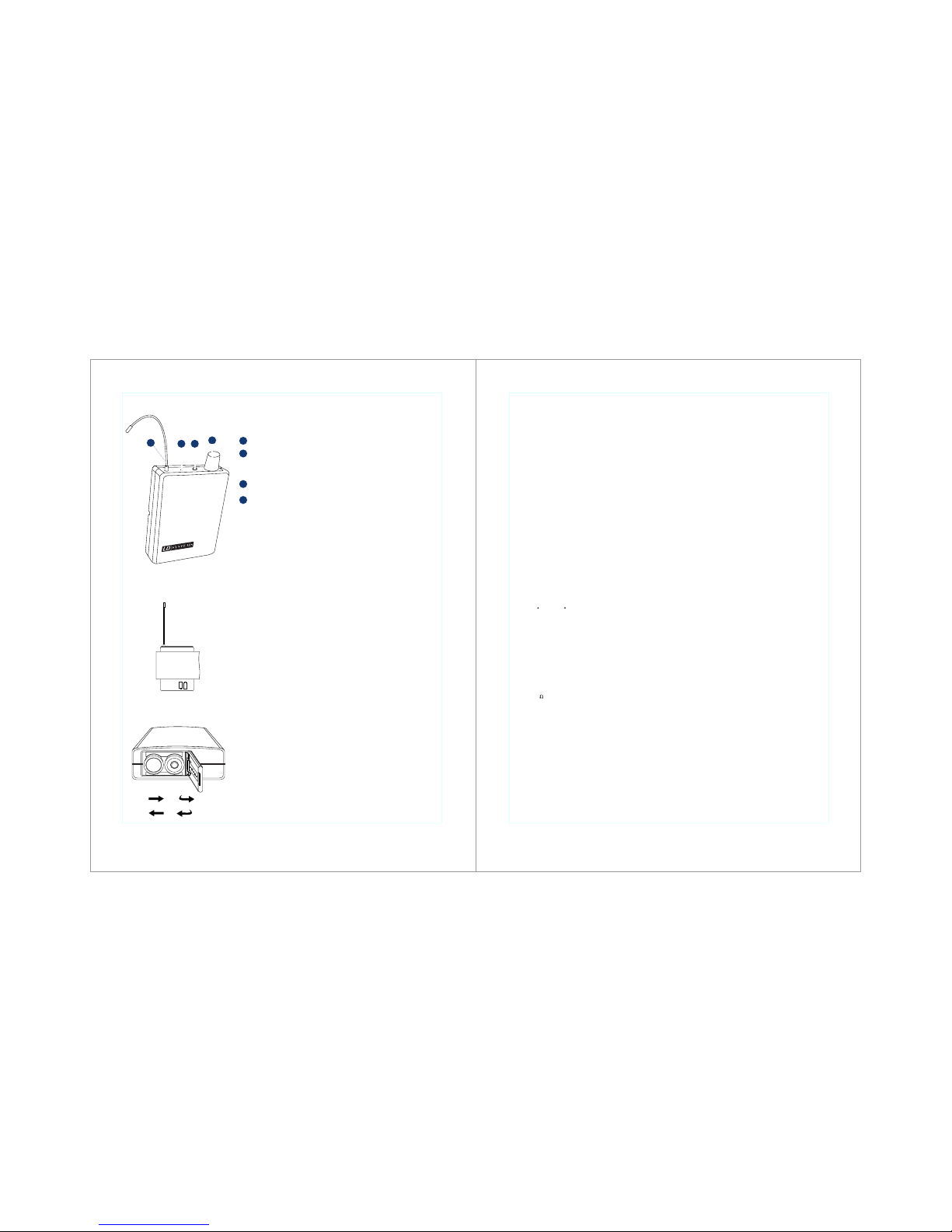

Mounting the Receiver
To mount the Receiver on the speaker cabinet use the included
Velcro hook and loop. Glue the Velcro on the speaker cabinet and
receiver on an optimal position. We recommend the position on
the top of the cabinet so that the antenna is clearly visible.
Connect the adapter between the receiver and line input and
adjust the volume.
(See Picture of Application on Page 2)
Changing Batteries
Expected life for two Alkaline batteries is approximately 10 hours.
When the battery sign flashes, the batteries should be
changed immediately.
Open
Close
1
2
3
4
Antenna
Audio output control and On/Off switch
Turn left for output level decrease, turn right for output
level increase.Turn to the very left to turn the device off.
Receiver
Features:
Audio output jack(Balanced -like output )
Battery & Signal Indicator
Green light indicate signal received from transmitter
Red light indicates low battery

(Applicable in the European Union and other European countries with separate
collection systems)
This marking shown on the product or its literature, indicates that it should not be
Disposed with other household wastes at the end of its working life. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please
Seperate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.
(Waste Electrical & Electronic Equipment)
Correct Disposal of This Product
Recycling
(Batteries or rechargeable batteries)
The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special
waste or return them to your specialist dealer. In order to protect the environment, only dispose
exhausted batteries. Together for a good nature.
EG-Konformitätserklärung
Diese Geräte entsprechen den grundlegenden Anforderungen und den weiteren Vorgaben der Richtlinien 1999/5/EU, 89/336/EU und
73/23/EU. Die Erklärung steht im Internet unter zum Download zur Verfügung.
CE Declaration of Conformity
This equipment is in compliance with the essential requirement and other relevant provisions of Directives 1999/5/EC, 89/336/ES or
73/23/EC. The declaration is available for donwload on the internet site at www.adamhall.com. Before Putting the device into
operation, please observe the respective country-specific regulations!
Déclaration de conformité pour la CEE
Ces appareils sont conformes aux exigencies essentielles et aux autres dispositions pertinentes de les Directives 1999/5/EC,
89/336/EC et 73/23/EC. Vous trouvez cettedeclaration dans la internet sous www.adamhall.com. Avant d'utiliser l'appareil,
dans votre pays.
Dichiarazione di vonformità UE
I presenti apparecchi sono conformi ai requisiti fondamentali e alle ulteriori prescrizioni delle normative 1999/5/EU, 89/336/UE e
73/23/UE. Il dichiarazione disponibile sul sito Internet . Prima della messa in funzione seguite le prescrizioni
Declaración de Conformidad
Este equipo cumple tanto los requisitos esenciales como otras disposiciones de las Directivas 1999/5/CE, 89/336/CE y 73/23/CE. Si
desea leer el declaración, visite la página www.adamhall.com. Anterior a la puesta en funcionamiento deberán observarse las
correspondientes ordenanzas nacionales!
EU-verklaring van overeenstemming
Deze apparaten voldoen aan de fundamentele eisen en overige voorschriften van de richtlijnen 1999/5/EU, 89/336/EU en 73/23/EU.
Het verklaring is op internet onder www.adamhall.com beschikbaar. Voor inbedrijfstelling dient u de afzonderlijke landspecifieke
voorschriften in acht te nemen!
www.adamhall.com
www.adamhall.com
Safety instructions
No user serviceable parts inside! Never open the transmitter, otherwise you can receive an
electric shock. If units are opened by customers in breach of this instruction, the warranty
Becomes null and void.
Use the transmitter in dry rooms only. Never expose it to water (eg: never place it in a
position where it could be subjected to water splashes). Do not place any objects containing
liquids on the top of the unit.
Keep the transmitter away from direct sunlight, central heating radiators, electric heaters and
similar sources of heat. Ensure sufficient ventilation, especially when it is mounted into a 19”
Rack.
Use a damp cloth for cleaning the unit. Do not use any cleansing agents or solvents.
6 7
