LDT Kabel Booster 1m Technical manual

Littfinski DatenTechnik (LDT)
Operation Instruction
Connection Cable (1m)
for the 5-poles Boosterbus
from the Digital-Professional-Series !
Kabel Booster 1m Part No.: 000123
Twisted and interference protected for the
connection of Digital Command Stations (e.g.
Märklin Control Unit, Central Station 1and 2,
DiCoStation and KeyCom as well as
Intellibox, TWIN-CENTER, EasyControl,
ECoS 1 and 2, Commander) with Boosters
(e.g. 6015 / 6017, Power 3, TWIN-BOOSTER,
DB-2 and DB-4) and for the connection of
Boosters to each other.
This product is not a toy! Not suitable for children under 14 years of age! The kit
contains small parts, which should be kept away from children under 3 years of
age! Improper use will imply danger of injuring due to sharp edges and tips!
Please store this instruction carefully.
CE Part-No.:
1370366
Introduction / Safety Information:
You have purchased the connection cable Kabel Booster 1m
for the 5-poles Boosterbus for your digital model railway.
The connection cable is a high quality product which is supplied
within the assortment of Littfinski DatenTechnik (LDT).
We are wishing you having a good time using this product.
The connection cable comes with 24 month warranty.
•Please read the following instructions carefully. Warranty will
expire due to damages caused by disregarding the operating
instructions. LDT will also not be liable for any consequential
damage caused by improper use or installation.
•Attention: Please switch off your model railway by
disconnecting the transformers from AC-current before
starting any installation.
Connecting the Kabel Booster 1m:
The connection cable Kabel Booster 1m consists of a 1 meter
twisted bus cable with two original connectors such as used
on several digital components supporting the 5-poles
boosterbus (e.g. Digital Command Stations Märklin Control
Unit, Central Station 1and 2,DiCoStation and KeyCom as
well as Intellibox, TWIN-CENTER, EasyControl, ECoS 1 and
2, Commander and Booster 6015 / 6017, Power 3, TWIN-
BOOSTER, DB-2 and DB-4).
1 m
weiss
white
weiss
white
The first Booster has to be always directly connected with the
5-poles booster-bus cable Kabel Booster 1m to the Digital
Command Station.
The second Booster shall be connected to the first etc.
If you want to create a connection to the DigitalBooster DB-2
or DB-4you have to plug one connector of the Kabel Booster
1m to the digital command station or to the previous booster.
The position of the inserted plug at the Control Unit, Intellibox,
TWIN-CENTER, EasyControl, Commander, Märklin Booster
6017, Power 2and Power 3is correct if the cable shows to
the bottom. At the Märklin Booster 6015 the Kabel Booster
1m has to show to the top.
The booster-bus socket of the Central Station 2 is located at
the underside of the Digital Command Station.
The Digital Command Stations Central Station 1 and ECoS 1
and 2contain a plug-in connection clamp for the 5-poles
booster-bus connection.
For those and other digital command stations you can find
colored samples at the Internet on our Web-Site (www.ldt-
infocenter.com) within the section “Sample Connections” to
show you the correct connection of the Kabel Booster 1m.
At the DigitalBooster DB-2
and DB-4connect the
second plug of the Kabel
Booster 1m onto the
pinbar ST1 which is
marked with “IN”.
Please take care that the
white single wire of the
Kabel Booster 1m
corresponds to the white
marking at the pinbar ST1.
The plug of the 5-poles
booster bus cable has been
correct attached onto the
DigitalBooster DB-2or
DB-4if the twisted cable
shows away from the
booster.
K
KL2
16...18V~
Littfinski DatenTechnik (LDT)
J
LED1
+
red brown brown yellow
OUTIN
ST1 ST2
DB-2
Rev. 2.4
KK1
MF1
KL1
L ittfinski D aten T echnik ( LDT )
D-25492 Heist
www.ldt-infocenter.com
Digital-Profi werden!
2,5 Ampere Booster für die Digitalformate
Marklin-Motorola, mfx®, M4 und DCC.
DigitalBooster-2
DB-2
Multi-Digital
Vom Modellbahntrafo
Fromtransformer
rot
red braun brown gelb
yellow
braun
brown
Zum nächsten Booster
To next booster
Boosterkabel von
der Zentrale oder vom
vorhergehenden Booster
Boostercable from
command station or from
previous booster
Zum Gleis
To the track
weiss
white
weiss
white
If a following Booster shall be connected to a DigitalBooster
DB-2or DB-4by use of the 5-polige Boosterbus-Cable this
has to be done via the pin-bar ST2 (“OUT”).
Zum Gleis
To the track
DB-4
Rev. 1.4
KL3KL4KL2
STOP/GO
EDC
BU2 BU3
ST2ST1
IN OUT
Feedback
A
T
JP5
2,5 4,5
ShortReport
RailCom
GoAuto
ON OFF
JP4 JP3 JP2 JP1
MMDCC
BU1
JK
Littfinski DatenTechnik (LDT)
+
STOPGO
LED2LED1
red brown
S1
+
Digital-Profi werden!
www.ldt-infocenter.com
L ittfinski D aten T echnik ( LDT )
D-25492 Heist
Multi-Digital
DigitalBooster
DB-4
2,5 / 4,5 Ampere Booster für die Digitalformate Märklin-
Motorola, mfx ® , M4 und DCC.
2,5 / 4,5 ampere booster for Märklin-Motorola, mfx ® ,M4
and DCC.
braun
brown
J
rot
red
K
Vom DB-4-PowerSupply
From DB-4-PowerSupply
weiss
white
Zum nächsten Booster
To next booster
Boosterkabel von
der Zentrale oder vom
vorhergehenden Booster
Boostercable from
command station or from
previous booster

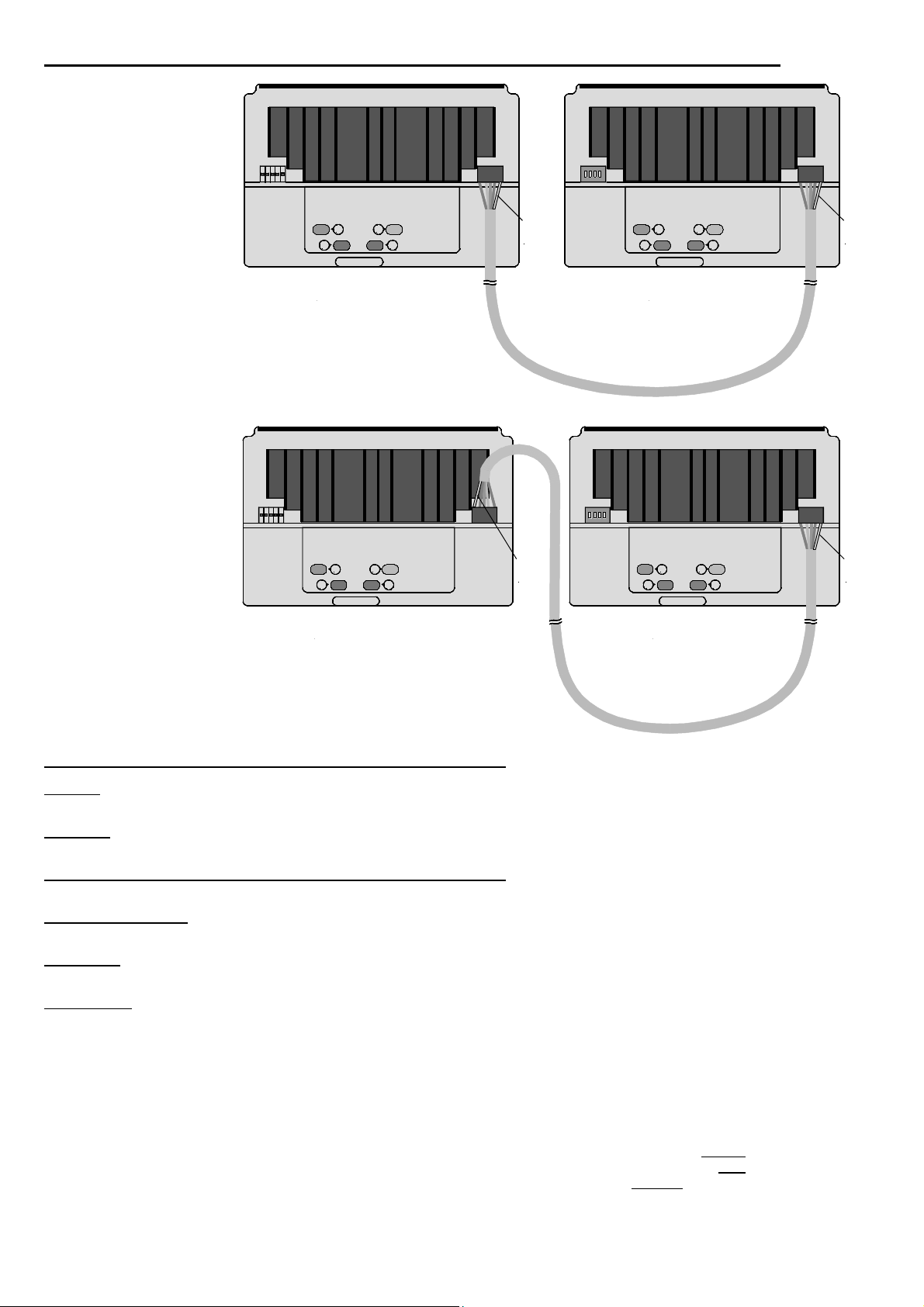

Using the Kabel Booster 1m on Märklin Control Unit and Booster 6017 / 6015:
The opposite sketch shows
the correct connection of the
Kabel Booster 1m on the
Märklin Central Station and
Märklin Booster 6017.
B
0
L
0
B
0
L
0
Booster 6017 Control Unit
weiss
white
weiss
white
The opposite sketch shows
the correct connection of the
Kabel Booster 1m on the
Märklin Central Station and
Märklin Booster 6015.
B
0
L
0
B
0
L
0
Booster 6015 Control Unit
weiss
white
weiss
white
Further products from the Digital-Professional-Series:
S-DEC-4
4-fold turnout decoder for four magnet accessories with free programmable decoder addresses and possible external power supply.
SA-DEC-4
4-fold switch-decoder with four bistable relays and free programmable decoder addresses and possible external power supply.
LS-DEC-DB, -DR, -KS, -ÖBB, -SBB, -NS, -NMBS, -BR, -FS, -SNCF, -SJ
4-fold light signal decoder. Light signals switched directly via decoder addresses.
RM-88-N / RM-88-N-O
16-fold feedback modules for the s88-feedback bus. RM-88-N-O with integrated opto coupling.
RM-GB-8-N
8-fold feedback modules with integrated track occupancy detectors for the s88-feedback bus.
HSI-88-(USB)
High Speed Interface for the s88-feedback bus. Offers the possibility to create three feedback lines. The feedback reports will be
transmitted directly via the command station via the COM-(HSI-88) or the USB-Interface (HSI-88-USB) to the PC.
