Le Wheel ES-01 User manual

ES-01 User Manual
Product user manual
Please read this manual before using the product

“We would like to thank you for choosing our product”

Contents
Safety driving caution........................................01
Product components………..................................02
Product information...........................................05
Folding and unfolding.........................................06
Control Panel…………...........................................07
Battery………….....................................................09
Tips......................................................................11

- 1 -
Safe driving caution
Please read this user manual before using this product
Warning：
1、Do not disassemble this product without permission. If there is any problem,
please contact a qualified service provider。
2、Understand the product before riding, try to control the electric scooter, please
slow down when turning, give a certain braking buffer time。
3、Do not drive in an environment where there is a risk of accidents。
Safety regulation：
1、Do not do any dangerous movements, always keep your hands on the handle。
2、Do not drive on steep slopes or stairs。
3、Don't put heavy things on the handles。
4、Electrical products may cause corrosion or breakdown in a humid environment。
Accident prevention：
1、Please wear safety protective equipment (helmet, protective gear, etc.) when
driving.
2、When practicing on an electric scooter, find an open area free of obstacles.
Stand with your feet in front of you and behind you for a more stable ride. Avoid
putting body gravity on the handle when accelerating or decelerating.
3、Please pay attention to the terrain and ground, if driving on unpaved roads,
please go slowly。
4、The electronic control system of this product is safe first, please do not replace
the circuit or install other electrical equipment。
5、Avoid riding in crowded places or where there are pedestrian safety issues.。
6、Low speed is recommended on ramps。
9、It is not recommended to drive in heavy traffic, rain and snow.

- 2 -

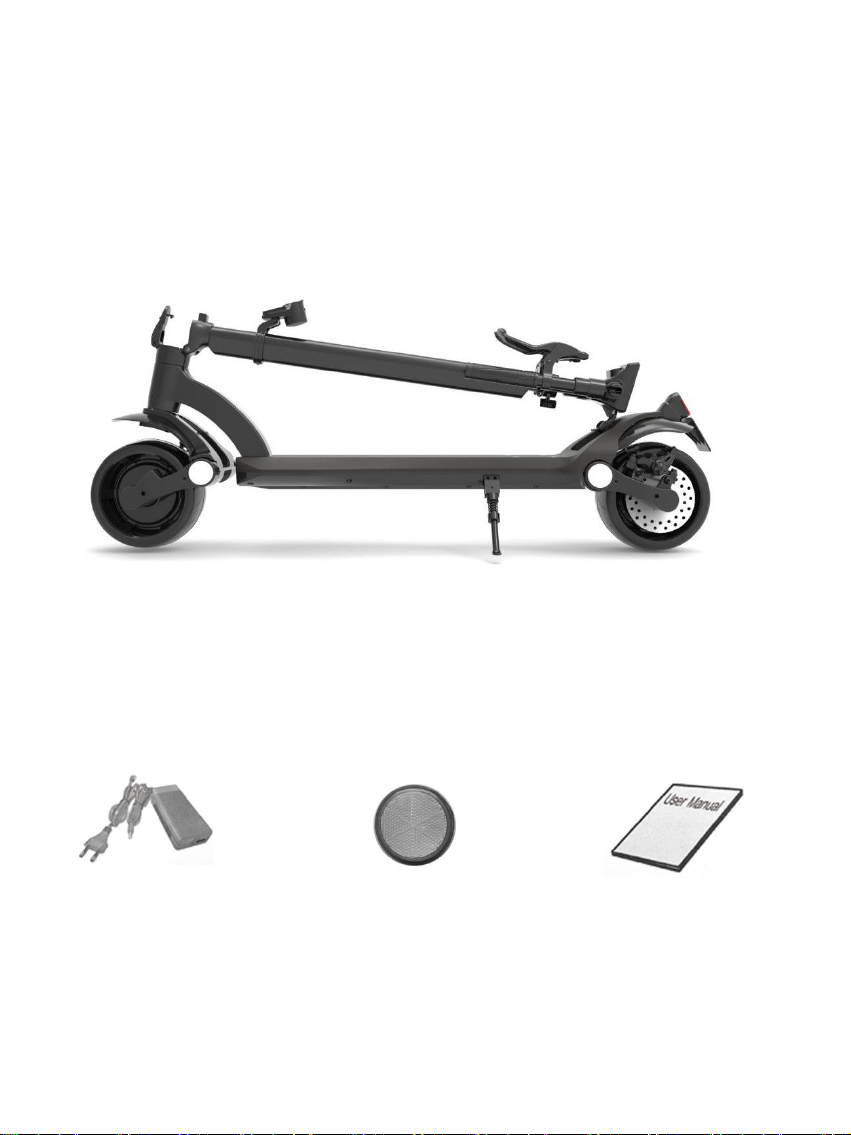

Configuration and item names
Lewheel scooter：
Accessory：
Power adaptor×1 Reflector×4 User manual×1

- 3 -

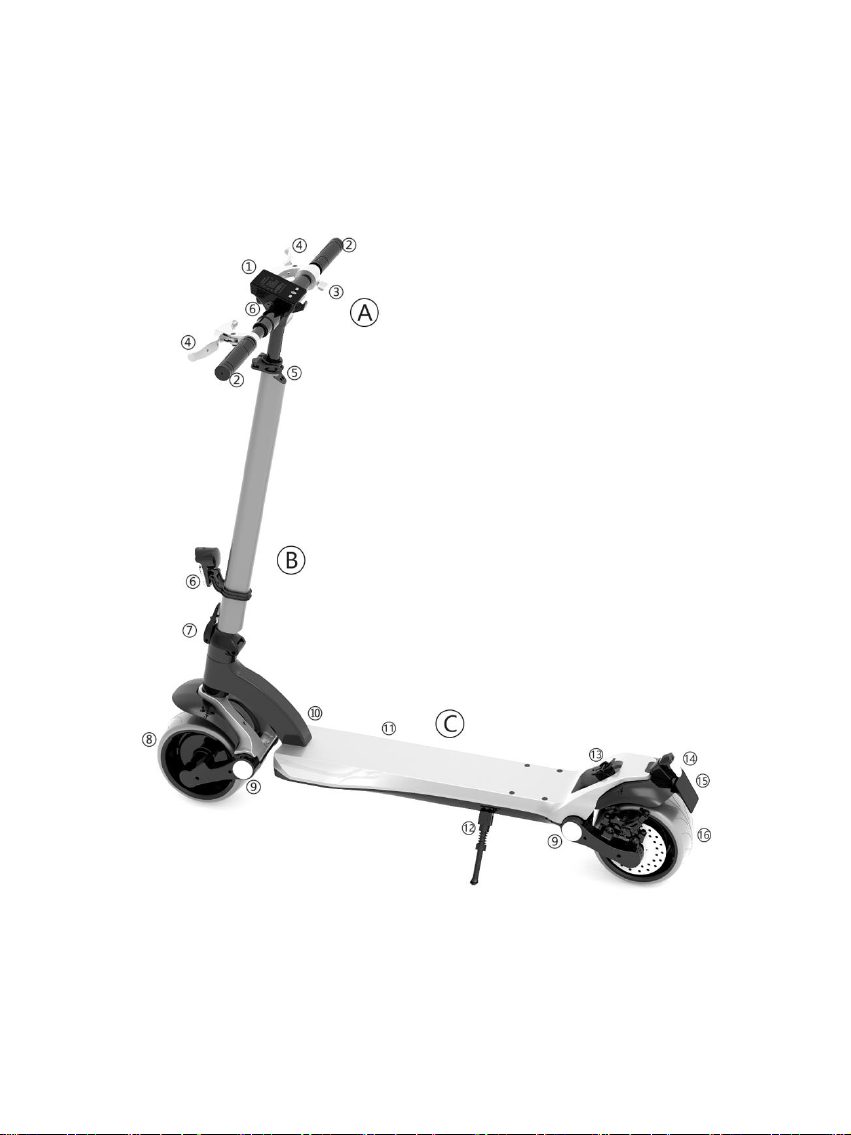

External parts
① Control Panel
② Handlebar
③ Accelerator
④ Brake
⑤ Extension buckle
⑥ Front light
⑦ Folding lock
⑧ Front wheel
⑨ Reflector
⑩ Charger port
⑪Footbed
⑫Stand
⑬Folding hook
⑭Tail light
⑮Number plate
⑯Rear wheel

- 4 -

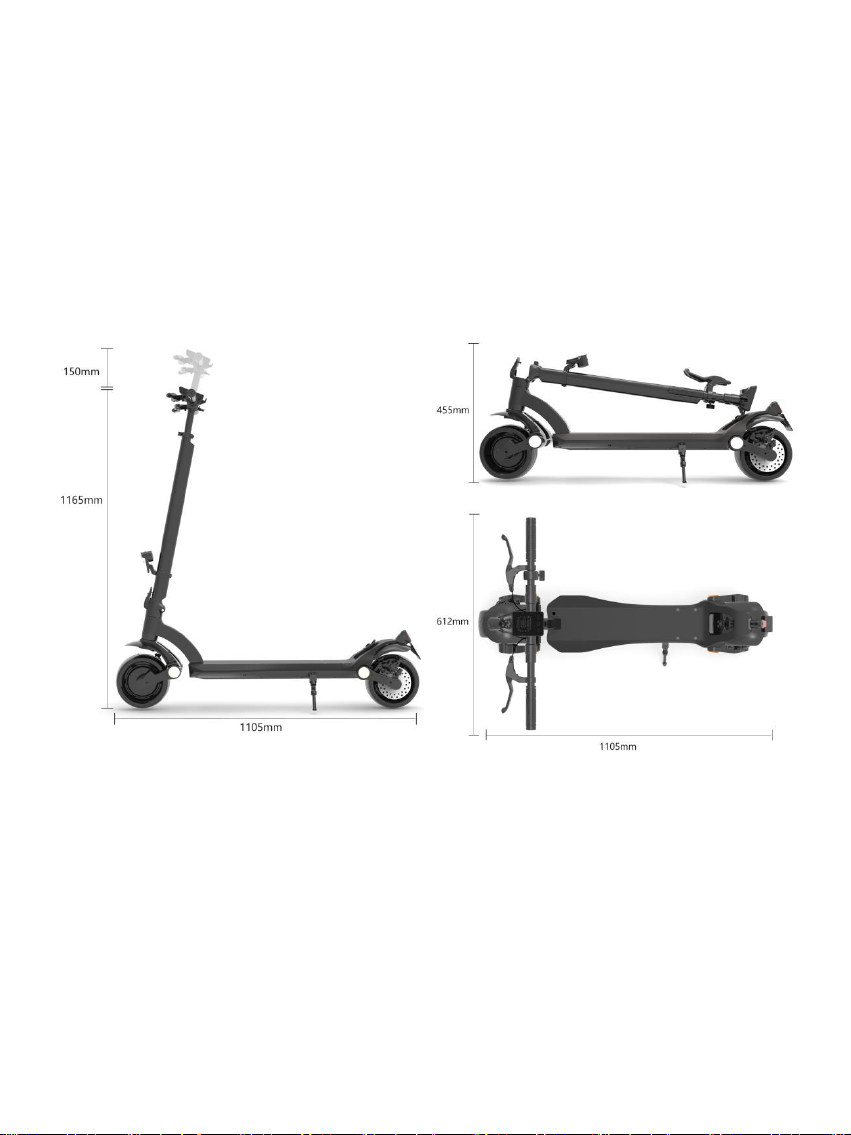

Scooter size

- 5 -
Product specification
Lights
Front：LED Lamp
Tail：LED Lamp
Brake
Braking distance：<4M
Method：Dual disc +Electric braking
Motor
Single rear：48v 500W BLDC Hub Motor
Dual front and rear
Battery
18650 battery cell
7.5ah/10ah/15ah
Voltage 48V
Charging time:4-6hours
Suspension
Link type
Front and rear suspension
Speed & range
Max speed: 25Km/h (speed limited)
Range: Single:30/40km, Dual: 50km
Other
Weight limited: 100kg
Max climbing: 20 degree
Tire: 100mm wide tire/ aluminum
Product weight: Single 19kg/21kg,
dual 23kg

- 6 -
Step 1：
①Grab both sides of the handle
with both hands and pull it out。
②Fold down 90° parallel to the
vertical rod。
Folding & unfolding
Step 3：
①Push the panel into the hook and
fold。
Picture 1
Step 2：
①Open the lock。
② Lower the pole down to level
with the pedal。
Expansion method: Contrary to the folding steps, lift the hook upward, erect the pole,
lock the folding buckle, and expand the handrail。
Folding method：
Picture 3
Picture 2

- 7 -
Control Panel operation instructions
Dashboard diagram：
Functional specifications：
ON： Long press Ⓐto power on
Off： Long press Ⓐto power off
Automatic power off：Automatic power off after 3 minutes without operation
Brakes: electronic brakes + disc brakes (taillights highlighted when
braking)
Lights: after power on, short press a Ⓐ, open headlight, brake taillight
on at low light。
Gear switch: Power on state, default is 1 (15KM/H);
press (Ⓑ Ⓒ) key to switch gear, Ⓑdecrease gears, Ⓒincrease gears;
Speed cruise: keep speed about 10 seconds automatically start cruise at
constant speed, while the buzzer has a long drip.
1Lamp
2Cruise model
3Sports model
4Blue tooth
5Speed
6Milage
7Setting
8Batter temperate
9Troubleshooting tips
10 Power display
ⒶPower On/off
Ⓑdecrease gear
Ⓒincrease gear

- 8 -
Control panel operation instructions
Parameter setting (setting function with memory)
1、Enter setup function: hold the Ⓑ Ⓒ keys at the same time for 5 s
(enter setup Settings icon lit)
2、Exit setting function: hold the Ⓑ Ⓒ keys at the same time for 5
s to exit setting mode (no action, 15S to exit automatically)
3、In Setting mode, the accelerator cannot drive the motor;
4、After entering the setting, the speed bar will display P1. Press the
power button to switch to P2, P3...
①、P1: Unit switch: 0-km /H 1-mph. In P1 interface, short press Ⓑor
Ⓒkey displays the current mode, double-click the switch again;
②、P2: Switch between zero startup and non-zero startup: 0-zero startup,
1-non-zero startup. In P2 interface, short press Ⓑor Ⓒkey displays
the current mode, double-click the switch again;
③ 、 P3: Cruise function switch: 0-off cruise, 1-On cruise. In P3
interface, short press Ⓑor Ⓒkey displays the current mode,
double-click the switch again；
Troubleshooting
E.1：The throttle fault
E.2：Over voltage fault
E.3：Low-voltage fault
E.4：MOS tube failure
E.5：Hall line failure of motor
E.6：Locked-rotor fault
E.7：Operational failure
E.8：The brake failure
E.9：Communication failures

- 9 -
Battery charging
Open the charging port at the front of the car (as shown in the picture) and connect
the power cord to the charging port
●Make it a habit to charge the battery as you use it, so that the battery
is always fully charged。
●Fully charged for about 5 hours to avoid overcharging.
●When the LED screen indicates that the battery is about to run out,
please charge it in time.
●When the battery is charged, the power adapter LED light is red.
●The power adapter LED light is green when the battery is full.
●Charging shall be carried out in a well - ventilated environment.
●Do not use the product while the battery is charging.
●If the battery is placed for a long time, it needs to be fully charged
and replenished regularly, generally once a month.

- 10 -
Battery maintenance
●A standard power adapter supplied with the product must be used.
Non-standard power adapters may cause damage to the product.
● Charging environment is 0-40℃. And should be stored at a temperature
between -20 ℃ and 60℃. Charging or discharging temperatures above
this range may damage the battery.
● Avoid prolonged exposure to sunlight or high temperatures.
● Products and power adapters should be kept in a safe place without
flammable materials around them.
● If winter comes from the cold outside into a warm space, the
temperature difference may cause dew to form inside. Don't charge it
immediately. Let it sit for a while, then charge it when the temperature
difference decreases.
● If the protective circuit is damaged, if the battery has any leakage
or odor, stop using it immediately and contact your service provider
for technical support and services. Take care to avoid contact with
children or pets.

- 11 -
● Do not short circuit or change the polarity of the charging terminal.
●Be careful that batteries may be damaged or explode in the event of
external shocks or short circuits.
● Please do not connect the power adapter to the water, there is a risk
of electric shock. In case of water in the battery, stop using
immediately.
● To prevent exposure to the sun, the temperature of the environment
will increase the internal pressure of the battery and make the battery
water loss, causing the decline in battery activity, accelerate the
plate aging.
● Do not dismantle, incineration is prohibited in the treatment,
should be classified treatment.
● The battery energy density is very high, so if the battery pack is
charged for a long time in the case of short circuit, short circuit,
leak or battery failure, it is possible to ignite. Therefore, in the
case of no one, should avoid charging for a long time.

- 12 -
Tips:
1、How to ride and use electric scooter?
Standing on one leg and gliding at a speed of 3Km/h, you can accelerate by
pressing the accelerator with your finger. The accelerator will not start until a taxi
speed of 3Km/h is reached. (It can be adjusted to non-zero startup after getting
familiar with the product)
2、What do electric scooters require of riders?
The applicable age of electric scooter is 16-50 years old, the applicable height is
120~200cm, and the maximum load is 100Kg.
3、Can electric scooters be ride on rainy days?
Electric scooter dustproof and waterproof grade IP54, rainy day road skating
recommended slow speed.
4、What are the advantages of the ES-01 electric scooter with a solid wide tire?
The ES-01 electric scooter USES a 100mm wide tire with a solid core, large
touchdown area, strong grip and anti-skid wear.
5、What cycling mode is suitable for beginners?
Beginner cycling is suitable for first gear cycling, with a maximum speed of
15km/h.

- 13 -
Warranty terms
Warranty period
-The term refers to the quality, performance, and function problems that are
happened during the production process and can be applied free of charge service.
Based on purchase time
-The warranty period begins on the basis of the invoice date on the day of
purchase
-If the date of purchase date cannot be confirmed, the calculation of the period of
six moth from the date of production of the product
Different product warranty period(from purchase time)
1. Body parts (hardware and plastic part): 12 months
2. Electric parts (Motor, controller and PCB, charger, battery): 6 month
-Failure of the same part after warranty period can be repaired again without
compensation within 2 month.
Exceptions
-when the follow conditions occur during the warranty period, the consumer will
bear the cost of repairs.
1. when the user improper use
2. In case of unauthorized decomposition or modification of product not for
normal use
3. Failure due to external shock or custody
4. in the case of unconfirmed warranty or purchase contents
5. damage caused by water or foreign material contamination
6. Not using original parts or batteries of our company.

- 14 -
Zhuhai Xiaolun Intelligent Technology Co. LTD
www.lewheel.cn
