Leader MIX Portable User manual

1

2
Reference
Product
I40.90.110
Leader-MIX CLASSE B/AR & CLASSE A 200-1000 lpm 2.5’’ BSP F/F
Modèle Portable
I40.90.112
Leader-MIX CLASSE B/AR & CLASSE A 200-1000 lpm 2.5’’ BSP F/F
Modèle Fixe (Avec pupitre de commande à installer sur véhicule ou en installation fixe)
I40.90.118
Leader-MIX CLASSE B/AR & CLASSE A 50-275 gpm 2.5’’ NH F/M
Portable Model
I40.90.119
Leader-MIX CLASSE B/AR & CLASSE A 50-275 gpm 2.5’’ NH F/M
Fixed Model Fixe (With control panel to install on vehicle or in fixed installation)
Reference product

3
1INTRODUCTION 4
2PRESENTATION 5
3SAFETY INSTRUCTIONS 6
4USAGE PRECAUTIONS 6
5GENERAL FEATURES 7
6COMMISSIONING INSTRUCTIONS 8
7SETUP 8
7.1 Portable Model 8
7.2 Fixed Model 10
7.2.1 Body 10
7.2.2 Remote controle console 12
7.2.3 Typical example of a fixed installation 13
7.2.4 Use 13
8MAINTENANCE OPERATIONS 15
8.1 Portable Model 15
8.2 Fixed Model 16
9IDENTIFICATION 17
10 TROUBLESHOOTING 17
11 SPARE PARTS 17
12 WARRANTY 18

4
1INTRODUCTION
The Leader MIX CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) is a variable flow dosing system which
can be used to inject foam concentrate into a pressurised water network.
There is a remote console for the Fixed model.
The Leader MIX CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) automatically adapts to the network flow.
The Portable model is equipped with a pressure meter and a suction indicator.
The Fixed model is equipped with a remote console.
It works similarly to in-line venturi injectors, it replaces 3 traditional injectors: 200, 400 and 800 L/min (50, 100 and 200 gpm).
It does not require a power supply or specific maintenance (just rinse and purge the system after use).
There are 2 models: Portable or Fixed.
Leader MIX
Foam concentrate
Suction tube
Portable model
Foam concentrate
Water
Remote controle console
Leader MIX
Fixed Model

5
2PRESENTATION
The different actions are performed by moving the dials as follows:
Description :
Purge button
Press
Injection selector
Turn Right/Left

Dosing selector
Turn Right/Left

“Flush“ or “Flow“ Valve
Turn Right/Left

“Water“ or “Foam“ Valve
Turn Right/Left

Dosing selector
Output swivel
connector
Input swivel
connector
Suction connection
Front Remote console
(Control)
Front Remote console
(Connection)
Fixed Model
Portable Model
Purge button
Handle
Suction indicator
Input pressure meter
Connection canne
d’aspiration
Dosing selector
Input swivel
connector + filter
Injection selector
Output swivel
connector
- Injection selector
- Dosing selector
- Purge button (Portable model only)
-
- Injection selector: “Water“ or “Foam“
- Purge : “Flush“ or “Flow“

6
3SAFETY INSTRUCTIONS
- This equipment has been manufactured in accordance with CE directives. Its use is restricted to firefighting professionals.
- Please read this manual in full as well as the instructions for use before commissioning and using the equipment.
- Do not exceed 16 bars input pressure.
- Only qualified and trained personnel should operate or repair this device.
- Do not use it if you can see any damage.
- Always replace a defective part with an original part provided by LEADER.
- The device should not be disassembled when pressurised.
- Never allow a person to use the device without having provided them with the necessary instructions.
- Do not leave water inside the system if the temperature falls below 0°C (risk of freezing).
4USAGE PRECAUTIONS
Note: The Leader MIX CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) is a device used for
injecting foam concentrate. Suction of any other product is strongly discouraged and invalidates the warranty
if there are any problems.
This device is designed and made in FRANCE, in accordance with CE directives.
Use of this device is restricted to firefighting professionals.
The instructions for use and safety guidelines must be followed in order to prevent any accident. Any
disassembly or repair must be performed by LEADER or an approved dealer.
Always rinse and purge the device after use.

7
5GENERAL FEATURES
Portable Model
Fixed Model
Usage flow
200 à 800 l/min at 10 bars (50 to 200 gpm) to 145 psi
200 à 1050 l/min at 16 bars (50 to 280 gpm) to 230 psi
Usage pressure
5 at 16 bars ( 70 to230 psi )
Dosing
0.3%
0.5%
1%
3%
3%V → For viscous foam concentrates type AR (Resistant alcohol)
6% → Dosing 6% of 50 to 130 gpm
Input and output connection
Swivel connection
Input and output thread
2.5’’BSP female (2.5’’ NH F/M)
Storage temperature
-20°C at +60°C (-4°F to 140°F)
Usage temperature
Above freezing to +50°C (122 °F)
Pressure loss
35%
Flow indicator
Yes
No
Input pressure meter
Yes
Yes
(On the remote control console)
Handle
Yes
No
Suction tube
Storz D connection
No
Check valve on foam concentrate input
Yes
Yes
Purge button
Yes
Yes
(Remote control console valve)
Input filter
Yes
No
Control console
No
Yes
Weight: 3.5Kg +/-0.5Kg
L: 300 H: 200 P: 119 +/-5mm
W: 0.99 H: 0.65 D: 0.4 +/-0.019ft
Weight: 12.5Kg +/-0.5Kg
L: 486 H: 220 P: 274 +/-5mm
W: 1.6 H: 0.72 D: 0.9 +/-0.016ft
Weight: 14Kg +/-0.5Kg
L: 486 H: 237 P: 274 +/-5mm
W: 1.6 H: 0.8 D: 0.9 +/-0.016ft
H
H
L (W)
L (W)
P (D)
P (D)
P (D)
H
L (W)
Portable Model
Fixed Model
Remote console
L (W)
Weight: 1.5Kg +/-0.5Kg
L: 250 Ø1’’ +/-5mm
W: 0.82 Ø1’’ +/-0.016ft

8
The Leader Mix CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) is equipped with a suction indicator.
The Leader Mix CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) usage flow range varies depending on the
supply pressure. The table below can be used to assess the flow range depending on available pressure.
6COMMISSIONING INSTRUCTIONS
On delivery, visually inspect Leader MIX and its accessories to ensure there was no damage during transport.
Do not try to use Leader MIX if you can see any damage, inform LEADER immediately.
Ensure that each person responsible for the device/using this device has read the user instructions and safety guidelines.
7SETUP
7.1 Portable Model
1) Place the Leader Mix CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) on the ground, ensuring that no
stones, sand, debris or other objects are pushed inside.
Usage range :
3 examples
Max Flow
Inlet pressure
@ 16bars =
200-1050l/min
(@ 230psi =
50-280gpm)
@ 10bars =
200-800l/min
(@ 145psi =
50-210gpm)
@ 5bars =
200-600l/min
(@ 70psi =
50-160gpm)
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 bars
Lpm
1100
1050
1000
900
800
700
600
500
400
300
200
100
0
0 14 29 43 58 70 87 100 116 130 145 160 174 188 203 217 230 psi
Gpm
290
280
264
238
210
185
160
132
106
79
50
26
0

9
Suction indicator
Pressure indicator
2) Connect the device in accordance with the water direction.
3) Select the desired dose by turning the dosing selector to the desired percentage.
4) Prime the hydraulic network.
Regularly check on the input pressure meter and the operating indicator that the usage range is correct.
(See graph on page 8)
Minimum 5bars à 200 L /min (70psi to 50gpm), Maximum 16bars 1050 L /min (230psi to 280gpm).
5) Connect the suction tube pipe to the Leader Mix CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm)
and place the pipe in the foam concentrate tank.
Foam concentrate
Water
Mixture
Dosing selector
Storz D connection
Suction tube
Foam concentrate
Do not modify the length or
diameter of the suction tube

10
6) Position the injection selector valve to “FOAM“.
The device drains a small amount of water downwards.
7) Using position “Water“.
This position significantly reduces pressure loss in the system if the flow is below 800 l/min.
7.2 Fixed Model
7.2.1 Body
The Leader Mix CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) will be mounted on the vehicle or fixed
installation so the user is able to select the desired concentration on the dosing selector valve.
Leader MIX Dimensions :
- It will be fastened to the vehicle using 4 x M6 screws (not supplied).
M6 (0.02ft) screw (x4 not supplied)
Length to be determined by the installer
164 mm (0.54ft)
170 mm (0.56ft)
Selection on
Selection on

11
Connection :
➢Purge valves (responsibility of installer)
- valves will need to be installed for “Female 1/4ˮ G” connections intended for rinsing and purging water input and
output and foam concentrate rinsing, as well as for the “Male 1ˮ G” foam concentrate input.
- Remove the water input/output caps using a hex wrench/6 mm (0.02ft) and foam concentrate rinsing using a hex
wrench/5 mm (0.016ft) (fig 1), then mount the valves (fig 2) and ensure that they are sealed correctly.
➢Foam concentrate input and foam concentrate rinsing valves
Before use, close the water input/output purge valves and the foam concentrate rinsing valve and
open the foam concentrate input valve.
Clé 6 pans /6mm
(Non fournie)
Vannes purge d’eau
(Non fournies)
Connexion
F1/4 ˮG


Pressure indicator connection
Foam concentrate input
Rinsing connection
G 2ˮ1/2 water input
G 2ˮ1/2 water output

Foam concentrate
input valve
(Not supplied)
Check valve
connection
M1ˮG

Foam concentrate
rinsing valve
(Not supplied)

12

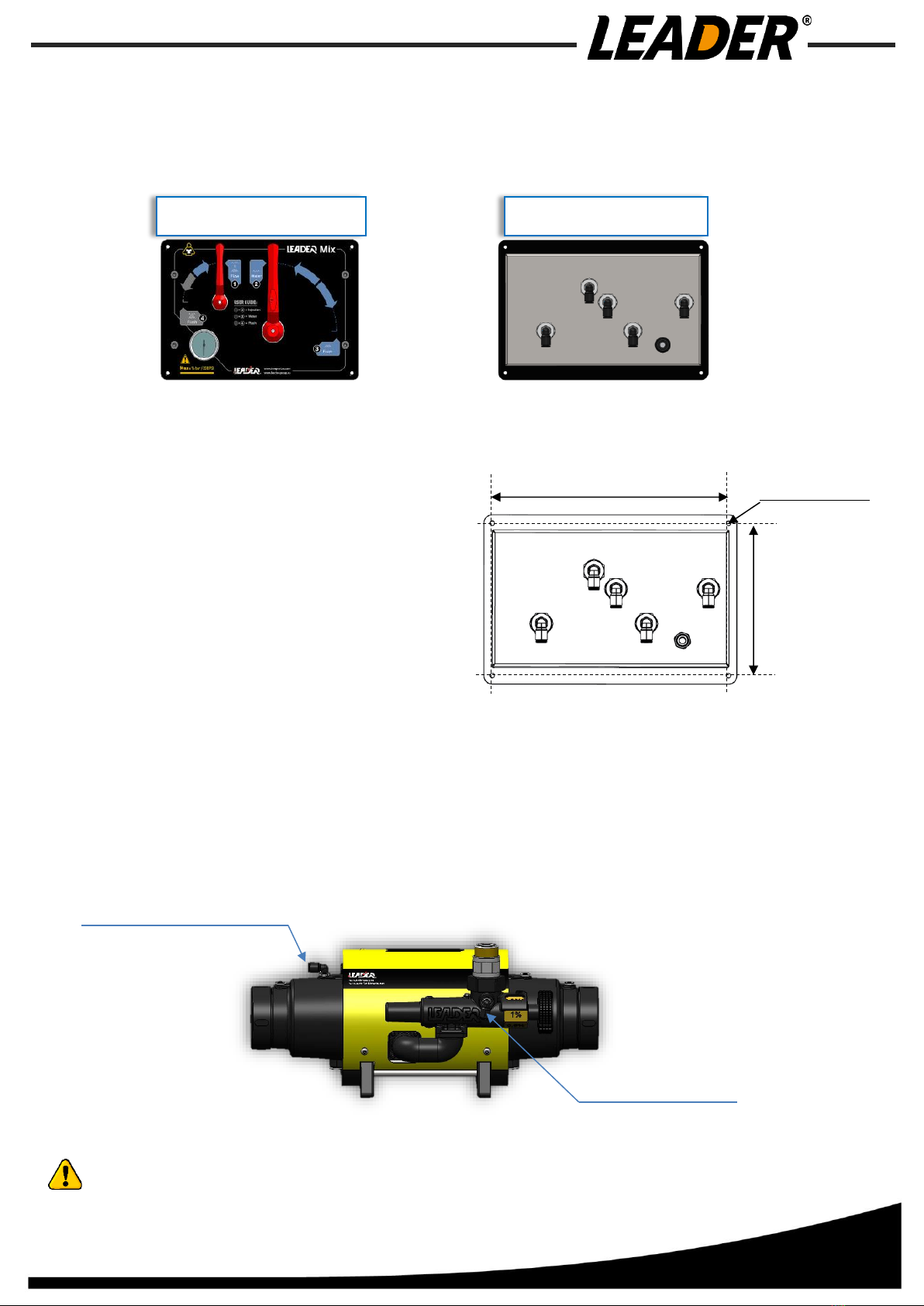

7.2.2 Remote controle console
For the Fixed Model, all Leader MIX CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm) functionalities can
be made remote via a console, which is very easy to connect.
The console allows you to:
- Show the pressure at the entrance of the Leader MIX.
- Select Water or Foam positions.
- Rinse the system.
Fixing points :
M5 (0.016ft) screw (x4 not supplied).
Length to be determined by the installer.
Connection:
The length of hose will depend on the distance between Leader MIX CLASSE B/AR & CLASSE A 200-1000 l/min
(50-275 gpm) and control panel.
To connect control panel to Leader MIX CLASSE B/AR & CLASSE A 200-1000 l/min (50-275 gpm), 8mm (0.026ft)
24 bars (350psi) pneumatic hose is recommended. LEADER can supply (optional) this hose. Item number is 2009779 and
it is sold on real of 30m (9.85ft).
After each disconnecting of hose it is mandatory to cut the end of the hose before reconnecting it.
Otherwise the connection might fail due to expansion
Rinsing connection
Pressure indicator connection
280mm (0.92ft)
180mm (0.6ft)
Ø5.50mm (0.017ft)
Rear Remote console
Front Remote console

13

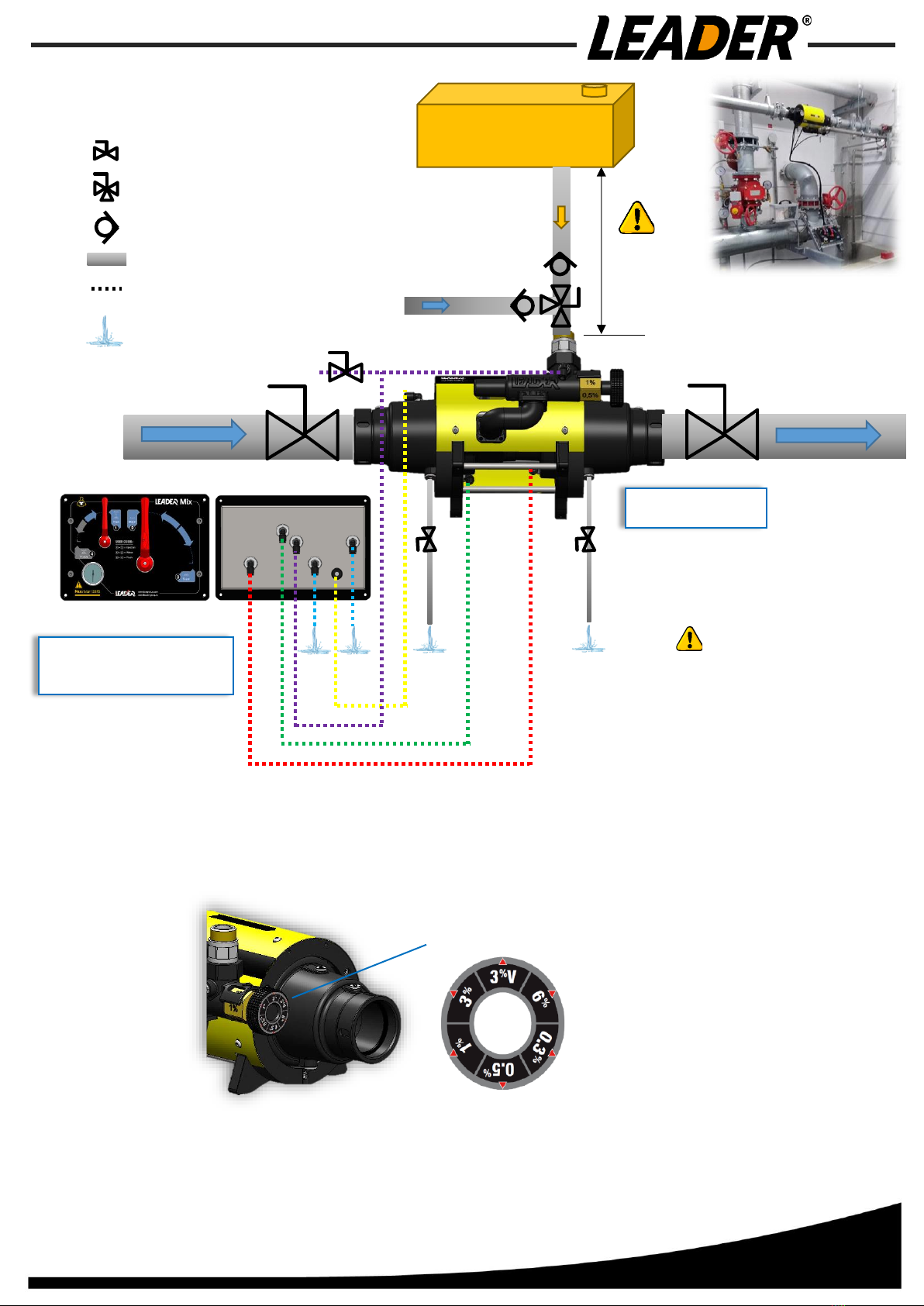

7.2.3 Typical example of a fixed installation
7.2.4 Use
1) Select the desired dose by turning the dial to the desired percentage.
Dosing selector
Foam concentrate tank
Max height
1.5m (4.92ft)
Air comprimé
2-way valve (not supplied)
3-way valve (not supplied)
Check valve (not supplied)
Pipe (Not supplied)
Purge
DN32 (0.10ft) or
DN40mm (0.13ft)
to limit pressure losses
8mm (0.026ft) pneumatic hose
(not supplied)
Remote controle
console
Leader MIX
Purge to the ground

14
2) Open the foam concentrate input valve.
3) Use of the remote controle console
(I) Injection mode
“Flow“ +“Foam“ 
(II) Bypass mode
“Flow“ +“Water“ 
(Stops injection and reduces pressure
drops below 800 l / min (211.4gpm))
(III) “flush“ mode
“Flush“ +“Water“ 
Foam concentrate input valve
(not supplied)

15
8MAINTENANCE OPERATIONS
8.1 Portable Model
Always rinse and purge the device after use.
1) Remove the suction tube from the foam concentrate tank by holding the tube on the Leader MIX.
2) Position the injection selector to “FLUSH“ & “WATER“.
3) Leave the water network pressurised (6 bars (87psi) maximum) and turn the dosing selector dial round twice whilst
pressing and holding the purge button. Water will then be directed through the foam concentrate circuit to clean it, and
then discharged through the suction tube pipe.
Suction tube
Foam concentrate
Remove the suction tube from the foam concentrate tank.
Move the dosing selector.
Keep the purge button held down.
(6bars (87psi) maximum)
Selection on
Water
Purge button
Dosing selector
Selection on

16
4) Position the injection selector to “FOAM“.
5) Cut off the water supply and disconnect the Leader MIX from the water pipes.
Drain any residual water inside the Leader MIX through the system inputs and outputs.
8.2 Fixed Model
In order to fully empty the Leader MIX for frost protection, please proceed as follows.
1) Finish using the product
2) Rinse.
- Close the Leader MIX downstream water outlet +shut off the foaming
agent inlet.
- Position one console valve to “Water“ .
- Position the other console valve to “Flush“ (several seconds) whilst
completing several full turns of the dosing selector.
- Position the console valve back to “Flow“ .
3) Drain. (See Fixed installation diagram on page 13)
- Shut off the Leader MIX upstream water inlet.
- Drain the fixed installation hydraulic network.
- Close the fixed installation hydraulic network drains.
- Open the Leader MIX drains.
- Inject the compressed air via a 2-way valve (not supplied) to be positioned
on the purple line in the diagram below (See Page 13).
- Switch the console valve from the “Water“ position to “Foam“ then from “Foam“ 
to “Water“ (Repeat 2-3 times).
- Shut off the compressed air inlet +close the Leader MIX drains.
Water input
Water output
Selection on

17
9IDENTIFICATION
10 TROUBLESHOOTING
11 SPARE PARTS
To locate and identify the parts of your Leader MIX CLASS B / AR & CLASS A 200-1000 l / min (50-275 gpm), please
contact us.. [e-mail]
Problem
What to do
Incorrect dosing or
no dosing
•Check that the injection selector is on “Foam”
•Check the foam concentrate input suction
•Check the position of the % dosing selector
•Check that there is foam concentrate left
•Check that the suction tube is not capped (Portable Model)
•Check the flow range and pressure
•Check that the suction tube has not been modified in length or diameter
•Check there are no impurities or debris (sand, stones...) at the injector input. If there are
impurities or debris (stones, sand...) inside the injector, turn to “Water” position: 5mm
debris can be removed
•Check the water pressure: it must be above 5 bars (72psi) (P8 usage range)
•Check the water flow: it must be above 200 l/min (50gpm) (P8 usage range)
•Check the foam concentrate status
•Check that the injector is not clogged due to insufficient rinsing
Incorrect rinsing or
no rinsing
•Check that the injection selector is on “Flush & Water”
•Turn the dosing selector round twice
•Keep the purge button held down when using (Portable Model)
•Check that the network is pressurised.
Designation
Serial number
Date of manufacturing
TYP: Leader MIX CLASSE B/AR & CLASSE A
200-1000 l/min
Réf: I40.90.xxx
S/N: I40/90/xxx/0100/xx
20xx Masse: xxKg
Reference
Weight
Manufacturer details

18
12 WARRANTY
LEADER equipment benefits from a limited contractual warranty from the date of the purchase, 2 years parts and labour
(excluding shipping and travelling fees). Normal wear parts are excluded from this warranty.
This warranty is specifically limited to replacing or repairing the equipment (or its parts) which after examination proves to
be defective for causes attributable to LEADER.
To claim under a warranty, the user (with LEADER’S approval) will need to return the equipment to LEADER, ZI des
Hautes Vallées, Chemin n° 34, CS 20014, 76930 Octeville Sur Mer, France as soon as possible following the discovery of
the defect.
After reviewing the equipment:
- If the defect is attributable to LEADER, it will repair it and assume the costs (excluding shipping and travelling fees),
- If the defect is not attributable to LEADER, see the procedures laid down in the out-of-warranty Defect paragraph.
This warranty does not commit LEADER in the following cases: failures resulting from improper handling, improper use
of the equipment, no maintenance or incorrect maintenance, incident affecting the hardware, repair or modification by
another company or non-authorised personnel.
OUT-OF-WARRANTY DEFECT OR EQUIPMENT NO LONGER COVERED BY THE WARRANTY
A complete diagnostic will be conducted on your defective equipment, at the end of which a detailed estimate will be sent
to you for the necessary repairs.
For failures and repairs no longer covered by the warranty, a diagnostic flat rate will be applied regardless of the
acceptance of the repair quote.

19

20
Package leaflet code: Leader MIX CLASSE B/AR & CLASSE A 200-1000 l/min.ZN5.2.EN.0
