Saris MTR User manual

MTR
Assembly Instructions | Instrucciones de montaje | Instructions d’assemblage
4031/4032
28572C_MTR Instruction Manual.indd 128572C_MTR Instruction Manual.indd 1 12/18/2020 4:23:26 PM12/18/2020 4:23:26 PM

TELL US WHAT YOU THINK
SARIS.COM/FEEDBACK
REGISTER YOUR PRODUCT FOR UPDATES
SARIS.COM/REGISTRATION
28572C_MTR Instruction Manual.indd 228572C_MTR Instruction Manual.indd 2 12/18/2020 4:23:31 PM12/18/2020 4:23:31 PM

3
LONG FOR THE RIDE
3
Just as no garage is complete without a bicycle, at Saris, we believe no car is
complete without a bike rack.
Since setting off on this journey nearly 30 years ago, Saris racks have freed
millions of bike-lovers to explore new territory and terrain, take part in group
rides, bike pool to races, and commute to and from work.
And we continue to do so in style.
As the all-time #1 best-selling bike rack, the Saris Bones® continues to set
the standard for excellence in design. Today all Saris bicycle racks are intui-
tive to load and are secure, and guaranteed for life.
Built by cyclists for cyclists in Madison, Wisconsin, we strive to create the
world’s best bike racks.
Because cycling is what we live for.
MADE IN USA
28572C_MTR Instruction Manual.indd 328572C_MTR Instruction Manual.indd 3 12/18/2020 4:23:32 PM12/18/2020 4:23:32 PM

4
x 2
Specifications:
Max = 60 lbs/27kg
Máx.= 27 kg/60 libras
Max = 60lb/27kg
* Guía de
adaptación
* Guide de
compatibilité
Fit
Guide
1.800.783.7257
http://www.saris.com/en/vehicle-racks.html Max = 120 lbs/54kg (Max = 60 lbs/27kg per bike)
Máx.= 54 kg/120 libras (Máx. = 27 kg /60 libras por bicicleta)
Max = 120lb/54kg (Max = 60lb/27kg par vélo)
Class II or higher receiver required when carrying more than two bikes.
Para usar con enganches del receptor Clase II o superior.
À utiliser avec les attelages récepteurs de classe II ou supérieure.
For relevant patents, see www.saris.com/patents
Para las patentes pertinentes, consulte www.saris.com/patents
Pour les brevets concernés, consultez www.saris.com/patents
View our installation video at
http://www.saris.com/en/instructional-videos-1.html
Vea nuestro vídeo de instalación en
http://www.saris.com/en/instructional-videos-1.html
Visionnez notre vidéo d’installation à l’adresse
http://www.saris.com/en/instructional-videos-1.html
Customer Support
1-800-783-7257
[email protected]
saris.com Live
Chat
1
BIKE
2
BIKE
Items Included:
Artículos incluidos
éléments inclus
4031/4032
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
REVISIONS
REV. DESCRIPTION DATE APP.
E
F
E
F
.XXX" = .005
.XX" = .020
.X" = .060
X" = .250
IMPERIAL:
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN IMPERIAL UNITS
TOLERANCES ARE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE CONFIDENTIAL PROPERTY OF
SARIS CYCLING GROUP ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN
PERMISSION OF SARIS CYCLING GROUP IS PROHIBITED.
CAD GENERATED DRAWING,
DO NOT MANUALLY UPDATE
DIMENSIONING PER ASME Y14.5M 1994
DATE:
VENDOR REPRESENTATIVE:
5253 VERONA ROAD
MADISON WI. 53711
1-800-783-7257
WWW.SARIS.COM
ANGLES 1
29006-ART
TITLE:
1
1
1:1
DO NOT SCALE DRAWING
PURCHASING REP
MFG ENG
RESP ENG
CHECKED
DRAWN
APPROVALS
DATE
REV.
OF
SHEET
D
DWG. NO.
CAD FILE:
SIZE
SCALE
CU./IN.
PART WEIGHT:
PART VOLUME:
MATERIAL:
FINISH:
LBS.
1 INITIAL RELEASE
XXX xx/x/xx
1
4031 x 1
4032 x 2
28572C_MTR Instruction Manual.indd 428572C_MTR Instruction Manual.indd 4 12/18/2020 4:23:36 PM12/18/2020 4:23:36 PM

5
For relevant patents, see www.saris.com/patents
Para las patentes pertinentes, consulte www.saris.com/patents
Pour les brevets concernés, consultez www.saris.com/patents
View our installation video at
http://www.saris.com/en/instructional-videos-1.html
Vea nuestro vídeo de instalación en
http://www.saris.com/en/instructional-videos-1.html
Visionnez notre vidéo d’installation à l’adresse
http://www.saris.com/en/instructional-videos-1.html
1
FOLD DOWN AND OPEN RACK | DOBLAR HACIA ABAJO Y ABRIR LA REJILLA | PLIER ET OUVRIR LE RACK
Pull lever at end of rack to unfold from storage position.
Tire de la palanca del extremo del portabicicletas para desplegarlo
dela posición de almacenamiento.
Tirez sur le levier à l’extrémité du porte-vélo pour le déplier.
EN
ES
FR
A
B
C
28572C_MTR Instruction Manual.indd 528572C_MTR Instruction Manual.indd 5 12/18/2020 4:23:40 PM12/18/2020 4:23:40 PM

Insert receiver tube into hitch as shown. For 1.25” receiver, remove (3) - 5mm
bolts to disconnect 2” adapter (1-bike model only). Line up hole in receiver
tube with holes in hitch. Install flat washer on hitch pin, and then split washer.
Insert hitch pin on right passenger side of receiver. Thread pin by hand until
tight. Slide hole finder collar up against receiver and clamp lever down. Install
lock head. *To ensure properly tightened, lift front handle of rack and tighten
pin until all play has been removed. Periodically check pin tightness on long
trips. A 1/2” wrench may be used to make installation or removal easier. A
5/8” bolt is included and can replace the tool-less handle bolt if desired.
Inserte el tubo receptor en el enganche como se indica. Para un
receptor de 1,25”, quite los (3) tornillos de 5 mm para desconectar el
adaptador de 2” (solo en el modelo de un bicicleta). Alinee el orificio
del tubo receptor con los orificios del enganche. Coloque la arandela
de presión en el pasador del enganche. Inserte el pasador de enganche
en el lado derecho del acompañante del receptor. Ensarte el pasador
manualmente hasta que quede apretado. Inserte el collarín en el receptor
y baje la palanca. Coloque el cabezal de bloqueo. * Para asegurarse
de que quedecorrectamente apretado, levante el asa delantera del
portabicicletas y apriete el pasador hasta eliminar cualquier holgura.
EN
ES
2
6
2”
A
1-1/4”
BC
28572C_MTR Instruction Manual.indd 628572C_MTR Instruction Manual.indd 6 12/18/2020 4:23:46 PM12/18/2020 4:23:46 PM

Insert receiver tube into hitch as shown. For 1.25” receiver, remove (3) - 5mm
bolts to disconnect 2” adapter (1-bike model only). Line up hole in receiver
tube with holes in hitch. Install flat washer on hitch pin, and then split washer.
Insert hitch pin on right passenger side of receiver. Thread pin by hand until
tight. Slide hole finder collar up against receiver and clamp lever down. Install
lock head. *To ensure properly tightened, lift front handle of rack and tighten
pin until all play has been removed. Periodically check pin tightness on long
trips. A 1/2” wrench may be used to make installation or removal easier. A
5/8” bolt is included and can replace the tool-less handle bolt if desired.
Inserte el tubo receptor en el enganche como se indica. Para un
receptor de 1,25”, quite los (3) tornillos de 5 mm para desconectar el
adaptador de 2” (solo en el modelo de un bicicleta). Alinee el orificio
del tubo receptor con los orificios del enganche. Coloque la arandela
de presión en el pasador del enganche. Inserte el pasador de enganche
en el lado derecho del acompañante del receptor. Ensarte el pasador
manualmente hasta que quede apretado. Inserte el collarín en el receptor
y baje la palanca. Coloque el cabezal de bloqueo. * Para asegurarse
de que quedecorrectamente apretado, levante el asa delantera del
portabicicletas y apriete el pasador hasta eliminar cualquier holgura.
7
apretado. Se puede utilizar una llave de 1/2” para facilitar el montaje odesmontaje.
Insérez le tube du récepteur dans le mécanisme d’attelage comme illustré. Si vous utilisez un récepteur de 1,25», retirez (3) les boulons de 5mm afin de déconnecter
l’adaptateur 2» (modèle à 1 vélo uniquement). Alignez l’orifice du tube du récepteur sur les orifices dumécanisme d’attelage. Installez la rondelle d’arrêt sur la
goupille de l’attelage. Insérez la goupille de l’attelage du côté passager droit du récepteur. Filetez la goupille à la main jusqu’à ce qu’elle soit bien serrée. Faitesglisser
le collier du kit de perçage contre le récepteur et abaissez le levier. Installez la tête de verrouillage. *Pour que l’ensemble soit correctement serré, soulevez la poignée
avant du porte-vélo et serrez lagoupille jusqu’à ce qu’il n’y ait plus aucun jeu. Vérifiez périodiquement le serrage des goupilles lors des longs trajets. Vous pouvez
utiliser une clé de 1/2» pour faciliter l’installation ou le retrait.
ES
FR
28572C_MTR Instruction Manual.indd 728572C_MTR Instruction Manual.indd 7 12/18/2020 4:23:46 PM12/18/2020 4:23:46 PM

Pull lever at end of rack to lower rack to transport position.
Tire de la palanca del extremo del portabicicletas para bajarlo
a la posición de transporte.
Tirez le levier à l’extrémité du porte-vélo pour abaisser
le porte-vélo en position de transport.
3EN
ES
FR
A
B
8
28572C_MTR Instruction Manual.indd 828572C_MTR Instruction Manual.indd 8 12/18/2020 4:23:48 PM12/18/2020 4:23:48 PM

Copy here...
EN
ES
FR
2
9
Pull up on silver pin on inner side of trays and pivot trays toward vehicle.
Trays closest to vehicle must be pivoted first (if opening a 2 or more bike
configuration).
Levante el pasador plateado en el lado interior de las bandejas y gire
las bandejas hacia el vehículo. Las bandejas que están más cerca del
vehículo sedeben girar primero (si se abre en una configuración de dos
o más bicicletas).
Tirez sur la goupille argentée à l’intérieur des plateaux et faites pivoter
les plateaux en direction du véhicule. Faites pivoter les plateaux les plus
proches du véhicule en premier (pour les configurations à 2 vélos ou plus).
4
OPEN TRAYS / ABRIR BANDEJAS / OUVERTURE DES PLATEAUX
EN
9
A
ES
FR
B
C
28572C_MTR Instruction Manual.indd 928572C_MTR Instruction Manual.indd 9 12/18/2020 4:23:53 PM12/18/2020 4:23:53 PM

1
COPY HERE
EN
ES
FR
10
5Pull and hold silver trigger to open arms.
Tire del gatillo plateado para abrir los brazos.
Ouvrez les bras en tirant sur la goupille argentée.
OPEN RACK ARMS / ABRIR BRAZOS DEL PORTABICICLETAS / OUVERTURE DES BRAS DU PORTEVÉLO
28572C_MTR Instruction Manual.indd 1028572C_MTR Instruction Manual.indd 10 12/18/2020 4:23:55 PM12/18/2020 4:23:55 PM

Copy here...
1
COPY HERE
EN
ES
FR
11
COPY HERE
OPEN RACK ARMS / ABRIR BRAZOS DEL PORTABICICLETAS / OUVERTURE DES BRAS DU PORTEVÉLO

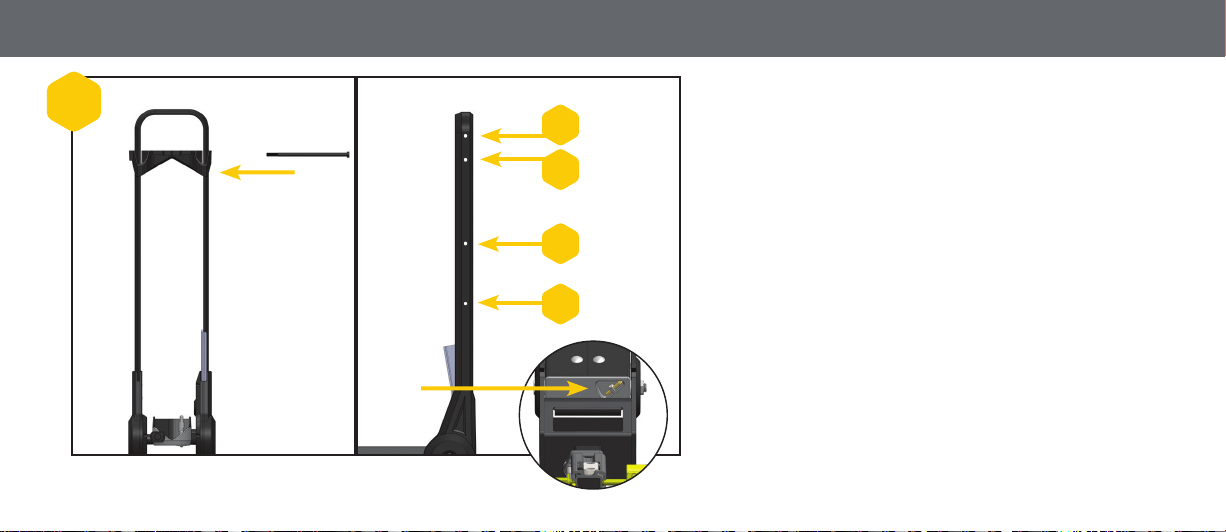

Use hex key located at the backside of the center beam to adjust wheel
block position. The four holes have been optimized for fitting the front
wheel. The chart reflects position of upper wheel holder on front wheel.
The rear wheel holder should be placed in the highest location possible
without going over center on the rear wheel. Due to various bike sizes,
this may not always correspond to the front wheel holder position.
Forbikes with rear rack or fender, position 3 or 4 should be used to
secure rear wheel. Note: Wheel block should not touch fenders.
Utilice la llave hexagonal situada en la parte posterior de la barra central
para ajustar la posición del bloqueo de las ruedas. Los cuatro orificios
se han optimizado para colocar la rueda delantera. El gráfico muestra la
posición del portarruedas superior en la rueda delantera. El portarruedas
trasero se debe colocar en la posición más alta posible sin sobrepasar
el centro de la rueda trasera. Dado que existen diversos tamaños de
bicicleta, es posible que no siempre corresponda a la posición del
portarruedas delantero. Para bicicletas con transportín o guardabarros,
se debe utilizar la posición 3 o 4 para asegurar la rueda trasera.
Nota: El bloqueo de ruedas no debe tocar los guardabarros.
EN
ES
6
11
WHEEL BLOCK POSITIONING / COLOCACIÓN DE BLOQUEO DE RUEDAS / POSITIONNEMENT DU BLOC DE ROUE
1
2
3
4
>26”
26”
24”
20” &
Rear Fender
28572C_MTR Instruction Manual.indd 1128572C_MTR Instruction Manual.indd 11 12/18/2020 4:23:59 PM12/18/2020 4:23:59 PM

12
À l’aide de la clé hexagonale située à l’arrière de la barre centrale, réglez
la position du bloc de roue. Les quatre orifices ont été optimisés pour
l’installation de la roue avant. Le schéma indique la position du support
de roue supérieur sur la roue avant. Le support de roue arrière doit être
placé le plus haut possible, sans dépasser lecentre de la roue arrière.
En raison des différentes tailles de vélo, la position peut ne pas toujours
correspondre à celle du support de la roue avant. Pour les vélos avec
porte-bagages ou garde-boue arrière, utilisez les positions 3 ou 4 pour
fixer la roue arrière.
Remarque: Lebloc de roue ne doit pas toucher le
garde-boue.
FR
6
WHEEL BLOCK POSITIONING / COLOCACIÓN DE BLOQUEO DE RUEDAS / POSITIONNEMENT DU BLOC DE ROUE
1
2
3
4
>26”
26”
24”
20” &
Rear Fender
28572C_MTR Instruction Manual.indd 1228572C_MTR Instruction Manual.indd 12 12/18/2020 4:24:01 PM12/18/2020 4:24:01 PM

7EN
ES
FR
13
Place front wheel over front wheel block on tray. Secure rear wheel
arm against rear wheel. Secure front wheel arm to front wheel.
Pushfront wheel arm until front wheel contacts lower wheel block.
Install rear wheel strap.
Note: Load the heaviest bike on tray closest
to vehicle. Load closest bike to vehicle first.
Coloque la rueda delantera sobre el bloqueo de la rueda delantera
en la bandeja. Asegure el brazo de la rueda trasera contra la rueda
trasera. Asegure el brazo de la rueda trasera en la rueda trasera.
Presione el brazo de la rueda delantera hasta que esta haga contacto
con el bloqueo de rueda inferior. Coloque la correa de la rueda trasera.
Nota: Cargue la bicicleta más pesada en la bandeja más próxima al
vehículo. Cargue primero la bicicleta más próxima al vehículo.
Placez la roue avant sur le bloc de roue avant du plateau. Fixez le
bras de la roue arrière contre la roue arrière. Fixez le bras de la roue
avant contre la roue avant. Poussez le bras de la roue avant jusqu’à
ce que la roue avant entre en contact avec le bloc de roue inférieur.
Installez la sangle de la roue arrière.
Remarque: Chargez le vélo le
plus lourd sur le plateau le plus proche du véhicule. Commencez par
charger le vélo le plus proche du véhicule.
LOAD BIKES / CARGAR BICICLETAS / CHARGEMENT DES VÉLOS
A
B
FRONT WHEEL PLACEMENT
REAR WHEEL PLACEMENT
REAR WHEEL STRAP
À l’aide de la clé hexagonale située à l’arrière de la barre centrale, réglez
la position du bloc de roue. Les quatre orifices ont été optimisés pour
l’installation de la roue avant. Le schéma indique la position du support
de roue supérieur sur la roue avant. Le support de roue arrière doit être
placé le plus haut possible, sans dépasser lecentre de la roue arrière.
En raison des différentes tailles de vélo, la position peut ne pas toujours
correspondre à celle du support de la roue avant. Pour les vélos avec
porte-bagages ou garde-boue arrière, utilisez les positions 3 ou 4 pour
fixer la roue arrière.
Remarque: Lebloc de roue ne doit pas toucher le
garde-boue.
WHEEL BLOCK POSITIONING / COLOCACIÓN DE BLOQUEO DE RUEDAS / POSITIONNEMENT DU BLOC DE ROUE
28572C_MTR Instruction Manual.indd 1328572C_MTR Instruction Manual.indd 13 12/18/2020 4:24:06 PM12/18/2020 4:24:06 PM

EN
ES
FR
8
14
Turn lock head 90 degrees and pull cable out of tray. Turn lock fork
90 degrees and pull cable out of tray. Connect lock fork to lock as
shown. Turn key to lock.
Gire el cabezal de bloqueo 90 grados y saque el cable de la
bandeja. Gire la horquilla de bloqueo 90 grados y saque el cable
de la bandeja. Monte la horquilla de bloqueo como se indica.
Girela llave para cerrar.
Faites tourner la tête de verrouillage à 90 degrés puis retirez
le câble du plateau. Faites tourner la fourche de verrouillage
à90degrés puis retirez le câble du plateau. Connectez la fourche
de verrouillage pour procéder au verrouillage comme illustré.
Tournezla clé pour verrouiller l
LOCK BIKES / BLOQUEAR BICICLETAS / VERROUILLER DES VÉLOS
28572C_MTR Instruction Manual.indd 1428572C_MTR Instruction Manual.indd 14 12/18/2020 4:24:14 PM12/18/2020 4:24:14 PM

EN
ES
FR
9Pull lever handle at end of rack and fold rack down. Bring rack back to
transport position by lifting up on outer handle until an audible click is
heard. Note: Be sure to support the weight of the racks and bike when
tilting away.
Tire del tirador de la palanca en el extremo del portabicicletas y pliéguelo.
Vuelva a colocar el portabicicletas en posición de transporte levantando
el tirador exterior hasta que se escuche un clic audible. Nota: Asegúrese
de soportar el peso de los portabicicletas y de la bicicleta al inclinarlo.
Tirez sur la poignée du levier à l’extrémité du porte-vélo et dépliez le
porte-vélo. Replacez le porte-vélo en position de transport en soulevant
la poignée extérieure jusqu’à ce qu’elle émette un «clic». Remarque:
Veillez à bien maîtriser le poids des porte-vélos et des vélos lorsque
cesderniers s’inclinent.
15
HATCH ACCESS / ACCESO A SOMBREADO / ACCÈS À LA TRAPPE
LOCK BIKES / BLOQUEAR BICICLETAS / VERROUILLER DES VÉLOS
A
B
28572C_MTR Instruction Manual.indd 1528572C_MTR Instruction Manual.indd 15 12/18/2020 4:24:17 PM12/18/2020 4:24:17 PM

16
UNLOADING BIKES / DESCARGA DE LAS BICICLETAS / DÉCHARGEMENT DES VÉLOS
10 EN
ES
FR
Push arm into front wheel while pulling the lever as shown.
Holdlever and fold arm away from bike. Repeat steps for rear
wheeland remove bike.
Empuje el brazo hacia la rueda delantera mientras tira de la palanca
como se indica. Sujete la palanca y pliegue el brazo. Repita los pasos
para la rueda trasera y retire la bicicleta.
Poussez le bras vers la roue avant tout en tirant le levier comme
illustré. Tenez le levier et repliez le bras vers l’extérieur du vélo.
Procédez de manière identique pour la roue arrière, puis retirez
levélo.
A
B
C
28572C_MTR Instruction Manual.indd 1628572C_MTR Instruction Manual.indd 16 12/18/2020 4:24:21 PM12/18/2020 4:24:21 PM

EN
ES
FR
11
17
Pull pin and pivot trays outward. Pull handle at end of rack and
fold up. Note: Trays furthest from vehicle must be pivoted first.
Empuje el pasador y gire las bandejas hacia fuera. Tire del tirador
en el extremo del portabicicletas y pliéguelo.
Nota: Las bandejas
más alejadas del vehículo se deben plegar primero.
Tirez sur la goupille et faites pivoter les plateaux vers l’extérieur.
Tirez sur la poignée à l’extrémité du porte-vélo et pliez le porte-
vélo. Remarque: Faites pivoter les plateaux les plus éloignés du
véhicule enpremier.
UNLOADING BIKES / DESCARGA DE LAS BICICLETAS / DÉCHARGEMENT DES VÉLOS
B
C D
A
E
STORAGE / ALMACENAMIENTO / RANGEMENT
28572C_MTR Instruction Manual.indd 1728572C_MTR Instruction Manual.indd 17 12/18/2020 4:24:28 PM12/18/2020 4:24:28 PM

18
CAUTIONS:
• All requirements for compatability/fit as stated in the current Saris vehicle/carrier compatability guide must be followed (available at any Saris dealer or www.saris.com).
If your vehicle is not listed or you have any questions, please call our customer service at 800-783-7257 or visit www.saris.com.
• Read and follow instructions carefully. Save owner’s manual for future reference or parts information. Ensure that any other users of the bicycle carrier are familiar with
its content.
• Before transport be sure your bicycle tires are properly inflated.
• Allow a minimum distance of 12” between the ground and the bottom of lowest wheel tray.
• Drive slowly over speed bumps, 5 to 10 mph max speed.
• It’s the end user’s responsibility to ensure that use of this product meets all local and state laws.
• When cleaning vehicle and rack, use only water soluble cleaners. Do not take rack through car wash.
• Make sure bike tires are not directly behind exhaust pipe.
• Rack must be installed directly into vehicle hitch receiver. Do not modify the hitch receiver or use hitch extenders.
• Do not mount to any type of trailer or RV including Class B vehicles.
• Prior to usage on the road, remove all loose parts from bicycle, including (but not limited to) child seat, basket, lock, light, pump, etc.
• This carrier is not recommended for off-road use or for use at speed exceeding 70 mph (113 km/h).
• The handling characteristics of a vehicle will change when a rear bicycle carrier is fitted and especially when it is loaded (in particular, crosswind sensitivity, handling on
bends and braking). Driving techniques should be altered to allow for these changes: reduce speed, especially on bends and allow for longer braking distances.
• The vehicle’s total length increases when the bike carrier is attached. The bikes themselves may increase the vehicle’s total width and height. Take care when reversing
and/or entering garages or ferries, etc.
EN Technical Specifications
1 Bike carrier weight: 39lb/17kg
Permitted load capacity: 60lb/ 27kg
Max bike weight: 60lb/27kg
Technical Specifications
2 Bike carrier weight: 59lb/ 27kg
Permitted load capacity: 120lb/ 54kg
Max bike weight: 60lb/27kg
28572C_MTR Instruction Manual.indd 1828572C_MTR Instruction Manual.indd 18 12/18/2020 4:24:28 PM12/18/2020 4:24:28 PM

19
• Remove carrier from vehicle when not in use.
• This carrier is constructed to carry standard bike frames. It is not intended for use with tandem or recumbent bicycles.
• Vehicle should be in good condition in the area at which the hitch is located.
• Do not exceed maximum load capacity of carrier! Secure properly and adjust for even load distribution, loading the heaviest/biggest bike first and closest to the vehicle.
• Saris absolves itself of responsibility for any personal injuries or consequential damage to property or wealth caused by incorrect fitting or use.
Recommended Rack Maintenance & Care Instructions
Each use:
• Wipe down trunk rack feet
• Avoid ground contact with trunk rack feet
• Check straps for signs of wear
• Check bike cradles and wheel scoops
• Check for loose bolts
Every 90 days actions:
• Clean with water and mild soap
• Lubricate locks if applicable (use wet, oil-based lubricant; NO WD-40)
• Grease hitch bolt threads
• Check for scratches in paint.
Official Warranty Terms: Saris Racks
Saris Cycling Group, Inc (SCG), parent company of Saris Racks, warrants our products to the original consumer to be free from defects in materials and workmanship. Your purchase
includes the following warranty which is in lieu of all other express warranties. This warranty is extended only to the initial consumer purchaser. This warranty gives you specific legal
rights. You may have other legal rights which vary from state to state. Please retain your sales slip for your records, as proof of purchase will be required.
28572C_MTR Instruction Manual.indd 1928572C_MTR Instruction Manual.indd 19 12/18/2020 4:24:28 PM12/18/2020 4:24:28 PM

20
EN Warranty Term
Car Racks Limited Lifetime*
Home Storage/Bike Storage Limited Lifetime*
Kool Rack 1 Year
Parking Racks 1 Year
*Warranty only valid for original purchaser. Limited lifetime warranty available in North America only.
Manufacturing defects are most likely to be identified on new products or early in the product’s lifespan. Each warranty claim is unique, and it is solely up to SCG to determine if a
product can be covered by the limited lifetime warranty due to defects, or if the product has suffered wear and tear.
Any product or part thereof found to be defective within the term as set forth above will be replaced without charge provided that: (1) its failure resulted from a defect in material or
workmanship and not from normal wear and tear expected in the use of the product; (2) the product was not abused, misused, improperly assembled, improperly maintained or dam-
aged by accident or installation of parts or accessories not originally intended or compatible with the racks as originally sold., (3) there was no failure to follow instructions or warn-
ings in Owner’s Manual; (4) no alterations or modifications were made; and (5) the product or part is delivered, freight prepaid, to Saris Cycling Group or an authorized service center.
Please call 1-800-783-7257 to obtain return authorization prior to return. Any other claims not included in the statements above are void and will not be honored. SCG reserves the
right to inspect any product before issuing a replacement. SCG’s only obligation shall be to replace such products or parts that it determines are defective.
Limitations
THE FOREGOING WARRANTIES ARE THE ONLY WARRANTIES MADE BY SCG. THERE ARE NO OTHER WARRANTIES. ANY WARRANTY THAT MIGHT OTHERWISE BE IMPLIED BY LAW
INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED STRICTLY TO THE APPLICABLE LENGTH OF
THIS LIMITED WARRANTY.
28572C_MTR Instruction Manual.indd 2028572C_MTR Instruction Manual.indd 20 12/18/2020 4:24:28 PM12/18/2020 4:24:28 PM
