Owners Manual For The
Metro
Subwoofer System

2
Table of Contents
Registration
Page
Owners Record 3
The Cabinetry / Our Commitment 4
Warranty 5
Setup
Unpacking Your Speakers 6
Speaker Placement
7-8
Hooking Up Cables
9-10
Speaker Connections
11-13
Fine Tuning
14-15
Technology
Specifications 16

3
Owners Record
The serial number is located on the rear of the unit. Record this number
in the space provided below. Refer to this when calling your dealer
regarding this product.
Model: Metro
Serial No:
Date of purchase:
Thank you for selecting a Legacy Loudspeaker System. These hand-
crafted instruments will provide you with many years of listening en-
joyment.

4
The Cabinetry / Our Commitment
Handcrafted
Beneath the surface of Metro’s elegant exterior lies rigid MDF construction.
Interlocking joinery maximizes the strength of the cabinet parts. Polyester
fiberfill is selected for internal damping. A sharp rap on the enclosure will
leave you with little more than bruised knuckles.
Each cabinet is impeccably finished on all exposed surfaces with select
veneers. The exquisite finish is hand-rubbed several times to assure a patina
at home with the most elegant decor.
Our Commitment
A great deal of forethought, love and satisfaction is instilled in each piece of
Legacy workmanship. We take pride in getting to know many of our customers
on a first name basis.
Your purchase of this product is backed by the renowned “Legacy
Satisfaction Guarantee”.

5
Warranty
Legacy Audio supports its customers and products with pride. We cheerfully warrant our loud- speaker
products we manufacture from defects in materials and workmanship for a period of seven (7) years.
Electronic components such as internal amplifiers and digital processors are covered for three (3)years.
Please register your product with Legacy Audio. Should you require service Legacy will require a proof of
purchase in order to honor the warranty - so please keep your receipt.
• The warranty applies to the original owner and is not transferable.
• The warranty applies to products purchased from an “Authorized Legacy Dealer”.
• The warranty on active components such as digital processors or internal amplifiers is limited to three
(3) years of coverage.
• The warranty on dealer stock will extend for a maximum of two years from invoice.
The warranty does not cover transportation costs of product to or from the customer, distributor or dealer,
or related shipping damage.
Exclusions from Warranty
The following situations or conditions are not covered by the Legacy Audio warranty:
• Accidental damage, electrical abuse or associated equipment failure.
• Use inconsistent with recommended operating instructions and specifications
• Damage caused by modification or unauthorized service
•Costs associated with the removal and reinstallation of defective products. Consequential damage to other
products.
• Normal wear such as fading of finishes due to sunlight.

6
Unpacking Your Speakers
Your new speaker system has been very carefully packaged to insure that it
travels to you safely. Each speaker is protected by a double- wall outer carton
with heavy V-board corner protectors. Molded foam end caps are used to
protect the elegant cabinetry, and a plastic liner is provided as waterproofing.
Please save this packing for future transportation. If cartons become damaged or
misplaced, new ones can be purchased from Legacy Audio.

7
Speaker Placement
Since the human ear is rather poor at localizing radiation frequencies below 125
Hz, good results may be obtained in a variety of room placements. Careful
adjustment of the convenient front panel controls will lead to seamless transition.
Low frequency reinforcement occurs whenever woofers are placed near
room boundaries. The distance from the walls, floor and ceiling correspond to
the wavelengths of the frequencies, which will reflect in
phase and thus reinforce bass output. Therefore, the actual dimensions of your
listening room play a definite role in what ultimately arrives at your ear. In fact,
rooms tend to have their own set of favored frequencies.
We can calculate what the most strongly reinforced frequencies in a room will
be by the formula shown below:
Resonant Frequency = (1130 ft/sec) / (ft. between boundaries x 2) For example, a
room with an 8 ft. ceiling height has a strong resonance at: (1130 ft/sec.) / (8 ft. x 2)
= 71 Hz.

8
Speaker Placement
Now, while such reinforcement might actually be beneficial at very low
frequencies, excessive excitation can cause “overhang” or a droning effect at
mid-bass frequencies. A way to minimize excitation of these
resonances is to place your subwoofer asymmetrically relative to room
boundaries. For instance, if the subwoofer is 2 ft from one corner wall, then
place it 1.5 ft to 3 ft from the other.
Placing the subwoofer in a corner will reduce the radiation angle and thus
increase efficiency. It will also excite the maximum number of room modes and
decrease distortion.
A best case scenario is to actually use two subwoofers, one to each side of the
listener. The subs should be placed 90° out of phase with each other. This
improves spaciousness and bass uniformity, with a reduction in room level
peaks.

9
12
g a .
0 . 0033
24
0 . 21
14
g a .
0 . 0048
17
0 . 13
16
g a .
0 . 0079
16
0 . 18
18
g a .
0 . 0128
28
0 . 21
Hooking Up Cables
The ideal conductor would have negligible resistance, inductance and
capacitance. The table below shows how a few actual speaker cables
measure up.
Cable Ωs/ft pF/ft µH/ft
Capacitance is considered insignificant in each cable because its ef- fect
is well out of the audio bandwidth; inductance can be de- creased (at the
expense of increased capacitance) by keeping the conductor pair closely
spaced.
How long would a cable have to be before inductance effects would
impinge on the audio spectrum? Approximately 300 feet of 12 gauge
would be required to establish a corner frequency of 20 kHz with an
8 Ohm loudspeaker. As you see, inductance is not a problem for most
of us.

10
10
Hooking Up Cables
What about phase shift due to frequency dependent travel times down the speaker cable?
Measurements show that 100 Hz waves will be delayed about 20 billionths of a second
behind 10 kHz waves when traveling to the end of a 10 foot speaker cable. Since the cilia
of the ear requires 25,000 times longer than this just to transmit phase information, phase
shifting is obviously not the primary concern when considering speaker cables.
What about resistance? Finally we are getting somewhere. Resistance is the control- ling
factor of the amplifier/loudspeaker interface. Excessive resistance can cause ma- jor shifts
of speaker crossover frequencies. The lower the impedance of the loud- speaker, the greater
the effects of series resistance. A 20 foot run of 18 gauge cable can cause up to 10%
deviations of crossover center frequencies. That same 20 feet can un-damp your damping
factor and reduce your systems’ output by one half deci- bel.
In summary, there are no perfect cables. The best way to approximate the ideal
would be to keep loudspeaker leads as short as is practical.

11
11
Speaker Connections
Once you’ve found a place in your room, the next step is connecting the
Metro to your existing system. Listed below you will find 3 options.
Option 1: Connecting the Metro using the stereo Low Level preamp/processor
inputs.
NOTE: if using the low-level inputs, we suggest using cables that are no
longer than 5 meters. Longer lengths of RCA cable can result in greater
noise and attenuation of the signal.
If using Left/Right output jacks from the preamp, the internal circuit module of the
Metro will sum the two channels together. When using the left and right low level
inputs on the subwoofer, the internal crossover of the subwoofer is being used. The
crossover frequency and level will be controlled by the appropriately labeled
controls on the rear panel of the sub.
The Left/Right line output jacks can be used to send a crossed over high frequency
signal.

12
12
Option 2: Connecting single sub out
Connect the preamp/processor’s “sub out” to the left channel RCA input
(mono).
Option 3: Connecting the Metro using the High Level Inputs (from amplifier)
If using the high level inputs it is highly recommended that you connect
them in parallel with your main left and right loudspeakers.
NOTE: DO NOT use the output from a differential Monobloc amplifier as a
high level input to the subwoofer. When using high level inputs from a
stereo amplifier be sure that they are polarized correctly with the power
amplifier, (positive output to positive input, negative output to negative
input.) Failure to do so may result in damage to your subwoofer, power
amplifier and any associated equipment connected to it. Terminating your
wire leads with banana plugs or gold spade lugs is recommended.

13
13
Speaker Connections
Powering Up Metro
1. Power Cable: The supplied power cable will plug into the socket on the back
terminal plate of the unit.
NOTE: Try to plug into the same AC circuit as the rest of your audio system, as this will
avoid hum from ground loops.
2. Power Up: In the rear of the subwoofer to the immediate left of the power cable
input is the power switch. This switch controls current flow to the entire unit as follows:
I = Auto On
0 = Off

14
14
Fine Tuning
Adjusting the Metro Subwoofer

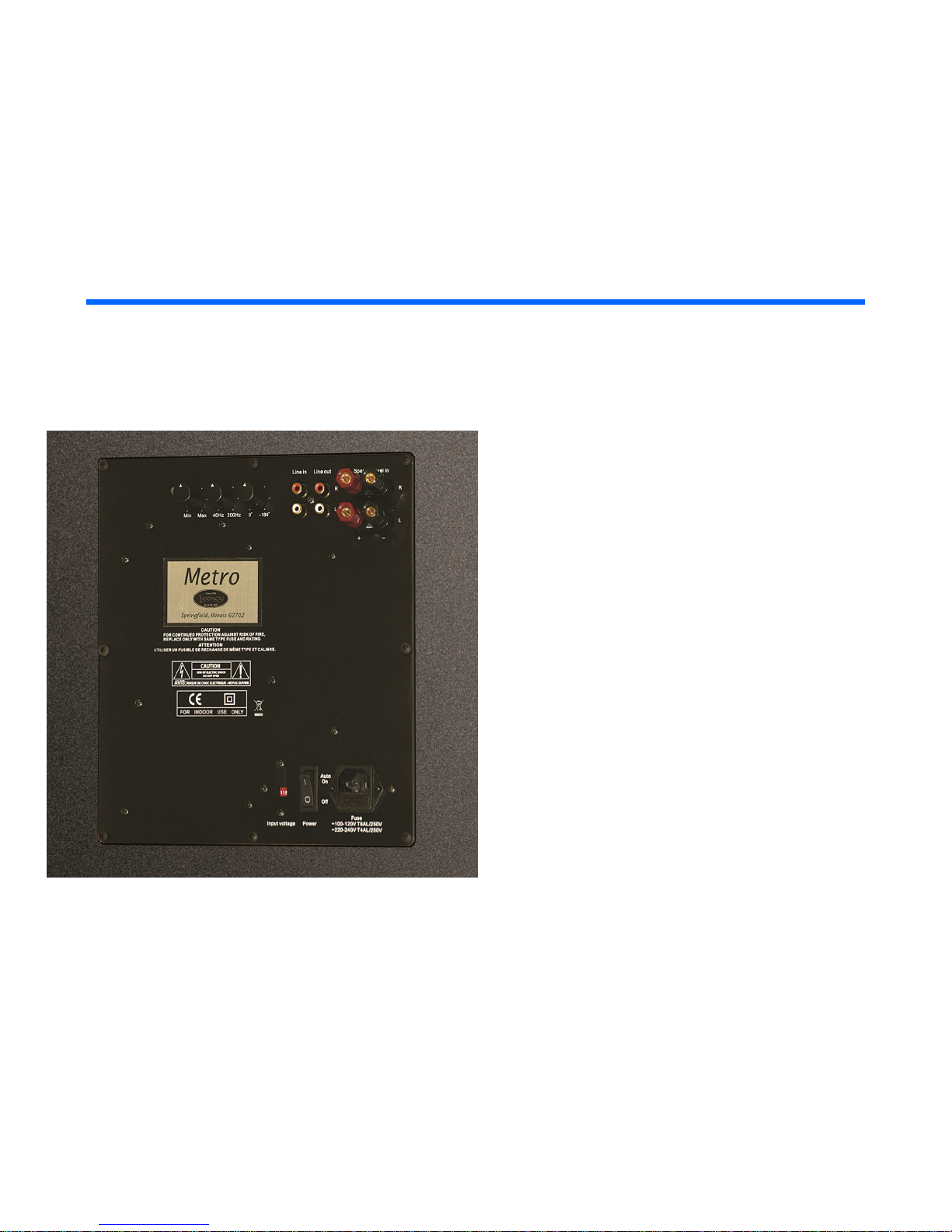

On the back panel of the Metro Subwoofer
you’ll notice four controls: Level, Freq., and
Phase. These allow an extraordinary amount
of control over your subwoofer. These
controls will allow you to tailor the sound of
the sub to your room and integrate with your
main speakers.
Level (Min/Max): This will allow you to adjust
the volume level played by the subwoofer. It
only controls the subwoofer level, not the level
of any of the other loudspeakers in the
system, even if they’re hooked up in parallel.
Freq.: This control allows you to adjust the low
frequency information. The crossover
frequency range of Metro is 40 Hz -200 Hz.

15
15
Fine Tuning
Phase (0 °/-180 °): This control is essential in the proper setup of your subwoofer. If
not set up properly, your main speakers and subwoofer can actually work against each
other. If operating out-of- phase the subwoofer and mains will cancel, creating nulls at
some frequencies (primarily upper bass).What is desirable is to have the subwoofer
and the mains operating in phase, relative to the primary listening position. Here is an
effective method of accomplishing this:
While seated at your listening position, have someone sweep the phase control slowly
from one extreme to the other.
Using pink noise or a 50-60 Hz test tone, listen for the strongest output. Now take note
of that setting. Next, play music program material and optimize the level and phase
settings further; adjusting for the smoothest output.

16
16
Specifications
System Type:
Subwoofer, pneumatically coupled
Subwoofer:
Aura 12" spun aluminum with
encapsulated neo motor
Radiator:
Down-firing 15"
Low Frequency Alignment:
6th Order
Internal Amplification:
500 watt, Class D
Freq. Response (Hz, +/-2dB):
20-150
Impedance:
10k
Phase Adjustment:
Cont. +/-180
Blend EQ:
Level Control
Max. SPL:
117dB @ 1m
Low Pass Filter Slope:
18 dB per octave
Crossover Hz:
40-150
Inputs:
2 RCA, 1 pair high level
Dimensions (Inches):
16 x 16 x 16
Weight:
47 lbs.

20
20
CE Declaration of Conformity WEEE Compliance
Product Disposal—
Legacy Audio
3023 E. Sangamon Ave.
Springfield, IL 62702 USA
800-283-4644
States that this product is in conformity with the with
the essential requirements and other relevant
provisions of:
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
Certain international, national
and/or local laws and/or regulations
may apply regarding the disposal of
this product. For further detailed
information, please contact the
retailer where you purchased this
product or
the Legacy Audio Distributor in
your country. A listing of Legacy
Audio Distributors can be found
on the Legacy Audio website
www.legacyaudio.com
or by contacting Legacy Audio at:
3023 E. Sangamon Ave.,
Springfield, IL 62702, USA—
Phone: [phone].

Notes:
21

©2013 Legacy Audio
3023 E Sangamon Ave.
Springfield, IL 62702
Phone: [phone]
Fax: [phone]
22
