LEGRAND CCBBS User manual

CCBB Series Floor Box
I N S T A L L A T I O N I N S T R U C T I O N S
Installation Instruction No.: 1 009 489R2 – Updated May 2012
Legrand/Wiremold electrical systems conform to and should be
properly grounded in compliance with requirements of the current
National Electrical Code or codes administered by local authorities.
All electrical products may present a possible shock or fire
hazard if improperly installed or used. Legrand/Wiremold electrical
products may bear the mark as UL Listed and/or Classified and
should be installed in conformance with current local and/or the
National Electrical Code.
Products Covered: CCBBS, CCBBS-OG, CCBBSCTCAL, CCBBSBTCAL

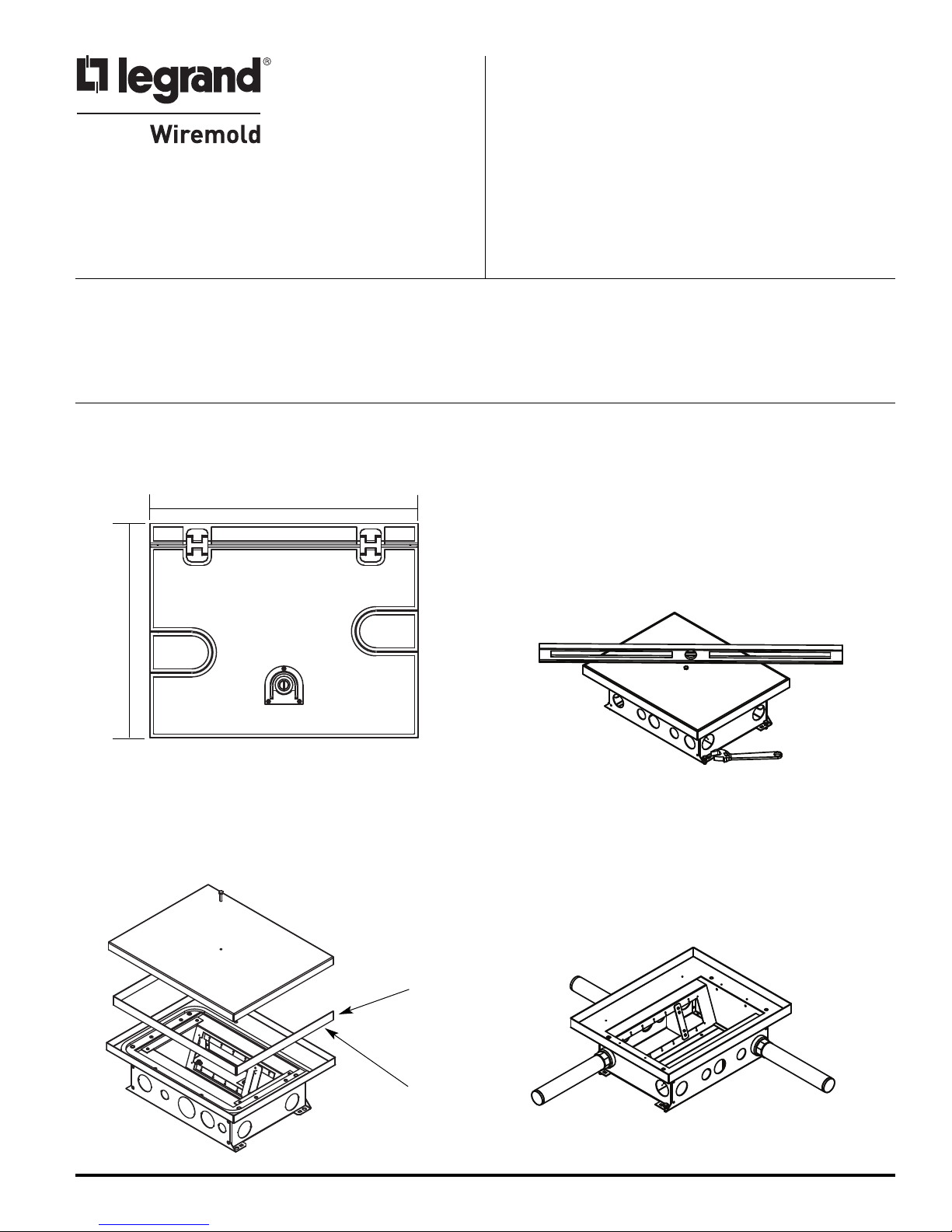

1. Locate and position floor box in accordance
with floor plans or blueprint.
4. Remove electrical and data panels. Remove knockouts
where required. Attach conduits for power and data
cables using UL Listed components. All openings and
unused knockouts must be closed or sealed off during
final installation.
2. Level the loor Box, then:
For carpet installation: Remove “U” shaped spacer
(See Step 3) under mudcap. Align the top surface of
the concrete with the top surface of the floor box.
For polished concrete loor installation: Leave “U”
shaped spacer (See Step 3) in place. Align the top
surface of the concrete floor with the top of the sheet
metal mud cap.
Anchor the loor box: After the box has been leveled,
use screws, nails, or wire to secure box into position and
prevent box from floating during the pour.
IMPORTANT: Please read all instructions
be ore beginning.
CAUTION: Do not operate resur acing equipment over top o covers. This may result in damage to the sur ace inish o the product.
CAUTION: Box has no post pour adjustment.
CAUTION: For polished concrete loors, make sure “U” shaped spacer is installed prior to pouring the concrete.
NOTE: When using a loor covering over concrete, CCBBS is only designed or use with a 1/4" [6.4mm] thick loor covering.
CAUTION: Do not dislodge or shi t box with
job site tra ic or concrete vibrations.
19 1/8"
[486mm]
15 1/4"
[387mm]
3. Remove mudcap to access the electrical and data
compartments.
For carpet applications
remove mud cap,
discard spacer ring and
replace mud cap.
Polished Concrete
Floor Spacer: Spacer
must be installed prior
to pouring concrete.

6. Screed to top of floor box surface. Hand troweling
recommended near box edges.
7. Remove mudcap.
NOTE: Mud Cap is NOT a load bearing sur ace and additional
material should be placed into the mud cap to bear
the appropriate tra ic loads.
CAUTION: Do not dislodge or shi t box with jobsite tra ic or
concrete vibrations.
9. If tunnels are to be used, remove tunnel by removing (2)
#8-32 screws. Remove the spacer plate located behind
the tunnel and reinstall the tunnel.
8. Determine required location and mount divider,
Cat No. CCBBS-DIV on device bracket.
5. Reinstall mudcap.
10. Locate and pull wires and cables.
Polished Concrete
Floor Spacer: Spacer
must be installed prior
to pouring concrete.

12. Mount device face plates.

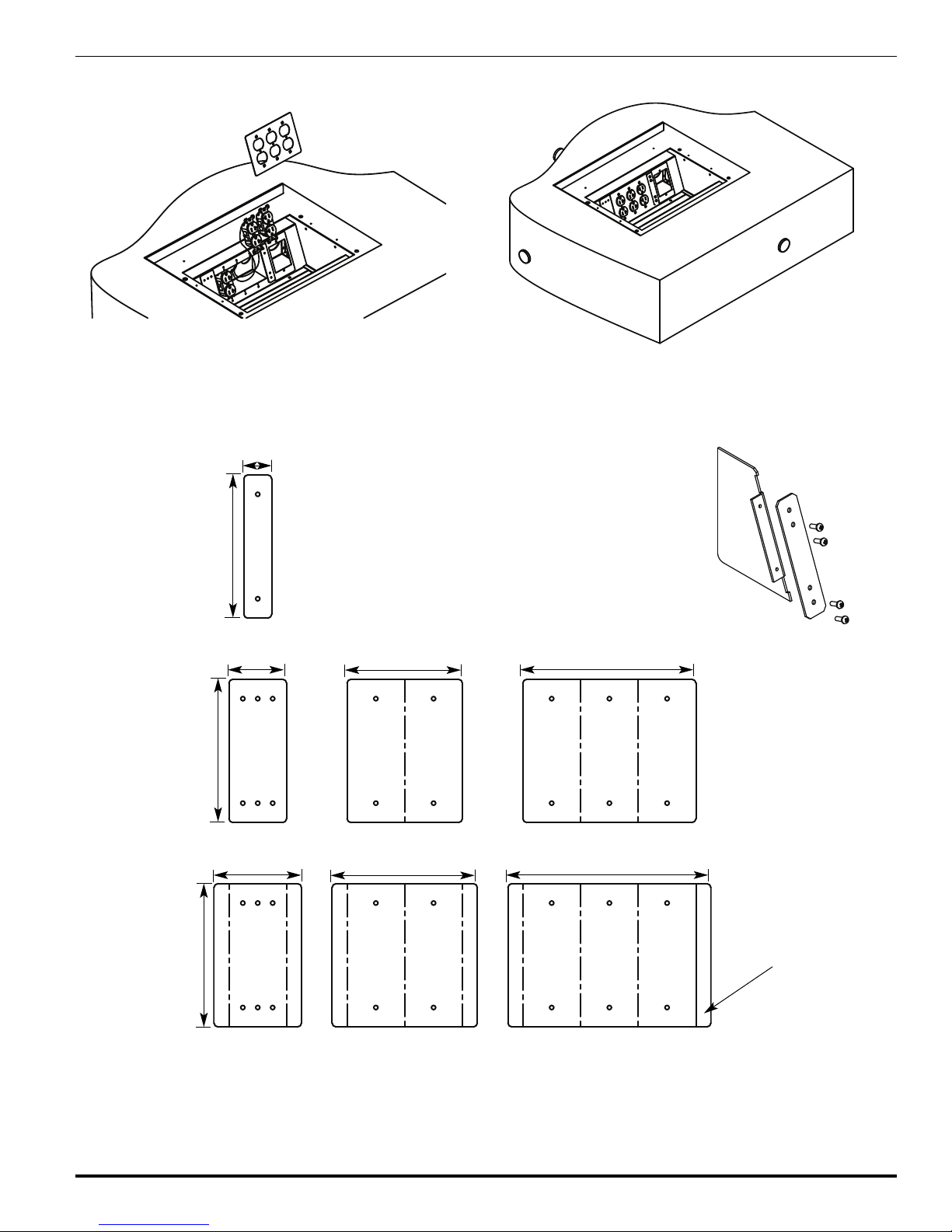

12. Determine device plates selection based on sizes illustrated below.
7/8"
[22mm]
4 1/2"
[114mm]
1 13/16"
[46mm]
4 1/2"
[114mm]
3 5/8"
[92mm]
5 7/16"
[138mm]
2 3/4"
[70mm]
4 1/2"
[114mm]
4 9/16"
[116mm]
6 3/8"
[162mm]
SPACER PLATE – RFB119-SPACER
Used to close o space adjacent
to standard plates when used on
multi-gang mounting brackets.
1-, 2- AND 3-GANG
SECTIONAL PLATES
1-, 2- AND 3-GANG
STANDARD PLATES
STANDARD PLATES –
Extend 15/32" [11.9mm]
wider on each side than
Sectional Plates.
DIVIDER KIT – CCBBS-DIV
Front Plate is the same size as
RFB119-SPACER Spacer Plate.
11. Terminate, wire and mount devices on device bracket.

13. Place cover assembly, part #CCBBSCTCAL on top the floor box. Use
1/4-20 x 1" long bolts to secure to floor box enclosure.
6-GANG MOUNTING BRACKETS USED WITH SECTIONAL DEVICE PLATES
Cat. No. RFB119-SPACER
Used to close gap between standard
single and multi-gang plates
(6) 1-Gang Sectional Plates
1 13/16" x 4 1/2"
[46mm x 114mm]
Existing opening when not covered
with Cat. No. RFB119-SPACER
Cat. No. RFB119-SPACER
12. Determine blanking plates and spacers based on typical layouts illustrated below.
6-GANG MOUNTING BRACKETS USED WITH STANDARD DEVICE PLATES
3-Gang Standard Plate
6 3/8" x 4 1/2"
[162mm x 114mm]
1-Gang Standard Plate
2 3/4" x 4 1/2"
[70mm x 114mm]
Cat. No. RFB119-SB
Single-gang Sectional Blank Plate
(mounted off-center)
Cat. No. RFB119-SPACER
Used to close gap between
standard single and multi-
gang plates
2-Gang Standard Plate
4 9/16" x 4 1/2"
[116mm x 114mm]
Cat. No. RFB119-SPACER
3-Gang Standard Plate
6 3/8" x 4 1/2"
[162mm x 114mm]
Wiremold
U.S. and International:
60 Woodlawn Street • West Hartford, CT 06110
1-800-621-0049 • FAX [phone] • Outside U.S.: 860-233-62 1
Canada:
70 Applewood Crescent • Vaughan, Ontario L4K 4B4
1-800-723- 17 • FAX [phone]
1 009 489R2 0 12
© Copyright 2012 Legrand/Wiremold All Rights Reserved
