INSTRUCTION MANUAL
AAL Profiline wireless socket
HC-503-BA V1.06 Wireless socket Page 1 of 4
AAL Homecare Fon [phone] Fax [phone] www.aal-homecare.com
Example: selection of compatible transmitters
Warning
The use of a call device does not release supervisors from the obligation to supervise the persons supported by
such a device. This system is radio-based and must therefore not be used for monitoring purposes if life-
threatening conditions are foreseeable.
Package Contents
Product
Order number1
Frequency1
AAL Profiline wireless socket
HC-503
869.23 MHz
Instruction manual
HC-503-BA
1Order number and frequency can be found on the identification decal.
Note: While unpacking, each shipment should be inspected for completeness and damage.
Note: In this manual, the AAL Profiline wireless socket is referred to as “wireless socket”.

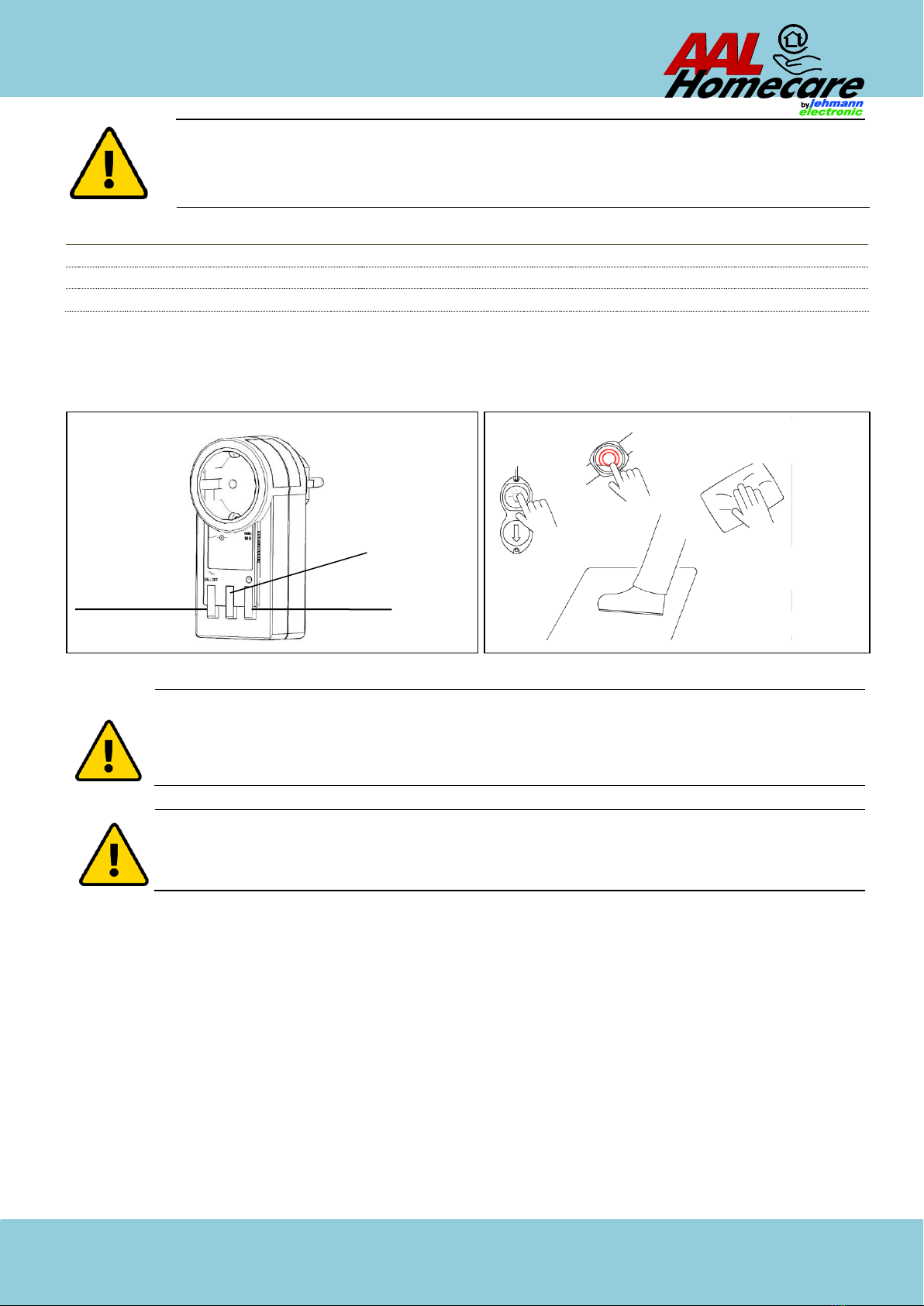

Fig. 1: wireless socket
Putting into Operation
Caution
The wireless socket must not be used as the only switching device of an electric device.
The wireless socket is not suited for switching high electric loads! Excessive switching currents may impair the life
of the internal switching contacts or result in a loss of breaking capacity. The maximum breaking capacity of 10 A
must on no account be exceeded!
Usage
Warning
The wireless socket is not intended for signalling personal emergency calls. Any use for the purpose of signalling
life-threatening conditions is not permitted.
Keep out of reach of children. The wireless socket is de-energised only when the plug is disconnected.
Programming / Deleting Transmitters to / from the Wireless Socket
The “programming” to the wireless socket required for initial putting into operation is described in Figs. 5 and 6, and the optional
“deletion“ from the wireless socket is described in Fig. 3.
Checking the Safe Range of the Radio Link
The range of the matching AAL Profiline transmitters meets the requirements of the technical inspection body of the German
health insurance companies. Within buildings, a range of approx. 30 m can be expected. The range depends to a large extent on
the local conditions.
Before using the device for the first time, an interference-free operation of the radio link should be ensured. Proceed as follows:
1. Switch on all electronic entertainment and communication devices (e.g., television sets, game consoles, and computers) in
the immediate vicinity.
2. Check if the radio message is received by the wireless socket at a distance exceeding the intended usage distance by
approx. 5 to 10 m. Make sure that the message is trigged by a single radio signal.
Signal LED
(no button)
Emergency
call pad
Pressure mat
Emergency call
transmitter
VarioPull
momentary
pull switch
Right-hand button:
5 minutes ON
Left-hand button:
ON/OFF

INSTRUCTION MANUAL
AAL Profiline wireless socket
HC-503-BA V1.06 Wireless socket Page 2 of 4
AAL Homecare Fon [phone] Fax [phone] www.aal-homecare.com
Error Indication
A system fault is indicated by the operating indicator LED flashing red and green.
If the system fault is caused by another transmitter occupying the frequency band, the operating indicator LED flashes orange.
A transmitter “battery low” message is indicated by the LED flashing orange and red. This signal can be switched off by pressing
any button.
Cleaning
Use of a soft, slightly moist cloth with a small amount of cleaning agent, optionally with disinfecting agents according to DIN/EN
13727, is recommended. Do not use abrasive cleaning agents.
Regular Measures
Caution
Carefully perform the periodic checks. Immediately replace worn / damaged parts. A damaged system or a system
not functioning properly must not be used until it has been repaired. Do not open the device.
Specifications
Operating frequencies: 869.2375 MHz
Operating voltage: 230 V AC
Switching relay: Single-pole, switching current 10 A, resistive
Indicators: Signal LED for switching and battery messages
Battery monitoring: “Battery low” recognition with signal LED indication
Power supply: 230 V mains
Dimensions: 50 x 110 x 40 mm (W x H x D)
Weight: Approx. 130 g
Protection class: IP 30
Conformity: CE (RED directive, RoHS directive)
Operation / Settings
Switching modes
Manual operation: Direct setting of the switch position by the buttons (always possible during operation).
Toggle mode: The ON/OFF switch position changes with each switching signal.
5 minutes ON mode: A switching signal switches the device “ON” for approx. 5 minutes.
Another radio switching signal retriggers the period of 5 minutes.
Note: The ON mode may be aborted by one transmitter in toggle mode.
Switching off the operating state indicator
In delivery state, the signal LED emits a steady green light upon plugging of the device. If this is regarded as disturbing, the
operating indicator can be switched off. Consequently, the signal LED is inactive in the non-operative state!
oNote: The figures below show the “operating indicator ON” mode.
Programming mode
A switching transmitter will always keep the last programmed switching mode!

INSTRUCTION MANUAL
AAL Profiline wireless socket
HC-503-BA V1.06 Wireless socket Page 3 of 4
AAL Homecare Fon [phone] Fax [phone] www.aal-homecare.com
Figure 2: Manual switching (directly at the device)
Fig. 3: Deleting all programmed transmitters and resetting to factory settings
Fig. 4: Deactivating or activating the operating indicator
Fig. 5: programming transmitters for the 5 minutes ON mode (triggering by a transmitter activates the output
for 5 minutes)
Plug in
Operating state:
steady green light
2
1
Switch ON for
5 minutes
3
Press right-
hand
button
Toggle ON/OFF
4
Press left-
hand
button
Press
left-hand
button
Red =
ON
Green=
OFF
Green flashing light
Press and hold both buttons when
plugging
1
2
Release both
buttons
steady green light
Operating state
1
Press and hold both buttons
for a while
2
3
The operating indicator changes
from steady light to “OFF”
Trigger the switching
transmitter to be
programmed
Repeat for additional transmitters
as required
Or do not perform any action for
approx. 3 minutes
Operating state
steady green light
2
3
4
1
5
6
Operating state:
steady green light
8
Press the right-
hand
button for a
while
Briefly press
right-hand
button
Example
Plug in
7
An orange-red flashing indicates:
programming mode 5 minutes = ON
Approx. 2 seconds
orange-red as
acknowledgement

INSTRUCTION MANUAL
AAL Profiline wireless socket
HC-503-BA V1.06 Wireless socket Page 4 of 4
AAL Homecare Fon [phone] Fax [phone] www.aal-homecare.com
Fig. 6: programming transmitters for the toggle mode (each transmitter activation results in a
change of state)
Warranty
The manufacturer shall not be liable for any damage resulting from improper or inappropriate use. During the legal warranty
period we shall correct, free of charge, all defects of the device attributable to material or manufacturing defects, either by repair
or replacement.
The warranty shall become void in the case of interference by a third party or improper use. The warranty shall not apply to wear
and tear of moving and interchangeable parts.
Service Address
If problems occur despite correct handling or if the product has been damaged, please contact your dealer or the following
address:
AAL-Homecare Deutschland - Wahner -Str. 45 - 53859 Niederkassel - Homepage: www.aal.support
Disposal Instructions
Used devices and batteries must not be disposed of together with domestic waste. Dispose of used devices, used batteries and
packaging material according to applicable laws and disposal regulations.
Trigger the switching
transmitter to be
programmed
Repeat for additional transmitters
as required
Or do not perform any action
for approx. 3 minutes
Operating state:
steady green light
2
3
4
1
5
6
7
Operating state:
steady green light
8
Briefly press
left-hand button
Example
Plug in
Press left-hand
button for a while
A green flashing indicates that the
toggle programming mode is ON
Approx. 2 seconds green
as acknowledgement
Conformity and Legal Provisions
AAL Homecare declare that, if applicable, the product complies with the essential requirements and the other relevant provisions of the EMC Directive 2014/30/EU, the
RED Directive2014/53/EU and the RoHS Directive 2011/65/EU. You will find the complete declarations of conformity in the Internet under www.aal-homecare.com.
REACH Regulation Within the meaning of the Regulation we are a downstream user. The product is exempt from the specific labelling requirements of the Regulation.
Further information is available on the website.
