LEHNER SuperVario Manual

LEHNER
SuperVario®
Operating instructions with
replacement parts list
Control unit LAS 3
Software from version 2.5 onwards
Status: April 2012
Serial number: .................................................................
Software version: ...............................................................
Translation of the original operating manual

Operating manual
2
LEHNER Agrar GmbH
Häuslesäcker 5-9
D-89198 Westerstetten
Tel.: [phone]
Fax: [phone]
www.lehner.eu
[e-mail]
It is not permitted for this document to be distributed or reproduced, or for
its content to be utilised and disseminated unless these activities have been
expressly allowed.
Contraventions shall result in an obligation to provide compensation for
damages. All rights reserved with regard to patent claims or submission of
design or utility patents.

Operating manualTable of contents
3
Table of contents
1. What you should know.......................................................5
1.1 Foreword .................................................................................... 5
1.2 About this operating manual....................................................... 5
1.3 Intended use............................................................................... 6
1.4 Warranty..................................................................................... 6
1.5 About your safety ....................................................................... 7
2. Commissioning the SuperVario®.......................................8
2.1 Mounting the frame .................................................................... 8
2.2 Electrical connection .................................................................. 8
2.3 Mounting the SuperVario®....................................................................................................... 9
2.4 Mounting the control panel ....................................................... 10
3. Operating the SuperVario®...............................................12
3.1 Controls on the control panel ................................................... 12
3.2 The display ............................................................................... 13
3.3 Switching on / off ...................................................................... 14
3.4 Setting the speed ..................................................................... 15
3.5 Setting the slide opening .......................................................... 16
3.6 Opening/closing the slide ......................................................... 16
3.7 Performing the slide reference run ........................................... 16
3.8 Setting the spreading width ...................................................... 17
3.9 Setting the agitator ................................................................... 18
3.10 Empty indicator......................................................................... 18
3.11 Adapting the empty indicator to the motor output..................... 19

Operating manual Table of contents
4
4. Settings and displays.......................................................21
4.1 Making settings ........................................................................ 21
4.2 Language ................................................................................. 21
4.3 Selecting the empty indicator ................................................... 22
4.4 Setting the EHR signal ............................................................. 22
4.5 Setting the EHR cycle .............................................................. 23
4.6 Setting the empty indicator....................................................... 23
4.7 Displaying the spreader type.................................................... 24
4.8 Spreader number ..................................................................... 24
4.9 Displaying the motor................................................................. 24
4.10 Headland manager (optional accessory).................................. 24
4.11 Checks ..................................................................................... 26
4.12 Spreading width and turning procedure ................................... 26
4.13 Setting the auto-dose (optional accessory) .............................. 28
4.14 Operating SuperVario®in automatic mode............................... 30
5. Maintenance and cleaning...............................................33
5.1 Service ..................................................................................... 33
5.2 Cleaning ................................................................................... 34
6. Appendix ...........................................................................35
6.1 EC Declaration of conformity.................................................... 35
6.2 Identification ............................................................................. 37
6.3 Distribution box reference list ................................................... 38
6.4 Troubleshooting........................................................................ 39
6.5 Replacement parts ................................................................... 40
6.6 Spreading charts ...................................................................... 42

Operating manualWhat you should know
5
1. What you should know
1.1 Foreword
Congratulations on your decision to purchase this product. We are grateful
that you have placed your trust in us. With the SuperVario®, you have acquired
a high-quality and innovative product.
Thanks to its advanced design, meticulous material selection, state-of-the art
manufacturing techniques and the conscientious work of our employees, this
equipment meets all efficiency, quality, reliability and value requirements.
Maintaining and servicing in accordance with the operating manual ensures
the safety of the device and maintains the value of your SuperVario®.
1.2 About this operating manual
This operating manual forms part of the SuperVario®and must always be
readily available. All persons who work with the SuperVario®must read and
follow the operating manual.
They will learn about the technical details and how to control the machine and
optimise its performance.
Warning notices
Warning notices in this operating manual are identified as follows:
Danger!
Warning of immediate danger. Non-observance of
appropriate measures may result in death and severe
personal injury or serious damage to property.
Warning!
Warning of possible danger. Death, severe personal
injury or serious damage to property are possible.
Caution!
Warning of possible dangerous situations. Slight
personal injury or damage to property are possible.

Operating manual What you should know
6
1.3 Intended use
The SuperVario®is used exclusively for spreading granules and seeds.
1.4 Warranty
We offer a 24 month warranty on the SuperVario®.
Caution!
Faulty or incorrectly sized plugs and cables can lead
to malfunctions. Only use original plugs and cables, or
ones approved by the manufacturer.
Any changes to cable or plug connections without factory approval automati-
cally will automatically invalidate the warranty. Motors may not be opened or
dismantled.
Warranty repairs must be coordinated with the manufacturer before any work
is started.
For replacement parts, additional expenses are automatically charged for any
changes made to cables and plugs by the customer. Replacement parts are to
be returned carriage paid.
Rusted bearings are not subject to the manufacturer's warranty.
Prior to assembly:
Check your SuperVario®upon receipt for any damage caused in transit. Such
damage must be reported to the manufacturer within 24 hours of receipt.

Operating manualWhat you should know
7
1.5 About your safety
• Read this operating manual through carefully before use and follow the
instructions. Always keep these instructions at the point of use.
• Observe the accident prevention regulations, safety and operating
regulations and the regulations for environmental protection.
• Observe all applicable standards and guidelines.
• When travelling on public roads and streets, follow the legal rules of the
road.
• Observe the safety instructions.
• Immediately resolve any safety-related deficiencies.
• Keep out of the spreading zone. Make sure that no other persons enter
in the spreading zone.
• Do not reach into the hopper during operation.
• Follow the safety guidelines on the package insert when spreading
granules.
• Wear protective closing, in particular universal protective gloves, filling
with slug pellets or baits. Only fill as many pellets or baits as needed in
the short term. Return any remaining product to the original packaging.
Ensure that the product does not enter the environment in an
uncontrolled manner.
• Observe the following points when spreading slug pellets:
The device should only be mounted on the front of carrier vehicles with
a closed cabin.
Windows should remain closed.
Care should be taken that air intake into the cabin is always filtered. The
operator must check that the filter is working.
• Do not undertake any repairs, maintenance or cleaning procedures on
the SuperVario®when the mains plug is connected.
• Comply with the regulations of the spreading material manufacturer.
• It is essential to comply with the instructions of the spreading material
manufacturer in question.
• LEHNER Agrar GmbH does not accept any liability for storage and use
of the spreading material.

Operating manual Commissioning the SuperVario®
8
2. Commissioning the SuperVario®
2.1 Mounting the frame
The SuperVario®can be screwed on directly or an auxiliary bracket can be
used.
Mounting holes have been provided on the back of the frame.
Please refer to the spreading charts for the delivery height (1.00 - 1.30 m).
The SuperVario®can be attached on the front or rear of a tractor, off-road
vehicle, ATV or soil cultivation implement. Because a full hopper makes the
SuperVario®considerably heavier, the load capacity of side walls and other
brackets is to be checked.
2.2 Electrical connection
Technical data
Operating voltage 12 to 15 V
Fuse 25 A
Motor output 180 W
Speed range 200 to 3000 rpm
Current draw
Bosch motor
Start up to 25 A, normal operation
up to 18 A
Operating temperature -10 to +70 °C
Storage temperature -30 to +70 °C
Weight of SuperVario®70/110/170 31.5/33/35 kg
Any changes to cable or plug connections without factory approval will
automatically invalidate the entire warranty. Changes to cables are are
automatically charged in the event of repair.
You must consult with the manufacturer before carrying out any cable
extensions.
Power loss must be taken into account when extending cables. A poor power
supply may prevent you from achieving the desired speed. This could also
lead to intermittent complete failure.

Operating manualCommissioning the SuperVario®
9
2.3 Mounting the SuperVario®
1. Check whether the hopper fits well in the hopper platform.

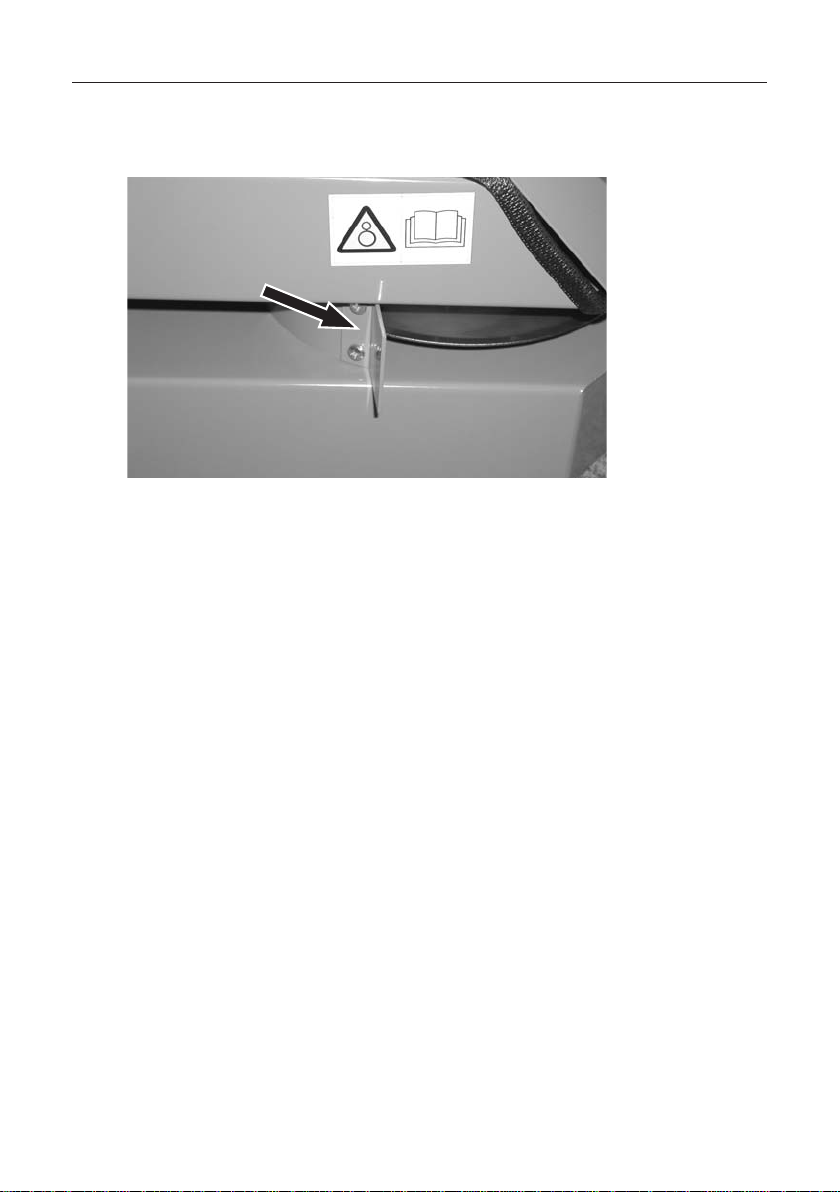

2. Using screws, attach the included baffle plate (arrow) perpendicular to
the spreader.
3. Check that the SuperVario®is securely attached.

Operating manual Commissioning the SuperVario®
10
2.4 Mounting the control panel
Caution!
Ensure that the cable is not routed over any sharp
edges.
1. Mount the support for the control panel in the vehicle cabin.
2. Always use the supplied battery cable even if there is a socket, because
our battery cable is 4 mm².
Connect connection 2to the negative terminal of the battery (not to
the bodywork).
Connect connection 3(with fuse 4) to the positive terminal of the
battery. Place the cable end with socket into the carrier vehicle.
3. Plug the spreader cable into the 16-pin socket of the control panel.
Your device is now ready to operate.
1
