Leicke AK69198 User manual

User's Manual
LEICKE Portable Power Station
(LEICKE external Battery 10.000 m h)
Produkt number K69198

Thank you for purchasing the LEICKE Portable Power Station.
We hold several brands to produce and distribute our products: LEICKE (power adapters,
batteries, KanaaN (adapters/converters, charging cables etc.), Sharon (iPad cases with
keyboard, fans etc.), Hebron (protective cases, docking stations, screen protectors etc.) and
Manna (notebook cases, tablet cases).
We continuously work on the development of our products, our customer support and
innovations. ur products have a long service life, are eco-friendly and high performing.
Furthermore, every day we do our very best to satisfy you as our customer. That is why you, no
matter if private or business customer, are in the focus of our company‘s efforts. We take your
reviews and proposals seriously and evaluate them continuously. That way, we get to know
you and your demands on our products and services better and thus allow for positive
enhancements.
To discover more about LEICKE products, or if you have any questions about this product, visit
our website www.leicke.com (production & wholesale) or www.leicke-distributor.de
(distribution) and feel free to contact us.
2

Dear customer,
With this portable LEICKE Power Station you can easily recharge your smartphone, iPad,
Galaxy ab or MP3 player when there is no socket available. Depending on the capacity of the
built-in battery of your device, the LEICKE Portable Power Station allows multiple charging
processes. he included adapters allow you to use your LEICKE Portable Power Station with
different mobile phones and smartphones from Samsung and Apple and any other mobile
devices with standardized Micro and Mini USB ports.
his external LEICKE battery fits into every pocket and is ideal for portable use thanks to its
small size. A protective case is included in delivery for optimal protection of the Power Station.
his case also holds enough space for all necessary cables and adapters.
For optimal performance, please read these instructions carefully before connecting, operating
or adjusting this product. Please keep this manual for further reference.
Your LEICKE eam!
P CK GE CONTENTS
Before using this device, please check the packaging and make sure the package contains
the following items:
Name Number of Pieces Note
LEICKE Portable Power Station 1 3,7 V/10.000 mAh
USB adapter cable 1 USB to 3.5 mm pin port
USB charging cable 1 USB type A to Micro USB
Micro USB adapter 1 -
Mini USB adapter 1 -
Mobile phone adapter 2 For different producers
Protective case 1 -
User's Manual 1 -
3

TECHNIC L DET ILS
Signal Input/Output
Input 5.0 – 6.0 V (±0.25V) / 1000 mA
utput 5.0 V (±0.25 V) / 1 A (max.) 5.0 V (±0.25 V) / 2.1 A (max.)
Connectors
Input connector USB type B Mini
utput connector USB type A
Battery
Capacity 10,000 mAh (sufficient for 4 to 7 mobile phone charging
processes or 1 charging process of an iPad or Samsung
Galaxy Tab),
3,7 V cell voltage
Battery cells Li-polymer
Charging time 7.5 h @ 5 V,1000 mA, 8~14h @ 5 V, 500 mA (computer)
Life cycle 500 charge cycles
Dimensions
(L x W x H) 145 x 76 x 14 mm
Weight 290 g
Environmental Specifications
perating Temperature 0°C~40°C
perating Humidity 10% to 60% RH
Power Requirements
External Power Supply 5 V, 1 A
Power Consumption Max. 5 W
Compatibility
USB Mini type B Mobile phones, MP3 players, digital cameras, navigation
systems, PSP
USB Micro Mobile phones, HTC, LEICKE accessories
Charging adapter for mobile
phones and tablets
iPad, iPhone 4, iPad 2, iPhone 4s, iPod classic, Samsung
Galaxy Tab, various mobile phones from the producers like
Nokia, Motorola, Dell, Sony Ericsson, Samsung
4

CONNECTORS

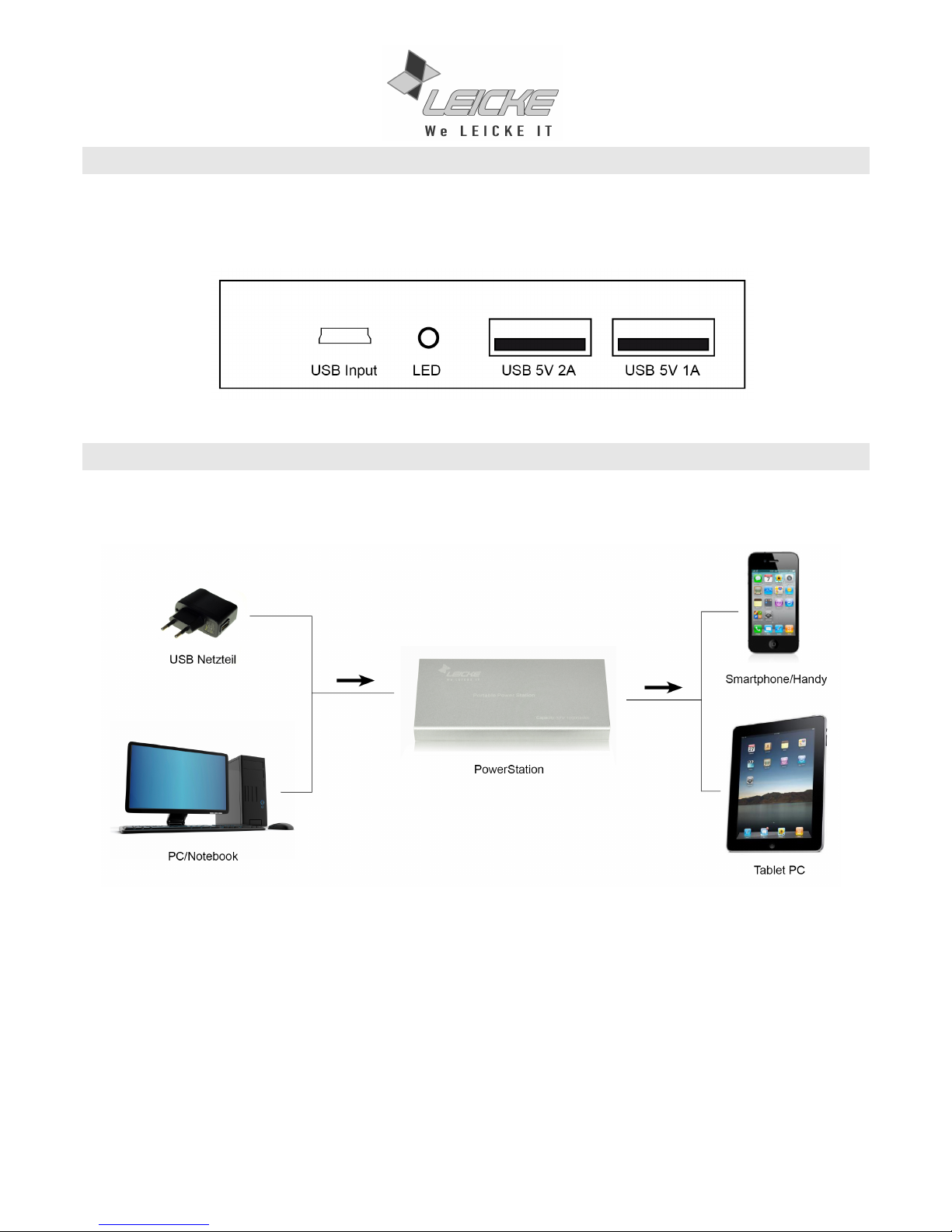

Please study the drawings below and become familiar with the signal input(s), output(s) and
power connector.
CONNECTION DI GR M
Please use the Mini / Micro USB cable to charge your LEICKE Portable Power Station.
5

CH RGING ND C P CITY ST TE OF B TTERY
TTENTION: While the LEICKE Portable Power Station is charging, it may not be used
to charge other devices.
Step 1: Please check if the power supply you wish to use is compatible with the LEICKE
Portable Power Station.
Step 2: Connect the Power Station via the micro USB cable to your computer or laptop, or
via the USB charging cable to a wall socket. The charging process will start
automatically and the LED indicator light glows red.
Step 3: When fully charged, the LED indicator light of the LEICKE Portable Power Station
glows green. Now you can charge other devices with your Power Station.
Notes:
•he LED indicator light glows green as long as the LEICKE Portable Power Station's
capacity is between 30% and 100%.
•A red light indicates that the capacity is below 30%. In this case, please charge your
LEICKE Portable Power Station.
•If the LEICKE Portable Power Station does not charge itself or other devices properly,
please check if the charging cable is correctly connected (to device and power
supply).
6

CH RGING MOBILES/SM RTPHONES ND OTHER DEVICES
TTENTION: The Portable Power Station cannot be used for charging other devices
during its own charging process. Use the LEICKE Portable Power Station to charge
digital devices with a DC 5 V input.
Step 1: Choose the correct USB plug connector and connect the device you wish to
charge to the LEICKE Portable Power Station. The LED glows red or green
depending on the charging state of the Portable Power Station and the charging
process starts. If the LED glows red, please charge the Portable Power Station as
soon as possible.
Notes:
•To charge an Apple iPad or Samsung Galaxy Tab, please use the included
adapters only!
•Devices like the Apple iPad and the Samsung Galaxy ab need a high charging
current. Please use the 2.1 A charging port for these devices.
•Included in delivery are: a 30 cm USB charging cable, charging adapters with Mini
and Micro USB connectors and other adapters, which are compatible with common
digital communication devices. If the charging cables are not compatible with your
mobile phone or other devices, please use the original charging cables of these
devices.
•If you have accidentally connected the iPad and the LEICKE Portable Power Station
with the original Apple cables, this may set the battery into a safety mode. You can
reset this mode in connecting the battery shortly to a computer for charging.
7

F Q
In general, in case of technical troubles check the electrical signal connections and the power
supply (LED glows) first. If this turns out to be not helpful, we have compiled the following
questions and answers for you to find the cause and solve the problem.
Problem Description Possible Cause/Possible Solution
Battery does not
charge or charges too
long
•Does the red charging LED glow? Maybe the charging
power of you power adapter or the USB port is not strong
enough. In this case, please use another compatible power
adapter or another USB port.
•The LED does not glow - Please check if all interfaces are
properly connected and the DC IN input was used to
charge. If the Power Station is charged via PC, it may be
necessary to switch the PC on to have power on the USB
port.
Battery cannot charge
device
•Is the Portable Power Station sufficiently charged?
If the LED glows red, the capacity of the battery is below
30%. Please charge the battery as soon as possible.
•Please check if the included adapters are compatible with
your mobile phone or devices. If necessary, check the
charging function with the original accessories of your
device.
•Have you accidentally connected the battery to an iPad with the
original Apple charging cable? See notes under point
"CHARGING M BILES/SMARTPH NES AND THER
DEVICES"
Battery charges device
just partly
•Maybe the capacity of the device's battery is higher than the
capacity of the Power Station, especially possible with
Tablets, which contain high capacity batteries.
If the problems cannot be solved, please don't hesitate to contact us. Our customer's
support will be glad to help you under [e-mail].
8

S FETY NOTES
For your own safety and for long enjoyment of our product, please follow the following safety
instructions:
•Please use device as described in the manual.
•Any modifications to the LEICKE Portable Power Station may result in fire, electric
shock, damage or injury.
•Avoid contact with spiky or sharp items.
•Do not open or puncture the LEICKE Portable Power Station.
•Keep away from fire, high temperatures or water.
•Avoid short circuits.
•Keep safe from being hit or falling down.
•If you discover a bulge on your Portable Power Station, please stop using it and
contact us.
9
