Leigh Country CHAR-LOG Series User manual

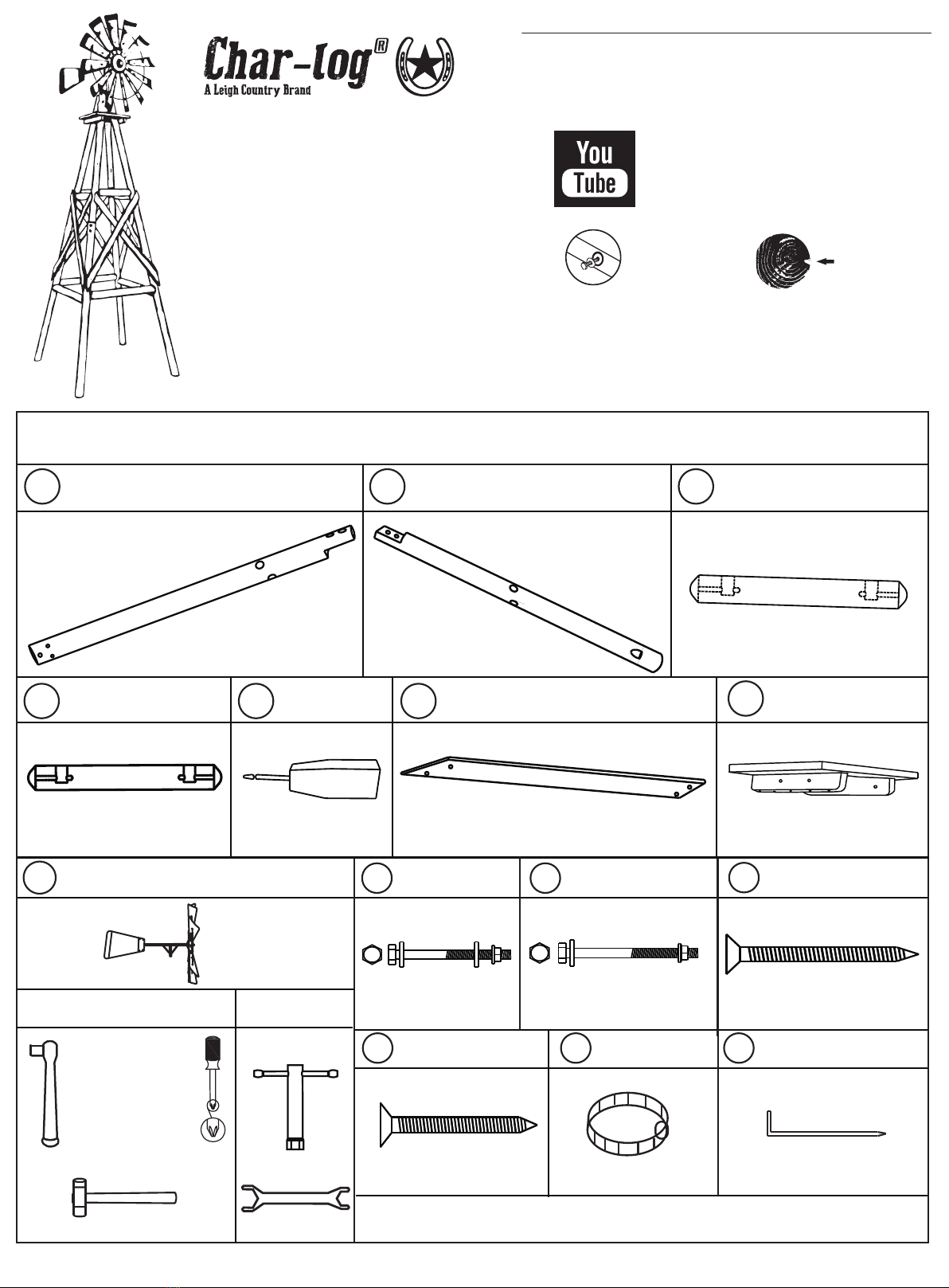

PARTS AND HARDWARE LIST
1 2
65
A B C
D E F
3
4
X 1pc
7
X 1pc X 8pcs X 1pc
8
Mallet
13mm Socket
& Wrench
Phillips
Screwdriver
Tools Required For Assembly
LEG-UPPER
CHAR-LOG WINDMILL SERIES
Recessed Hole
ITEM # TX 20010, TX 20011, TX 22002, TX 26501 & TX 93485
Pre-Checked
Assembly video available at:
www.Youtube.com/LeighCountry.com
Tools Included
LEG-LOWER UPPER SUPPORT
X 4pcs
LOWER SUPPORT
X 4pcs
X 25pcs
Power tools are not recommended while assembling this product.
SCREW
S04-3
X 16pcs
SCREW
S04-7
WINDMILL HEAD
X 8pcs
N08-8
NUT & BOLT NUT & BOLT
X 16pcs
N08-12
X 4pcs
STAKE
X 4pcs
CLAMP
SHAFT CROSS BRACE PLATFORM
ΦΦ
0.3”x4.7”0.1”x3”
Φ
0.165”x1.4”
Φ
0.17”x2.8”
1P & 1S x4 2P & 2S x4
IMPORTANT: READ CAREFULLY BEFORE BEGINNING
1. Do not tighten bolts until fully assembled.
2. Recessed holes to face outward.
3. Insert bolts with washer and secure with washer and nut.
4. Pre-checked side must always face downward or inward.
STEP 6:
STEP 4:
Congratulations on your assembly!
C
D
7
6
Optional:
Tighten all Bolts and Screws.
8
E
F
STEP 2:
2P
3
B
B
B
4
1P
1P
Do not fully tighten the bolts.
Connect the Upper Support
(3) and the Lower Support (4)
between the Legs (1) and (2)
by using the Bolts (B x 16).
Slide the Platform (7)
through the Shaft (5), and
secure with the Screws
(Cx4). affix the Cross
Braces (6) on to the legs
with the screws (D x 24).
STEP 3:
C
5
Fit the Shaft (5) between the angles
at the top of the legs: Secure with
the screws (C x 12) provided.
To avoid the wooden legs
cracked, tighten the Clamps (E)
on each end of the legs. Insert
the Stakes (F) into ground to
stabilize the Windmill.
Place the Windmill Head (8) on the
Shaft (5) and tighten Screw to secure
the Windmill Head (8) to the Shaft (5).
STEP 1:
1S
1S
A
A
2S
2S
1P
2P
2P
1P
Start with the Legs by connecting
the Upper parts to the Lower parts
(1P + 2P and 1S + 2S) by using the
Bolts (A x 8).
STEP 5:
Assembling
Separate assembly instructions included in box
with windmill head.
Assemble the Windmill Head (8), make sure the
Stop Nut is screwed on well.
2S
1S
1S
2S
2P
2P
2P
2S
2S
1P
2P
2P
1P
1P
1S
2S
2S
1S
Overhead View
Congratulations on your assembly!
STEP 1:
STEP 4:STEP 3:
STEP 2:
WINDMILL HEAD (STEP 5)
PARTS AND HARDWARE LIST
1 2 3
5 6 74
X 1pcX 1pc
X 1pcX 1pc X 24pcs X 4pcs
X 12pcs
1
7
5
A.
B.
5
3
2
4
6
3
Fan Head AssemblyTail Assembly
Insert the Ring
Back of Fan
Insert the Fan Head onto Shaft
Insert the Ring (5)
through Blade Holes
loop hole first.
Pull Wire through
the looped end and
bend it back.
Loosen to secure to needle.
Tighten to secure to needle to windmill top
once placed on top of windmill shaft.
Screw the
nut on to the
front of the
fan head.
MAIN SHAFT TAIL FAN BLADE
HOB & TINES RING

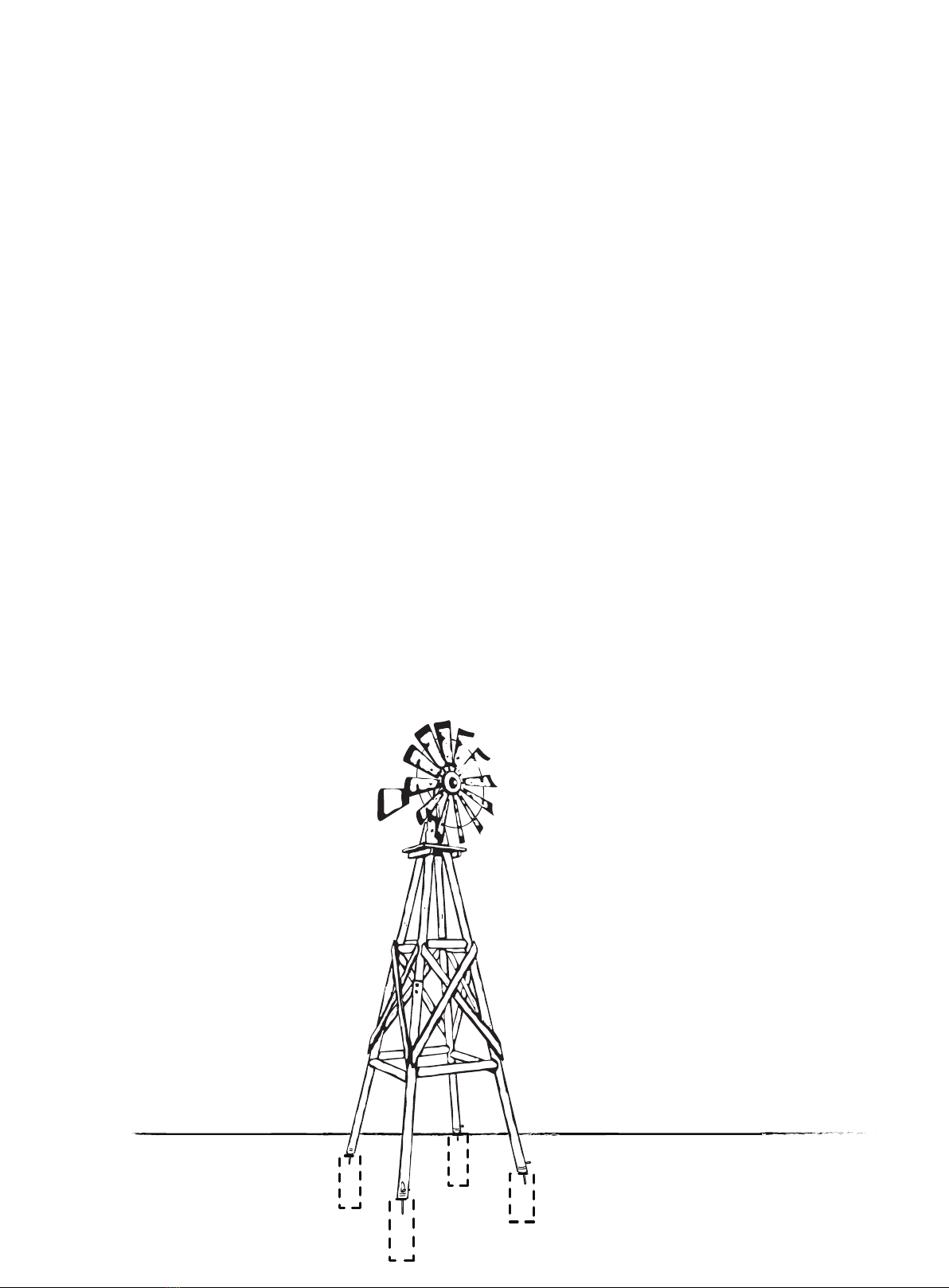

WINDMILL ANCHORING
Leigh Country deems it to be the end user’s responsibility for determining the location and soil
conditions for a windmill display setup. Anchoring the windmill base is very important to
assure a long usable product life. It is the end user’s responsibility in properly anchoring the
product. Product damage may be caused by improper anchoring.
There are several ways to anchor your windmill. Provided below is one such method of
anchoring your windmill to assure a long useful product life.
In order to anchor your Char-log®Windmill, it is recommended that at least 4”-6” diameter x
12” deep concrete footings be made.
Tools Needed:
- Post Hole Digger
- 80lbs Concrete Mix (approximately 2 x 40lbs bags)
Char-log®Leg
Concrete Footing
Overhead View
Steel “L” Anchor
Next, mix the concrete with water and pour it into the footing holes using half a bag per hole.
While the concrete is still setting up, you can attempt to anchor the windmill stand to the footing
without the windmill topper. Set the windmill on top of the 4 footings while the concrete is still
wet. Take the “L” shaped anchors and push it through the hole in the windmill leg and down into
the wet concrete. Make sure the anchors are in the wet concrete firmly
Allow for 24 - 48 hours of drying time before putting the windmill topper on the base.
First, find a level surface in your area that you want to anchor the windmill to. Depending on
local soil conditions, it may be necessary for larger and deeper footings. Softer soils may need
stronger footings.
Then take the post hole digger and remove at least a 6” diameter x 12” deep of soil.
Ground
Ground
Ground
Remove
6”
12”
www.LeighCountry.com
DISTRIBUTED BY
UNITED GENERAL SUPPLY CO., INC
HOUSTON, TX 77036
© 2016 UGS Co., Inc. All Rights Reserved The Char-log finish is copyright protected
Limited Warranty and Care Instructions
LIMITED ONE YEAR WARRANTY (NON-TRANSFERABLE)
This product is covered under United General Supply’s (UGS) one (1) year limited warranty. To the original
purchaser of this piece of furniture, cooler or accessory; UGS warrants that it will be free from defects in material
and workmanship for up to one year from the date of purchase under normal use and proper care.
Replacement of defective or missing parts will be sent at no charge to the customer for a period of 30 days from the
date of purchase. UGS will no longer be responsible for missing parts or hardware 30 days after date of purchase.
Freight, packaging, labor or material charges to and from our customer service center is not covered under the
warranty and is therefore the customer’s responsibility.
The limited warranty does not cover this piece of furniture, cooler or accessory for commercial purposes, abusive
use, damage by modification, freeze damage, rust, fading and issues caused by improper care.
For minor defects or missing parts/hardware, please contact customer service immediately upon purchase. Please
do not return product to the store unless the product is irreparable. A customer service agent may help determine
whether the damage is reparable and will provide further instructions.
For returns and refunds, please refer to your local store return policy with proof of purchase.
Proof of purchase (dated register receipt) will be required for warranty claims.
ASSEMBLY WITH POWER TOOLS MAY VOID THIS WARRANTY.
PROPER CARE INSTRUCTIONS
To preserve and maintain the original finish of Char-log /Aspen log furniture, we recommend that a light lacquer
coating be applied every 4 to 6 months depending on the seasons.
We recommended an exterior poly-urethane product that features a clear satin or semi-gloss finish and a fast
drying process.
The use of power tools during assembly may void this warranty.
Customer Service may be reached Monday through Friday from 9:00a.m. to 5:00p.m. CST.
[email protected] or 1-877-875-3444
