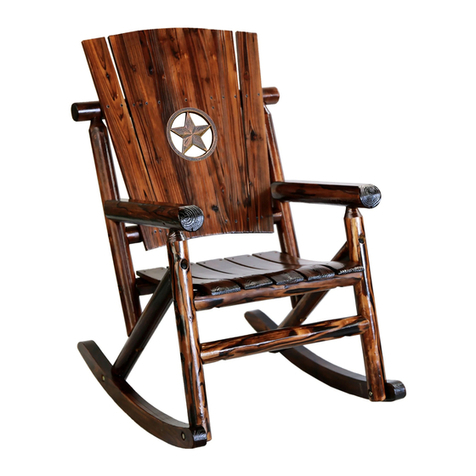

Leigh Country Char-log Aspen TX 93621 User manual

Take assembled SEAT PANEL (6) and one of the arm frames, keep the arm frame
standing and attached the SEAT PANEL (6) to the inside of the arm frame, secure
with the indicated nuts and bolts.
Insert the other arm frame
on the other side and
secure loosely with
nuts and bolts.
Take the Lower Support
Beam (5) and secure
under the seat between
the arm frame with
nuts and bolts.
Once the bottom half is finished,
take the BACK PANEL (7) and
place it gently on part 4 of the
arm frame.
Secure with indicated hardware
in the diagram.
Tighten all nuts, bolts,
and screws once
every part and
assembled pieces
are in place.
Congratulations
on your assembly!
STEP 1: STEP 2:
STEP 3: STEP 4:
Assembling the Rocker Arm Frame Assembling the Bottom Half
Assembling the Upper Half Finish
Take one piece of the following parts with a letter “R” behind
each number: 1 , 2 , 3 , 4 , 8 (”R” = Right)
1: Part 1 to part 4
2: Part 3 to part 2
3: Part 2 to part 1
4: Part 4 to part 3
5: Part 8 to Part 2 & 3
Use indicated hardware, directed
by diagram.
REPEAT steps 1 through 5 above using parts
labeled with a letter “L” (”L” = Left) after the part number.
C
A
A
4R
3R
1R
8R
2R
A
BB
7
6
5
A
A
A
A
C
Left
Right

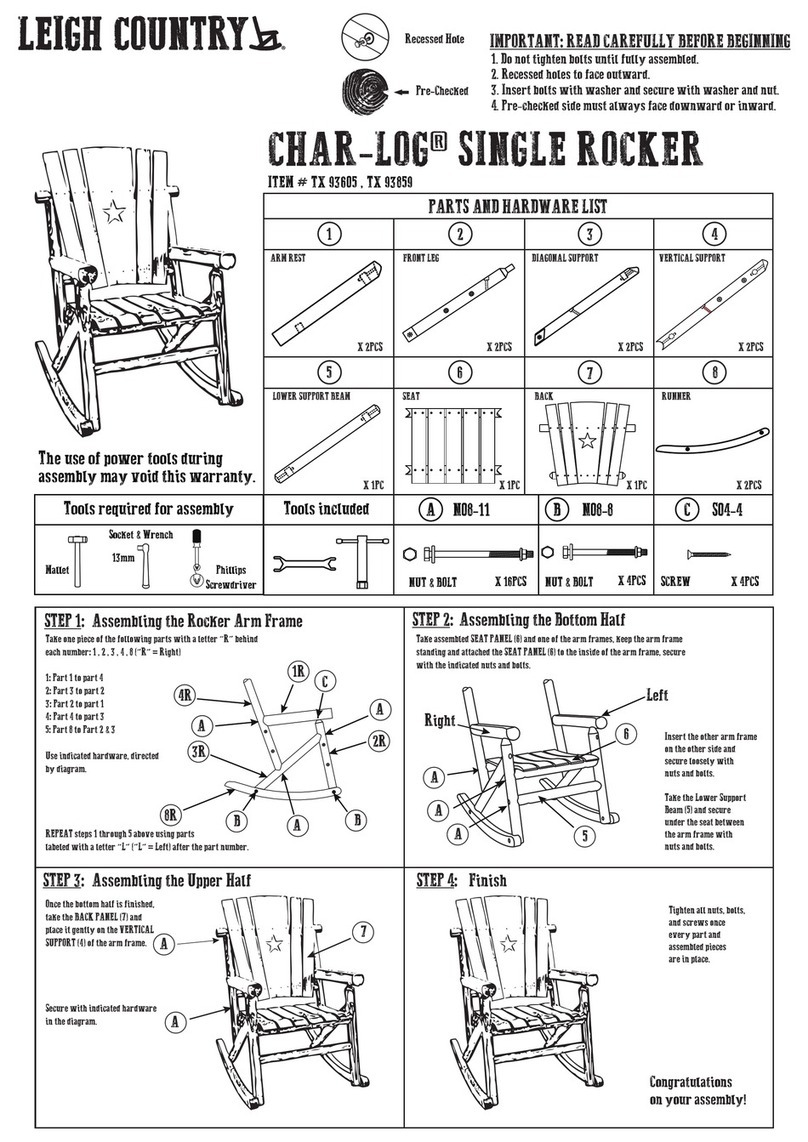

SINGLE ROCKER
ITEM # TX 93615, TX 93619, TX 93621, TX 93860, TX 51020, TX 95100, TX 95101, TX 95102, TX 95104
A B C
Mallet
Socket & Wrench
Phillips
Screwdriver
Tools required for assembly
13mm
NUT & BOLT NUT & BOLT SCREW
N08-11 N08-8 S04-4
X 14PCS X 4PCS X 6PCS
Tools included
1. Do not tighten bolts until fully assembled.
2. Recessed holes to face outward.
3. Insert bolts with washer and secure with washer and nut.
4. Pre-checked side must always face downward or inward.
IMPORTANT: READ CAREFULLY BEFORE BEGINNING
Recessed Hole
Pre-Checked
PARTS AND HARDWARE LIST
1 2
6
3
7
4
85
ARM REST
LOWER SUPPORT BEAM
FRONT LEG
SEAT
DIAGONAL SUPPORT
BACK
VERTICAL SUPPORT
RUNNER
AR55 FL64 DS72 VS74
LSB59 STS BKS RN90
X 2PCS X 2PCS X 2PCS X 2PCS
X 1PC X 1PC X 1PC X 2PCS

© 2014 UGS Co., Inc. All Rights Reserved
DISTRIBUTED BY:
UNITED GENERAL SUPPLY CO., INC.
HOUSTON, TX 77036
www.LeighCountry.com
Limited Warranty and Care Instructions
LIMITED ONE YEAR WARRANTY (NON-TRANSFERABLE)
Proof of purchase (dated register receipt) will be required for warranty claims.
PROPER CARE INSTRUCTIONS
Customer Service may be reached Monday through Friday from 9:00a.m. to 5:00p.m. CST.
[email protected] OR 1-877-87LEIGH (53444)
This product is covered under United General Supply’s (UGS) one (1) year limited warranty. To the original
purchaser of this piece of furniture, cooler or accessory; UGS warrants that it will be free from defects in
material and workmanship for up to one year from the date of purchase under normal use and proper care.
Replacement of defective or missing parts will be sent at no charge to the customer for a period of 30 days
from the date of purchase. UGS will no longer be responsible for missing parts or hardware 30 days after
date of purchase. Freight, packaging, labor or material charges to and from our customer service center is
not covered under the warranty and is therefore the customer’s responsibility.
The limited warranty does not cover this piece of furniture, cooler or accessory for commercial purposes,
abusive use, damage by modification, freeze damage, rust, fading and issues caused by improper care.
For minor defects or missing parts/hardware, please contact customer service immediately upon
purchase. Please do not return product to the store unless you are completely unsatisfied with the product,
or if the damage is irreparable. A customer service agent may help determine whether the damage is
reparable and will provide further instructions. For returns and refunds, please refer to your local store
with proof of purchase for such cases.
If left untreated, wood will naturally weather. During long periods of non-use, store furniture or cooler
in covered and dry place. For the least maintenance, place your furniture, cooler, or accessory under a
covered area.
To preserve and maintain the original finish of Char-log/ Aspen log furniture, we recommend that a light
lacquer coating be applied every 4 to 6 months depending on the seasons.
We recommended an exterior poly-urethane product that features a clear satin or semi-gloss finish and a
fast drying process.
