LEMAAR 59100 User manual

Ø38mm (WIRING LOOM)
Ø12mm
Ø12mm
RATIO 1:1
Ø38mm (SPINDLE HOLE)
CENTRE LINE
OF DOOR EDGE
Mark and drill holes from both sides of the door.
POSITION ON EDGE
FOLD HERE

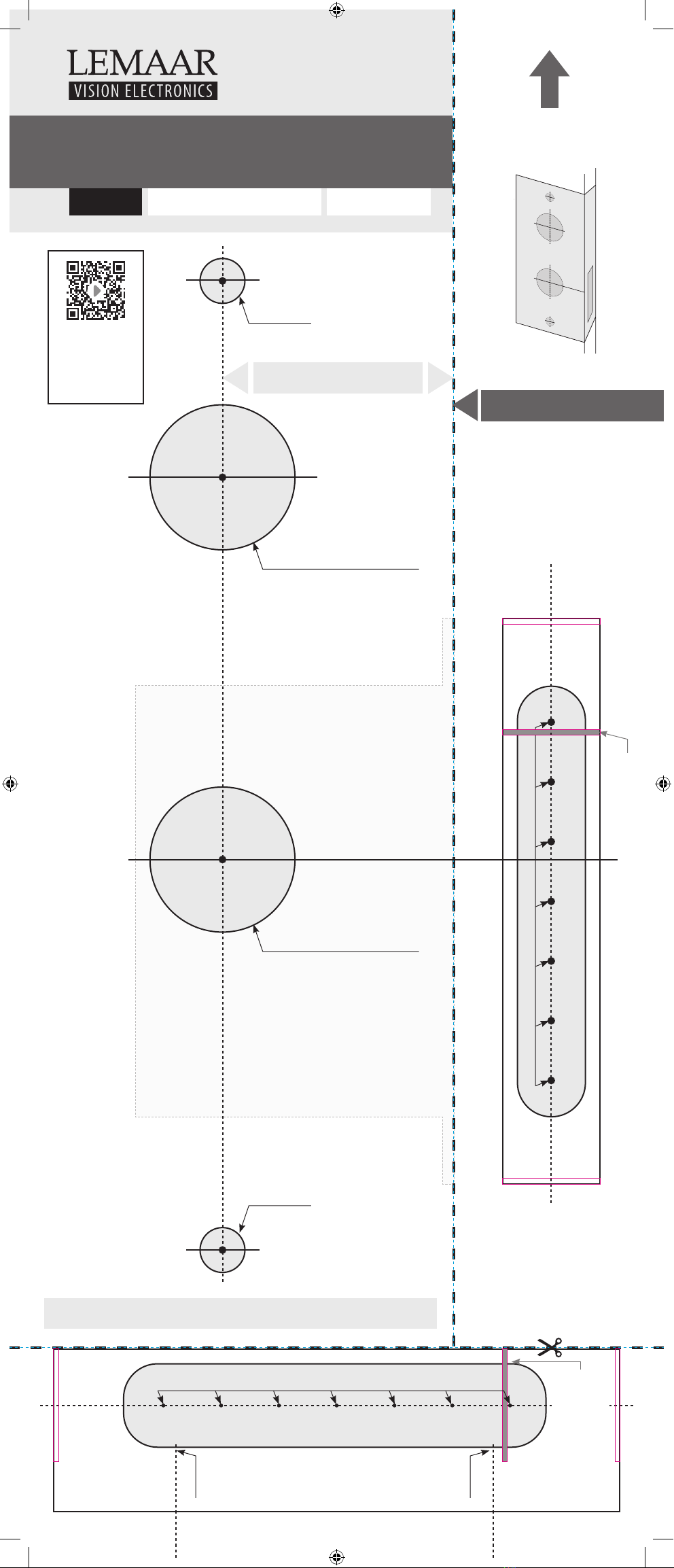

ELECTRONIC MORTICE LOCK
DOOR TEMPLATE
RADIUS BACKSET 60MM
60mm BACKSET
TOP
OF DOOR
Ø18mm HOLE – 7 LOCATIONS DRILL TO DEPTH OF 80mm
CHISEL FACEPLATE FLUSH WITH DOOR EDGE
RETRO FIT ONLY ALIGN TO TOP OF EXISTING LATCH CUTOUT (25MM X 57MM TYPE)
FIT DOORS 33MM TO 50MM THICK
59100
HANDLE HEIGHT
CENTRE
LINE OF
DOOR
FRAME
RETRO FIT ONLY ALIGN TO TOP OF STRIKE CUTOUT (D STRIKE ONLY)
Ø22mm HOLE – 7 LOCATIONS DRILL TO DEPTH OF 20mm
LINE UP WITH BOTTOM OF BOLT MARK ON FRAME EDGE LINE UP WITH TOP OF LATCH MARK ON FRAME EDGE
STRIKE PLATE
RATIO 1:1
EASY TO
I NSTALL
STEP-BY-STEP
VIDEO GUIDE &
USER MANUAL
LEM122 ElectronicMortice 59100 Installation Template.indd 1LEM122 ElectronicMortice 59100 Installation Template.indd 1 16/5/22 5:25 pm16/5/22 5:25 pm

Ø38mm (WIRING LOOM)
Ø12mm
Ø12mm
RATIO 1:1
Ø38mm (SPINDLE HOLE)
CENTRE LINE
OF DOOR EDGE
Mark and drill holes from both sides of the door.
POSITION ON EDGE
FOLD HERE
ELECTRONIC MORTICE LOCK
DOOR TEMPLATE
RADIUS BACKSET 60MM
60mm BACKSET
Ø18mm HOLE – 7 LOCATIONS DRILL TO DEPTH OF 80mm
CHISEL FACEPLATE FLUSH WITH DOOR EDGE
RETRO FIT ONLY ALIGN TO TOP OF EXISTING LATCH CUTOUT (25MM X 57MM TYPE)
TOP
OF DOOR
FIT DOORS 33MM TO 50MM THICK
59100
HANDLE HEIGHT
CENTRE
LINE OF
DOOR
FRAME
RETRO FIT ONLY ALIGN TO TOP OF STRIKE CUTOUT (D STRIKE ONLY)
Ø22mm HOLE – 7 LOCATIONS DRILL TO DEPTH OF 20mm
LINE UP WITH TOP OF LATCH MARK ON FRAME EDGE LINE UP WITH BOTTOM OF BOLT MARK ON FRAME EDGE
STRIKE PLATE
RATIO 1:1
EASY TO
I NSTALL
STEP-BY-STEP
VIDEO GUIDE &
USER MANUAL
