Lemco micro line MLF-200 User manual

2
1. IMPORTANT SAFETY PRECAUTIONS INFORMATION
READ THE FOLLOWING WARNINGS BEFORE YOU USE YOUR DEVICE
Παρακαλούμε φυλάξτε αυτό το εγχειρίδιο σε ασφαλές μέρος για μελλοντική αναφορά.
Power supply / Mains cord
zx w Operate the unit only within the voltage range defined as appropriate by the man-
ufacturer.
zx w Occasionally check the power connector and remove dirt or dust that may have
accumulated.
zx w Use only the mains cord that comes with your unit.
zx w Do not operate the unit or plug in the mains cord if it is broken, split, or damaged
in any way.
zx w Do not place the mains cord next to heating devices. Do not pull it, place heavy
objects on it or damage it in any way. Keep it out of reach of children.
zx w Ensure that the device is plugged in a properly grounded socket. Insufficient
grounding may cause electrocution.
zx w Always carefully disconnect all plugs by pulling on the plug and not on the cord.
Make sure the unit's power switch is turned off before removing the cord from an
outlet.
zx w Disconnect the mains cord when the unit is not in use for long periods of time or
during storms.
zx w Do not connect the unit to a multiple-outlet to avoid plug overheating.
Disassembling
zx w This unit contains parts that cannot be repaired by the user. Do not disassemble
or try to repair it as this will void all warranties. Please contact the manufacturer if
you experience any problems with your unit.
Water/humidity
zx w Do not keep the unit in a humid place or near water.
zx w Do not plug/unplug the unit with wet hands.
WARNING
The following safety precautions must be observed to prevent fire
or electric shock hazard. Safety precautions include but are not re-
stricted to the following:

3
Fire
zx w Never place a candle or another source of fire on the unit as it may fall and start
a fire.
zx w If the mains cord or the power connector is damaged or destroyed, or if there is a
sudden loss of picture during operation, or if you notice a strange smell or there is
smoke, immediately switch the unit off, disconnect the mains cord and contact the
manufacturer’s technical support department.
Installation / Storage
zx w This unit contains high precision pieces of electronics. To ensure optimal perform-
ance and avoid damage, do not store it in any location where it may collect dirt,
duct, lint, etc. Do not expose it to extreme heat or cold (e.g. in direct sunlight, near
a heater or in the car during the day). Place the unit in a secure place to avoid falls.
zx w Before moving the unit, always unplug all cords first.
zx w When installing the unit, make sure that an outlet is within easy reach. In case of
malfunction, switch the unit off and unplug the power cord. When the unit is not in
use for a long period of time, make sure that the mains cord is disconnected.
Connectivity
zx w Before connecting the unit to other electronic devices, always switch off and unplug
all devices.
Maintenance
zx w Do not spill liquids on the unit. Do not use any diluents or volatile liquid to clean
the unit. Instead, use a soft slightly damp cloth and allow the unit to dry completely
before using again.
Handling
zx w Do not poke your finger into the openings on your unit.
zx w Never put paper, metal parts or other objects into the openings of your unit. If you
suspect that there are foreign parts in your unit, switch it off and unplug the mains
cord. Contact the manufacturer’s technical support department.
zx w Do not step on or place heavy objects on top of the unit. To avoid hardware dam-
age, handle all buttons, connectors and switches gently.

4
2. INTRO
Congratulations on purchasing the MLF-200. You now own a high quality, professional
DTV headend. To get the most out of your purchase, please take the time to carefully
read through this manual.
3. INSTRUCTIONS
3.1 - Description
The MLF-200 is a very powerful, all-in-one device, able to receive up to 4 independent
satellite (DVB-S/S2), terrestrial (DVB-T/T2) or cable (DVB-C) signals and convert them
in IPTV streaming using UDP/RTP protocols multicast/unicast.
The embedded web server of the MLF-200 provides a very friendly user interface as
well as the ability of remote or local control of the device via Ethernet.
Its small size and its powerful features renders the MLF-200 the ideal solution in cases
we want to distribute FTA (Free-To-Air) TV programs coming from satellite (DVB-S/S2),
terrestrial (DVB-T/T2) or cable (DVB-C) sources to a CATV installation using IP tech-
nology.
3.2 - Features
zx w 4 x independent multi-standard inputs DVB-S/S2/T/T2/C
zx w Gbit IP streaming (up to 64 x SPTS / 4 x MPTS)
zx w Dual power supplies offering redundancy mode
zx w Local or remote control via webserver
zx w Very friendly user interface
zx w Wall or rack mount options
zx w SNMP v2
zx w Ultra-compact size
zx w 5year warranty
3.2.1 - Auto-reset functions and watchdog
During the normal operation of the MLF-200, the main CPU monitors all the internal
parts in order to ensure that the device works normally. In case of an internal error or
module failure, the MLF-200 immediately initiates the recovery procedure by resetting
the appropriate module or the device. Finally, watchdog timers ensure that the device
will be reset in case of CPU failure.

5
3.2.2 - IP streaming
The MLF-200 is able to make IP streaming of all programs coming from the 4x RF in-
puts using UDP or RTP protocol in multicast/unicast IP addresses. The max. output bi-
trate can be up to 480 Mpbs.
3.2.3 – Dual power supplies
The MLF-200 is powered from one or two external power supplies of +12VDC/2.5A. In
case we connect two external power supplies then they will work in redundancy mode.
Thus, in case of failure of one of the two external power supplies the device will con-
tinue working without stoping.

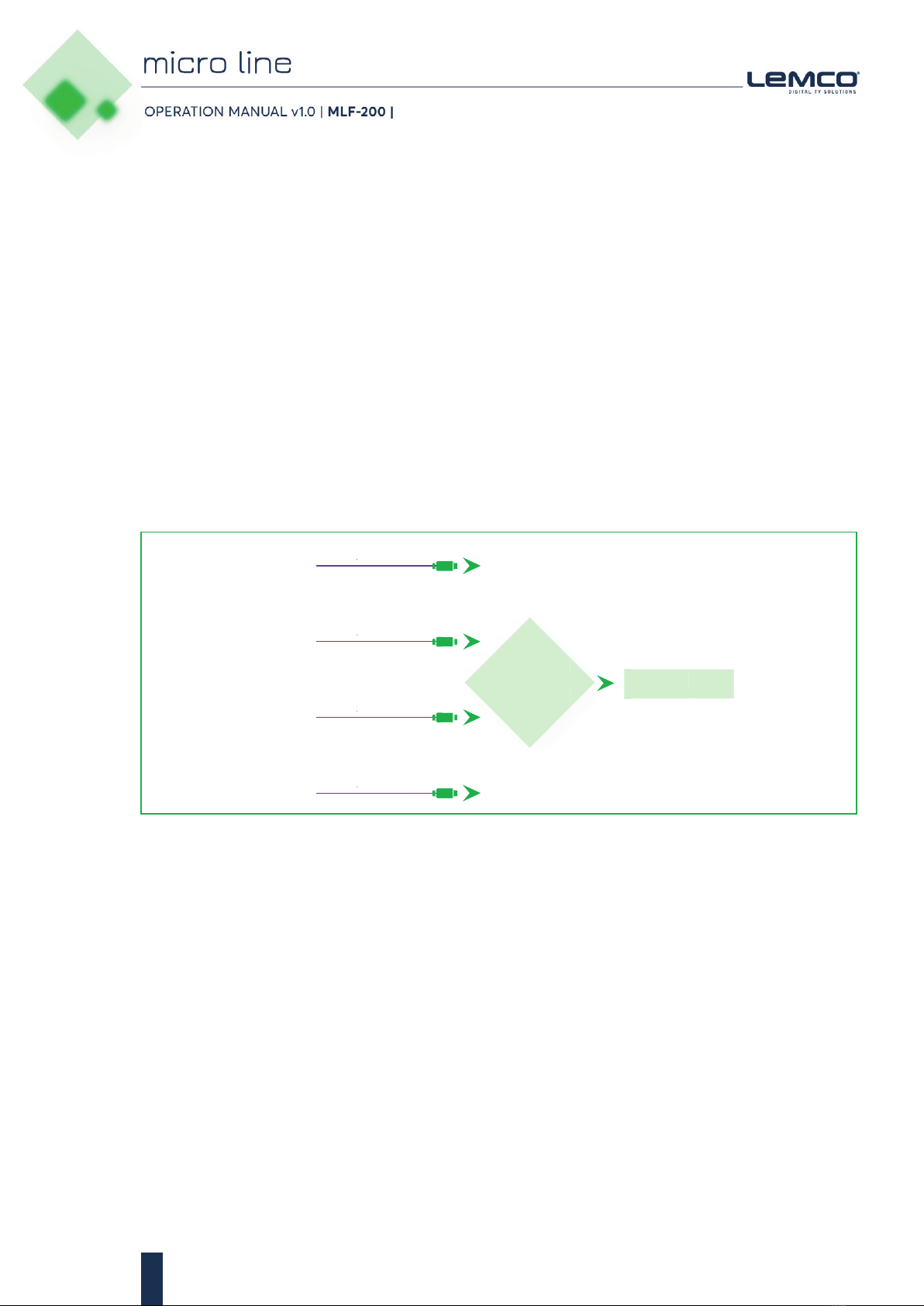

3.3 – Block Diagram
S2
/T
S
DVB-
S/
/
T/
/
T2
/
C
S2
/T
S
DVB-
S/
/
T/
/
T2
/
C
S2
/T
S
DVB-
S/
/
T/
/
T2
/
C
20-MLF (64 SPTS/4 0IP
MPTS)
S2
/T
S
DVB-
S/
/
T/
/
T2
/
C

6
3.4 - Product drawing views
1 2 3
4
5
1. IPTV streaming port
2. LAN control port
3. RF inputs
4. Power supply inputs
5. Fan cooler

7
4. INSTALLATION
4.1 - General
The MLF-200 has a very friendly interface for programming and monitoring purposes.
The user is able to gain access to the embedded webserver, by opening an Internet
browser (e.g. Internet Explorer, Firefox or Chrome) and type the following static IP:
192.168.1.205.
The default username and password are the following:
Username: admin
Password: 12345
4.2 - Embedded Webserver
Status
4.2.1 - “General” page
Every time that the user is connected to the device, the “General” page (Figure No 1) is
loaded providing a current general status information of the device.
Status - Inputs 1…4
In these fields, the user is able to see the status of each tuner e.g. If it is locked / un-
locked or disabled, the working mode eg. DVB-S/S2, DVB-T/T2 or DVB-C etc…

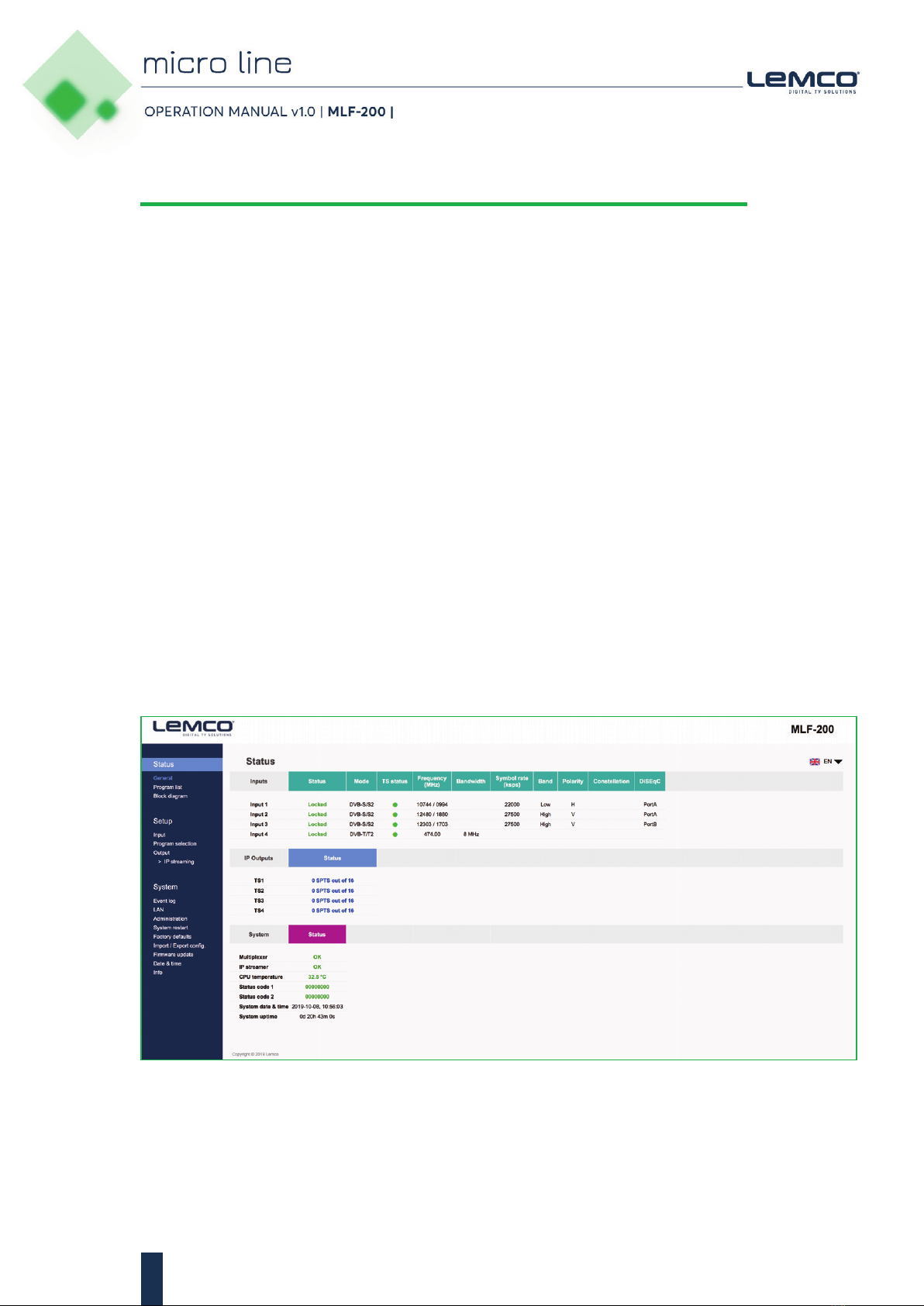

Figure No 1

8
Outputs – IP
In these fields, the user is able to see the status of all the IP outputs of the device.
System
This section provides general information of the device, like internal status of all device’s mod-
ules, CPU temperature and fan state as well as error codes for troubleshooting purposes.
4.2.2 - “Program list” page
In “Program list” page (Figure No 2) the MLF-200 provides information of all programs
that are currently being distributed via its four IP outputs.
At the same time, the device offers the whole channel list to be exported under the
follow file types:
zx w Excel – All the program list is exported in .xlsx format
zx w CSV – All the program list is exported in .csv format
zx w M3U – All the program list is exported in .m3u
4.2.3 - “Block diagram” page
The “Block diagram” page (Figure No 3) provides a general view of device’s internal
modules and architecture.
Figure No 2

9
Figure No3
Figure No 4
All icons are clickable providing the ability to the user to go directly to the setup
page of all internal modules of the device. The grey icons mean that the current
module is disabled.
Setup
4.2.4 - “Input” page
In the “Input” page (Figure No 4) the user is able to select the working mode for each
input.

10
There are four tabs, one for each input. The user is able to select the working mode of
each input as follows:
For Satellite signal reception the user must select DVB-S/S2 mode:
1. Tuner Enabled/Disabled - Enable or disable the specific tuner
2. SAT or IF frequency – Select how to insert the SAT frequency
3. Symbol rate – Insert the symbol rate
4. LNB voltage – Select the LNB voltage (13V,18V,OFF)
5. Band – Select the appropriate SAT band (works only if IF frequency is selected as
input method)
6. DiSEqC – Select DiSEqC A, B, C, D
For Terrestrial signal reception the user must select DVB-T/T2 mode:
1. Tuner Enabled/Disabled - Enable or disable the specific tuner
2. Frequency – Insert the input frequency or
3. Channel – Instead of frequency your can add the channel number
4. Bandwidth – Insert the input channel bandwidth
For DVB-C mode:
1. Tuner Enabled/Disabled - Enable or disable the specific tuner
2. Frequency – Insert the input frequency
3. Symbol rate – Insert the symbol rate
4. Constellation – Insert constellation
Once all settings are being written for both tuners, the user must click the “Apply” but-
ton to begin the lock process.
Tuner status
For each input the MLF-200 provides several information such as tuner status
(Locked/Unlocked), total bitrate, signal strength, quality etc.
4.2.5 - “Program Selection” page
In the “Program Selection” page (Figure No 5) the user is able to select any program
from any input and assign it to any output using the “pool” technology.

11

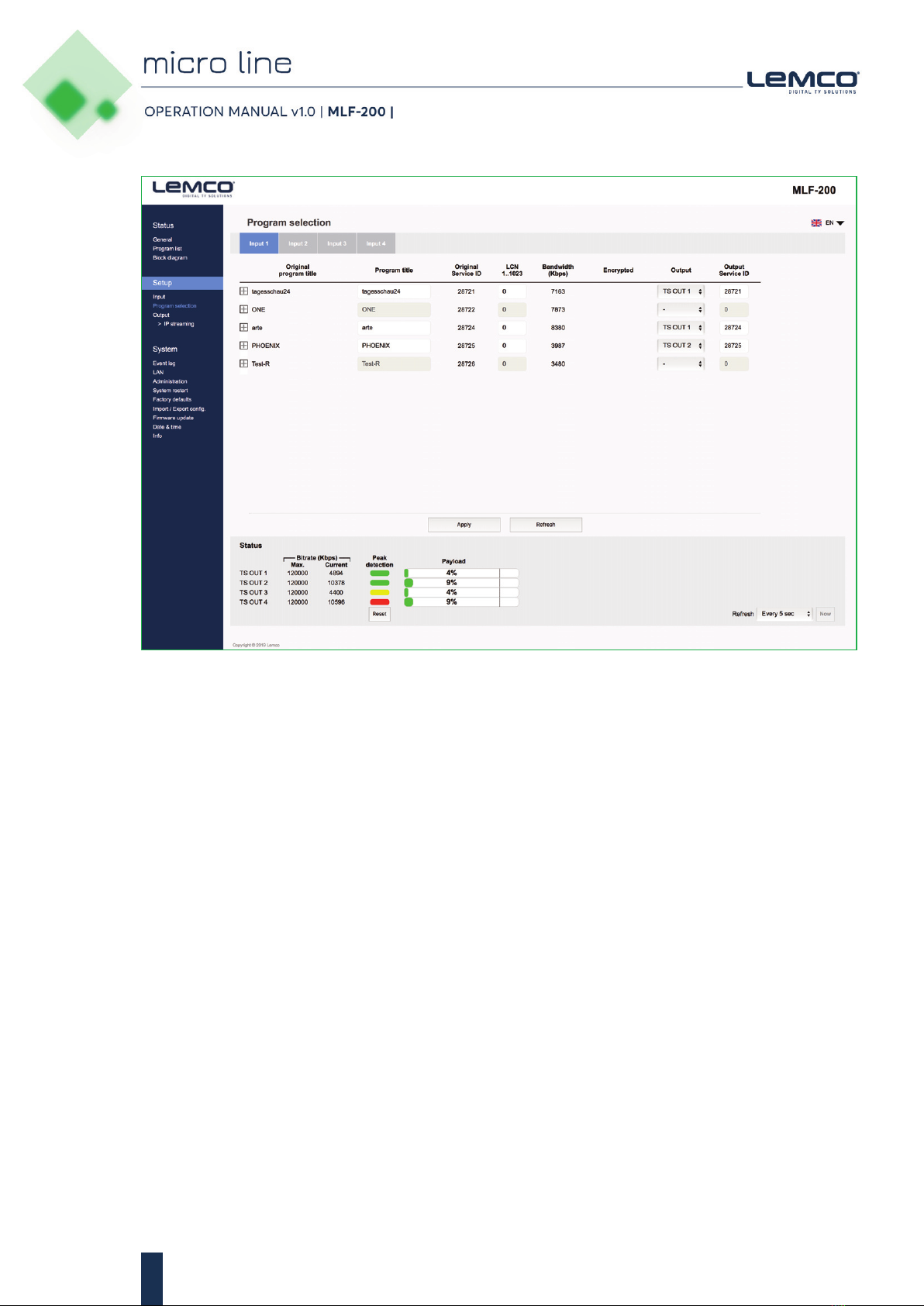

Figure No 5
There are 4 tabs, one for each input. Each tab depicts all the TV and Radio programs from the input
that has being selected during the “Input page” processes.
When the user selects one input, the device’s multiplexer does a real time analysis and depicts the
program list from this specific input. For each program the MLF-200 provides the following infor-
mation/options:
zx w Original Program Title – which is the name of the program
zx w Program Title – The ability to enter a custom name for this specific program
zx w Original Service ID – which is the original Service ID number of the program
zx w LCN No – which is the logic channel number of the program
zx w Bandwidth – which is the bitrate of the program in Kbps
zx w Encrypted – which depicts if the program is encrypted or not
zx w Output – To select in which the program must be assinged
zx w Output Service ID – The user is able to provide custom Service ID number
Each program title has a small cross at the left which can be expanded if the user will click on it.
During this procedure, all the available PIDs of this specific program are reveled (Figure No 6). In this
case, the user is able to select/deselect which PID want to be outputted.

12

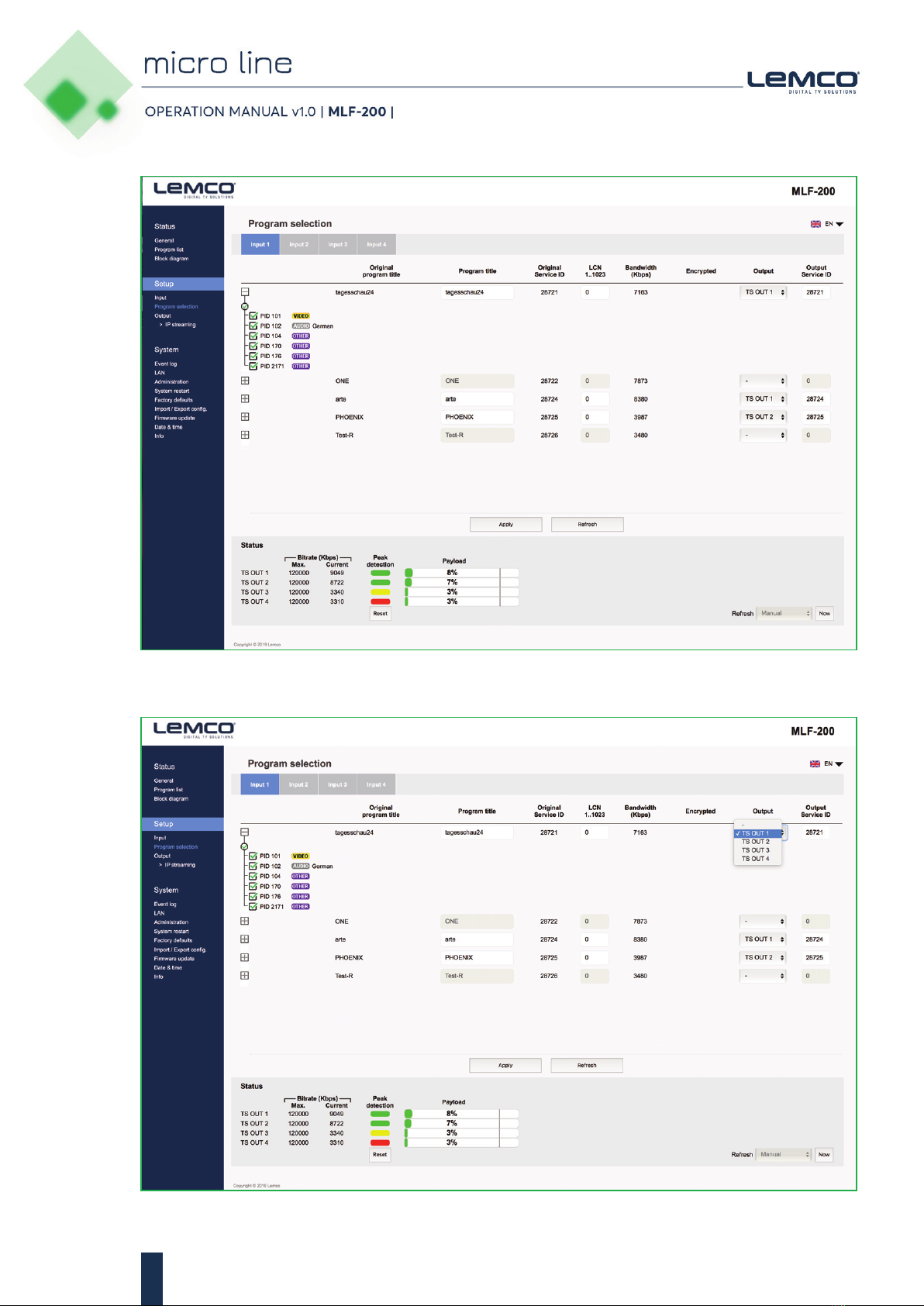

Figure No 6
Figure No 7

13
Using the Drop-down menu from “Output” column (Figure No 7) the user is able to as-
sign any program to any of the four outputs. By doing the same process for each pro-
gram, from all inputs the user is able to create his own 4 custom multiplex in the output.

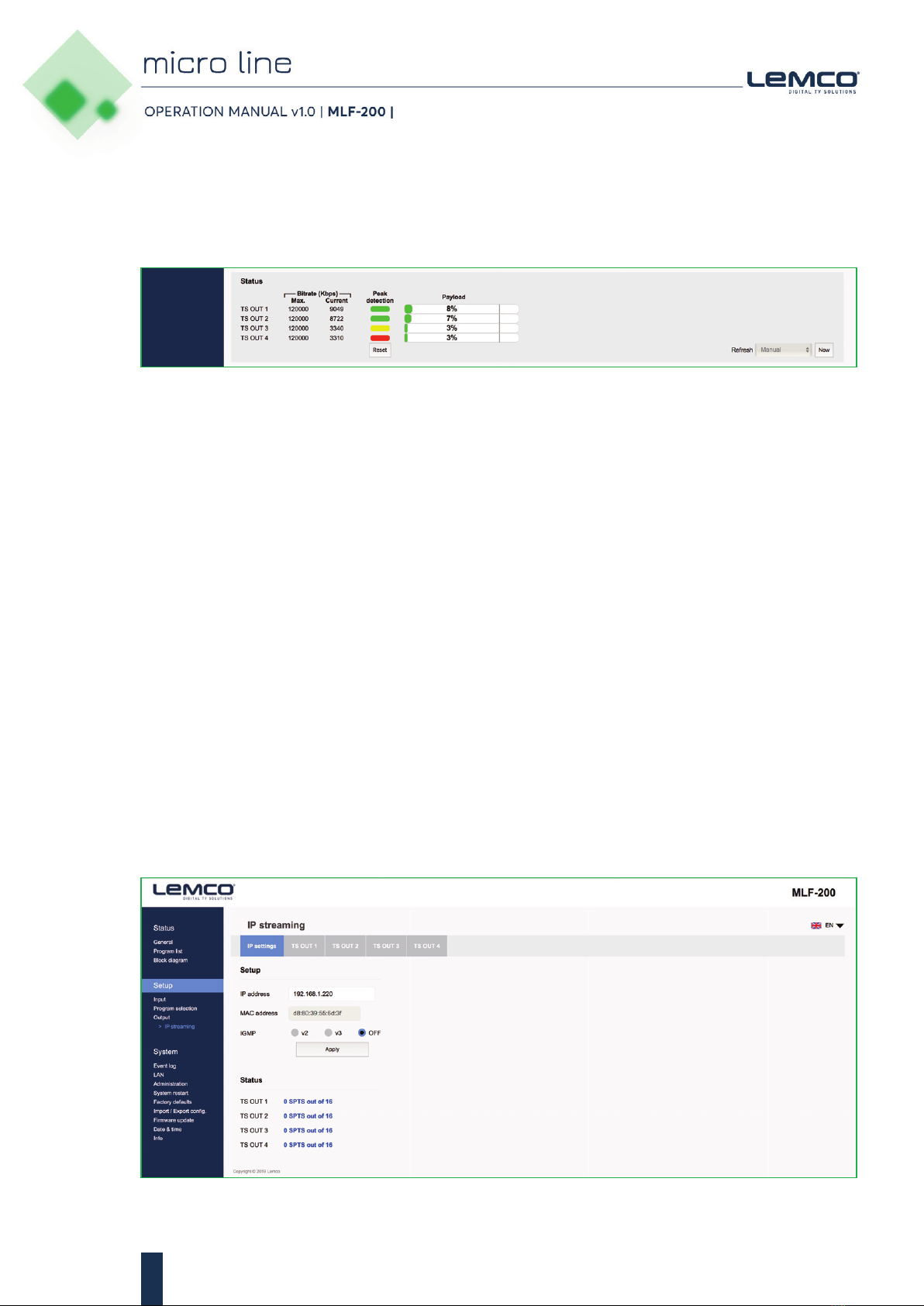

Figure No 9
Figure No 8
The status section in (Figure No 8) provides a general idea to the user of the current payload (according
to the selected programs) comparing it to the max. output payload.
It is recommended that the user must not exceed the 85% from each output, since all the bitrate are
variable according to their specific content.
Peak Detection mechanism
As shown in Figure No 8 there is a colored indicator of the peak detection mechanism, for each output
transport stream. This indicates if any overflow has occurred on modulator’s output bitrate with the
following colors:
zx w Green – No overflow occurred
zx w Yellow – No overflow occurred but the input bitrate is close to the output bitrate
zx w Red – Overflow occurred. The user must decrease the input bitrate
4.2.6 - “IP streaming” page
In “IP streaming” section the user is able to setup the IP streamer of the device.

14
In order to setup the IP address for each program there are four tabs one for each IP
output of the MLF-200.
By selecting e.g. the TS1 tab (Figure No 10) the user is able to setup the IP streamer for
this specific output, following the steps below:
1st step: Select SPTS or MPTS streaming mode.
SPTS mode: Means that each program has its own IP
MPTS mode: Means that all the programs of the current output (e.g.
TS1) will be streamed in a single IP.
2nd step: For each program (in SPTS mode) or for the whole TS (in MPTS
mode) the user is able to assign a multicast IP address from
224.0.0.0 to 239.255.255.255 or a unicast IP address as well as its
destination port and protocol (UDP or RTP).
By repeating the above procedure for all four outputs of the MLF-200, the user is able
to setup the IP streamer of the device.
Figure No 10
In Figure No 9 we have general settings of the IP streamer as follows:
zx w IP address: This is the IP address of the streamer for ping purposes.
zx w MAC address: This is the MAC address of the streamer
zx w IGMP: The user is able to select IGMP v2 or v3 or disable the IGMP.
The Status section provides a general view of how many programs and in what format
are currently being streamed from the device is its four outputs.

15
4.2.7 - “Event log” page
In “Event log” page (Figure No 11) the system logs all the events occurs in the device
during its operation. These logs are divided in three different categories based on their
priority as follow:
High Using the red color the system logs the events which are of high priority.
Medium Using the orange color the system logs the events which are of medium
priority
Low Using the red color the system logs the events which are of low priority.

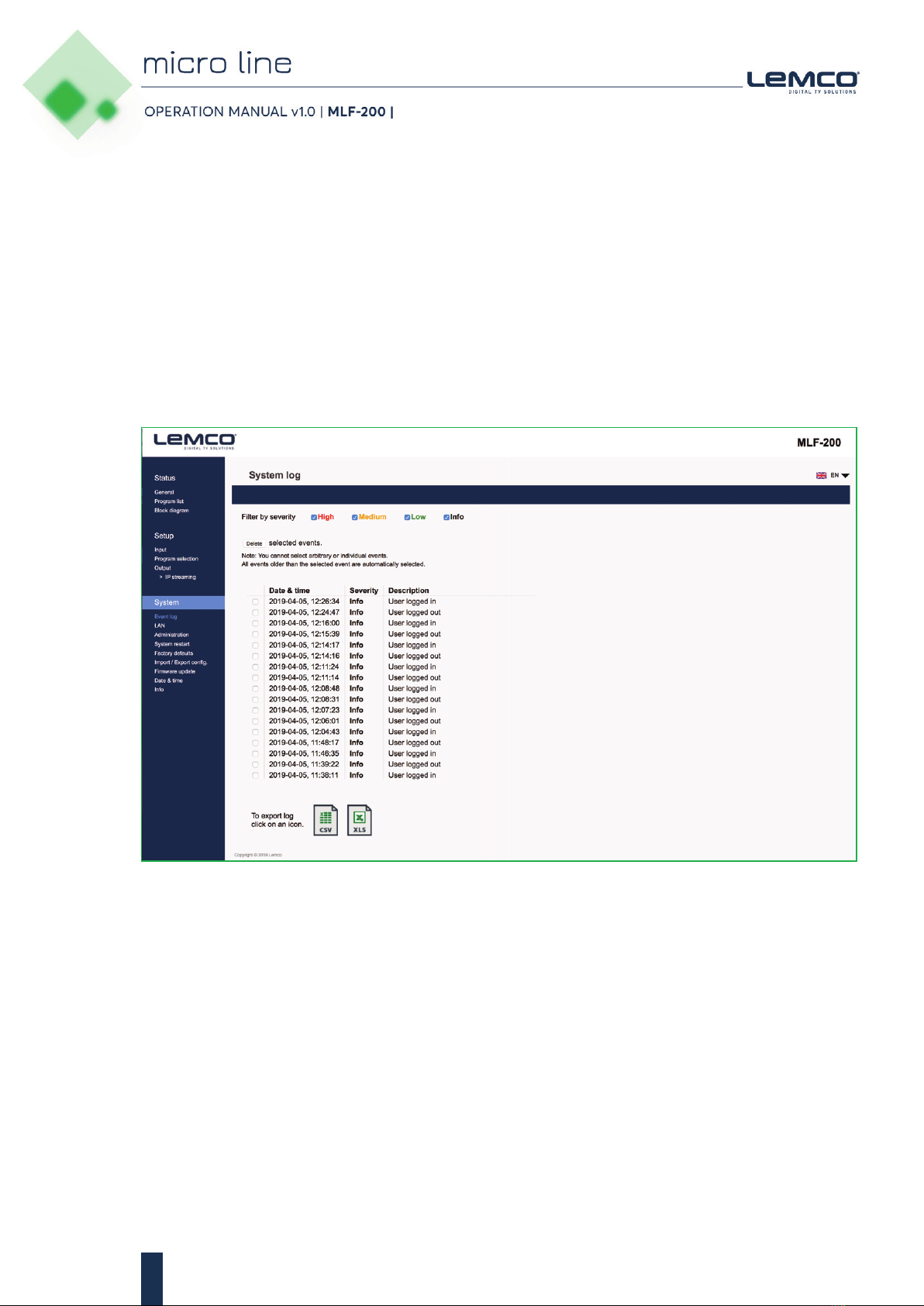

Figure No 11
The user has the ability to select which kind of events to display as well as the device
gives the opportunity to export these logs as follow:
zx w Excel – All the program list is exported in .xlsx format
zx w CSV – All the program list is exported in .csv format

16
4.2.8 - “LAN” page
In “LAN” page (Figure No 12) the user is able to setup all the parameters of the LAN
control of the device as follows:
4.2.9 - “Administration” page
In “Administration” section (Figure No 13) the user is able to change the default pass-
word of the webserver.
zx w DHCP – Enable or disable DHCP
zx w IP address: Set a static IP address for controlling the device
zx w Subnet mask: Set the specific Subnet mask
zx w Gateway: Set the gateway’s IP address
zx w Primary DNS: Set the IP address of the primary DNS
zx w Secondary DNS: Set the IP address of the secondary DNS
zx w Port: Assign the control port
zx w MAC address: Depicts the MAC address of the LAN control

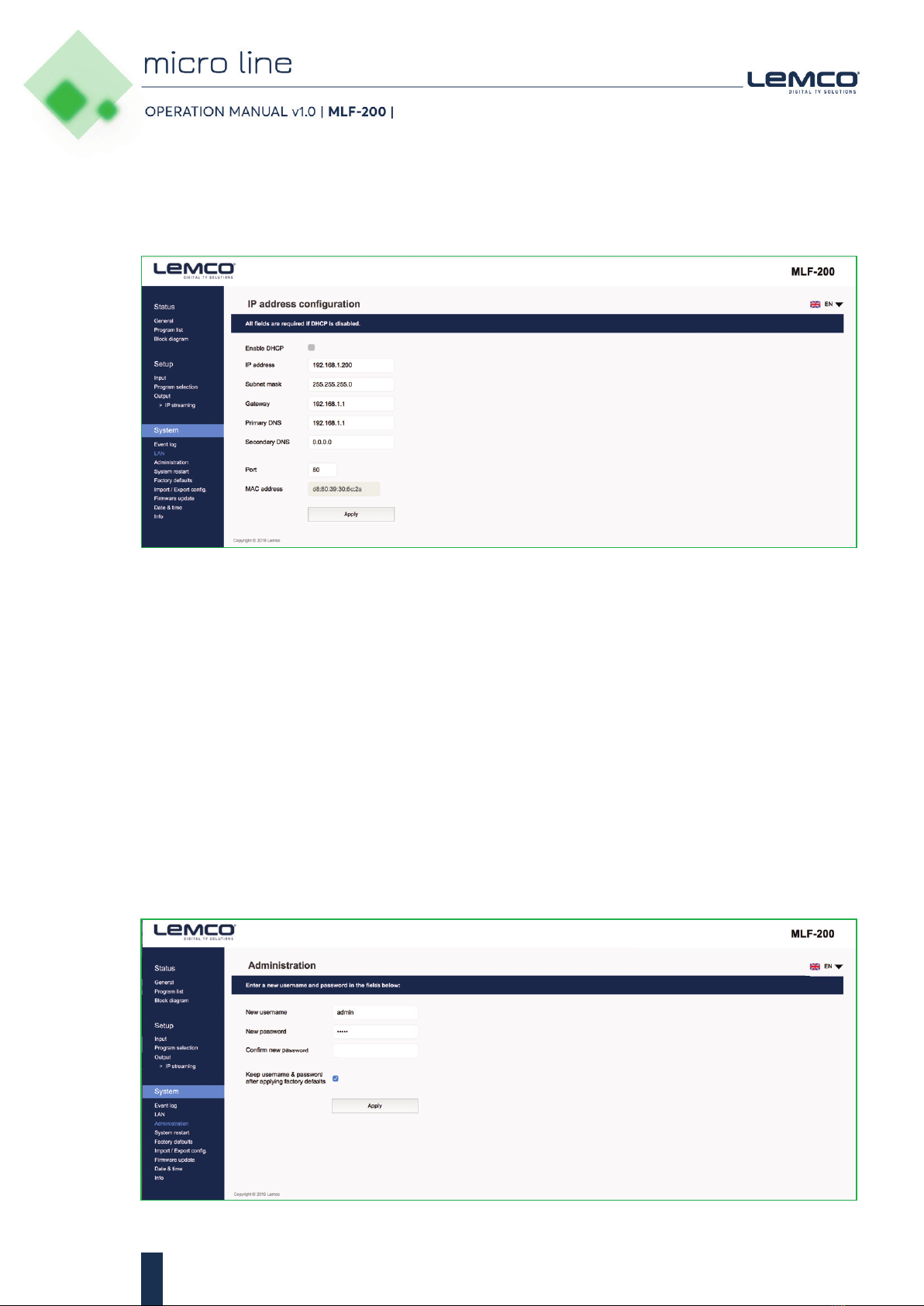

Figure No 12
Figure No 13

17
Caution!
In case of factory default procedure, the username and password
will be reset unless we select the check box “Keep username &
password after applying factory defaults”.
4.2.10 - “System restart” page
In “System restart” section (Figure No 14) the user is able to apply a full reset to the de-
vice.
Figure No 14
4.2.11 - “Factory default” page
In “Factory default” section (Figure No 15) the user is able to apply a factory default reset
either as DVB-T or DVB-C.
Figure No 15

18
4.2.12 - “Import/Export Config” page
In “Import/Export Config” section (Figure No 16) the user is able to do the following:
1. Export: Save all the configuration is a specific file
2. Import: Upload a previously save configuration file.
Figure No 16
4.2.13 - “Firmware update” page
In “Firmware update” (Figure No 17) section the user is able to upload a new firmware
update using the appropriate file
Figure No 17

19
4.2.14 - “Date & Time” page
In “Date & Time” (Figure No 18) section the user is able to select the NTP server in order
for the device to receive the date and time as well as to set the timezone of his country.
Figure No 18
4.2.15 - “Info” page
In “Info” (Figure No 19) section the user is able to see the serial No of the device as well
as firmware and hardware versions.
Figure No 19

20
5. TECHNICAL SPECIFICATIONS
Input Specifications
Input
Type 4 x DVB-S/S2/T/T2/C
Frequencies 950…2150 MHz DVB-S/S2
118…900MHz DVB-T/T2/C
Connector 75Ω - F, female
LNB
Voltage OFF / 13V / 18V
Current < 400mA
22 KHz signal On / Off
-Voltage 0.65V ±0.35V
-Frequency 22 KHz ±4Hz
-DiSEqC 1.0 (Port A, B, C, D)
DVB-S
Standard EN 300-421 V1.1.2
Symbol Rate 1 - 55 MBaud
Roll off factor 0.2, 0.25, 0.35
Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 (automatic)
Spectral Inversion Reverse, Non-reverse (automatic)
DVB-S2
Standard EN 307-421 V1.2.1
Constellation QPSK, 8PSK (automatic)
Symbol rate 1 - 55 MBaud (QPSK)
1 - 45 MBaud (8PSK)
Roll off factor 0.2, 0.25, 0.35 (automatic)
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10
QPSK- automatic)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10
(8PSK- automatic)
Spectral inversion Reverse, Non-reverse (automatic)
DVB-T
Standard EN 300-744 V1.6.1
Bandwidth 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
