LENCO DIR-140 User manual

1
Model: DIR-140 (V2)
User manual – Internet Radio with DAB+, FM and Bluetooth
Gebruikshandleiding – Internetradio met DAB+, FM en Bluetooth
Bedienungsanleitung – Internetradio mit DAB+, FM und Bluetooth
Mode d’emploi – Radio Internet avec DAB+, FM et Bluetooth
Manual de usuario – Radio Internet con DAB+, FM y Bluetooth

2
Index
English .....................................................................................................................................................3
Nederlands............................................................................................................................................33
Deutsch .................................................................................................................................................65
Français ...............................................................................................................................................100
Español................................................................................................................................................134
Version 4.0

3
English DIR-140 (V2)
CAUTION:
Usage of controls or adjustments or performance of procedures other than those specified herein
may result in hazardous radiation exposure.
PRECAUTIONS BEFORE USE
KEEP THESE INSTRUCTIONS IN MIND:
1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm
(2”) free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other
heat-generating products or naked flame. The device can only be used in moderate climates.
Extremely cold or warm environments should be avoided. Working temperature between 0°
and 35°C.
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart
the device following the instruction manual. During file transmission, please handle with care
and operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High voltage
flows through the product and inserting an object can cause electric shock and/or short circuit
internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The device shall not be exposed to dripping or splashing and make sure that no objects filled
with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet
room with damp, water droplets or condensation may occur inside the unit and the unit may
not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the
power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before
leaving the factory, it is still possible that problems may occur, as with all electrical appliances.
If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you
should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are
not sure of the type of power supply used in your home, consult your dealer or local power
company.
12. Keep away from animals. Some animals enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids.
To remove severe stains, you may use a damp cloth with dilute detergent.
14. The supplier is not responsible for damage or lost data caused by malfunction, misuse,

4
modification of the device or battery replacement.
15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise,
data may be corrupted or lost.
16. If the unit has USB playback function, the USB memory stick should be plugged into the unit
directly. Don’t use an USB extension cable because it can cause interference resulting in failing
of data.
17. The rating label has been marked on the bottom or back panel of the device.
18. This device is not intended for use by people (including children) with physical, sensory or
mental disabilities, or a lack of experience and knowledge, unless they’re under supervision or
have received instructions about the correct use of the device by the person who is responsible
for their safety.
19. This product is intended for non professional use only and not for commercial or industrial use.
20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an
unstable position vibrations or shocks or by failure to follow any other warning or precaution
contained within this user manual will not be covered by warranty.
21. Never remove the casing of this device.
22. Never place this device on other electrical equipment.
23. Do not allow children access to plastic bags.
24. Only use attachments/accessories specified by the manufacturer.
25. Refer all servicing to qualified service personnel. Servicing is required when the device has
been damaged in any way, such as the power supply cord or the plug, when liquid has been
spilled or objects have fallen into the device, when the device has been exposed to rain or
moisture, does not operate normally, or has been dropped.
26. Long exposure to loud sounds from personal music players may lead to temporary or
permanent hearing loss.
27. If the product is delivered with power cable or AC power adaptor:
If any trouble occur, disconnect the AC power cord and refer servicing to qualified
personnel.
Don’t step on or pinch the power adaptor. Be very careful, particularly near the plugs and
the cable’s exit point. Do not place heavy items on the power adaptor, which may
damage it. Keep the entire device out of children’s reach! When playing with the power
cable, they can seriously injure themselves.
Unplug this device during lightning storms or when unused for a long period.
The socket outlet must be installed near the equipment and must be easily accessible.
Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
Devices with class 1 construction should be connected to a main socket outlet with a
protective earthed connection.
Devices with class 2 construction do not require a earthed connection.

5
Always hold the plug when pulling it out of the main supply socket. Do not pull the power
cord. This can cause a short circuit.
Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or
electric shock.
28. If the product contains or is delivered with a remote control containing coin/cell batteries:
Warning:
“Do not ingest battery, Chemical Burn Hazard” or equivalent working.
[The remote control supplied with] This product contains a coin/button cell battery. If the
battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to
death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it
away from children.
If you think batteries might have been swallowed or placed inside any part of the body,
seek immediate medical attention.
29. Caution about the use of Batteries:
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
Battery cannot be subjected to high or low extreme temperatures, low air pressure at
high altitude during use, storage or transportation.
Replacement of a battery with an incorrect type that can result in an explosion or the
leakage of flammable liquid or gas.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a
battery, that can result in an explosion.
Leaving a battery in an extremely high temperature surrounding environment that can
result in an explosion or that leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure that may result in an explosion or the
leakage of flammable liquid or gas.
Attention should be drawn to the environmental aspects of battery disposal.
INSTALLATION
•Unpack all parts and remove protective material.
•Do not connect the unit to the mains before checking the mains voltage and before all other
connections have been made.
WARNING: To prevent possible hearing damage, do not listen at high volume
levels for long periods.

6
Accessories:
1. User manual
2. Power adaptor
3. Remote control

7
Product Overview

8
1. Display
2. Menu button
3. FAV button
4. Previous button
5. Standby button
6. Navigate/VOL/OK/Play/Pause wheel
7. Sleep button
8. Alarm button
9. Next button
10. Dimmer button
11. Preset buttons
12. Telescopic Antenna
13. DC IN socket
14. Earphone socket (3.5mm)
15. AUX IN socket (3.5mm)

9
Remote control
1. Standby button
2. Mute button
3. EQ set tone
4. Dimmer button
5. Sleep button
6. Alarm button
7. Previous track button
8. Next track button
9. Stop button

10
10. Play/pause button
11. Mode buttton
12. Home button
13. Navigate Up button
14. Navigate Left button
15. Navigate Right button
16. Navigate Down button
17. OK button
18. VOL- button
19. VOL+ button
20. Input letters and numbers
21. FAV button
22. FAV+ button
Note: the cursor buttons (14,15) on the remote control can also be used to
navigate through the system menus.
Note:
WiFi allows data transfer over short distances within 20 meters without the need of cabling
between the devices. Walls/cellings may reduce the strength of the WiFi csignal.
Therefore try to locate the Lenco DIR-140 (V2) and/or the access point within the distance
mentioned
Above,and avoid obstacles between the devices.
Make sure you are connecting to a 2.4Ghz Wifi network (this device is not compatible with 5 Ghz
Wifi networks)
INITIAL SETUP
Before operation, please make sure that the voltage mentioned on the power supply is the same as
the voltage of your local area.
Use the supplied mains adaptor to connect the device to your household mains socket.
Insert the power adaptor into the DC IN (13) on the back to power up.
At the first startup, The Lenco DIR-140 (V2) the system start with the Wifi setup wizard.

11
Wifi setup wizard
1. Set Language and Network Configurations.
1
2
2. Do you want to check the WIFI network availability when powering on the device? Use the
Navigation wheel to select the desired option and press the Navigation wheel to confirm.
3

12
2.1.Select YES if you want to continue and connect to your WIFI network using the standard
method. Press the Navigation wheel to confirm. Continue reading ‘network configuration’
option 1.
2.2.Select YES(WPS) if you would like to set up with the WPS (WIFI PROTECTED SETUP) function
of your router (please verify with your router’s manual if it’s available). Press the Navigation
wheel to confirm. Continue reading ‘network configuration’ option 2.
2.3 Select NO and Press the Navigation wheel to confirm if you want to skip the Wireless
network setup. You can configure it later in the configuration menu.

13
Network configuration
1. Standard network configuration
After selecting this option the DIR-140 (V2) will scan for available WIFI networks.
The display will show the WiFi networks it found.
Select your WIFI network by turning the Navigation/OK (6) wheeland confirm by pressing the
Navigation/OK (6) wheel.
If your selected WIFI network requires a password, you can enter it in the next screen.
Enter your password by pressing the numeric keys(20) on the remote control, followed by the
Navigation right(15) button (NOTE: you have to press the navigation right(15) after every
character).
To make a correction, press the Navigation Left(14) to go backwards and delete the last
character at the same time.When the password is completed,press the OK(17) button to confirm.

14
If you want to enter the password directly on the DIR-140 (V2) front panel, you can turn the
Navigation(6) wheel to select the first character and then press the button(9) to move
forward to the next character. To make a correction, press the button (4) to go back and
delete the last character at the same time.
When the password is completed, press the Navigation (6) button to confirm.
Note: following characters can be used:
Numbers (from 0-9)
Latin characters (from A to Z and from a to z)
Characters (@, Blank,!,”,#,$,%,&,*,’,+ and (,)
2. WPS PBC network configuration
You can easily connect by pressing the WPS button on your router and then selecting YES(WPS) on
your DIR-140 (V2) within 120 seconds. The connection between the router and the DIR-140 (V2) will
be configured automatically.
INTERNET RADIO
From the main menu use the Navigation wheel(6) to select INTERNET RADIO and press the
Navigation wheel(6) to start.
Now you can use the Navigation wheel(6) again to scroll through the different menu options and
select the desired option by pressing the Navigation wheel(6).
Press to return to the previous menu.
After successfully connecting to a radio station, the station information will be shown. This
information can be changed by pressing the or button.
Below you find the explanation of the various Internet Radio menu options:
My Favorite
These are your favorite preset stations. It can hold up to 250 entries.
To add a favorite internet radio station, press and hold “FAV” on the device or press “FAV+”on the
remote control to save the station as a favorite.

15
You can add favorites when playing the station you want to add as favorite or add them directly
from the ‘Radio Station/Music’ list. Select with the navigation wheel(6) and press/hold “FAV” on the
device or Navigation buttons on the Remote and then press the “FAV+” button.
You can replace already saved favorites with a new favorite station.
Favorite radio stations cannot be stored twice.The saved stations are showed by selecting this
menu.You may also press Fav to enter the saved station list.You may enter the number key on the
remote control to recall the saved station.
Selecting a radio station from the favorites list.
Press the “FAV” button on the front panel or press “FAV” on the remote control to show the
favorites list. Rotate the navigation wheel(6) or press the navigation keys on the remote control to
move through the favorites list. Press the navigation wheel(6) or press “OK” on the remote control
to listen to the selected favorite.
Enter a submenu with button, Delete, Shift Up/Down along the list, Rename, Play, or Use as
Alarm (if you chose internet as alarm sound in the alarm configuration).
Radio Station/Music
Radio Stations are categorized into subcatagories Global Top 20, Genre, Country/Location (Africa,
Asia, Europe, Middle East, North America, Oceania/Pacific and South America) and Highlight. Press
the navigation wheel(6) or ‘OK’ on the remote, to select the subcategories and choose a station to
listen to. For each station, press the navigation wheel(6) on the unit or ‘OK’ on the remote control to
play directly.

16
Press to enter its submenu.When you choose Auto Scan, it plays each station in this
subcategory for 30 seconds until all stations have been played. You can cancel the auto scan function
by pressing “OK”.Pressthe button to view information about the active radio station.
Sleep Radio:
You can choose Birds, Lullaby, Piano, Rain, Spa, Space, Wave and White Noiseas sleep radio.
History:
List of the ten recently listened stations.
Service:
Search radio station: Enter a stationsname/keyword to search through the list of all radio
stations.
Add new radio station: by using an IP address/web address, the added station will be stored
in the ‘My Favorite’ list.
Note that the maximum character of the station name is 250.
MEDIA CENTER
With Media center you can play music from UPnP.
Use the Navigation wheel(6) or the navigation buttons on the remote control to select one
of the following functions:
UPnP
If you have set up shared media in your network, then you should see it by choosing UPnP. If you
have more than one computer sharing media, these will also be shown.
Select the shared media you want to play.
Use Play/Pause, Next/Prev andStop. Press Right navigationbuttonto view the display information of
the current track.

17
Note: The DIR-140 (V2) can only read tracks with file names less than 40 characters.The characters
should be in European Language. If a track generates an error while opening,you can try to rename
the track.However, if it still can’t play, you can try to convert the track to a different format.
My Playlist:
You can create a playlist of your favorite UPnP music.You can add the active music to the playlist. To
do this,press and hold the navigation wheel/OK(6) on the unit or press and hold the “OK” button on
the remote control to save it into ‘My Playlist’.
Clear My Playlist
Please select this option to clear the playlist.Please confirm the questions.
Air Music APP
You can use the Air Music control App to control your DIR-140 (V2) with your smartphone or tablet
like you would do with the remote control.
You can download the Air Music App. From Android or Apple store like below.

18
My mediaU
Display and playback your own mediaU station list on the mediaU server. Set your account first.To
activate your own station list, follow the steps below:
Access http://www.mediayou.net/. Join my mediaU membership. Login to the website;
Enter the wireless MAC addresss of Radio to the mediaU website. This information can be obtained
in themenu ->information Center>System information>Wireless Info;
When successfully configured, you are able to save and view your own mediaU station
playlist(s).Username and password is not required to enter to the Radio.
If there are different devices stored in your MediaU account, you can choose the one you currently
use under Configuration menu. On the website, you may save stations to Favorite Station, set
Favorite Location/Genre and My Local City, or add stations manually. The stations can be viewed
from My Media mode on the Radio.
My Favorite: List of saved favorites. You can call or edit them, e.g. move or
delete. To save a station, press and hold the [FAV] button while astation is being
received. The same station can only be savedonce.
Radio Station/Music: List of all radio stations. Search for the desired country and
radiostations yourself. Categories of channels are Global Top 20, Genre,
Country/Region and Highlight.
Local Radio: Automatically accesses the radio station in your area. This has the
advantage that you only need to search for the radio stationyou want to hear
(the radio station to be tuned can be changedunder the settings).
History: Lists the recently listened radio stations.
Service: Search for radio stations or add new ones.
My MediaU
For using My mediaU, you have to register at the following webpage: www.mediayou.net.
After this is done, you have to register your device at this webside. This can be done by clicking“my
mediaU”>>“Radio”. Enter the device‘s name (free to choose, it‘s just a name that you can
remember), and the serial number, not free to choose. You can find the serial number under:
Informations-Center >> System Information >> Wireless Info >> MAC Address: You have to input this
MAC Address at the website under serial number. Please note that this serial number is case
sensitive.

19

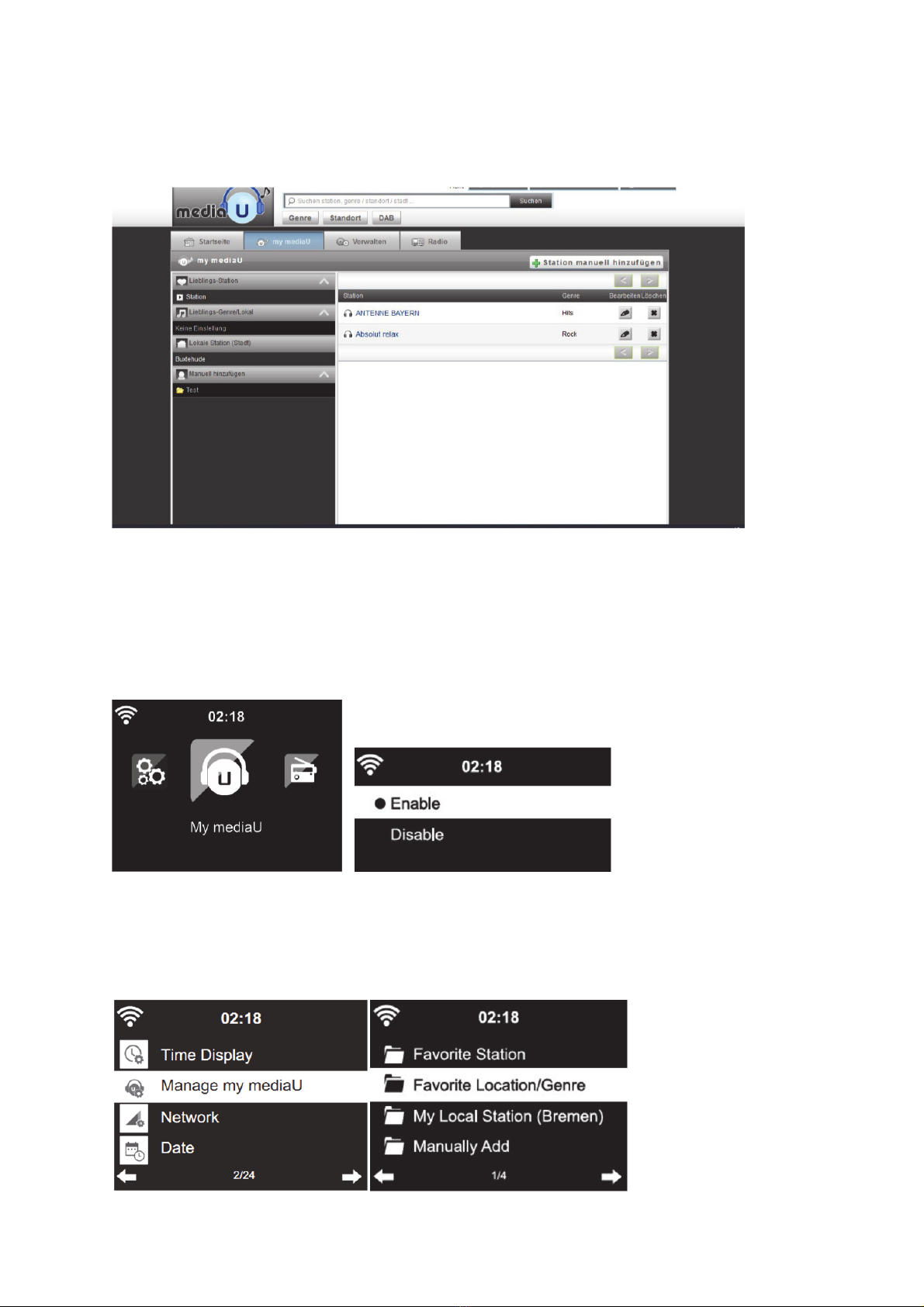

Now you can add new radio stations under my mediaU (2 left of “Radio”).
After you have added the radio stations the next steps will be done at the device.
Search for Configuration >> Manage my mediaU and ensurethat this setting is setto: “Enabled”
Now select my mediaU at the selection menu. Here you can see your previously
added radio stations.

20
CONFIGURATION
Time Display Analog/digital
Manage
mymediaU
When it is enabled, my mediaU will show on the main menu. If various mediaU
accounts exist in the Radio, Select the default login account in here.
Network Wireless Network Configuration: Enable/disable WiFi network.When you enable
the WiFi network, the system will automatically select the required AP.Enter WEP
or WPA code to connect the WiFi.
Wireless Network (WPS PBC): If you are using a router with WPS/QSS button, you
can set up the network connection easily via WPS function.Enter it and go to press
the WPS/QSS button on your router within 120 seconds.The connection between
the router and device will then be configured automatically.
Manual Configuration: You can choose DHCP (which assignes the ip address
automatically) or manually input the IP address for wireless network
connection.The following information has to be entered: SSID (nameof access
point),IP Address,subnet mask,default gateway,preferred DNS server,alternate DNS
server.
Check Network When Power On: Enable/disable WiFi network.When you enable
the WiFi network, the system will automatically search for available AP.Select the
required AP.
Date & Time Set the date and time
Set time format display as 12 Hour or 24 Hour
Set date format (YYYY/MM/DD-DD/MM/YYYY-MM/DD/YYYY)
Daylight Saving Time (DST)
○ON
Tips: When “ON” is selected, the time will be one hourlater than the current time.
○OFF
Tips: When “OFF” is selected, the time will be same as the current time. If it was
already in “Daylight Saving Time(DST)” and you choose“OFF”,the time will be
deducted by one hour,that’s to say,the time will be same as the actual time.
