English

English (Internet

(Internet

(Internet Radio

Radio

Radio with

with

with FM)

FM)

Before

Before Started

Started

1.

1. Network

Network

Network Requirements

Requirements

•A broadband connection in a combination with a wireless access point,

router or similar network device is required.

•Ensure the network device support WiFi (802.11a/b/g/n) wireless

connection.

•Ensure the network which connected with your PC, tablet or

smartphone, etc is the same as equipped with the device.

2.

2. Safety

Safety

Safety Warnings

Warnings

General

•Do not drop the DIR-200 and do not expose it to liquid, moisture or

humidity. These might lead to damage to the device.

•If the DIR-200 is moved from a cold environment into a warmer one, do

let it adapt to the new temperature before operate the device.

Otherwise, it might lead to condensation and cause malfunctions in the

device .

•Do not use the DIR-200 in the dust environment as dust can damage the

interior electronic components and lead to malfunctions in the device.

•Protect the DIR-200 from strong vibrations and place it on stable

surfaces.

•Do not attempt to disassembly the DIR-200 .

•If the DIR-200 is not using for a long period of time, disconnect it from

the power supply by unplugging the power plug. This is to avoid the risk

of fire.

Power

Power adapter

adapter

•Only use the power adaptor delivered with the DIR-200 .

•The socket outlet should be installed near the DIR-200

and should be easily accessible.

•Never touch the power plug with wet hands and

never pull on the power cable when pulling the plug

out of the power socket.

•Make sure the electrical voltage specified on the

DIR-200 and its power plug is corresponding to the

voltage of the power socket. Incorrect voltage will

destroy the device.

4

Risks

Risks associated

associated

associated with

with

with high

high

high volumes

volumes

•While listening the DIR-200 with headphones, always

reduce the volume before put on the headphones.

After the headphones are positioned properly, increase

the volume to the desired level.

Maintenance/cleaning

•Always power off the DIR-200 when cleaning it.

•Never use any harsh or strong solvents to clean the DIR-200 since these

may damage the surface of the device. Dry, soft cloth is appropriate,

however, if the DIR-200 is extremely dirty, it may be wiped off with a

slightly moist cloth. Make sure the device is dried off after cleaning.

5

3.

3. Identification

Identification

Identification of

of

of Parts

Parts

Parts and

and

and Controls

Controls

No.

No. Description

Description

Description Functions

Functions

1 2.8 ” TFT Screen Color Display

2 Reel Volume/Navigate/Press to OK

3 Buttons Standby/Mode, Menu/Info, Back, Preset,

Tuning-, Tuning +

4 AUX In 3.5mm socket for AUX IN

5 Line Out 3.5mm socket for External Amplifier

connection

6 Antenna Enhanced FM/DAB reception

7 DC IN Power supply

8 USB port Music Playback

9 Earphone socket 3.5mm socket for earphone

4

9

2

5

3

6

7

8

1

6

Remote

Remote Control

Control

Remove the cover of the battery compartment

on the back. Insert 2 x AAA type battery. Close

the battery compartment cover.

Caution:

Caution: Improper or incorrect use of batteries

may cause corrosion or battery leakage, which

could cause fire, personal injury or damage to

property.

Warning

Do not ingest the battery, Chemical Burn Hazard

(The remote control supplied with) This product

contains 2 x AAA battery. If the battery is

swallowed, it can cause severe internal burns in

just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close

securely, stop using the product and keep it away

from children.

If you think batteries might have been swallowed

or placed inside any part of the body, seek

immediate medical attention.

4.

4. Getting

Getting

Getting Started

Started

Remove all packaging from the device. Retain the packaging. If you dispose of

it please do so according to local regulations.

The following items are included:

•Main device

•Power adaptor

•3.5mm audio cable

•Instruction manual

7

Connect the power adapter (included) to the DC IN socket at the rear of the

device and the mains socket.

Get the network environment ready

•

For wireless WiFi

Make sure you have setup the wireless network and you have the

WEP,

WPA or WPA2 security password to activate the connection.

You may also use the WPS (WiFi Protected Setup) function for an easy

pairing between the network device and the device. Check if the light

indicators on the network device are in an operational state.

Connect the device to power supply.

The first time you turn the device on, it will go straight into the Wizard Setup

menu. Select YES

YES

YES to continue the setup. For the details of the Wizard Setup,

you may refer to Section 5.2.1. If NO is selected, you will be asked if you

would like to run the wizard next time.

Once you have successfully set up the network, the device will automatically

connected to the network next time when you turn the device on again. In

case you desire to change the network, enter

System

System Setting

Setting

to configure the

corresponding connection. You may refer to Section 5.2.1 and 5.2.3 for

details.

Press and hold /MODE

/MODE

/MODE on the device or press on the remote

control to enter operation mode , press again to enter standby mode. Time,

date and any active alarm times will be displayed on the screen.

8

Press / on the remote control or rotate the volume control on

the device to adjust the volume. If you wish to switch the sound off, press

, press again to resume audio listening.

Music Sharing from PC

•

To

share the music files from PC, follow the steps below:

- Connect the PC to the network.

- Ensure the device is powered on and connected to the same

network .

- Open the UPnP platform

Windows

Windows Media

Media

Media Player

Player

(version 1 1 or

later). Alternatively, other platforms or server such as

Windows

Media

Media Connection

Connection

may be used .

The following is an example of setting up with the Windows XP and Windows

Media Player 11.

- Allow to share your media to the device (default name: DIR-200)

- Add the audio files and folders that you want to share with the

device to the media library.

9

5.

5. Operations

Operations

5.1.

5.1. Main

Main

Main Menu

Menu

In the main menu, you can select the following modes: Internet Radio, Media

Player, DAB, FM, AUX IN, Sleep and Alarm

5.2.

5.2. System

System

System Settings

Settings

5.2.1. Setup Wizard

•Time/date

Display format

Select 12 or 24 as your desired time format.

Auto-update

The time and date can be updated manually or automatically fromDAB, FM or network.

Auto-update is available in DAB, FM or Internet mode. The time willonly update when in a corresponding mode, so it is best to select amode that you use regularly.

DAB+ and FM use time signals broadcast with radio transmissions.Network uses a time signal sent from the Internet radio portal inany network-connected mode.

For Network setting only

Time zone, daylight

10

Set your time zone (default time zone GMT +1:00). Turn on theDaylight savings option if daylight saving is in effect in your country.

Manual update

If you select No update, the wizard prompts you to set the time anddate manually. The date and time are displayed as dd-mm-yyyy andhh:mm.

The adjustable digit will flash. Adjust each digit with the NavigationControl/ or on the device or

▲

/

▼

on theremote control. Once the digit is set, press to continue.

•Network

Wlan region

Select the Wlan region to obtain the optimal Wlan connectivity:Most of Europe.

Scanning for the network

The device is compatible with all common network protocols andencryption methods. It searches and lists out all available networks.

There are hints for the type of network - if your network devicesupports WPS function, it will display [WPS]

[WPS]

[WPS] before the SSID (thename of network device). Select the one you want to connect.

For the wireless connection, input encryption is required in the nextstep.

Standard encrypted network

To

enter the network

’

s

key,

use the Navigation Control on the deviceor direction keys on the remote control to move the cursor throughthe characters and press to confirm. As each character isselected, the key is displayed near the top of the display.

There are three options accessible by turning the Navigation Controlon the device back before the first character - (BKSP) , OK and Cancel.

WPS encrypted network

11

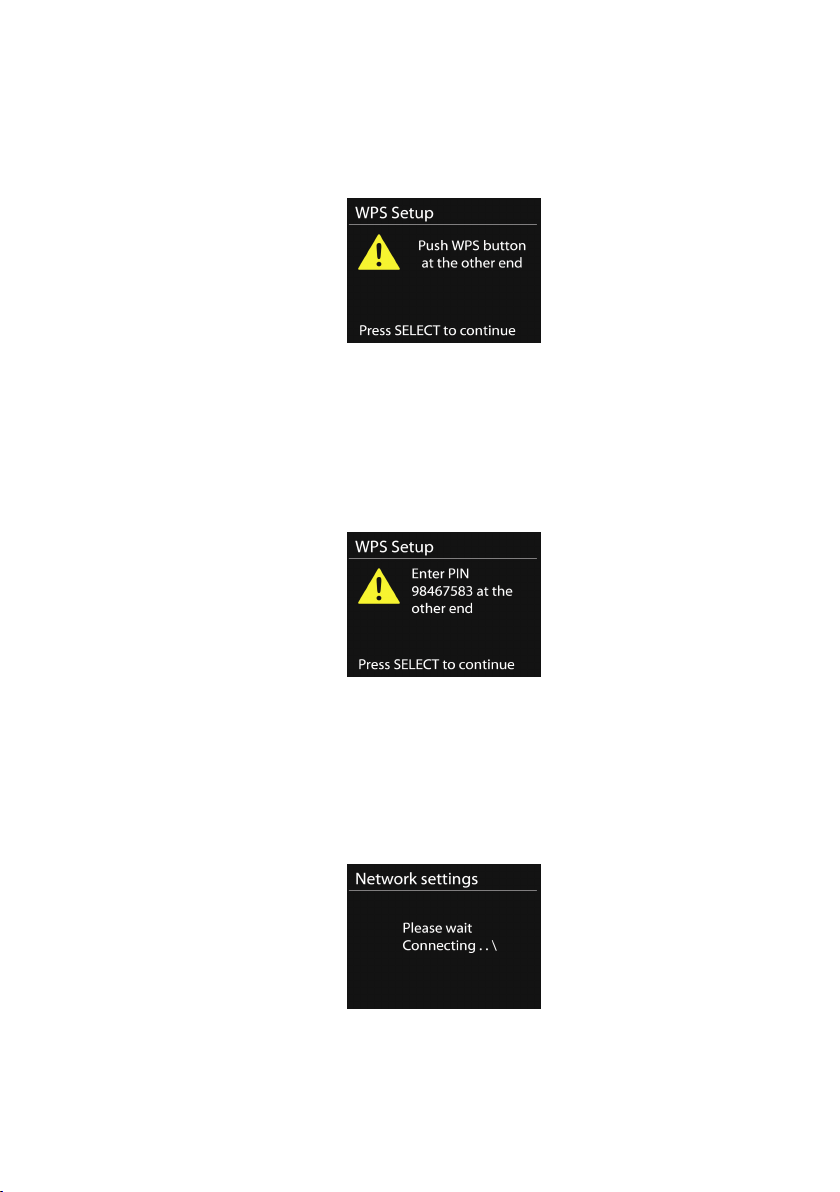

WPS encrypted networks are identified by WPS

WPS

WPS at the beginning ofthe network name when the device searches the available

AP.

Useone of the following methods for connection:

o

Push button

The device prompts you to press the connect button on therouter. It then scans for a ready Push Button Connect networkand connects.

oPinThe device generates an 8-digit code number, which youenter into the wireless router, access point, or an externalregistrar.

oSkip WPS

Enter key as for a standard encrypted network.

For more information on setting up a WPS encrypted network,

please refer to your WPS router

’

s instructions.

•Completion

The device attempts to connect to the selected network.

12

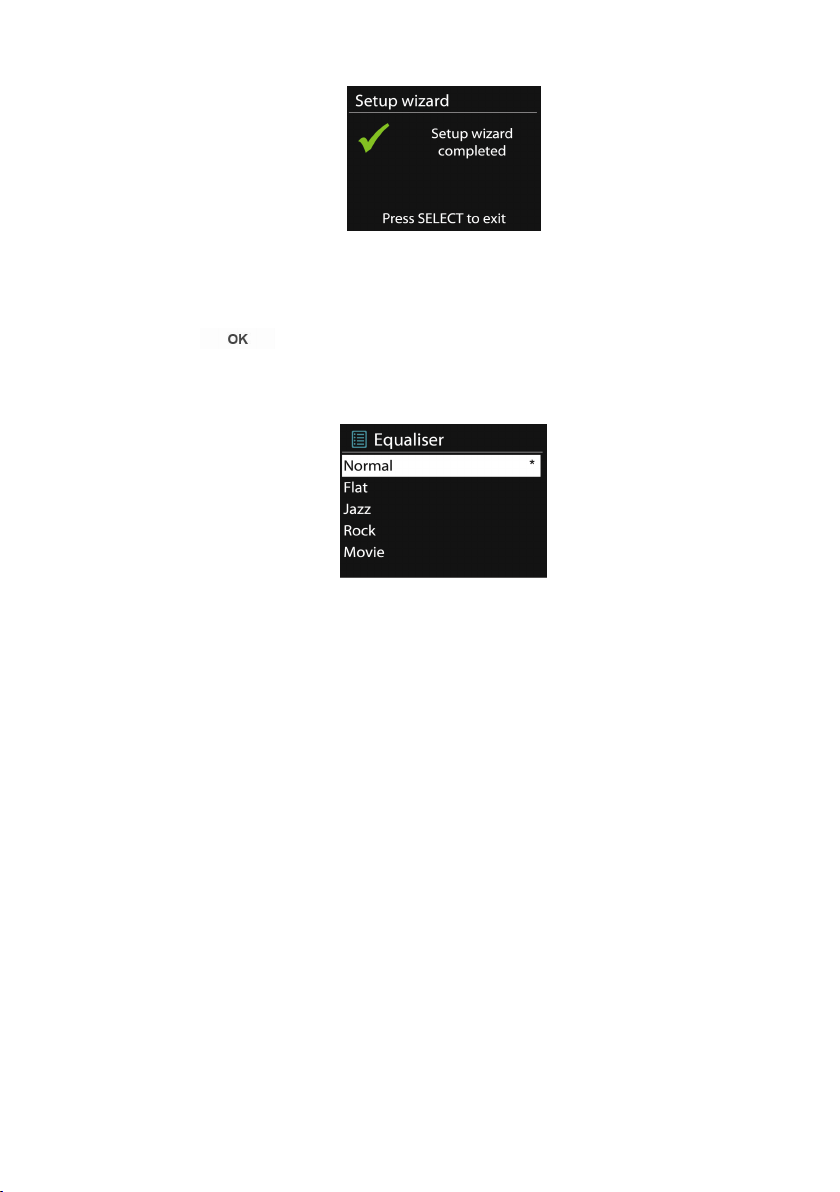

It will show Setup wizard completed on screen if the setup is connected

successfully. If the connection is

fail,

the device returns to a previous

screen for you to try again.

Press to exit the setup wizard.

5.2.2. Equaliser

Allows you to select different equalizers: Normal, Flat, Jazz, Rock,

Movie, Classic, Pop, News, and My EQ.

You may also create your own equalizers (under My EQ profile setup)

with customized bass, treble and loudness.

Press EQ

EQ

EQ on the remote control to quick enter equalizer menu.

5.2.3. Network

•Network wizardEnter to search AP

SSID,

then input the

WEP/WPA

key

or choosePush Button/Pin/Skip WPS to connect to the wireless network.

•PBC Wlan setupPush Button Configuration, it is to connect the AP thatsupports WPS (Wi-Fi Protected Setup).

•View settings

View the information of current connected network: Activeconnection, MAC address, Wlan region, DHCP , SSID, IPaddress, Subnet mask, Gateway address, Primary DNS andSecondary DNS.

13

•Wlan region

Select the Wlan region to obtain the optimal Wlan connectivity:Canada, Spain, France, Japan, Singapore,

Australia,

and Republicof

Korea.

•Manual settingsChoose wireless network connection and enable or disableDHCP (Dynamic Host Configuration Protocol).

•Network profileThe device has memory function to memorise the last fourwireless networks that it has been connected to. The devicewill automatically connect to one of them whichever could befound available.

The list of registered networks will be displayed. You candelete some unwanted networks by turning and pressing OKand then choose YES to confirm.

•Keep the network connected

If you choose to keep the network connected, the WiFi will not

disconnect even you are in standby mode. Otherwise, the

connection will only available. This option allows the device to be

ready for DLNA streaming in any operating modes. Details for

DLNA streaming, refer to Section 5.5 .

5.2.4. Time/Date

Set the time manually or auto update, time format, time zone and

daylight.

5.2.5. Language

English is set as the default language. You may select your own

desired language.

14

5.2.6. Factory reset

A factory reset resets all user settings back to default settings. All the

presets, time, date and network configuration will be lost.

However, the current software version of the device can be stored as

it is registered with the internal radio portal. All favourites in the

Internet radio is also stored. U nless you re-register your device with

another account on the portal website.

5.2.7. Software update

Software upgrade to fix bugs and/ or additional features will be

available.

The device is set as default to automatically check for updates'

availability periodically. You may also check the updates' availability

manually. If a newer software is available, you will be informed. Then

you may decide if you want to download and install the new software.

After a software upgrade, all user settings are maintained.

NOTE:

NOTE: Before starting the software upgrade, ensure that the device is

plugged into a stable main power connection. Disconnecting power

during the upgrade may permanently damage the device.

5.2.8. Info

View the firmware version and the radio ID.

5.2.9. Backlight

Allow you to change the backlight level of High, Medium or Low (in

power on or standby mode). The timeout duration can be adjusted,

which allows the radio turns to standby backlight level when it has

not being used.

5.3.

5.3. Internet

Internet

Internet Radio

Radio

The device can be channel to radio stations and podcasts from

around the world through a broadband Internet connection.

When you select Internet radio, the device directly contacts the

Frontier Silicon Internet radio portal (which is supported by v-tuner)

and obtain a list of stations.

15

The portal also allow you to personalize multiple lists of favourite

stations.

While listening to an Internet radio station , you can press BACK

BACK

BACK or on

the remote control to quickly return to the last visited branch of the menu tree .

You may also press MENU/INFO

MENU/INFO

MENU/INFO on the device or MENU

MENU

MENU on the remote control

to go to the first menu of Internet radio mode.

5.3.1. Last listened

When Internet radio mode restarts, the last-listened station is

selected.

To

select another recently used station, enter here to select

the listed station. Most recent stations appear at the top of the list.

5.3.2. Station list

Browse Internet broadcasts that categorized into different categories,

Location, Genre, Popular and New. You can also search the station

with keyword.

16

5.3.3. Favourites

Favourites are stored in the Internet radio portal, and are available

through all Internet radios registered on the same account. Before

the favourites can be used, the radio has to be registered with the

Internet radio portal.

To

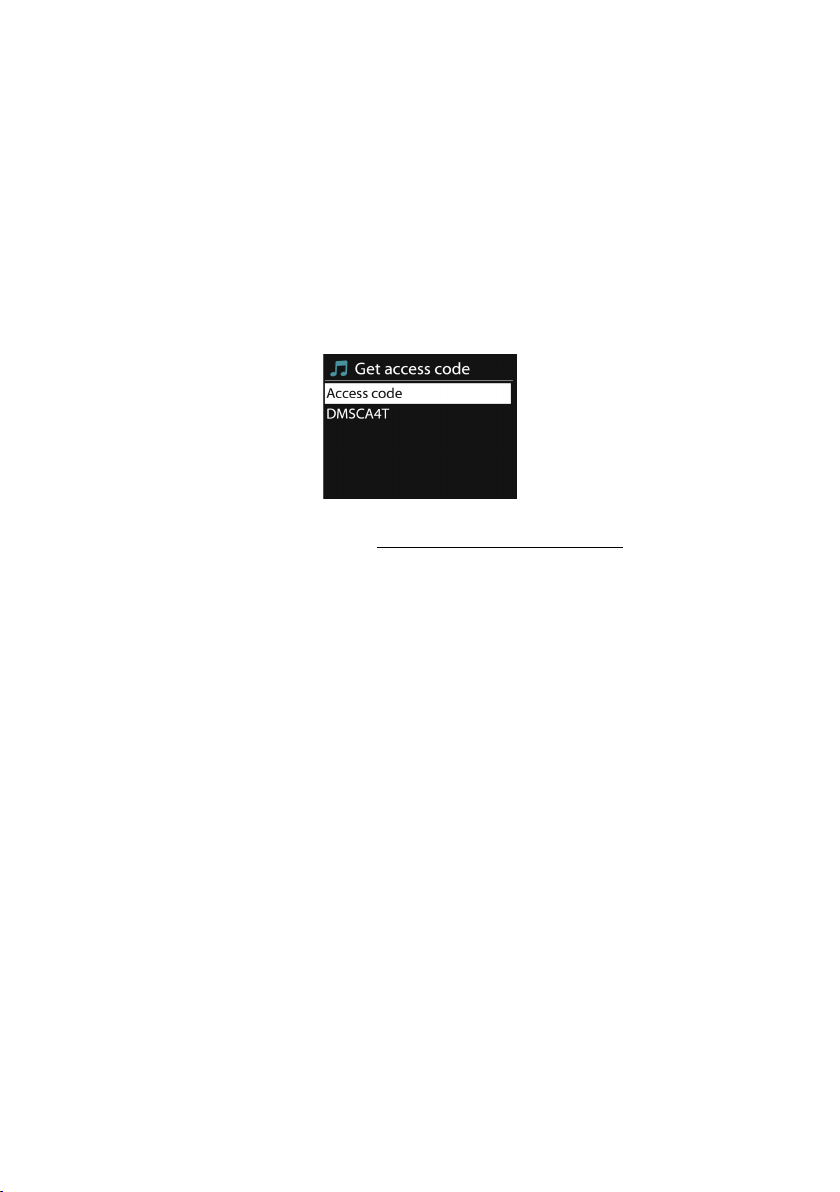

register your device, choose Station list > Help > Get access code to

get your radio

’

s unique portal access code. (Do not confuse the portal

access code with the Radio ID from System settings.

Visit the portal website at www.wifiradio-frontier.com

If this is your first time visit to the portal, register for a new account,

by entering the following information:

oaccess code,

oyour e-mail address,

opassword,

oradio model.

If you already have an account and wish to add an additional radio,

log in to your account and select My preferences > Add another Wi-Fi

radio.

Once your radio is registered with the portal, you can immediately

use the Internet radio favourites and added stations features.

To

store a playing station as a favourite, press and hold OK

OK

OK until the

display shows ‘ Favourite added

’

. The station will appear in the default

favourites list Stations.

5.3.4. My added stations

Even though the Internet radio portal contains thousands of stations,

you may want to listen to stations not listed. You can add your own

station via the portal.

17

5.3.5. Presets

Presets are stored in the radio and cannot be accessed by other

radios.

To

store an Internet radio preset, press and hold PRESET

PRESET

PRESET on the

device or on the remote control until the display shows the Save

preset screen. Select one of the 10 presets to save the currently

playing station.

To

select a preset, press PRESET

PRESET

PRESET on the device or on the remote

control, then select one of the listed preset stations. When a preset

station is playing, it shows

n

( 1, 2 etc) at the bottom of

the screen.

You can store up to 10 of your favourite stations to the memory. This

will enable you to access your favourite stations 1-10 quickly and

easily by using the number buttons on the remote control.

5.3.6. Now playing information

While the stream is playing, the screen shows its name and

description.

To

view further information, press MENU/INFO

MENU/INFO

MENU/INFO on the

device or INFO

INFO

INFO on the remote control.

Each time you press INFO

INFO

INFO , another set of information is displayed,

which cycle through name/description, genre/location, reliability,

codec/sampling rate, playback buffer and today

’

s date.

5.4.

5.4. Music

Music

Music Player

Player

Music player mode plays audio files in MP3, WMA,

WAV,

AAC or FLAC

format from a computer on the local network.

While playing music, you can press BACK

BACK

BACK on the device or on

the remote control . You may also press and hold MENU/INFO

MENU/INFO

MENU/INFO on the

device or press MENU

MENU

MENU on the remote control to quickly return to the

last visited branch of the menu tree.

18

You can use or on the remote control to play the

previous or next track, press and hold to rewind or fast forward (x1, x2,

x4) . Press on the remote control to play or pause. Press

on the remote control to stop playback and return to the music

list.

Notice:

The following table summarizes the maximum supported bit-rates for

the various audio format supported in the device.

Code Supported Min. Max.

WAV 1.536 mbit/s 48 kbit/s 1.536 mbit/s

FLAC v1.2.1 24bit 48 KHz 24bit 48 KHz 24bit 48 KHz

AAC 320 kbit/s 8 kbit/s 576 kbit/s

MP3 320 kbit/s 8 kbit/s 320 kbit/s

WMA 320 kbit/s 4 kbit/s 384 kbit/s

5.4.1. Shared media

It you have set up shared media, an entry consisting of <computer

name>: <Shared media name> will be displayed. If you have more

than one computer sharing media, the alternatives are listed. Select

the shared media that you want to play.

The menus are now generated from the shared media server.

The first menu shows a list of media types, for example Music, Video,

Pictures and Playlists. The device can only play music and playlists.

A search function is available to find tracks in a similar way to

Internet radio search.

For Music, there are numerous ways of selecting tracks including

Genre, Artist, Album, Composer and Rating.

19

Press OK

OK

OK to play your desired track. A short press will play the track

immediately.

5.4.2. USB playback

From this point on, menus are generated from the folders on the USB

device. Browse folders with the navigate reel and Back button , or

direction keys on the remote control . The display shows folder and

file names (not necessarily track names).

Once you have found a track you want to

play,

press the navigate reel

on the device or press OK on the remote control.

Noted: The USB port is not support charging.

5.4.3. Repeat/shuffle

Allow you to repeat tracks or play them in random order. Press

REPEAT/SHUFFLE

REPEAT/SHUFFLE on the remote control for shortcut.

5.4.4. Now playing information

While a track is playing, the screen shows its track and artist (UPnP).

There is also a progress bar with figures for elapsed and total track

time. At the bottom of the screen, an icon indicates UPnP depending

on the source.

To

view further information, press MENU/INFO

MENU/INFO

MENU/INFO on the

device or INFO

INFO

INFO on the remote control.

Each time you press INFO

INFO

INFO , another set of information is displayed,

which cycling through the information:

UPnP: track/artist/progress bar/track times, album, codec/sampling

rate, playback buffer and today

’

s date.

20

5.5.

5.5. DMR

DMR

DMR (DLNA

(DLNA

(DLNA Streaming)

Streaming)

Shared music in Section 5.4.1 is a way of music streaming which you look for

the music list and control playback from the device. This topic will introduce

another way to do the music streaming which is not necessary to control

playback on the device.

You can share the music files from PC , Android mobile or tablet , and directly

use your PC, Android mobile , tablet or iPhone/iPad to control music playback

on the device. It is simple called DLNA streaming.

5.5.1. Control on PC

The PC system requirements for DLNA are

Windows

Windows 7

7

and

Windows

Media

Media Player

Player

Player 12.

12.

Setup as below:

Firstly, share the media on your PC to the device.

Control

Control Panel

Panel

Panel >

>

> Network

Network

Network and

and

and Internet

Internet

Internet >

>

> Network

Network

Network and

and

and Sharing

Sharing

Sharing Center

Center

>

> Change

Change

Change advanced

advanced

advanced sharing

sharing

sharing settings

settings

settings >

>

> Media

Media

Media streaming

streaming

streaming options

options

Open

Windows

Windows Media

Media

Media Player

Player

to enable

Allow

Allow remote

remote

remote control

control

control of

of

of my

my

Player

.

LENCO DIR-200WD User manual

Popular Radio manuals by other brands
