Lennox Hearth Products Merit LMBV-42RMN User manual

1
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
INSTALLATION
INSTRUCTIONS
42" B-VENTED GAS APPLIANCES
P/N 850,041M REV. A 02/2007
Millivolt Models Electronic Models
LMBV-42RMN LMBV-42REN
LMBV-42RMP
FOR YOUR SAFETY: Do not store or use gasoline
or other flammable vapors or liquids in the vicin-
ity of this or any other appliance.
FOR YOUR SAFETY: What to do if you smell gas:
• DO NOT light any appliance.
• DO NOT touch any electrical switches.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone.
Follow your gas suppliers instructions.
• Ifyourgassuppliercannotbereached,callthe
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
MODELS
POURVOTRESÉCURITÉ: Nepasentreposerniutiliser
d'essencenid'autrevapeursouliquidesinflammables
dans le voisinage de cet appareil ou de tout autre
appareil.
POUR VOTRE SÉCURITÉ: Que faire si vous sentez une
odiur de gaz:
• Ne pas tenter d'allumer d'appareil.
• Netouchezàaucuninterrupteur. Nepasvousservir
des téléphones se trouvant dans le batiment où
vous vous trouvez.
• Evacuez la piéce, le bâtiment ou la zone.
• Appelez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du
fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service dos incendies.
L'installationetservicedoitêtreexécutéparunqualifié
installeur, agence de service ou le fournisseur de gaz.
MERIT®SERIES
RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
This appliance may be installed in an aftermarket perma-
nently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes. This appliance
is only for use with the type of gas indicated on the rating
plate. This appliance is not convertible for use with other
gases, unless a certified kit is used.
In the Commonwealth of Massachusetts & New York:
• Installation must be performed by a licensed plumber or
gas fitter.
See Table of Contents for location of additional New York
& Commonwealth of Massachusetts requirements.
WARNING:IFTHEINFORMATIONINTHISMANUAL
IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLO-
SION MAY RESULT CAUSING PROPERTY DAM-
AGE, PERSONAL INJURY OR LOSS OF LIFE.
AVERTISSEMENT: ASSUREZ-VOUS DE BIEN SUIVRE
LESINSTRUCTIONSDONNÉDANSCETTENOTICEPOUR
RÉDUIRE AU MINIMUM LE RISQUE D'INCENDIE OU
POUR ÉVITER TOUT DOMMAGE MATÉRIEL, TOUTE
BLESSURE OU LA MORT.
WH Report No. 3106807

2NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
TABLE OF CONTENTS
Introduction ..................................... page 2
General Information......................... page 2
Massachusetts and New York
Requirements ................................ page 2
Location .......................................... page 3
Clearances ....................................... page 4
Appliance Specifications .................. page 4
Gas Vent Rule .................................. page 4
Framing Specifications .................... page 5
Typical Installation Sequence .......... page 5
Installation ....................................... page 5
Vent System Installation .................. page 6
Field Wiring ..................................... page 7
Connecting Gas Line........................ page 7
Outside Air Kit Installation ............... page 7
Log and Rockwool Installation ........ page 9
Appliance Operation ........................ page 9
Manual Limit Switch ........................ page 9
Millivolt Appliance Checkout............ page 9
Electronic Appliance Checkout......... page 9
Adjustments .................................... page 10
Finishing Requirements ................... page 10
Cold Climate Insulation.................... page 11
Installation Accessories ................... page 11
Gas Conversion Kits.................. page 12
Nominal operating pressures for the manifold
side of the gas control system are; 3.5 inches
water column (0.87 kPa) for natural gas mod-
els and 10 inches water column (2.49 kPa) for
propane gas models.
GENERAL INFORMATION
Note: Installation and repair should be per-
formedby aqualified serviceperson.The appli-
ance should be inspected annually by a quali-
fied professional service technician. More fre-
quent inspections and cleanings may be re-
quired due to excessive lint from carpeting,
bedding material, etc. It is imperative that the
control compartment, burners and circulating
airpassagewaysoftheappliancebe keptclean.
S'assurerque lebrùleur etlecompartiment des
commandes sont propres. Voir les instruc-
tions d'installation et d'utilisation qui
accompagnent l'apareil.
Provide adequate clearances around air open-
ings and adequate accessibility clearance for
service and proper operation. Never obstruct
the front openings of the appliance.
These appliances are designed to operate on
naturalorpropanegasonly.Theuseofotherfuels
or combination of fuels will degrade the perfor-
mance of this system and may be dangerous.
This installation manual will help you obtain a
safe,efficient, dependable installationfor your
appliance and vent system.
Please read and understand these instruc-
tions before beginning your installation.
INTRODUCTION
The millivolt appliances are designed to oper-
ateon either naturalor propanegas. A millivolt
gas control valve with piezo ignition system
provides safe, efficient operation.
The electronic appliances are designed to op-
erate on either natural or propane gas. An
electronic intermittent pilot system provides
safe, efficient operation. External electrical
power is required to operate these units.
Input of appliance is 30,000 BTU/HR.
Gas Orifice
Type Size Elevation
0 - 4500'
(0 - 1370 m)
0 - 4500'
(0 - 1370 m)
Natural
Propane (0.065)
#37
(0.104)
These appliances comply with National Safety
Standardsandaretestedandlistedby Warnock
Hersey (Report No. 3106807) to ANSI Z21.50 -
latest edition (in Canada, CSA 2.22 - edition
edition), and CAN/CGA-2.17-M91 in both USA
and Canada, as vented gas fireplaces.
Installation must conform to local codes. In the
absence of local codes, installation must com-
ply with the current National Fuel Gas Code,
ANSI Z223.1 (NFPA 54). (In Canada, the cur-
rent CAN/CGA B149 installation code.) Electri-
calwiring must complywith localcodes. In the
absence of local codes, installation must be in
accordance with the National Electrical Code,
NFPA 70 - (latest edition). (In Canada, the
current CSA C22.1 Canadian Electric Code.)
DO NOT ATTEMPT TO ALTER OR MODIFY
THE CONSTRUCTION OF THE APPLIANCE OR
ITS COMPONENTS. ANY MODIFICATION OR
ALTERATION MAY VOID THE WARRANTY,
CERTIFICATIONANDLISTINGSOFTHISUNIT.
WARNING: IMPROPERINSTALLATION,
ADJUSTMENT, ALTERATION, SERVICE
OR MAINTENANCE CAN CAUSE INJURY
OR PROPERTY DAMAGE. REFER TO
THIS MANUAL. FOR ASSISTANCE OR
ADDITIONAL INFORMATION CONSULT
A QUALIFIED INSTALLER, SERVICE
AGENCY OR THE GAS SUPPLIER.
WARNING: THESE FIREPLACES ARE
VENTED DECORATIVE GAS APPLI-
ANCES. DONOTBURNWOODOROTHER
MATERIAL IN THESE APPLIANCES.
Massachusetts And New York City, NY
Requirements
These appliances are approved for installation
in the following USA locations listed in the
following:
Massachusetts:
Installation of these fireplaces are approved
for installation in the US state of Massachu-
setts if the following additional requirements
are met-
• Installation and repair must be done by a
plumber or gas fitter licensed in the Common-
wealth of Massachusetts.
• The flexible gas line connector used shall not
exceed 36 inches (92 centimeters) in length.
• The individual manual shut-off must be a T-
handle type valve.
New York City, NY:
Installation of these fireplaces are approved
for installation in New Your City in the US state
of New York, if the following additional re-
quirements are met-
• An outside air kit (FOAK-4 or FOAK-4LD)
must be installed.
WARNING: ELECTRONIC MODELS OF
THESE APPLIANCES ARE EQUIPPED
WITH A THREE-PRONG (GROUNDING)
PLUG UTILIZED IN CONNECTING THE
ELECTRONIC COMPONENTS TO THE
JUNCTION BOX IN THE LOWER COM-
PARTMENT. THIS GROUNDING PLUG
PROVIDES PROTECTION AGAINST
SHOCK HAZARD AND SHOULD BE
PLUGGED DIRECTLY INTO THE PROP-
ERLY GROUNDED THREE-PRONG RE-
CEPTACLE. DO NOT CUT OR REMOVE
THE GROUNDING PRONG FROM THE
PLUG.

3
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning are similar to the
fluwithheadaches, dizzinessand/ornausea. If
you have these signs, obtain fresh air immedi-
ately. Turn off the gas supply to the appliance
and have it serviced by a qualified profes-
sional, as it may not be operating correctly.
These appliances are equipped with an inte-
gral combustion air door and actuator arm.
Combustion air kits are optional and must be
installed before removing the securing screw
allowing the movement of the combustion air
actuator arm (see Step 7).

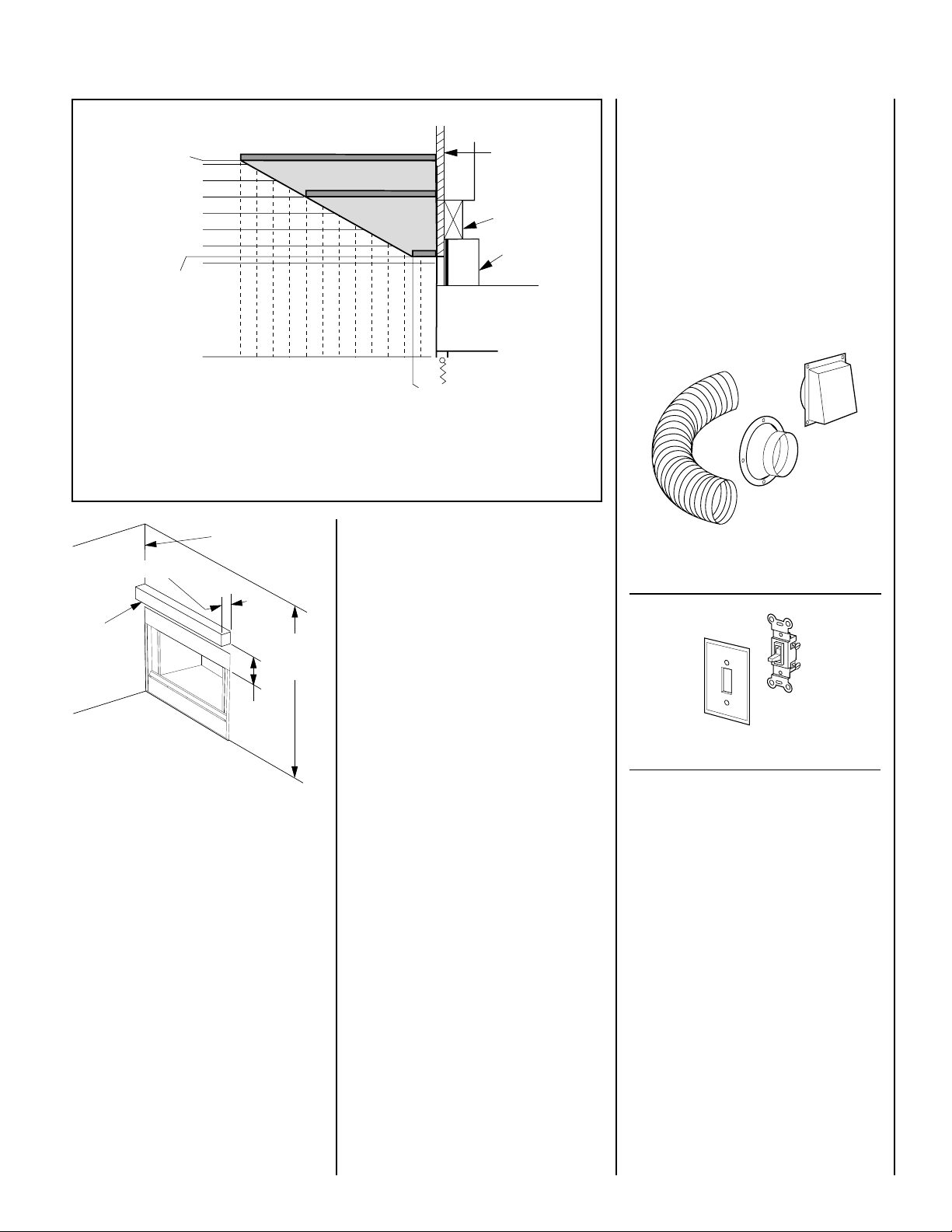

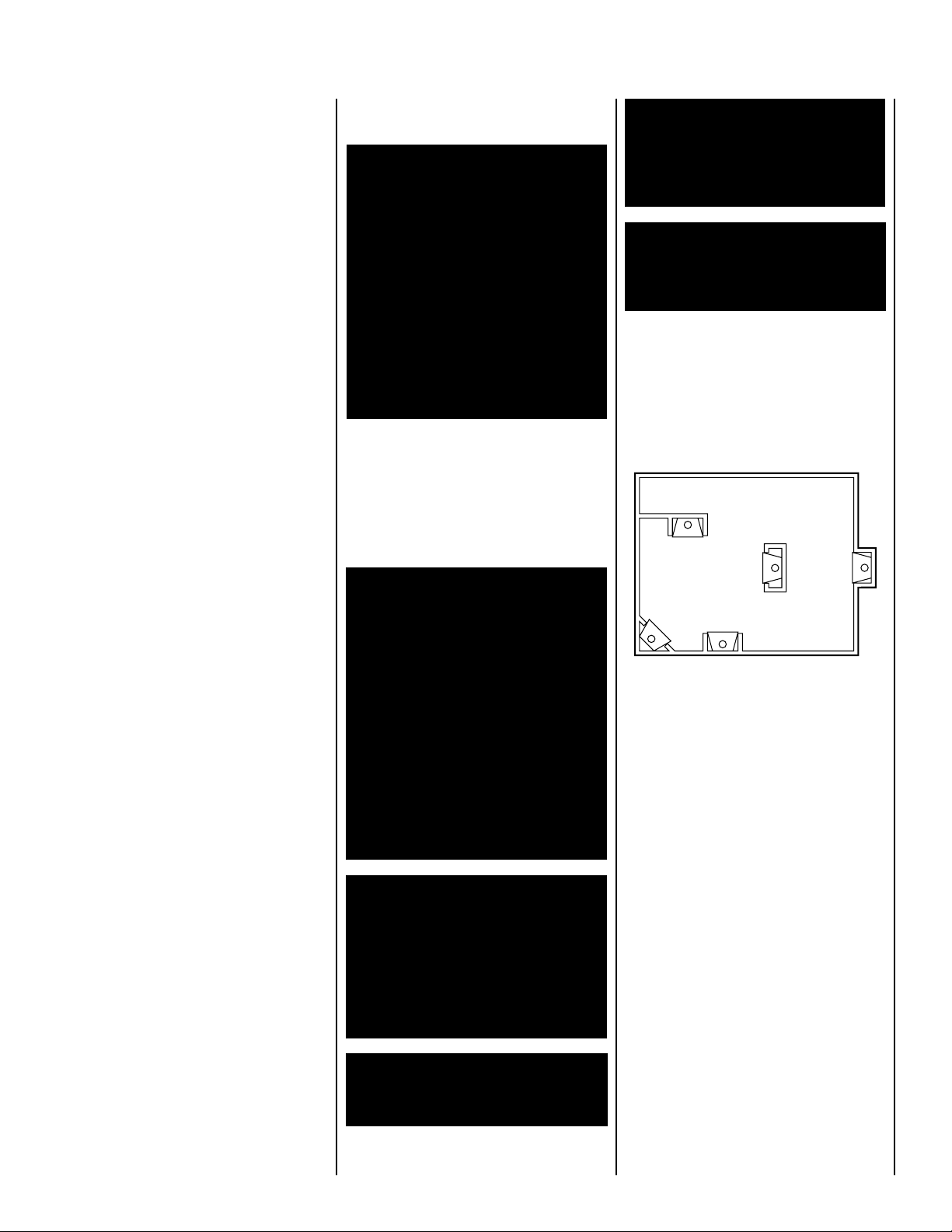

LOCATION
Typical Locations
Figure 1
In selecting the location, the aesthetic and
functional use of the appliance are primary
concerns.However,ventsystem routingtothe
exterior and access to the fuel supply are also
important. Due to high temperatures the ap-
pliance should be located out of traffic and
away from furniture and draperies. Consid-
eration should be given to traffic ways, furni-
ture, draperies, etc., due to elevated surface
temperatures. The location should also be free
of electrical, plumbing or other heating/air
conditioning ducting.
The appliance should be mounted on a fully
supported base extending the full width and
depth of the unit. The appliance may be located
onornearconventionalconstructionmaterials.
However, if installed on combustible materials,
such as carpeting, vinyl tile, etc., a metal or
wood barrier covering the entire bottom sur-
face must be used.
These appliances may be used for bedroom
installations in the United States and are listed
accordingly. Theseunitsmaynotbeinstalledin
bedrooms in Canada.
Test gage connections are provided on the
front of the millivolt gas control valve (iden-
tified E for the inlet and A for the manifold
side). A ¹⁄₈" NPT test gage connection is
provided at the inlet and manifold side of
the electronic gas control valve.
Minimuminlet gaspressure tothe applianceis
4.5inches water column (1.24kPa) for natural
gasand 11 inches watercolumn (2.74 kPa) for
propane for the purpose of input adjustment.
Maximum inlet gas supply pressure to the
appliance is 10.5 inches water column (2.61
kPa) for natural gas and 13.0 inches water
column (3.23 kPa) for propane.
The appliance must be isolated from the gas
supply piping system (by closing its individual
manualshut-off valve) duringany pressure test-
ing of the gas supply piping system at test
pressures equal to orless than ¹⁄₂ psig(3.5 kPa).
The appliance and its individual shut-off valve
must be disconnected from the gas supply
piping system during any pressure testing of
that system at pressures in excess of ¹⁄₂ psig
(3.5 kPa).
These appliances must not be connected to a
chimney or flue serving a separate solid fuel
burning appliance.
WARNING: FAILURE TO COMPLY
WITH THE INSTALLATION AND OPER-
ATING INSTRUCTIONS PROVIDED IN
THIS DOCUMENT WILL RESULT IN AN
IMPROPERLY INSTALLED AND OP-
ERATING APPLIANCE, VOIDING ITS
WARRANTY. ANY CHANGE TO THIS
APPLIANCE AND/OR ITS OPERATING
CONTROLS IS DANGEROUS. IM-
PROPER INSTALLATION OR USE OF
THIS APPLIANCE CAN CAUSE SERI-
OUS INJURY OR DEATH FORM FIRE,
BURNS, EXPLOSION OR CARBON
MONOXIDE POISONING.
AVERTISSEMENT: SURVEILLER LES
ENFANTS. GARDER LES VÊTEMENTS,
LESMEUBLES,L'ESSENCEOU AUTRES
LIQUIDES À VAPEUR INFLAMMABLES
LOIN DE L'APPAREIL.
WARNING: THISAPPLIANCEMAYONLY
BE FITTED WITH DOORS CERTIFIED
FOR USE WITH THE APPLIANCE. NO
SUBSTITUTES ALLOWED.
WARNING: B-VENT APPLIANCES ARE
NOT DESIGNED TO OPERATE IN NEGA-
TIVELY PRESSURED ENVIRONMENTS
(PRESSURE WITHIN THE HOME IS LESS
THAN PRESSURES OUTSIDE). SIGNIFI-
CANT NEGATIVELY PRESSURED ENVI-
RONMENTS CAUSED BY WEATHER,
HOMEDESIGN,OROTHERDEVICESMAY
IMPACT THE OPERATION OF THESE AP-
PLIANCES. NEGATIVEPRESSURESMAY
RESULT IN POOR FLAME APPEARANCE,
SOOTING,DAMAGE TOPROPERTYAND/
ORSEVEREPERSONALINJURY.DONOT
OPERATE THESE APPLIANCES IN NEGA-
TIVELY PRESSURED ENVIRONMENTS.
WARNING: CHILDREN AND ADULTS
SHOULD BE ALERTED TO THE HAZARDS
OFHIGHSURFACETEMPERATURES.USE
CAUTION AROUND THE APPLIANCE TO
AVOID BURNS OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE CARE-
FULLYSUPERVISED WHENTHEYAREIN
THE SAME ROOM AS THE APPLIANCE.
WARNING: DO NOT PLACE CLOTH-
ING OR OTHER FLAMMABLE MATERI-
ALS ON OR NEAR THIS APPLIANCE.
Do not place clothing or other materials on
or near this appliance.
Do not use these appliances if any part has
beenunder water.Immediately call aqualified,
professional service technician to inspect the
appliance and to replace any parts of the
control system and any gas control which
have been under water.
Ne pas se servir de cet appareil s'il a été plongé
dans l'eau, complètement ou en partie. Appeler
untechnicienqualifié pourinspecter l'appareilet
remplacertoute partie dusystème de contrôleet
toutecommandequi ontété plongésdansl'leau.
This appliance may be installed in an af-
termarket permanently located, manufac-
tured home (USA only) or mobile home,
where not prohibited by local codes. This
appliance is only for use with the type of
gas indicated on the rating plate. This ap-
pliance is not convertible for use with other
gases, unless a certified kit is used.Cet
appareil peut être installé dans un maison
préfabriquée (É.-U. seulement) ou mobile
déjà installée à demeure si les réglements
locaux le permettent.
Cet appareil doit être utilisé uniquement
avec les types de gaz indiqués sur la plaque
signalétique. Nepasl'utiliser avecd'autres
gaz sauf si un kit de conversion certifié est
installé.

4NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
CLEARANCES
Minimum clearance to combustibles for the ap-
pliance is as follows: sides and back - 0" (0 mm),
floor - 0" (0 mm), adjacent wall - 0" (0 mm),
ceiling - 64" (1625 mm).
Venting
Gas Vent Rule – Gas vent caps are not permit-
ted within 8 feet (2.4 mm) of a vertical wall or
similar obstruction. Gas vent caps that are
located 8' or more from a portion of a building
which extends at an angle greater than 45°
upward from the horizontal may terminate in
accordance with
Table 1 ( Figure 3 ), provided
that in no case shall any discharge opening on
the cap be less than 2' (610 mm) horizontally
from the roof surface (National Fuel Gas Code
ANSIZ223.1(NFPA54)7.6.2)(CAN/CGAB149).

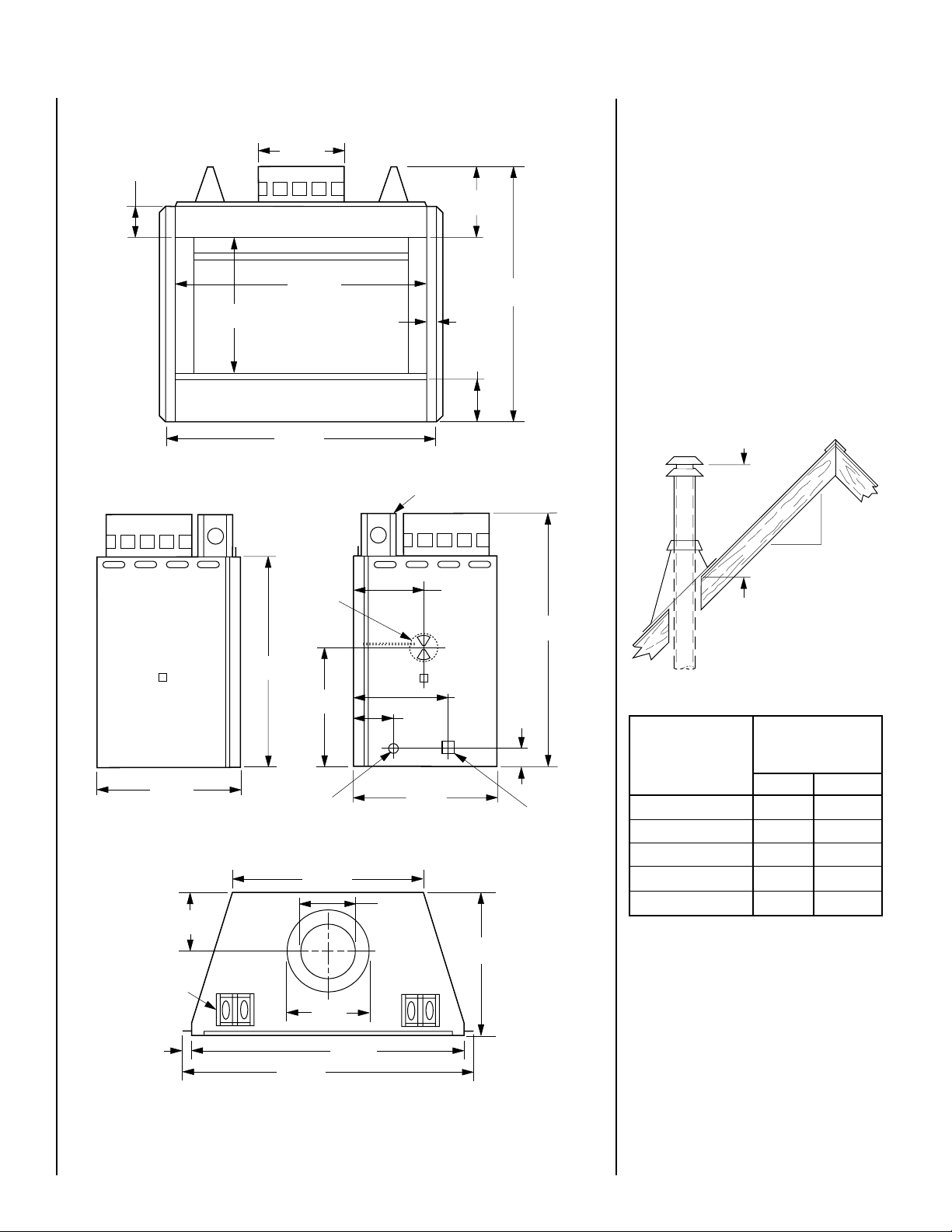

APPLIANCE SPECIFICATIONS
Figure 2
Table 1
Note: Venting terminals shall not be recessed
into a wall or siding.
Multiple Terminations – These appliances
mayvent adjacent toand atthe same levelwith
any other gas appliances (including direct-
vent appliances) provided that there is at least
2 ft. (0.6m) between the proximal edges of the
vent caps. These appliances may be vented
adjacent to a chimney vent servicing a solid
fuel fireplace provided the B-vent cap is at
least 2 ft. (0.6m) away from the nearest point
of the chimney opening.
Figure 3
Flat to 6/12 1' 0" 0.3
Over 7/12 to 9/12 2' 0" 0.6
Over 10/12 to 12/12 4' 0" 1.2
Over 13/12 to 16/12 6' 0" 1.8
Over 17/12 to 21/12 8' 0" 2.4
Roof Slope
Feet Meters
Minimum Height
from Roof to Lowest
Discharge Opening
45"
(1143 mm)
31 ⁹⁄₁₆"
(802 mm)
21 ¹⁄₄"
(540 mm)
8 ³⁄₁₆"
(208 mm)
Top View
Right Side
Gas Line
Access Junction
Box
Combustion
Air Inlet
9 ⁷⁄₈"
(251 mm)
43"
(1092 mm)
21 ¹⁄₄"
(540 mm)
21 ¹⁄₄"
(540 mm)
Left Side
45"
(1143 mm)
Front
43"
(1092 mm)
7 ³⁄₁₆"
(186 mm)
41"
(1041 mm)
2"
(51 mm)
22 ⁵⁄₁₆"
(566 mm)
13 ³⁄₈"
(340 mm)
8 ³⁄₈"
(213 mm)
Fireplace Top Spacer
Fireplace
Top Spacer
19"
(483 mm)
5 ⁷⁄₈"
(149 mm)
47"
(1194 mm)
1"
(25 mm)
38"
(965 mm)
12 ¹⁄₂"
(318 mm)
8 ¹⁄₈"
(206 mm)
12 ⁷⁄₈"
(327 mm) 3 ³⁄₈"
(83 mm)
12 ¹⁄₂"
(318 mm)
Roof Pitch is X/12
12
X
Minimum Height from Roof
to Lowest Discharge Opening

5
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

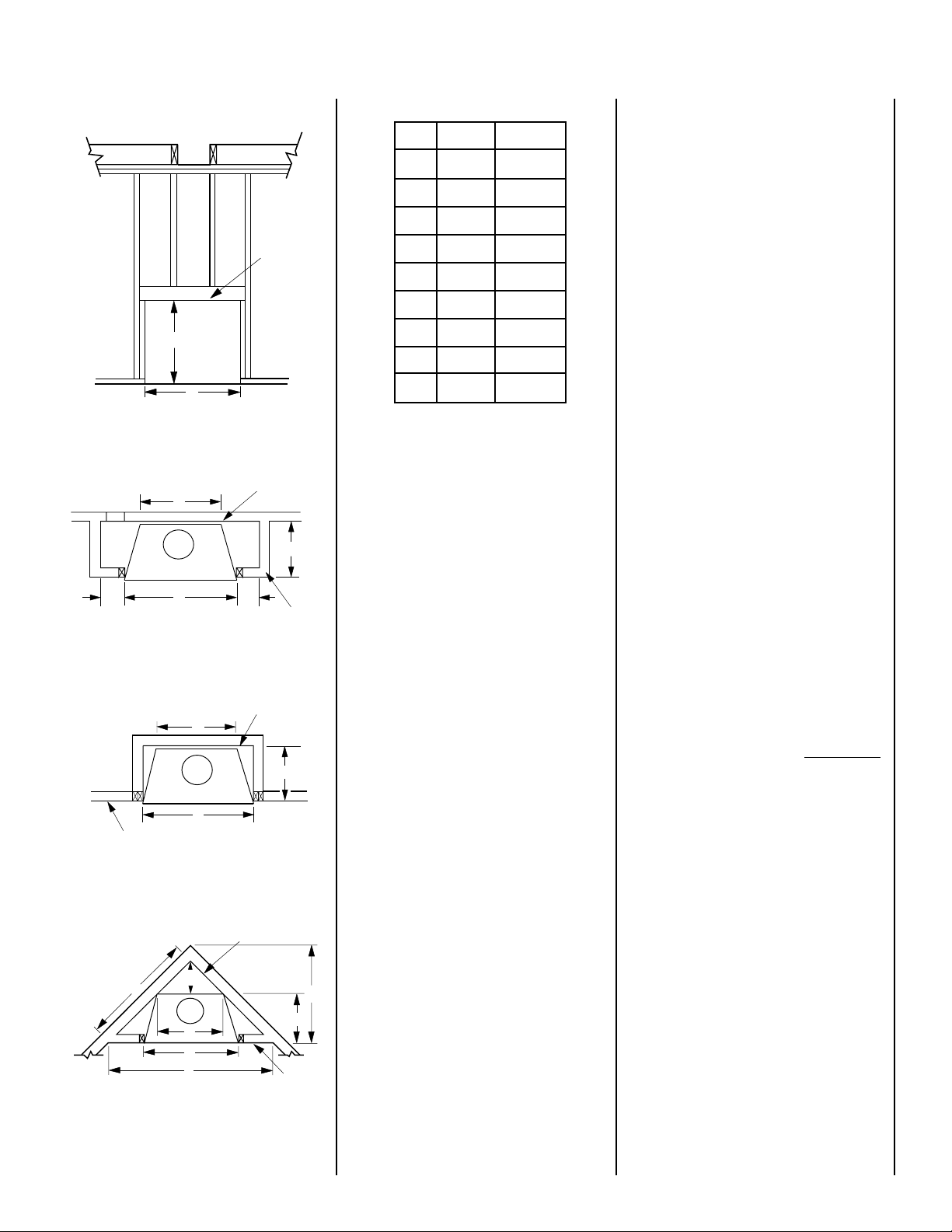

FRAMING SPECIFICATIONS
Figure 4
Figure 5
Figure 6
Framing Dimensions
Note: All framing dimensions calculated for 1/2"
dry wall at the appliance face. If sheathing the
chaseorfinishingwithotherthicknessmaterials,
calculations will need to be made.
TYPICAL INSTALLATION SEQUENCE
The typical sequence of installation follows,
however, each installation is unique resulting in
variations to those described.
1. Construct the appliance framing.
2. Route gas supply line to appliance location.
3. Position the appliance.
4. Installthe ventsystem andexteriortermination.
5.Fieldwireandinstalloperatingcontrolswitch.
6. Make connection to gas supply.
7. Install (optional) outside Air Kit.
8. Install the logs and rockwool.
9. Checkout appliance operation.
10. Adjust burner to ensure proper flame
appearance.
PRE-INSTALLATION NOTES
The fireplace may be installed directly on a
combustible floor or raised on a platform of an
appropriate height. Do not place fireplace on
carpeting, vinyl or other soft floor coverings. It
may,however, beplaced onflat wood,plywood,
particle board or other hard surfaces. Be sure
fireplace rests on a solid continuous floor or
platform with appropriate framing for support
and so that no cold air can enter the room from
under the fireplace.
* When FOAK is used.
The fireplace may be positioned and then the
framing built around it, or the framing may be
constructed and the fireplace positioned into
the opening.
Usually, no special floor support is needed for
the fireplace, however, to be certain:
1. Estimate the total weight of the fireplace
system and surround materials such as brick,
stone, etc., to be installed.
2. Measure the square footage of the floor
space to be occupied by the system, surrounds
and hearth extensions.
3. Note the floor construction, i.e. 2 x 6’s, 2 x
8’s or 2 x 10’s, single or double joists, type and
thickness of floor boards.
4. Use this information and consult your local
building code to determine if you need addi-
tional support.
If you plan to raise the fireplace and hearth
extension, build the platform assembly then
position fireplace and hearth extension on top.
Secure the platform to the floor to prevent
possible shifting.
INSTALLING THE FIREPLACE
Step 1. Frame appliance enclosure as illus-
trated in
Figures 4 through 7 on page 5.
Note: The nailing flanges, combustible fram-
ingmembersand screwheadslocatedinareas
directly adjacent to the nailing flanges, are
EXEMPT from the
¹⁄₂ " clearance to combus-
tible requirements for the firebox wrapper.
Combustible framing may be in direct contact
with the nailing flanges and may be located
closer than ¹⁄₂ " from screw heads and the
fireboxwrapperinareasadjacent tothe nailing
flanges. Frame the opening to the exact di-
mensions specified in the framing details of
this manual.
Note:Theframed depth,21
⁵⁄₈ "(549mm)from
a framed wall, must always be measured from
a finished surface. If a wall covering such as
drywall is to be attached to the rear wall, then
the 21 ⁵⁄₈ " (549 mm) must be measured from
the drywall surface. It is important that this
dimension be exact.
If the appliance is to be elevated above floor
level, a solid continuous platform must be
constructed.
The header may rest on the top metal spacers,
but must not be notched to fit around them.
Consult all local codes.
Figure 7
Header
B
A
Fireplace Framing
C
A
G
Inside Chase
HH
Back Wall of Chase/Enclosure
Including Finising Materials
if any
Rough
Framing Face
(Unfinished Shown)
A
Outside Chase
G
C
Back Wall of Chase/Enclosure
Including Finising Materials
if any
Rough
Framing Face
(Unfinished Shown)
Corner Installation
JD
C
A
E
G
F
Back Wall of Chase/Enclosure
Including Finising Materials
if any
Rough
Framing Face
(Unfinished Shown)
A46 ¹⁄₄" 1175 mm
B43 ¹⁄₂" 1105 mm
C33" 838 mm
D17 ¹⁄₂" 445 mm
E76 ¹⁄₄" 1937 mm
F38 ¹⁄₈" 968 mm
G21 ⁵⁄₈" 549 mm
H* 8" 203 mm
J20 ⁵⁄₈" 524 mm
K53 ⁷⁄₈" 1368 mm

6NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

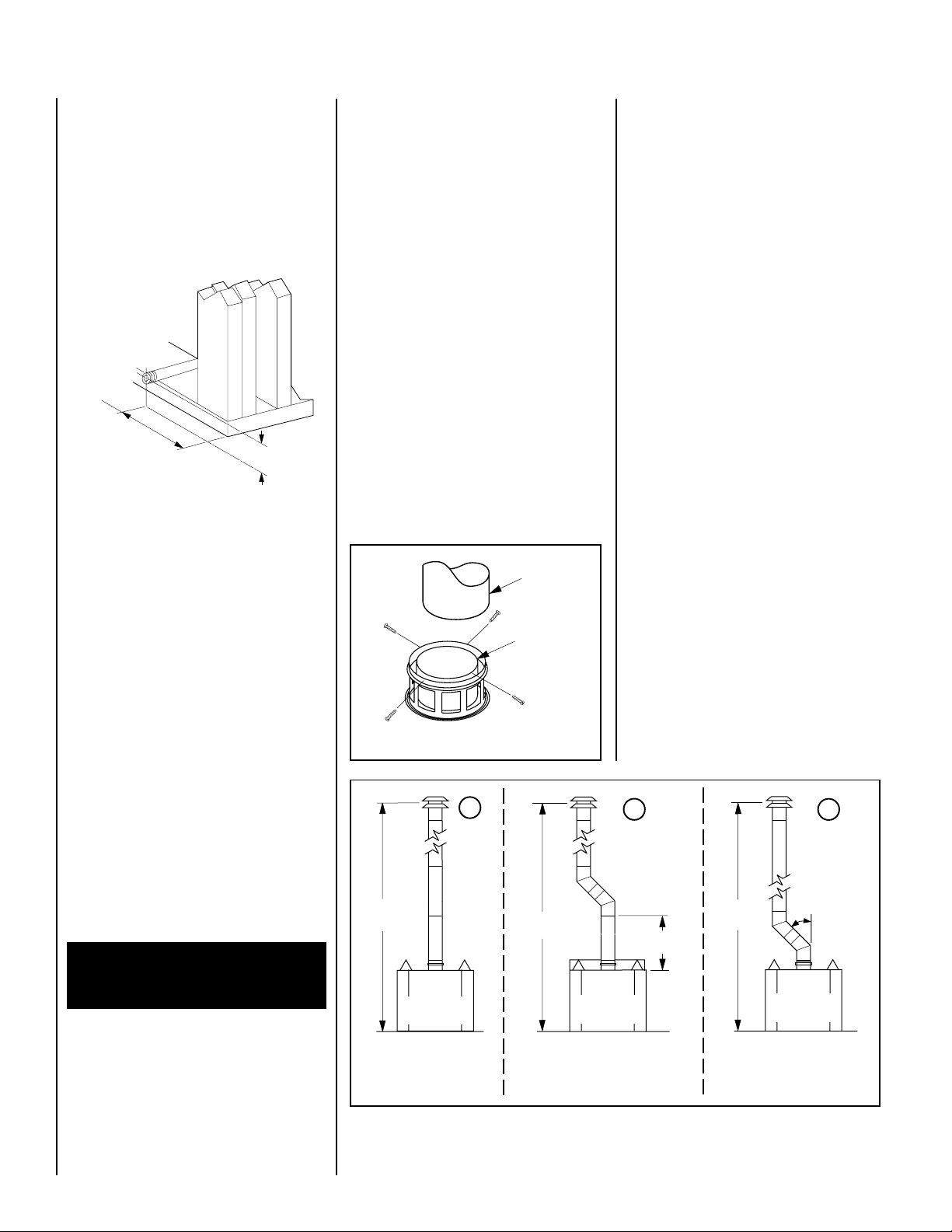

All appliances are equipped with a gas flex line
and shutoff valve attached directly to the gas
control valve. To quickly and easily complete
the gas line routing, use the gas flex line kit.
Step 2. Route gas line
(Figure 8 ) using tech-
niquesandmaterialsprescribed bylocaland/or
national codes. It is recommended that a gas
line of ¹⁄₂" or greater diameter be used to allow
fullgasvolumetothefireplace.Unduepressure
loss will occur if the pipe is too small. The
appliance,as setup atthe factory, isbest suited
for use with a gas line routed from the right
side. The gas line may however be alternately
routed from the left side.
Figure 9
6” Type B
Vent
Flue Outlet
Collar
12 3
12 ft.
Minimum 60*
degrees
Maximum
Back View
Of Appliance
12 ft.
Minimum
Back View
Of Appliance
*12 ft. Min.
**15 ft. Min. 2 ft.
Minimum
To Offset
*with an offset up to 45 degrees
** with an offset greater than 45
degrees and up to 60 degrees
Back View
Of Appliance
*This Vent Configuration
Allowable only With The
Following optional Non-
Operable Glass Doors Installed:
42GEP or 42GEP-BB
Figure 10
WARNING: CONNECTING DIRECTLY TO
AN UNREGULATED PROPANE (L.P.G.)
TANK MAY CAUSE AN EXPLOSION.
Step 4. Install the Vent System and Exterior
Termination -
A - Connect a 6" (152 mm) Type B vent system
to the appliance flue collar with four (4) No. 8
sheet metal screws
(Figure 9 ) and install the
remainder of the Type B vent to the outside.
B - The following venting configurations may
be installed
(see Figure 10):
1-Vertical-Minimumoverallheightofthevent
systemandappliancewithoutanoffset mustbe
12' (3.66 m)
2 - With Offset
a - Minimum overall height of the vent system
and appliance must be 12' (3.66 m) when an
offset up to 45 degrees from the vertical is
used. There must be a minimum vertical vent
height of 2 ft (0.6 m) above the appliance collar
before the offset can be applied.
b - Minimum overall height of the vent system
and appliance must be 15' (4.57 m) when an
offset, more than 45 degrees but less than
60 degrees from the vertical, is used. There
must be a minimum vertical vent height of 2 ft
(0.6 m) above the appliance collar before the
offset can be applied.
3-WithOffset,whenusingtheoptional,42GEP
or 42GEP-BB, non-operable glass doors
Minimum overall height of the vent system
and appliance must be 12' (3.66 m) when an
offset up to 60 degrees from the vertical is
used. The lower part of the offset may start
at the appliance flue collar.
Step 3. Slide the fireplace into prepared fram-
ing or position fireplace in its final position and
frame later.
Refer to fireplace drawings and specifications
on
pages 4 and 5 for framing dimensions and
details. Framing header may be positioned
directly on the fireplace top spacers.
IMPORTANT:UNDERNOCIRCUMSTANCESCAN
THE FIREPLACE TOP SPACERS ( FIGURE 2 ) BE
REMOVEDORMODIFIED,NORMAYYOUNOTCH
THEHEADERTOFITAROUNDORBEINSTALLED
LOWERTHANTHESPACERS.THEHEADERMAY
BE IN DIRECT CONTACT WITH THE TOP SPAC-
ERS BUT MAY NOT BE SUPPORTED BY THEM.
Fireplace should be secured to side framing
members using the full length ¹⁄₂ inch nailing
flanges that are integral to the appliance at
each side. Use 8d nails.
Note: The nailing tabs and the area directly
behind the nailing tabs are exempt from the
clearances described on the fireplace clear-
ance label.
Figure 8
RIGHT
SIDE
7 ⁵⁄₈"
(194 mm)
3 ¹⁄₈"
(79 mm)
Note: Ensure the Millivolt valve wire is not
routed through the same hole as the gas line.
Route the Millivolt wire through the opposite
side from the gas line.
When rigid pipe is used, an ANSI approved
manual shut-off valve and union must be in-
stalled upstream of the fireplace.
Ensure that a sediment trap is installed in the
existing gas line, if not, install a sediment trap
upstreamto prevent moisture and contaminants
from passing through trap to the appliance con-
trols and burners. Failure to do so could prevent
the appliance from operating reliably.
An external regulator must be used on all pro-
pane (L.P.G.) heaters to reduce the supply tank
pressure to 13" w.c. (maximum). Any copper
tubing used to supply propane (L.P.G.) from
the tank must be internally tinned.
IMPORTANT: HOLD GAS VALVE SECURELY
TO PREVENT MOVEMENT WHEN CONNECT-
ING TO INLET GAS LINE

7
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

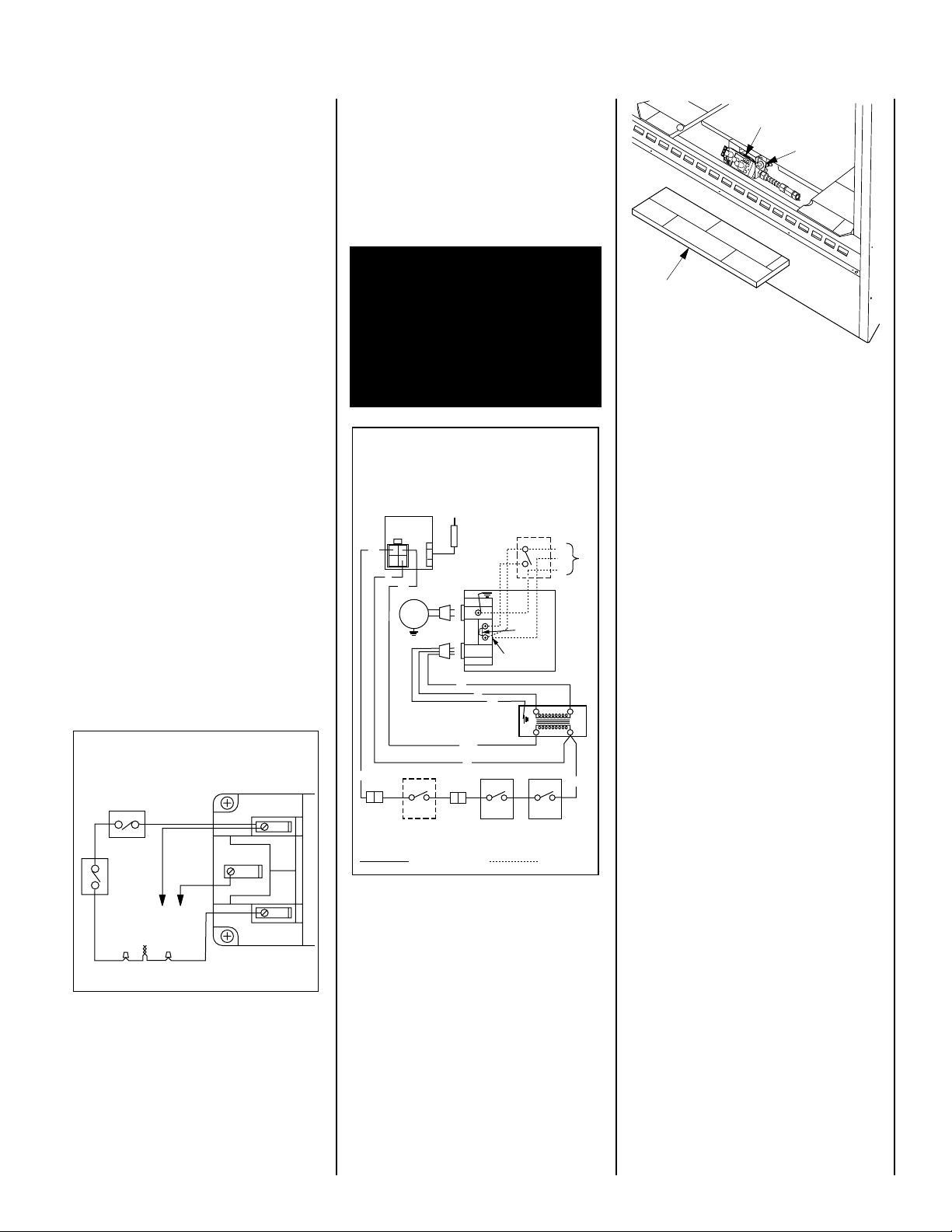

Figure 11
Step 5. Field Wiring – Refer to Section A for
millivoltappliancesandSection Bforelectronic
appliances.
A.MillivoltWiring–The gasvalvehasbeenset
in place and has been pre-wired at the factory.
No additional wiring is required unless the
optional wall switch or optional remote control
kit is to be installed. Locate the optional wall
switchor optional remotecontrol inthe desired
location and connect the millivolt wire (see
Figure 11 ) .
CAUTION: DO NOT CONNECT THE WALL
SWITCH TO A 120V POWER SUPPLY.
Note: Optional wall switch not supplied. If the
optional wall switch is not installed, the ends of
the15'coiled wiremust beconnectedwith awire
nut (not supplied) for the appliance to operate.
Figure 12
Step 6. Connecting Gas Line – Make gas line
connections. All codes require a shut-off valve
mounted in the supply line. Figure 15 illus-
trates two methods for connecting the gas
supply. The flex-line method is acceptable in
theU.S., however, Canadianrequirements vary
depending on locality. Installation must be in
compliance with local codes. The gas control
valve is located in the lower control compart-
ment. To access the valve remove the refrac-
tory access panel and set aside (Figure 13 ) .
B. Electronic Wiring – The electronic appli-
ance must be connected to the main power
supply. To install:
1. Route a 3-wire 120V 60Hz power supply to
the appliance junction box and ground.
(See
Figures 12 and 14 ).
SIT Millivolt Wiring Diagram
*
For Wall Switch Attachment Only.
If any of the original wire as supplied must be replaced, it
must be replaced with Type AWM 105°C – 18 GA. wire.
Thermopile
TH
TP TH
TP
Limit Switch
*
Damper
Switch
1. If any of the original wire as supplied must be replaced,
it must be replaced with Type AWM 200°C – 18 GA.
wire.
2. 120V, 60Hz – Less than 3 amps.
BK
Junction Box
Transf.
120 V.
24 V
Factory Wired Field Wired
BL
Electronic Wiring Diagram (Honeywell)
(Optional ON/OFF Switch Wiring)
R
BK
BL
To Opposite Side
OPT
FAN
G
W
OPT. ACCESSORY
SWITCH
120
VAC.
BK
LIMIT
SWITCH
W
Gas Valve
B
OPTIONAL
ON/OFF SWITCH
OR WALL SWITCH
R
IGNITER
CONTROL
PILOT
ASSEMBLY
Break
Off Tab
DAMPER
SWITCH
BK
BK
WHT BK
BK
G
G
IMPORTANT:Groundleadmustbeconnected
to the green screw located on the outlet box.
See
Figure 12 . Failure to do so will result in
a potential safety hazard. The appliance
mustbe electricallygrounded in accordance
with local codes or, in the absence of local
codes, the National Electrical Code, ANSI/
NFPA 70-(latest edition). (In Canada, the
currentCSAC22-1CanadianElectricalCode.) The millivolt control valve has a ³⁄₈"
(10 mm) NPT thread inlet port. The electronic
control valve has a ¹⁄₂" (13 mm) NPT thread
inlet port and is fitted with a ¹⁄₂" x ³⁄₈" (13 mm
x 10 mm) NPT fitting. Both the millivolt and
electronic models are fitted with a 3" (76 mm)
long nipple, ³⁄₈" NPT. Plan the connections
accordingly.
Secure all joints tightly using appropriate
tools and sealing compounds (ensure pro-
pane resistant compounds are used in pro-
pane applications).
Turn on gas supply and test for gas leaks,
using a gas leak test solution (also referred to
as bubble leak solution).
Note: Using a soapy water solution (50% dish
soap, 50% water) is an effective leak test
solution but it is not recommended, because
the soap residue that is left on the pipes/
fittingscanresultincorrosionovertime. Never
use an open flame to check for leaks.
A. Light the appliance (refer to the lighting
instructions label in the control compartment
or in the Homeowner's Care and Operation
Instructions).
B. Brush all joints and connections with the
gas leak test solution to check for leaks. If
bubbles are formed, or gas odor is detected,
turn the gas control knob to the “OFF” posi-
tion. Either tighten or refasten the leaking
connection and retest as described above.
C. When the gas lines are tested and leak free,
be sure to rinse off the leak testing solution.
D. When the gas lines are tested and leak free,
observe the individual tongues of flame on the
burner. Make sure all ports are open and
producing flame evenly across the burner. If
any ports are blocked, or partially blocked,
clean out the ports.
Figure 13
Refractory
Access Panel
SIT Valve Shown
Gas Controls
on Valve
Piezo
Ignitor
2. Locate and install a low voltage (24V) wall
switch (not supplied) in the desired location.
Connect the low voltage wire to this switch
(see Figure 12 ) .
3. After wiring is complete, replace the appli-
ance junction box cover and secure with the
hex head screws previously removed.
Maximum overall height of the vent system and
appliance should not exceed 40 feet (12.19 m).
Install the B-vent system in accordance with
the vent manufacturer's instructions.
CAUTION: THIS APPLIANCE CANNOT BE
VENTED HORIZONTALLY.
Note:Referto the ventmanufacturers installa-
tioninstructions forvariationsof ventingtech-
niques. If common venting of several units is
contemplated, it should be discussed with an
architect and the local Building Department.
Install the B-vent system in accordance with
the vent manufacturer's instructions.

8NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Figure 14
Note: Supply wires may be alternatively connected to the outlet using the screw terminals, however
the black supply wire must be wired to a terminal that is opposite (across the outlet) the point where
the white supply wire is connected.

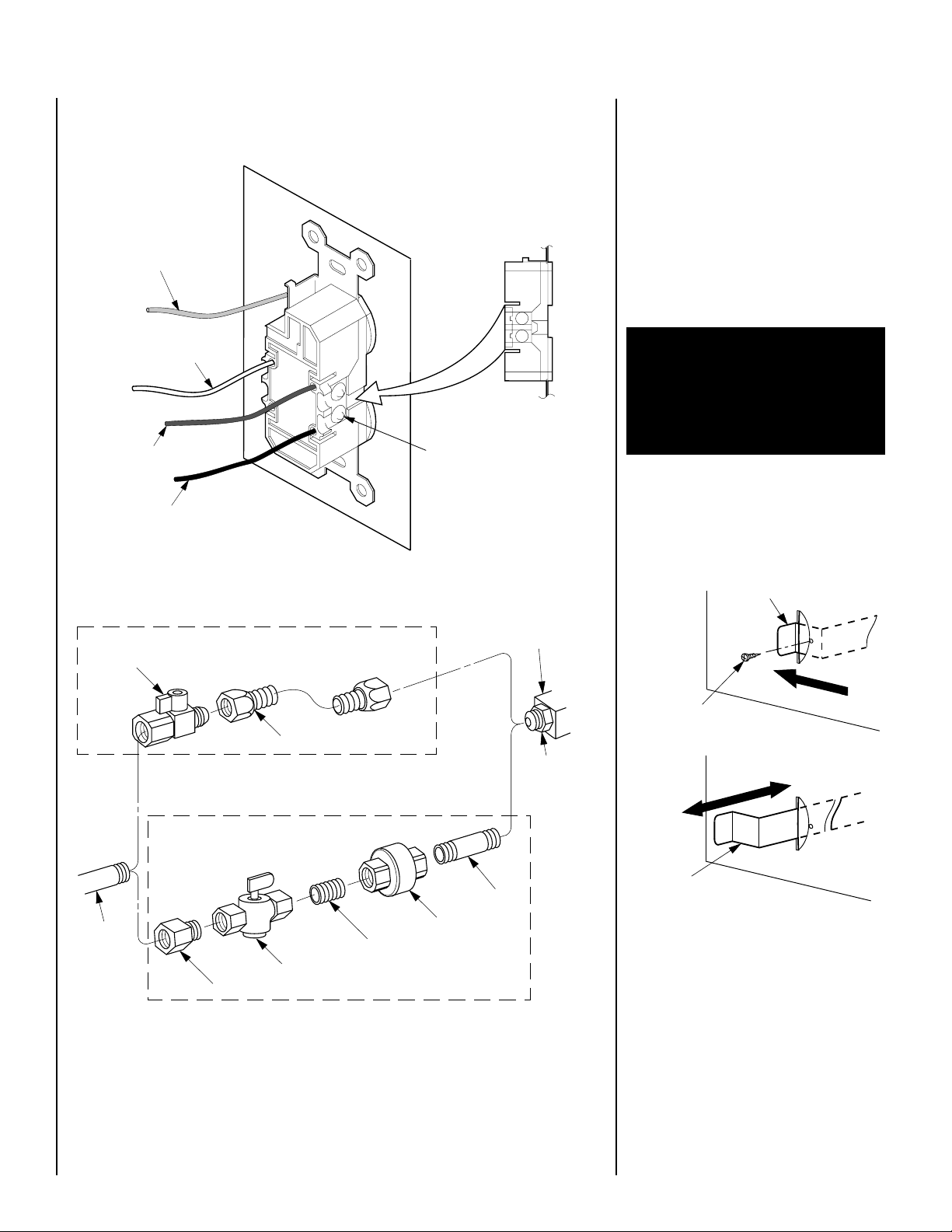

Figure 15
Figure 16
Locate the actuator arm along the right side of
the appliance firebox opening and refer to
Fig-
ure 16
.After completing the installation of the
OutsideCombustionAirKitremoveanddiscard
the actuator arm locking screw.
To operate, push the end of the actuator to the
left as shown in
Figure 16 , until it "pops" free
of its "locked" position. Pull the actuator
forward to open the combustion air door, and
push it back to close. To "lock" the combustion
air door closed, ensure the actuator is pushed
all the way back then push the end of the
actuators to the right until the step in the
actuator moves behind the appliance front
face within the slotted opening.
³₈" Nipple
Gas Stub
¹₂" x ³₈" Flare
Shut-Off Valve
³₈" Flex Tubing
³₈" NPT Flare
Fitting (Remove
Before Hard
Piping)
³₈" Union
³₈" Close Nipple
³₈" Shut-Off Valve
¹₂" x ³₈" Reducer
Gas Valve
(Millivolt or
Electronic)
Gas Flex Line (provided)
Alternate “Hard Piping”
(may be required in some areas, consult local codes.)
Note: ¹₂" NPT At Inlet Of Gas Valve For Electronic Models.
Remove Locking Screw
and “Pop” Actuator to the
Left Before Initial Use
Outside Air
Actuator
Pull Forward to Open,
Push Back to Close
WARNING: DO NOT REMOVE THE AC-
TUATOR ARM LOCKING SCREW UNLESS
THE COMPLETE OUTSIDE AIR VENT SYS-
TEM HAS BEEN INSTALLED IN ACCOR-
DANCE WITH THE DETAILED INSTRUC-
TIONS PROVIDED WITH THE KIT.
White
(Supply)
Black
(Supply)
Bipolar
Terminal
Screw
120 Vac
60 Hz
Green Wire Ground
Connection
Red
(Supply)
120 Vac
60 Hz
120 Vac
60 Hz
Step 7. Installing Outside Air Kit – These
appliancesareequippedwithanoutside(make-
up) air door and integral actuator arm. If the
appliance is to be installed with an outside air
vent system, use only Lennox Models FAOK-4
or FAOK-4LD Combustion Air Kits.
After completing the installation of the optional
combustion air vent system the actuator arm
must be put in service and tested to ensure
proper operation before completing any enclo-
sure around the firebox. Failure to do so may
result in extensive and costly rework.

9
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Replace logs if removed for pilot inspection.
To light the burner; turn “ON” the remote wall
switch and rotate the gas valve control knob
counterclockwise to the “ON” position (“ON”
will be to the left hand side of the valve).
Electronic Appliance Checkout
To light the burner, turn ‘ON’ the optional
remote wall switch and turn the gas control
switchto the “ON”position. Ensure the ignitor
lights the pilot. The pilot flame should engulf
the flame rod as shown in Figure 20.

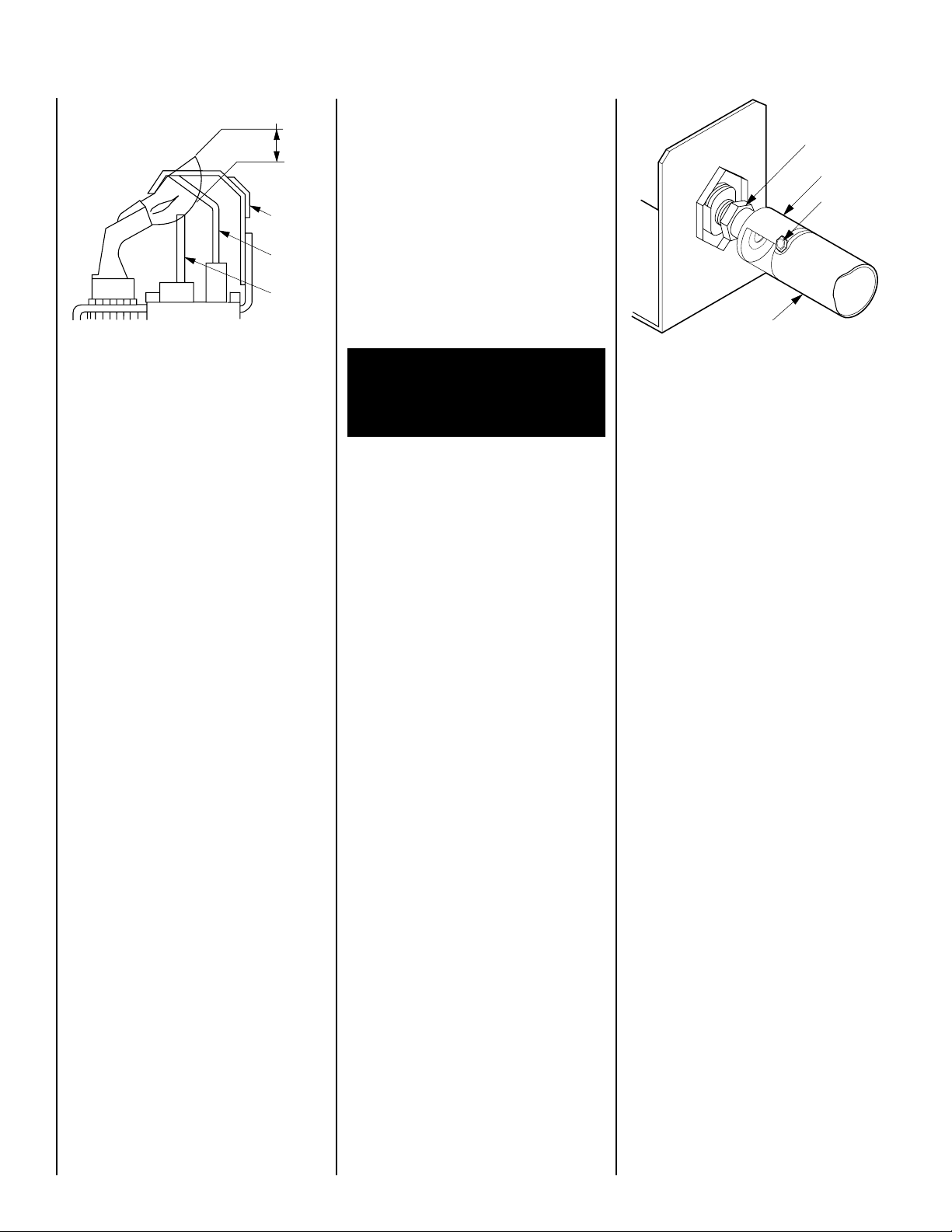

Figure 19
³⁄₈" Min
(9 mm)
Hood
Pilot
Nozzels
Ignitor Rod
MANUALLY-RESET BLOCKED FLUE SAFETY
SWITCH
This appliance is equipped with a manually-
reset blocked flue safety switch. Refer to
Figure 18 for its location. If during appliance
operation, the flame goes out (independently
of the burner on/off wall switch), it may be due
to the operation of this safety limit switch.
First allow the appliance to cool. Then reset
the safety switch by pushing the red reset
button on the back of the switch.
CAUTION: THE ELECTRONIC APPLIANCE
SHOULD BE TURNED OFF BEFORE REMOV-
ING THE LIMIT SWITCH.
To access the safety limit switch reset button,
remove the screen rod and screen from the
rightsideofthefireplace. Unscrewtwoscrews
and remove the limit switch with low voltage
wires attached. Push the reset button, then
reinstall the limit switch. Reinstall the screen
and rod. At this time turn the electronic
appliance back on.
The appliance should then relight and remain
lit. If this does not occur, turn off the appli-
ance and call a qualified service technician.
Millivolt Appliance Checkout
The pilot flame should be steady, not lifting or
floating. Flame should be blue in color with
traces of orange at the outer edge.
Figure 18
Limit Switch Screws
Manual
Reset
Limit
Switch
Screen
Rod
Lintel Extension Right Side Refractory Panel
Screen
The top ³⁄₈" (9 mm) at the pilot generator (ther-
mopile) should be engulfed in the pilot flame.
The flame should project 1" (25 mm) beyond
the hood at all three ports (Figure 19 ) .
Figure 17
Operate the actuator through several cycles
including the "lock" position. Ensuring proper
operation and freedom of movement. Return
the actuator arm to the locked position.
Step 8. Installing Logs and Rockwool – The
logsarepackagedand boxedwithinthe firebox.
The bag of rockwool is in the lower control
compartment. Remove the rockwool from the
packagingand tear intoquarter sizepieces (see
HomeownersCareandOperationInstructions).
Carefullypositionthe ceramicfiberlog assem-
bly onto the burner, refer to the Homeowners
Care and Operation Instructions for detailed
log description and placement instructions.
Position the logs onto the pins of the burner,
with the cutouts fitted around the burner tube.
Ensure the rear log matches the cutout on its
bottom with the position of the pilot.
APPLIANCE OPERATION
Step 9. Checking the System – With the gas
line installed, run initial system checkout
before closing up the front of the unit. Follow
the pilot lighting instructions provided in the
Homeowner's Care and Operation Instruc-
tions. The piezo ignitor is located in the
control compartment (see
Figure 13 ).
Note: Instructions are also found on the pull
out labels attached to the gas control valve.
The valve is shown in Figure 17.
When first lighting the appliance, it will take a
few minutes for the line to purge itself of air.
Once purging is complete, the pilot and burner
will light and operate as indicated in the in-
struction manual.
Subsequent lightings of the appliance will
not require such purging. Inspect the pilot
flame (remove logs, if necessary, handling
carefully).
SIT Valve

10 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
When satisfied that the appliance operates
properly, proceed to finish the installation.
Leave the control knob/lever in “ON” position
andturn the remote switch“OFF.” Replace the
refractory access panel.
Figure 21
FINISHING REQUIREMENTS
Wall Details and Combustible Mantels
Adjustment
To adjust the flame, position the air shutter to
the nominal setting (Figure 21 ) . Allow the
burner to operate for at least 30 minutes. Ob-
serve the flame continuously. If it appears weak
or sooty as previously described, adjust the air
shutter open or closed until desired effect is
achieved.
Note: If the flame still appears anemic with the
air shutter closed all the way (usually a result
of lengthy vertical venting runs), turn off the
appliance, turn off the gas supply, wait for the
parts to cool and access the air shutter. The
shutter is prevented from actually closing by a
tab that is bent over into the opening. Remove
thisobstruction by bending back. Reassemble
and restart the appliance and after 30 minutes
reobserve the flame. Adjust the air shutter as
described.
Complete finished interior wall. To install the
appliance facing flush with the finished wall,
positionframeworktoaccommodatethethick-
ness of the finished wall
(Figure 22 ) . This
figure also indicates vertical installation clear-
ances to combustible mantels. Figure 23 also
shows an example of a combustible mantel
shelf projecting a maximum of 12" (305 mm)
from the wall, and which must be installed a
minimum distance of 14 ¹⁄₂" (368 mm) from
the top of the firebox opening.

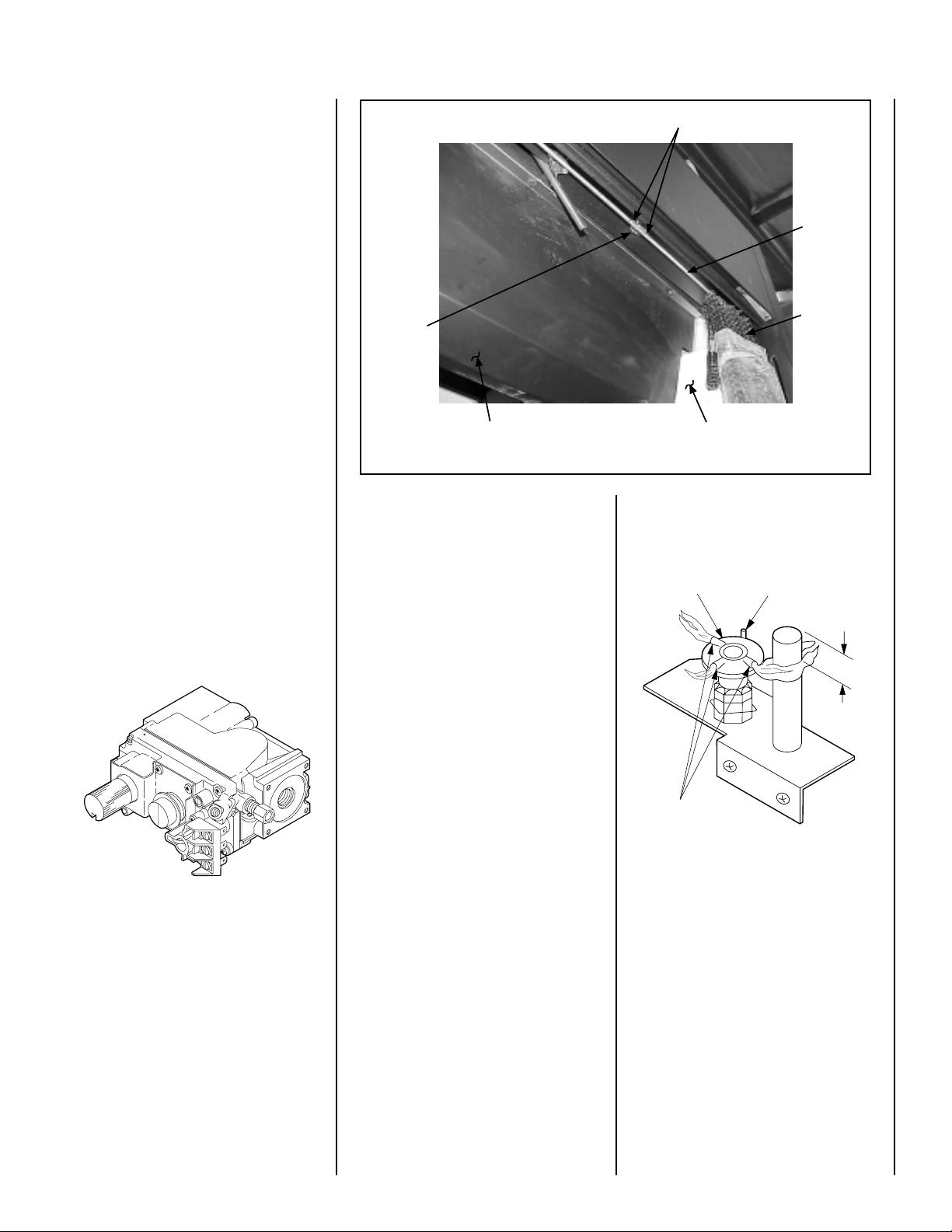

Figure 20
Proper Flame
Adjustment
Hot Surface
Igniter
Flame Rod
Ground
Electrode
3/8 To 1/2 Inch
(9 mm to 13 mm)
Step 10. Adjustments – The following para-
graphs address adjustment concerns and
procedures.
Flame Appearance and Sooting
Proper flame appearance is a matter of taste.
Generally most people prefer the warm glow of
a yellow to orange flame. Appliances operated
with air shutter openings that are too large, or
with long vertical vent runs, will exhibit flames
that are blue and transparent. These weak, blue
and transparent flames are termed anemic.
If the air shutter opening is too small sooting
may develop. Sooting is indicated by black
puffsdevelopingat thetipsof verylongorange
flames.Sootingresultsinblackdepositsform-
ing on the logs, appliance inside surfaces and
onexterior surfacesadjacentto thevent termi-
nation. Sooting is caused by incomplete com-
bustion in the flames and a lack of combustion
air entering the air shutter opening.
To achieve a warm yellow to orange flame with
an orange body that does not soot, the shutter
opening must be adjusted between these two
extremes.
No smoke or soot should be present. Reposi-
tion the log set if the flames impinge on any of
them.
If sooting conditions exist, the air shutter
opening on the main burner can be adjusted.
Normally, the more offsets in the vent system,
the greater the need for the air shutter to be
opened further.
WARNING:AIRSHUTTERADJUSTMENT
SHOULD ONLY BE PERFORMED BY A
QUALIFIED PROFESSIONAL SERVICE
TECHNICIAN.
Orifice
Air Shutter
Burner Tube
Adjusting
Set Screw
Nominal Air Shutter Settings
Natural Gas - 1/16" (1.59 mm) Open
Propane Gas - 1/4" (6.35 mm) Open

11
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Fireplace
Opening
Spacer
Finished
Wall
Header
123456789
1011
12
9
10
11
12
Combustible Mantel Clearances
Inches
Min. Height of Mantel
Above Fireplace
Opening
Max.Length of Mantels
Three mantels are shown (dark gray elongated rectangles)-
one, 1¹⁄₂ in. long at a min. of 8³⁄₈ in. above the fireplace opening;
the second, 8 in. long at a min. of 12 in. above the fireplace opening;
the third, 12 in. long at a min. of 14¹⁄₄ in. above the fireplace opening;
for any mantels between these three in length, they must be located
within the lighter gray shaded area.
00
8³⁄₈
1¹⁄₂
8
13
14
14¹⁄₄
Figure 22
A hearth extension is not required with this
appliance. Any hearth extension used is for
appearanceonlyand doesnot havetoconform
to standard hearth extension installation re-
quirements.
INSTALLATION ACCESSORIES
The following accessory items are available for
use in the installation of this appliance.
OutsideAir KitsModels FOAK-4 andFOAK-4LD
Outside Air kits are available with duct
(FOAK-4) and without duct (FOAK-4LD) for
use if outside combustion air is required or
desired. If model FOAK-4LD is used it must
be used in conjunction with locally pur-
chased, non-combustible Class 1 or Class 0
flexible duct.
Wall Switch Kit 85L87 FWSK
Outside Combustion Air Kits
(with duct) 81L87 FOAK-4
(without duct) 81L88 FOAK-4LD
COLD CLIMATE INSULATION
If you live in a cold climate, seal all cracks
around your appliance with noncombustible
material and wherever cold air could enter the
room. It is especially important to insulate
outside chase cavity between studs and under
floor on which appliance rests, if floor is above
ground level.
Figure 23
64"
(1626 mm)
Min. to
Ceiling
14 ¹⁄₂ " Min.
(368 mm)
0" (0 mm) Clearance
to Combustible
Side Wall
Max. Projection 12" (305 mm)
Combustible
Mantel
Note: Combustible wall finish materials and/or
surround materials must not be allowed to
encroach the area defined by the appliance
front face (black sheet metal). Never allow
combustible materials to be positioned in front
of or overlapping the appliance front face.

12 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Gas Conversion Kits
In Canada
THE CONVERSION SHALL BE CARRIED OUT
IN ACCORDANCE WITH THE REQUIREMENTS
OF THE PROVINCIAL AUTHORITIES HAVING
JURISDICTION AND IN ACCORDANCE WITH
THE REQUIREMENTS OF THE CAN1-B149.1
AND .2 INSTALLATION CODE.
LA CONVERSION DEVRA ÊTRE EFFECTUÉE
CONFORMÉMENTAUXRECOMMANDATIONS
DES AUTORITÉS PROVINCIALES AYANT
JURIDICTION ET CONFORMÉMENT AUX
EXIGENCESDUCODED'INSTALLATIONCAN1-
B149.1 ET.2.
Gas conversion kits are available to adapt your
appliance from the use of one type of gas to the
use of another. These kits contain instructions
and all the necessary components needed to
complete the task including labeling that must
be affixed to ensure safe operation.
Kit part numbers are listed below and the fol-
lowing steps detail the conversion procedure.
Millivolt Conversion Kits
H5707 — Natural to Propane
H5708 — Propane to Natural
Electronic Conversion Kits
H5709 — Natural to Propane
H5710 — Propane to Natural
Step 3. Locate the screws securing the burner
(tray) to the appliance. Remove the burner
and retain the securing screws.
Millivolt Appliances
Step 4. Refer to
Figure 24 and the instruc-
tions provided with the kit. Using a Torx T20,
remove and discard the three pressure regu-
latormounting screws. Removethe pressure
regulator, spring, poppet, diaphragm and
bushing. Discard all removed components.
Ensure the rubber gasket installed on the
back of the replacement pressure regulator is
properly positioned and install the new pres-
sureregulator using the new screwssupplied
with the kit. Tighten screws to 25 In. lb.
torque.

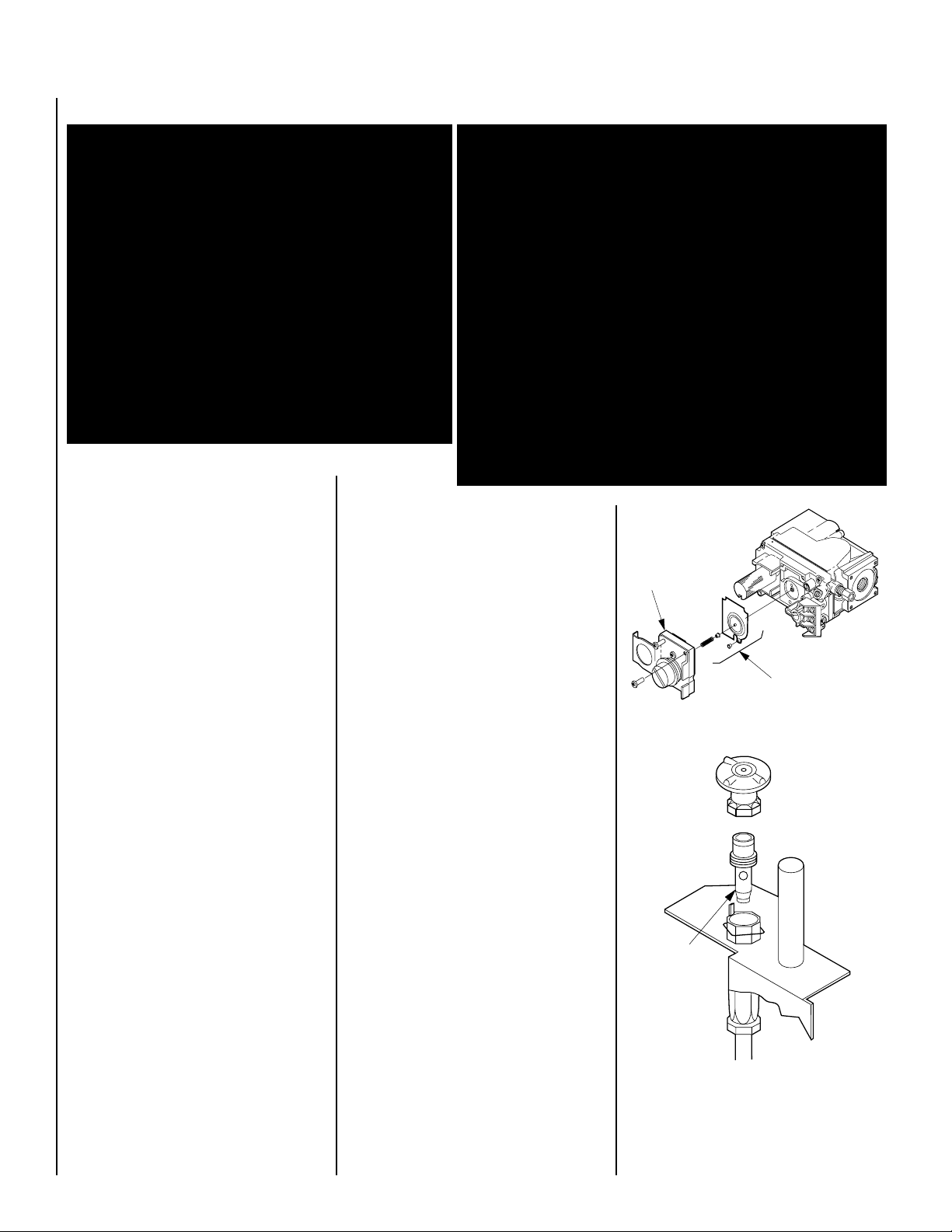

Figure 24
Figure 25
Pressure
Regulator
Remove
These
Components
Pilot
Orifice
Step 1. Turn off the gas supply to the appli-
ance. Remove the front glass door/frame (if
used) from the appliance. Access the control
compartment.
Step 2. Carefully remove the logs. Exercise
care as not to break the logs.
WARNING: THIS CONVERSION KIT SHALL BE IN-
STALLED BY A QUALIFIED SERVICE AGENCY IN
ACCORDANCE WITH THE MANUFACTURER'S IN-
STRUCTIONS AND ALL APPLICABLE CODES AND
REQUIREMENTS OF THE AUTHORIZED AGENCY
HAVING JURISDICTION. IF THE INFORMATION IN
THESEINSTRUCTIONSISNOTFOLLOWEDEXACTLY,
A FIRE, EXPLOSION OR PRODUCTION OF CARBON
MONOXIDEMAYRESULTCAUSINGPROPERTYDAM-
AGE, PERSONAL INJURY OR LOSS OF LIFE. THE
INSTALLATION IS NOT PROPER AND COMPLETE
UNTIL THE OPERATION OF THE CONVERTED APPLI-
ANCE IS CHECKED AS SPECIFIED IN THE OWNER
INSTRUCTIONS SUPPLIED WITH THE KIT.
AVERTISSEMENT: CET ÉQUIPEMENT DE CONVERSION
SERAINSTALLÉPARUNEAGENCEQUALIFIÉEDESERVICE
CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT ET
TOUTES EXIGENCES ET CODES APPLICABLES DE
L'AUTORISÉSAVOIRLAJURIDICTION. SIL'INFORMATION
DANS CETTE INSTRUCTION N'EST PAS SUIVIE
EXACTEMENT, UN FEU, EXPLOSION OU PRODUCTION DE
PROTOXYDEDECARBONEPEUTRÉSULTERLEDOMMAGES
CAUSER DE PROPRIÉTÉ, PERTE OU BLESSURE
PERSONNELLEDEVIE. L'AGENCE QUALIFIÉE DESERVICE
EST ESPONSABLE DE L'INSTALLATION PROPRE DE CET
ÉQUIPMENT. L'INSTALLATION N'EST PAS PROPRE ET
COMPLÉTE JUSQU'À L'OPÉRATION DE L'APPAREIL
CONVERTI EST CHÉQUE SUIVANT LES CRITÈRES ÉTABLIS
DANS LES INSTRUCTIONS DE PROPRIÉTAIRE
PROVISIONNÉES AVEC L'ÉQUIPEMENT.

13
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Step 5. Attach manometer to the manifold
side pressure test fitting and verify manifold
pressure reads 3.5 inches water column (0.87
kPa) for natural gas, and 10.0 inches water
column (2.49 kPa) for propane gas.
Step 6. Refer to
Figure 25 and remove the
pilot hood assembly to access the hexed pilot
orifice. Remove and replace the orifice with
the one provided with the kit.
Electronic Appliances
Step 7. Honeywell Electronic Valves - See
Figure 27 and the instructions provided with
the kit. Remove the slotted cap screw, o-ring,
pressure-regulating adjusting screw and
spring. Retain all parts for possible later use.
Install new components from the kit. Black
cap and red spring for propane gas units.
Silvercap andstainlesssteel springfro natural
gas units.
Before installing the cap, attach manometer to
the manifold side pressure test fitting and
adjust screw until pressure reads 3.5 inches
water column (0.87 kPa) for natural gas, and
10.0 inches water column (2.49 kPa) for pro-
pane gas.

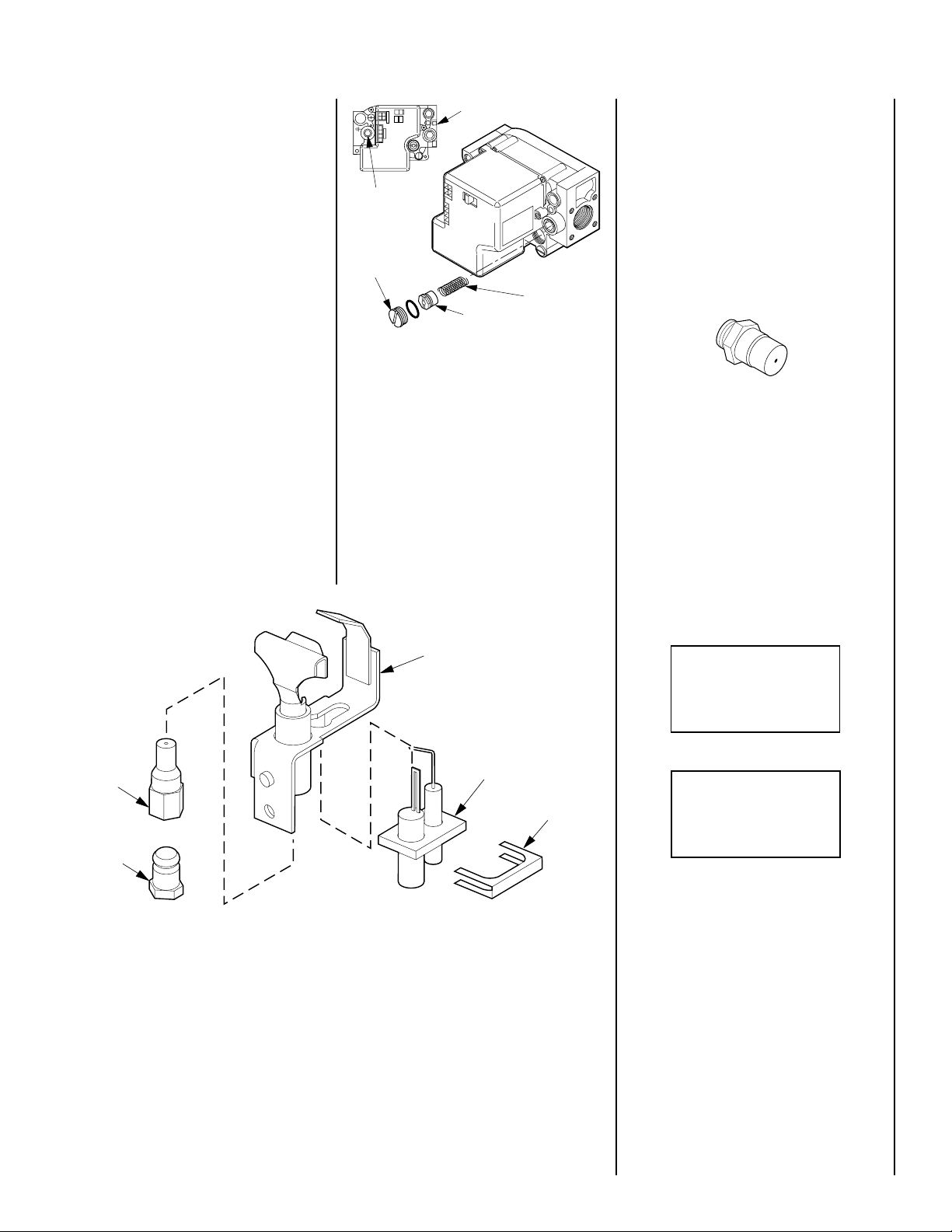

Figure 26
Figure 27
Figure 28
When reinstalling the ignitor assembly, use
extreme care to prevent damage and break-
age. Do not apply any leverage to the ignitor
assembly while restoring the retainer clip to
its original position.
All Models
Step 8. Unscrew the orifice from the manifold
and replace it with the one provided with the
kit, #37 (0.104) for natural gas units and
(0.065) for propane
(see Figure 28 ) .
Figure 29
Step 11. Turn on gas supply and test for gas
leaks.
Step 9. Reassemble all removed components
by reversing the procedures outlined in the
preceding steps. Use pipe joint compound or
Teflon tape on all pipe fittings before installing
(ensurepropaneresistantcompoundsareused
in propane applications, do not use pipe joint
compounds on flare fittings). Check for leaks
(refer to Page 17, Step 6).
Step 10. Attach apropriate conversion kit
label
(see Figure 29 ) next to the rating plate
on the appliance.
Note: If the ignitor assembly is damaged, a replacement kit is available, order Catalog Number 87L54.
Retaining
Clip
Ignitor
Assembly
Pilot
Assembly
Pilot
Orifice
Flare Nut
Spring
Adjusting
Screw
Slotted
Cap
PSI
OFF
I
ON
CONTROL
IGNITE
Manifold
Pressure
Test Port
Inlet Pressure Test Port
See Figure 26 and replace the pilot orifice as
follows: Remove the ignitor assembly retainer
clip,and carefullyremove theignitor assembly.
Exercise extreme care to prevent damage to
orbreakage oftheignitor assembly. Remove
the screw securing the pilot assembly to its
mounting bracket. Back off the flare nut at the
end of the pilot gas line to free the pilot
assembly from the gas line. Remove the pilot
orifice and replace it with the one provided
with the conversion kit. Reinstall the pilot
assembly by reversing the steps detailed here.
THIS APPLIANCE HAS BEEN CONVERTED TO:
NATURAL GAS
INPUT BTU/HR – 30,000
MANIFOLD PRESSURE – 3.5"
ORIFICE SIZE – #37 (0.104)
THIS APPLIANCE HAS BEEN CONVERTED TO:
PROPANE/LPG
INPUT BTU/HR – 30,000
MANIFOLD PRESSURE – 10"
ORIFICE SIZE – (0.065)

14 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
NOTE: THIS PAGE INTENTIONALLY LEFT BLANK.

15
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
NOTE: THIS PAGE INTENTIONALLY LEFT BLANK.

16 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Printed in U.S.A. © 2006 by Lennox Hearth Products
P/N 850,041M REV. A 02/2007
The manufacturer reserves the right to make changes at any time, without notice, in design,
materials, specifications, prices and also to discontinue colors, styles and products.
Consult your local distributor for fireplace code information.
1110 West Taft Avenue • Orange, CA 92865
