Lennox Hearth Products EBVCLNE User manual

1
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
HOMEOWNER'S CARE AND
OPERATION INSTRUCTIONS
MODELS
RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
FOR YOUR SAFETY: Do not store or use gasoline
or other flammable vapors or liquids in the vicin-
ity of this or any other appliance.
FOR YOUR SAFETY: What to do if you smell gas:
• DO NOT light any appliance.
• DO NOT touch any electrical switches.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone.
Follow your gas suppliers instructions.
• Ifyourgassuppliercannotbereached,callthe
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
POURVOTRESÉCURITÉ: Nepasentreposer niutiliser
d'essencenid'autrevapeursouliquidesinflammables
dans le voisinage de cet appareil ou de tout autre
appareil.
POUR VOTRE SÉCURITÉ: Que faire si vous sentez une
odeur de gaz:
• Ne pas tenter d'allumer d'appareil.
• Netouchezàaucun interrupteur. Nepasvousservir
des téléphones se trouvant dans le batiment où
vous vous trouvez.
• Evacuez la piéce, le bâtiment ou la zone.
• Appelez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du
fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service dos incendies.
L'installation et service doit être exécuté par un
qualifiéinstalleur,agencedeserviceoulefournisseur
de gaz.
B-VENT MULTI-OPEN
ELITE®SERIES
B-VENTED GAS APPLIANCES
P/N 875,026M REV. B 01/2007
OTL Report No. 116-F-07A-5
sledoMtlovilliMsledoMcinortcelE
MNTSVBEMPTSVBEENTSVBEENRCVBE
MNFPVBEMPFPVBEENFPVBEENLCVBE
MNRCVBEMPRCVBE
MNLCVBEMPLCVBE
WARNINGS
• Hot! Do not touch! The glass and
surfaces of this appliance will be hot
during operation and will retain heat
for a while after shutting off the appli-
ance. Severe burns may result.
• Carefully supervise children in the
same room as appliance.
• If small children are present in the home, it is
recommended that this appliance be fitted with
a screen door or screen panel kit. See
Page 11
for ordering information.
AVERTISSEMENT: ASSUREZ-VOUS DE BIEN SUIVRE
LESINSTRUCTIONSDONNÉDANSCETTENOTICEPOUR
RÉDUIRE AU MINIMUM LE RISQUE D'INCENDIE OU
POUR ÉVITER TOUT DOMMAGE MATÉRIEL, TOUTE
BLESSURE OU LA MORT.
WARNING:IFTHEINFORMATIONINTHISMANUAL
IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLO-
SION MAY RESULT CAUSING PROPERTY DAM-
AGE, PERSONAL INJURY OR LOSS OF LIFE.

2NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
These appliances are designed to operate on
natural or propane gas only.
Input of millivolt models is shown in the fol-
lowing table:
CONGRATULATIONS!
In selecting this LENNOX B-Vented Gas Appliance you have chosen the finest and
most dependable fireplace to be found anywhere. It is a beautiful, prestigious
alternative to a wood burning fireplace. Welcome to a Family of tens of thousands
of satisfied LENNOX Fireplace Owners.
Please carefully read and follow all of the instructions found in this manual. Please
pay special attention to the safety instructions provided in this manual. The
Homeowner's Care and Operation Instructions included here will assure that you
have many years of dependable and enjoyable service from your LENNOX product.
INTRODUCTION
Themillivoltappliancesaredesignedtooperate
oneithernaturalorpropanegas.Amillivoltgas
control valve with piezo ignition system pro-
vides safe, efficient operation. If any optional
accessories which require electrical power are
being installed, the electrical power must be
provided at the time of appliance installation.
The electronic appliances are designed to op-
erate on either natural or propane gas. An
electronic intermittent pilot system provides
safe, efficient operation. External electrical
power is required to operate these units.
TheseappliancescomplywithNationalSafety
Standards and are tested and listed by Omni-
Test Laboratories (Report No. 116-F-07A-5)
toANSI Z21.50- 2003(in Canada,CSA 2.22-
2003), and CAN/CGA-2.17-M91 in both USA
and Canada, as vented gas fireplaces.
Installation must conform to local codes. In
the absence of local codes, installation must
comply with the current National Fuel Gas
Code,ANSIZ223.1(NFPA54).(InCanada,the
currentCAN/CGAB149installationcode.) Elec-
tricalwiringmust complywithlocalcodes. In
the absence of local codes, installation must
be in accordance with the National Electrical
Code, NFPA 70 - (latest edition). (In Canada,
thecurrentCSAC22.1CanadianElectricCode.)
TABLE OF CONTENTS
Introduction...................................... page 2
General Information.......................... page 2
Operation/Care of Your Appliance..... page 3
Gas Controls/Control Compartment,
Access ............................................ page 4
Variable Flame Adjustment ............... page 5
Outside Combustion Air Control ....... page 5
Venting Action and Safety Limit........ page 5
Maintenance ..................................... page 6
Front Glass Enclosure Panel,
Removal and Installation ................ page 6
Maintenance Schedule...................... page 7
Burner Adjustments.......................... page 8

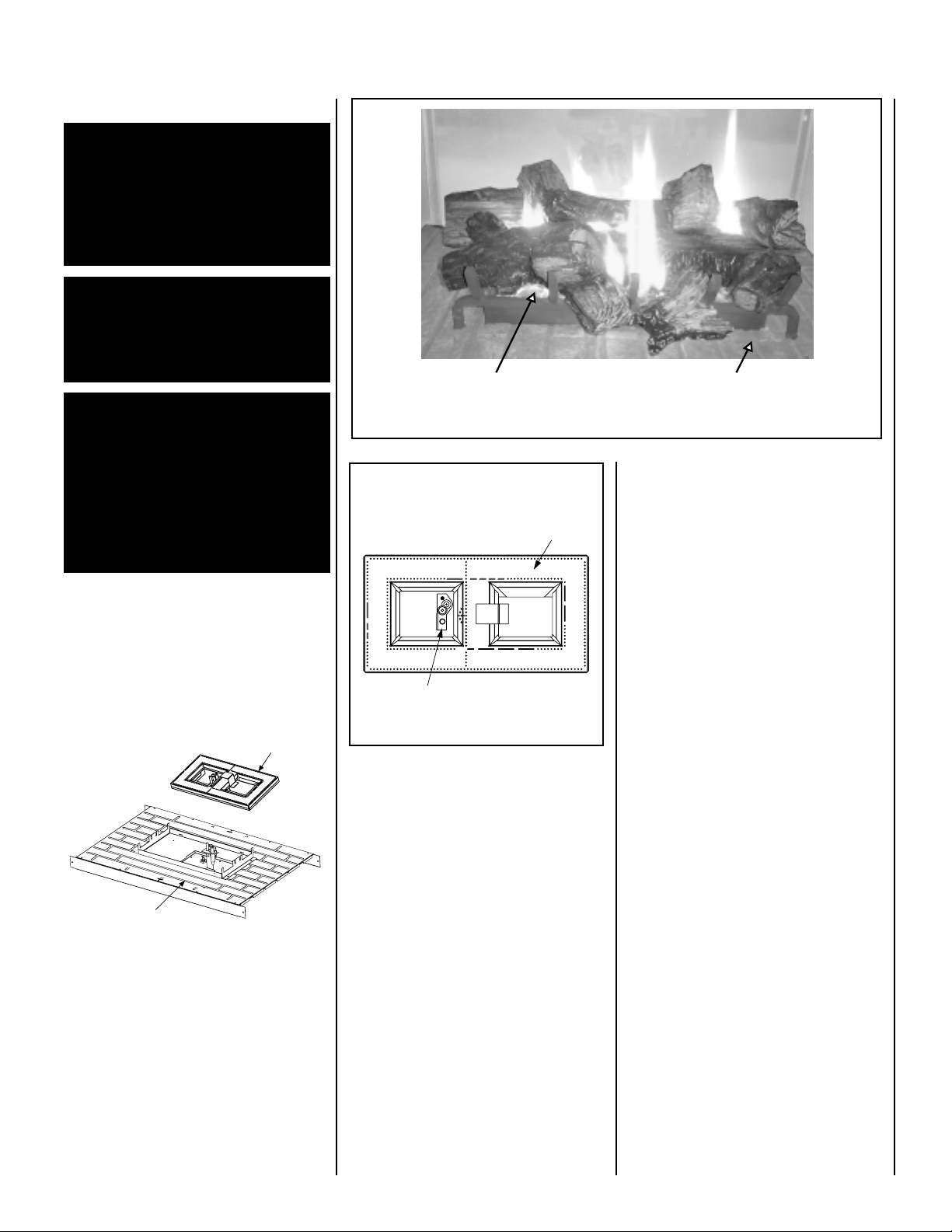

Log Placement.................................. page 9
Vermiculite and Black/Gray Ceramic
Fiber Chunks Placement ................ page 9
Millivolt Appliance Checkout............. page 9
Electronic Appliance Checkout.......... page 10

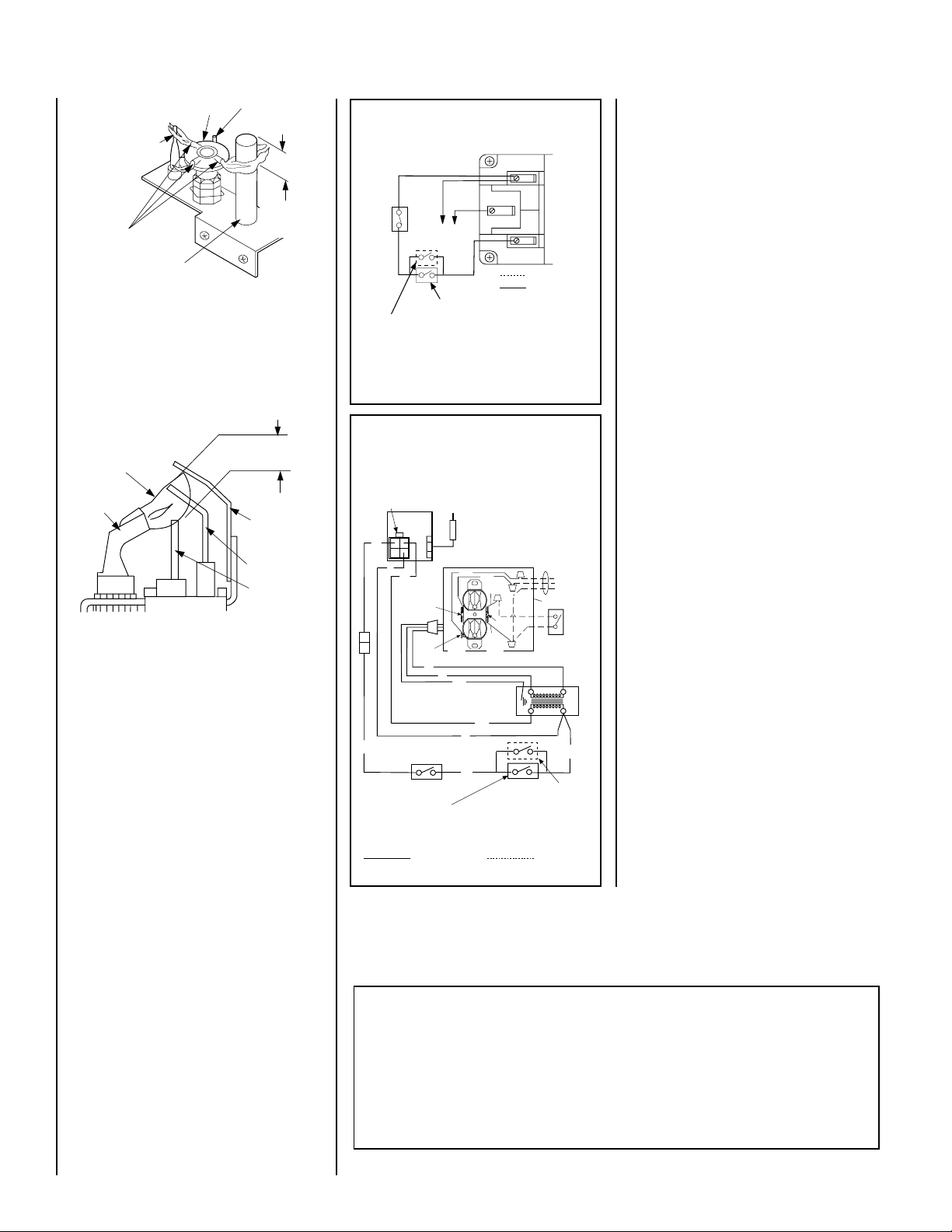

Wiring Diagrams............................... page 10
Warranty........................................... page 10
Replacement Parts ............................ page 10
Product Reference Information ........ page 10
Accessory Components.................... page 11

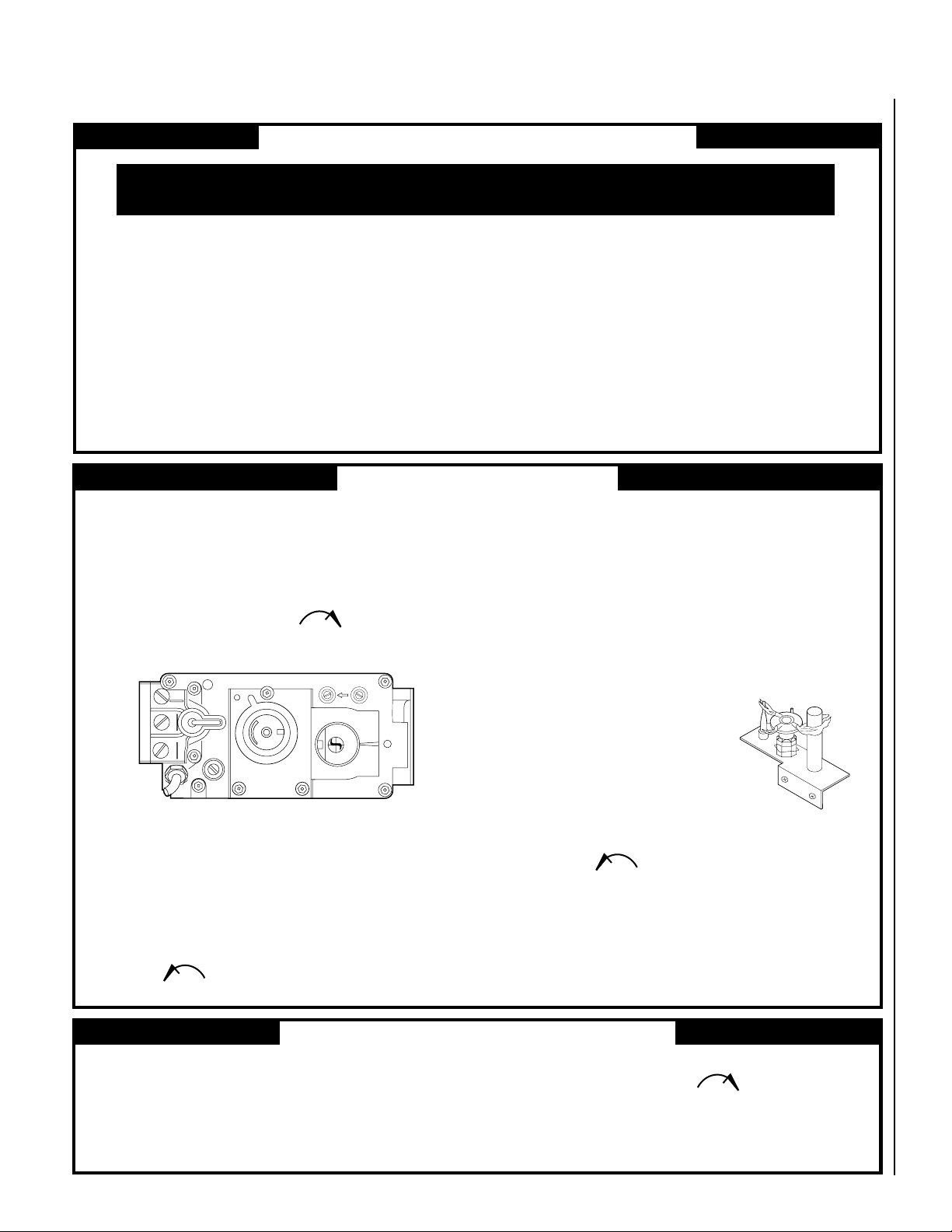

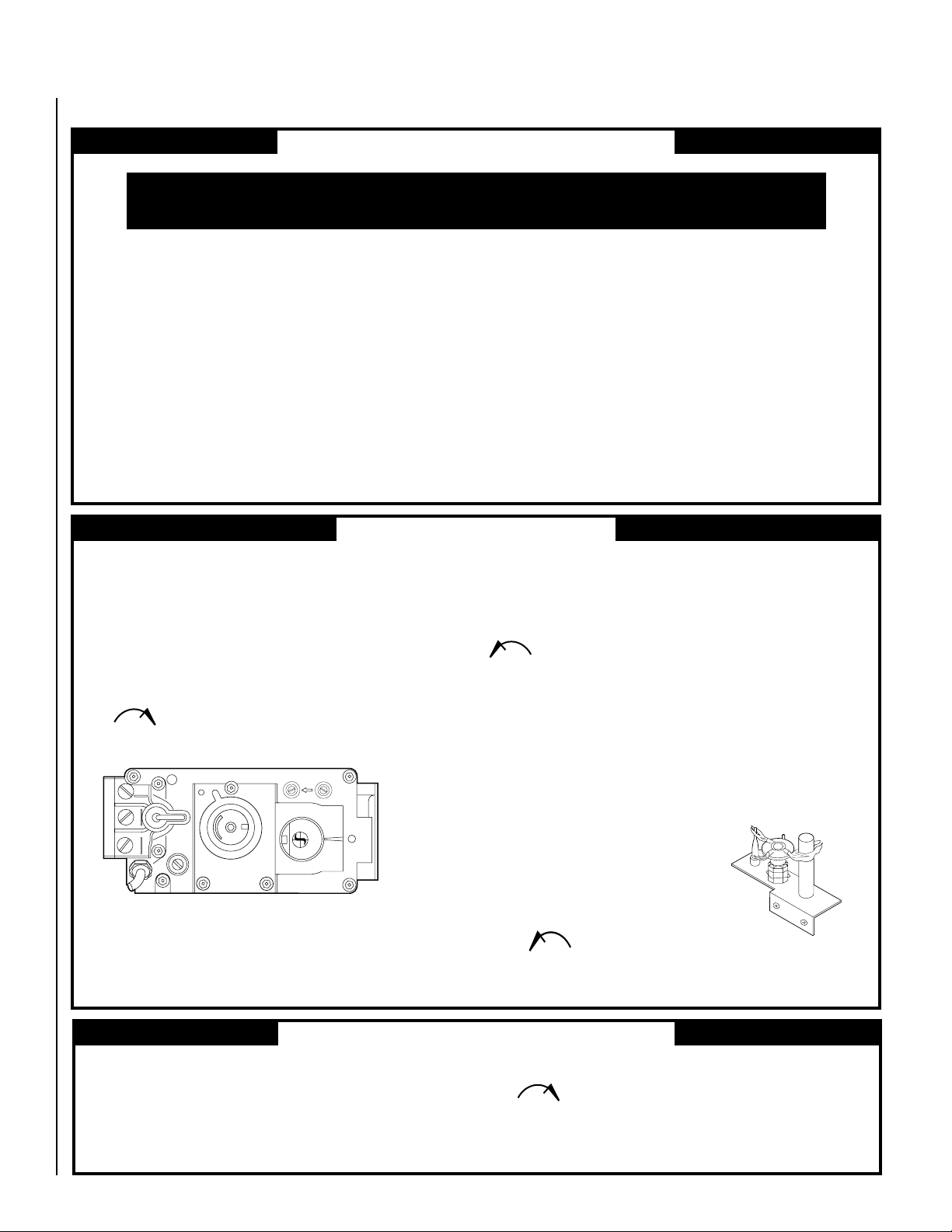

Lighting Instructions – Millivolt........ page 16

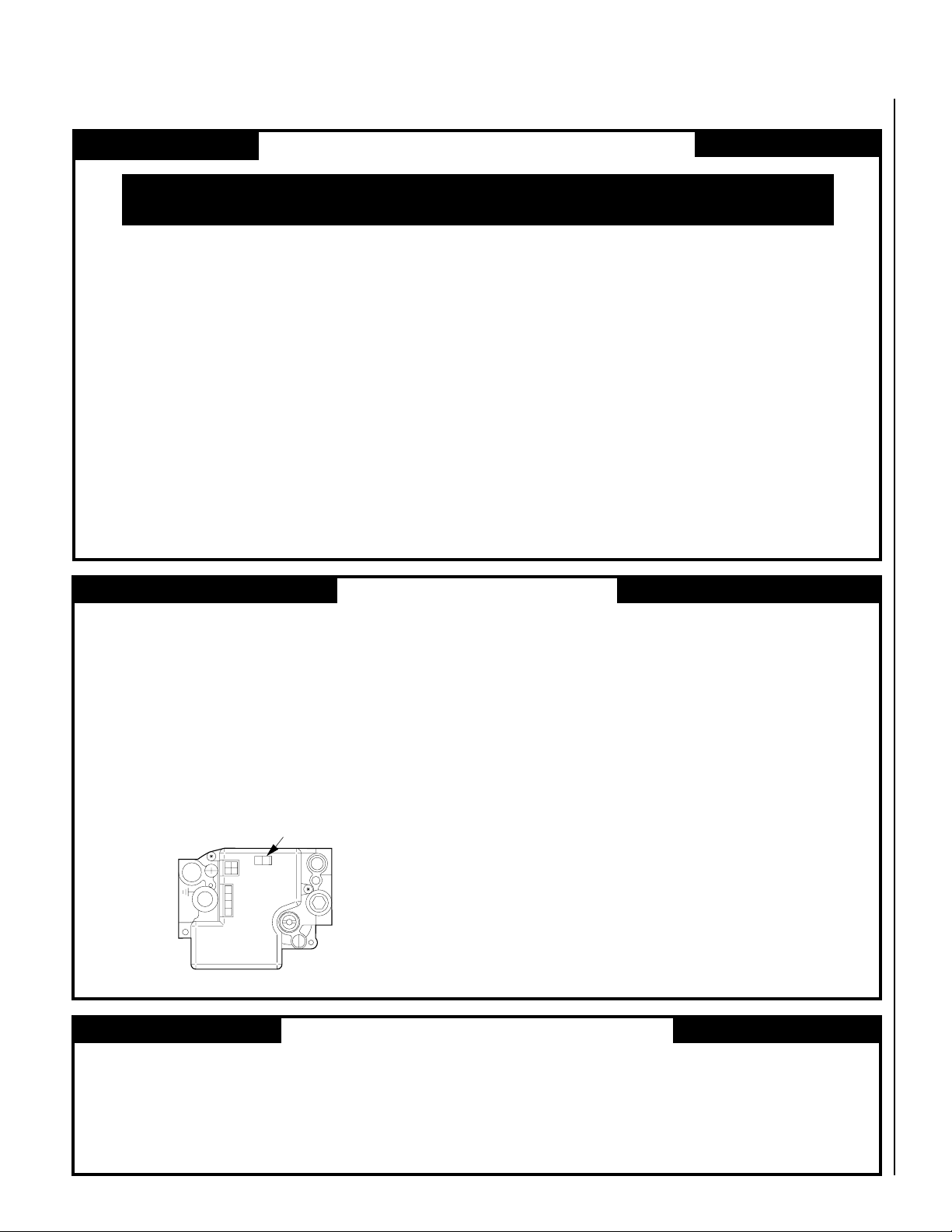

Lighting Instructions – Electronic..... page 18
Troubleshooting Guide – Millivolt ...... page 20
Troubleshooting Guide – Electronic ... page 21
Replacement Parts List...................... page 23
GENERAL INFORMATION
Note: Installation and repair should be per-
formedbyaqualifiedserviceperson.Theappli-
ance should be inspected annually by a quali-
fied professional service technician. More fre-
quent inspections and cleanings may be re-
quired due to excessive lint from carpeting,
bedding material, etc. It is imperative that the
control compartment, burners and circulating
airpassagewaysoftheappliancebekeptclean.
S'assurerquelebrùleuretlecompartimentdes
commandes sont propres. Voir les instruc-
tions d'installation et d'utilisation qui
accompagnent l'appareil.
Provideadequateclearancesaroundairopen-
ings and adequate accessibility clearance for
service and proper operation. Never obstruct
the front openings of the appliance.
Duetohightemperaturestheapplianceshould
be located out of traffic and away from furni-
ture and draperies. Locate furniture and win-
dow coverings accordingly.
Input of electronic models is shown in the
following table:
DO NOT ATTEMPT TO ALTER OR MODIFY
THE CONSTRUCTION OF THE APPLIANCE OR
ITS COMPONENTS. ANY MODIFICATION OR
ALTERATION MAY VOID THE WARRANTY,
CERTIFICATIONANDLISTINGSOFTHISUNIT.
sledoMtlovilliM
enaporPdnalarutaN
sledoMsaG
)H/UTB(etartupnI
detaludom-yllaunaM
,MNFPVBE,MNTSVBE ,MPFPVBE,MPTSVBE 005,73OT000,03 000,43OT000,72
,MNRCVBE,MNLCVBE MPRCVBE,MPLCVBE 000,43OT000,82 000,43OT000,72
sledoMcinortcelE
sledoMsaGlarutaN )H/UTB(etartupnI
etaRdexiF
,ENFPVBE,ENTSVBE005,73
,ENRCVBE,ENLCVBE000,43
WARNING: THESE FIREPLACES ARE
VENTEDDECORATIVEGASAPPLIANCES.
DO NOT BURN WOOD OR OTHER MATE-
RIAL IN THESE APPLIANCES.
WARNING: IMPROPER INSTALLATION,
ADJUSTMENT, ALTERATION, SERVICE
OR MAINTENANCE CAN CAUSE INJURY
ORPROPERTYDAMAGE. REFERTOTHIS
MANUAL. FOR ASSISTANCE OR ADDI-
TIONAL INFORMATION CONSULT A
QUALIFIED INSTALLER, SERVICE
AGENCY OR THE GAS SUPPLIER.

3
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning are similar to
the flu with headaches, dizziness and/or
nausea. If you have these signs, obtain
fresh air immediately. Turn off the gas
supply to the appliance and have it ser-
viced by a qualified professional, as it may
not be operating correctly.
OPERATION AND CARE OF YOUR
APPLIANCE
Appliance operation may be controlled by the
followingmeans:thefactoryprovidedmodesty
panel-mountedON-OFF controlswitch, an op-
tionalwall-mountedON-OFFswitchoroptional
remote control.
The modesty panel mounted ON-OFF control
switch is located behind the control compart-
ment access panel, below the appliance front
glass enclosure panel. See Figure 1.
The following table shows the units' gas ori-
fice size for the elevations indicated:
Figure 1
Control Compartment Access -
Millivolt Control Valve Shown
Maximum manifold pressure is 3.5 in. w.c.
(0.87kPa)fornaturalgasand10in.w.c.(2.49
kPa) for LP/Propane gas.
Do not use these appliances if any part has
beenunderwater.Immediatelycallaqualified,
professional service technician to inspect the
appliance and to replace any parts of the con-
trol system and any gas control which have
been under water.
Ne pas se servir de cet appareil s'il a étéplongé
dansl'eau,complètementou enpartie. Appeler
untechnicienqualifiépourinspecterl'appareilet
remplacertoutepartiedusystèmedecontrôleet
toutecommandequiontétéplongésdansl'leau.
Test gage connections are provided on the
front of the millivolt gas control valve (identi-
fied OUT for the manifold side and IN for inlet
pressure. A ¹⁄₈" NPT test gage connection is
provided on the electronic gas control valve
adjacent to the outlet to the main burner.
Minimum inlet gas pressure to these appli-
ances is 5.0 inches water column (1.24 kPa)
for natural gas and 11 inches water column
(2.74kPa)forpropaneforthepurposeofinput
adjustment.
Maximum inlet gas supply pressure to these
appliances is 10.5 inches water column (2.61
kPa) for natural gas and 13.0 inches water
column (3.23 kPa) for propane.
The appliance must be isolated from the gas
supply piping system (by closing its individual
manualshut-offvalve)duringanypressuretest-
ing of the gas supply piping system at test
pressuresequaltoorlessthan¹⁄₂ psig(3.5kPa).
ledoM
.oN
ezisecifirO noitavelE
)sretem(teeF
.taN.porP
TSVBE
FPVBE 23#05# 0054-0 )2731-0(
RCVBE
LCVBE 43#05#
Piezo
Ignitor
Gas Valve
Modesty
Panel
Control
Compartment
Access panel
ON/OFF
Switch
Hinge
Pin
Modesty Panel
Lock Slot
Theapplianceanditsindividualshut-offvalvemust
bedisconnectedfromthegassupplypipingsystem
duringany pressure testingof thatsystemat pres-
sures in excess of ¹⁄₂ psig(3.5 kPa).
These appliances must not be connected to a
chimney or flue serving a separate solid fuel
burning appliance.
Any safety guard or screen removed for ser-
vicingthe appliancemust bereplaced prior to
operating the appliance.
WARNING: CHILDREN AND ADULTS
SHOULD BE ALERTED TO THE HAZARDS
OFHIGHSURFACETEMPERATURES.USE
CAUTION AROUND THE APPLIANCE TO
AVOID BURNS OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE IN
THE SAME ROOM AS THE APPLIANCE.
WARNING: DO NOT PLACE CLOTHING
OR OTHER FLAMMABLE MATERIALS
ON OR NEAR THIS APPLIANCE.
AVERTISSEMENT: SURVEILLER LES
ENFANTS. GARDER LES VÊTEMENTS,
LES MEUBLES, L'ESSENCE OU AUTRES
LIQUIDES À VAPEUR INFLAMMABLES
LOIN DE L'APPAREIL.
WARNING: B-VENTAPPLIANCESARENOT
DESIGNED TO OPERATE IN NEGATIVELY
PRESSUREDENVIRONMENTS(PRESSURE
WITHIN THE HOME IS LESS THAN PRES-
SURES OUTSIDE). SIGNIFICANT NEGA-
TIVELY PRESSURED ENVIRONMENTS
CAUSED BY WEATHER, HOME DESIGN,
OR OTHER DEVICES MAY IMPACT THE
OPERATION OF THESE APPLIANCES.
NEGATIVE PRESSURES MAY RESULT IN
POOR FLAME APPEARANCE, SOOTING,
DAMAGE TO PROPERTY AND/OR SEVERE
PERSONAL INJURY. DO NOT OPERATE
THESEAPPLIANCESINNEGATIVELYPRES-
SURED ENVIRONMENTS. PROVIDING AD-
EQUATE VENTILATION TO THE APPIANCE
FORCOMBUSTIONAIRWILLELIMINATEA
NEGATIVE PRESSURE ENVIRONMENT.
WARNING: FAILURE TO COMPLY WITH
THEINSTALLATION ANDOPERATING IN-
STRUCTIONS PROVIDED IN THIS DOCU-
MENT WILL RESULT IN AN IMPROP-
ERLY INSTALLED AND OPERATING AP-
PLIANCE,VOIDINGITSWARRANTY. ANY
CHANGE TO THIS APPLIANCE AND/OR
ITS OPERATING CONTROLS IS DANGER-
OUS. IMPROPERINSTALLATIONOR USE
OF THIS APPLIANCE CAN CAUSE SERI-
OUS INJURY OR DEATH FROM FIRE,
BURNS, EXPLOSION OR CARBON MON-
OXIDE POISONING.

4NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Figure 2
Note: The piezo ignitor is located on the modesty panel - see Figure 1.
Toeasedoorclosure,depressthecatchtoplace
it in its retracted position, then close the door.
Operation of millivolt and electronic gas con-
trol systems are different. Before lighting and
operatingyourappliancedetermineifyouhave
a millivolt or electronic appliance.
Refer to
Figure 1 on page 3 for access to the gas
controlvalve.Millivoltapplianceswillbefitted
with the gas control valve shown in
Figure 2 .
Appliances with electronic systems will be
fitted with the electronic valve shown in
Figure 3 .Familiarize yourself with the gas
control valve that your appliance uses.
Millivolt Appliances -
To light millivolt appliances refer to the de-
tailed lighting instructions found on
page 14
(English) and page 15
(French). Millivolt ap-
pliance lighting instructions may also be
found on the pull out lighting instruction
labels attached to the gas control valve.
MillivoltappliancesarefittedwithaburnerON/
OFFcontrolswitch(rockerswitch). See Figure
1 on page 3 for itslocation.Oncethepilotislit,
theON/OFFrockerswitchwillcontroltheappli-
anceON/OFFoperation.Tooperate: Togglethe
switch between its ON and OFF positions.
Figure 3
Honeywell Electronic
Gas Valve
ON/OFF Switch
Electronic
Gas Control
Valve
Inlet
Pressure
Port
Manifold Pressure Port
OFF
IN
PSI
ON
CONTROL
IGNITER
If your millivolt appliance is equipped with an
optional wall-mounted ON/OFF switch or re-
motecontrolkitandthepilotislit,theappliance
mainburner maybe turned onand offwith the
wall switch or remote control.
Electronic Appliances -
To light electronic appliances refer to the de-
tailed lighting instructions found in both En-
glish and French on pages 16 and 17 of these
instructionsrespectively.Electronicappliance
lighting instructions may also be found on the
pull out lighting instruction labels attached to
the gas control valve.
Electronicappliancesarefittedwitha ON/OFF
burner control switch (rocker switch). See
Figure 1 on page 3 for its location. The elec-
tronic system will go through the whole light-
ing sequence automatically once the rocker
switch is toggled to the ON position.
Ifyourelectronicapplianceisequippedwithan
optional wall-mounted ON/OFF switch or re-
motecontrolkittheappliancemainburnermay
be turned on and off with the wall switch or
remote control.
H
I
LO
W
TPTH TP TH
P
I
L
O
T
P
I
L
O
T
O
N
it
O
F
F
Variable Flame Height Adjustment
Manifold Pressure Port
Inlet Pressure Port
Main Gas
Control Knob
IN OUT
SIT Millivolt Gas Valve
GasControls/ControlCompartmentAccess
The gas controls can be found behind the
control compartment access panel.
To open the control compartment access
panel, actuate the spring-loaded magnetic
catch securing the panels right side, by gen-
tly depressing the outer top corner of the
panel until the catch "pops" the door free,
allowing it to swing out and down to open.
On millivolt systems, the piezo ignitor, Hi/Lo
flameadjustmentknob,andpilotandmaingas
ON/OFF control knob are located on the mod-
esty panel. On both millivolt and electronic
systems the gas valve is located behind the
modesty panel. Refer to Figure 1.
Once the control compartment access panel
has been opened, the modesty panel can be
removed as follows: pull the bottom edge of
the modesty panel out of the locking slots of
the cabinet bottom. Then tilt the top edge of
the panel at a 45°angel and gently lift the
panel out.
Remove the modesty panel carefully, so that
none of the wires become loose or discon-
nected. Now complete access to the gas con-
trolvalveanditsrelatedcontrolsisattainable.

5
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Outside Combustion Air Controls
Manyappliancesareequipped,wheninstalled,
with an outside (make-up air) vent system
thatisdesignedtoprovidetheappliancewith
outside make-up air for combustion when in
operation. The outside air control lever for
the outside air system is standard on all
appliances but should not be operated if the
complete system is not installed. Refer to
Figure 4 . Whenthecompleteoutsideairvent
system is installed, the installer will remove
the securing screw from the combustion air
controlleverlocatedontherightside(EBVST,
EBVPF and EBVCL), or left side (EBVCR) of
the fireplace opening.
Ifthesecuringscrewhasnotbeenremovedand
you have reason to believe that you have a
completeoutside airsystem,contact yourdis-
tributor to have your appliance inspected for
thepresenceofthecomplete system. DO NOT
assume that you have this system in place.

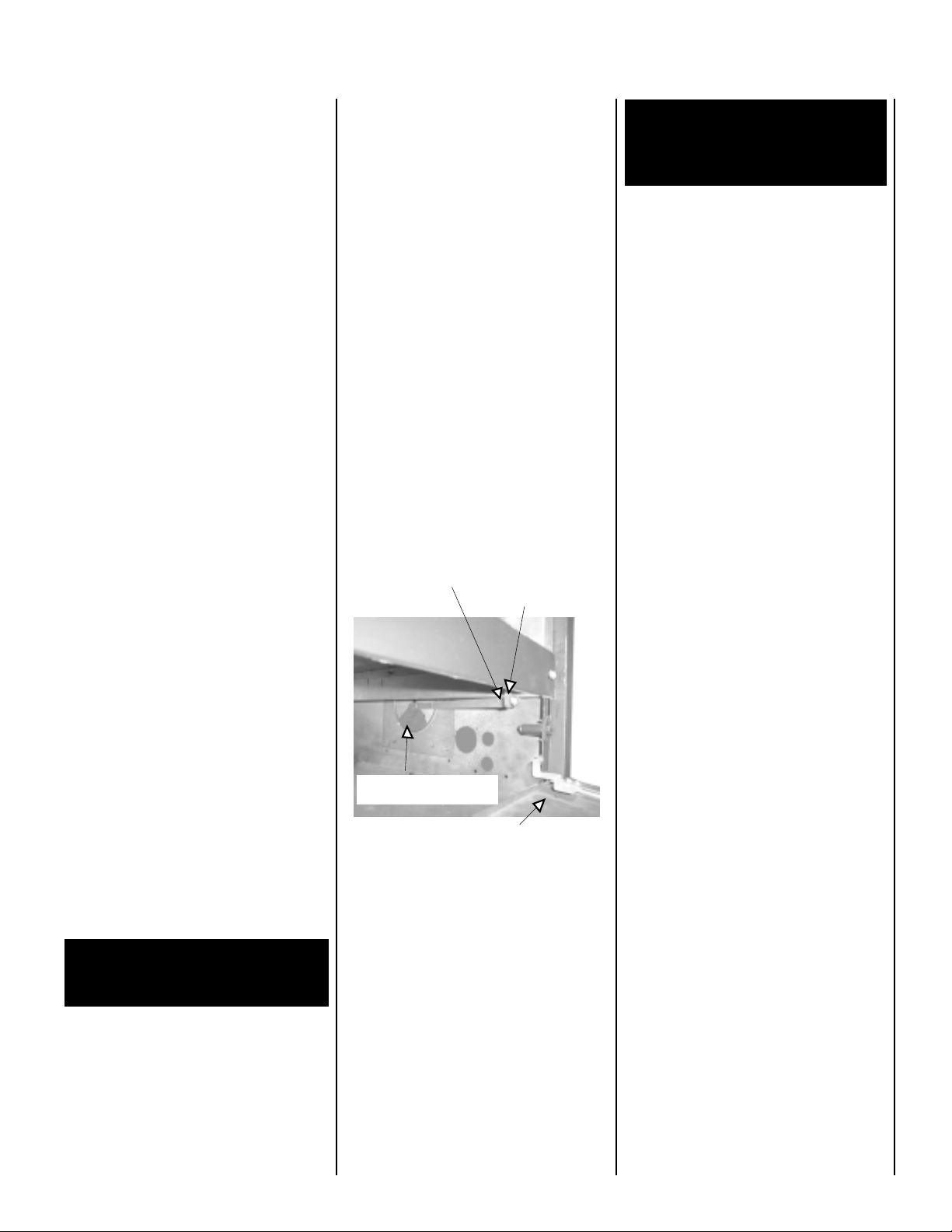

Outside Air Control Lever
and Securing Screw Location
(EBVST, EBVPF and EBVCR Units Shown)
Figure 4
To open the outside air shutter, open the
botttomcontrolaccess panel, reach into the
gap between the firebox bottom and the
modestypanel, andpull the outsideair con-
trol lever all the way out. The outside air
shutter should be fully open when the fire-
place is in use and completely closed when
the fireplace is not being used. Closing it
whennot inusewill preventoutsidecold air
from entering the dwelling.
CAUTION: DO NOT TOUCH THE FRONT EN-
CLOSURE GLASS WITH YOUR HANDS WHILE
THE FIREPLACE IS IN USE.
Venting Action and Safety Limit Operation
Ifyoususpectthattheapplianceisnotventing
properly, or you notice windows fogging or
sweating, you may want to conduct the fol-
lowing spillage test:
1- Placeunitinitsnormally-operatedcon-
dition,that is, withthe glassenclosurepan-
els in place.
2 - Close all doors and windows in the
room.Turn on allexhaustfansinthehouse.
3- Light the appliance.
4- Wait 15 minutes.
5- To check for venting action, start by
holdingasmokeproducingdevicewithinan
inch of one edge (side edge, not top or
bottom edge) of one glass enclosure panel.
Thesmokeshouldbedrawntowardtheedge
of the glass enclosure panel. Continue the
testby movingthe smoke producingdevice
alongtheentirelengthofbothside-edgesof
the glass door. Repeat the test for all glass
enclosure panels.
6- If the smoke is not drawn towards the
edges of the glass door turn off the appli-
anceandcallaqualifiedservicetechnican.
Variable Flame Height Adjustment
( Millivolt Appliances only)
1. All Millivolt appliances are equipped with a
variable gas control valve. Flame height for
thesemodelsmaybeadjustedthrougharange
between fixed low and high settings while the
appliance is in operation.
Adjusttheflameheightasdesiredafterlighting
the appliance by rotating the variable adjust-
ment control knob located on the front of the
valve
(refer to Figure 2) .(An extension is
provided to this knob so that the adjustment
may be made at the modesty panel.)
2. Whenlitfor the firsttime,thisappliance will
emitaslightodorfor14hours.Thisisduetothe
“burn-in”ofinternalpaintsandlubricantsused
in the manufacturing process.
3. Keep lower control compartment clean by
vacuuming or brushing at least twice a year.
Morefrequentcleaningmayberequireddueto
excessive lint from carpeting, bedding materi-
als, etc. It is important that control compart-
ments, burners and circulating air passage-
ways of the appliance be kept clean.
4. Always turn off gas to the pilot (millivolt
appliances) and let the unit cool down before
cleaning. Before re-lighting, refer to the light-
ing instructions in this manual. Lighting in-
structions may also be found on the pull out
lighting instruction labels attached to the
gas control valve.
5. Always keep the appliance area clear and
freefromcombustiblematerials,gasolineand
other flammable liquids.
6. Remember,Millivolt applianceshavea con-
tinuous burning pilot flame. Exercise caution
whenusingproductswithcombustiblevapors.
7. Clean the front glass enclosure only when
necessary and when the unit is cool. Wipe
surface with clean, dampened, soft cloth. Fol-
low with dry, soft towel as desired. Take care
not to scratch the glass surface.
Outside Air Control Lever with Stop Behind
Securing Screw
Outside Air Shutter in the
Closed Position
Control Compartment Access Panel
WARNING: DO NOT USE ABRASIVE
CLEANERS. NEVER CLEAN THE GLASS
WHEN IT IS HOT.
WARNING: DO NOT OPERATE THE SHUT-
OFFLEVERUNLESSACOMPLETEOUTSIDE
COMBUSTION AIR SYSTEM HAS BEEN IN-
STALLED WITH YOUR APPLIANCE.

6NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Manual-Reset Safety Limit Switch
This appliance is equipped with a manual-
resetblocked fluesafety limitswitch. Referto
Figure 5 for its location. If, during appliance
operation, the flame goes out (independently
oftheburneron/offwallswitch),itmaybedue
to the operation of this safety limit switch.
First allow the appliance to cool, then reset
the safety switch by pushing the red reset
button on it.
A - To access the blocked flue safety switch
when top radiant panel is not covered with
non-combustible material:
1- Lift up and remove top radiant panel/
eyebrow assembly on the control side of
unit.
2 - Reachbetweenthecabinetside and the
firebox side wall and locate the blocked flue
safety switch.
3- Pushtheredresetbuttonontheswitch.
Theapplilance shouldthenrelight andremain
lit. If this does not occur, turn off the appli-
ance and call a qualified service technician.
Figure 5
Maintenance
The appliance and venting system should be
thoroughly inspected before initial use and at
least annually by a qualified service techni-
cian.However,morefrequentperiodicinspec-
tions and cleanings should be performed by
the homeowner. Homeowner must contact a
qualified service technician at once if any
abnormal condition is observed.
Refertothemaintenancescheduleformainte-
nance tasks, procedures, periodicity and by
whom they should be performed. Always
verify proper operation of the appliance after
servicing.
IMPORTANT: TURNOFFGASAND ANY ELEC-
TRICAL POWER BEFORE SERVICING THE
APPLIANCE.
Front Glass Enclosure Panel, Removal
and Installation.
These fireplaces are designed to operate only
with the glass enclosure panels properly in-
stalled. Generally the glass enclosure panels
should not be removed except to gain access
to the components within the firebox, and the
appliance may only be operated without the
front glass enclosure panel in place for very
brief periods of time during initial appliance
checkout and adjustment.
Duringthisappliancecheckoutandadjustment
period, a potential safety hazard exists - EXER-
CISE EXTREME CAUTION to prevent the occur-
rence of any burn injuries from the exposed
flames or hot surfaces. Alsonote,thatwhilethe
frontglassenclosurepanel(oranyofthepanels)
isremoved, theflame appearancewill appearto
be smaller than normal.
B - To access the blocked flue safety switch
when top radiant panel is covered with non-
combustible material:
Note:Thisprocedureshouldonlybeperformed
by a qualified service technician.
1-Lower bottom hinged panel on the con-
trol side of the fireplace. Remove the glass
enclosure panel as described on page 8,
under "Remove the front glass enclosure
panel as follows:", Steps 2, 3, 4, 5 and 6.
2 -Remove the side baffle securing screws
(5) and then remove the baffle.
3-Remove the safetyswitchbracketsecur-
ing screws (2), and pull the switch/bracket
assembly through the side panel slot.
4-Push the red reset button on the switch.
5-Reinstall the switch/bracket assembly.
6-Reinstall the side baffle.
7-Reinstall front glass door.
8-Raise the bottom hinged panel.
The appliance should then relight and remain
lit. If this does not occur, check unit for a
blocked flue condition.
SAFETY SWITCH LOCATION (EBVCL SHOWN)
EVBST and EBVPF Safety Switch Location Also as Shown;
EBVCR Location on Left End of Fireplace.
MANUALLY-RESET
SAFETY LIMIT SWITCH
FIREBOX SIDE BAFFLE
FIREBOX SIDE BAFFLE SECURING SCREW
FIREBOX BOX
SIDE WALL
CABINET SIDE WALL
TOP RADIANT PANEL
AND EYEBROW
SAFETY SWITCH
BRACKET SECURING SCREW
WARNING: NEVER OPERATE THE AP-
PLIANCE WITHOUT THE GLASS ENCLO-
SURE PANELS IN PLACE AND SECURE.
DO NOT OPERATE APPLIANCE WITH
FRONT GLASS CRACKED, BROKEN OR
MISSING. REPLACEMENT MUST BE
DONE BY A LICENSED OR QUALIFIED
SERVICE TECHNICIAN.
WARNING: HANDLE THE GLASS WITH
EXTREME CARE! TEMPERED GLASS IS
SUSCEPTIBLETODAMAGE(SCRATCHES,
FOR EXAMPLE) – HANDLE GLASS DOOR
(GLASS ENCLOSURE PANEL) GENTLY
WHILE REINSTALLING IT.

7
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Periodically (After the Burning Season)
Maintenance Task Accomplishing Person Procedure
Cleaning Firebox Interior
Check Flame Patterns and Flame Height
Checking Vent System
Cleaning Glass Enclosure Panels
Homeowner
Homeowner
Homeowner
Homeowner
Carefully remove logs, vermiculite and black and
grayceramicfiberchunks. Vacuumoutinteriorof
the firebox. Clean firebox walls and log grate.
Replace logs, vermiculite and black and gray ce-
ramic fiber chunks as detailed on
page 9 .
Maintenance Task Accomplishing Person Procedure
Inspecting/Cleaning Burner, Logs
and Controls
Check Flame Patterns and Flame Height
Inspecting/CleaningPilot Burnerand the Two
Main Burners
Checking Vent System
Appliance Checkout
Qualified Service Technician
Qualified Service Technician
Qualified Service Technician
Qualified Service Technician
Qualified Service Technician
Inspectvalve andensure it isproperly operat-
ing. Check piping for leaks. Vacuum the con-
trol compartment, fireplace logs and burner
area.
Referto Figure 9 on page 9 andverifythatthe
flame pattern and height displayed by the
appliance conforms to the picture. Flames
must not impinge on the log set.
Referto Figure11onpage10(SIT)orFigure12
on page 10 (Honeywell) . Remove any surface
build-uponpilotandburnerassembly.Cleanthe
pilotnozzles, ignitor/flame rod and hoodwith a
soft brush. Ensure the pilot flame engulfs the
flame sensor as shown.
Inspect the vent system at the top and at the
base(withinthe firebox) forsigns ofblockage
orobstruction. Look for any signs of disloca-
tion of the vent components.
Perform the appropriate appliance checkout
procedure detailed in this manual.
Maintenance Schedule
Annually (Before the onset of the Burning Season)
Clean as necessary following the directions
providedinthismanual. DO NOT TOUCH OR
CLEAN GLASS WHILE IT IS HOT.
Inspect the vent system at the top and at the
base (within the firebox) for signs of block-
age or obstruction. Look for any signs of
dislocation of the vent components.
Refer to
Figure 9 on page 9 and verify that
theflamepatternandheightdisplayedbythe
appliance conforms to the picture. Flames
must not impinge on the log set.

8NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Refer to Figure 6 and remove the front glass
enclosure panel as follows:
1. Remove the top bustle, and the top louver
assembly or radiant panel. Then remove the
bottom bustle.
2.Openthecontrolcompartmentaccesspanel.
Toopenthecontrolcompartmentaccesspanel,
actuate the spring-loaded magnetic catches
securing the panel, by gently depressing the
outertopcornersofthepaneluntilthecatches
"pop"thedoorfree,allowingittoswingoutand
down to open.
3. Locate the latches at the bottom of the
fireboxbottompanel. Todisengagethelatches
from the bottom vee-flanges of the glass en-
closure panel, reach for the handles located
towards the back of the latches and pull the
handles down towards the front of the unit.
4. Swingthebottomof the doorout andraise
itslightlytoliftthetopflangeofthedoorframe
away from the appliance.
Burner Adjustments
Note-
Theairshutterfortheburnerprimaryair
opening is factory-set. Do not adjust the fac-
tory-set position. The factory-set position is
shown in Figure 7.
THEGLASSDOORSOFTHISAPPLIANCEMUST
ONLYBE REPLACED ASA COMPLETE UNITAS
PROVIDED BY THE MANUFACTURER. DO
NOT ATTEMPT TO REPLACE BROKEN,
CRACKED OR CHIPPED GLASS SEPARATELY.
To install the front glass enclosure panel,
proceed as follows:
1. Visuallyinspect the gasket onthebackside
ofthepanel.Thegasketsurfacemustbeclean,
free of irregularities and seated firmly.
2. Position the glass enclosure panel in front
ofthefireboxopeningata45degreeangleand
engagethe topflange over thelip atthe topof
the firebox opening.
3. Swingtheglass enclosure paneldown and
back. Ensure the gasket seats evenly as the
panel draws shut. Engage the Vee-flanges at
the bottom of the panel with the latches and
then close the latches to secure the panel.
4. Close the bottom control compartment
access panel.
5. Reinstallthetopandbottombustle,andthe
top louver assembly or radiant panel.
Figure 6
Figure 7
RENRUBNIAM
GNITTESRETTUHSYROTCAF
sledoM saGlarutaN sehcni )mm(
enaporP saG sehcni )mm(
TSVBE FPVBE RCVBE LCVBE
61/1)5.1(11(61/7)
*Note - Do Not Adjust the Factory-Set Position.
Theshutter opening is shownin the table
below.
Orifice
*Air Shutter
Opening
Burner
Venturi
Tube
Millivolt Shown
Glass
Enclosure
Panel
Latch
Lower Compartment Door and Hinge
Front Glass
Enclosure Panel
Firebox
Floor
Bottom Vee-flanges
(Glass Enclosure
Panel Frame)
Top Flange
(Glass Enclosure
Panel Frame)
Modesty Panel
EBVST SHOWN
WARNING: DO NOT ATTEMPT TO SUB-
STITUTE THE MATERIALS USED ON
THESE DOORS, OR REPLACE CRACKED
OR BROKEN GLASS WITH ANY MATERI-
ALS OTHER THAN THOSE PROVIDED BY
THE APPLIANCE MANUFACTURER.

9
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Log Placement
The log set is located within the firebox area.
Oneplasticbagofglowingembers,oneplastic
bagofdecorativevolcanicstoneandonebagof
vermiculate, is located in the bottom compart-
ment.RefertotheLogPlacementGuidesupple-
ment for detailed placement instructions. See
Figure 9 for vermiculate and glowing embers
placement.
Place a few dime-sized pieces of rockwool on
the pan burner in front of the burned out area
on both sides of the log set. The pieces of
rookwool may touch one another, but should
not overlap each other.
Millivolt Appliance Checkout
Thepilotflameshould besteady, notliftingor
floating. Flame should be blue in color with
traces of orange at the outer edge.
The top ³⁄₈" (10 mm) at the pilot generator
(thermopile) and the top ¹⁄₈" min (tip) of the
quick drop out thermocouple should be en-
gulfed in the pilot flame. The flame should
project1"(25mm)beyondthehoodatallthree
ports. See
Figure 11.
To light the burner, refer to the lighting in-
structions on pages 14 and 15.
Figure 9
Figure 10
Figure 8
Install the vermiculite, decorative volcanic
stone and glowing embers (rockwool)-
Spreadvermiculiteonthesimulatedbrickfloor
of the firebox around the burners to simulate
ashes. Maintain a ¹⁄₂ in. gap between the bot-
tomofthehorizontalgratesectionandthetop
ofthe pileof vermiculite.Sprinkle thedecora-
tivevolcanicstoneonthevermiculiteasshown
in Figure 9.
BURNER POSITIONING
PAN
BURNER
PILOT ASSEMBLY
BACK OF FIREPLACE
PAN BURNER
FIREBOX BOTTOM
Glowing Embers
(Rockwool) Vermiculate And Volcanic
Stone On Firebox Bottom
WARNING: LOG SET GETS VERY HOT
AND WILL REMAIN HOT UP TO ONE
HOUR AFTER GAS SUPPLY IS TURNED
OFF. HANDLE ONLY WHEN LOG SET IS
COOL. TURN OFF ALL GAS TO THE
APPLIANCE BEFORE INSTALLING THE
GRATE AND LOG SET.
WARNING: THIS APPLIANCE IS NOT DE-
SIGNEDTOBURNWOOD. ANYATTEMPT
TO DO SO COULD CAUSE IRREPARABLE
DAMAGE TO YOUR APPLIANCE AND
PROVE HAZARDOUS TO YOUR SAFETY.
WARNING: THE SIZE AND POSITION OF
THELOG SET WASENGINEERED TO GIVE
YOUR APPLIANCE A SAFE, RELIABLE
ANDATTRACTIVEFLAMEPATTERN. ANY
ATTEMPT TO USE A DIFFERENT LOG SET
INTHEFIREPLACEWILLVOIDTHEWAR-
RANTY AND WILL RESULT IN INCOM-
PLETE COMBUSTION, SOOTING, AND
POOR FLAME QUALITY.

10 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Electronic Appliance Checkout
To light the burner, refer to the lighting instruc-
tionson
page16and17 . Ensuretheignitorlights
thepilot.Thepilotflameshouldengulftheflame
sensor as shown in
Figure 12 .
Figure 12
With proper care and maintenance, your appli-
ancewillprovidemanyyearsofenjoyment.Ifyou
shouldexperienceanyproblem,firstrefertothe
troubleshootingguideinthismanual.Ifproblem
persists, contact your Lennox distributor.
WIRING DIAGRAMS
Wiring diagrams are provided here for refer-
ence purposes only. This information is also
provided on schematics attached directly to
theapplianceonapulloutpanellocatedwithin
the control compartment.
CAUTION: LABEL ALL WIRES PRIOR TO DIS-
CONNECTION WHEN SERVICING CONTROLS.
WIRINGERRORS CANCAUSEIMPROPERAND
DANGEROUS APPLIANCE OPERATION.
WARRANTY
Your gas appliance is covered by a limited
twenty year warranty. You will find a copy of
the warranty accompanying this manual.
Pleasereadthewarrantytobefamiliarwithits
coverage.
Retainthismanual.Fileitwithyourotherdocu-
ments for future reference.
REPLACEMENT PARTS
Acompletepartslistisfoundattheendofthis
manual. Use only parts supplied from the
manufacturer.
Normally, all parts should be ordered through
yourLennoxdistributor ordealer.Partswill be
shipped at prevailing prices at time of order.
When ordering repair parts, always give the
following information:
1. The model number of the appliance.
2. The serial number of the appliance.
3. The part number.
4. The description of the part.
5. The quantity required.
6. The installation date of the appliance.
If you encounter any problems or have any
questions concerning the installation or appli-
cation of this system, please contact your dis-
tributor, or Lennox directly:
LENNOX HEARTH PRODUCTS
1110 West Taft Avenue
Orange, CA 92865
PRODUCT REFERENCE INFORMATION
Werecommendthat you record thefollowingimportantinformationaboutyourfireplace. Please
contactyourLennoxdealerforanyquestionsorconcerns. ForthenumberofyournearestLennox
dealer, please call 800-731-8101
Your Fireplace's Model Number _______________________________________
Your Fireplace's Serial Number ________________________________________
The Date On Which Your Fireplace Was Installed __________________________
The Type of Gas Your Fireplace Uses ___________________________________
Your Dealer's Name_________________________________________________
Figure 11
MILLIVOLT
Thermocouple
Hood Ignitor Rod
³⁄₈" Min
(9 mm)
Thermopile
Pilot
Nozzels
ELECTRONIC
Proper Flame
Adjustment
Pilot
Nozzle
3/8 To 1/2 Inch
(9 mm to 13 mm)
Ground
Electrode
Flame Rod
Hot Surface
Igniter
Thermopile
TH
TP TH
TP
White
White
Black
Millivolt Wiring Diagram
If any of the original wire as supplied must be replaced,
it must be replaced with Type AWM 105°C – 18 GA. wire.
*OPTIONAL WALL-MOUNTED ON/OFF
SWITCH OR OPTIONAL THERMOSTAT
OR OPTIONAL REMOTE RECEIVER
*Turn the appliance-mounted ON/OFF burner control
switch to the OFF position if an optional
control switch is installed.
Factory Wired
Field Wired
Schematic Representation Only
APPLIANCE-MOUNTED ON/OFF SWITCH
LIMIT SWITCH
1. If any of the original wire as supplied must be replaced,
1. it must be replaced with Type AWM 105°C – 18 GA.
wire.
2. 120V, 60Hz – Less than 3 amps.
BK
Transf.
120 V.
24 V
Factory Wired Field Wired
BL
Electronic Wiring Diagram (Honeywell)
R
WT
BL
W
Gas Valve
B
APPLIANCE-MOUNTED ON/OFF SWITCH
R
IGNITER
PILOT
ASSEMBLY
BK
Schematic Representation Only
*ON/OFF Switch (Integral
with Gas Valve)
**OPTIONAL WALL SWITCH
OR OPTIONAL THERMOSTAT
OR OPTIONAL REMOTE
RECEIVER
*Leave the ON/OFF switch, which is integral
with the gas valve, in the ON position.
**Turn the appliance-mounted ON/OFF burner control switch to
the OFF position if an optional control switch is installed.
LIMIT SWITCH
WT
G
Junction Box
White
Green
Red
Black
Neutral
Side of
Receptacle
Tab Intact
Green
Ground
Screw
Hot
Side of
Receptacle
Ta b
Broken
120 VAC - Black
n
e
e
r
G-dn
u
o
r
G
Optional
Accessory
Switch
e
ti
h
W
-
lar
t
u
e
N

11
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Arch Door Kits
Twotypesof arch doorkitsare available for
theMulti-OpenSeries. Bothtypesofkitsare
easy to install and do not require hardware
to attach them to the standard door frame.
These kits can be retrofitted to previously
installedMulti-Open Series appliances. The
decorative arch kits can not be used in
conjunction with the screen panel kit.
ACCESSORY COMPONENTS
Door Frame Kits
A decorative door frame kit is available for
use with these appliances. The DTK is de-
signed toattachdirectlytothefrontfaceof
theapplianceatitsextremeedges.TheDTK
providesapictureframefinishfortheappli-
ance. The door frame kit can be retrofitted
onto previously installed appliances.
ON/OFF Wall Switch Kit 85L87 FWSK
ON/OFF Wall Switch Kit
The ON/OFF wall switch kit may be used to
controlthe operation ofthe fireplace burneras
an alternative to the modesty panel mounted
ON-OFF switch. Install the ON/OFF wall switch
in a convenient location near the fireplace.
Remote Control System (Standard) H0249 RCL
Standard Remote Control System
(Model RCL)
The Model RCL (Standard) Remote Control
System, features a simplistic on/off control
functionfor thefireplace. This model includes
ahand-heldtransmitter,aremotereceiverwith
wall-mount coverplate and all hardware re-
quired to install the unit. The remote receiver
can be wall or hearth mounted.
Thetransmitter has ON and OFF functions that
are activated by pressing either button on the
face of the transmitter. When a button on the
transmitterispressed,asignallightilluminates
briefly to verify that a signal has been sent.
The Model RCL is designed to operate with all
millivoltignition systems,aswell aselectronic
ignition systems. It may be installed with use
for either natural or propane gas appliances.
The RCL offers ease of installation and allows
you to execute on-off commands to the fire-
place effortlessly with one simple motion.
The Model RCL comes complete with detailed
operating instructions.
stiKemarFrooD STESFOREBMUNDNA.ONLEDOM/.ONGOLATAC
tinU ledoM .oN
hsiniFssarBdehsiloPhsiniFsselniatSdehsurB
ediw.ni42rof rooDssalG ediw.ni04rof rooDssalG ediw.ni42rof rooDssalG ediw.ni04rof rooDssalG
34L88 2-BP42KTD 54L88 2-BP04KTD 96L09 SB42KTD 17L09 SB04KTD
TSVBE-2 - 2
FPVBE1 2 1 2
RCVBE LCVBE 11 1 1
-stiKrooDhcrA YTITNAUQDNA.ONLEDOM/.ONGOLATAC
tinU ledoM .oN
hsiniFssarBdehsiloPhsiniFsselniatSdehsurB
ediw.ni42rof rooDssalG ediw.ni04rof rooDssalG ediw.ni42rof rooDssalG ediw.ni04rof rooDssalG
73L18 BPC42KDA 53L18 BPC04KDA 17L89 SBC42KDA 96L89 SBC04KDA
TSVBE-2 - 2
FPVBE12 1 2
RCVBE LCVBE 11 1 1

12 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Touch-Up Paint (Charcoal) Kit 90L74 TPK-C
Touch-Up Paint Kit
Repairofminorscratchesanddiscolorationof
the appliance charcoal painted cabinet sur-
facesmay be accomplished withthetouch-up
paint kit.
PolishedBrassandBrushedStainlessHood
Kits
Attractivehoods are availableintwostylestobe
usedontheMulti-OpenSeriesappliances.These
hoods are designed to be fitted to the glass
viewing sides of the appliance. In addition to
providing an aesthetically pleasing appearance
to your appliance installation, the hood reduces
heat effects to decorative mantles and finish
materials located above the fireplace opening.
The hood kit replaces the standard hood that
comes with these appliances and snaps into
place. Thesekitscanberetrofittedtopreviously
installed appliances.
Charcoal Finish Louvers Kits
Decorativelouvers are availableforuse withallMulti-Open Seriesappliances.These louvers
aredesignedtoreplacethestandardradiantpanelsthatareprovidedwiththeappliance.These
kitsincludeacharcoalfinishtop3-pieceassemblyandabottom3-pieceassembly.Thesekits
can be retrofitted to previously installed appliances.
ACCESSORY COMPONENTS CONTINUED
Deluxe Remote Control System
(Model RCL-T)
The Model RCL-T (Deluxe) Remote Control
System has all of the features of the standard
system along with an added easy to read LCD
screen which presents access to many en-
hancements, including; battery power level in-
dicator,timer,modeofoperation,thermostatic
display including room temperature in either
metric of English units, flame indicator and
clock. Fully programmable, the Model RCL-T
allows for virtual command over nearly all
operational and temperature variables, using
the hand held remote control transmitter.
TheModelRCL-T(Deluxe)remotecontrolsys-
tem is installed in the same manner as the
standard system, may be operated with elec-
tronicand millivoltsystems witheither natural
or propane gas. The RCL-T comes complete
with detailed operating instructions.
Remote Control System (Deluxe) H0251 RCL-T
stiKylbmessArevuoLhsiniFlaocrahC
)ylbmessAmottoBeceip-3dnapoTeceip-3( .ONLEDOM/.ONGOLATAC STESFOREBMUNDNA
tinU ledoM .oN
hsiniFlaocrahC
ediw.ni42rof rooDssalG ediw.ni04rof rooDssalG
32L88 2-C42RVL 52L88 2-C04RVL
TSVBE-2
FPVBE12
RCVBE LCVBE 11
stiKdooH STESFOREBMUNDNA.ONLEDOM/.ONGOLATAC
tinU ledoM .oN
hsiniFssarBdehsiloPhsiniFsselniatSdehsurB
ediw.ni42rof rooDssalG ediw.ni04rof rooDssalG ediw.ni42rof rooDssalG ediw.ni04rof rooDssalG
82K89 BP42BE 86K69 BP04BE 74L88 SB42BE 05L88 SB04BE
TSVBE-2 - 2
FPVBE12 1 2
RCVBE LCVBE 11 1 1

13
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
ACCESSORY COMPONENTS CONTINUED
Polished Brass and Brushed Stainless
Louvers Kits
Decorativelouversareavailableforusewithall
Multi-Open Series appliances. These louvers
are designed to replace the standard radiant
panels that are provided with the appliance.
Thesekitsincludeatop3-pieceassemblyand
a bottom 3-piece assembly. They provide a
touch of elegance to any Multi-Open Series
appliance. These kits can be retrofitted to
previously installed appliances.
2-Piece Polished Brass and Brushed
Stainless Louvers Kits
Decorativelouversareavailableforusewithall
Multi-Open Series appliances. These louvers
aredesignedtoreplaceeitherthemiddlechar-
coal louver of each set or the charcoal louver
ineachsetclosesttotheglassdoor.Thesekits
include two narrow louvers. They provide a
touch of elegance to any Multi-Open Series
appliance. These kits can be retrofitted to
previously installed appliances.
Screen Panel Kit
24 inch Wide Glass Door 98K74 HG24
40 inch Wide Glass Door 96K32 HG40
Screen Panel Kit
An optional screen panel can be installed on the
Multi-Open Series doors. These screen panels
areeasytoinstall.Thesekitscanberetrofittedto
previouslyinstalledappliances.Thescreenpanel
kitscannotbeusedinconjunctionwitheitherof
the arch door kits or door frame kits.
Outside Air Kits Models FOAK-4 and FOAK-4LD
OutsideAirkitsareavailablewithduct(FOAK-4)
and without duct (FOAK-4LD) for use if outside
combustion air is required or desired. If model
FOAK-4LDisuseditmustbeusedinconjunction
withlocallypurchased,non-combustibleClass1
or Class 0 flexible duct.
Outside Combustion Air Kits
(with duct) 81L87 FOAK-4
(without duct) 81L88 FOAK-4LD
)eceip-2(stiKrevuoL STESFOREBMUNDNA.ONLEDOM/.ONGOLATAC
tinU ledoM .oN
hsiniFssarBdehsiloPhsiniFsselniatSdehsurB
ediw.ni42rof rooDssalG ediw.ni04rof rooDssalG ediw.ni42rof rooDssalG ediw.ni04rof rooDssalG
40L69 BP42RVL2 60L69 BP04RVL2 80L69 SB42RVL 01L69 SB04RVL
TSVBE-2 - 2
FPVBE12 1 2
RCVBE LCVBE 11 1 1
)ylbmessAmottoBeceip-3dnapoTeceip-3(stiKylbmessArevuoL STESFOREBMUNDNA.ONLEDOM/.ONGOLATAC
tinU ledoM .oN
hsiniFssarBdehsiloPhsiniFsselniatSdehsurB
ediw.ni42rof rooDssalG ediw.ni04rof rooDssalG ediw.ni42rof rooDssalG ediw.ni04rof rooDssalG
72L88 2-BP42RVL 92L88 2-BP04RVL 13L88 SB42RVL 33L88 SB04RVL
TSVBE-2 - 2
FPVBE12 1 2
RCVBE LCVBE 11 1 1

14 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
ACCESSORY COMPONENTS CONTINUED
Tall Arch Pane Door
Style View Doors Continued -
Style View Doors also come in a Tall Arch Pane Design. Two distinctive grille kits, the “Crescents”and “Sunrise”design, are
also offered seperately. They are easy to install and will not require hardware to attach them to the standard glass door frame.
The door includes heavy duty magnet door latches and functional twin-pane doors.
“Crescents” Grille Kits “Sunrise” Grille Kits
TALL ARCH PANE DOORS
Cat. No. Model Description Model Series
40” Arch Pane Doors, Charcoal EBST
40” Arch Pane Doors, Satin Pewter
H3529 TAPD40C
H3531 TAPD40SP
“Crescents” Grille Kits
Cat. No. Model Description Model Series
H3549 CUGK40C 40” Crescents Upper Grille Kit, Charcoal
EBST
H3551 40” Crescents Upper Grille Kit, Satin Pewter
CUGK40SP
H3553 CLGK40C 40” Crescents Lower Grille Kit, Charcoal
H3555 40” Crescents Lower Grille Kit, Satin Pewter
CLGK40SP
“Sunrise” Grille Kits
Cat. No. Model Description Model Series
H3573 SUGK40C 40” Sunrise Upper Grille Kit, Charcoal
EBST
H3575 40” Sunrise Upper Grille Kit, Satin Pewter
SUGK40SP
H3577 SLGK40C 40” Sunrise Lower Grille Kit, Charcoal
H3579 40” Sunrise Lower Grille Kit, Satin Pewter
SLGK40SP
Thisscreen panel kitcan be installedonthe glass enclosure panel to prevent direct contact with the
hot glass surface. The panel kit adds a new design choice with a handsome textured iron finish. The
screen panel kit cannot be used in conjunction with either of the arch door kits or door frame kits.
Arch Screen Panel Kit Model No. Catalog No.
40" Decorative Arch Screen Panel Kit - Textured Iron DASPK40TI H3594

15
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
NOTES:

16 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
LIGHTING INSTRUCTIONS – MILLIVOLT GAS VALVE
FOR YOUR SAFETY READ BEFORE LIGHTING
A. This appliance has a pilot which must be lighted with a piezo
ignitor. When lighting the pilot, follow these instructions
exactly.
B. BEFORE OPERATING smell all around the appliance area for
gas. Be sure to smell next to the floor because some gas is
heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Extinguish any open flame.
•Open windows.
•Do not light any appliance.
•Do not touch any electrical switches.
TO TURN OFF GAS TO APPLIANCE
1. Turn remote wall switch “OFF.”The pilot will remain lit for
normal service.
2. For complete shutdown, turn remote wall switch to “OFF.”
3. Access the lower control compartment.
4. Depress gas control knob slightly and turn clockwise
to “OFF.”Do not force.
5. Close lower control compartment.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above on this page.
2. Access the lower control compartment.
3. Turn remote wall switch to “OFF.”
4. Verify main line shut-off valve is open.
5. Push in gas control knob slightly and turn clockwise
to “OFF.”
6. Wait five (5) minutes to clear out any gas. If you then smell gas,
STOP! Follow “B”in the safety information above on this page. If you
do not smell gas, go to the next step.
7. Push in gas control knob slightly and turn counterclockwise
to “PILOT.”
8. Push in control knob all the way and hold in. Immediately light the
pilot by triggering the spark ignitor (pushing the button) until pilot
lights. Continue to hold the control knob in for about 1 ¹⁄₂ minutes
after the pilot is lit. Release knob and it will pop back up. Pilot should
remain lit. If it goes out, repeat steps 5 through 8.
•If knob does not pop up when released, stop
and immediately call your service technician
or gas supplier.
•If pilot will not stay lit after several
tries, turn the control knob to “OFF”
and call your service technician or
gas supplier.
9. Turn gas control knob counterclockwise
to “ON.”
10. Close lower control compartment.
•Do not use any phone in your building.
•Immediately call your gas supplier from a neighbor’s phone.
•If your gas supplier cannot be reached, call the fire depart-
ment.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by hand,
do not try to repair it, call a qualified service technician. Force
or attempted repair may result in a fire or an explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
Note: Knob cannot be turned from “PILOT”to “OFF”
unless the knob is pushed in slightly. Do not force.
H
I
L
O
W
TPTH TP TH
P
I
L
O
T
P
I
L
O
T
O
N
it
O
F
F
OUT
IN
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

17
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
INSTRUCTIONS D’ALLUMAGE – VANNE GAZ MILLIVOLT
INSTRUCTIONS D'ALLUMAGE
POUR VOTRE SÉCURITÉ, LISEZ CES INSTRUCTIONS AVANT L’ALLUMAGE
A. Cet appareil est muni d’une veilleuse qui doit être allumée avec un
allumeur piézo-électrique. Lorsque vous allumez la veilleuse, suivre
exactement ces instructions.
B. AVANT L’ALLUMAGE: Assurez-vous que vous ne détectez aucune
odeurdegazautourdel’apareilainsiqueprèsdusol;certainsgaz,étant
plus lourds que l’air, descendent au niveau du sol.
VOICI CE QUE VOUS DEVEZ FAIRE SI VOUS DÉCELEZ UNE ODEUR
DE GAZ:
•Éteignez toute flamme visible.
•Ouvrez les fenêtres.
•N’allumez aucun appareil.
•Ne touchez àaucun commutateur électrique.
•Ne vous servez d’aucun téléphone dans votre édifice.
•Appelezimmédiatementvotrecompagniedegazenutilisantletéléphone
du voisin.
•S’ilvousestimpossibledecontactervotrecompagniedegaz,appelez
le service des incendies.
C. N’utilisez que votre main pour manipuler le bouton de réglage du gaz.
N’utilisez jamais d’outils. Si le bouton refuse de tourner ou de bouger,
n’essayez pas de le réparer. Communiquez immédiatement avec un
technicien de service qualifié. Toute tentative pour le forcer ou le
réparer, risquerait de provoquer un incendie ou une explosion.
D. Ne vous servez pas de cet appareil si l’un de ses éléments a été
immergédans l’eau. Appelez immédiatement un technicien compétent
pour faire inspecter l’appareil et remplacer toute pièce du système de
réglage ou commande du gaz qui a étésous l’eau.
1. Tournez l’interrupteur mural àla position d’arrêt “OFF”. La veilleuse
restera allumée jusqu’au retour du service normal.
2. Pour une fermeture complète, tournez l’interrupteur mural àla
position d’arrêt “OFF”.
3. Ouvrez le compartiment de contrôle du bas.
POUR FERMER LE GAZ QUI ALIMENTE L’APPAREIL
4. Enfoncez légèrement le bouton de réglage du gaz et tournez-le dans
le sens des aiguilles d’une montre jusqu’à la position
d’arrêt “OFF”. Ne forcez pas le bouton.
5. Fermez le compartiment de contrôle du bas.
8. Enfoncez le bouton de réglage jusqu’au fond et gardez-le enfoncé.
Allumez immédiatement la veilleuse en déclenchant l’allume-gaz à
étincelle (en poussant le bouton) jusqu’à ce que la veilleuse
s’enflamme. Continuez de tenir le bouton de réglage enfoncé
pendant environ 90 secondes après l’allumage de la veilleuse.
Relâchez le bouton et il sortira subitement. La veilleuse devrait
rester allumée. Si elle s’éteint, répétez les étapes 5 à8
inclusivement.
• Si le bouton ne sort pas automatiquement après avoir étérelâché,
arrêtez immédiatement et téléphonez
àvotre technicien de service ou à
votre fournisseur de gaz.
• Si la veilleuse refuse de rester
allumée après plusieurs tentatives,
tournez le bouton de réglage jusqu’à
sa position d’arrêt “OFF”et
téléphonez àvotre technicien de
service ou àvotre fournisseur de gaz.
9. Tournez le bouton de réglage du gaz en sens inverse des aiguilles
d’une montre jusqu’à sa position de marche “ON”.
10. Fermez le compartiment de contrôle du bas.
11. Au besoin, rebrancher l’appareil au courant électrique et remettre
l’interrupteur du brûleur principal àla position “ON”ou régler le
thermostat àla température désirée.
12. Si l’appareil ne fonctionne pas, suivre les instructions intitulées
“Pour fermer le gaz qui alimente l’appareil”et appeler un
technicien ou le fournisseur de gaz.
Remarque: Il est impossible de tourner le bouton de “PILOT”à“OFF”à
moins qu’il ne soit légèrement enfoncé. Ne le forcez pas.
6. Attendez cinq (5) minutes pour l’evacuation du gaz. Si vous décelez
une odeur de gaz, ARRÊTEZ ! Retournez au point “B”des consignes
de sécuritéau verso de cette plaque. Si vous ne remarquez aucune
odeur de gaz, passez àl’étape suivante.
7. Enfoncez légèrement le bouton de réglage du gaz et tournez-le en
sens inverse des aiguilles d’une montre jusqu’à la position de
veilleuse “PILOT”.
1. ARRÊTEZ! Lisez les consignes de sécuritéau verso de cette plaque.
2. Ouvrez le compartiment de contrôle du bas.
3. Tournez l’interrupteur mural àla position d’arrêt “OFF”.
4. Assurez-vous que la soupape d’arrêt de la canalisation principale est
ouverte.
5. Enfoncez légèrement le bouton de réglage du gaz et tournez-le dans
le sens des aiguilles d’une montre jusqu’à la position
d’arrêt “OFF”.
H
I
L
O
W
TPTH TP TH
P
I
L
O
T
P
I
L
O
T
O
N
it
O
F
F
OUT
IN
AVERTISSEMENT : SI VOUS NE SUIVEZ PAS CES INSTRUCTIONS À LA LETTRE, IL POURRAIT S’EN SUIVRE UN INCENDIE OU
UNE EXPLOSION CAUSANT DES DOMMAGES MATÉRIELS, DES BLESSURES CORPORELLES OU MÊME DES PERTES DE VIE.

18 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
A. When lighting the appliance, follow these instructions
exactly.
B. BEFORE OPERATING smell all around the appliance area
for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Extinguish any open flame.
•Open windows.
•Do not light any appliance.
•Do not touch any electrical switches.
•Do not use any phone in your building.
FOR YOUR SAFETY READ BEFORE LIGHTING
•Immediately call your gas supplier from a neighbor’s
phone.
•If your gas supplier cannot be reached, call the fire
department.
C. Use only your hand to turn the gas control lever. Never
use tools. If the lever will not turn by hand, do not try to
repair it, call a qualified service technician. Force or
attempted repair may result in a fire or an explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
LIGHTING INSTRUCTIONS — ELECTRONIC
1. For complete shut-down, turn remote wall switch to
“OFF.”
2. Open lower control compartment door.
3. Turn the ON/OFF switch to “OFF”. Do not force.
4. Close the main line shut-off valve.
5. Close lower control compartment door.
TO TURN OFF GAS TO APPLIANCE
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above on this page.
2. Turn remote wall switch to “OFF.”
3. Open lower control compartment door.
4. Verify main line shut-off valve is open.
5. Turn the ON/OFF switch to “OFF”. Do not force.
6. Wait five (5) minutes to clear out any gas. If you then
smell gas, STOP! Follow “B”in the safety information
above on this page. If you do not smell gas, go to the
next step.
7. Turn the ON/OFF switch to “ON”. Do not force.
8. Turn “ON”all electrical power to appliance (remote wall
or appliance switch).
9. Close lower control compartment door.
TO SHUT OFF
1. Turn off all electrical power to the appliance (remote wall
switch).
ON/OFF Switch
OFF
IN
PSI
ON
CONTROL
IGNITER
Front View
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

19
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
INSTRUCTIONS D’ALLUMAGE — ELECTRONIC
INSTRUCTIONS D’ALLUMAGE
POUR VOTRE SÉCURITÉ, LISEZ CES INSTRUCTIONS AVANT L’ALLUMAGE
A. Lorsquevousallumezl’appareil,suivezexactementcesinstruc-
tions.
B. AVANT L’ALLUMAGE: Assurez-vous que vous ne détectez
aucune odeur de gaz autour de l’apareil ainsi que près du sol;
certains gaz, étant plus lourds que l’air, descendent au niveau
du sol.
VOICI CE QUE VOUS DEVEZ FAIRE SI VOUS DÉCELEZ UNE
ODEUR DE GAZ
•Éteignez toute flamme visible.
•Ouvrez les fenêtres.
•N’allumez aucun appareil.
•Ne touchez àaucun commutateur électrique.
•Ne vous servez d’aucun téléphone dans votre édifice.
•Appelezimmédiatementvotrecompagniedegazenutilisant
le téléphone du voisin.
•S’il vous est impossible de contacter votre compagnie de
gaz, appelez le service des incendies.
C. N’utilisez que votre main pour manipuler l'interrupteur “ON/
OFF”de la valve àgaz. N’utilisez jamais d’outils. Si
l’interrupteur ne bouge pas manuellement, n’essayez pas de le
réparer. Communiquez immèdiatement avec un technicien de
service qualifié. Toute tentative pour forcer l’interrupteur ou le
réparer, risquerait de provoquer un incendie ou une explosion.
D. Nevousservezpasde cetappareil sil’unde seséléments aété
immergédans l’eau. Appelez immédiatement un technicien
compétent pour faire inspecter l’appareil et remplacer toute
piècedusystèmederéglageoucommandedugazquiaétésous
l’eau.
1. ARRÊTEZ ! Lisez les consignes de sécuritéau verso de cette
plaque.
2. Tournez l’interrupteur mural àla position d’arrêt “OFF”.
3. Ouvrez la porte du compartiment de contrôle du bas.
4. Assurez-vousquelasoupaped’arrêtdelacanalisationprincipale
est ouverte.
5. Tournezlamanettederéglagedugazàlapositiond’arrêt“OFF”.
6. Attendez cinq (5) minutes pour l’evacuation du gaz. Si vous
décelezuneodeurdegaz ARRÊTEZ! Retournezaupoint“B”des
consignes de sécuritéau verso de cette plaque. Si vous ne
remarquez aucune odeur de gaz, passez àl’étape suivante.
7. Tournezlamanettederéglagedugazjusqu’àlapositiondemarche
“ON”. Ne la forcez pas.
8. Ouvrez le courant électrique (“ON”) qui alimente l’appareil
(interrupteur mural ou l'appareil).
9. Fermez la porte du compartiment de contrôle du bas.
10. Au besoin, rebrancher l’apareil au courant électrique et
remettre l’interrupteur principal du brûleur àla position “ON”
ou régler le thermostat àla température désirée.
11. Si l’appareil ne se met pas en marche, suivre les instructions
intitulées “Pour fermer le gaz qui alimente l’appareil”et appeler
un technicien ou le fournisseur de gaz.
POUR ÉTEINDRE L’APPAREIL
1. Coupeztoutlecourantélectriquequialimentel’appareil(interrupteur
mural).
POUR FERMER LE GAZ QUI ALIMENTE L’APPAREIL
3. Tournezlamanettederéglagedugazàlapositiond’arrêt“OFF”.
Ne la forcez pas.
4. Fermez la soupape d’arrêt de la canalisation principale.
5. Fermez la porte du compartiment de contrôle du bas.
1. Pourunefermeture complète, tournez l’interrupteurmural àla
position d’arrêt “OFF”.
2. Ouvrez la porte du compartiment de contrôle du bas.
Interrupteur
ON/OFF
OFF
IN
PSI
ON
CONTROL
IGNITER
Vue de face
AVERTISSEMENT: SI VOUS NE SUIVEZ PAS CES INSTRUCTIONS À LA LETTRE, IL POURRAIT S’EN SUIVRE UN INCENDIE OU
UNE EXPLOSION CAUSANT DES DOMMAGES MATÉRIELS, DES BLESSURES CORPORELLES OU MÊME DES PERTES DE VIE.

20 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
TROUBLESHOOTING THE MILLIVOLT GAS CONTROL SYSTEM
1. Spark ignitor will not light
pilot after repeated
triggering of ignitor button.
2. Pilot will not stay lit after
carefully following the
lighting instructions.
3. Pilot burning, no gas to
burner, Valve knob “ON,”
Wall Switch “ON.”
4. Frequent pilot/burner outage
problem.
CORRECTIVE ACTIONSYMPTOM
A. Defective ignitor
(no spark at electrode).
B. Defective or misaligned electrode
at pilot (spark at electrode).
C. Gas supply pressure errant.
D. Pilot orifice plugged.
A. Defective pilot generator
(thermocouple).
A. Limit Switch defective.
B. Wall switch or wires defective.
C. Thermopile may not be generating
sufficient millivoltage.
D. Plugged burner orifice.
A. Pilot flame may be too low or
blowing (high) causing the pilot/
valve safety to drop out.
Check for spark at electrode and pilot; if no spark and
electrode wire is properly connected, replace ignitor.
POSSIBLE CAUSES
N ote: Before troubleshooting, make sure that the appliance main line gas shut-off valve and the gas control valve are in the "OPEN"
position and the burner ON/OFF switch is in the “ON”position.
Important: Valve system troubleshooting should only be accomplished by a qualified service technician.
Clean and/or adjust pilot flame for maximum flame impinge-
ment on thermocouple (
Figure 11 on page 10 ).
Check burner orifice for stoppage and remove.
Checkthermopilewithmillivoltmeter.Takereadingatthermo-
pile terminals of gas valve. Should read 325 millivolts mini-
mum with optional wall switch “OFF.”Replace faulty thermo-
pile if reading is below specified minimum.
Check wall switch and wires for proper connections. Jumper
wire across terminals at wall switch, if burner comes on,
replacedefectivewallswitch.Ifokay,jumperwiresacrosswall
switch wires at valve, if burner comes on, wires are faulty or
connections are bad.
Check pilot flame, it must impinge on thermocouple ( Figure
11 on page 10 )
Cleanand/or adjustpilotformaximumflame
impingement on thermocouple. Ensure that the connection
between the valve and thermocouple are tight and secure.
Clean or replace pilot orifice.
Check inlet gas pressure. It should be within the limits as
marked on the rating plate.
Using a match, light pilot. If pilot lights, turn off pilot and
triggertheignitorbuttonagain.Ifpilotlights,animpropergas
mixture caused the bad lighting and a longer purge period is
recommended. If pilot will not light –check gap at electrode
and pilot –should be ¹⁄₈" to have a strong spark. If gap
measures ¹⁄₈", replace pilot (
Figure 11 on page 10 ).
Isolatethe“limit”switch.Disconnectthewiresfromthe“ON/
OFF”switchandthevalve(labelwiresforreattachment).Test
forcontinuitywithamultimeter.Ifcontinuityisnotindicated,
switch is defective and must be replaced.
