Lennox Hearth Products SUPERIOR B-VENT 600 Series User manual

1
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
FOR YOUR SAFETY: Do not store or use gasoline
or other flammable vapors or liquids in the vicin-
ity of this or any other appliance.
FOR YOUR SAFETY: What to do if you smell gas:
• DO NOT light any appliance.
• DO NOT touch any electrical switches.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone.
Follow your gas suppliers instructions.
• Ifyourgassuppliercannotbereached,callthe
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
WARNING:IFTHEINFORMATIONINTHISMANUAL
IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLO-
SION MAY RESULT CAUSING PROPERTY DAM-
AGE, PERSONAL INJURY OR LOSS OF LIFE.
POURVOTRESÉCURITÉ: Nepasentreposerniutiliser
d'essencenid'autrevaperursouliquidesinflammables
dans le voisinage de cet appareil ou de tout autre
appareil.
POUR VOTRE SÉCURITÉ: Que faire si vous sentez une
odeur de gaz:
• Ne pas tenter d'allumer d'appareil.
• Netouchezàaucuninterrupteur. Nepasvousservir
des téléphones se trouvant dans le batiment où
vous vous trouvez.
• Evacuez la piéce, le bâtiment ou la zone.
• Appeflez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du
fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service dos incendies.
L'installationetservicedoitêtreexécutéparunqualifié
installer, agence de service ou le fournisseur de gaz.
AVERTISSEMENT: ASSUREZ-VOUS DE BIEN SUIVRE
LESINSTRUCTIONSDONNÉDANSCETTENOTICEPOUR
RÉDUIRE AU MINIMUM LE RISQUE D'INCENDIE OU
POUR ÉVITER TOUT DOMMAGE MATÉRIEL, TOUTE
BLESSURE OU LA MORT.
INSTALLATION
INSTRUCTIONS
B-VENT
500/600/800 SERIES
B-VENTED GAS APPLIANCES
P/N 700,028M REV. G 11/2004
RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
WH Report No. J3008600
This appliance may be installed in an aftermar-
ket permanently located, manufactured home
(USA only) or mobile home, where not prohib-
ited by local codes. This appliance is only for
use with the type of gas indicated on the rating
plate. This appliance is not convertible for use
with other gases, unless a certified kit is used.
MODELS
sledoMtlovilliMsledoMcinortcelE
NMC005-BNEC005-B
PMC005-BPEC005-B
NMC006-BNEC006-B
PMC006-BPEC006-B
NMC008-BNEC008-B
PMC008-BPEC008-B
fire-parts.com

2NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
TABLE OF CONTENTS
Packaging ........................................ page 2
Introduction ..................................... page 2
General Information......................... page 2
Location .......................................... page 4
Appliance Clearances....................... page 4
Fireplace Specifications ................... page 5
Gas Vent Rule .................................. page 5
Framing Specifications .................... page 6
Typical Installation Sequence .......... page 6
Installation ....................................... page 7
Vent System Installation .................. page 8
Field Wiring ..................................... page 8
Connecting Gas Line........................ page 9
Outside Air Kit Installation ............... page 10
Installing Logs ................................. page 11
Appliance Operation ........................ page 11
Millivolt Appliance Checkout............ page 11
Electronic Appliance Checkout......... page 11
Installing Glass Door ....................... page 11
Burner Adjustments......................... page 11
Spillage Test .................................... page 12
Manual Limit Switch ........................ page 12
Hood Installation ............................. page 12
Finishing Requirements ................... page 13
Cold Climate Insulation.................... page 13
Installation Accessories ................... page 13
Gas Conversion Kits.................. page 14
S'assurerque lebrùleur etlecompartiment des
commandes sont propres. Voir les instruc-
tions d'installation et d'utilisation qui
accompagnent l'apareil.
Provide adequate clearances around air open-
ings and adequate accessibility clearance for
service and proper operation. Never obstruct
the front openings of the appliance.
WARNING: THESEFIREPLACESAREVENTED
DECORATIVE GAS APPLIANCES. DO NOT
BURNWOODOROTHERMATERIALINTHESE
APPLIANCES.
WARNING: IMPROPER INSTALLATION, AD-
JUSTMENT,ALTERATION,SERVICEORMAIN-
TENANCECANCAUSE INJURYORPROPERTY
DAMAGE. REFER TO THIS MANUAL. FOR
ASSISTANCEORADDITIONALINFORMATION
CONSULTAQUALIFIEDINSTALLER,SERVICE
AGENCY OR THE GAS SUPPLIER.
This installation manual will help you obtain a
safe,efficient, dependable installationfor your
appliance and vent system.
Please read and understand these instruc-
tions before beginning your installation.
PACKAGING
The assembled vented gas fireplace is pack-
aged with:
1 - one log set located in firebox area.
2 - one envelope containing the literature
packagewhichconsistsofthehomeowner's
manual, installation instructions, log set
supplement and warranty; envelope is lo-
cated in the control area.
Figure 1
INTRODUCTION
Themillivoltappliancesaredesignedtooperate
on either natural or propane gas. A millivolt gas
control valve with piezo ignition system pro-
vides safe, efficient operation.
Theelectronic appliancesare designedto oper-
ate on either natural or propane gas. An elec-
tronic intermittent pilot system provides safe,
efficient operation. External electrical power is
required to operate these units.
These appliances comply with National Safety
StandardsandaretestedandlistedbyWarnock
Hersey (Report No. J3008600) to ANSI Z21.50
- 2000 (in Canada, CSA 2.22 - 2000), and CAN/
CGA-2.17-M91 in both USA and Canada, as
vented gas fireplaces.
Installation must conform to local codes. In the
absence of local codes, installation must com-
ply with the current National Fuel Gas Code,
ANSI Z223.1 (NFPA 54). (In Canada, the cur-
rent CAN/CGA B149 installation code.) Electri-
calwiring must complywith localcodes. In the
absence of local codes, installation must be in
accordance with the National Electrical Code,
NFPA 70 - (latest edition). (In Canada, the
current CSA C22.1 Canadian Electric Code.)
DO NOT ATTEMPT TO ALTER OR MODIFY
THE CONSTRUCTION OF THE APPLIANCE OR
ITS COMPONENTS. ANY MODIFICATION OR
ALTERATION MAY VOID THE WARRANTY,
CERTIFICATIONANDLISTINGSOFTHISUNIT.
Theseappliances aredesigned to operateon
natural or propane gas only.
GENERAL INFORMATION
Note: Installation and repair should be per-
formedby aqualified serviceperson.The appli-
ance should be inspected annually by a quali-
fied professional service technician. More fre-
quent inspections and cleanings may be re-
quired due to excessive lint from carpeting,
bedding material, etc. It is imperative that the
control compartment, burners and circulating
airpassagewaysofthe appliancebe keptclean.
Vertical
Venting
Offset
Venting
3 - one hood located behind the top panel.
4 - onebagofdecorativevolcanicstone located
in the control area.
5 - one bag of glowing embers (rockwool)
located in the control area.
fire-parts.com

3
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Electronic Models -
Electronic models have a fixed rate gas valve.
Input of electronic models is shown in the
following table:
Input of millivolt models is shown in the fol-
lowing table:
All Models -
Maximum manifold pressure is 3.5 in. w.c.
(0.87 kPa) for natural gas and 10 in. w.c.
(2.49 kPa) for LP/Propane gas.
Installations at Altitudes of 0 to 4500 ft.-
Unitsaretested andapproved forelevations
of 0 to 4500 feet (0 to 1372 meters).
Installations at Altitudes above 4500 ft.-
For elevations above 4500 feet (1372
meters), install the unit according to the
regulations of the local authorities having
jurisdiction and, in the USA, the latest
edition of the National Fuel Gas Code (ANSI
Z223.1) or, in Canada, the latest edition of
the CAN1-B149.1 and .2 codes.
Table 1 shows the units' gas orifice size for
the elevations indicated.
Table 1
Millivolt Models -
Millivolt models come standard with the
manually-modulated gas valve; flame ap-
pearance and heat output can be con-
trolled at the gas valve.
Do not use these appliances if any part has
beenunder water.Immediately call a qualified,
professional service technician to inspect the
appliance and to replace any parts of the
control system and any gas control which
have been under water.
Nepas seservir de cetappareil s'ila été plongé
dansl'eau,complètementouenpartie. Appeler
un technicien qualifié pour inspecter l'appareil
et remplacer toute partie du système de
contrôleettoutecommandequiontétéplongés
dans l'lau.
This appliance may be installed in an after-
market permanently located, manufactured
home (USA only) or mobile home, where not
prohibited by local codes. This appliance is
only for use with the type of gas indicated
on the rating plate. This appliance is not con-
vertible for use with other gases, unless a
certified kit is used.
Cet appareil peut être installédans un
maison préfabriquée (É.-U. seulement) ou
mobile déjàinstallée àdemeure si les
réglements locaux le permettent.
Cet appareil doit être utiliséuniquement
avec les types de gaz indiqués sur la plaque
signalétique. Ne pas l'utiliser avec d'autres
gaz sauf si un kit de conversion certifiéest
installé.
Millivolt appliances may be fitted at time of
manufacture with either a Honeywell millivolt
gascontrol valveor asSIT millivoltgas control
valve. Both valves have been tested with and
approved for use with these appliances and
are listed accordingly.
Test gage connections are provided on the
front of the millivolt gas control valves (iden-
tified OUT for the manifold side and IN for inlet
pressure side for both SIT and Honeywell
equipped appliances. A ¹⁄₈" NPT test gage
connection is provided on the electronic gas
control valve adjacent to the outlet to the main
burner.
Minimuminlet gaspressure tothe applianceis
5.0inches water column (1.24 kPa) for natural
gasand 11 inches watercolumn (2.74 kPa)for
propane for the purpose of input adjustment.
Maximum inlet gas supply pressure to the
appliance is 10.5 inches water column
(2.61kPa) for natural gas and 13.0 inches
water column (3.23 kPa) for propane.
The appliance must be isolated from the gas
supply piping system (by closing its individual
manual shut-off valve) during any pressure test-
ing of the gas supply piping system at test
pressuresequaltoorlessthan¹⁄₂ psig (3.5)kPa).
The appliance and its individual shut-off valve
mustbe disconnectedfrom the gassupply piping
systemduringanypressuretestingofthatsystem
at pressures in excess of ¹⁄₂ psig (3.5 kPa).
These appliances must not be connected to a
chimney or flue serving a separate solid fuel
burning appliance.
Do not place clothing or other materials on or
near this appliance.
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning are similar to the
fluwithheadaches, dizziness and/ornausea.If
you have these signs, obtain fresh air immedi-
ately. Turn off the gas supply to the appliance
and have it serviced by a qualified profes-
sional, as it may not be operating correctly.
WARNING: B-VENT APPLIANCES ARE
NOT DESIGNED TO OPERATE IN NEGA-
TIVELY PRESSURED ENVIRONMENTS
(PRESSURE WITHIN THE HOME IS LESS
THAN PRESSURES OUTSIDE). SIGNIFI-
CANT NEGATIVELY PRESSURED ENVI-
RONMENTS CAUSED BY WEATHER,
HOMEDESIGN,OROTHERDEVICESMAY
IMPACT THE OPERATION OF THESE AP-
PLIANCES. NEGATIVE PRESSURES MAY
RESULT IN POOR FLAME APPEARANCE,
SOOTING, DAMAGE TO PROPERTY AND/
OR SEVERE PERSONAL INJURY. DO NOT
OPERATE THESE APPLIANCES IN NEGA-
TIVELY PRESSURED ENVIRONMENTS.
WARNING: FAILURE TO COMPLY WITH
THEINSTALLATIONANDOPERATINGIN-
STRUCTIONSPROVIDEDINTHISDOCU-
MENT WILL RESULT IN AN IMPROP-
ERLY INSTALLED AND OPERATING AP-
PLIANCE,VOIDINGITSWARRANTY. ANY
CHANGE TO THIS APPLIANCE AND/OR
ITSOPERATINGCONTROLSISDANGER-
OUS. IMPROPER INSTALLATION OR
USE OF THIS APPLIANCE CAN CAUSE
SERIOUSINJURYORDEATHFORMFIRE,
BURNS, EXPLOSION OR CARBON MON-
OXIDE POISONING.
htiwsledoMtlovilliM evlaVsaGdetaludoM-yllaunaM saGlarutaNsaGenaporP
ledoM etartupnI )H/UTB( ledoM etartupnI )H/UTB(
005-B ot005,71 000,32 005-B ot005,71 000,32
006-B ot005,12 000,92 006-B ot005,22 000,92
008-B ot000,42 000,23 008-B ot005,52 000,23
evlaVsaGetaR-dexiFhtiwsledoMcinortcelE
saGenaporPdnalarutaN
sledoM etartupnI )H/UTB(
005-B000,32
006-B000,92
008-B000,23
sledoM ezisecifirO noitavelE )sretem(teeF
.taN.porP
005-B .ni090.045# 0054-0 )0731-0(
006-B 63#25#
008-B 33#.ni560.0
fire-parts.com

4NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Figure 3
APPLIANCE CLEARANCES
**Note: See also Figure 29 on page 12 for an illustration of mantel clearances.
*Note: See page 6, step 3 for clearance requirements to the nailing flange
located at each side of the unit and any screw heads adjacent to it.
In selecting the location, the aesthetic and func-
tional use of the appliance are primary concerns.
However,vent systemrouting tothe exterior and
access to the fuel supply are also important. Due
to high temperatures the appliance should be
locatedout oftraffic and awayfrom furnitureand
draperies. Consideration should be given to traf-
fic ways, furniture, draperies, etc., due to el-
evatedsurfacetemperatures.Thelocationshould
also be free of electrical, plumbing or other
heating/air conditioning ducting.
The appliance should be mounted on a fully
supported base extending the full width and
depthoftheunit. Theappliancemaybe located
on or near conventional construction materi-
als. However, if installed on combustible ma-
terials, such as carpeting, vinyl tile, etc., a
metal or wood barrier covering the entire bot-
tom surface must be used.
These appliances may be used for bedroom
installationsin the UnitedStates and are listed
accordingly. These units may not be installed
in bedrooms in Canada.
WARNING: CHILDREN AND ADULTS
SHOULD BE ALERTED TO THE HAZ-
ARDS OF HIGH SURFACE TEMPERA-
TURES. USE CAUTION AROUND THE
APPLIANCE TO AVOID BURNS OR
CLOTHING IGNITION. YOUNG CHIL-
DREN SHOULD BE CAREFULLY SUPER-
VISED WHEN THEY ARE IN THE SAME
ROOM AS THE APPLIANCE.
WARNING: DONOT PLACE CLOTHING
OR OTHER FLAMMABLE MATERIALS
ON OR NEAR THIS APPLIANCE.
These appliances are equipped with an inte-
gral combustion air door and actuator arm.
Combustion air kits are optional and must be
installedbeforeremovingthesecuringscrew
allowing the movement of the combustion
air actuator arm (see Step 8 on page 10).
LOCATION
Figure 2
AVERTISSEMENT: POUR UTILISATION
UNIQUEMENT AVEC LES PORTES EN
VERRE CERTIFIÊES AVEC L'APPAREIL.
WARNING: THISAPPLIANCEMAYONLY
BEFITTEDWITHDOORSCERTIFIEDFOR
USE WITH THE APPLIANCE.
AVERTISSEMENT: SURVEILLER LES
ENFANTS. GARDER LES VÊTEMENTS,
LES MEUBLES, L'ESSENCE OU AUTRES
LIQUIDES ÀVAPEUR INFLAMMABLES
LIN DE L'APPAREIL.
Typical Locations
64 in.
(1626 mm)
0" Clearance
to Combustible
Side Wall
Ceiling
Bottom of
Fireplace
KCAB )mm31(.ni2/1 srecaps)mm0(.ni0
SEDIS *)mm31(.ni2/1 srecaps)mm0(.ni0
SRECAPSPOT)mm0(.ni0
ROOLF)mm0(.ni0
mottoBmorF ottinUfo gnilieC )mm6261(.ni46
TNEV)mm4.52(.ni1
SECNARAELCECIVRES
TNORF)sretem9.0(.teeF3
fire-parts.com

5
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

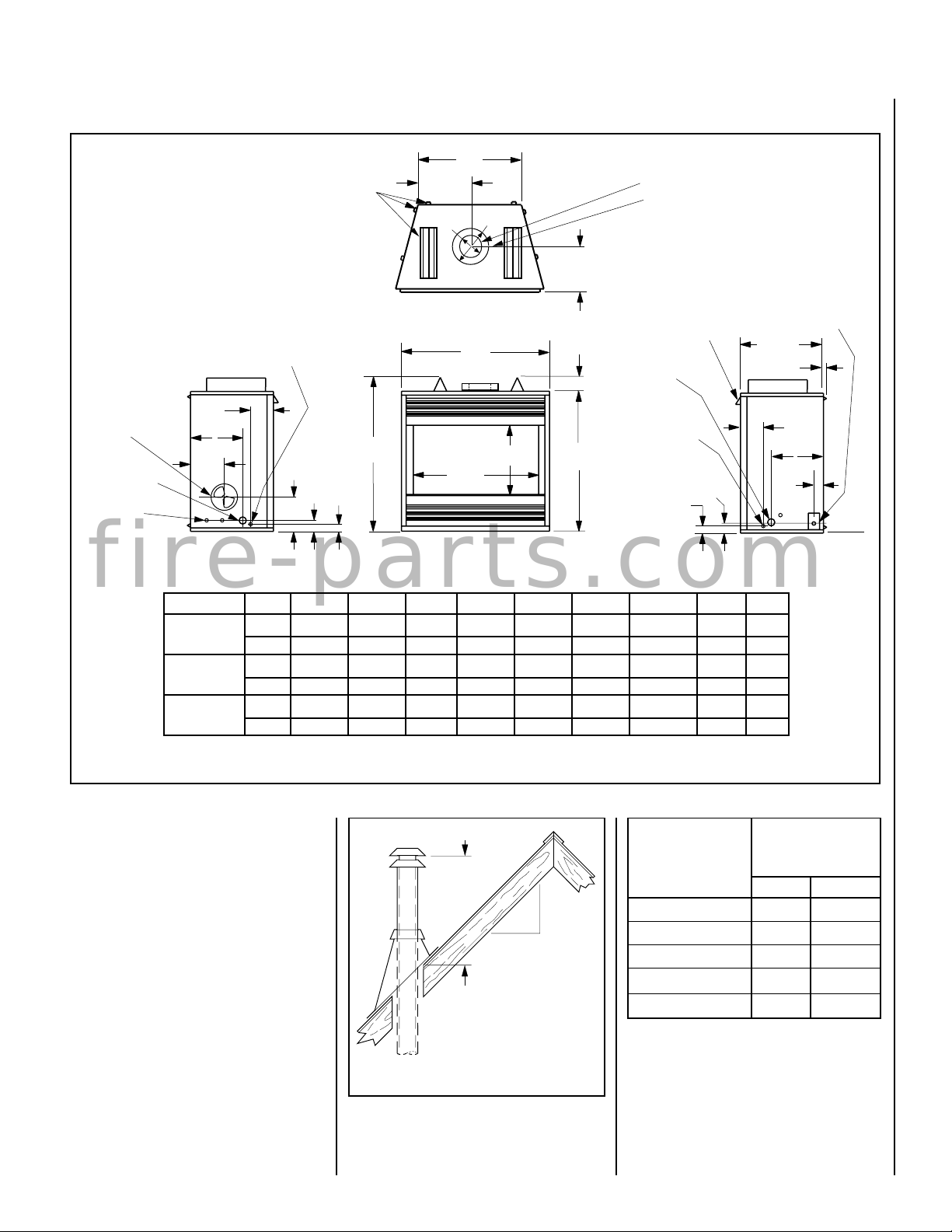

FIREPLACE SPECIFICATIONS
Figure 4
.oNledoMABCDEFGHJ
005-B .ni538/1-8/1-23912/1-92538/1-8/7-42161/7-258
mm298618384947298236613721302
006-B .ni8/1-048/1-73422/1-438/1-048/7-92161/51-458
mm91013490166789101957973721302
008-B .ni8/1-048/1-73422/1-938/1-548/7-4361/7-7168
mm641134901630016411688344251302
F
E
B
D
C
G
Top View
FRAMING
SPACERS
(Top and Sides
and Rear)
Front View
3 (76)
9
(229)
A
J
H
Flue Outlet For B-Vent Connection
Flue Outlet Shield
(Louvered Front Model Shown)
OPTIONAL ELECTRICAL
INLET KNOCKOUT
REQUIRING A FIELD
PROVIDED JUNCTION
BOX (Either Side)
GAS INLET
(Either Side
and bottom)
NOTE - Hood shown
as positioned
in louvered
front model.
ELECTRICAL INLET
2³⁄₄ x 2 (70 x 51) COVER
PLATE with KNOCKOUT)
16
(406)
¹⁄₂ (13)
3 (76)
1³⁄₈
(35)
(140)
5¹⁄₂
9³⁄₈
(238)
2
(53)
Right Side View
(140)
5¹⁄₂
9³⁄₈
(238)
1³⁄₈
(35)
Left Side View
GAS INLET
(See Also
Right Side View)
ELECTRICAL INLET
(See Also
Right Side View)
3
(76)
OUTSIDE AIR
SHUTTER
8¹⁵⁄₁₆
(227)
7³⁄₈
(187)
ELECTRICAL
INLET
(Optional)
Venting
Gas Vent Rule –Gas vent caps are not permit-
ted within 8 feet (2.4 mm) of a vertical wall or
similar obstruction. Gas vent caps that are
located 8' or more from a portion of a building
which extends at an angle greater than 45°
upward from the horizontal may terminate in
accordance with Table 2 (Figure 5) , provided
that in no case shall any discharge opening on
the cap be less than 2' (610 mm) horizontally
from the roof surface (National Fuel Gas Code
ANSI Z223.1 (NFPA 54) 7.6.2) (CAN/CGA
B149).
Table 2
Note: Venting terminals shall not be recessed
into a wall or siding.
Flat to 6/12 1' 0" 0.3
Over 7/12 to 9/12 2' 0" 0.6
Over 10/12 to 12/12 4' 0" 1.2
Over 13/12 to 16/12 6' 0" 1.8
Over 17/12 to 21/12 8' 0" 2.4
Roof Slope
Minimum Height
from Roof to Lowest
Discharge Opening
Feet Meters
Figure 5
Roof Pitch is X/12
12
X
Minimum Height from Roof
to Lowest Discharge Opening
fire-parts.com

6NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

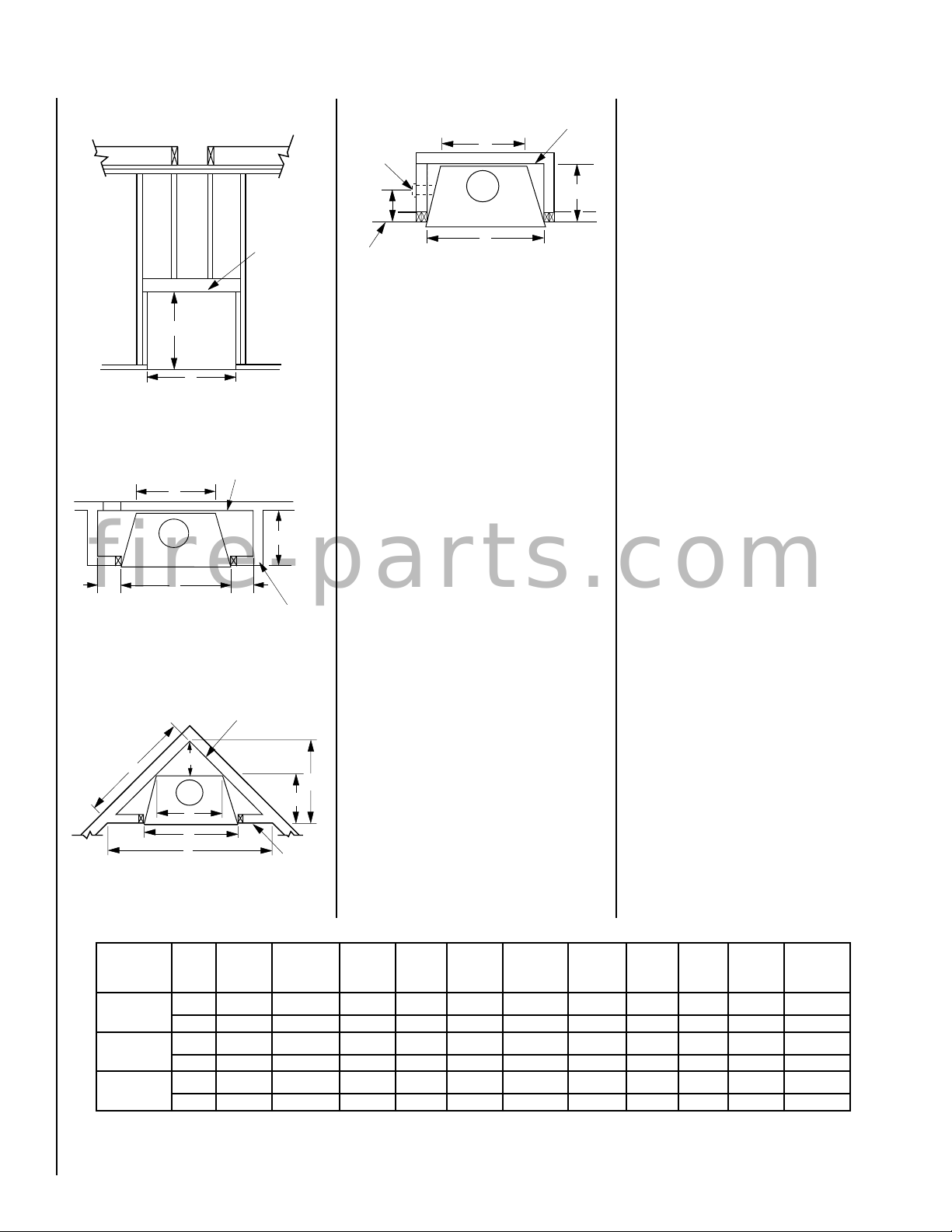

FRAMING SPECIFICATIONS
Figure 7
Figure 9
Note: All framing dimensions calculated for 1/2"
dry wall at the appliance face. If sheathing the
chaseorfinishingwithotherthicknessmaterials,
calculations will need to be made.
* Outside air kit - FOAK (without adapter)
Figure 6
Step 6. (page 9) Installtheoptionalblower.
Step 7. (page 9) Make connection to gas
supply.
Step 8. (page 10) Outside Air Kit Installa-
tion.
Step 9. (page 11) Install the log set and
decorative volcanic stone.
Step 10. (page 11) Checkout appliance op-
eration.
Step 11. (page 11) Install glass enclosure
panel.
Step 12. (page 11) Burner adjustment.
Step 13. (page 12) Spillage Test and Safety
Limit Switch Operation.
Step 14. (page 12) Install the hood.
PRE-INSTALLATION NOTES
The fireplace may be installed directly on a
combustible floor or raised on a platform of an
appropriate height. Do not place fireplace on
carpeting,vinyl orother soft floorcoverings. It
may, however, be placed on flat wood, ply-
wood, particle board or other hard surfaces.
Be sure fireplace rests on a solid continuous
floor or platform with appropriate framing for
support and so that no cold air can enter the
room from under the fireplace.
The fireplace may be positioned and then the
framing built around it, or the framing may be
constructed and the fireplace positioned into
the opening.
Usually, no special floor support is needed for
the fireplace, however, to be certain:
1. Estimate the total weight of the fireplace
system and surround materials such as brick,
stone, etc., to be installed.
Figure 8
TYPICAL INSTALLATION SEQUENCE
The typical sequence of installation follows,
however,each installation is unique resultingin
variations to those described.
See the page numbers references in the follow-
ing steps for detailed procedures.
Step 1. (page 7) Construct the appliance
framing.
Step 2. (page 7) Route gas supply line to
appliance location.
Step 3. (page 7) Position the appliance
within the framing and secure with nailing
brackets.
Step 4. (page 8) Installtheventsystemand
exterior termination.
Step 5. (page 8) Field Wiring
a. Millivolt Appliances – The operating control
switch is factory installed.
b. Electronic Appliances – Connect 120 Vac
electrical power to the appliance receptacle.
C
A
G
Inside Chase
Back Wall of Chase/Enclosure
Including Finishing Materials
if any
Rough
Framing Face
(Unfinished Shown)
HH
Header
B
A
Fireplace Framing
Corner Installation
KD
C
A
E
G
F
Back Wall of Chase/Enclosure
Including Finishing Materials
if any
Rough
Framing Face
(Unfinished Shown)
*Optional FOAK
Outside
Air Kit
A
Outside Chase
G
C
J
Back Wall of Chase/Enclosure
Including Finishing Materials
if any
Rough Framing Face
(Unfinished Shown)
.oNledoM AtinU eziS
AgnimarF eziS BCD E FGHJ K
005-B .ni538/1-534/1-534/1-918/5-91752/1-4/3-82614 61/9-68/5-04
mm29859859838489406410376042017612301
006-B .ni8/1-044/1-044/1-04428/5-4261/31-1661/1-03614 61/9-623/11-34
mm91012201220101652607519776042017611011
008-B .ni8/1-044/1-544/1-04428/5-928/3-6661/3-33614 61/9-661/51-64
mm64119411220101625768613486042017612911
fire-parts.com

7
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
The fireplace should be secured to the side framing
membersusingtheunit'snailingflanges-twoatthe
top and bottom on each side of the fireplace front.
See
Figure 11. Use 8d nails or their equivalent.
All appliances are equipped with a gas flex line
and shutoff valve attached directly to the gas
control valve. Use of the gas flex line will aid in
the routing and attachment of the gas line to
the fireplace.
Step 3. Position the Appliance - Slide the
fireplace into prepared framing or position fire-
place in its final position and frame later.
Refer to fireplace drawings and specifications
on
page 5 for framing dimensions and details.
Framing header may be positioned directly on
the fireplace top spacers.
IMPORTANT: UNDER NO CIRCUMSTANCES
CAN THE FIREPLACE TOP SPACERS (REFER
TO FIGURE 4 ) BE REMOVED OR MODIFIED,
NOR MAY YOU NOTCH THE HEADER TO FIT
AROUND OR BE INSTALLED LOWER THAN
THE SPACERS. THE HEADER MAY BE IN DI-
RECT CONTACT WITH THE TOP SPACERS BUT
MAY NOT BE SUPPORTED BY THEM.
WARNING: CONNECTING DIRECTLY TO
AN UNREGULATED PROPANE (L.P.G.)
TANK MAY CAUSE AN EXPLOSION.
Fireplace may be anchored to floor. Bend down
twoanchortabs(oneoneachside)locatedatthe
base of the fireplace and secure to the floor by
nailing with 8d nails or equivalent (Figure 12 ).
Figure 12
Figure 11
2. Measure the square footage of the floor
space to be occupied by the system, surrounds
and hearth extensions.
3. Note the floor construction, i.e. 2 x 6’s, 2 x
8’s or 2 x 10’s, single or double joists, type and
thickness of floor boards.
4. Use this information and consult your local
building code to determine if you need addi-
tional support.
If you plan to raise the fireplace and hearth
extension, build the platform assembly then
position fireplace and hearth extension on top.
Secure the platform to the floor to prevent
possible shifting.
INSTALLING THE FIREPLACE
Step 1. Construct the Appliance Framing -
Frame appliance enclosure as illustrated in
Figures 6 through 9 on page 6 .
Note: The framed depth, 16 in. (406 mm) from
a framed wall, must always be measured from
a finished surface. If a wall covering such as
drywall is to be attached to the rear wall, then
the 16 in. (406 mm) must be measured from
the drywall surface. It is important that this
dimension be exact.
If the appliance is to be elevated above floor
level, a solid continuous platform must be
constructed.
The header may rest on the top metal spacers,
but must not be notched to fit around them.
Consult all local codes.
Step 2. Route Gas Supply Line -
Route gas line
(see Figure 10 ) using tech-
niquesandmaterialsprescribed bylocaland/or
national codes. It is recommended that a gas
line of ¹⁄₂" or greater diameter be used to allow
fullgasvolumetothefireplace.Unduepressure
loss will occur if the pipe is too small. The
appliance,as setup atthe factory,is best suited
for use with a gas line routed from the right
side. The gas line may however be alternately
routed from the left side.
When rigid pipe is used, an ANSI approved
manual shut-off valve and union must be in-
stalled upstream of the fireplace.
Ensure that a sediment trap is installed in the
existing gas line, if not, install a sediment trap
upstream to prevent moisture and contaminants
from passing through trap to the appliance con-
trols and burners. Failure to do so could prevent
the appliance from operating reliably.
An external regulator must be used on all pro-
pane (L.P.G.) heaters to reduce the supply tank
pressure to 13" w.c. (maximum). Any copper
tubingusedtosupplypropane(L.P.G.)fromthe
tank must be internally tinned.
IMPORTANT: HOLD GAS VALVE SECURELY
TO PREVENT MOVEMENT WHEN CONNECT-
ING TO INLET GAS LINE
Note:
Some units only have one anchor tab on each side.
Figure 10
Right Side Front
Corner of Fireplace
Framing
6 ¹⁄₂"
(152 mm) 3"
(76 mm)
Anchor
Tab
Note: The nailing flanges, combustible members
and screw heads located in areas directly adjacent
to the nailing flanges, are EXEMPT from the 1/2”
clearance to combustible requirements for the
firebox outer wrapper. Combustible framing may be
in direct contact with the nailing flanges and may
be located closer than 1/2”from screw heads and
the firebox wrapper in areas adjacent to the nailing
flanges. Frame the opening to the exact dimensions
specified in the framing details of this manual.
Side
Framing
Unit Nailing Flange
(No clearance to
combustible
framing is required)
Left Side Front Corner of Fireplace Shown
(Right Side Requirements the Same)
Unit Being Secured By Its Nailing Flanges
To The Framing
fire-parts.com

8NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Figure 14
Figure 15
Step 4. Install the Vent System & Exterior
Termination -
In the United States, vent installation must
conform with local building codes. In the
absence of local codes, vents must be in-
stalled in accordance with the current edition
ofthe National Fuel GasCode (ANSI-Z223.1).
In Canada, vent installation must conform
with local building codes. In the absence of
local codes, vents must be installed in accor-
dance with the current edition of the National
Standard of Canada CAN/CGA-B149.1 or
B149.2 Installation Code.
B-500, and B-600 series fireplaces: These
modelsmustbeverticallyventedusinglisted
5 in. (127 mm) type-B, double-walled vent
pipe and a listed vent termination.
B-800 series fireplaces: These models must
bevertically ventedusinglisted 6in. (152mm)
type-B, double-walled vent pipe and a listed
vent termination.
A - Connect a 5 in. (127) mm or 6 in. (152
mm) (depending on model; see statements
above ) Type B vent system to the fireplace
flue collar with three sheet metal screws (No.
8 or larger ). See
Figure 13. Then install the
remainder of the Type B vent to the outside.
Figure 13
B - The following venting configurations may
be installed (see Figure 14):
1 - Vertical - Minimum overall height of the
vent system and appliance without an offset
must be 10' (2.54 m)
2 - With Offset -
a - Minimum overall height of the vent system
and appliance must be 12' (3.66 m) when an
offset up to 45 degrees from the vertical is
used. Thelowerpartoftheoffset maystartatthe
fireplace flue collar.
b - Minimum overall height of the vent sys-
tem and appliance must be 15' (4.57 m)
when an offset, more than 45 degrees but
less than 60 degrees from the vertical, is
used. The lower part of the offset may start
at the fireplace flue collar.
Maximum overall height of the vent system and
appliance should not exceed 40 feet (12.19 m).
Install the B-vent system in accordance with
the vent manufacturer's instructions.
CAUTION: THIS APPLIANCE CANNOT BE
VENTED HORIZONTALLY.
Note: Refer to the vent manufacturers installa-
tion instructions for variations of venting tech-
niques. If common venting of several units is
contemplated, it should be discussed with an
architect and the local Building Department.
Donot placeinsulationmaterials within1 in.
of the gas vent system.
Step 5. FIELD WIRING
Refer to Section A for millivolt appliances and
Section B for electronic appliances. The gas
valve is set in place and pre-wired at the
factory on both models.
A. SIT and Honeywell Millivolt Wiring
(See Figure 15) –
1. Select any of the following optional con-
trols: appliance-mounted (rocker switch) or
wall-mounted switch, thermostat, or one of
the optional remote control kits. If appliance-
mounted ON/OFF control is selected mount it
in the gas valve mounting bracket.
2. If wall-mounted ON/OFF control switch or
thermostatis selected mountit ina convenient
location on a wall near the fireplace.
3. Wire the control switch within the millivolt
control circuit using the 15 feet of 2 conductor
wire supplied with the unit . Caution: do not
connect the optional wall switch to a 120V
power supply.
4. Alternatively, the appliance may be oper-
ated without the use of the controls indicated
in step 1, solely by manipulating the gas valve
control knob. In order to use this method,
twist the free ends of the two conductor wire
(located in the lower compartment of the unit)
together as shown in
Figure 15 .
Note: The supplied 15 feet of 2 conductor
wire has one end of each conductor con-
nected to the gas valve circuit and the other
end of each conductor placed inside the
control compartment.
Type B-Vent 5 in. (127 mm) for
B-500 and B-600 Models or
6 in. (153 mm) for B-800 Model
Flue Outlet
Collar
Securing
Screws
Back View
Of Appliance
10 ft.
Minimum
Back View
Of Appliance
*12 ft. Min.
**15 ft. Min.
*with an offset up to 45 degrees
** with an offset greater than 45
degrees and up to 60 degrees
Honeywell and SIT Millivolt Wiring Diagram
If any of the original wire as supplied must be replaced,
it must be replaced with Type AWM105°C –18 GA. wire.
Thermopile
TH
TP TH
TP
*TWIST WIRES “A”AND “B”TOGETHER TO OPERATE UNIT
SOLELY BY MANIPULATING THE GAS VALVE CONTROL KNOB;
OR CONNECT WIRES TO OPTIONAL ON/OFF SWITCH OR WALL
SWITCH OR THERMOSTAT OR REMOTE CONTROL RECEIVER
TO OPERATE UNIT.
*OPTIONAL ON/OFF SWITCH,
WALL SWITCH, THERMOSTAT
OR REMOTE CONTROL RECEIVER
AB
LIMIT SWITCH
WT
BK
BK
BK
Schematic Representation Only
fire-parts.com

9
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
B. Electronic Wiring (See figure 17 or 18) –
Note: The electronic appliance must be con-
nected to the main power supply.
Ajunctionboxislocated attherearofthecontrol
compartment on either side of the cabinet. The
junction box on the right side contains a factory
installed and wired outlet box (duplex recep-
tacle). Also, an optional field-provided junction
box with receptacle may be installed at the front
of the control compartment on either side of the
cabinet.
See Figure 16. It will be held in place by
a conduit fitting and locknut (field-provided).
1. Route a 3-wire 120Vac 60Hz 1ph power
supply to the appliance junction box.
2. If the factory-provided outlet/junction box
at the right rear of the fireplace is being used,
removethe outletbox fromthe junction boxby
removing two screws.
3. Connect the power supply wires (including
the ground supply wire) as shown in
Figures
17 or 18.
(If the field-provided J-box/outlet
box is being used, all of the outlet box wiring
must be field-provided.)
4. Locate and install a low voltage (24V) wall-
mounted switch or thermostat (both field-
provided) in the desired location.
5. Connect the low voltage wire, located in the
lower control compartment, to the wall-
mounted switch or thermostat.
Note:Thesupplied15feetof2conductorwirehas
one end of each conductor connected to the gas
valve circuit and the other end of each conductor
placed inside the control compartment.
6. Insert the control circuit plug into the
unswitched receptacle of the outlet box.
7. After wiring is complete, mount the outlet
box to the J-Box.
Note: The gas valve-mounted ON/OFF switch is
shown in Figure 17 or 18. It is integral with the
gas valve and should be set to the ON position.
Step6.WIRING - OPTIONAL FORCED AIR
BLOWER KIT
FBK-100, FBK-200 and FBK250 Kits
(See Figure 17 for FBK-100, FBK-200 and
Figure 18 for FBK-250 wiring)
-
An electrical outlet box (receptacle) is factory -
provided for the installation of the FBK-100, FBK-
200 and FBK-250 forced air blower kits. (An
optional field-provided outletbox/J-Box may also
be used. Electrical power must be connected to
either of these receptacles in order to operate
theseblowers. Installthe blower kitsaccording to
theinstallationinstructionsprovidedwiththekits.
IMPORTANT: Ground supply wire must
be connected to the green wire attached
to the outlet receptacle's green ground
screw.See
Figure 17 or 18 . Failure to do
so will result in a potential safety haz-
ard. The appliance must be electrically
grounded in accordance with local codes
or, in the absence of local codes, the
National Electrical Code, ANSI/NFPA 70-
(latest edition). (In Canada, the current
CSA C22-1 Canadian Electrical Code.)
Note:The tab connectingthe receptacles ofthe
outletboxmustbe brokeninFBK-100and FBK-
200 blower kit applications.
Figure 17
Figure 18
Secure all joints tightly using appropri-
ate tools and sealing compounds (en-
sure propane resistant compounds are
used in propane applications).
Make gas line connections. All codes require a
shut-off valve mounted in the supply line.
Figure 19 illustrates two methods for con-
necting the gas supply. The flex-line method is
acceptable in the U.S., however, Canadian re-
quirementsvarydependingonlocality.Installa-
tion must be in compliance with local codes.
These appliances are equipped with a gas flex
linefor use (where permitted) inconnecting the
unit to the gas line. A gas flex line is provided to
aid in attaching the direct vent appliance to the
gas supply. The gas flex line can only be used
where local codes permit. See
Figure 19 for
flex line description. The flex line is rated for
bothnaturalandpropanegas.Amanualshutoff
valve is also provided with the flex line.
Step 7. CONNECTING GAS LINE
Figure 16
The gas control valve is located in the lower
control compartment. To access the valve
open the lower control compartment door
(seeFigure20) .Themillivolt controlvalvehas
a ³⁄₈" (10 mm) NPT thread inlet port. The
electronic control valve has a ¹⁄₂" (13 mm) NPT
thread inlet port and is fitted with a ¹⁄₂" X ³⁄₈"
(13mm X 10 mm) NPT fitting.
*Narrow (2 ¹⁄₈ inch Wide)
J-Box Required
See Figure 4 on page 5
for Optional Electrical
Inlet Knockout Location
*Field-Provide
Junction Box
and Duplex
Receptacle
Optional J-Box/Outlet Box
(Left Side Shown)
1. If any of the original wire as supplied must be replaced,
1. it must be replaced with Type AWM 105°C –18 GA. wire.
2. 120V, 60Hz –Less than 3 amps.
BK
Junction Box
Transf.
120 V.
24 V
Factory Wired Field Wired
BL
Electronic Wiring Diagram (Honeywell)
Showing the Blower Wiring for the Optional
FBK-100 and FBK-200 Kits
R
W
BL
OPT
BLOWER
G
W
*OPTIONAL
ACCESSORY
SWITCH
120
VAC.
BK
W
Gas Valve
B
R
IGNITER
PILOT
ASSEMBLY
Break Off
Tab
BK
G
*Blower speed control switch is provided in FBK200 blower kit.
Outlet Box
Green Ground
Screw
Hot side of Outlet
Schematic Representation Only
**ON/OFF Switch (Integral
with Gas Valve)
**Leave the ON/OFF switch, which is integral
with the gas valve, in the ON position.
Red
pigtail
Black
pigtail
White Wire
to Opposite
Side
G
LIMIT SWITCH
OPTIONAL WALL SWITCH
OR OPTIONAL THERMOSTAT OR
OPTIONAL REMOTE RECEIVER
BK BK
1. If any of the original wire as supplied must be replaced,
1. it must be replaced with Type AWM 105°C –18 GA. wire.
2. 120V, 60Hz –Less than 3 amps.
BK
Junction Box
Transf.
120 V.
24 V
Factory Wired Field Wired
BL
Electronic Wiring Diagram (Honeywell)
Showing the Blower Wiring for the Optional
FBK-250 Kits
R
BL
OPT
BLOWER
G
W
120
VAC.
BK
W
Gas Valve
B
R
IGNITER
PILOT
ASSEMBLY
BK
Outlet Box Green
Ground Screw
Hot side of Outlet
Schematic Representation Only
*ON/OFF Switch (Integral
with Gas Valve)
White Wire
To Opposite
Side
Optional FBK-250
Module
*Leave the ON/OFF switch, which is integral
with the gas valve, in the ON position.
OPTIONAL ON/OFF SWITCH,
WALL SWITCH, THERMOSTAT
OR REMOTE CONTROL RECEIVER
G
W
LIMIT SWITCH
BK BK
fire-parts.com

10 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

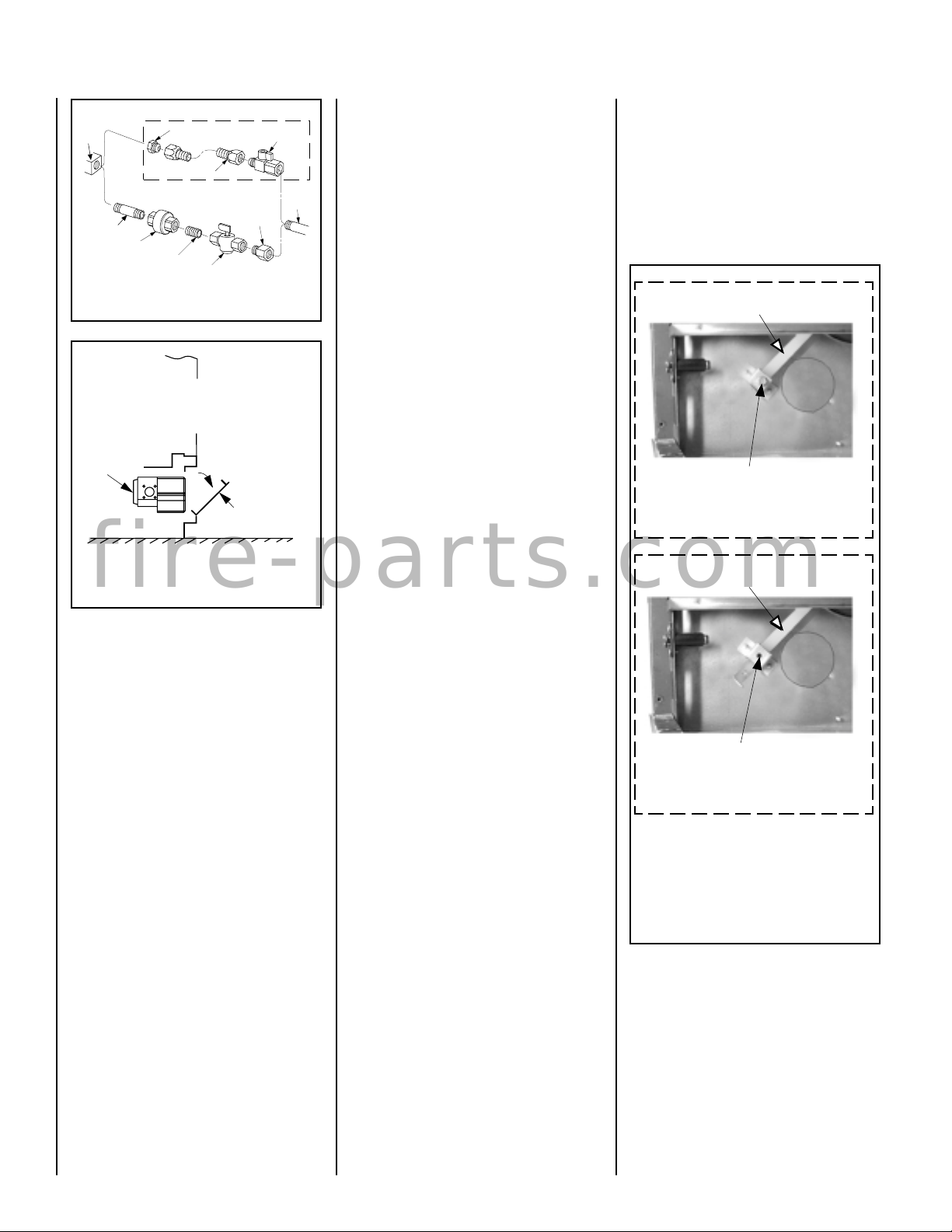

Figure 20
Figure 19- GAS CONNECTION
Turn on gas supply and test for gas leaks using
a soapy water solution. Never use an open
flame to check for leaks.
A. Mix a 50% dish soap, 50% water solution.
B. Light the appliance (refer to the lighting
instructionsprovidedintheHomeowner's Care
and Operation Instructions).
C. Brush all joints and connections with the
soapywatersolutiontocheckforleaks.Ifbubbles
are formed, or gas odor is detected, turn the gas
control knob to the “OFF” position. Either tighten
or refasten the leaking connection and retest as
described above.
D. When the gas lines are tested and leak free,
observe the individual tongues of flame on the
burner. Make sure all ports are open and pro-
ducing flame evenly across the burner. If any
ports are blocked, or partially blocked, clean
out the ports.
OPENING CONTROL
COMPARTMENT DOOR
Step 8. Outside Air Kits –Optional outside
make-up air kits, Model FOAK-4 or FAOK-4LD,
may be used with these appliances. Refer to
the installation instructions packaged with the
air kits for specific installation information. If
used, the outside air kit must be installed
before the fireplace is framed and enclosed in
the finished wall.
Outside air drawn into the fireplace supplies
air to the fire for combustion. Only one out-
side air duct is necessary, if installed. See
Figure 4 on page 5 for the location of the
unit's outside air inlet.
If additional length of duct is necessary, pur-
chase locally available U.L. Class 0 or Class 1
metallic ducting. The duct may extend up to
50' (15.24 m) in any direction.
Note: When installing the air duct vertically,
DO NOT terminate the duct closer than 3'
below the chimney top.
Outside combustion air ducting may be run
upwards or vertically through framing and
ceiling joists, with the hood installed through
an outside wall and 3' (1 m) below the termi-
nation. Ducting may also be run downward
through floor joists and under the home to a
ventilated crawlspace not considered part of
the living area of the home.
Note: Do not terminate outside air kit in attic
space under any circumstances.
CAUTION: NEVER LOCATE INLET WHERE IT
CAN BE BLOCKED BY SHRUBS, SNOW
DRIFTS, ETC. NEVER LOCATE INLET IN GA-
RAGE OR ANY AREA WHERE THERE IS AN-
OTHERFUELBURNINGAPPLIANCEORPROD-
UCTSEMITTINGCOMBUSTIBLEGASESSUCH
AS PAINT, GASOLINE, ETC. IN COLD CLI-
MATES, IT IS RECOMMENDED THE OUTSIDE
AIR DUCT BE INSULATED.
After completing the installation of the op-
tional outside air vent system the outside air
control lever must be put in service and tested
to ensure proper operation before completing
anyenclosurearoundthe firebox. Failuretodo
so may result in extensive and costly rework.
Before the operation of the vent system can be
tested, the lever securing screw must be re-
moved.
See Figure 21.
The hand operated outside air control lever is
located on the left side of the fireplace open-
ing. See Figure 21.
Figure 21
Operate the actuator through several cycles
including the closed position. Ensuring proper
operation and freedom of movement. Return
the actuator arm to the closed position.
Outside Air Control Lever
and Securing Screw Location
on Left Side of Cabinet in Lower Control
Compartment Area
To open the outside air shutter, open the
bottom control access panel, reach into the
control compartment, and pull the outside air
control lever all the way out. The outside air
shutter should be fully open when the fire-
placeis in use and completely closed when the
fireplace is not being used. Closing it when
not in use will prevent outside cold air from
entering the dwelling.
Outside Air Control Lever
Outside Air Control Lever
Securing screw
Air Shutter in Closed Position
Outside Air Control Lever
Outside Air Control Lever
Securing Screw Removed
Air Shutter in Open Position
Gas
Stub
¹₂" x
³₈" Flare
Shut-Off Valve
³₈" Flex Tubing
³₈" NPT x ³₈
Flare Fitting
³₈" Nipple
³₈"
Union
³₈" Close Nipple
³₈" Shut-Off Valve
¹₂
x ³₈ "
Reducer
Gas
Valve
Gas Flex Line Connector
Control
Valve
Lower Control
Compartment
Door
Open the lower panel or louver assembly by
pushing in the right side of the panel or louver
assembly and then lowering it forward and
down.
fire-parts.com

11
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Step 10. CHECKING APPLIANCE OP-
ERATION
With gas line installed run initial system check-
outbefore closingup the frontof theunit. Follow
the pilot lighting instructions provided in the
Homeowner's Care and Operation Instructions.
For piezo ignitor location see
Figure 22 (SIT and
Honeywell millivolt appliances only).
Note: Instructions are also found on the litera-
ture tag attached to the gas valve train.
When first lighting the appliance, it will take a few
minutes for the line to purge itself of air. Once
purging is complete, the pilot and burner will light
and operate as indicated in the instruction manual.
Subsequent lightings of the appliance will not re-
quire such purging. Inspect the pilot flame (remove
logs, if necessary, handling carefully).
Electronic Appliance Checkout
To light the burner, turn ‘ON’ the optional
remote wall switch and turn the gas control
switch to the “ON” position. Ensure the ignitor
lights the pilot. The pilot flame should engulf
the flame rod as shown in
Figure 25 .
SIT and Honeywell Millivolt
Appliance Checkout
The pilot flame should be steady, not lifting or
floating. Flame should be blue in color with
traces of orange at the outer edge.
Figure 26
INSTALLING THE GLASS DOOR
Step 11. INSTALLING THE GLASS DOOR
Retrieve the glass door. Visually inspect the
gasket on the backside of the frame. Gasket
surface must be clean, free of irregularities
and seated firmly.
Positionthe door infront of thefirebox opening
with the bottom of the door held away from the
fireplace
(Figure26) .Hook thetop flangeof the
door frame over the top of the firebox frame.
Let the bottom of the door frame swing gently
in towards the fireplace ensuring that the gas-
ket seats evenly as the door frame draws shut.
Fasten the latch located underneath the fire-
box floor to the door's vee-flange. Close the
latch securely.
WARNING: HANDLE THIS GLASS WITH
EXTREME CARE! THE GLASS PANEL IS
SUSCEPTIBLE TO DAMAGE –DO NOT
SCRATCHWHILEHANDLINGORWHILE
RE-INSTALLING THE GLASS DOOR
FRAME.
Thepackaged logs arelocated withinthe firebox.
The decorative volcanic stone and glowing em-
bers are packaged separately in plastic bags
located in the control area of the fireplace.
Figure 22
Step 9. INSTALLING LOGS, DECORATIVE
VOLCANIC STONE AND GLOWING EMBERS
Refer to the Homeowner's Care and Operation
Guidefor detailed placementinstructions for the
decorative volcanic stone. Refer to the the Log
PlacementGuidefordetailedplacementinstruc-
tions for logs and glowing embers.
The top ³⁄₈" (10 mm) at the pilot generator
(thermopile)andthetop¹⁄₈" min(tip)ofthequick
dropoutthermocoupleshouldbeengulfedinthe
pilot flame. The flame should project 1" (25 mm)
beyond the hood at all three ports (
Figure 23 -
SIT, Figure 24 - Honeywell
).
Replace logs if removed for pilot inspection.
To light the burner; turn “ON” the remote wall
switch and rotate the gas valve control knob
counterclockwise to the “ON” position.
Step 12. BURNER ADJUSTMENTS
Note- Theairshutterfortheburnerprimary air
opening is factory-set. Do not adjust the fac-
tory-set position. The factory-set position is
shown in Figure 27.
ELECTRONIC
Proper Flame
Adjustment
Pilot
Nozzle
3/8 To 1/2 Inch
(9 mm to 13 mm)
Ground
Electrode
Flame Rod
Hot Surface
Igniter
Figure 25
Figure 23
Figure 24
MILLIVOLT
Thermocouple
Hood Ignitor Rod
³⁄₈" Min
(9 mm)
Thermopile
Pilot
Nozzels
¹⁄₈" Min
(3 mm)
Thermocouple
Ignitor Rod
Hood
³⁄₈" Min
(9 mm)
Thermopile
MILLIVOLT HONEYWELL
Pilot
Nozzels
Sit and Honeywell Millivolt Gas Valve
Showing Piezo Ignitor Location
(Each Unit is Equipped with Only One of
these Gas Valves)
Piezo
Ignitor
SIT Gas Valve
Honeywell
Gas Valve
Latch Glass Door
Firebox Floor
Bottom Vee-flange
Door Frame
Top Flange
Door Frame
fire-parts.com

12 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Step 14. HOOD INSTALLATION
All of these appliances must have a hood
installed prior to operating on the side with
a glass enclosure panel.
On all clean face units, slide the hood into
the slot on the lower edge of the radiant panel
(see Figure 30).
On louvered face units, slide the hood into
the slots on the lower edge of the cabinet top
( see Figure 31 ).
Figure 27
Step 13. SPILLAGE TEST
After appliance installation, perform this spill-
age test to verify that proper venting condi-
tions exist:
1- Place unit in its normally-operated con-
dition,that is, with theglass enclosure panel
in place.
2 - Close all doors and windows in the
room. Turn on all exhaust fans in the house.
3- Light the appliance.
4- Wait 15 minutes.
5- To check for venting action, start by
holding a smoke producing device within an
inch of one edge (side edge, not top or
bottom edge) of one glass enclosure panel.
Thesmokeshouldbe drawntowardtheedge
of the glass enclosure panel. Continue the
test by moving the smoke producing device
along the entire length of both side-edges of
the glass door.
6- If the smoke is not drawn towards the
edges of the glass door turn off the appli-
anceandcallaqualifiedservicetechnican.
Manually-Reset Safety Limit Switch
This appliance is equipped with a manually-
resetblocked flue safety limitswitch. Refer to
Figure28 forits location.If, duringappliance
operation, the flame goes out (independently
of the burner on/off wall switch), it may be
duetothe operationof this safetylimit switch.
First allow the appliance to cool. Remove
top louver panel. Then reset the safety limit
switch by pushing the red reset button, lo-
cated between the wire terminals, on the back
of the switch. See Detail A of Figure 28 for
location.
The appliance should then relight and remain
lit. Reinstall top louver panel. If the appliance
does not relight, turn off the appliance and
call for a qualified service technician.
Toreplacetheblockedfluesafetylimitswitch
refer to Figure 28 (Details B and C):
NOTE - This procedure should only be per-
formed by a qualified service technician.
Important - Turn electrical power off before
beginning this procedure.
1 - Lowerthe bottom controlcompartment
access panel. Remove the glass enclo-
sure panel: open the latch (located in
the center of the unit front opening,
under the firebox floor) securing the
glass enclosure panel. Remove the
panel by tilting it outward at the bottom
and lifting it up. Set the door aside
protecting it from inadvertent damage.
See Figure 26 on page 11.
2- Remove the lintel securing screws (3)
and then remove the lintel. One of the
lintel cabinet top holes is shown in
Figure 28 (Detail B) .
3- Remove the scoop securing screws
(3) and then remove the scoop. See
Figure 28 (Detail B) .
4- Remove the safety switch bracket secur-
ingscrews(2),andpulltheswitch/bracket
assembly, with low voltage wires at-
tached, through the side panel slot into
the firebox. See
Figure 28 (Detail C) .
5- Replace the switch.
6- Reinstall the switch/bracket assembly.
7 - Reinstall the scoop and lintel.
8 - Reinstall the glass enclosure panel.
9 - Raise the bottom control compartment
access panel.
10 - The appliance should then relight and
remain lit. If this does not occur, check
unit for a blocked flue condition.
Figure 28
Blocked Flue Safety Limit Location
Inside View of Firebox -
Top/Right Side Intersection
Air Shutter
Venturi
Set Screw - Factory Located in the
Natural Gas Position; Relocate Set
Screw for LP/Propane Gas in the
Alternate Position. See Table below
for Air Shutter Openings for these
Set Screw Locations.
sledoM saG epyT
RIAYROTCAF GNITTESRETTUHS )mm(sehcni
005-B .taNnepo)95.1(61/1
.porP4/1nepo)53.6(
006-B .taNnepo)95.1(61/1
.porP61/5nepo)49.7(
008-B .taNdesolcylluF
.porP23/7nepo)55.5(
Detail A
Wire
Termianls
Back Of
Limit
Switch
Cabinet
Corner
Door
Frame
Fire Box Top
Limit
Limit/Bracket
Securing Screws
Lintel Securing-Screw
Hole in Cabinet Top
View Without Scoop
Scoop
Scoop Securing Screws
Fire Box Top
Lintel Securing Screw
Hole in Cabinet Top
Detail C
Detail B
fire-parts.com

13
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

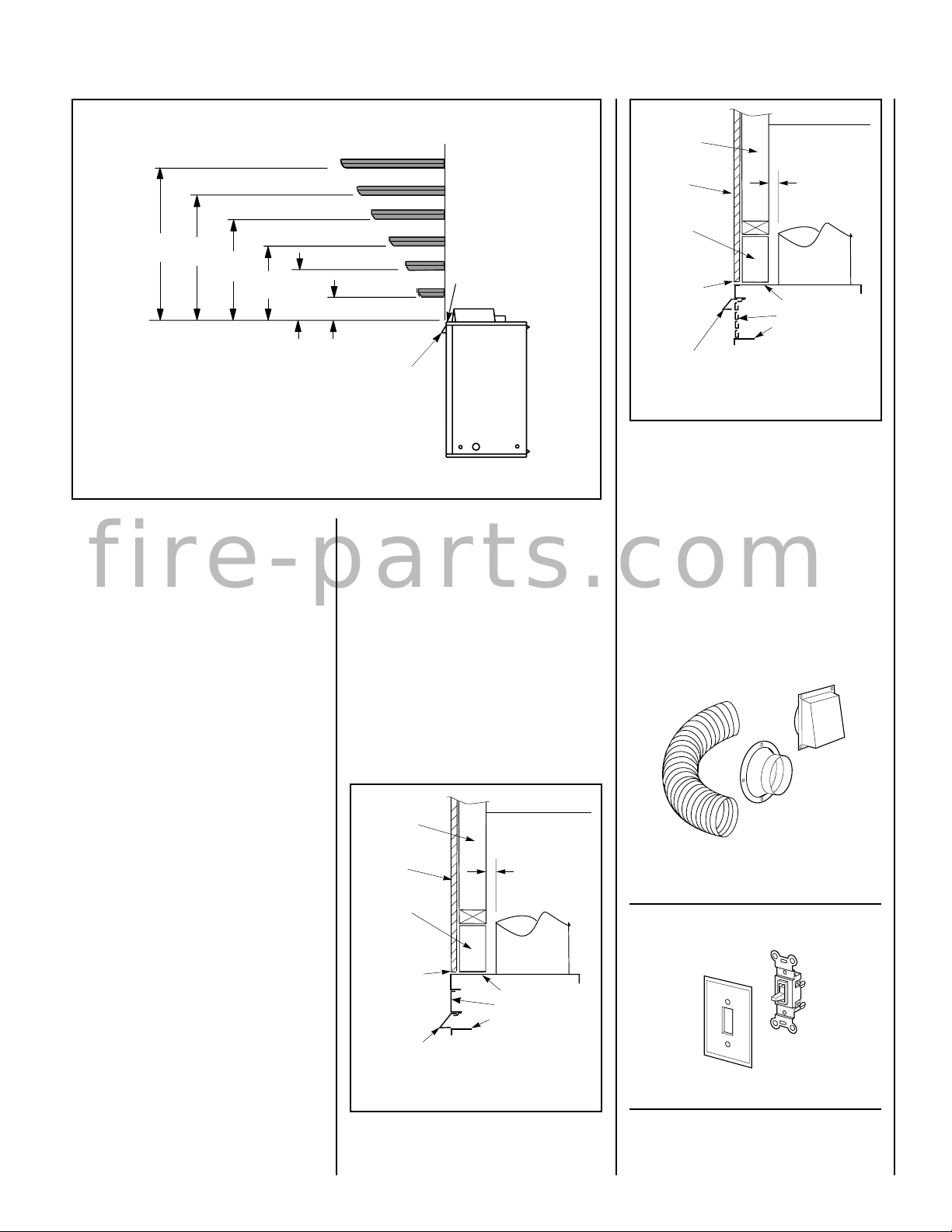

Wall Switch Kit 85L87 FWSK
Outside Combustion Air Kits
(with duct) 81L87 FOAK
(without duct) 81L88 FOAK-LD
INSTALLATION ACCESSORIES
The following accessory items are available for
use in the installation of this appliance.
OutsideAir KitsModels FOAK-4 andFOAK-4LD
Outside Air kits are available with duct
(FOAK-4) and without duct (FOAK-4LD)
for use if outside combustion air is re-
quired or desired. If model FOAK-4LD is
used it must be used in conjunction with
locally purchased, non-combustible Class
1 or Class 0 flexible duct.
Wall Switch Kit FWSK
Figure 29
A hearth extension is not required with this
appliance. If a hearth extension is used, do not
block the control compartment access panel.
Any hearth extension used is for appearance
only and does not have to conform to standard
hearth extension installation requirements.
Note: Combustible wall finish materials and/
or surround materials must not be allowed to
encroach the area defined by the appliance
front face (black sheet metal). Never allow
combustible materials to be positioned in
front of or overlapping the appliance front
face. See Figures 30 and 31.
Non-combustiblematerials,suchassurrounds
and other appliance trim, may be installed on
the appliance front face with these exceptions:
they must not cover any portion of the glass
or louvers; they must not cover any portion
of the top radiant panel and the air gaps
surrounding the top radiant panel.
Figure 30
Figure 31
Vertical installation clearances to combustible
mantelsvaryaccordingtothedepthofthemantel.
(refer to Figure 29) . Mantels constructed of non-
combustible materials may be installed at any
height above the appliance opening; however, do
not allow anything to hang below the hood.
COLD CLIMATE INSULATION
Ifyoulive in acoldclimate, sealallcracksaround
your appliance with noncombustible material
and wherever cold air could enter the room. It is
especially important to insulate outside chase
cavity between studs and under floor on which
appliance rests, if floor is above ground level.
FINISHING REQUIREMENTS
Wall Details
Complete finished interior wall. To install
the appliance facing flush with the fin-
ished wall, position framework to accom-
modate the thickness of the finished wall
(
see Figures 30 and 31 ).
12 (305) MANTEL
10 (254) MANTEL
8 (203) MANTEL
6 (152) MANTEL
4 (102) MANTEL
4
(102)
14
(356) 12
(305) 10
(254) 2 (51) MANTEL
TOP OF
APPLIANCE
6
(152)
NOTE - Hood shown as positioned
in louvered front model. The hood
position in the flush faced front model
is lower than shown.
8
(203)
MANTEL CLEARANCES
Inches (mm)
*Note - The side walls of mantels may protrude
beyond the front face of the fireplace a maximum
of 5 inches (127mm) at 0 inch clearance to the
sides of the fireplace.
Combustible
Materials May
Touch Top of Unit,
But are Not
Allowed Below
This Point
This Area Must Remain
Clear of Combustible
Materials
Top of Appliance
1" Min
(25 mm)
Combustible
Wall Framing
Spacer
Clean Face Models
Top of Door Frame
Hood must be installed as shown.
Radiant panel
Combustible Wall
Framing
Combustible
Finished Wall
Materials
Louvers
Louver Face Models
Combustible
Materials May
Touch Top of Unit,
But are Not
Allowed Below
This Point
This Area Must Remain
Clear of Combustible
Materials
Top of Appliance
1" Min
(25 mm)
Combustible
Wall Framing
Spacer
Top of Door Frame
Hood must be installed as shown.
Combustible Wall
Framing
Combustible
Finished Wall
Materials
fire-parts.com

14 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
SIT Millivolt Gas Valve
Figure 32
GAS CONVERSION KITS
In Canada:
THE CONVERSION SHALL BE CARRIED OUT
IN ACCORDANCE WITH THE REQUIREMENTS
OF THE PROVINCIAL AUTHORITIES HAVING
JURISDICTION AND IN ACCORDANCE WITH
THE REQUIREMENTS OF THE CAN1-B149.1
AND .2 INSTALLATION CODE.
LA CONVERSION DEVRA ÊTRE EFFECTUÉE
CONFORMÉMENT AUX RECOMMANDATIONS
DES AUTORITÉS PROVINCIALES AYANT
JURIDICTION ET CONFORMÉMENT AUX
EXIGENCESDUCODED'INSTALLATIONCAN1-
B149.1 ET.2.
Gas conversion kits are available to adapt your
appliance from the use of one type of gas to the
useof another. These kits containall the neces-
sary components needed to complete the task
including labeling that must be affixed to en-
sure safe operation.
Kit part numbers are listed here and the follow-
ing steps detail the conversion procedure.
Step 1. Turn off the gas supply to the appli-
ance. Remove the front glass door/frame from
the appliance. Access the control compartment.
Step 2. Carefully remove the logs. Exercise
care so as not to break the logs.
Step 3. Locatethescrewssecuringtheburner
(tray) to the appliance. Remove the burner and
retain the securing screws.
Step 4. Millivolt Appliances - SIT Systems
a. Refer to Figure 32 and the instructions
providedwith thekit. Usinga TorxT20, remove
anddiscardthethreepressureregulatormount-
ing screws. Remove the pressure regulator,
spring, poppet, diaphragm and bushing. Dis-
card all removed components. Ensure the
rubber gasket installed on the back of the re-
placement pressure regulator is properly posi-
tioned and install the new pressure regulator
using the new screws supplied with the kit.
Tighten screws to 25 In. lb. torque.
WARNING: THIS CONVERSION KIT SHALL BE
INSTALLED BY A QUALIFIED SERVICE AGENCY IN
ACCORDANCE WITH THE MANUFACTURER'S IN-
STRUCTIONS AND ALL APPLICABLE CODES AND
REQUIREMENTS OF THE AUTHORITY HAVING JU-
RISDICTION. IF THE INFORMATION IN THESE
INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A
FIRE, EXPLOSION OR PRODUCTION OF CARBON
MONOXIDE MAY RESULT CAUSING PROPERTY
DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
THE INSTALLATION IS NOT PROPER AND COM-
PLETEUNTILTHEOPERATIONOFTHECONVERTED
APPLIANCE IS CHECKED AS SPECIFIED IN THE
OWNERINSTRUCTIONSSUPPLIEDWITHTHEKIT.
THE QUALIFIED SERVICE AGENCY PERFORMING
THIS INSTALLATION ASSUMES RESPONSIBILITY
FOR THIS CONVERSION.
AVERTISSEMENT: CET ÉQUIPEMENT DE CONVERSION
SERAINSTALLÉPARUNEAGENCEQUALIFIÉEDESERVICE
CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT ET
TOUTES EXIGENCES ET CODES APPLICABLES DE
L'AUTORISÉSAVOIRLAJURIDICTION. SIL'INFORMATION
DANS CETTE INSTRUCTION N'EST PAS SUIVIE
EXACTEMENT, UN FEU, EXPLOSION OU PRODUCTION DE
PROTOXYDEDECARBONEPEUTRÉSULTERLEDOMMAGES
CAUSER DE PROPRIÉTÉ, PERTE OU BLESSURE
PERSONNELLEDEVIE. L'AGENCE QUALIFIÉEDESERVICE
EST ESPONSABLE DE L'INSTALLATION PROPRE DE CET
ÉQUIPMENT. L'INSTALLATION N'EST PAS PROPRE ET
COMPLÉTE JUSQU'ÀL'OPÉRATION DE L'APPAREIL
CONVERTI EST CHÉQUE SUIVANT LES CRITÈRES ÉTABLIS
DANS LES INSTRUCTIONS DE PROPRIÉTAIRE
PROVISIONNÉES AVEC L'ÉQUIPEMENT.
Pressure
Regulator
Remove
These
Components
-smetsySTIStlovilliM noisrevnoCsaGenaporPoTlarutaN stiK
sledoMepyTtinU.oNgolataC
005-B tlovillim95L58
006-B tlovillim06L58
008-B tlovillim16L58
-smetsySTIStlovilliM noisrevnoCsaGlarutaNotenaporP stiK
sledoMepyTtinU.oNgolataC
005-B tlovillim66L58
006-B tlovillim76L58
008-B tlovillim86L58
-smetsySllewyenoH stiKnoisrevnoCsaGenaporPoTlarutaN
sledoMepyTtinU.oNgolataC
005-B tlovillim73M11
006-B tlovillim83M11
008-B tlovillim93M11
005-B cinortcele37L58
006-B cinortcele47L58
008-B cinortcele57L58
-smetsySllewyenoH stiKnoisrevnoCsaGlarutaNotenaporP
sledoMepyTtinU.oNgolataC
005-B tlovillim43M11
006-B tlovillim53M11
008-B tlovillim63M11
005-B cinortcele08L58
006-B cinortcele18L58
008-B cinortcele28L58
fire-parts.com

15
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

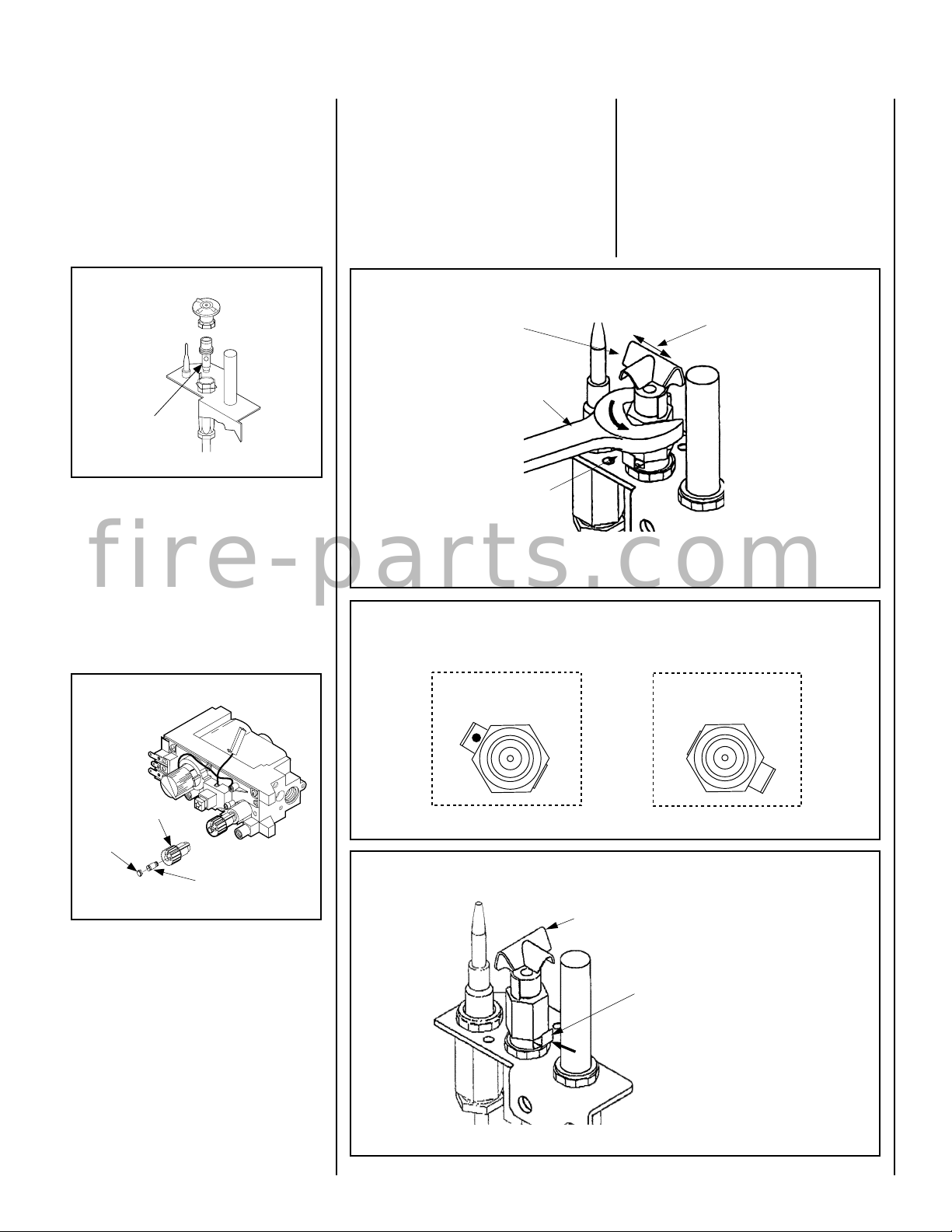

Pilot for SIT Millivolt Gas Valve
Figure 33
b. Attach manometer to the manifold side
pressure test fitting and verify manifold pres-
surereads 3.5inches watercolumn (0.87kPa)
for natural gas, and 10.0 inches water column
(2.49 kPa) for propane gas.
c. Refer to
Figure 33 and remove the pilot
hood assembly to access the hexed pilot ori-
fice. Remove and replace the orifice with the
one provided with the kit.
Step5. Millivolt Appliances -Honeywell Systems
a.
Convert the gas valve as follows
(
see Figure 34):
Removetheplasticprotectingcap. Removethe
gas type setting screw by turning it counter-
clockwise. Obtain the replacement gas type
setting screw from the kit and screw it into
place(redforpropaneandblue for naturalgas).
Tighten the gas type setting screw by turning it
clockwise. Replace the plastic protecting cap.
b.Attachmanometertothemanifoldsidepres-
sure test fitting and verify manifold pressure
reads 3.5 inches water column (0.87 kPa) for
natural gas, and 10.0 inches water column
(2.49 kPa) for propane gas.
c.
Convert the pilot orifice as follows (see
Figures 35, 36 and 37):
Note - Use extra care not to engage the
orifice strip with the 7/16" open end wrench
(contacting the orifice strip could cause strip
distortion rendering the pilot inoperative).
Also avoid wrench contact to any of the other
pilot parts.
Use a 7/16" open end wrench and turn the pilot
hex fitting counter-clockwise 1/4 turn. (See
Figure 35).
Figure 34
Pilot for Honeywell Millivolt Gas Valve
(Loosening of Hex Fitting For Orifice Strip Tab Positioning)
Pilot for Honeywell Millivolt Gas Valve
Figure 37
Note - The orifice strip tab may be randomly
located on any side of the hex fitting.
d.Push the orifice strip tab all the way against
the hex fitting to align the appropriate gas type
orifice
(see Figures 36 and 37) . The type of
gas for which the pilot is set, is, the gas type
shown on the tab.
e.Retighten, clockwise, the pilot hex fitting
until the pilot hood aligns with the thermo-
couple and thermopile as indicated by the
arrows shown in Figure 35.
Pilot for Honeywell Millivolt Gas Valve
Orifice Strip Tab Positioning
Figure 35
Figure 36
Pilot
Orifice
Adjusting Knob
Conversion screw
(blue natural gas;
red LP/propane gas)
Regulator Cap
Honeywell Millivolt Gas Valve
Natural Gas Position -
NAT shown on tab
LP/Propane Gas Position -
1/16 in. Hole, LP and
Red Color shown on tab
NAT
P
L
Orifice Strip Tab Position Identification
For LP/Propane and Natural Gas
Top View of Hex Fitting and Orifice Strip Tab
Orifice Strip Tab
Pilot Hood Position After
Loosening Hex Fitting 1/4 Turn
Push Tab to Set
Gas Type Usage
Note - Orifice Strip Tab May
Be Randomly Located On Any
Side Of The Hex Fitting
Hood Alignment
Hood
7/16 in. Open End Wrench
Orifice Strip Tab
Take Care Not to Contact the Orifice Strip Tab
with the Hex Fitting Wrench - Distortion of the Tab
May Render the Pilot Inoperative.
fire-parts.com

16 NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

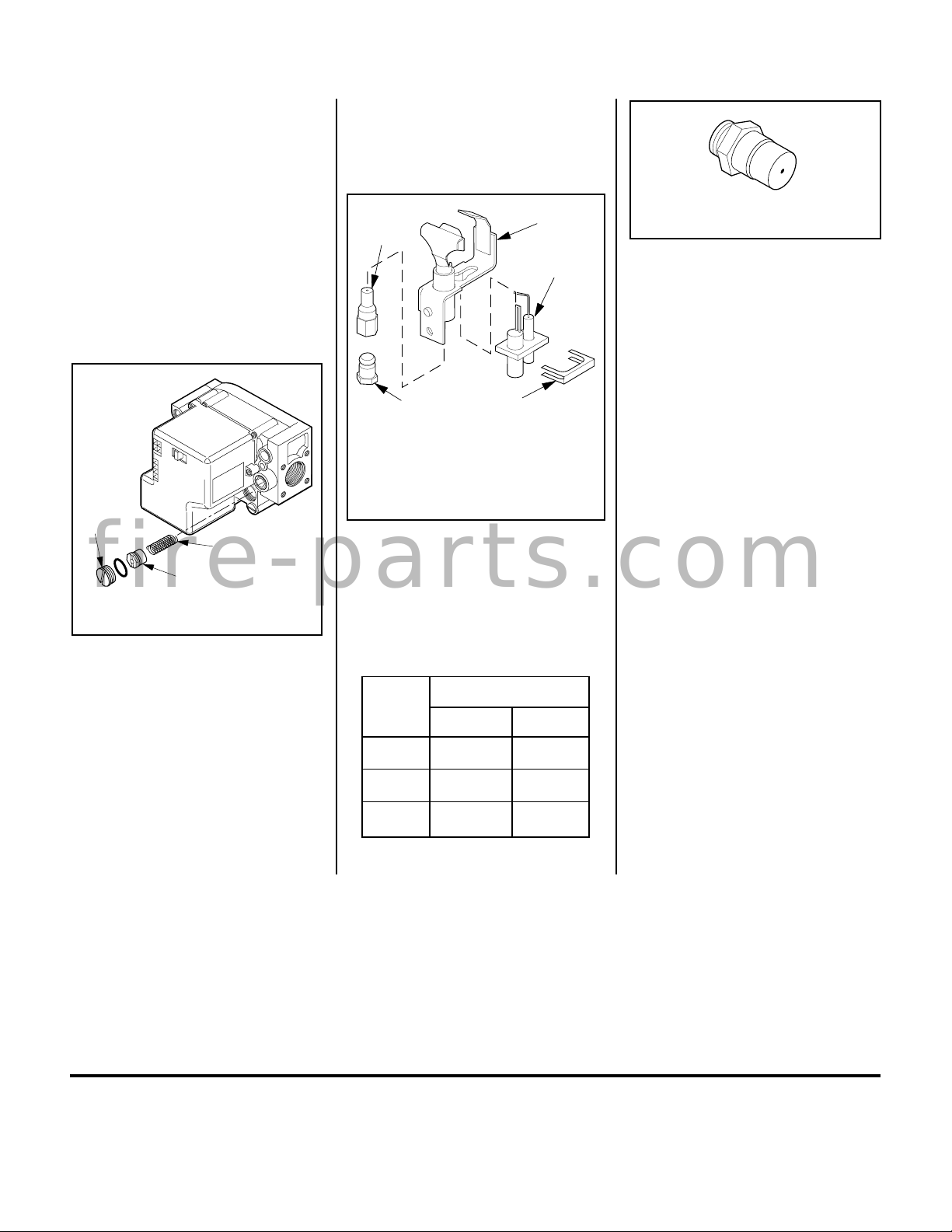

The manufacturer reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products.
Consult your local distributor for fireplace code information.
Printed in U.S.A. © 2002 by Lennox Hearth Products
P/N 700,028M REV. G 11/2004
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
LHP
1110 West Taft Avenue •Orange, CA 92865
Figure 40
Step 8. Reassembleallremovedcomponents
by reversing the procedures outlined in the
preceding steps. Use pipe joint compound or
Teflon tape on all pipe fittings before installing
(ensurepropaneresistantcompoundsareused
in propane applications, do not use pipe joint
compounds on flare fittings).
Step 9. Attach the conversion label provided
in the conversion kit to the rating plate on the
appliance.
Step 10. Turn on gas supply and test for gas
leaks.
Figure 39
When reinstalling the ignitor assembly, use
extreme care to prevent damage and break-
age. Do not apply any leverage to the ignitor
assembly while restoring the retainer clip to
its original position.
Note: If the ignitor is damaged, a replace-
ment kit is available - order Catalog Num-
ber 87L54.
All Models
Step 7. Remove the orifice from the mani-
fold and replace it with the one provided with
the kit. See the following table for orifice sizes
for natural and propane models . Figure 40
illustrated the orifice.
Figure 38
Step 6. Electronic Appliances -
Honeywell Systems
See
Figure38 andtheinstructionsprovidedwith
the kit. Remove the slotted cap screw, o-ring,
pressure-regulatingadjustingscrewand spring.
Retainall parts forpossible lateruse. Install new
components from the kit. Black cap and red
spring for propane gas units. Silver cap and
stainless steel spring for natural gas units. Be-
fore installing the cap, attach manometer to the
manifold side pressure test fitting and adjust
screw until pressure reads 3.5 inches water
column (0.87 kPa) for natural gas, and 10.0
incheswatercolumn(2.49kPa)forpropanegas.
See
Figure 39 and replace the pilot orifice as
follows: Remove the ignitor assembly retainer
clip,and carefullyremove theignitor assembly.
Exercise extreme care to prevent damage to
orbreakageof theignitor assembly. Remove
the screw securing the pilot assembly to its
mounting bracket. Back off the flare nut at the
end of the pilot gas line to free the pilot
assembly from the gas line. Remove the pilot
orifice and replace it with the one provided
with the conversion kit. Reinstall the pilot
assemblyby reversing the stepsdetailed here.
Retaining
Clip
Ignitor
Assembly
Pilot
Assembly
Pilot
Orifice
Flare Nut
Models Natural Propane
Orifice Size
B-500 0.090 in. #54
B-600 #36 #52
B-800 #33 0.065 in.
Spring
Adjusting
Screw
Slotted
Cap
fire-parts.com
