Lennox Hearth Products Symmetry SYM-35N User manual

SYM-35N SYM-40N SYM-45N
SYM-35P SYM-40P SYM-45P
Direct Vent
Symmetry™Series
OTL Report No. 116-F-51-5
Portland
MODELS
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating
plate. This appliance is not convertible for use with other gases unless a certified kit is used.
INSTALLATION INSTRUCTIONS
P/N 506023-08 Rev. D 10/2012
This manual is one of a set of two supporting this product.
Refer to P/N 506025-01 for Care and Operation Instructions.
Ce manuel est disponible en francais, simplement
en faire la demande. Numéro de la pièce 506023-08CF.
AVERTISSEMENT : Assurez-vous de bien suivre les
instructions données dans cette notice pour réduire au
minimum le risque d’incindie ou d’explosion ou pour
éviter tout dommage matériel, toute blessure ou la mort.
- Ne pas entreposer ni utilizer d’essence ni d’autres vapeurs
ou liquides inflammables dans le voisinage de cet appareil
ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :
• Ne pas tenter d’allumer d’appareil.
• Ne touchez à aucan interrupteur. Ne pas vous servir des
téléphones se trouvant dans le bâtiment où vous trouvez.
• Appelez immédiatement votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incindies.
-L’installation et l’entretien doivent être assurés par un
installateur ou un service d’entretien qualifié ou par le
fournisseur de gaz.
WARNING: If the information in these instructions
is not followed exactly, a fire or explosion may
result, causing property damage, personal injury,
or death.
-
vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
•
department.
- Installation and service must be performed by a
WARNING /AVERTISSEMENT /AVISO
• HOT GLASS WILL CAUSE
BURNS.
• DO NOT TOUCH GLASS
UNTIL COOLED.
• NEVER ALLOW CHILDREN
TO TOUCH GLASS.
• UNE SURFACE VITRÉE CHAUDE
PEUT CAUSER DES BRÛLURES.
• LAISSER REFROIDIR LA SURFACE
VITRÉE AVANT D'Y TOUCHER.
• NE PERMETTEZ JAMAIS À UN ENFANT
DE TOUCHER LA SURFACE VITRÉE.
• EL VIDRIO CALIENTE
CAUSARÁ QUEMADURAS.
• USTED DEBE NUNCA
TOCAR EL VIDRIO CALIENTE.
• LOS NIÑOS DEBEN NUNCA
TOCAR EL VIDRIO.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
INSTALLATEUR : Laissez cette notice avec l'appareil.
CONSOMMATEUR : Conservez cette notice pour
consultation ultérieure.

2
TABLE OF CONTENTS
Packaging .........................................Page 2
Introduction ......................................Page 2
General Information..........................Page 2
Requirements for the
Commonwealth of Massachusetts .Page 4
New York City Approval.....................Page 4
Cold Climate Insulation.....................Page 5
Manufactured Home Requirements ..Page 5
Location............................................Page 5
Vent Termination Clearances ............Page 6
Appliance and Vent Clearances .........Page 8
Detailed Installation Steps.................Page 9
Typical Installation Sequence ...........Page 9
Step 1. Framing.................................Page 9
Fireplace and Framing SpecificationsPage 10
Step 2. Routing Gas Line ..................Page 11
Step 3. Install the Venting System ....Page 12
Vertical Termination Systems............Page 13
Vent Section Length Chart ................Page 13
Vertical Vent Tables and Figures........Page 16
Horizontal Termination System .........Page 17
Horizontal Vent Tables and Figures ...Page 20
Venting Using Flexible Vent Pipe.......Page 23
Step 4. Field Wiring.........................Page 24
Remote Control System....................Page 25
Step 5. Connecting Gas Line...........Page 26
Step 6. Verifying Appliance OperationPage 27
Step 7. Installing Logs ...................Page 27
Step 8. Remove/Install Glass Door .Page 32
Step 9. Burner Adjustments............Page 32
Step 10. Hood Installation.................Page 34
Finishing Requirements ....................Page 34
Step 11. Attaching Safety-in-
Operation Warnings .......................Page 35
Installation Accessories ....................Page 36
Gas Conversion Kits.........................Page 38
Please read and understand these
instructions before beginning your
installation.
PACKAGING
The assembled vented gas fireplace heater is
packaged with the following:
1 - Thelogsarepackagedinfoamlocatedwithin
the firebox.
2 - One plastic bag of glowing embers, ver-
miculite, volcanic stones are located on
top of the log package.
3 - One plasticbagcontaining the literature
package, which consists of the careand
operations manual, installation instruc-
tions, warning labels and warranty. The
bag is located within the firebox, above the
log package.
4 - One vent restrictor, to be used as detailed
on page 12.
5 - Onehood(strappedtothetopoftheunit)and
onecontrol compartmentcover,installedin
the unit.
6 - One plastic bag with the remote control and
receiver kit, located inside the firebox.
INTRODUCTION
Children and adults should be alerted to the
hazards of high surface temperature and
should stay away to avoid burns or clothing
ignition.
Les enfants et les adultes devraient être infor-
mésdes dangers queposentles températures
de surface élevées et se tenir à distance afin
d’éviter des brûlures ou que leurs vêtements
ne s’enflamment.
DO NOT ATTEMPT TO ALTER OR MODIFY
THE CONSTRUCTION OF THE APPLIANCE OR
ITS COMPONENTS. ANY MODIFICATION OR
ALTERATIONMAY VOIDTHEWARRANTY,CER-
TIFICATION AND LISTINGS OF THIS UNIT.
WARNING
Young children should be care-
fully supervised when they are
in the same room as the appli-
ance. Toddlers, young children
and others may be susceptible
to accidental contact burns. A
physicalbarrierisrecommended
if there are at risk individuals in
the house. To restrict access to
a fireplace or stove, install an
adjustable safety gate to keep
toddlers, young children and
other at risk individuals out of
the room and away from hot
surfaces.
AVERTISSEMENT
Lesjeunesenfantsdevraientêtre
surveillésétroitementlorsqu’ils
se trouvent dans la même pièce
que l’appareil. Les tout petits,
lesjeunesenfantsoulesadultes
peuvent subir des brûlures s’ils
viennent en contact avec la sur-
facechaude. Ilestrecommandé
d’installerunebarrièrephysique
si des personnes à risques habi-
tent la maison. Pour empêcher
l’accès à un foyer ou à un poêle,
installez une barrière de sécu-
rité;cettemesureempêcherales
tout petits, les jeunes enfants et
toute autre personne à risque
d’avoir accès à la pièce et aux
surfaces chaudes.
GENERAL INFORMATION
These appliances are designed to operate on
natural or propane gas. An electronic intermit-
tent pilot ignition system provides safe, efficient
operation. External electrical power (110 vac)
is recommended to operate these units. If the
system operates on line voltage with 6V fan
control module, four (4) "AA" batteries can be
used as a backup in case of a power outage. The
electronic appliance can be operated without a
fan, solely with four (4) "AA" batteries.
These vented gas fireplace heaters are sealed
combustion, air-circulating gas fireplaces de-
signed for residential applications.
Approved Vent Components - These fireplaces
are designed, tested and listed for operation
and installation with, the following vent com-
ponents only:
•Secure Vent™ Direct-Vent System Compo-
nents manufactured by Security Chimneys
International,
•Secure Flex™ Flexible Vent Components
manufactured by Security Chimneys Inter-
national and
•Z-FLEX™ Model GA Venting Systems listed
to UL1777 and ULCS635 manufactured by
Flexmaster Canada Limited.
Use only the correct size venting (4-1/2" inner
and 7-1/2" outer).
These approved vent system components are
labeled for identification. DO NOT use any
other manufacturer’s vent components with
these appliances.

3
WARNING
Improper installation, adjust-
ment, alteration, service or
maintenance can cause injury
or property damage. Refer to
this manual. For assistance or
additional information consult
a qualified installer, service
agency or the gas supplier.
WARNING
Failure to comply with these
installationinstructionswillresult
in an improperly installed and
operating appliance, voiding its
warranty. Anychangetothisappli-
ance and/or its operating controls
is dangerous.
WARNING
Clothing or other flammable
material should not be placed
on or near the appliance.
AVERTISSEMENT
On ne devrait pas placer de
vêtements ni d’autres matières
inflammables sur l’appareil ni à
proximité.
WARNING
Any safety screen or guard
removed for servicing the appli-
ance must be replaced prior to
operating the appliance.
AVERTISSEMENT
Tout écran ou protecteur retiré
pour permettre l’entretien de
l’appareil doit être remis en
place avant de mettre l’appareil
en marche.
Note: Installation and repair should be done
by a qualified service person. The appliance
should be inspected before use and at least
annually by a professional service person.
More frequent cleaning may be required
due to excessive lint from carpeting, bed-
ding material, etcetera. It is imperative
that control compartments, burners and
circulating air passageways of the appliance
be kept clean.
Remarque : L’installation et la réparation
devrait être confiées à un technicien qualifié.
L’appareil devrait faire l’objet d’une inspec-
tion par un technicien professionnel avant
d’être utilisé et au moins une fois l’an par la
suite. Des nettoyages plus fréquents peuvent
être nécessaires si les tapis, la literie, et
cetera produisent une quantité importante de
pous-sière. Il est essentiel que les comparti-
mentsabritantles commandes, les brûleurset
les conduits de circulation d’air de l’appareil
soient tenus propres.
Do not use these appliances if any part
has been under water. Immediately call a
qualified, professional service technician
to inspect the appliance and to replace any
parts of the control system and any gas
control which have been under water.
Nepasutilisercetappareils’il aétéplongé,
même partiellement, dans l’eau. Ap-
peler un technicien qualifié pour inspecter
l’appareil et remplacer toute partie du
systèmedecommandeettoute commande
qui a été plongée dans l’eau.
Only trim kit(s) supplied by the manufacturer
shall be used in the installation of this ap-
pliance.
Seules les trousses de garniture fournies
par le fabricant doivent être utilisées pour
l’installation de cet appareil.
These appliances comply with National Safety
Standards and are tested and listed by OMNI-Test
Laboratories,Inc. (ReportNo.116-F-51-5)to ANSI
Z21.88 (in Canada, CSA-2.33), and CAN/CGA-
2.17-M91 in both USA and Canada, as vented
gas fireplace heaters.
Both millivolt and electronic versions of
these appliances are listed by OMNI-Test
Laboratories for installation in bedrooms
and Manufactured Homes.
WARNING
Improper installation or use of
thisappliancecancauseserious
injury or death from fire, burns,
explosions or carbon monoxide
poisoning.
Misc. Codes / Standards -
TheInstallation mustconformtolocalcodes or,
in the absence of local codes, with the National
Fuel Gas Code, ANSI Z223.1/NFPA 54 - latest
edition(InCanada,thecurrentCAN/CSA-B149.1
installation code).
The appliance, when installed, must be electri-
cally grounded and wired in accordance with
local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA
70 - latest edition, or the Canadian Electrical
Code, CSA C22.1 - latest edition.
Provide adequate clearances around air open-
ings and adequate accessibility clearance for
serviceandproperoperation.Neverobstructthe
front or back openings of the appliance.
These appliances are designed to operate on
natural or propane gas only. The use of other
fuels or combination of fuels will degrade
the performance of this system and may be
dangerous.
These fireplaces are designed as supplemental
heaters. Therefore, it is advisable to have an
alternate primary heat source when installed in
a dwelling. Refer to Table 1 for efficiencies.
Efficiencies %
Models
Natural Gas Propane
P4* Steady
State
AFUE
**
P4* Steady
State
AFUE
**
SYM-35 61.7 70.6 64.8 62.4 71.3 65.2
SYM-40 60.7 70.7 64.3 61.2 72.1 64.6
SYM-45 63.9 72.4 66.2 64.2 73.1 66.3
Table 1
*Canadian Energuide Rating
**Annual Fuel Utilization Efficiency (AFUE) is the recognized U.S.
rating system for the total efficiency of heating products.
These electronic models come standard with a
mondulating gas valve; flame appearance and
heat output can be controlled with the remote.
The BTU Input for these appliances is shown
in Table 2.
Input (BTU/HR) (all models)
Models Input Rate (BTU / HR)
Natural Gas Propane Gas
SYM-35
33,000 high
21,500 low 27,500 high 21,000 low
SYM-40
37,000 high
23,500 low 32,000 high 24,500 low
SYM-45 39,000 high
26,000 low 33,500 high 26,000 low
Table 2

4NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Test gauge connections are provided on the
front of the gas control valve (identified IN
for the inlet and OUT for the manifold side).
The control valves have a 3/8" (10mm) NPT
thread inlet and outlet side of the valve (see
Figure 1).
Propane tanks are at pressures that will cause
damage to valve components. Verify that the
tanks have step down regulators to reduce the
pressure to safe levels.
Manifold Gas Supply Pressure
(all models)
Fuel # Low High
Natural
Gas
(Lo) 1.6" WC
(0.40 kPa)
(Hi) 3.5" WC
(0.87 kPa)
Propane (Lo) 6.3" WC
(1.57 kPa)
(Hi) 10.0" WC
(2.49 kPa)
Table 4
Burner Orifice Sizes
Elevation 0-4500 feet ( 0-1372 meters)
Model
Series Nat.Gas drill size (inches) Propane drill size (inches)
SYM-35 #35 (0.110")*
21L80•
(0.062")*
21L01•
SYM-40 #32 (0.116")*
37L82•
(0.065")*
74L88•
SYM-45 (0.119")*
39L09•
(0.068")*
H7875•
Table 5
REQUIREMENTS FOR THE COMMON-
WEALTH OF MASSACHUSETTS
These fireplaces are approved for installation in
the US state of Massachusetts if the following
additional requirements are met:
• Install this appliance in accordance with
Massachusetts Rules and Regulations 248
C.M.R.
• Installationandrepair mustbedoneby a
plumber or gas fitter licensed in the Com-
monwealth of Massachusetts.
• Theexiblegasline connectorusedshall
not exceed 36 inches (92 centimeters) in
length.
• Theindividualmanualshut-offmustbea
T-handle type valve.
Massachusetts Horizontal Vent Requirements
IntheCommonwealthofMassachusetts,hori-
zontal terminations installed less than seven
(7) feet above the finished grade must comply
with the following additional requirements:
Inlet Gas Supply Pressure
(all models)
Fuel # Minimum Maximum
Natural Gas 4.5" WC
(1.12 kPa)
10.5" WC
(2.61 kPa)
Propane 11.0" WC
(2.74 kPa)
13.0" WC
(3.23 kPa)
Table 3
Gas Pressure - All Models
Tables 3 and 4 show the appliances' inlet and
manifold gas pressure requirements:
Gas Valve
Refer to Figure 1 for key gas valve features.
Orifice Sizes - Sea Level to High Altitude
(All Models)
These appliances are tested and approved for
installation at elevations of 0-4500 feet (0-1372
meters)abovesealevelusingthestandardburner
orifice sizes (marked with an "*" in Table 5).
Forelevationsabove4500feet,contactyourgas
supplier or qualified service technician .
Deration - At higher elevations, the amount
of BTU fuel value delivered must be reduced
by either:
•Usinggasthathasbeenderatedbythegas
company.
•Bychangingtheburneroricetoasmaller
size as regulated by the local authorities having
jurisdiction and by the (USA) National Fuel Gas
Code NFPA 54/ANSI Z223.1 - latest edition or,
in Canada, the CAN/CSA-B149.1 codes - latest
edition.
Installtheapplianceaccordingtotheregulations
of the local authorities having jurisdiction and,
in the USA, the National Fuel Gas Code NFPA
54 / ANSI Z223.1 - latest edition or, in Canada,
the CAN/CSA-B149.1 - latest edition.
Flame breadth, height and width will diminish
4% for every 1,000 feet of altitude.
These appliances must be isolated from the
gas supply piping system (by closing their
individual manual shut-off valve) during any
pressure testing of the gas supply piping
system at test pressures equal to or less
than 1/2 psig (3.5 kPa).
Theseappliancesandtheirindividualshut-off
valves must be disconnected from the gas
supply piping system during any pressure
testing of that system at pressures greater
than 1/2 psig (3.5 kPa).
These appliances must not be connected to a
chimney or flue serving a separate solid fuel
burning appliance.
Figure 1 SIT Proflame Valve
Orange Wire
(From DFC Wire
Harness)
Pressure
Regulator
Tower
Yellow Ground Wire
(From DFC Wire
Harness)
Green Wire
(From DFC Wire
Harness)
Line (In) Test Port
Manifold (Out)
Test Port
Connect GTMS
Wire Harness
* Standard size installed at factory
• Part /Cat. Number

5
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
• A hard wired carbon monoxide detector
with an alarm and battery back-up must be
installed on the floor level where the gas
fireplace is installed. The carbon monoxide
detector must comply with NFPA 720, be
ANSI/UL 2034 listed and be ISA certified.
• Ametalorplasticidenticationplatemust
be permanently mounted to the exterior of
thebuilding ata minimumheight ofeight (8)
feet above grade and be directly in line with
the horizontal termination. The sign must
read, in print size no less than one-half (1/2)
inch in size, GAS VENT DIRECTLY BELOW.
KEEP CLEAR OF ALL OBSTRUCTIONS.
NEW YORK CITY, NEW YORK (MEA)
Installation of these fireplaces are approved
for installation in New York City in the US state
of New York.
COLD CLIMATE INSULATION
For cold climate installations, seal all cracks
around your appliance with noncombustible
material and wherever cold air could enter
the room. It is especially important to insulate
outside chase cavity between studs and under
floor on which appliance rests, if floor is above
ground level. Gas line holes and other open-
ings should be caulked or stuffed with unfaced
fiberglass insulation.
If the fireplace is being installed on a cement
slab in cold climates, a sheet of plywood or
other raised platform can be placed underneath
to prevent conduction of cold transferring to
the fireplace and into the room. It also helps to
sheetrockinsidesurfacesandtapeformaximum
air tightness and caulk firestops.
MANUFACTURED HOME
REQUIREMENTS
This appliance may be installed in an aftermar-
ket permanently located, manufactured home
and must be installed in accordance with the
manufacturer's instructions and the Manufac-
tured Home Construction and Safety Standard,
Title 24 CFR, Part 3280, in the United States, or
the Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
Cetappareilpeut êtreinstallécómmedumatéri-
eld'originedansunemaisonpréfabriquée(É.U.
seulement) ou mobile et doit être installé selon
les instructions du fabricant et conformément
à la norme Manufactured Home Constructions
and Safety, Title 24 CFR, Part 3200 aux Unis ou
à la norme Can/CSA-Z240 Série MM, Maisons
mobiles au Canada.

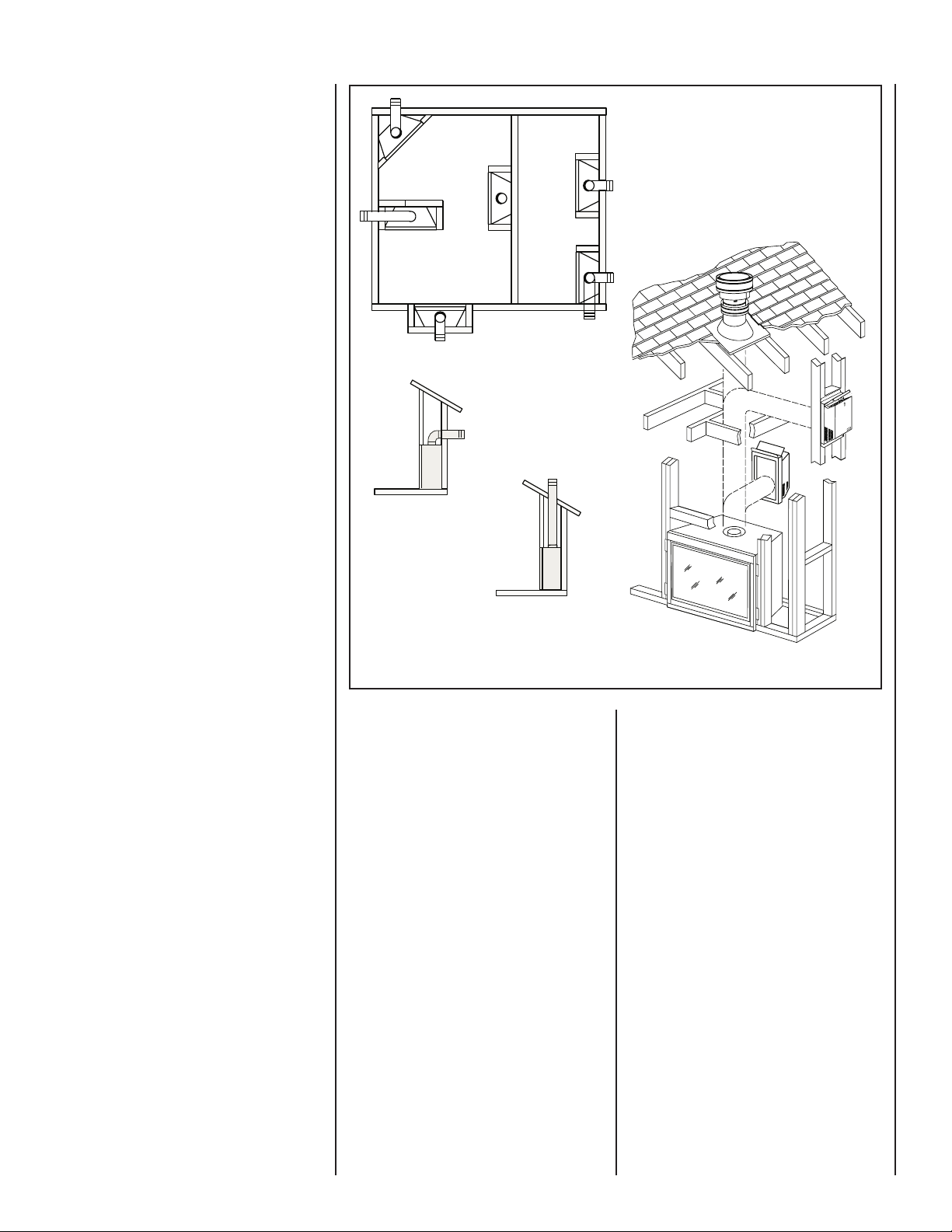

Figure 2 - Typical Locations
NOITACILPPA TNEVPOT
APPLICATION
TOP VENT
TNEVPOT NOITACILPPA
RECESSED
INSTALLATION
TOP VENT
APPLICATION
NOITACILPPA
TNEVPOT
NOITACILPPA
TNEVPOT
HORIZONTAL VENT
(Top Vent Application)
VERTICAL VENT
(Top Vent Application)
Note: When the unit is installed with one
side flush with a wall, the wall on the other
side of the unit must not extend beyond the
front edge of the unit.
LOCATION
In selecting the location, the aesthetic and
functional use of the appliance are primary
concerns. However, vent system routing to
the exterior and access to the fuel supply are
also important.
Due to high temperatures, the appliance
should be located out of traffic and away from
furniture and draperies (Figure 2).
Enraisondestempératuresélevées,l’appareil
devrait être installé dans un endroit où il y a
peu de circulation et loin du mobilier et des
tentures (Figure 2).
The location should also be free of electrical,
plumbing or other heating/air conditioning
ducting.
These direct-vent appliances are uniquely
suited for installations requiring a utility shelf
positioned directly above the fireplace. Utility
shelveslike theseare commonlyused forlocat-
ing television sets and decorative plants.
Thisapplianceisonlyforusewiththetypeofgas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.
Cet appareil doit être utilisé uniquement avec le
type de gaz indiqué sur la plaque signalétique.
Cetappareil nepeutêtreconvertià d'autresgaz,
sauf si une trousse de conversion est utilisée.
CAUTION: Ensure that the cross mem-
bers are not cut or weakened during
installation. The structural integrity of
the manufactured home floor, wall, and
ceiling / roof must be maintained.
CAUTION: This appliance must be ground-
ed to the chassis of the manufactured
home in accordance with local codes or
in the absence of local codes, with the
National Electrical Code ANSI / NFPA 70
- latest edition or the Canadian Electrical
Code CSA C22.1 - latest edition.

6NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
12
X
Roof Pitch is X/12
2 FT
MIN.
2 FT MIN.
Lowest
Discharge
Opening
H*

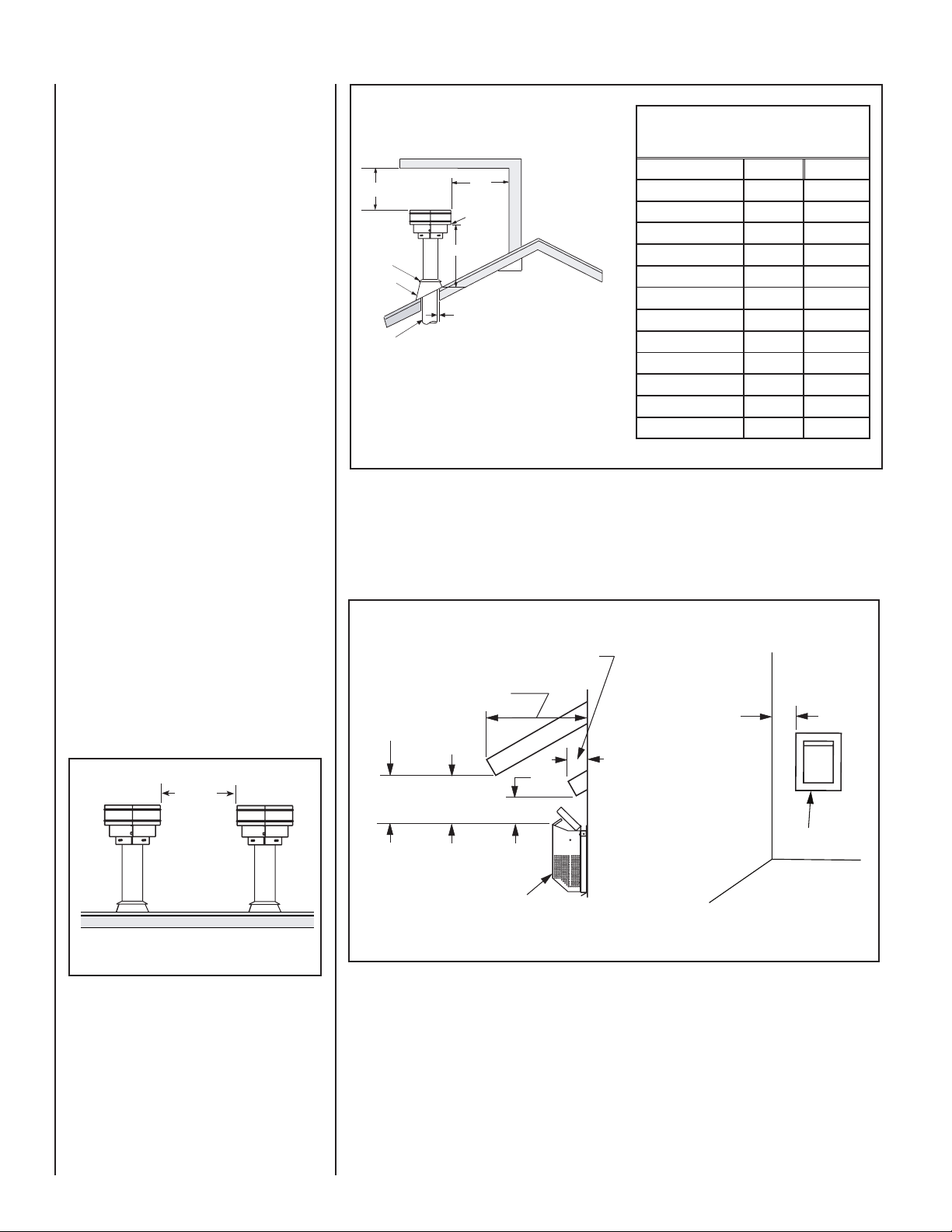

*H = MINIMUM HEIGHT FROM ROOF TO
LOWEST DISCHARGE OPENING OF VENT
TERMINATION HEIGHTS FOR VENTS ABOVE
FLAT OR SLOPED ROOFS
Horizontal Overhang
Vertical
Wall
Vent
Termination
Storm Collar
Concentric
Vent Pipe
Flashing
1 inch (25.4 mm) Minimum
Clearance to Combustibles
Figure 4
Vertical Vent Termination Clearances
VENT TERMINATION CLEARANCES
These instructions should be used as a
guideline and do not supersede local codes
in any way. Install venting according to local
codes,theseinstructions,thecurrentNational
Fuel Gas Code (ANSI-Z223.1) in the USA or
the current standards of CAN/CSA-B149.1
in Canada.
Vertical Vent Termination Clearances
Terminate multiple vent terminations according
to the installation codes listed above. Also see
Figure 3.
Terminate single vent caps relative to building
components according to Figure 4.
Note - See Figure 29 on Page 19 for the exterior wall recess
allowances of the square horizontal termination.
Termination Heights For Vents
Above Flat Or Sloped Roofs
Ref. NFPA 54 / ANSI Z223.1
Roof Pitch * Feet *Meters
Flat to 6/12 1.0 0.3
6/12 to 7/12 1.25 0.38
7/12 to 8/12 1.5 0.46
8/12 to 9/12 2.0 0.61
9/12 to 10/12 2.5 0.76
10/12 to 11/12 3.25 0.99
11/12 to 12/12 4.0 1.22
12/12 to 14/12 5.0 1.52
14/12 to 16/12 6.0 1.83
16/12 to 18/12 7.0 2.13
18/12 to 20/12 7.5 2.29
20/12 to 21/12 8.0 2.44
The vent / air intake termination clearances
above the high side of an angled roof is as
shown in the following chart:
Figure 5
6"
(152 mm)
12"
(305 mm)
Combustible Projection greater
Horizontal Vent Termination Clearances
Combustible Projection
2-1/2 inches or less in length
18"
(457 mm)
Ventilated
Soffit Unventilated
Soffit
than 2-1/2 inches in length
Termination Kit
Side Elevation View
Termination Kit
All horizontal terminations
may be located as close as
6” (152mm) to any
(non-combustible and
combustible) exterior
sidewall. This distance
may be decreased to 2”
(51mm) for non--
combustible exterior
sidewalls only, if the
SV4.5HT-2 termination
is used.
Horizontal Vent Termination Clearances
The horizontal vent termination must have a minimum of 6" (152 mm) clearance to any overhead
combustible projection of 2-1/2" (64 mm) or less (see Figure 5). For projections exceeding 2-1/2"
(64 mm), see Figure 5. For additional vent location restrictions refer to Figure 6 on Page 7.
12”
(305mm)
Minimum
Figure 3 - Multiple Terminations
Be aware that this is a heat producing ap-
pliance. Objects placed above the unit are
exposed to elevated temperatures.
Do not insulate the space between the appli-
ance and the area above it (see Figure 7 ).
Theminimumheight fromthe base ofthe appli-
ance to the underside of combustible materials
used to construct a utility shelf in this fashion
is shown in Figure 7.
The appliance should be mounted on a fully
supported base extending the full width and
depth of the unit. The appliance may be located
onor nearconventionalconstructionmaterials.
However, if installed on combustible materials,
such as carpeting, vinyl tile, etc., a metal or
woodbarriercoveringtheentirebottomsurface
must be used.

7
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
EXTERIOR HORIZONTAL VENT TERMINATION CLEARANCE REQUIREMENTS
Figure 6
V
VV
V
V
F
C
Fixed
Closed
Window
Operable
Window
B
B
A
B
H
M
I
= Area where Termination is not Permitted
= Air Supply Inlet
X= Vent Termination
V
D
V
3 ft.
3 ft.
AA
A
= 9” in U.S.
= 12” in Canada
V
L
B
J
X
V
A
G
Inside
Corner Detail
B
C
C
C
*18”
Ventilated Soffit
Horizontal
Termination
Detail D
Exterior Wall
6”
Inside Corner
* See Item D in the Text Below.
V
P
V
O
NN
Q
NOTE: Local Codes Or Regulations
May Require Different Clearances.
NOTE: Location Of The Vent Termination
Must Not Interfere With Access To The
Electrical Service.
E
*noitallatsnInaidanaC**noitallatsnISU
.ynoclabro,kced,hcrop,adnarev,edargevobaecnaraelC=A *)mc03(sehcni21**)mc03(sehcni21
.denepoebyamtahtroodrowodniwotecnaraelC=B secnailpparof)mc51(sehcni6
)mc03(sehcni21,)Wk3(hutB000,01<
)Wk3(hutB000,01>secnailpparof
secnailpparof)mc51(sehcni6
)mc32(sehcni9,)Wk3(hutB000,01<
dna)Wk3(hutB000,01>secnailpparof
)mc03(sehcni21,)Wk51(hutB000,05<
**)Wk51(hutB000,05>secnailpparof
wodn
iwdesolcyltnenamrepotecnaraelC=C otdednemmocer)mm503(sehcni21
noitasnednocwodniwtneverp
otdednemmocer)mm922(sehcni9
noitasnednocwodniwtneverp
ehtevobadetacoltiffosdetalitnevotecnaraelclacitreV=D
)mm854(sehcni81foecnatsidlatnozirohanihtiwnoitanimret
noitanimretehtfoenilretnecehtmorf
)mm854(sehcni81)mm854(sehcni81
***tiffosdetalitnevnuotecnaraelC=E )mm503(sehcni21)mm503(sehcni21
renrocedistuootecnaraelC=F muminim
)mc7.21(sehcni5muminim)mc7.21(sehcni5
renrocedisniotecnaraelC=G 2-TH5.4VS-muminim)mc80.5(sehcni2 2-TH5.4VS-muminim)mc80.5(sehcni2
evobadednetxeenilretnecfoedisnihcaeotecnaraelC=H
ylbmessarotaluger/retem
teef51fothgiehanihtiw)mc19(teef3
*ylbmessarotaluger/retemehtevoba
teef51fothgiehanihtiw)mc19(teef3
**ylbmessarotaluger/retemehtevoba
teltuotnevrotalugerecivresotecnaraelC=I *)mc19(teef3**)mc19(teef3
rognidliubot
telniylppusrialacinahcemnonotecnaraelC=J
ecnailpparehtoynaottelnirianoitsubmoceht
secnailpparof)mc51(sehcni6
)mc03(sehcni21,)Wk3(hutB000,01<
)Wk3(hutB000,01>secnailpparof
secnailpparof)mc51(sehcni6
)mc32(sehcni9,)Wk3(hutB000,01<
dna)Wk3(hutB000,01>secnailpparof
)mc03(sehcni21,)Wk51(hutB000,05<
**)Wk51(hutB000,05>secnailpparof
telniylppusrialacinahcemaotecnaraelC=K *)m38.1(teef6 teef01nihtiwfievoba)mc19(teef3
*
*yllatnoziroh)m3(
detacolyaweviddevaproklawedisdevapevobaecnaraelC=L
ytreporpcilbupno
‡)m31.2(teef7‡)m31.2(teef7
ynoclabrokced,hcrop,adnarevrednuecnaraelC=M ‡*)mc03(sehcni21‡)mc03(sehcni21
)mumixaM(evoclAfohtpeD=N *)m38.1(teef6**)m38.1(teef6
)evoclA(noitanimreTotecnaraelC=O *)mm2.51(sehcni6**)mm2.51(sehcni6
)muminiM(evoclAfohtdiW=P *)mc19(teef3*)mc19(teef3
)evoclA(evobAelbitsubmoCotecnaraelC=Q *)mm754(sehcni81**)mm7
54(sehcni81
.edoCnoitallatsnIenaporPdnAsaGlanoitaN1.941B-ASCtnerrucehthtiwecnadroccanI*
.sedoCsaGleuFlanoitaN45APFN/1.322ZSISNAtnerucehthtiwecnadroccanI**
.muminim)mc67(sehcni03-lairetamtiffoslynivotderiuqerecnaraelC***
htobsevresdnasgnillewdylimafelgnisowtneewtebdetacolsihcihwyawevirddevaproklawedisaevobayltceridetanimrettonllahstnevA‡
.sgnillewd
.roolfehthtaenebsedis2muminimanonepoyllufsiynoclabrokced
,hcrop,adnarevfidettimrepylnO‡*

8NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
5(127)
8-1/4
(209)
14
(356)
12 (305)
17 (431)
*Shelf Height
(see table)
Do not insulate the
space between the
appliance and the
area above it.
Shelf Above Fireplace With TopVenting
6 (152)
2
(51)
4
(102)
6
(152)
8
(203)
10
(254)
12
(305)
8 (203)
12 (305)
16 (457)
14 (356)
10 (254)
Top of
Appliance
inches (millimeters)
Mantel Depth
Figure 8 - Minimum Mantel Clearances
Header
Model No. Combustible Shelf Height - Inches (millimeters)
Top Vent - with One 90 Degree Elbow
Secure Vent Secure Flex (flex elbow)
SYM-35
SYM-40
SYM-45
*63-1/8 (1603) *64-7/8 (1648)
Figure 9 - Minimum Distance to Unprotected Side Wall
Top View of
Fireplace
45o
Protected wall shown in white
Inches (millimeters)
MINIMUM CLEARANCES TO COMBUSTIBLES
Appliance And Vent Clearances
Theapplianceis approvedwithzeroclearancetocombustiblematerialson
all sides (as detailed in Table 6 ), with the following exception: When the
unit is installed with one side flush with a wall, the wall on the other
side of the unit must not extend beyond the front edge of the unit. In
addition, when the unit is recessed, the side walls surrounding the unit
must not extend beyond the front edge of the unit (see Figure 2).
*Note: 3 in. (76 mm) above any horizontal/inclined vent component.
**Note: See Page 9, Step 1 for clearance requirements to the nailing
flange located at each side of the unit and any screw heads adjacent
to it.
HearthExtension -Ahearthextension isnotrequiredwiththisappliance.
If a hearth extension is used, do not block the lower control compartment
door. Any hearth extension used is for appearance only and does not have
to conform to standard hearth extension installation requirements.
ShelfHeight-Toprovideforthelowestpossibleshelfsurface,theventing
attachedtothe topventshouldberoutedinawayto minimizeobstructions
to the space above the appliance. Do not insulate the space between the
appliance and the area above it (see Figure 7). The minimum height from
the base of the appliance to the underside of combustible materials used
to construct a utility shelf in this fashion is shown in Figure 7.
Wall Finishes / Surrounds / Mantels
Note: Combustible wall finish materials and/or surround materials
must not be allowed to en-croach the area defined by the appliance
front face (black sheet metal). Never allow combustible materials
to be positioned in front of or overlapping the appliance face (see
Figure 9 and Figure 50 on Page 34).
Non-combustible materials, such as surrounds and other appliance trim,
may be installed on the appliance face with these exceptions: they must
not cover any portion of the removable glass panel.
Vertical installation clearances to combustible mantels vary accord-
ing to the depth of the mantel. See Figure 8. Mantels constructed of
non-combustible materials may be installed at any height above the
appliance opening; however, do not allow anything to hang below the
fireplace hood.
* Includes 3” clearance to
combustibles (required above
vent components)
Combustiblematerialsmay
project beyond one side
of the fireplace opening
as long as they are kept
within the shaded areas
illustrated here.
Combustible Materials
Allowed In Shaded Area
“Safe Zone”
Combustible Walls
shown in dark gray
At 14" minimum
side wall clearance,
a combustible wall
can project to any
length.
At 8-1/4" side
wall clearance, a
combustible wall
can project 12"
Figure 7 - Shelf Height Minimum Clearances With Top Venting
MINIMUM CLEARANCES*Inches (millimeters)
Back 1 in. (25.4) to wrapper
0 (0) to Spacers
Sides 1 in. (25.4) to wrapper
0 (0) to Spacers **
Top Spacers 0 (0)
Floor 0 (0)
From Bottom of Unit To Ceiling 64 (1626)
Vent 3 (76) Top* / 1 (25.4) Sides & Bottom
SERVICE CLEARANCES Feet (meters)
Front 3 feet (0.9 meters)
Table 6

9
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
WARNING
Failure to position the parts in
accordance with these diagrams
orfailure to use only parts specifi-
callyapprovedwiththisappliance
may result in property damage or
personal injury.
AVERTISSEMENT
Risque de dommages ou de
blessures si les pièces ne sont
pas installées conformément à
ces schémas et ou si des pièces
autres que celles spécifiquement
approuvéesaveccetappareilsont
utilisées.
Figure 10
REMOVE
CARDBOARD
BEFORE USING
Pressure Relief
Plates
Remove Cardboard Before
Using Appliance
REMOVE
CARDBOARD
BEFORE USING
DETAILED INSTALLATION STEPS
The appliance is shipped with all gas controls
and components installed and pre-wired.
1.Remove the shipping carton. Remove the
shipping pad, exposing the front glass
door.
2.Open the two latches (located under the fire-
box floor) securing the glass door. Remove
the door by tilting it outward at the bottom
and lifting it up. Set the door aside protecting
it from inadvertent damage. See Removing
and Installing Glass Doors on Page 32.
3.Remove the top louvered panel and locate
the pressure relief plates (see Figure 10).
4.Lift the pressure relief plates and remove
the cardboard from beneath each plate (be
careful not to damage the white gasket).
Figure 11 - Nailing Flanges
Note: The nailing flanges, combustible members
and screw heads located in areas directly adjacent
to the nailing flanges, are EXEMPT from the 1/2”
clearance to combustible requirements for the
firebox outer wrapper. Combustible framing may be
in direct contact with the nailing flanges and may
be located closer than 1/2” from screw heads and
the firebox wrapper in areas adjacent to the nailing
flanges. Frame the opening to the exact dimensions
specified in the framing details of this manual.
Nailing Flanges Are
Provided At All Four
Corners At 5/8”, 1/2”
And Flush Settings
Side
Framing
Unit
Nailing Flange
Left Side Front Corner of Fireplace Shown
(Right Side Requirements the Same)
Unit Being Secured By Its Nailing Flanges
To The Framing
Step 1. FRAMING
Frametheseappliances asillustrated inFigures
12 and 13 on Pages 10 and 11 (Figure 13
applies to corner framing installations only).
All framing details must allow for a minimum
clearance to combustible framing members as
shown in Table 6 on Page 8.
Iftheappliance isto beelevated abovefloor level,
asolidcontinuousplatformmustbeconstructed
below the appliance.
Headers may be in direct contact with the appli-
ancetopspacerswhentheyarebentupvertically
maintainingthe3" clearancetothefireplacetop,
but must not be supported by them or notched
to fit around them. All construction above the
appliancemustbeself-supporting. DONOTuse
the appliance for structural support.
The fireplace should be secured to the side
framing members using the unit's nailing
flanges - one top and bottom on each side of
the fireplace front. See Figure 11. Use 8d nails
or their equivalent.
Left Side Front Corner of Fireplace Shown
(Right Side Requirements the Same)
Unit Being Secured By Its Nailing
Flanges To The Framing
NOTE: The nailing flanges, combustible mem-
bers and screw heads located in areas directly
adjacenttothe nailingflanges,are EXEMPTfrom
the 1/2” clearance to combustible requirements
forthefirebox outerwrapper. Combustiblefram-
ing may be in direct contact with the nailing
anges and may be located closer than 1/2”
from screw heads and the firebox wrapper in
areas adjacent to the nailing flanges. Frame
the opening to the exact dimensions specified
in the framing details of this manual.
TYPICAL INSTALLATION SEQUENCE
The typical sequence of installation is outlined
below. However, each installation is unique
and may result in variations to the steps
described.
See the page numbers references in the follow-
ing steps for detailed procedures.
Step 1. (Page 9) Construct the appliance
framing. Positiontheappliancewithin
the framing and secure with nailing
brackets. Bend out the appropriate
nailing flanges for the drywall/finish
material to be used. Nailing flanges
are provided for flush framing, 1/2
inchand 5/8 inchframingdepths(see
Figure 11).
Step 2. (Page 11)Route gas supply line to
appliance location.
Step 3. (Page 12)Install the vent system and
exterior termination.
Step 4. (Page 24)Field Wiring.
Step 5. (Page 26)Make connection to gas
supply.
Step 6. (Page 27)Verifying appliance opera-
tion.
Step 7. (Page 27)Install the logs, decorative
volcanic stone and glowing embers.
Step 8. (Page 32) Removing and Installing
glass door assembly.
Step 9. (Page 32) Adjust burner to ensure
proper flame appearance.
Step 10. (Page 34) Install the hoods.
Step 11. (Page 35) Attach Safety in Operation
Warnings.

10 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
FIREPLACE AND FRAMING SPECIFICATIONS
Vent Size
Co-axial DV
Vent Size
4-1/2" Inner
7-1/2" Outer
Vertical Venting Through the Ceiling:
Frame ceiling opening -Use a plumb line from the ceiling above the appliance to
locate center of the vertical run. Cut and/or frame an opening, 10-1/2" x 10-1/2" (267
mm x 267 mm) inside dimensions, about this center mark (see Figure 17).
Notes
Diagrams, illustrations and photo-
graphs are not to scale – consult
installation instructions. Product
designs, materials, dimensions,
specifications, colors and prices are
subject to change or discontinuance
without notice.
Input (BTU/HR) - MV & Electronic
Natural & Propane Gas
Models Input Rate (BTU / HR)
SYM-35N 33,000
SYM-35P 27,500
SYM-40N 37,000
SYM-40P 32,000
SYM-45N 39,000
SYM-45P 33,500
Viewable Glass Size
35" Model 29-1/4" Wide
20-1/4" High
40" Model 34-1/4" Wide
25-1/4" High
45" Model 39-1/4" Wide
25-1/4" High
Figure 12
Framing
A
BD
7
(178)
5-1/8 12-1/8
(308)
10-1/2
(267)
C
(130)
A
1/2
Framing Dimensions
Model No. A B C D
SYM-35 in. 35-9/16 40-5/16 21-7/16 56-1/2
mm 903 1024 545 1435
SYM-40 in. 40-9/16 40-5/16 21-7/16 56-1/2
mm 1030 1024 545 1435
SYM-45 in. 45-9/16 40-5/16 21-7/16 56-1/2
mm 1157 1024 545 1435
Vent Framing - Top Vent
With One 90° Elbow
Cistherequiredframingdepthdimensionwhenthefin-
ish material (drywall) thickness is 1/2 in. (13mm)
Inches (millimeters)
Framing should be
constructed of 2x4 or
larger lumber
TOP VIEW
FLUE OUTLET
- 41/2 (114)
COMBUSTION AIR
- 71/2 (190)
F
G
10-1/2
(267)
FRONT VIEW
D
E
AB
H
7-5/8
(194)
C
ELECTRICAL
INLET
20-15/16
(532) 1(25.4)
RIGHT SIDE VIEW
EYEBROW HOOD
(OPTIONAL)
2-1/4
(57)
6-1/2 (165)
GAS INLET
(LEFT SIDE ONLY)
NOTE: - The gas is to be stubbed in from the left side ONLY.
Efficiencies %
Models
Natural Gas Propane
P4* Steady
State
AFUE
**
P4* Steady
State
AFUE
**
SYM-35 61.7 70.6 64.8 62.4 71.3 65.2
SYM-40 60.7 70.7 64.3 61.2 72.1 64.6
SYM-45 63.9 72.4 66.2 64.2 73.1 66.3
ledoM
.oN AB CDEF
GH
53-MYS .ni8/1048/1738/5528/1928/1532/11
24
/30
12
/123
mm190134915604729864537
25
28
04-MYS .ni8/1048/1738/5528/1438/1042/16
24
/33
12
/123
mm1901349156768910157673
35
28
54-MYS .ni8/1048/1738/5528/1938/1542/11
34
/35
12
/123
mm1901349156499641120810
45
28

11
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
FIREPLACE FRAMING SPECIFICATIONS
Figure 13 - Corner Framing with Horizontal Termination
Schedule 40
Black Iron Pipe
Inside Diameter (Inches)
Schedule 40 Pipe
Length (feet)
Natural
Gas
Propane
Gas
0-10 1/2 3/8
10-40 1/2 1/2
40-100 1/2 1/2
100-150 3/4 1/2
150-200 3/4 1/2
Table 7
Notes:
• All appliances are factory-equipped with a
flexible gasline connector and1/2 inchshutoff
valve (see Figure 36 on Page 26).
• SeeMassachusetts Requirements on Page 4
for additional requirements for installations in
the state of Massachusetts in the USA.
• ThegassupplylineshouldNotbeconnected
to the appliance until Step 5 (Page 26).
• Apipejointcompoundratedforgasshouldbe
used on the threaded joints. Ensure propane
resistant compounds are used in propane
applications. Be very careful that the pipe
compound does not get inside the pipe.
• Itisrecommendedtoinstallasedimenttrap
in the supply line as close as possible to the
appliance. Appliances using Propane should
have a sediment trap at the base of the tank.
• Checkwithlocalbuildingofcialforlocalcode
requirements(i.e.arebelowgradepenetrations
of the gas line allowed?, etc).
IMPORTANT: If propane is used, be aware that
if tank size is too small (i.e. under 100-lbs, if
this is the only gas appliance in the dwelling.
Ref. NPFA 58), there may be loss of pressure,
resulting in insufficient fuel delivery (which
can result in sooting, severe delayed ignition
or other malfunctions). Any damage resulting
from an improper installation, such as this, is
not covered under the limited warranty.
Proper Sizing of Gas Line
Properly size and route the gas supply line
from the supply regulator to the area where the
appliance is to be installed per requirements
outlined in the National Fuel Gas Code, NFPA
54 - latest edition (USA) or CAN/CSA-B149.1
- latest edition (Canada).
Also see Figure 12.
Figure 14 - Route Gas Line
Step 2. ROUTING GAS LINE
Route a 1/2" (13 mm) gas line to the left side
of the appliance as shown in Figure 14. Gas
lines must be routed, constructed and made
of materials that are in strict accordance with
local codes and regulations. All appliances
are factory-equipped with a flexible gas line
connector and 1/2 inch shutoff valve. (See
Step 5 on Page 26).
Never use galvanized or plastic pipe. Refer to
Table 7 for proper sizing of the gas supply line,
if black iron pipe is being used. Gas lines must
be routed, constructed and made of materials
that are in strict accordance with local codes
and regulations.
We recommend that a qualified individual such
as a plumber or gas fitter be hired to correctly
size and route the gas supply line to the appli-
ance. Installing a gas supply line from the fuel
supply to the appliance involves numerous
considerations of materials, protection, siz-
ing, locations, controls, pressure, sediment,
and more. Certainly no one unfamiliar and
unqualified should attempt sizing or installing
gas piping.
Note-
Venting requirements for corner installations - the horizontal
vent length “a” to “b,” must not exceed 28 inches (711 mm).
Inches
(millimeters)
*These dimensions occur when one 45 degree elbow
is connected directly to the appliance collar.
*C
Back wall of chase/enclosure
(including any finishing materials)
a
*E
*D
A
*B
7 (178)
b
Left Side Front
Corner of Fireplace
Framing
6-1/2"
(152 mm)
2-1/4"
(57 mm)
ledoM
.oN ABCD E
53-MYS .ni61/3538/5365461/75
16
1/3113
mm2983411341129
38
07
04-MYS .ni61/3048/5862/1844/17
18
/343
mm12013471232183
43
78
54-MYS .ni61/3548/537259
14
/363
mm84110781123138
43
39

12 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

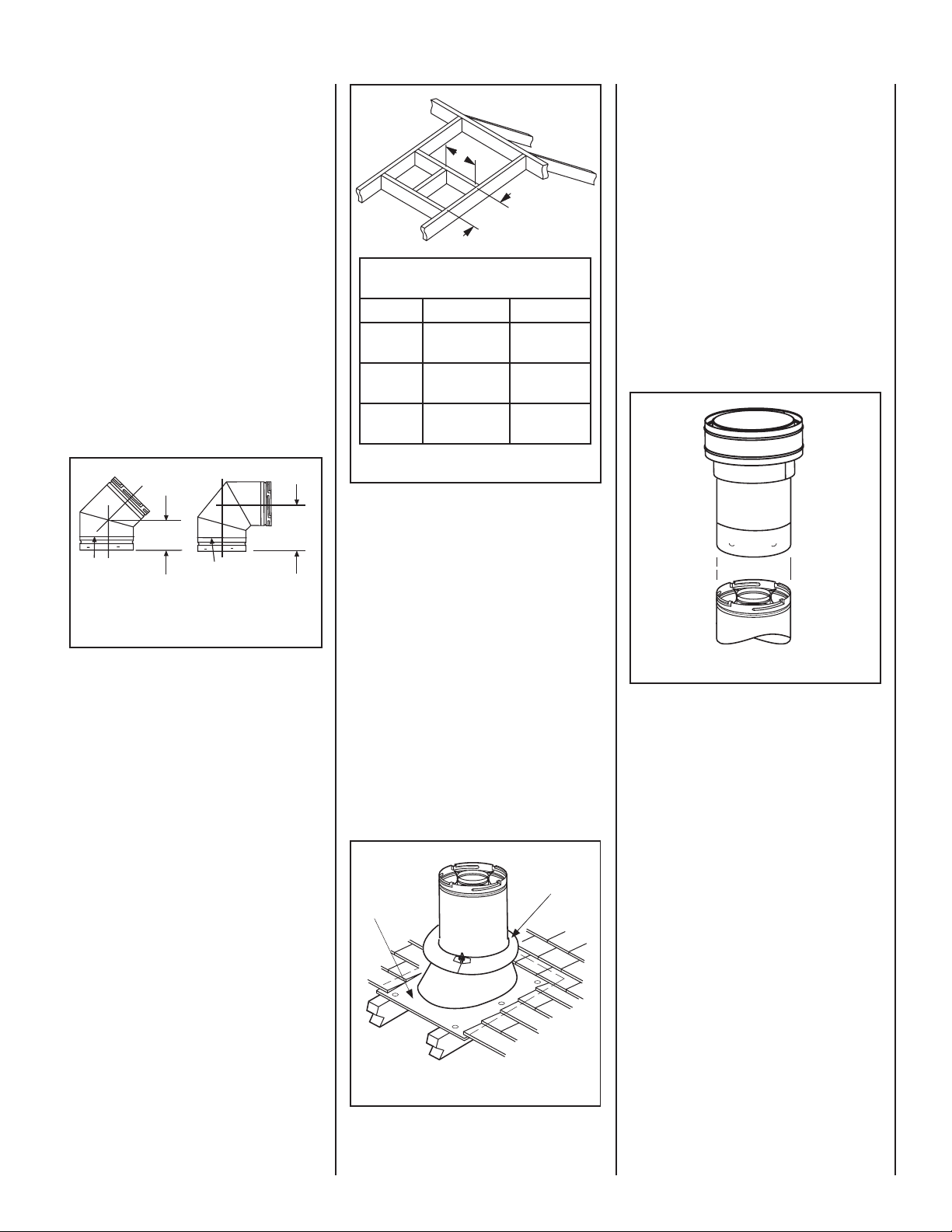

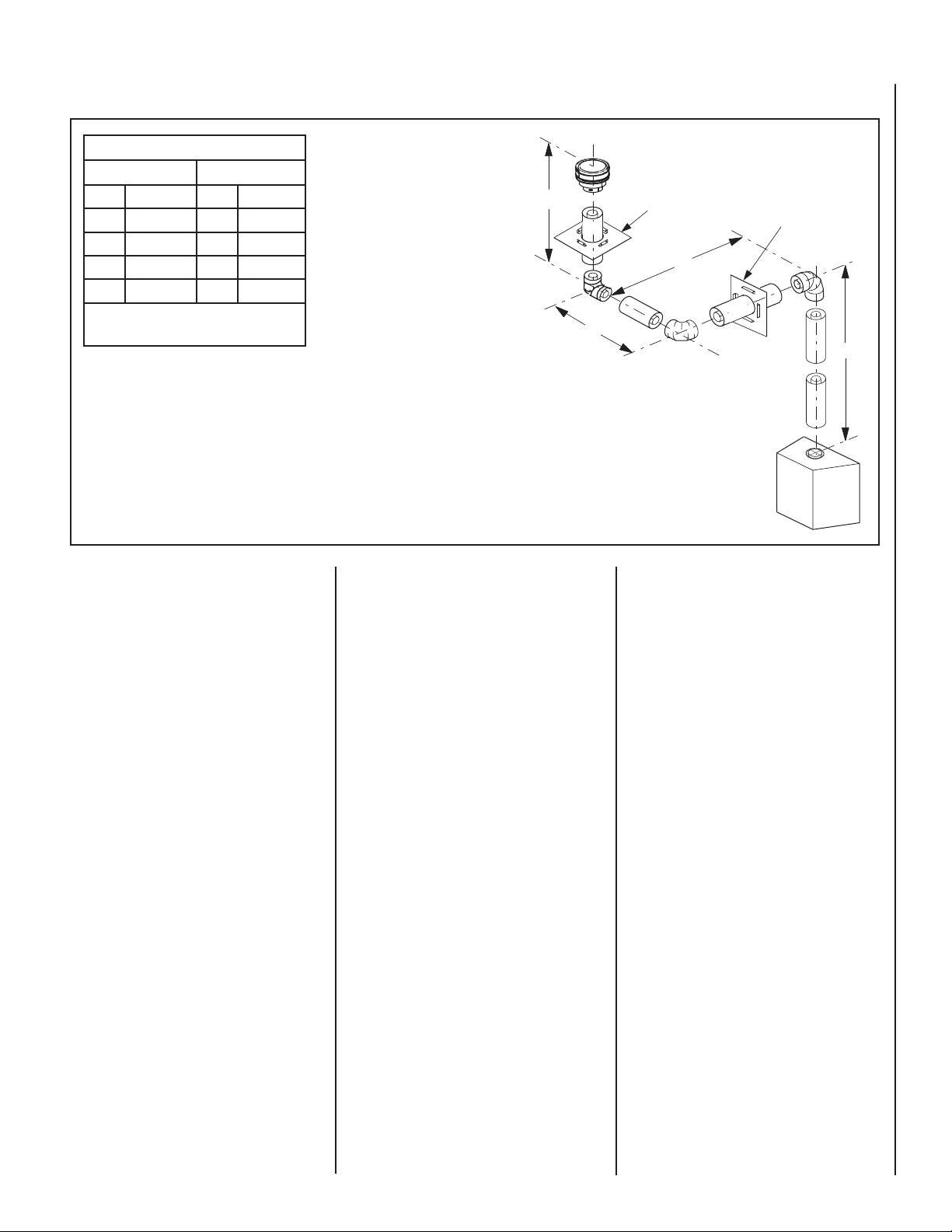

Step 3. INSTALL THE VENT SYSTEM
General Information
These instructions should be used as a
guideline and do not supersede local codes
in any way. Install venting according to local
codes,theseinstructions,thecurrentNational
Fuel Gas Code (ANSI-Z223.1) in the USA or
the current standards of CAN/CSA-B149.1
in Canada.
Ensure clearances are in accordance with
local installation codes and the requirements
of the gas supplier.
Dégagementconformeauxcodesd'installation
locaux et aux exigences du foumisseunde
gaz.
Useonlyapproved ventingcomponents.
See Approved Vent Components on
Page 2.
These fireplaces must be vented directly
to the outside.

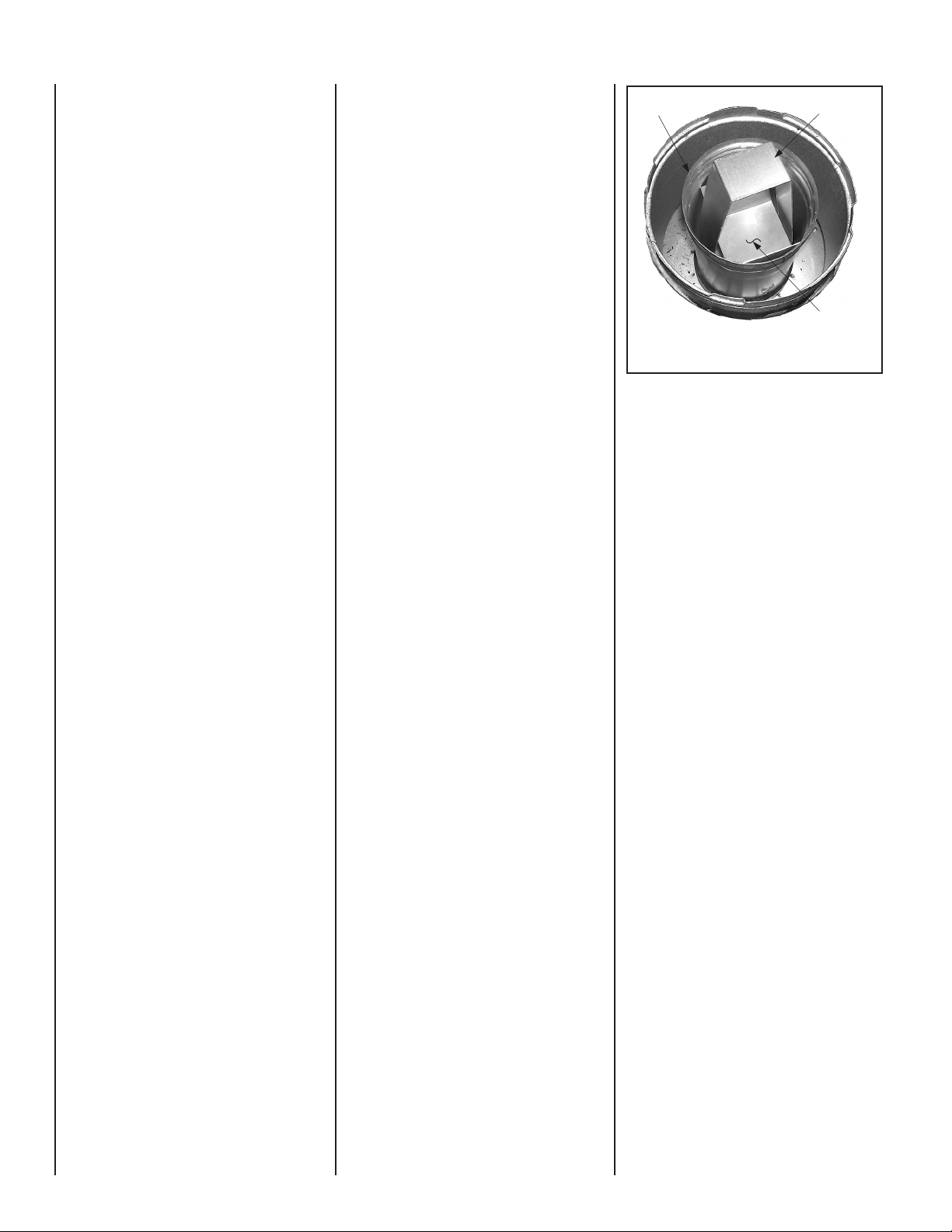

Figure 15
Select Venting System - Horizontal or Vertical
With the appliance secured in framing, de-
termine vent routing and identify the exterior
termination location. The following sections
describevertical (roof) and horizontal (exterior
wall) vent applications. Refer to the section
relating to your installation. A list of approved
venting components are shown on Pages 36
and 37.
Exhaust Vent Fixed
Restrictor
Second
Restrictor
The vent system may not service multiple
appliances, and must never be connected to a
flue serving a solid fuel burning appliance. The
vent pipe is tested to be run inside an enclosed
wall (such as a chase). There is no requirement
for inspection openings in the enclosing wall at
any of the joints in the vent pipe.
Installation of Vent Restrictor
A vent restrictor may be needed with this
appliance. The restrictor is installed in the
appliance top flue outlet as shown in Figure
15, either before adding vent, from above, or
after installation of vent from below, within the
firebox. Therestrictor is self securing through
a positive friction fit.
Determine the venting for the appliance. If the
vent run will include at least 8 feet of vertical
rise,theninstalltherestrictorin theappliance
collar before connecting any vent (Refer to
Figure 15). Place the second restrictor inside
the fixed restrictor.
Note: The restrictor is included within the
firebox.

13
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Note: Convert inches into metric equivalent
measurement, as follows:
Millimeters (mm) = Inches x 25.4
Centimeters (cm) = Inches x 2.54
Meters (M) = Inches x .0254
TRAHCHTGNELNOITCESTNEV
lanimoN htgneLnoitceS )sehcni( 621426384T
O
T
A
L
Q
T
Y
noitceSteN )sehcni(htgneL 2/1-42/1-012/1-222/1-432/1-64
tneVfothgieHsnoitceStneVforebmuN
sehcnitf
67232000808
97252.32000066
5.082573.32100809
5.982521.42010067
5.103521.52001067
5.013578.52000909
5.523521.72000077
0335.72100078
54357.82000 01001
5.943521.92100 01011
27313000088
5.973526.13000 11011
5.814578.43000099
56457.8300000101
5.574526.9301000111
0840411000111
2941410100121
5.994526.1400010111
4052410010121
5.115526.2400001111
5.025573.3402011141
13552.4
402201151
5.835578.4410021141
94557.5410211151
8555.6400002121
5.265578.6410002131
5.865573.7401002131
37557.7411002141
5.085573.8400102131
5.985521.9401220151
5.595526.9411102151
5.406573.0500003131
51652.1501003141
5.526521.2502003151
5.136526.2510103151
5.736521.3501103151
15652.4500004141
5.556526.4510004151
2766502004161
8765.6510104161
5.886573.7511104171
5.796521.8500005151
2075.8510005161
5.217573.9511005171
0270600105161
TRAHCHTGNELNOITCESTNEV
lanimoN htgneLnoitceS )sehcni( 621426384T
OO
O
OO
TT
T
TT
AA
A
AA
LL
L
LL
QQ
Q
QQ
TT
T
TT
YY
Y
YY
noitceSteN )sehcni(htgneL 2/1-42/1-012/1-222/1-432/1-64
tneVfothgieHsnoitceStneVforebmuN
sehcnitf
5.4573.0100001
957.0200002
5.01578.0010001
5152.1110002
5.22578.1001001
5.13526.2030003
5.43578.2000101
5.73521.3111003
5.34526.3021003
5457.3002002
5.64578.3000011
1552.4100012
5.55526.4012003
7557.4001102
5.76526.5003003
9657.5000202
5.37521.6100203
5.97526.6010203
1857.6000112
5.19526.7002013
3957.7000022
5.79521.8100023
5.30152
6.8000303
801910 0304
71157.9105006
5.811578.9110305
6215.01001304
5.031578.01101305
53152.11006006
5.931526.11000033
5.241578.11100405
44121100034
5.451578.21110035
5.061573.31020035
5.271573.41000505
77157.41100506
6815.51000044
5.691573.61010045
70252.71000606
5.112526.71100607
5.712521.81010607
5.922521.91001607
5.232573.91000055
5.142521.02000707
6425.02100708
25212010708
Figure 16
Effective Vent Length
Model Effective Length
SV4.5L6 4-1/2"
SV4.5L12 10-1/2"
SV4.5L24 22-1/2"
SV4.5L36 34-1/2"
SV4.5L48 46-1/2"
Table 8
SV4.5CGV-1
Termination SV4.5FA OR
SV4.5FB Flashing
AND SV4.5SC
STORM COLLAR
uSV4.5VF
Firestop/Spacer
SV4.5L6/12/24/36/48
Vent Sections
60' Max
(18.3 M)
1" (25.4 mm)
Minimum
Clearance to
Combustibles
uWhen using Secure Flex
use Firestop/Spacer
SF4.5VF
6' Min
(1.8 M)
VERTICAL TERMINATION SYSTEMS (ROOF)
See Figure 16 and Figures 24 through 26
on Pages 16 and 17 and their associated
Vertical Vent Tables which illustrate the various
verticalventingconfigurations thatare possible
for use with these appliances. Secure Vent™
pipe applications are shown in these Figures;
SecureFlex™ pipe may alsobeused.A Vertical
VentTablesummarizeseachsystem’sminimum
and maximum vertical and horizontal length
values that can be used to design and install the
vent components in a variety of applications.
Both these vertical vent systems terminate
through the roof. The minimum vent height
above the roof and/or adjacent walls is speci-
fied in ANSI Z223.1-(latest edition) (In Canada,
the current CAN/CSA-B149.1 installation code)
by major building codes. Always consult your
localcodes for specific requirements. Ageneral
guide to follow is the Gas Vent Rule (refer to
Figure 4 on Page 6).
Vertical (Straight) Installation
(Figure 16)
Determine the number of straight vent sections
required. 4-1/2" (114 mm), 10-1/2" (267 mm),
22-1/2" (572 mm), 34-1/2" (876 mm) and
46-1/2" (1181 mm) net section lengths are
available (see Tables on this page and Page
36 - Vent Sections). Plan the vent lengths so
that a joint does not occur at the intersection of
ceiling or roof joists. Refer to the Vent Section
Length Chart.

14 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Push the vent component against the previous
section until it fully engages, then twist the
componentclockwiserunningthedimplesdown
and along the incline channels until they seat at
the end of the channels. This seating position
is indicated by the alignment of the arrow and
dimple as shown in Figure 18.
D.Installfirestop/spacerat ceiling- Whenus-
ingSecureVent™,useSV4.5VFfirestop/spacer
at ceiling joists; when using Secure Flex™, use
SF4.5VFfirestop/spacer.If there is living space
above the ceiling level, the firestop/spacer
must be installed on the bottom side of the
ceiling. If attic space is above the ceiling, the
firestop/spacer must be installed on the top
side of the joist.
Route the vent sections through the framed
opening and secure the firestop/spacer with
8d nails or other appropriate fasteners at
each corner. Remember to maintain 1" (25
mm) clearance to combustibles, framing
members, and attic or ceiling insulation
when running vertical chimney sections.
Attic insulation shield (H3907) may be used
to obtain the required clearances indicated
here. See installation accessories Pages 36
and 37. The gap between the vent pipe and a
vertical firestop can be sealed with non-com-
bustible caulking.
E. Support the vertical vent run sections -
Note- Proper venting support is very important.
The weight of the vent must not be supported
by the fireplace in any degree.
Support the vertical portion of the venting
system every 8 feet (2.4m) above the fireplace
vent outlet (see Figure 19 ).
Figure 18
Align the dimple (4 places) of the
upper vent section with the opening
of the locking incline channel on
the lower vent section or appliance
collar. Twist vent component
clockwise to engage and seal until
arrow and dimple align.
Dimple
Locking
Incline
Channel
Connected Vent
Sections Arrow
Arrow
Appliance Collar or
Vent Section
Figure 17
10-1/2” Min.
(267mm)
10-1/2” Min.
(267mm)
Plumb
Bob
Roof
Framing
Ceiling
Framing
Vertical (Offset) Installation
Analyze the vent routing and determine the
quantitiesofventsectionsandnumberofelbows
required. Refer to Vertical Vent Figures and
Tables on Pages 16 and 17 to select the type
of vertical installation desired. Vent sections
are available in net lengths of 4-1/2" (114 mm),
10-1/2" (267 mm), 22-1/2" (572 mm), 34-1/2"
(876 mm) and 46-1/2" (1181 mm). Refer to the
Vent Section Length Charts on Page 13 for an
aidinselectinglengthcombinations.Elbowsare
available in 90° and 45° configurations. Refer
to Figure 20 on Page 15 for the SV4.5E45 and
SV4.5E90 elbow dimensional specifications.
Where required, a telescopic vent section
(SV4.5LA) may be used to provide the installer
withan option in installing in tight and confined
spaces or where the vent run made up of fixed
length pieces develops a joint in a undesirable
location, or will not build up to the required
length. The SV4.5LA Telescopic Vent Section
has an effective length of from 1-1/2" (38 mm)
to 7-1/2" (191 mm). The SV4.5LA is fitted with
a locking inclined channel end (identical to a
normalventsectioncomponent)andaplainend
with 3 pilot holes. Slip the plain end over the
locking channel end of a standard SV4.5 vent
component the required distance and secure
with three screws.
Maintaina minimum 1" (25 mm) clearance to
combustiblematerialsforallverticalelements.
Clearances for all horizontal elements are 3"
(76 mm) on top, 1" (25 mm) on sides and 1"
(25 mm) on the bottom.
A. Frame ceiling opening - Use a plumb line
from the ceiling above the appliance to locate
center of the vertical run. Cut and/or frame an
opening, 10-1/2" x 10-1/2" (267mm x 267mm)
inside dimensions, about this center mark
(Figure 17).
Toattachaventcomponenttotheappliancecollar,
align the dimpled end over the collar, adjusting
the radial alignment until the four locking dimples
are aligned with the inlet of the four inclined chan-
nels on the collar (refer to Figure 18). Push the
vent component against the collar until it fully
engages, then twist the component clockwise,
running the dimples down and along the incline
channels until they seat at the end of the chan-
nels. The unitized design of the Secure Vent™
componentswill engage and seal boththeinner
and outer pipe without the need for sealant or
screws. If desired, a #6 x 1/2" screw may be
used at the joint, but is not required as the pipe
will securely lock when twisted.
Note: An elbow may not be directly attached
to the appliance collar.
C.Attachventcomponentstoeachother-Other
vent sections may be added to the previously
installedsectioninaccordancewiththerequire-
ments of the vertical vent Figures and Tables.
To add another vent component to a length of
vent run, align the dimpled end over the inclined
channel end of the previously installed section,
adjusting the radial alignment until the four lock-
ing dimples are aligned with the inlets of the four
incline channels of the previous section.
B. Attach vent components to appliance
-SecureVentSV4.5direct-ventsystemcompo-
nents are unitized concentric pipe components
featuring positive twist lock connections (see
Figure 18).
All of the appliances covered in this document
are fitted with collars having locking inclined
channels. The dimpled end of the vent com-
ponents fit over the appliance collar to create
the positive twist lock connection.
Blocking
Support Straps
(Plumber's tape)
8 feet (2.4 m)
Maximum
1/2 inch (12.7
mm) minimum
clearance to
combustibles
Figure 19

15
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
If the vent system extends more than 5 feet
(1.5m)above the roof flashing,stabilizersmay
be necessary. Additional screws may be used
atsection jointsforadded stability.Guide wires
may be attached to the joint for additional sup-
port on multiple joint configurations.
G.Continueinstallation ofhorizontal/inclined
sections - Continue with the installation of the
straight vent sections in horizontal/inclined run
as described in Step C. Install support straps
every 5 ft. (1.52 m) along horizontal/inclined
vent runs using conventional plumber’s tape.
See Page 18, Figure 27. It is very important
that the horizontal/inclined run be maintained
in a straight (no dips) and recommended to be
inaslightly elevated plane, inadirection away
from the replace of 1/4 " rise per foot (20 mm
per meter) which is ideal, though rise per foot
run ratios that are smaller are acceptable all the
way down to at or near level.Use a carpenter’s
level to measure from a constant surface and
adjust the support straps as necessary.
It is important to maintain the required clear-
ances to combustibles: 1" (25 mm) at all sides
for all vertical runs; and 3" (76 mm) at the top,
1" (25 mm) at sides, and 1" (25 mm) at the
bottom for all horizontal/inclined runs.
H. Frame roof opening - Identify location for
vent at the roof. Cut and/or frame opening per
Roof Framing Chart (Figure 21).
One method of support is by utilizing field pro-
vided support straps (conventional plumber's
tape). Securetheplumber'stape to the framing
members with nails or screws. Loop the tape
around the vent, securing the ends of the tape
totheframing. Ifdesired,sheetmetalscrews#6
x 1/2" length may be used to secure the support
straps to the vent pipe. Refer to Figure 19.
F. Changeventdirection tohorizontal/inclined
run - At transition from or to a horizontal/in-
clined run, install the SV4.5E45 and SV4.5E90
elbows in the same manner as the straight vent
sections. The elbows feature a twist section to
allow them to be routed about the center axis
of their initial collar section to align with the
required direction of the next vent run element.
Twist elbow sections in a clockwise direction
only so as to avoid the possibility of unlocking
any of the previously connected vent sections
(see Figure 20).
K. Install the vertical termination - The final
step involves installation of the SV4.5CGV-1
Vertical Termination. Extend the vent sections
to the height as shown in the "Vertical vent
termination section" in Figure 4 on Page 6.
The SV4.5CGV-1 Vertical Termination (Figure
23)can be installed in the exact same fashion
as any other Secure Vent™ section. Align the
termination over the end of the previously
installedsection,adjustingthe radialalignment
untilthefourlocking dimplesof thetermination
are aligned with the inlets of the four incline
channels of the last vent section. Push the ter-
mination down until it fully engages, then twist
the termination clockwise running the dimples
down and along the incline channels until they
are seated at the end of the channels.
I. Install the roof flashing - Extend the vent
sections through the roof structure. Install the
roof flashing over the vent section and posi-
tion such that the vent column rises vertically
(use carpenters level) (Figure 22). Nail along
perimeter to secure flashing or adjust roofing
to overlap the flashing edges at top and sides
only and trim where necessary. Seal the top
and both sides of the flashing with waterproof
caulking.
J. Install the storm collar - Install the storm
collar, supplied with the flashing, over the
vent/flashing joint (see Figure 22). Loosen
the storm collar screw. Slide collar down until
it meets the top of the flashing. Tighten the ad-
justing screw. Apply non-combustible caulking
or mastic around the circumference of the joint
to provide a water tight seal.
Figure 20
Swivel Joint
(360° swivel)
SV4.5E45
(45° Elbow)
Swivel Joint
(360° swivel)
SV4.5E90
(90° Elbow)
8-1/8"
(206 mm)
Framing Dimensions for Roof
Inches (millimeters)
Pitch C D
0/12 10-1/2 in.
(267 mm)
10-1/2 in.
(267 mm)
6/12 10-1/2 in.
(267 mm)
12 in.
(305 mm)
12/12 10-1/2 in.
(267 mm)
17 3/4 in.
(451 mm)
C
D
Figure 21 - Roof Framing
Figure 23
4-13/16"
(122 mm)
Storm
Collar
Flashing
Figure 22

16 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
uCeiling Firestop /
Spacer (SV4.5VF)
vWhen using Se-
cure Flex, use
Firestop / Spac-
er SF4.5VF
A Vent Restrictor,
as shown in Figure
15 Page 12, must
be used in this
application
Figure 24 - Top Vent - STRAIGHT
60 feet
(18.3 meters)
Maximum
VERTICAL VENT FIGURES/TABLES
Notes:
• Secure Vent™ (rigid vent pipe) is shown
in the Figures; Secure Flex™ (exible vent
pipe) may also be used.
• It is very important that the horizontal/in-
clined run be maintained in a straight (no
dips) and recommended to be in a slightly
elevated plane, in a direction away from
the replace of 1/4" rise per foot (20 mm
per meter) which is ideal, though rise per
foot run ratios that are smaller are accept-
able all the way down to at or near level.
• SV4.5VF (Secure Vent), SF4.5VF (Secure
Flex) firestop/spacer must be used anytime
vent pipe passes through a combustible
floor or ceiling. SV4.5HF (Secure Vent),
SF4.5HF (Secure Flex)firestop/spacer must
be used anytime vent pipe passes through
a combustible wall.
• Two 45 degree elbows may be used in place
of one 90 degree elbow. The same rise to
run ratios, as shown in the venting Figures
for 90 elbows, must be followed if 45 degree
elbows are used.
• AN ELBOW IS ACCEPTABLE AS 1 FOOT OF
VERTICAL RISE.
WARNING
Undernocircumstances,maysepa-
rate sections of concentric flexible
vent pipe be joined together.
Note: Install a second
restrictor in any run
having more than 8 ft.
of vertical rise.
uWhen using Secure Flex, use Firestop /
Spacer SF4.5VF.
vWhen using Secure Flex, use Firestop /
Spacer SF4.5HF.
H
V
V1
uCeiling Firestop /
Spacer (SV4.5VF)
vWall Firestop/
Spacer (SV4.5HF)
Table A
V Minimum H Maximum
feet (meters) feet (meters)
2(0.601) 5(1.524)
3(0.914) 10 (3.1)
4(1.22) 15 (4.65)
5(1.524) 20 (6.2)
V + V1+ H = 60 feet (18.3 m) Max.
H = 20 feet (6.1 meters) Max.
Figure 25 - Top Vent - TWO 90 DEGREE ELBOWS
Example: If 20 feet of (H) horizontal vent run
is needed, then 4 feet minimum of (V) vertical
vent will be required.
This table shows a 1(V) to 5(H) ratio. For
every 1 foot of (V) vertical, you are allowed 5
feet of (H) horizontal run, up to a maximum
horizontal run of 20 feet.
An elbow is acceptable as 1 foot of vertical
rise.
Note: Install a second restrictor in any run
having more than 8 ft. of vertical rise.

17
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Maintain a minimum 1" (25 mm) clearance to
combustibles on the vertical sections. Clear-
ances for the horizontal runs are; 3" (76 mm)
on top, 1" (25 mm) on sides, and 1" (25 mm)
at the bottom.
B. Frame exterior wall opening -
Locate the center of the vent outlet on
the exterior wall according to the dimen-
sions shown in Figure 12 on Page 10. Cut
and/or frame an opening, 10-1/2" x 12 1/8"
(267 mm x 308mm) inside dimensions, about
this center.
C. Frame ceiling opening - If the vertical route
istopenetrateaceiling,useplumblinetolocate
thecenterabovetheappliance.Cutand/orframe
an opening, 10-1/2" x 10-1/2" (267 mm x 267
mm)insidedimensions, aboutthiscenter(refer
to Figure 17 on Page 14).
uWhen using Secure Flex™, use Firestop / Spacer SF4.5VF
vWhen using Secure Flex, use Firestop / Spacer SF4.5HF
V
H1
H
V1
Example: If 20 feet total (H+H1)
horizontal vent run is needed, then 4
feet minimum of (V) vertical vent will
be required.
This table shows a 1(V) to 5(H) ratio.
For every 1 foot of (V) vertical, you are
allowed 5 feet of (H+H1) horizontal run
up to a maximum total horizontal run
of 20 feet.
An elbow is acceptable as 1 foot of
vertical rise.
Note: Install a second restrictor in
any run having more than 8 ft. of
vertical rise.
vWall Firestop/
Spacer (SV4.5HF)
uCeiling
Firestop / Spacer
(SV4.5VF)
Figure 26 - Top Vent - THREE ELBOWS
VERTICAL VENT FIGURES/TABLES (CONTINUED)
HORIZONTAL (OUTSIDE WALL)
TERMINATION SYSTEM
See Figure 27 on Page 18, and Figures 30
through 32 on Pages 20 through 22 and their
associated Horizontal Vent Tables which
illustrate the various horizontal venting con-
figurations that are possible for use with these
appliances. Secure Vent™ pipe applications
are shown in these Figures; Secure Flex pipe
may also be used. A Horizontal Vent Table
summarizes each system’s minimum and
maximumvertical andhorizontallength values
that can be used to design and install the vent
components in a variety of applications.
Bothofthesehorizontalventsystemsterminate
through an outside wall. Building Codes limit or
prohibit terminating in specific areas. Refer to
Figure 6 on Page 7 for location guidelines.
Secure Vent SV4.5 direct-vent system compo-
nents are unitized concentric pipe components
featuring positive twist lock connection, (refer
to Figure 18 on Page 14). All of the appli-
ances covered in this document are fitted with
collars having locking inclined channels. The
dimpled end of the vent components fit over
the appliance collar to create the positive twist
lock connection.
A. Plan the vent run -
Analyze the vent routing and determine the
types and quantities of sections required
4-1/2" (114 mm), 10-1/2" (267 mm), 22-1/2"
(572mm),34-1/2"(876mm)and46-1/2"(1181
mm) net section lengths are available. It is
recommended that you plan the vent lengths
so that a joint does not occur at the intersection
of ceiling or roof joists. Make allowances for
elbows as indicated in Figure 20.
Table B
H + H1Maximum V Minimum
feet (meters) feet (meters)
5(1.524) 2(0.601)
10 (3.1) 3(0.914)
15 (4.65) 4(1.22)
20 (6.2) 5(1.524)
H + H1= 20 feet (6.096 m) Max.
V + V1+ H + H1= 60 ft. (18.3 m) Max.

18 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Support
Brackets
Building
Support
Framing
SV4.5E90
Elbow
Ceiling
Fireplace
SV4.5L6/12/24/36/48
Vent Sections
Vertical
Rise
Support Bracket Spacing
Every 5 ft (1.52 m)
TYPICAL HORIZONTAL VENT INSTALLATION
uWhen Using Secure Flex™,
Use Firestop / Spacer SF4.5VF
uFirestop / Spacer
SV4.5VF
Figure 27
Typical
Termination
Shown
Typical
Termination
Shown
Exterior
Wall
Horizontal / Inclined Run
See Figure 19 on Page 14 for vertical
vent section support.
Push the vent component against the previous
section until it fully engages, then twist the
componentclockwiserunningthedimplesdown
and along the incline channels until they seat at
the end of the channels. This seating position
is indicated by the alignment of the arrow and
dimple as shown in Figure 18 on Page 14.
F. Install firestop/spacer at ceiling -
WhenusingSecure Vent,useSV4.5VFfirestop/
spacerat ceiling joists; when usingSecureFlex,
use SF4.5VF firestop/spacer. If there is living
spaceabovetheceilinglevel,thefirestop/spacer
must be installed on the bottom side of the
ceiling. If attic space is above the ceiling, the
firestop/spacermustbeinstalledonthetopside
of the joist. Route the vent sections through the
framed opening and secure the firestop/spacer
with 8d nails or other appropriate fasteners at
each corner.
Remember to maintain 1" (25 mm) clearance
to combustibles, framing members, and attic
or ceiling insulation when running vertical
chimney sections.
G. Support the vertical run sections -
See Section E on Page 14.
H.Changevent direction -At transitionfromor
toahorizontal/inclinedrun,installtheSV4.5E45
and SV4.5E90 elbows in the same manner as
the straight vent sections.
The elbows feature a twist section to allow
them to be routed about the center axis of their
initial collar section to align with the required
direction of the next vent run element. Twist
elbow sections in a clockwise direction only
so as to avoid the possibility of unlocking any
ofthepreviously connectedventsections(see
Figure 18 on Page 14).
I. Continue installation of horizontal/inclined
sections - Continue with the installation of the
straight vent sections in horizontal/inclined run
as described in Step E. Install support straps
every5ft.(1.52m)alonghorizontal/inclinedvent
runs using conventional plumber’s tape.
See Figure 27. It is very important that the
horizontal/inclined run be maintained in a
straight (no dips) and recommended to be in
a slightly elevated plane, in a direction away
from the replace of 1/4" rise per foot (20 mm
per meter) which is ideal, though rise per foot
run ratios that are smaller are acceptable all the
way down to at or near level.
It is important to maintain the required clear-
ances to combustibles: 1" (25 mm) at all sides
for all vertical runs; and 3" (76 mm) at the top,
1" (25 mm) at sides, and 1" (25 mm) at the
bottom for all horizontal/inclined runs.
Use a carpenters level to measure from a
constant surface and adjust the support straps
as necessary.
D. Attach vent components to appliance - To
attach a vent component to the appliance collar,
align thedimpled endover thecollar, adjusting the
radial alignment until the four locking dimples are
aligned with the inlets of the four incline channels
on the collar (see Figure 18 on Page 14).
Push the vent component against the collar
until it fully engages, then twist the component
clockwise,runningthedimplesdownandalong
the incline channels until they seat at the end of
thechannels. The unitized design of theSecure
Vent™ components will engage and seal both
theinner and outerpipeelements with thesame
procedure. Sealant and securing screws are
not required.
Note: An elbow may not be directly attached
to the appliance collar.
E. Attach vent components to each other
-Other vent sections may be added to the pre-
viously installed section in accordance with the
requirements of the vent tables. To add another
vent component to a length of vent run, align the
dimpled end of the component over the inclined
channel end of the previously installed section,
adjusting the radial alignment until the four lock-
ing dimples are aligned with the inlets of the four
incline channels of the previous section.

19
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
J. Assemble vent run to exterior wall - If not
previously measured, locate the center of the
vent at the exterior wall. Prepare an opening as
described in Step B and Figure 28. Assemble
the vent system to point where the terminus of
the last section is located relative to the exterior
surfacetowhichtheterminationistobeattached
as shown in Figure 29 and Table 9.
If the terminus of the last section is not within
this distance, use the telescopic vent section
SV4.5LA, as the last vent section. For wall
thicknesses greater than that shown in Figure
29, refer to Table 9 on Page 20. This Table lists
the additional venting components needed (in
addition to the termination and adaptor) for a
particular range of wall thicknesses.
K. Attach termination adaptor - Attach the
adaptor (SV4.5RCH - provided with the termi-
nation) to the vent section or telescoping vent
section), elbow or appliance collar as shown in
Figure 28 in the same manner as any SV4.5
vent component (refer to Step E).
L. Install Firestop/Spacer at exterior wall -
When using the termination, install SV4.5HF
(Secure Vent™), SF4.5HF (Secure Flex™)
Firestop/Spacerovertheopeningattheexterior
side of the framing, long side up, with the 3
inch spacer clearance at the top as shown in
Figure 28, and nail into place.
(TheFirestop/Spacermayalsobeinstalledover
the opening at the interior side of framing).
M. Install the Termination (SV4.5HT-2)
For the last step, from outside the exterior
wall, slide the collars of the termination onto
the adaptor (the outer inside the outer and the
inner outside the inner) until the termination
seats against the exterior wall surface to which
it will be attached. Orient the housing of the
termination with the arrow pointed upwards.
Secure the termination to the exterior wall. The
horizontal termination must not be recessed
into the exterior wall or siding by more than
the 1-1/4" (32 mm) as shown in Figure 29.
IMPORTANT: The vent termination is hot
while in operation and for a period of
time following the use of the fireplace.
To prevent contact with hot surfaces,
we recommend the use of a Termina-
tion Guard. See Page 37. This can be
purchased at your local dealer.
Horizontal terminations have been designed to perform in a wide range of weather condi-
tions. Our terminations meet or exceed industry standards.
When selecting the locations of your horizontal terminations, do not place the termina-
tion where water from eaves and adjoining rooflines may create a heavy flow of cascad-
ing water onto the termination cap. If the cap must be placed where the possibility of
cascading water exists, it is the responsibility of the builder to direct the water away
from the termination cap by using gutters or other means.
Take care to carefully follow the installation instructions for the termination, including
the use of silicone caulking where required.
Figure 29
Figure 28 - INSTALLING HORIZONTAL TERMINATION
Siding
Stucco
1-1/4" Maximum Recess of
the Square Termination into
Exterior Finishing Material
Exterior Surface of
Framing
6 in. to 9-1/4 in.
(152 to 235 mm)**
Exterior Surface of Siding
Interior Surface of
Finished Wall
Maximum wall thickness
9-1/4 in.(235 mm)**
SV4.5HT-2
Square Termination
Shown
Maximum Extent of
Vent Run Sections
Relative to Exterior
Surface of Framing
Last Vent Section. Use
Telescopic Vent
Section (SV4.5LA), If
Necessary
Adapter
SV4.5RCH
SV4.5HT-2
Square Termination
Shown
Venting Connection and Exterior Wall Recessing
of the Horizontal Termination
*Use silicone caulking to
seal the top and sides of
the termination, up to the
underlayment, stucco, or
masonry wall surface.
*Caulk
*Caulk
Firestop/Spacer (SV4.5HF) shown
on the exterior side of the wall. It
may also be installed on the
interior side.
Typical
Termination
Shown
7"
(178)
5-1/8"
(130 mm)
12-1/8"
(308 mm)
Note: Centerline of Vent Piping is
NOT the Same as the Centerline of
the Frame Opening.
6 to 48 inch Vent Section,
Telescopic vent section,
Elbow or Appliance Collar Base of Appliance
3"
(76 mm)
1"
(25.4 mm)
Adapter
SV4.5RCH
10-1/2"
(267 mm)
**For thicknesses greater
than 9-1/4", see Table 9.
See Figure 12 on Page 10 for Min.
distance to Base of Appliance

20 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
See Table 9 as an aid in venting component selection
for a particular range of exterior wall thicknesses.
HORIZONTAL VENT FIGURES/TABLES
Notes:
• Secure Vent™ components (rigid vent pipe and terminal) are shown
in the Figures; Secure Flex™ components (flexible vent pipe and
terminal) may also be used.
• Two 45 degree elbows may be used in place of one 90 degree elbow.
The same rise to run ratios, as shown in the venting Figures for 90
elbows, must be followed if 45 degree elbows are used.
• SV4.5VF(Secure Vent),SF4.5VF (Secure Flex) firestop/spacer must be
used anytime vent pipe passes through a combustible floor or ceiling.
SV4.5HF (Secure Vent), SF4.5HF (Secure Flex) firestop/spacer must
be used anytime vent pipe passes through a combustible wall.
• It is very important that the horizontal/inclined run be maintained
in a straight (no dips) and recommended to be in a slightly elevated
plane, in a direction away from the fireplace of 1/4" rise per foot (20
mm per meter) which is ideal, though rise per foot run ratios that are
smaller are acceptable all the way down to at or near level.
• The tables show a 1(V) to 5(H) ratio up to a maximum horizontal run
of 20 feet.
• AN ELBOW IS ACCEPTABLE AS 1 FOOT OF VERTICAL RISE.
Use Table 9 as an aid in venting component selection for a particular
range of exterior wall thicknesses.
Figure 30 - Top Vent - ONE 90 DEGREE ELBOW -
ELBOW CONNECTION NOT DIRECTLY AT APPLIANCE
Typical termination shown.
Venting Components Required for Various Exterior Wall Thick-
nesses, when using Typical Termination Kits
Vent Components Required Exterior Wall Thickness - inches (mm)
Termination Kit Only 6 to 9-1/4 (152 to 235)
Termination Kitand 6In.Vent
Section (SV4.5L6) 10-3/4 to 14 (273 to 356)
Termination Kit and 12 in.
Vent Section (SV4.5L12) 16-3/4 to 20 (426 to 508)
Termination Kit and Tele-
scopic Section (SV4.5L12) 11-3/4 to 20 (299 to 508)
Table 9 Note: See Figure 29 showing wall thickness range
when using SV4.5HT-2 termination kit.
H
V


When using Secure Flex,
use Firestop/Spacer
SF4.5VF.

Ceiling
Firestop/Spacer
(SV4.5VF)

When using Secure Flex,
use Firestop/Spacer
SF4.5HF.
Wall Firestop/Spacer
(SV4.5HF)
Min. One
Foot Vent
Section
Required
Example: If 20 feet of (H) hori-
zontal vent run is needed, then
4 feet minimum of (V) vertical
vent will be required.
This table shows a 1(V) to
5(H) ratio. For every 1 foot of
vertical, you are allowed 5 feet
of (H) horizontal run up to a
maximum (H) horizontal run
of 20 feet.
WARNING
Under no circumstances, may separate sections of
concentric flexible vent pipe be joined together.
Table C
H Maximum V Minimum
feet (meters) feet (meters)
3-1/4 (0.991) *(0.061)
7(2.134) 3(0.914)
10-1/2 (3.2) 4(1.22)
14 (4.267) 5(1.524)
17-1/2 (5.33) 6(1.729)
20 (6.2) 7(2.134)
V + V1+ H = 60 feet (18.3 m) Max.
H = 20 feet (6.1 meters) Max.
