Lennox Hearth Products X-Fires 1000 User manual

Report No. 317-F-10-5
INSTALLATION AND OPERATION MANUAL
Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not light any appliance.
• Do not touch any electrical switches; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow your gas supplier's instructions.
• If your gas supplier cannot be reached, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
WARNINGS
•Hot! Do not touch! This appliance will be hot during operation and will retain heat for a while after
shutting off the appliance. Severe burns may result.
• Carefully supervise children in the same room as appliance.
•Due to high temperatures, the appliance should be located out of traffic and away from furniture or
draperies.
• Do not place clothing or other materials on or near this appliance.
•Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to
this manual. For assistance or additional information consult a qualified installer, service agency or the gas supplier.
•Do not build a wood fire. Do not burn wood or other material in these appliances.
•This is an unvented gas log appliance. It uses air (oxygen) from the room in which it is installed. Provisions for adequate
combustion and ventilation air must be provided. Refer to Combustion and Ventilation Air Section in this manual.
• This appliance may be installed in an aftermarket, permanently located, manufactured (mobile) home, where
not prohibited by local codes.
• The appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible
for use with other gases.
• Lennox™ vent-free appliances are designed for use as a supplemental heater. They are not intended for continuous
use as a primary heat source.
Catalytic Vent-Free
Wall-Mounted Gas Fireplace
P/N 506023-01 REV. B, 11/2008
In the Commonwealth of Massachusetts:
• Installation must be performed by a licensed plumber or gas tter
• See Table of Contents for location of additional Commonwealth of
Massachusetts requirements
US
Portland
Installer: Leave This Manual With The Appliance.
Consumer: Retain This Manual For Future Reference.
X-Fires™ 1000
TM
DRAFT
11/07/2008
Models: X-FIRES-1000-NG and X-FIRES-1000-LP

2
1.0 IMPORTANT SAFETY AND WARNING
INFORMATION
WARNINGS
If the information in this manual is not fol-
lowed exactly, a fire or explosion may result
causing property damage, personal injury
or loss of life.
IMPORTANT
Read and understand these instructions completely
before installing or operating your unvented room
heater.
• Children and adults should be alerted to the hazard of high
surface temperature and should stay away to avoid burns or
clothing ignition.
• Young children should be carefully supervised when they are
in the same room with the heater.
• Do not place clothing or other flammable material on or near
the heater.
• Any safety screen or guard removed for servicing the heater
must be replaced prior to operating the heater.
• Installation and repair should be done by a qualified service
person. The heater should be inspected before use and at
least annually by a professional service person. More fre-
quent cleaning may be required due to excessive lint from
carpeting, bedding material, etc. It is important that control
compartments, burners and circulating air passageways of
the heater be kept clean.
• Allow the heater to cool before servicing. Always shut off the
gas to the heater while performing service work.
• The installation must conform with local codes or, in the
absence of local codes with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54-latest edition.
• The heater and its individual shut-off valve must be discon-
nected from the gas supply piping system while performing
any tests of the gas supply piping system at pressures in
excess of 1/2 psig.
• The heater must be isolated from the gas supply piping
system by closing its individual manual shut-off valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig.
• Keep heater area clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
• Do not use this heater if any part has been under water.
Immediately call a qualified service technician to inspect the
room heater and to replace any part of the control system
and any gas control which has been under water.
• Input ratings are shown in BTU per hour and are for elevations
up to 4,500 feet. Do not install this heater at an elevation
above 4,500 feet if the gas supply has not been derated for
that elevation. Consult your local gas supplier. (For operation
at elevations above 4,500 feet, equipment ratings shall be
reduced at the rate of 4 percent for each 1,000 feet above
4,500 feet before selecting appropriately sized equipment).
When installing any vent-free appliance at elevations above
4500 feet, nuisance pilot outages may occur.
• Ensure that the heater is clean when operating. Excessive
dust accumulation on the burner will increase the amount
of carbon monoxide formation and could lead to carbon
monoxide poisoning and/or death.
• This appliance is intended for supplemental heating. If the
appliance is used in a room as the sole source of heat, then
condensation may occur on colder surfaces within the room.
• Carbon monoxide poisoning – early signs of carbon monox-
ide poisoning resemble the flu with headaches, dizziness,
or nausea. If you have these signs, get fresh air at once!
Turn off the gas supply to the appliance and have the heater
inspected by a qualified service technician. Some people
are more affected by carbon monoxide than others. These
include pregnant women, people with heart or lung disease
or anemia, those under the influence of alcohol, and those
at high altitudes.
• Maintain minimum clearances.
• Do not install the appliance in a bathroom.
• Do not place any objects on top of the appliance.
WARNING
Failure to comply with the installation and operation
instructions provided in this document will result in
an improperly installed and operating appliance,
voiding its warranty. Any change to this appliance
and/or its operating controls is dangerous. Improper
installationoruseofthisappliancecancauseserious
injury or death from fire, burns, explosion or carbon
monoxide poisoning.
WARNING
Failure to keep the primary air opening(s) of the
burner(s) clean may result in sooting and property
damage.
WARNING
Do not allow fans to blow directly into the fireplace.
Avoid any drafts that alter burner flame patterns.
WARNING
Check gas type: The gas supply must be the same
as stated on the appliance’s rating plate. If the gas
supply is different DO NOT install the appliance.
Contact your dealer for the correct model.
WARNING
Do not use a blower insert, heat exchanger insert
or other accessory not approved for use with this
heater.
WARNING
Due to the nature of this product the area around the
top of the appliance (i.e. the grill) gets very hot. Care
should be taken when operating the appliance.

3
2.0 GENERAL INFORMATION
This appliance is a high efficiency, unvented, flame effect gas heater.
It provides radiant and convected warmth both efficiently and safely
utilizing the latest type catalytic convertor burner technology. The
appliance does not require a flue system of any type as the catalytic
converter cleans the flue products to provide a complete combustion
system, which is intrinsically safe.
3.0 PACKAGING LIST
Quantity Description
Fireplace
1 Firebox, burner assembly and wall mounting plate
1 Installation and Operation Manual
1 Warranty Certificate
1 Screw and wall plug pack
1 Rubber grommet
Surround Assembly
(required - sold separately. see Page 19 for ordering information)
1 Surround Assembly
1 Installation Instruction Sheet
4.0 APPLIANCE SPECIFICATIONS
CONGRATULATIONS ON THE PURCHASE OF YOUR NEW
GAS APPLIANCE MANUFACTURED BY LENNOX HEARTH
PRODUCTS.
When you purchased your new gas fireplace, you joined the ranks of
thousands of individuals whose answer to their home heating needs
reflects their concern for efficiency and our environment. We extend our
continued support to help you achieve the maximum benefit and enjoy-
ment available from your new gas fireplace. It is our goal at Lennox Hearth
Products to provide you, our valued customer, with an appliance that will
ensure years of trouble-free warmth and pleasure.
Thank you for selecting a Lennox Hearth Products gas fireplace as the
answer to your supplemental home heating needs.
Sincerely, All of us at Lennox Hearth Products
TABLE OF CONTENTS
Section Contents Page No.
1.0 Safety And Warning Information . . . . . . . . . . . . . 2
2.0 General Information....................... 3
3.0 Packaging List ........................... 3
4.0 Appliance Specifications ................... 3
5.0 Unpacking the Appliance ................... 4
6.0 Burn-in Period ........................... 4
7.0 Codes, Massachusetts & New York ........... 4
8.0 Combustion And Ventilation Air. . . . . . . . . . . . . . 5
9.0 Site Requirements . . . . . . . . . . . . . . . . . . . . . . . . 6
10.0 Gas Supply Routes ....................... 6

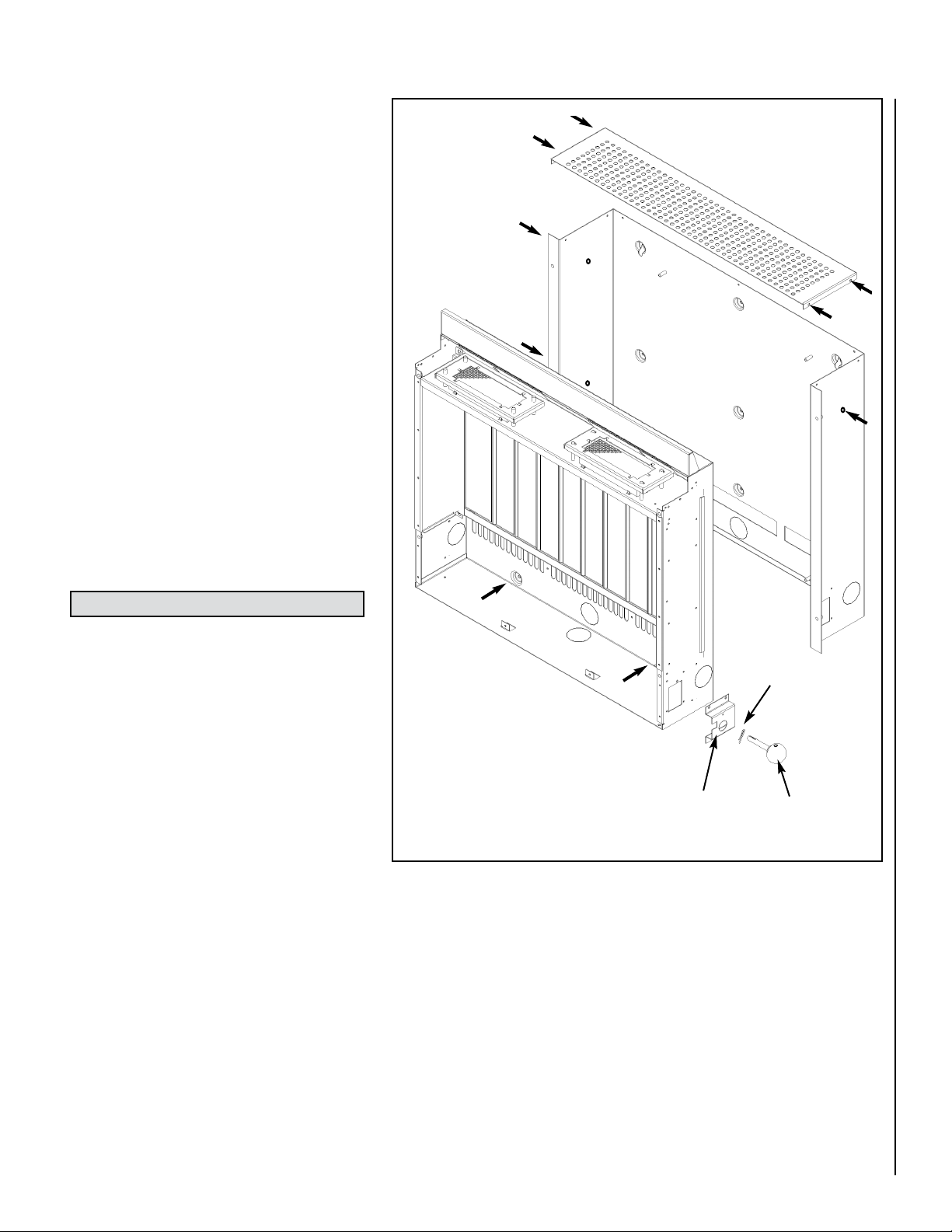

11.0 Preparing The Appliance ................... 7

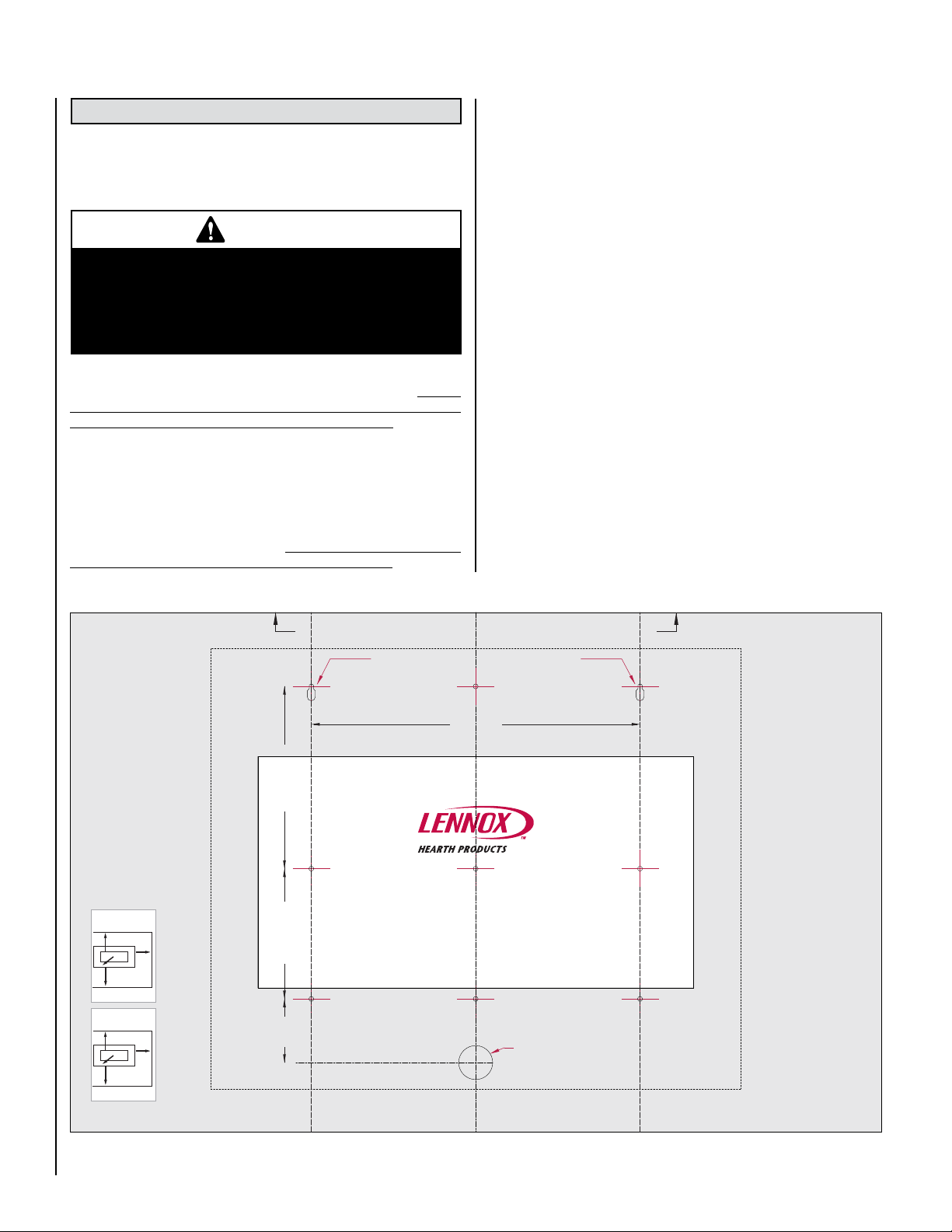

12.0 Mounting The Appliance ................... 8
13.0 Fitting the Surround Assembly .............. 9
14.0 Checking The Burner . . . . . . . . . . . . . . . . . . . . . . 10
15.0 Connecting A Gas Line .................... 10
16.0 Checking The Gas Connections . . . . . . . . . . . . . . 11
17.0 Gas Pressure Check....................... 11
18.0 Spark Gap .............................. 12
19.0 Briefing The Customer. . . . . . . . . . . . . . . . . . . . . 12
20.0 Servicing ............................... 13
21.0 Catalysts ............................... 14
22.0 Testing For Firebox Leakage ................ 14

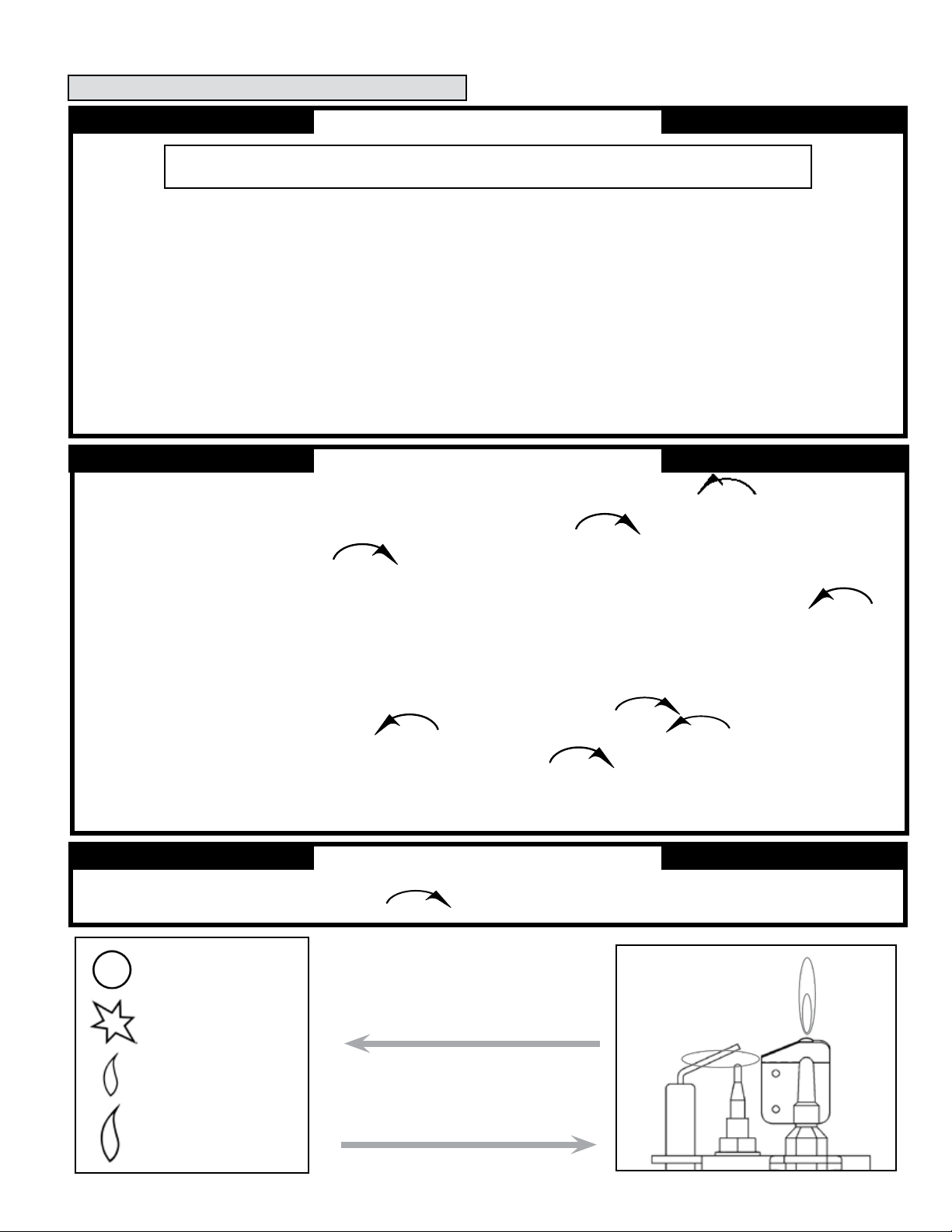

23.0 Lighting Instructions & Turning Off Appliance. . . 15
24.0 Troubleshooting Guide. . . . . . . . . . . . . . . . . . . . . 16

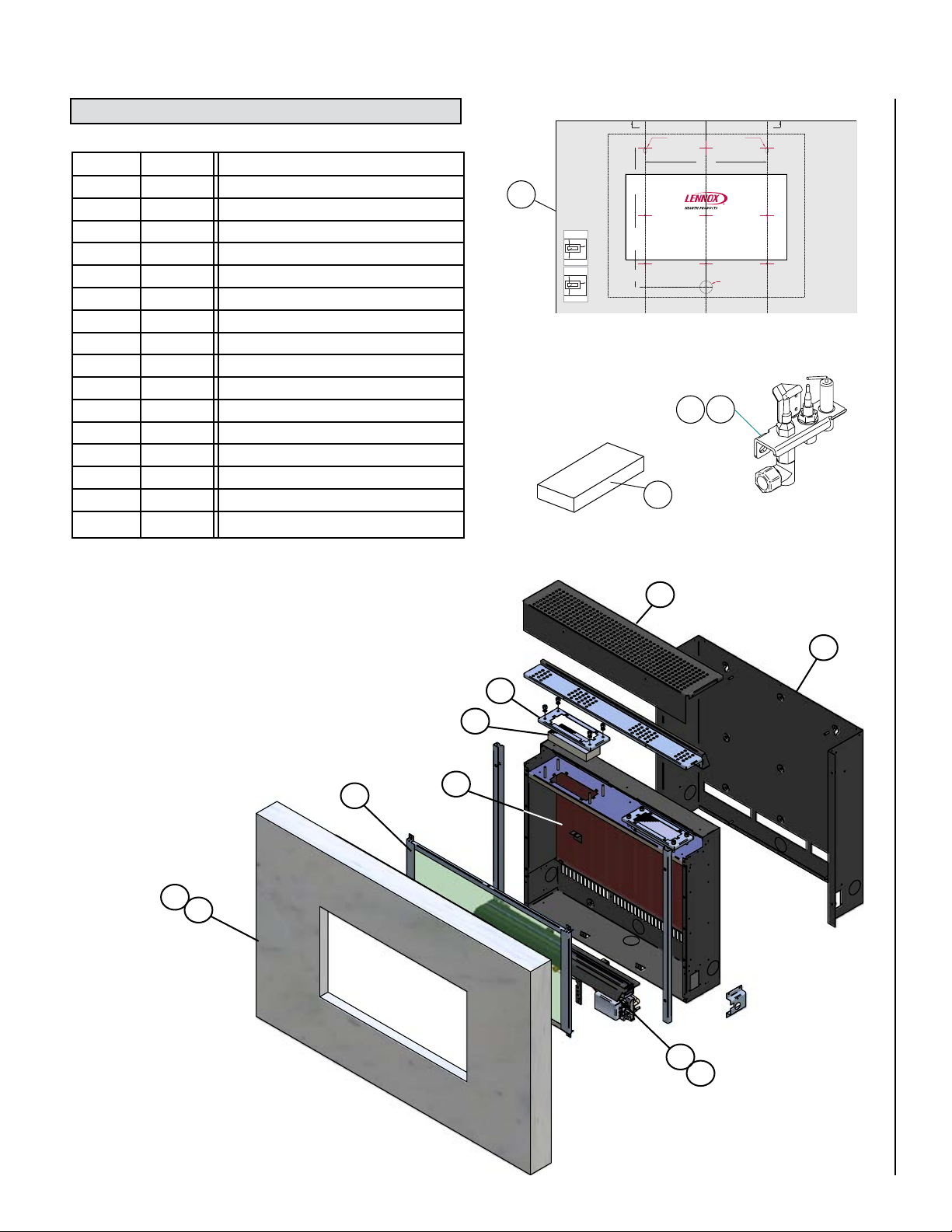

25.0 Replacement Parts List .................... 17
26.0 Positioning Of Field Assembled Parts ......... 18

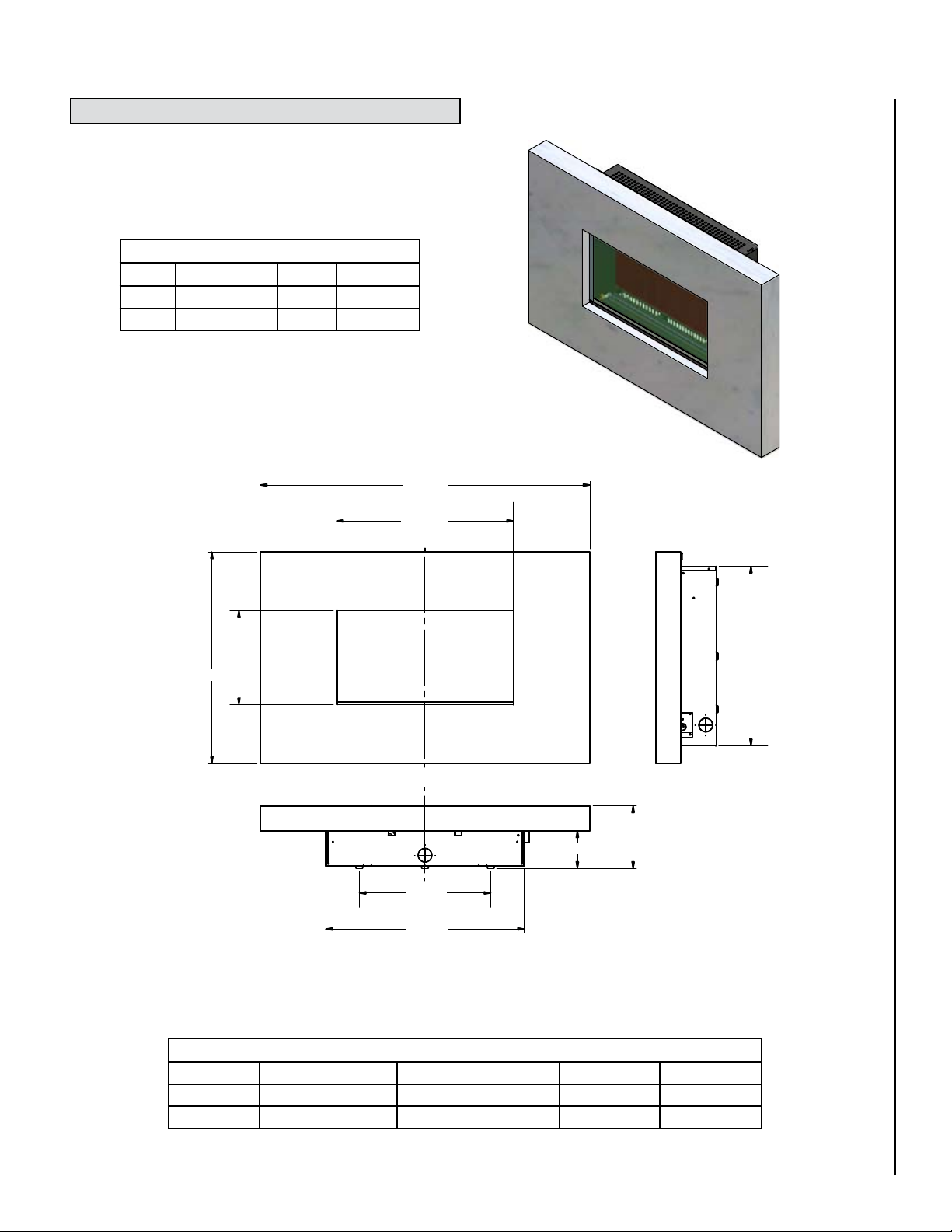

27.0 Specifications ........................... 19
28.0 Product Reference Information . . . . . . . . . . . . . . 20
These heaters are fitted with a specially designed pilot utilizing an
oxygen depletion sensor (ODS) which responds to the amount of
oxygen available in the room and shuts the heater off before the
oxygen level drops below 18%. It must not be adjusted or put out
of operation. If replaced then manufacturers original parts must be
used. The pilot can be relit only when fresh air is available. Refer to
the Combustion and Ventilation Air section.
The appliance is designed to fit various types of situations as listed
in the Installation Requirements.
This appliance is factory set for operation on the gas type, and at the
pressure stated on the appliance rating plate.
Readalltheseinstructionsbeforecommencinginstallation. Allinstruc-
tions must be left in the possession of the user for safekeeping.
X-Fires 1000
Gas Type Natural Gas Propane Gas (LP)
Gas inlet pressure Max.
Min.
10.5” w.c.
6” w.c.
13” w.c.
11” w.c.
Regulator Pressure Setting 5” w.c. 10” w.c.
Max Energy Input 8,870 BTU/hour 7,500 BTU/hour
Min Energy Input 5,110 BTU/hour 5,110 BTU/hour
Pilot Energy Input 560 BTU/hour 560 BTU/hour
Burner Pressure High
(manifold) Low
3.5” w.c.
1.1” w.c.
5.6” w.c.
2.9” w.c.
Main burner flow restrictor
(burner orifice)
1.45mm (0.057”) 1.03mm (0.04”)
Oxypilot SIT/Bray 9082 SIT/Bray 9284
Gas Inlet Connection 3/8” NPT at regulator 3/8” NPT at regulator
Ignition Piezo spark Piezo spark
Spark Gap 1/8” - 3/16” 1/8” - 3/16”
Please see Data Plate affixed to appliance for current data. This appliance is for use
only with the gas type, and at the pressure stated on the appliance Data Plate.
Table 1

4
6.0 BURN-IN PERIOD
On initial light up of a new appliance, the ‘newness’ will burn off within
the first few hours of operation. During this period some smoke may be
emitted from outlet grill, this should be no cause for concern. Accord-
ingly, the room should be well ventilated with all windows and doors
open during this period.
Depending on your use, the burn-in period may take a few hours or a few
days. Also if you have a sensitive sense of smell you may notice slight
odors during operating after the burn-in period is over.
KEEP YOUR HOUSE WELL VENTILATED DURING THE BURN-IN PERIOD.
THE ODOR AND HAZE EMITTED DURING THE BURN-IN PERIOD CAN BE
QUITE NOTICEABLE AND MAY SET OFF A SMOKE DETECTOR. MAKE
SURE SMOKE DETECTORS ARE NOT TOO CLOSE TO THE FIREBOX
(CHECK WITH YOUR LOCAL CODE FOR ALLOWABLE DISTANCES).
7.0 CODES
Adhere to all local codes or in their absence the latest edition of The
National Fuel Gas Code ANSI Z223.1 / NFPA 54 - latest edition which can
be obtained from The American National Standards Institute, Inc. (1430
Broadway, New York, NY, 10018) or National Fire Protection Association,
Inc. (Batterymarch Park, Quincy, MA, 02269).
Seller of unvented propane or natural gas fired supplemental room
heaters in the Commonwealth of Massachusetts shall provide to each
purchaser a copy of 527 CMR 30 upon sale of the unit.
This Lennox Hearth Products Unvented Gas Room Heater is certified by
OMNI-Test Laboratories, Inc to ANSI Z21.11.2 standard.
5.0 UNPACKING THE APPLIANCE
Remove the straps and the top lid of the outer packaging, remove any
instructions or fixing kits. Read ALL these instructions before continuing
to unpack or install this appliance.
Lift off the remaining packaging components.
Check that the components supplied with the packaging list on Page
3. Please dispose of all the packaging materials at your local recycling
center.
Massachusetts Requirements
These fireplaces are approved for installation in the US state of Massa-
chusetts if the following additional requirements are met:
• Unvented Room Heaters shall be installed in accordance with 527
CMR 30.00 and 248 CMR 3.00 through 7.00:
• Installation and repair must be done by a plumber or gas fitter licensed
in the Commonwealth of Massachusetts
• The flexible gas line connector used shall not exceed 36 inches (92
centimeters) in length.
• The individual manual shut-off must be a T-handle type valve.
• Vent-Free appliances may NOT be installed in bedrooms or bath-
rooms.
• A working smoke detector must be installed in the area where vent-
free appliances are installed.
Seller of unvented propane or natural gas-fired supplemental room
heaters shall provide to each purchaser a copy of 527 CMR 30 upon
sale of the unit.
New York:
These fireplaces are approved for installation in the US state of New York,
but not in New York City.

5
8.0 COMBUSTION AND VENTILATION AIR
This heater shall not be installed in a confined space or unusually tight
construction unless provisions are provided for adequate combustion and
ventilation air. The heater may be located in unusually tight construction
provided the space is unconfined, or if confined, is provided with two
permanent openings communicating directly with an additional room(s)
of sufficient volume so that the combined volume of all connected spaces
meets the criteria for an unconfined space, (National Fuel Gas Code
NFPA 54 / ANSI Z223.1 - latest edition, Section on Air for Combustion
and Ventilation. Generally 50 ft3per 1,000 BTU input of all operating
appliances in the space.
The National Fuel Gas Code, ANSI Z223.1/NFPA 54, defines a confined
space as a space whose volume is less than 50 ft3per 1,000 BTU/Hr
(4.8 m3per kW) of the aggregate input rating of all appliances installed
in that space and an unconfined space as a space whose volume is not
less than 50 ft3per 1,000 BTU/Hr (4.8 m3per kW) of the aggregate input
rating of all appliances installed in that space.
Rooms communicating directly with the space in which the appliances
are installed, through openings not furnished with doors, are considered
a part of the unconfined space.
Unusually tight construction is defined as construction where:
a. Wall and ceilings exposed to the outside atmosphere have a continu-
ous water vapor retarder with a rating of one perm (6 X 10-11 kg per
pa-sec-m2) or less with openings gasketed or sealed;
b. Weather stripping has been added on operable windows and doors;
and
c. Caulking or sealants are applied to areas such as joints around window
and door frames, between sole plates and floors, between wall ceiling
joints, between wall panels, at penetrations for plumbing, electrical,
and gas lines, and at other openings.
Use the following equations to determine if you have a confined or
unconfined space.
1. Determine the volume of space — ft3.
Length x Width x Height = _____ ft3
(Include adjoining rooms with doorless passageways or ventilation
grills between rooms).
Example: 24' (L) x 16' (W) x 8' (H) = 3072 ft3
2. Divide the volume of space by 50 ft3to determine the maximum BTU/Hr
the space can support.
______ (volume of space – ft3)/ 50 ft3=
(Maximum BTU/Hr the space can support)
Example: 3072 ft3/ 50 ft3= 61.44
or 61,440 BTU/Hr the space can support.
3. Add the BTU/Hr of all the fuel burning appliances in the space.
Vent-Free heater _______ BTU/Hr
Gas appliance #1* _______ BTU/Hr
Gas appliance #2 + _______ BTU/Hr
Gas appliance #3 + _______ BTU/Hr
Total = _______ BTU/Hr
Example:
Vent-free heater #1 9,000 BTU/Hr
Vent-free heater #2 23,000 BTU/Hr
Gas appliance #1 35,000 BTU/Hr
(water heater)
Total = 67,000 BTU/Hr
* Do not include direct-vent gas appliances. Direct-vent is sealed com-
bustion and draws combustion air from the outdoors.
4. Compare the maximum BTU/Hr the space can support with the actual
amount of BTU/Hr used.
_______ BTU/Hr (max. the space can support)
_______ BTU/Hr (actual amount of BTU/Hr used)
Example:
61,440 BTU/Hr (max. the space can support)
67,000 BTU/Hr (actual amount of BTU/Hr used)
The space in the previous example is a confined space because the
actual BTU/Hr used is more than the maximum BTU/Hr the space can
support. You must provide additional fresh air.
Your options are:
a. Rework equations adding the space of adjoining room(s). If the extra
volume provides an unconfined space, then remove door or add
ventilation grills between rooms. Refer to National Fuel Gas Code,
ANSI Z223.1/NFPA 54-latest edition, Section "Air for Combustion and
Ventilation".
b. Vent room directly to the outdoors. Refer to National Fuel Gas Code,
ANSI Z223.1/NFPA 54-latest edition, Section "Air for Combustion and
Ventilation".
c. Install a lower BTU/Hr heater to make the area an unconfined space.
If the actual BTU/Hr used is less than the maximum BTU/Hr the space
can support, then the space is an unconfined space. You will need no
additional fresh air ventilation for an unconfined space.
WARNING
If the area in which the heater may be operated is
smaller than that defined as an unconfined space
or if the building is of unusually tight construction,
provide adequate combustion and ventilation air by
one of the methods described in the national fuel
gas code, ANSI Z223.1/NFPA 54, Air for Combustion
and Ventilation Or applicable local codes.

6
9.0 SITE REQUIREMENTS
This appliance is designed to be wall-hung. Do not recess any part of
the appliance into the wall.
This appliance may be installed in any room in a home except bathrooms
- or areas where large amounts of steam are likely to be generated. This
appliance is approved for installation into a bedroom .
It should be noted that heaters create warm air currents. These currents
move heat to wall surfaces next to the heater. Installing the heater next
to vinyl or cloth wall coverings or operating the heater where impuri-
ties in the air (such as tobacco smoke or candle smoke) exist, may
discolor walls.
Installation in living rooms is common, however other rooms such as
kitchens, dining rooms and hallways are permitted, providing a suitable
gas supply is available, and rooms sizing and ventilation requirements
are strictly adhered to (see Section 8.0).
The appliance is designed to be versatile, and as such will operate correctly
when exposed to normal gentle drafts experienced within the home. It is
not recommended, however that the appliance be installed in areas where
it is likely to be exposed to persistent strong drafts, that may be generated
by outside doors or windows, air vents etc. It is recommended that the
appliance should not be installed within 20" of any air vent.
10.0 GAS SUPPLY ROUTES
Gas connection: The heater gas inlet connection is 3/8” NPT at the
regulator, located below the burner, in the right hand side of the heater.
There are four possible entry points for the gas supply pipe-work to
enter the appliance firebox. These entry points are ‘knock out’ type holes
(shown in Figure 1).
Clearance to the sides of the appliance are 4” but curtains, drapes and
other fabrics are not permitted within a distance of 20” of the appliance
sides. No such materials are permitted directly above the appliance
regardless of distance.
The minimum clearance to the ceiling above the appliance is 32” mea-
sured from the top of the appliance glass panel.
Combustible materials should not be positioned directly in front of the
appliance within a distance of 40”.
Under no circumstances should any electrical equipment e.g. plasma
screen TV sets etc. be positioned on the wall above the appliance. The
appliance is designed to be wall mounted alone and not in conjunction
with any type of combustible fire surround.
No combustible shelves should be positioned on the wall above the
appliance.
It should be established that any mirrors or picture frames etc. to
be positioned on the wall above the appliance are able to withstand
prolonged exposure to moderate heat and moisture before proceeding
with their installation.
The wall must be structurally sound and constructed from a material
capable of withstanding moderate heat. Finished plaster, conventional
wall paper and dry-lined plasterboard are examples of suitable materi-
als. Materials such as flock, blown vinyl and embossed paper which are
sensitive to even small amounts of heat should be avoided as scorching
and or discoloration may occur over time.
If the appliance is to be mounted on a dry-lined wall or a timber framed
construction wall then the integrity and ability of the wall to carry the
weight of the appliance must be confirmed. It is important in these
circumstances that any vapor control barrier is not damaged, and that
any structural members of the house frame are not damaged.
The appliance may be positioned as close to a solid floor (i.e. stone,
wooden laminate etc.) as the particular design of fire frame permits,
however it is not permitted to install the appliance within 4” of carpet,
rugs or fabric materials of any kind. This dimension is measured verti-
cally to the bottom of the appliance frame.
Figure 1 - Gas Supply Entry Points
CLEARANCES TO NON-COMBUSTIBLES
Non-combustible surfaces are defined as brick, metal, marble, concrete
etc. and also a number of man-made materials impervious to flame. If in
doubt refer to the material manufacturer for further information before
proceeding with installation.
Clearances to the sides of the appliance are 4”. Clearance to the front
of the appliance is 20”.
The appliance may be installed with or without a non-combustible hearth.
If a hearth is fitted, the size and design may be as desired.
A non-combustible shelf of any depth may be positioned above the appli-
ance provided it is no closer than 16” from the top of the appliance glass
panel and the wall above the appliance is non-combustible.
CLEARANCES TO COMBUSTIBLE MATERIALS
Combustible materials are defined as wood, fabrics, or other materials
likely to combust if exposed to flame. Generally, any material, which is
likely to discolor, melt or misshape when exposed to moderate heat,
should be considered as a combustible material or surface.
CAUTION
The back of the appliance may be installed directly
onto a combustible wall or non-combustible wall,
providing the area behind the appliance is flat and
does not interfere with the various vent holes in the
back panel of the appliance.

7
Non-concealed gas connections may be made using the
entry points at either end of the firebox or the one in
the bottom of the firebox. A concealed gas connection
may be made using the knock out hole in the center
back of the firebox. Select the most appropriate entry
point and knock out the relevant hole in both the firebox
and the outer casing.
No more than 59" of 1/4" diameter pipe must be used
to avoid unnecessary pressure drops.
If a concealed gas connection is to be made, the supply
pipe should always be sleeved through walls and floors
using the shortest possible route.
For concealed supply pipe routing, pipes must (where
possible) be vertical and providing there is sufficient
wall thickness available, they should be placed in pipe
chases. Horizontal pipe runs should be avoided where
possible. Prior to chasing a solid wall, an inspection
should be made to note the proximity of any cables/
sockets outlets which may already be buried. Pipes
must be secured using suitable clips and protected
against corrosion. Ideally factory finished protected
pipe-work and fittings should be used. Joints should
be kept to a minimum and compression fittings must
not be used. The pipe-work installation must be tested
for soundness before any protection is applied and/or
the pipe-work and fittings are buried.
1. Remove the Grill.
Note: This design of grill
not fitted to widescreen
model
2. Remove retaining
wing nuts
3. Remove
spindle
retaining pin
4. Remove control indicator bracket and control knob
Note : X-Fire 1000
shown as example
5. Widescreen
models : Remove
two self-tapping
screws from the
Left hand side of
the outer casing
and one from the
right hand side.
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
Figure 2
11.0 PREPARING THE APPLIANCE
IMPORTANT NOTE: All gas piping must be done by a
licensed plumber or gas fitter and must conform to
the requirements of the National Fuel Gas Code NFPA
54 / ANSI Z223.1 - latest edition.
1. Remove the two retaining screws on each side of
the upper grill and remove the grill from the outer
casing.
2. Removethetworetainingwingnutsfromtheretaining
studs that protrude into the lower part of the main
firebox as shown. The control knob is located on
the lower right hand side of the outer casing, and
is mounted in an indicator bracket, which has a
metallic indication ‘pip’ (indication mark for proper
knob alignment). Both the knob and the indicator
bracket should be removed as follows;
3. Remove the retaining pin from the gas valve spindle
andwithdrawthe control knobandthespindleexten-
sion from the right hand side of the appliance.
4. Remove the four retaining screws and the indicator
bracket. The firebox may now be detached from the
outer casing.

8NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
After having selected the final mounting position of the appliance, taking
into account the site requirements as specified in these instructions,
the integrity of the wall, and the feasibility of the proposed supply pipe
routing, the firebox of appliance may be secured to the wall.
12.0 MOUNTING THE APPLIANCE
WARNING
The wall where the appliance is to be installed must
be capable of long-term support of the total load of
the appliance. Measures should also be taken to
ensure sufficient strength to withstand the force of
earthquakes, vibration and other external forces.
A full size fitting template is supplied to assist with wall mounting. (see
Figure 3).
If the heater is to be installed on a studded wall with conventional 16”
stud spacing then a wall mounting plate is supplied to enable this. NOTE:
THIS APPLIANCE MUST BE SECURED DIRECTLY TO THE STUDS AT THE
FIXING POINTS THAT ARE 16" DISTANCE (see template below). First
locate the studs and using suitable fixings, screw the mounting plate to
the wall via the four mounting holes. The heater may then be hung onto
the mounting plate. The bottom of the heater may be secured onto the
lower mounting studs using the wing-nuts or the hex nuts provided.
Mark the positions shown as “Fixing Points” on the wall. If the appliance
is to be mounted on the inner leaf of a conventional cavity wall, or a solid
wall, drill four holes using a 5/16" masonry bit, to a depth of 1-11/16".
Insert the fiber wall plugs provided.
If the appliance is to be mounted on a dry lined wall or a timber framed
construction wall then special cavity screw fixings will be required
which are not supplied with this product. These should be constructed
from metal and not plastic.
If a concealed gas connection is to be made ensure the gas supply pipe
is in it’s final position and can enter the appliance in the correct position
when the appliance is hung on the wall.
Figure 3 - Wall Fixing Template
To ensure customer safety, be sure to design the installation so that the
strength of both the wall and any wall fixings used are sufficient. Lennox
Hearth Products assumes no responsibility for injuries and damages
that may occur due to improper installation or handling.
The appliance should not be installed until all dry wall sanding and wall
painting has been completed.
Incorrect installation can cause the appliance to fall from the wall and
cause injury. Do not block the ventilation holes of the appliance. The
wall onto which the appliance is installed must be flat. Install only on a
vertical surface. Avoid sloped surfaces. Installation onto anything other
than a vertical wall may result in fire, damage or injury.
WARNING
CLEARANCES FROM COMBUSTIBLE MATERIALS
F860041/A
The following clearances must be maintained at all times.
Failure todo so may result in the risk of a fire.
For full information referto the instruc tion manual
provided with the heater.
Note : Zeroclearance from bottom of heater frame
requiredfor hard combustible floors. Minimum 4”
clearance requiredto rugs or any fabric floor
coverings.REFER TO INSTRUCTION MANUAL
IMPORTANT: Fabrics, curtains and drapes are not
permited above the heater at any distance and within
20”of the heater sides. No combustible shelves of any
size are permitted above the heater.
Clearance to
combustible
sidewalls 4”
(both sides)
Clearance to combustibleceiling
32”measured from top of appliance
glass panel
Clearance in
front of
heater 20”
F860041/A
Deben mantenerse en todo momento los siguientes espacios
libres. El no hacerlo puede causar un riesgo de incendio.
Consulte el manual de instrucciones suministrado con este
aparato para obtener información completa.
Nota:No se requiere espacio libre desde el borde inferior del
marcodel calentador en caso de pisos combustibles duros.
Serequiere un espacio mínimo de 4” entre el calentador y
cualquieralfombra, moqueta o revestimiento de suelo de
tela.CONSULTE EL MANUAL DE INSTRUCCIONES.
IMPORTANTE:No se permite la colocación de telas, cortinas y
similares por encima del calentador a cualquier distancia, ni a
una distancia de 20”de los laterales del calentador. No se
permiten estantes combustibles de cualquier tamaño por
encima del calentador.
Espacio hasta
paredeslaterales
combustibles
4”(ambos lados)
El espacio de 32”hasta un techo
combustible se mide desde el borde
superior del panel de vidrio del aparato
Espacio libre
delante del
calentador 20”
ADVERTENCIA
ESPACIO LIBRE HASTAMATERIALES COMBUSTIBLES
F860487 - ISSUE A - PRW
POSITION SPIRIT LEVEL ALONG THIS EDGE TO LEVEL TEMPLATE BEFORE MARKING OUT WALL
COLOQUE EL NIVEL SOBRE ESTE BORDE PARA NIVELAR LA PLANTILLA ANTES DE MARCAR LA PARED
CENTRE LINE
LINEA DE CENTRO
FIREBOX OUTLINE
CONTORNO DE LA CAMARA DE COMBUSTION
APPLIANCE OUTLINE CONTORNO DE LA APARATO
FocalPointFires Single 27/06/08 F860487 Lennox 1000 fitting template
WALL MOUNTED VENT FREE FITTING TEMPLATE
PLANTILLA PARA LA INSTALACION DE CHIMENEAS DE PARED SIN SALIDA DE HUMOS
IMPORTANTE
ESTE APARATO UNICAMENTE DEBE SER
COLGADO EN UNA PARED.
NO EMPOTRE NINGUN ELEMENTO DE
ESTE APARATO.
ESTA PLANTILLA SIRVE UNICAMENTE
PARA MARCAR LOS PUNTOS DE FIJA-
CION.
RETIRE LA PLANTILLA ANTES DE COLO-
CAR LE APARATO.
IMPORTANT
THIS APPLIANCE IS TO BE WALL HUNG
ONLY.
DO NOT RECESS OR INSET ANY PART OF
THE APPLIANCE.
THIS TEMPLATE IS FOR THE MARKING
OF FIXING POINTS ONLY.
DO NOT INSTALL THE APPLIANCE WITH
THIS TEMPLATE IN PLACE.
PIERCE TEMPLATE TO MARK HOLE POSITION ON WALL X 4
FIXING POINTS
PERFORE LA PLANTILLA PARA MARCAR LA POSICION DE LOS 4 TALADROS EN LA PARED
PUNTOS DE SUJECION
16” (406mm)
813/16” (225mm)6 3/8” (160mm)
31/8”
(78.6mm)
CONCEALED
GAS INLET
ENTRADA DE
GAS OCULTA
Artwork Size: W1002 x H642
™
X-FIRES 1000

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE 9
It is recommended that the burner height, where possible, should
be approximately 4 ft. from the floor. This will give the best viewing
position. When selecting the height, ensure that the clearance to the
ceiling is 32" minimum, as specified on Page 6.
After selecting the final mounting position of the appliance, taking into
account the site requirements as specified in Section 9.0 of these
instructions, the integrity of the wall, and the feasibility of the proposed
supply pipe routing, the firebox of the appliance may be secured to the
wall.
Due to the weight of the front surround assembly, it is possible to fasten
the outer casing to the wall in up to nine positions, depending on the
strength/condition of the wall. If in doubt always use extra fixings!
Use a bubble level to ensure that the outer casing is level at all times
during installation.
Insert the screws into two of the upper holes, leaving 3/16" protruding
from the wall. Temporarily hang the outer casing on the wall, and mark
any additional fixing points as required. If the appliance is to be fitted
to a lightly colored wall, it is advantageous to paint this wall area with
black or dark paint in the vicinity of the lower rectangular slots on the
outer casing. This will mask the wall when viewed from the front of the
appliance. Ensure paint is fully dry before mounting the appliance. Use
the outer casing as a template to mark this area on the wall. Remove
the outer casing from the wall and drill holes for the additional fixing
points as required. Insert either wall plugs or cavity screw fixings as
required. Re-position the outer casing on the wall and using a bubble
level to check the casing is square and level, tighten all of the fixing
screws fully.
Now, with the outer casing fixed to the wall, the main firebox can be
secured in position. The firebox is held on the outer casing using four
studs and two normal nuts (upper fixings) and two wing nuts (lower
fixings). Make sure that the upper nuts are unscrewed approximately
one turn from the fully tightened position in order to create a 1/16" gap
as shown in Figure 4. The firebox may now be hung onto the top studs,
and then pushed onto the lower studs so that the lower studs protrude
through the lower fixing holes in the back panel of the firebox.
Next, re-fit the grill, the indicator bracket and the control knob and
spindle, and secure in position using the correct fixing screws (re-fitting
is the opposite of removal as detailed in these instructions).
Figure 4
1/16"
13.0 FITTING THE SURROUND ASSEMBLY
Due to the weight of the frame assembly, it is recommended to seek
assistance for this operation.
The frame assembly will be supported by keyhole slots by four M6
screws which protrude from the front of the outer casing (see Figure 5)
. Ensure each screw is unscrewed approximately one turn from the fully
screwed in position in order to create a 1/16" gap (shown). Hang the
surround assembly onto the outer casing, starting with the two bottom
fixings, ensuring that the corresponding keyhole shaped holes engage
the screw heads fully.
Figure 5
Heat Shield
IMPORTANT NOTE: Ensure that the
surround is positioned with the
heat shield on top as shown.

10 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
14.0 CHECKING THE BURNER
There are no imitation fuel bed components, such as logs or
rocks, to install. The appliance features a ribbon burner which is
designed to produce a continuous band of flame over its length.
The burner should be visually inspected to ensure it is free from
any foreign matter. If it is necessary to clean or dust off the
burner then the glass door should be removed by removal of
the four retaining screws. Re-fit the glass door after cleaning or
inspection, ensuring a good seal.
15.0 CONNECTING A GAS LINE
A qualified gas appliance installer must connect the gas room
heater to the gas supply. Consult all local codes.
The installer must provide an ANSI approved manual shut off
valve, flex connector and 3/8" NPT fitting.
Route gas line using techniques and materials prescribed by
local and/or national codes. Only use pipe of 1/2" or greater size
to allow full gas volume to the gas fireplace. Undue pressure
loss will occur if the pipe is too small.
An external regulator must be used on all propane (L.P.G.)
heaters, in addition to the regulator fitted to the heater, to reduce
the supply tank pressure to 13" w.c. (maximum).
Regulator
Manual
Shut-Off
Valve
Union
Sediment
Trap
Fireplace or
Firebox Wall
Wall
Shut-Off
Key
Fireplace or
Firebox Wall
Down
3"
Figure 6
WARNING
Connectingdirectlytoaunregulatedpropane(L.P.G.)
tank may cause an explosion.
An ANSI approved manual shut-off valve and union must be
installed upstream of the heater within the fireplace cavity
when rigid pipe is used. Ensure that a sediment trap is installed
upstream of the heater (Figure 4)within the structure’s piping
system to prevent moisture and contaminants from passing
through the pipe to the heater controls and burner. Failure to do
so could prevent the heater from operating reliably.
The heater gas inlet connection is 3/8” NPT at the regulator,
located below the burner, in the right hand side of the heater.
When tightening up the joint to the regulator hold the regulator
securely with a wrench to prevent the regulator from moving.
IMPORTANT
Holdheaterregulatorwithawrenchtopreventmove-
ment when connecting to inlet piping.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE 11
16.0 CHECKING THE GAS CONNECTIONS
Turn on gas supply and test for gas leaks using a gas leak test solution
(also referred to as bubble leak solution).
NOTE: using a soapy water solution (50% dish soap, 50% water) is
an effective leak test solution, but it is not recommended, because the
soap residue that is left on the pipes/fittings can result in corrosion
over time.
A. Light the appliance (refer to the lighting instructions label in the control
compartment or on Page 14).
B. Brush all joints and connections with the gas leak test solution to
check for leaks. If bubbles are formed, or gas odor is detected, turn
the gas control knob (off/pilot/on) to the “OFF” position. Either tighten
or refasten the leaking connection, then retest as described above.
C. When the gas lines are tested and leak free, be sure to rinse off the
leak testing solution.
D. Observe the individual tongues of flame on the burner. Make sure all
ports are open and producing flame evenly across the burner. If any
ports are blocked, or partially blocked, clean out the ports.
17.0 GAS PRESSURE CHECK
WARNING
Never use an open flame to check for leaks.
Checking Manifold Pressure at Provided Test Point (see Figure 7a) -
The pressure test point is located on the left hand side of the appliance,
on the main burner pipe, next to the brass restrictor adjacent to the
front left hand side burner bracket. Release the setting pressure test
point screw, and attach a U gauge. Light the fire on the HIGH setting.
Checking Manifold and Inlet Pressure at Valve (see Figure 7b) - The
heater regulator controls the burner pressure which can be checked at
the pressure test points located on the control valve itself for burner
(manifold) and regulator (inlet) setting pressures.
The valve is located on the lower right side of the appliance (see
exploded view drawing on Page 17). Release the test point screws and
ensure operating pressures are as specified in Table 1 on Page 3 of
these instructions. The pressure should be checked with the gas heater
burning and the control set to high flame.
Figure 7a
Burner (Manifold) Pressure
Figure 7b - Manifold and Inlet Pressure Taps
Regulator (Inlet)
Pressure Setting
If the pressure is too high, the gas supply meter may be set incorrectly.
This should be checked with the appliance running and if necessary
reset by the gas supplier. If the burner pressure is too low, then check
the inlet pressure with the appliance running. If this is less than the inlet
pressure stated in Table 1,it will need to be reset by the gas supplier.
If the setting pressure is too low, but the meter pressure is acceptable,
then a problem in the supply pipework is to be suspected. This may
be dirt and debris, kinked or inadequate size pipes, restriction in a
fitting, shut off elbow not fully open or solder flashing across a joint.
Identify the cause of the restriction and rectify. Switch the fireplace
off, disconnect the U gauge and refit the test nipple screw. Light the
fireplace and check test nipple for gas tightness. In the event that the
burner pressure is not in accordance with the figures stated in the Table
1of these instructions, the appliance must not be commissioned, and
the dealer should be contacted for guidance.
The pressure regulator on manual models is preset and locked to avoid
tampering. If the pressure is not as specified in Table 1 on Page 3,
replace the burner assembly (see Page 17 for ordering information).
Replace the test point screws after pressure measurement ensuring no
gas leaks. All instructions must be left in the possession of the user for
safekeeping.
Pressure Test Point
(on left side of fireplace)

12
18.0 SPARK GAP
The gap between the spark electrode and the pilot should be 1/8” to
3/16” to produce a good spark. There should be no need to adjust this
(DO NOT ATTEMPT TO ADJUST THE GAP). If under any circumstances
the piezo electric spark fails, the pilot cannot be lit manually.
19.0 BRIEFING THE CUSTOMER
WARNING
Do not add logs or ornaments such as pine cones,
vermiculite or rock wool. Using these added items
can cause sooting.
All instructions must be left in the possession of the user for safekeeping.
Show the customer how to light and control the fire. If at all possible,
show the customer how to remove and replace the surround assembly
and glass door assembly.
After commissioning the appliance, the customer should be instructed
on the safe use of the appliance and the need for regular servicing. Fre-
quency of service depends on usage, but MUST be carried out at least
once annually. Advise that cleaning of the appliance may be achieved
when the appliance is cold using a damp cloth and mild detergent on
most surfaces.
Advise that the fireplace will emit a "newness" smell for a time after
initial commissioning and that extra ventilation may be needed during
this time.
Advise to user to never place any objects on top of the appliance or
obstruction this area in any way.
A periodic visual check of the pilot flame and the burner flame should
be carried out.
Figure 8 - Proper Spark Gap
1/8" to 3/16" Spark Gap
Adjustment to the
pilot is Not allowed

13
WARNING
Any change to this heater or its controls can be
dangerous.
WARNING
No adjustments are to be made to the ODS pilot
system.Tamperingwiththissystemcanbeextremely
hazardous.
WARNING
You must keep control areas, burners and circulat-
ing air passageways of appliance clean. Failure to
keep the primary air opening(s) of the burner clear
may result in sooting and property damage. Inspect
these areas of appliance before each use. Have
appliance inspected yearly by a qualified service
person. Appliance may need more frequent clean-
ing due to excessive lint form carpeting, bedding
material, etc.
7. Remove the burner unit, strip off the burner pipes and clean thor-
oughly.
8. Clean the in-line restrictor, pilot assembly and the burner tube. Clean
the exterior of the pilot assembly with a soft brush and blow through
the flame ports on the pilot head. Check the aeration holes are free
from lint or dirt. Do not attempt to remove the pilot injector as this
can cause damage. The pilot assembly is a non-serviceable item and
should not be taken apart. Aeration holes must be clear internally for
proper operation. NEVER MODIFY OR BEND THE THERMOCOUPLE
TO MAKE THE PILOT STAY LIT. Modifications are dangerous and can
have serious unseen effects on safety. If the pilot will not stay lit there
is a problem with dirt, the gas supply to it, or the thermocouple needs
replacement.
9. Re-assemble components.
10.Re-connect the gas supply. Turn on the gas supply and perform a gas
leak test using gas leak test solution. Check pilot and burner for good
ignition.
11.Refit the valve cover and retaining screws.
12.Refit the glass door assembly (see Section 26.0).
13.Refit the surround assembly as described in Section 13.0.
14.Check the purpose provided ventilation is unobstructed.
15.Light the fireplace and test setting pressures.
16.Check safe operation of the appliance.
NOTES:
• The gas valve is a non-serviceable item. If this needs replacement,
remove the cover plate then the securing screw holding the valve
bracket in place, remove all pipe unions, and the complete valve.
Replacement must be original manufacturers parts.
• Ensure setting pressures are as stated in Table 1 on Page 3.
GLASS PANEL -This can be cleaned with a suitable glass cleaner. The
following solutions are approved for use to clean glass.
• Non-ammonia based household cleaner
• 50% -50% mix of white vinegar and water
• Gas fireplace/stove glass cleaner
PAINTED AREAS - These can be cleaned using a dry cloth.
LIMESTONE SURFACES: Remember that limestone is porous and
therefore susceptible to marking in use. The limestone frame may be
cleaned with a small amount of warm soapy water. Any stubborn stains
may be removed with a diluted liquid household bleach and water solu-
tion. Superficial scratches or stubborn surface stains can be smoothed
out using a fine grade wet and dry sandpaper. Joints may be grouted
using a matching tile grout. The limestone frame may be sealed with
an appropriate stone sealer (consult the retailer). This will give some
protection against staining such as red wine, tea or coffee, but may
darken the stone slightly.
GRANITE SURFACES: In everyday use, a soft lint-free duster should be
used to keep the granite clean. Other marks, such as fingerprints may
be removed from the granite frame by using household window-glass
cleaner.
For specific servicing instructions, see relevant sections.
20.0 SERVICING
WARNING
Turn off the appliance and allow to cool before
cleaning. Verify proper operation after servicing.
The appliance should be checked on an annual basis to ensure it is work-
ing safely and that there is no excessive build up of soot. The frequency
of service will depend on usage, but MUST be carried out at least once
annually. Servicing must be carried out by a qualified person, such as
a NFI certified technician.
Turn off the fireplace at the gas supply. Ensure that the fireplace
is fully cold before attempting service. A suggested procedure for
servicing is detailed as follows;
1. Lay out the dustsheet and tools.
2. Remove the granite or limestone surround assembly as described
in Section 13.0, only in reverse.
3. Remove the glass door assembly (4 screws) and clean carefully.
Remove the valve cover plate (4 screws).
4. Inspect the burner and the catalysts (see Section 21.0)and clean if
necessary with a soft brush. Ensure there are no defects or obstruc-
tions that may prevent the satisfactory flow of combustion products
through the catalysts.
5. Disconnect the gas supply. IMPORTANT NOTE: This must be done by
a licensed plumber or gas fitter and must conform to the require-
ments of the National Fuel Gas Code NFPA 54 / ANSI Z223.1 - latest
edition.
6. Undo the four screws retaining the burner support brackets.

14 NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
21.0 CATALYSTS
WARNING
Donotblockthecatalystsortheapplianceoutletgrill.
Blockage may cause high carbon monoxide levels
and/or breakage of the glass door assembly.
It is recommended that the catalysts are inspected for signs of damage
and dirt during routine servicing procedures. The expected life of the
catalysts is in excess of 11,000 hours (10 years of normal use). After
this time the catalyst should be replaced.
If there are any deposits of dirt or soot on the catalysts they should be
cleaned with a soft brush and a vacuum cleaner. If removed for cleaning
ensure the seals are in good condition before replacing the catalyst. New
seals will usually be required.
The performance of the catalyst may be checked using a combustion
gas analyzer as follows.
IMPORTANT: The temperature of the gases emitted by the catalytic
converters reach very high temperatures (up to 700° F). Measuring
gas of this temperature may damage some types of gas analyzers. If
in doubt consult the equipment manufacturer.
Turn on the fireplaceas per the operatinginstructions,and runatmaximum
setting for 15 minutes. Position gas sample probe directly over a catalyst
via the outlet grill, on top of the appliance. Record the carbon dioxide
(CO2) concentration and then the carbon monoxide (CO) concentration
as displayed by the analyzer - also noting the units in which the values
are expressed. Most analyzers display carbon dioxide (CO2) concentra-
tions in percentage (%) terms and carbon monoxide concentration in
parts per million (ppm) terms.
In order to calculate the combustion ratio for the appliance (CO/CO2)
it is first necessary to express both gas concentrations in terms of per-
centage. To convert from parts per million (ppm) to a percentage (%)
divide the ppm figure by 10,000. Examples : 35ppm = 0.0035%, 15ppm
= 0.0015%, 5ppm = 0.0005%.
Now divide the concentration of carbon monoxide (CO) expressed in
percent by the concentration of carbon dioxide (CO2) to obtain the
appliance combustion ratio.
CO (%)
CO2(%) = ratio
The combustion ratio of the gasses emitted by the catalytic convertor
should not exceed 0.0015.
If replacing, firstly, remove the glass door assembly as described in Sec-
tion 26.0. The catalysts are located on the top of the internal firebox and
can be removed be unscrewing the retaining nuts securing the clamping
plate. Remove the catalysts and seals and discard.
Refit a new catalysts and seals in reverse order, ensure the catalysts
and door have good seals.
22.0 TESTING FOR FIREBOX LEAKAGE
Appliances that are several years old or have been extensively dismantled
should be checked for soundness. It is important that all the products
of combustion pass through the catalytic converters at the top of the
firebox before leaving the appliance.
The firebox is heated by lighting for a few minutes to provide a flow
through the firebox. The burner is then shut off and a smoke pellet or
match introduced at the base of the fire underneath the burner tray. Large
quantities of smoke will emerge from the top of the appliance, but none
should emerge from the joints or gasket faces, especially around the
door. It is important to note that the appliance can never be expected
to be 100% smoke tight and small quantities of smoke may be seen in
corners of joints and gasket faces etc without affecting safety when the
appliance is in operation.
WARNING
Do not operate the appliance with the catalyst units
removed.
Figure 9 - Catalysts and Outlet Grill
DO NOT BLOCK
THESE AREAS

15
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY
RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A. This appliance has a pilot which must be lit with a piezo spark
igniter. When lighting the pilot, follow these instructions exactly.
B. BEFORE OPERATING smell all around the heater area for gas. Be
sure to smell next to the floor because some gas is heavier than
air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your
building.
• Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by hand, do
not try to repair it, call a qualified service technician. Forced or
attempted repair may result in a fire or explosion.
D. Do not use this heater if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any
gas control which has been under water.
LIGHTING INSTRUCTIONS
1. Stop! Read the safety information above.
2. Make sure manual shut-off valve is fully open.
3. Depress control knob in and turn clockwise to the
“OFF” position (Figure 10).
4. Wait 5 minutes to clear out any gas. Then smell for gas, including near
the floor. If you smell gas, STOP! Follow the safety instructions in “What
to do if you smell gas” under Section ‘B’ above. If you do not smell gas,
go to next step.
5. The pilot is located on the left side behind the burner (Figure 11). The
control knob is located on the lower right hand side of the outer case. It is
of a spherical design and is marked as shown in Figure 10.
6. Depress control knob in and turn counter-clockwise to the
“SPARK” position (Figure 10) and hold there for a few seconds.
Note: If you are running the heater for the first time or after an extended
period of non use it will be necessary to press the control knob all the way
in for 30 seconds to allow air to bleed out of the gas piping.
7. Continue turning counter-clockwise through the spark click
to the PILOT light position, ensuring the pilot has lit. If not, turn the knob
fully clockwise, and repeat.
8. Hold the control knob in for a further 10 seconds to prevent the flame
failure detector from shutting off the gas while the probe is warming up.
9. Release the control knob while turning counter-clockwise
to the preferred setting.
• If the knob does not pop out when released, stop and immediately call your
service technician or gas supplier.
• If the pilot will not stay lit after several tries, depress and turn the gas
control knob clockwise to “OFF” and wait 30 seconds. Depress
and turn knob counter-clockwise to “SPARK” and ignite the
heater again. If your pilot does not relight depress and turn control knob
clockwise to “OFF” and call your service technician or gas
supplier.
10. Wait 30 seconds before readjusting the heater when the control knob has
been turned down to a lower setting.
TO TURN OFF GAS TO APPLIANCE
23.0 LIGHTING INSTRUCTIONS & TURNING OFF APPLIANCE
Depress and turn control knob clockwise to the “OFF” position (Figure 10). Close the control access panel.
Figure 11:Pilot assembly. This is located
behind the burner, on the left-hand side of
the appliance.
Figure 11
The control knob is located on the lower
right hand side of the outer case. It is of a
spherical design and is marked as shown
in Figure 10.
‘OFF’ position
‘SPARK’ position
‘LOW’ position
‘HIGH’ position
Figure 10
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE

16
24.0 TROUBLESHOOTING GUIDE
PROBLEM CORRECTIVE ACTION
Igniter sparks but pilot does not light • No gas to Pilot, check the gas line connections.
• Air not fully purged. Purge supply or wait longer.
• Spark grounding to metal work, reset gap correctly.
• Blocked pilot, clean out internally.
Pilot lights but then goes out •Severe restriction in gas supply: clear obstruction.
•Faulty thermocouple, replace pilot assembly.
•Blocked pilot, clean out.
•Blocked lint gauze, clean.
•Hold control knob in for longer.
•If the pilot will not stay lit there is a problem with dirt, the gas supply, or
the thermocouple needs replacement. Modifications are dangerous and
can have a serious unseen effect on safety. NEVER MODIFY OR BEND THE
THERMOCOUPLE TO MAKE THE PILOT STAY LIT.
•There is a draft (i.e. from window or door, etc.) disturbing the pilot. Remove
draft. u
•The ODS safety system may sense lack of oxygen. Turn off appliance. Call a
qualified service technician. Open windows and doors to provide ventilation to
the area. v
Igniter electrode at pilot does not spark • HT lead detached,refit.
• Check the spark gap (see Section 18.0).
• Faulty piezo unit, replace.
• Debris shorting out electrode, clean.
• Spark shorting to metalwork under tray, realign HT lead.
The burner stays on for a period of time,
then cuts off
• Loose or faulty thermocouple, rectify.
• Blocked pilot, clean out.
• Dirt or lint in pilot aeration hole or on the lint gauze, clean thoroughly.
• If the pilot will not stay lit there is a problem with dirt, the gas supply, or
the thermocouple needs replacement. Modifications are dangerous and
can have a serious unseen effect on safety. NEVER MODIFY OR BEND THE
THERMOCOUPLE TO MAKE THE PILOT STAY LIT.
Pilot flame shrinks when fire is on high • Poor gas flow to fire, check pressure with fire on high.
• If pressure is low, remove any restriction in pipe-work or valve.
• Check all pipe-work are adequately sized.
• Check meter pressure is adequate.
• If the pilot will not stay lit there is a problem with dirt, the gas supply, or
the thermocouple needs replacement. Modifications are dangerous and
can have a serious unseen effect on safety. NEVER MODIFY OR BEND THE
THERMOCOUPLE TO MAKE THE PILOT STAY LIT.
Fireplace smells when first lit or in use • Newness smell from brand new appliance.
• Leakage occurring. Carry out leakage test and rectify any problems.
• Combustible materials used in incorrect positions.
• Unit may require a service to remove dust from catalysts.
u This appliance is equipped with a oxygen depletion monitoring safety device (ODS). If the appliance shuts down during use for no
apparent reason then several reasons may be suspected. If a door or window has been opened creating a draft, then pilot disturbance could
be the problem and removal of the draft should resolve this.
v If pilot disturbance is not the cause, then the ODS safety system sensing that there is a lack of oxygen. TURN THE APPLIANCE OFF,
call in your installer to check the appliance and ventilation. DO NOT allow the appliance to be used until the qualified service technician has
determined that the appliance is operating properly and adequate ventilation is being provided.

17
25.0 REPLACEMENT PARTS - X-FIRES-1000
5
4
15
Hardware
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
12
1
2
5
6
7
8
10
11
13 14
See ordering instructions on Page 20
WARNING
CLEARANCESFROM COMBUSTIBLE MATERIALS
F860041/A
Thefollowingclearances must be maintained at all times.
Failuretodo so may result in the risk of a fire.
Forfullinformation refer to the instruction manual
providedwiththe heater.
Note:Zero clearance from bottom of heater frame
requiredforhard combustible floors. Minimum 4”
clearancerequiredto rugs or any fabric floor
coverings.REFERTO INSTRUCTION MANUAL
IMPORTANT:Fabrics, curtains and drapes are not
permitedabovethe heater at any distance and within
20”ofthe heater sides. No combustible shelves of any
sizearepermitted above the heater.
Clearanceto
combustible
sidewalls4”
(bothsides)
Clearancetocombustible ceiling
32”measuredfrom topof appliance
glasspanel
Clearancein
frontof
heater20”
F860041/A
Debenmantenerseen todo momento los siguientes espacios
libres.Elno hacerlo puede causar un riesgo de incendio.
Consulteelmanual de instrucciones suministrado con este
aparatoparaobtener información completa.
Nota:Nose requiere espacio libredesde el borde inferior del
marcodelcalentador en caso de pisos combustibles duros.
Serequiereun espacio mínimo de 4”entre el calentador y
cualquieralfombra,moqueta o revestimientode suelo de
tela.CONSULTEELMANUAL DE INSTRUCCIONES.
IMPORTANTE:Nose permite la colocación de telas, cortinas y
similaresporencima del calentador a cualquier distancia, ni a
unadistanciade 20” de los laterales del calentador. No se
permitenestantescombustibles de cualquier tamaño por
encimadelcalentador.
Espaciohasta
paredeslaterales
combustibles
4”(amboslados)
Elespaciode 32” hasta un techo
combustiblesemide desde el borde
superiordelpanel de vidrio del aparato
Espaciolibre
delantedel
calentador20”
ADVERTENCIA
ESPACIOLIBREHASTA MATERIALES COMBUSTIBLES
F860487 - ISSUE A - PRW
POSITION SPIRIT LEVEL ALONG THIS EDGETO LEVEL TEMPLATE BEFORE MARKING OUTWALL
COLOQUE EL NIVEL SOBRE ESTE BORDE PARA NIVELAR LA PLANTILLA ANTES DE MARCAR LA PARED
CENTRE LINE
LINEA DE CENTRO
FIREBOX OUTLINE
CONTORNO DE LA CAMARA DE COMBUSTION
APPLIANCE OUTLINE CONTORNO DE LA APARATO
FocalPointFires Single 27/06/08 F860487 Lennox 1000 fitting template
WALL MOUNTED VENT FREE FITTING TEMPLATE
PLANTILLA PARA LA INSTALACION DE CHIMENEAS DE PARED SIN SALIDA DE HUMOS
IMPORTANTE
ESTE APARATO UNICAMENTE DEBE SER
COLGADO EN UNA PARED.
NO EMPOTRE NINGUN ELEMENTO DE
ESTE APARATO.
ESTA PLANTILLA SIRVE UNICAMENTE
PARA MARCAR LOS PUNTOS DE FIJA-
CION.
RETIRE LA PLANTILLA ANTES DE COLO-
CAR LE APARATO.
IMPORTANT
THIS APPLIANCE IS TOBE WALL HUNG
ONLY.
DO NOT RECESS OR INSET ANY PARTOF
THE APPLIANCE.
THIS TEMPLATEIS FOR THE MARKING
OF FIXING POINTS ONLY.
DO NOT INSTALLTHE APPLIANCE WITH
THIS TEMPLATEIN PLACE.
PIERCE TEMPLATETO MARK HOLE POSITION ON WALLX 4
FIXING POINTS
PERFORE LA PLANTILLA PARA MARCAR LA POSICION DE LOS 4 TALADROS EN LA PARED
PUNTOS DE SUJECION
16” (406mm)
813/16” (225mm)6 3/8” (160mm)
31/8”
(78.6mm)
CONCEALED
GAS INLET
ENTRADA DE
GAS OCULTA
Artwork Size: W1002 x H642
™
X-FIRES 1000
Item # Cat. No. Description
1 H6055 Glass Door Assembly
2 H6060 Catalyst
3 H6061 Pilot Assembly, Natural Gas
4 H6999 Pilot Assembly, Propane Gas
5 H7315 Burner Assembly, Natural Gas
6 H7317 Burner Assembly, Propane Gas
7 H6062 Catalyst Gasket
8 H7325 Large Back Glass
9a H7002 Ball Knob
9b H7041 Knob Spindle
10 H7328 Top Grill
11 H7313 Back Wrapper / Mounting Plate
12 H7318 Fitting Template
13 H7226 X-Fires-1000-L, Limestone Surround
14 H7227 X-Fires-1000-G, Granite Surround
15 H7006 Hardware Kit u
u
Hardware kits consists of the following:
6 ea. No.8 x 5/16 Screw Pozi Pan Head
6 ea. M6 x 12 Screw Pozi Pan Head BZP
6 ea. M4 x 12 Screw Pozi Pan Head Black
1 ea. Rubber Grommet
4 ea. Wall Plug
4 ea. Wall Fixing Screws
2 ea. Ceramic bracket
2 ea. Clevis Pin
4
3

18
26.0 POSITIONING OF FIELD REMOVABLE PARTS WARNING
Failure to position the parts in
accordance with these diagrams
orfailuretouseonlypartsspecifi-
cally approved with this heater
may result in property damage
or personal injury.
Figure 13
4 off burner
installation
positions
Figure 12
Glass Door Removal:
Remove the four (4)
screws indicated, then
lift door off.
Visual check for cor-
rect pilot flame.
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
As our policy is one of continuous improvement and development, we hope therefore you will
understand we must retain the right to amend details and/or specifications without prior notice.

19
27.0 SPECIFICATIONS
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
X-FIRE-1000 Surround Kits
Cat. No. Model Description Ship. Wt. Ship. Volume
H7226 X-FIRE-1000-L Limestone Surround 55 lb. 4.58 cu. ft.
H7227 X-FIRE-1000-G Granite Surround 55 lb. 4.58 cu. ft.
39-7/16”
11-1/4”
25-1/4”
21-3/16”
15-3/4”
23-3/4”
7-1/2”
21-7/16”
4-1/2”
39-7/16”
11-1/4”
25-1/4”
21-3/16”
15-3/4”
23-3/4”
7-1/2”
21-7/16”
4-1/2”
Surround Specifications
Product Reference Information
Cat. No. Model Ship. Wt. Ship. Volume
H7222 X-FIRE-1000-NG 46 lb. 3.31 cu. ft.
H7223 X-FIRE-1000-LP 46 lb. 3.31 cu. ft.
Note: Limestone and Granite are natural products and therefore each piece will have its own unique
character with no two pieces being quite the same.

Printed in U.S.A. © 2007 Lennox Hearth Products
P/N 506023-01 REV. B 11/2008
Lennox Hearth Products reserves the right to make changes at any time, without notice, in
design, materials, specifications, prices and also to discontinue colors, styles and products.
Consult your local distributor for fireplace code information.
WARRANTY
Your gas appliance is covered by a limited warranty. Please read the
warranty to be familiar with its coverage.
Retain this manual. File it with your other documents for future refer-
ence.
PRODUCT REFERENCE INFORMATION
We recommend that you record the following important information about
your appliance. Please contact your Lennox Hearth Products dealer for
any questions or concerns. For the number of your nearest Lennox Hearth
Products dealer, please call 1-800-9-LENNOX.
REPLACEMENT PARTS
See Page 17 for a complete replacement parts list. Use only parts sup-
plied from the manufacturer.
Normally, all parts should be ordered through your Lennox distributor or
dealer. Parts will be shipped at prevailing prices at time of order.
When ordering repair parts, always give the following information:
1. The model number of the appliance.
2. The serial number of the appliance.
3. The part number.
4. The description of the part.
5. The quantity required.
6. The installation date of the appliance.
If you encounter any problems or have any questions concerning the
installation or application of this system, please contact your dealer.
LENNOX HEARTH PRODUCTS
1110 West Taft Avenue
Orange, CA 92865
Visit us at www.Lennox.com
Your Appliance's Model Number _______________________________________
Your Fireplace’s Serial Number ________________________________________
The Date On Which Your Fireplace Was Installed___________________________
The Type of Gas Your Fireplace Uses ____________________________________
Your Dealer's Name _________________________________________________
Fuel Type c Natural Gas c Propane Gas
28.0 PRODUCT REFERENCE INFORMATION
1110 West Taft Avenue • Orange, CA 92865
