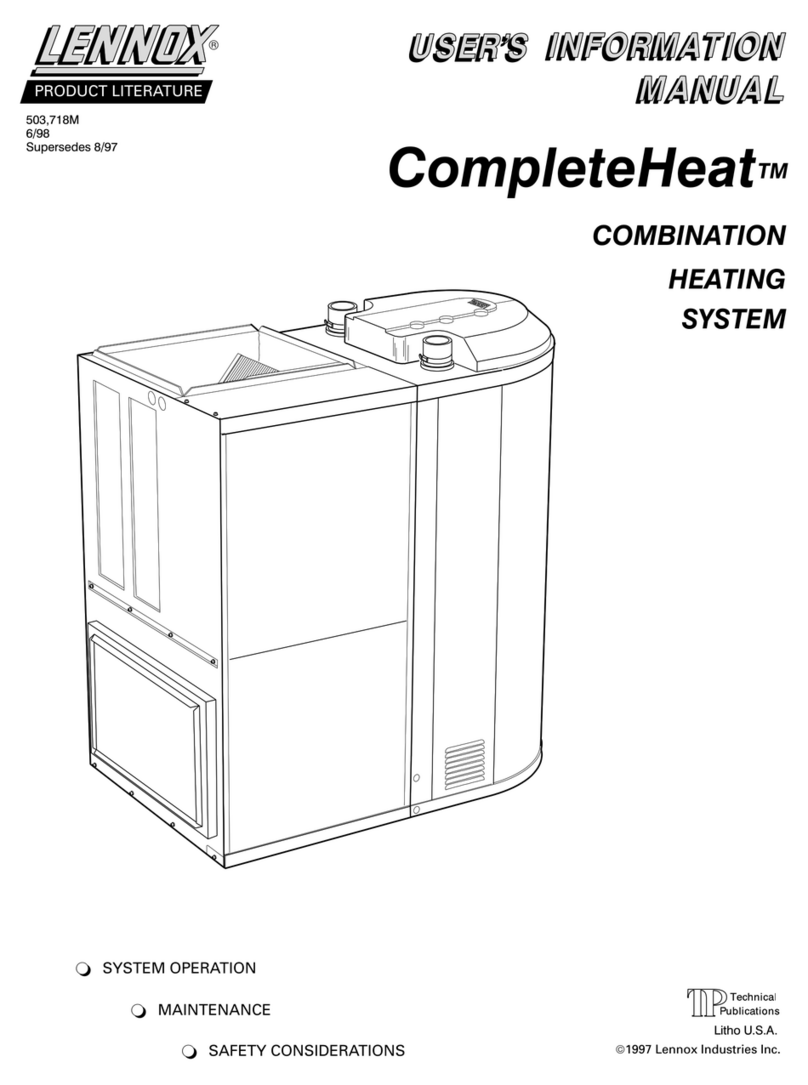

Lennox CompleteHeat Guide

CompleteHeatTM
COMBINATION
HEATING
SYSTEM

PRODUCT LITERATURE
1997 Lennox Industries Inc.
Litho U.S.A.
`SYSTEM OPERATION
`MAINTENANCE
`SAFETY CONSIDERATIONS
503,718M
6/98
Supersedes 8/97
All manuals and user guides at all-guides.com
all-guides.com

Page 1
INTRODUCTION
The CompleteHeatTM
Combination Heating System
Congratulations on the purchase of your Lennox CompleteHeat system.
Lennox takes pride in manufacturing high quality products that keep you
comfortable while saving you energy and money.
The CompleteHeat system is a highĆefficiency combination waterĆ and
spaceĆheating system. The system consists of an air module AM30) and a
heating module HM30). The two units work together to provide warm air like
a furnace and hot potable water like a hot water heater. The CompleteHeat sysĆ
tem takes care of these needs while being up to 40% more efficient than stanĆ
dard furnaces and water heaters.
This booklet explains how the CompleteHeat system operates, how to identify
the unit model number, how to operate a typical thermostat and how to mainĆ
tain the system for optimum performance. Keep this booklet and the warranty
shipped with the CompleteHeat system for future reference.
Thank you again for choosing Lennox.
All manuals and user guides at all-guides.com

Page 2
HOW THE CompleteHeatTM SYSTEM WORKS
The CompleteHeat system consists of a heating module HM30) that produces hot water and an air hanĆ
dling module AM30) that sends warmed air through the home's duct system. The two modules may be
installed together closeĆcoupled) or apart remote).
The system's operation begins when cold potable water fills the water storage tank through the pipe at
the top of the HM30 unit. When heat is needed to produce warm water or air, the HM30 control tells the
combustion air blower to draw in outside air for use in combustion. After a short safety delay, a fuel mixĆ
ture is sent into the burner where it is ignited by an electronic spark. Burning fuel moves through the
stainless steel heat exchanger inside the water storage tank. The water surrounding the heat exchanger is
heated until the water temperature reaches the desired setpoint on the water thermostat dial.
Combustion products travel out of the heat exchanger, condensate water is drained, and exhaust gases
are vented safely to the outdoors. Hot water is directed from the HM30 to faucets, shower heads, and
appliances such as the dishwasher and washing machine) through the plumbing located on top of the
HM30 unit.
When the room thermostat senses a need for heat, the AM30 water circulating pump draws hot water
from the HM30 heating module and routes it through the AM30 space heating coil. The aluminium and
copper coil absorbs heat from the water. The blower turns on, blowing air across the heated coil.
Warmed air is sent through the air duct system into the home. Water circulates back to the HM30 unit to
be reheated until the room temperature reaches the thermostat setting.
CompleteHeat Typical pplications
Upflow CloseĆCoupled Installation
with Cooling Coil
Horizontal Remotely Located Installation
with Cooling Coil
ir Conditioner
ir Conditioner
M30
ir Handling
Module
HM30
Heating Module
HM30
Heating
Module
M30
ir Handling
Module
All manuals and user guides at all-guides.com

Page 3
S FETY CONSIDER TIONS
Consider the materials stored near to the CompleteHeat system. Make sure the area around both AM30
and HM30 units has adequate space according to the prescribed clearances. DO NOT store combustible
materials such as newspapers, rags, mops, or flammable liquids such as gasoline, kerosene, paint thinner
near this or any other heating appliance.
Vapors from flammable liquids will explode and catch fire
causing death or severe burns.
Keep flammable products:
1. far away from heater,
2. in approved containers,
. tightly closed, and
4. out of children's reach.
Vapors:
1. cannot be seen,
2. are heavier than air,
. go a long way on the floor and
4. can be carried from other rooms
to the heater by air currents.
FOR YOUR SAFETY - Do not store or use gasoline or other
flammable, combustible, or corrosive vapors and liquids in
the vicinity of this appliance.
Water temperature over 125_F can cause severe burns
instantly or death from scalds.
Children, disabled and elderly are at high risk of being
scalded.
See the Adjusting Water Temperature section in this
manual before setting temperature at heat module
(HM 0 unit). Feel water before bathing or showering.
Temperature limiting valves are available and are recomĆ
mended for all applications.
All manuals and user guides at all-guides.com

Page 4
TO ST RT THE CompleteHeat SYSTEM
WARNING
If you do not follow these instructions exactly, a
fire or explosion may result causing property
damage, personal injury or loss of life.
1-STOP! Read the safety information at the beĆ
ginning of this section.
2-Set both room thermostat and water temperature
dial to lowest settings.
3-Turn off all electrical power to the CompleteHeat
system AM30 & HM30 unit). Ask your dealer to
identify the disconnect switch or circuit breaker.
4-The HM30 unit is equipped with an ignition device
which automatically lights the burner. Do not try to
light the burner by hand.
5-Turn knob on main manual shutĆoff valve 90_ counterclockwise to ON. Do not force.
6-Turn on all electrical power to system.
7-Set room thermostat and water temperature dial to desired settings.
NOTE - When unit is initially started, steps 1 through 7 may need to be repeated to purge air from gas
line. The AM 0 will not supply warm air until the water temperature in the HM 0 tank is within 15_F
(8. _C) of the desired water thermostat setpoint.
8-If the HM30 module will not operate, follow the instructions To Turn Off Gas To Unit" and call your
service technician or gas supplier.
TO SHUT OFF THE CompleteHeat SYSTEM
1-Set room thermostat and water temperature dial to lowest settings.
2-Turn off all electrical power to CompleteHeat system AM30 and HM30).
3- Turn knob on main manual shutĆoff valve 90_ clockwise to OFF. Do not force.
MAIN MANUAL SHUTĆOFF VALVE
MAIN MANUAL
SHUTĆOFF VALVE
SHOWN IN
OFF POSITION
All manuals and user guides at all-guides.com

Page 5
HOW TO SET THE ROOM THERMOST T
Your thermostat may vary from this example; however, the operation is similar.
SYSTEM SWITCH
Set the system switch for either heating, cooling or
auto if available). AutoĆchangeover is a setting that
allows the system to heat or cool, depending on the
need, without manually switching from one to
another. This setting is useful during seasonal
changes when heating may be needed in the
morning and cooling in the afternoon.
TEMPER TURE SETTING LEVERS
Simply set the indicator lever or dial on the
thermostat to the desired temperature for heating
and cooling modes.
F N SWITCH
In UTO or INT setting, the blower runs only when
the thermostat calls for either heating or cooling.
The ON or CONT setting runs the blower for
constant air circulation and filtering, regardless of
whether the equipment is heating or cooling. If your
thermostat does not have ON or CONT settings and
the continuous fan option is desired, ask your dealer
about an optional continuous fan switch. In high
humidity areas, the continuous fan operation tends
to increase indoor humidity levels, ask your dealer
which setting is best for your area.
TEMPER TURE INDIC TOR
The temperature indicator needle shows the actual
room temperature.
Many systems are installed with a programmable thermostat. These thermostats provide the same
SYSTEM and FAN control as standard thermostats, but also provide the feature of setting certain
temperatures for different times of the day or days of the week. Most provide for the selection of both
heating and cooling set points the temperature at which you want that mode to come on). Refer to the
separate instructions provided with your programmable thermostat for operation and adjustments.
PROGR MM BLE THERMOST TS
Temperature Indicator
System Switch
Fan Switch
Temperature Setting Levers
Hinged Door
(Shown Removed for Detail)
All manuals and user guides at all-guides.com
all-guides.com

Page 6
DJUSTING W TER TEMPER TURE
Remove the HM30 access panel. The water temperature dial is loĆ
cated at the lower left hand side of the HM30 control box. It is facĆ
tory set at 120_F 49_C). Water temperature setting may be raised
by turning dial clockwise to the desired setting. Temperature setĆ
tings are marked from 110_F 43_C) to 140_F 60_C). Each dash
mark represents an increase of 10_F 5.6_C). Some local building
codes limit the temperature of potable water to 120_F 49_C). Ask
your Lennox dealer for information on highest allowable water
temperatures and the use of antiĆscald and pointĆofĆuse water mixĆ
ing valves. These valves help reduce the risk of scalding.
KEEPING YOUR SYSTEM IN TOP FORM
HM30 Tank Draining Procedure
It is recommended that 5 to 10 gallons of water from the HM30 tank be drained every six months to reĆ
move any sediment. This may need to be done more often in areas of poor water condition.
1-Turn off power to unit and allow water temperature in HM30 tank to cool.
2-Remove HM30 access panel.
3-Connect hose to drain valve and route to open drain.
4-Open drain valve to allow water to flow.
5-After draining, close drain valve and disconnect hose. Replace access panel.
6-Fill tank with water and reĆapply power to the unit.
DO NOT reĆapply power to a dry tank. The burner should never operate with an empty water tank. Irreparable
damage to the HM 0 unit may occur.
All manuals and user guides at all-guides.com

Page 7
KEEPING YOUR SYSTEM IN TOP FORM-CONT.
WARNING
Electric shoc hazard. Can cause
injury or death. Before attempting to
perform any maintenance, turn the
electrical power to unit OFF at disĆ
connect switch(es). Unit may have
multiple power supplies.
AM30 Air Module and Filters
Having a clean filter is the most important step in keeping your new
heating and air conditioning system working to its full potential.
Dirt, dust and pet hair clog the filter as air cycles through the system.
Dirty filters make the equipment work harder which causes the unit
to use more energy than normal. A system with dirty filters will not
provide you with the comfort you expect. Cleaning or
replacing the filter is much less expensive than higher
energy bills or damaged equipment.
Make sure that all the power is OFF to the unit
before attempting to change filter. Have the dealer
show you where your unit's filter is located. The
filter may be found either inside or outside the
AM30 air module or in the wall at the return air
grille. If the filter is in the air module, it may be
inside the unit behind an access panel or located on
the side of the unit in an external filter rack. If
replacement is necessary, always replace it with the
same type of filter. If you don't know what filter you
need, call your Lennox dealer with the model
number of the unit. The dealer will be able to tell you
what type and size filter you need.
The filter shipped with the AM30 unit is reusable and can be
cleaned with a mild soap and water. The filter should be completely dried before being returned to the
unit . When replacing, look for the airflow direction arrow marked on the filter. Disposable filters used
at the return air grille) cannot be cleaned but should be replaced every month. During times of heavy
usage, it is beneficial to vacuum the filter in between changes or cleanings.
Your system may include an electronic air cleaner which rids your home of even the smallest particles of
dirt, dust and pollen. Ask your Lennox dealer to instruct you on its maintenance.
External
Side Return
Filter
Pull filter door
to remove filter
Remove lower
access panel.
Press side clips
and pull filter
up and out.
Internal Bottom
Return Air Filter
(Upflow shown)
All manuals and user guides at all-guides.com

Page 8
KEEPING YOUR SYSTEM IN TOP FORM-CONT.
HM30 Temperature / Pressure Relief Valve Testing
This valve is a safety device to protect
against abnormally high temperature
and pressures. Periodic discharge of
the relief valve may indicate thermal
expansion within a closed system.
A thermal expansion tank will be needed to
allow water to expand.
If the valve discharges, it is doing so because there is
a problem. Call your Lennox dealer or qualified
technician to inspect the unit for proper
operation. Do not ignore the water disĆ
charge. Never plug the T&P relief valve.
WARNING
Danger of Personal Injury from Scalding.
Water from T&P relief valve may be exĆ
tremely hot and is not tempered. Use exĆ
treme caution when discharging valve. ReĆ
placement of T&P valve should be done by
a trained professional or a licensed plumbĆ
ing contractor.
T&P valve testing should be done annualĆ
ly. Remove HM30 top access panel. LoĆ
cate the temperature and pressure relief
valve.
Test the T&P valve by lifting the lever
up until the valve unseats. This allows
the water to discharge. Never open the T&P valve unless it is connected to a discharge line.
If water does not flow, valve may be obstructed or corroded. Call your Lennox dealer or qualified techniĆ
cian to inspect the valve.
Drain
T&P Valve
Drain Line
W RNING - Water from
valve may be extremely hot.
Use extreme caution when
discharging valve.
TEMPER TURE / PRESSURE (T&P) RELIEF V LVE
TESTING PROCEDURE
Test Lever
(Lift up to discharge water)
Temperature & Pressure
Relief Valve
Drain Line
HM 0
Unit
HM30 Top
ccess Cover
All manuals and user guides at all-guides.com

Page 9
BEFORE C LLING FOR SERVICE...
6Write down the unit model number before calling.
1Check to see that electrical disconnect switches are ON.
2Make sure the room thermostat temperature selector and
water temperature dial are properly set.
3The room thermostat system switch should be in the ON
position.
4Replace any blown fuses, or reset circuit breakers.
5Air filter should be clean.
To keep your heating and cooling system running in peak operating condition
year after year, contact your independent Lennox dealer about a service and
maintenance program.
Have the Lennox dealer fill out this information for future reference.
AM30 Model # Serial #
HM30 Model # Serial #
Installer Phone #
Date Installed Filter Size and Type
All manuals and user guides at all-guides.com
