Lenovo Smart Clock 2 User manual

Lenovo Smart Clock 2
User Guide

Basics
• Allpicturesandillustrationsinthisdocumentareforreferenceonly.
• TheGoogleHomeappsupportsbothAndroidandiOSsystems.Thisdocument
usestheAndroidsystemasanillustrativeexample.
• BecausetheGoogleHomeappwillregularlybeupdated,refertothelatest
versionfortheactualprocedureandscreenshots.
Beforeusingthisinformationandtheproductitsupports,besuretoreadthefollowing:
• Safety,Warranty&QuickStartGuide
• RegulatoryNotice
• ImportantsafetyandhandlinginformationinAppendix
TheSafety,Warranty&QuickStartGuideandtheRegulatoryNoticeareavailableat:
http://support.lenovo.com
Getting started

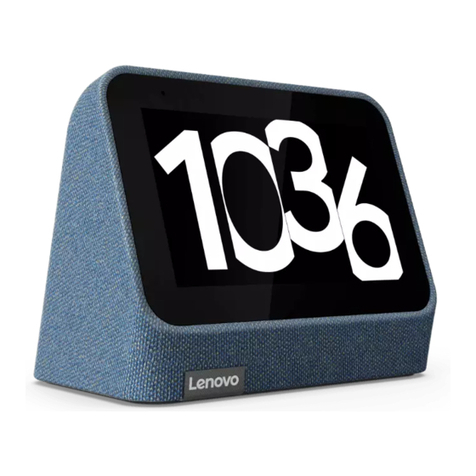

Overview
Name Model
LenovoSmartClock2 LenovoCD-24502F
5 5
7 6
1 1 42
3
1Microphones 2Light/proximitysensor 3Touchscreen
4Dockconnector 5Volumebuttons 6Microphonemute
switch
7Poweradapter
connector
• Allpicturesandillustrationsinthisdocumentareforyourreferenceonlyand
maydierfromthenalproduct.

• Tomutethemicrophone,slidetheMicrophonemuteswitchtowardsthe
directionofthemuteicon.
• ToturnotheBluetooth,useavoicecommand.

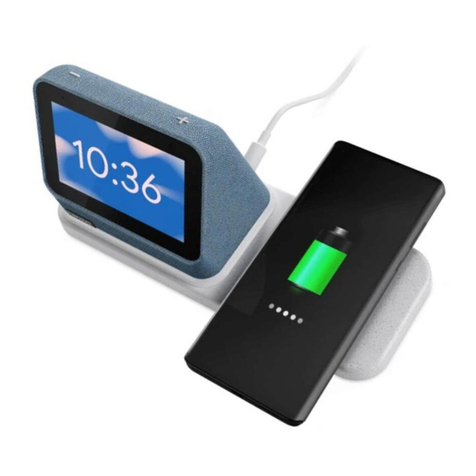

Name Model
WirelessChargingDockforLenovoSmartClocks LenovoSE-A61UW
1 2 3
4
1Wirelesschargingarea 2Dockconnector 3Nightlight
4USBconnector
• Alignthecentralareaofyourmobilephonewiththe“+”positionfor
continuousandstablecharging.
• WirelessChargingDockforLenovoSmartClocksmaintainscompatibilitywith
QichargingandMagSafefunction.
• TheUSBconnectorcanbeusedtochargeyourphoneorotherdevices.
Wireless charger compatibility
WirelessChargingDockforLenovoSmartClocksmaintainscompatibilitywithQicharging
onthreemodestochargeyourphoneorotherdevices.
Modetype Qi-enabledphonesanddevices
10WMode SamsungGalaxyS21,SamsungGalaxyS20,SamsungGalaxyS10,
SamsungGalaxyS9+,SamsungGalaxyS9,SamsungGalaxyS8,
SamsungGalaxyS8+,SamsungNote20,SamsungNote10,Samsung
Note9,SamsungNote8,LGV30+,LGV40,HuaweiMate20Pro,
Xiaomi9,GooglePixel5,GooglePixel4XL
7.5WMode iPhone12,iPhone12Mini,iPhone12ProMax,iPhone11,iPhone11
ProMax,iPhoneXSMax,iPhoneXR,iPhoneXS,iPhoneX,iPhone8,
iPhone8Plus
5WMode GooglePixel3XL,GooglePixelBuds2,AirPods,AirPodsPro

• WorkwithRubber/plastic/TPUcasesupto3mmthickness.Casesmadeof
metal,attachmentssuchaspopsockets,metalrings,magnets,cards,gripswill
interferewithcharging.
• Allchargersgeneratesomeheatwhencharging,andwirelesschargersareno
exception.Lenovochargerswiththeirsafetyprotocolsbuilt-intothecircuitry
willshutdowniftheydetectexcessiveheattoprotectyouandyourdevices.
Plugging in the Lenovo Smart Clock 2 to turn it on
Connectthepoweradaptertoyourdevice.
Downloading the Google Home app
DownloadandruntheGoogleHomeapponGooglePlayonaphone/tablet.Orifyouare
aniPhoneuser,youcandownloadtheGoogleHomeappfromtheAppStore.
Followtheon-screeninstructionstosetupyourLenovoSmartClock2.
Connecting the Lenovo Smart Clock 2 to the Internet
You’llneedtoconnectyourdevicetotheInternetbeforeusingit.
1. OpentheGoogleHomeapp.
2. TapGet startedandregisteryourGoogleaccount.
3. AddthenewdeviceinGoogleHome.TheGoogleHomeappwillscanfornearby
devices.
4. Selectthedevicethatyouwanttoconnect.
5. Followtheon-screeninstructionstosetupyourdevice.
• UsethesameWLAN(onlysupport2.4G)networkforyourLenovoSmart
Clock2andphone/tablet.

• Thesystemmaybeupdatedautomaticallywhenusingitforthersttime.
Waitseveralminuteswithoutoperating.
Talking to the Lenovo Smart Clock 2
TheLenovoSmartClock2hastheGoogleAssistantbuiltin.Justsay“HeyGoogle”or“Ok
Google”togetstarted.
Youcansay“HeyGoogle,whatcanyoudo?”tolearnabouttheavailableservicesofyour
GoogleAssistantonyourSmartDisplay.
For example:
Ifyousay“HeyGoogle,what’stheweatherthisweekend?”,theLenovoSmartClock2will
tellyoutheweatherinformation.
AccessyoursettingsintheGoogleHomeappat
anytimetoaddormodifyyourhomeaddress,work
address,setyournickname,andmore.
Setting the Nightlight
Thenightlightfunctionprovidesalightsourceforconvenienceindarkareas.
Method 1: Voice command
DirectlytalktoLenovoSmartClock2.Saysomethinglike:“HeyGoogle,turnonthenight
light.”
Method 2: Manual settings
1. Swipeuponthehomescreen,thentap .
2. TapNight lighttochooseanyofthefollowingoptions:
• Color:
-WithoutWirelessChargingDock:Nightlightreferstothebackgroundcolorofthe
LCDscreen,whosecolorcanbechanged.
-WithWirelessChargingDock:NightlightreferstotheLEDindicator,whosecolor
cannotbechanged.
• Brightness:Choosethebrightnesslevelfrom0to10
• Duration:Choosethetimeyouprefer
3. TapDone.
4. Swipedownonthehomescreen,thentapontoturniton.
• TapTurn o night lighttoclosethenightlightfunction.
• Tap tosetnightlightsettings.
IftheWirelessChargingDockforLenovoSmartClocksisconnected,youcan’tsetthe
colorofthenightlightonthedock.

Alarm Clock
354
Setting an alarm clock
Youcansetanalarmthatplaysasoundataspecictime.
Method 1: Voice command
DirectlytalktoLenovoSmartClock2.Saysomethinglike:“HeyGoogle,setanalarmfor8
a.m.”
Method 2: Manual settings
1. Swipedownonhomescreen,thentapAlarms.
2. TapSet an alarm,thensetthetime.
3. TapSettochooseanyofthefollowingoptions:
• Repeat:Choosethedaysoftheweek.
• Alarmtone:Choosethetoneyouprefer.
• Sunrisealarm:TheSmartClockgentlybrightens30minbeforeyouneedtogetup.
• Goodmorningroutine:WakeuptotheAssistantbriengyouabouttheweather,your
schedule,yourcommuteandthenews.
4. TapDone.TapDeletetoremovethealarm.
Youcanswiperightonhomescreenandtap shownatthetopright.Then,tapSet
an alarmifyouwanttosetanothertimeortap foralarmsettings.
Snoozing and stopping alarm clock
1. Swipedownonhomescreen,thentapAlarms .
2. Tap tosetthefollowingalarmoptions:
• Snoozelength:choosethetimetogiveyourselfafewmoreminutes.
• HardTap:snoozeorstopyouralarm
Adjusting screen brightness
Theclockscreensupportsvoice,automaticandmanualmodestoadjustbrightness.
Method 1: Voice command
DirectlytalktoLenovoSmartClock2.Saysomethinglike:“HeyGoogle,setscreen
brightnessleveltoeight”

Method 2: Manual settings
Swipeuponhomescreen,thentap tosetthebrightnesslevelyouprefer.
Method 3: Automatic settings
1. Swipeuponhomescreen,thentap .
2. TapDisplay settingstosetthefollowingoptions:
• Duringlowlight:Choosethemodethatthehomescreenwillautomaticallyswitchto
inthelow-lightenvironment.
ShowMonoclockface
Showcurrentclockface
Turnothescreen
• Minimumbrightness:Choosethemodethatthehomescreenwillautomaticallyswitch
tointheminimumbrightnessenvironment.
Brighter
Dim
Darker
3. TapDone.
Using the Google Home app
UsetheGoogleHomeapptomanageyourdevice.Throughtheapp,youcanmodify
yourGoogleAssistantsettingsincludingyourpersonalinformation,yourmediaservice
preferences,andyourconnectedsmarthomedevices.
1Tap toaddfeaturestohome,manageservices,orviewoers.
Tap tomanageyourGoogleAccount.

2Viewandchangeinformation.
3Displaydisconnectedandavailabledevicesnearby.
4MaintabsincludetheHometabandtheRecenteventstab.
Appendix
Important safety and handling information
Toavoidpersonalinjury,propertydamage,oraccidentaldamagetotheproduct,readall
oftheinformationinthissectionbeforeusingtheproduct.Foradditionaltipstohelpyou
operateyourdevicesafely,gotohttp://www.lenovo.com/safety.
Handle your device with care
Donotdrop,bend,orpunctureyourdevice.Donotinsertforeignobjectsintoorplace
heavyobjectsonyourdevice.Sensitivecomponentsinsidemightbecomedamaged.
Whenusingyourdevice,keepitawayfromhotorhigh-voltageenvironments,suchas
electricalappliances,electricalheatingequipment,andelectricalcookingequipment.Use
yourdeviceonlyinenvironmentswithinthetemperaturerangeof0°C(32°F)to40°C
(104°F)(storage-20°C(-4°F)to60°C(140°F))toavoiddamage.
Don’t expose your device to water, rain, extreme humidity, sweat or other liquids.
Do not disassemble or modify your device
Yourdeviceisasealedunit.Therearenoend-userserviceablepartsinside.Allinternal
repairsmustbedonebyaLenovo-authorizedrepairfacilityoraLenovo-authorized
technician.Attemptingtoopenormodifyyourdevicewillvoidthewarranty.
Plastic bag notice
DANGER:
Plasticbagscanbedangerous.Keepplasticbagsawayfrombabiesandchildrentoavoid
dangerofsuocation.
Adapter information
Adaptershallbeinstalledneartheequipmentandshallbeeasilyaccessible.
• Prevent AC adapter from getting wet.
• Use approved charging methods only.
Note:PleaseonlyusestandardLenovopoweradapters.Theuseofthird-partypower
adapterswillaectthechargingspeed,resultinginabnormalchargingandpotential
damagetothedevice.

Connectastandardpoweradaptertoasuitablepoweroutlet.
Chargingdevicesmightbecomewarmduringnormaluse.Ensurethatyouhaveadequate
ventilationaroundthechargingdevice.Unplugthechargingdeviceifanyofthefollowing
occurs:
• Thechargingdevicehasbeenexposedtorain,liquid,orexcessivemoisture.
• Thechargingdeviceshowssignsofphysicaldamage.
• Youwanttocleanthechargingdevice.
Warning:
Lenovo is not responsible for the performance or safety of products not manufactured or
approved by Lenovo. Use only approved Lenovo AC adapters.
Dispose according to local laws and regulations
Whenyourdevicereachestheendofitsusefullife,donotcrush,incinerate,immersein
water,ordisposeofyourdeviceinanymannercontrarytolocallawsandregulations.
Someinternalpartscontainsubstancesthatcanexplode,leak,orhaveanadverse
environmentaleectifdisposedofincorrectly.
See“Recyclingandenvironmentalinformation”foradditionalinformation.
Keep your device and accessories away from small children
Yourdevicecontainssmallpartsthatcanbeachokinghazardtosmallchildren.
Additionally,theglassscreencanbreakorcrackifdroppedonorthrownagainstahard
surface.
Be aware of heat generated by your device
Whenyourdeviceisturnedon,somepartsmightbecomehot.Thetemperaturethatthey
reachdependsontheamountofsystemactivity.Extendedcontactwithyourbody,even
throughclothing,couldcausediscomfortorevenaskinburn.Avoidkeepingyourhands,
yourlap,oranyotherpartofyourbodyincontactwithahotsectionofthedeviceforany
extendedtime.
Electronic emission notices
FCC Compliance Statement
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB
digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide
reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This
equipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalled
andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio
communications.However,thereisnoguaranteethatinterferencewillnotoccurina
particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor
televisionreception,whichcanbedeterminedbyturningtheequipmentoandon,the

userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing
measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdierentfromthattowhichthe
receiverisconnected.
• Consultanauthorizeddealerorservicerepresentativeforhelp.
Lenovoisnotresponsibleforanyradioortelevisioninterferencecausedbyunauthorized
changesormodicationstothisequipment.Unauthorizedchangesormodicationscould
voidtheuser’sauthoritytooperatetheequipment.
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowing
twoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevice
mustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired
operation.
ResponsibleParty:
Lenovo(UnitedStates)Incorporated
1009ThinkPlace-BuildingOne
Morrisville,NC27560
Telephone:1-919-294-5900
ISED Caution
ThisdevicecomplieswithInnovation,ScienceandEconomicDevelopmentCanada
license-exemptRSSstandard(s).Operationissubjecttothefollowingtwoconditions:
(1)Thisdevicemaynotcauseinterference,and
(2)thisdevicemustacceptanyinterference,includinginterferencethatmaycause
undesiredoperationofthedevice.
LeprésentappareilestconformeauxCNRd’IndustrieCanadaapplicablesauxappareils
radioexemptsdelicence.L’exploitationestautoriséeauxdeuxconditionssuivantes:
(1)l’appareilnedoitpasproduiredebrouillage,et
(2)l’utilisateurdel’appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesile
brouillageestsusceptibled’encompromettrelefonctionnement.
Environmental, recycling, and disposal information
General recycling statement
Lenovoencouragesownersofinformationtechnology(IT)equipmenttoresponsibly
recycletheirequipmentwhenitisnolongerneeded.Lenovooersavarietyofprograms
andservicestoassistequipmentownersinrecyclingtheirITproducts.Forinformationon
recyclingLenovoproducts,gotohttp://www.lenovo.com/recycling.

WEEE information
Don’tdisposeofyourproductwithyourhouseholdwaste.Refertothe
UserGuidethatcamewithyourproductforfurtherinformation,orgo
tohttp://www.lenovo.com/recycling
Recycling information for Japan
RecyclinganddisposalinformationforJapanisavailableat:
http://www.lenovo.com/recycling/japan
Restriction of Hazardous Substances Directive (RoHS)
United States of America
LenovoproductssoldinCalifornia,onorafterJanuary1,2007,meettherequirementsof
“California’sRoHS”(SB20,50).
LenovoproductssoldtotheNewYorkCitygovernment,onorafterMarch1,2007,meet
therequirementsoftheCity’senvironmentalpreferredpurchasingregulations.
Turkey
LenovoproductssoldinTurkey,onorafterJune1,2009,meettherequirementsofthe
formerRepublicofTurkeyRestrictionofHazardousSubstanceslegislationfrom30thof
May2008andtheControlofWasteElectricalandElectronicEquipmentRegulationsfrom
22ndofMay2012(“TurkeyRoHS”).
Ukraine
LenovoproductssoldinUkraine,onorafterJanuary1,2011,meettherequirementsof
theTechnicalDirectiveonRestrictionofHazardousSubstancesinElectricandElectronic
EquipmentenforcedbytheGovernment,DecisionNo1057dated2008/12/03”(“Ukraine
TRonRoHS”).
India
LenovoproductssoldinIndia,onorafterMay1,2012,meettherequirementsoftheIndia
E-waste(Management)Rules(“IndiaRoHS”).
Vietnam
LenovoproductssoldinVietnam,onorafterSeptember23,2011,meettherequirements
oftheVietnamCircular30/2011/TT-BCT(“VietnamRoHS”).

European Union (EU) / United Kingdom (UK) RoHS
ThisLenovoproduct,withincludedparts(cables,cords,andsoon)meetsthe
requirementsofEUDirective2011/65/EUasamendedbyDirective2015/863/EUandUK
SI2012No.3032ontherestrictionoftheuseofcertainhazardoussubstancesinelectrical
andelectronicequipment(“RoHSrecast”or“RoHS2”).Formoreinformationabout
LenovoprogressonRoHS,goto:
https://www.lenovo.com/us/en/social_responsibility/RoHS-Communication.pdf
Singapore
LenovoproductssoldinSingapore,onorafterJune1,2017,meettherequirements
ofGovernmentGazetteorderNo.S263/2016RestrictionofHazardousSubstancesin
ElectricalandElectronicEquipmentinSingapore(“SG-RoHS”).
Export classification notice
ThisproductissubjecttotheUnitedStatesExportAdministrationRegulations(EAR)and
hasanExportClassicationControlNumber(ECCN)of5A992.c.Itcanbere-exported
excepttoanyoftheembargoedcountriesintheEARE1countrylist.
EU ErP (EcoDesign) Directive (2009/125/EC) - external power
adapters (Regulation (EU) 2019/1782) Ecodesign for Energy-
Relater Products Regulations 2010 - UK SI 2010 No. 2617 (Ext
PSU), SI 2020 No. 485 (Ntwk Standby), SI 2014 No. 1290 as
amended
LenovoproductsarecompliancewiththeEUEcoDesign(ErP)Directive&UKEcoDesign
forEnergy-relatedProductsRegulations.Refertothefollowingfordetails:ForEU,refer
tothesystemdeclarationhttps://www.lenovo.com/us/en/compliance/eu-doc,andforUK
refertothesystemdeclarationhttps://www.lenovo.com/us/en/compliance/uk-doc
Product power consumption
ConnecttheproducttotheInternet,withtheambientlightbrightnesslowerthan1lux.
Turnothenightlightandkeeptheproductinanidlestate.Atthistime,thepower
consumptionoftheproductwillbelessthan2W.
Legal notices
Google,GoogleHomeandGooglePlayaretrademarksofGoogleLLC.
