Lenovo 90U9003QMH User manual

IdeaCentre 3
User Guide

Read this first
Before using this documentation and the product it supports, ensure that you read and understand the
following:
• Safety and Warranty Guide
• Generic Safety and Compliance Notices
• Setup Guide
First Edition (November 2021)
© Copyright Lenovo 2021.
LIMI ED AND RES RIC ED RIGH S NO ICE: If data or software is delivered pursuant to a General Services
Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-
35F-05925.

Contents
bout this documentation . . . . . . . . iii
Chapter 1. Meet your computer. . . . . 1
Front . . . . . . . . . . . . . . . . . . . . 1
Rear . . . . . . . . . . . . . . . . . . . . 3
Features and specifications . . . . . . . . . . . 4
USB specifications . . . . . . . . . . . . . . 4
Operating environment . . . . . . . . . . . . . 6
Chapter 2. Get started with your
computer . . . . . . . . . . . . . . . . . 7
Work with Windows . . . . . . . . . . . . . . 7
Windows help information . . . . . . . . . . 7
Connect an external display . . . . . . . . . . . 8
Chapter 3. Explore your computer . . . 9
Lock the computer . . . . . . . . . . . . . . 9
Lenovo Vantage. . . . . . . . . . . . . . . 10
Set the power plan . . . . . . . . . . . . . 11
ransfer data . . . . . . . . . . . . . . . . 11
Connect to a Bluetooth-enabled device (for
selected models) . . . . . . . . . . . . 11
Use the optical drive (for selected models) . . 12
Use a media card (for selected models) . . . . 12
Purchase accessories . . . . . . . . . . . . 12
Chapter 4. CRU replacement . . . . . 13
CRU list . . . . . . . . . . . . . . . . . . 13
Remove or replace a CRU . . . . . . . . . . . 14
Power cord. . . . . . . . . . . . . . . 14
Computer cover . . . . . . . . . . . . . 14
Front bezel . . . . . . . . . . . . . . . 15
Card reader . . . . . . . . . . . . . . 16
Optical drive . . . . . . . . . . . . . . 17
Optical drive bracket . . . . . . . . . . . 18
Storage drive . . . . . . . . . . . . . . 19
M.2 solid-state drive . . . . . . . . . . . 21
Memory module . . . . . . . . . . . . . 23
Heat sink . . . . . . . . . . . . . . . 24
Coin-cell battery. . . . . . . . . . . . . 25
PCI Express card . . . . . . . . . . . . 26
Power supply assembly . . . . . . . . . . 27
Chapter 5. Help and support . . . . . 29
Frequently asked questions . . . . . . . . . . 29
Self-help resources . . . . . . . . . . . . . 29
Call Lenovo . . . . . . . . . . . . . . . . 31
Before you contact Lenovo . . . . . . . . 31
Lenovo Customer Support Center . . . . . . 31
Purchase additional services. . . . . . . . . . 32
ppendix . Notices and
trademarks . . . . . . . . . . . . . . . 33
© Copyright Lenovo 2021 i

ii IdeaCentre 3 User Guide

bout this documentation
• his guide applies to the Lenovo product models listed below. Illustrations in this guide may look slightly
different from your product model.
Model name Machine type (MT)
IdeaCentre 3 07IAB7 90SM
• For further compliance information, refer to the Generic Safety and Compliance Notices at https://
pcsupport.lenovo.com/docs/generic_notices.
• Depending on the model, some optional accessories, features, and software programs might not be
available on your computer.
• Depending on the version of the operating systems and programs, some user interface instructions might
not be applicable to your computer.
• Documentation content is subject to change without notice. Lenovo makes constant improvements to the
documentation of your computer, including this User Guide. o get the latest documentation, go to https://
pcsupport.lenovo.com.
• Microsoft® makes periodic feature changes to the Windows® operating system through Windows Update.
As a result, some information in this documentation might become outdated. Refer to Microsoft resources
for the latest information.
© Copyright Lenovo 2021 iii

iv IdeaCentre 3 User Guide

Chapter 1. Meet your computer
Front
1. Power button 2. Card reader slot*
3. Microphone connector 4. Headset connector
5. USB-C® (3.2 Gen 1) connector 6. USB 3.2 connectors Gen 1(2)
7. Optical drive eject button* 8. Optical drive activity indicator*
9. Optical drive*
* for selected models
Power indicator
Show the system status of your computer.
• Blinking for three times: he computer is initially connected to power.
• On: he computer is on.
• Off: he computer is off or in hibernation mode.
• Blinking rapidly: he computer is entering sleep or hibernation mode.
• Blinking slowly: he computer is in sleep mode.
Related topics
• “Use a media card (for selected models)” on page 12.
© Copyright Lenovo 2021 1

• “USB specifications” on page 4.
• “Use the optical drive (for selected models)” on page 12.
2IdeaCentre 3 User Guide

Rear
1. Padlock loop 2. Security-lcok
3. PCI Express card area 4. Power cord connector
5. USB 3.2 connectors Gen 1(2) 6. USB 2.0 connectors(2)
7. Ethernet connector 8. VGA-out connector
9. HDMI M 1.4 out connector 10. Audio line-out connector
Related topics
• “USB specifications” on page 4.
• “Connect an external display” on page 8.
Chapter 1.Meet your computer 3

Features and specifications
For detailed specifications of your computer, go to https://psref.lenovo.com.
Hardware o view the hardware information of your computer, type device manager in the
Windows search box and then press Enter.
Power supply • 180-watt automatic voltage-sensing power supply
• 260-watt automatic voltage-sensing power supply
daptability for power supply
• Mainland China: 220 V ± 22 V, 50 Hz ± 1 Hz
• Adaptive voltage positioning: 90 V to 264 V, 50/60 Hz
• With voltage selection switch: 90 V to 264 V, 50 Hz ± 1 Hz
Microprocessor o view the microprocessor information of your computer, type system
information in the Windows search box and then press Enter.
Memory Double data rate 4 (DDR4) unbuffered dual in-line memory module (UDIMM)
Storage device
• Hard disk drive
• Solid-state drive
o view the storage drive capacity of your computer, type disk management in the
Windows search box and then press Enter.
Note: he storage drive capacity indicated by the system is less than the nominal
capacity.
Expansion
• Card reader slot*
• 2 DDR4 UDIMM slots
• 2 M.2 PCIe slots (1 for Wi-Fi; 1 for solid-state drive)
• 3.5–inch hard disk drive bay
• PCIe Gen 4 x16 slot
Network features
• Bluetooth
• Ethernet LAN
• Wireless LAN
* for selected models
USB specifications
Note: Depending on the model, some USB connectors might not be available on your computer.
4IdeaCentre 3 User Guide

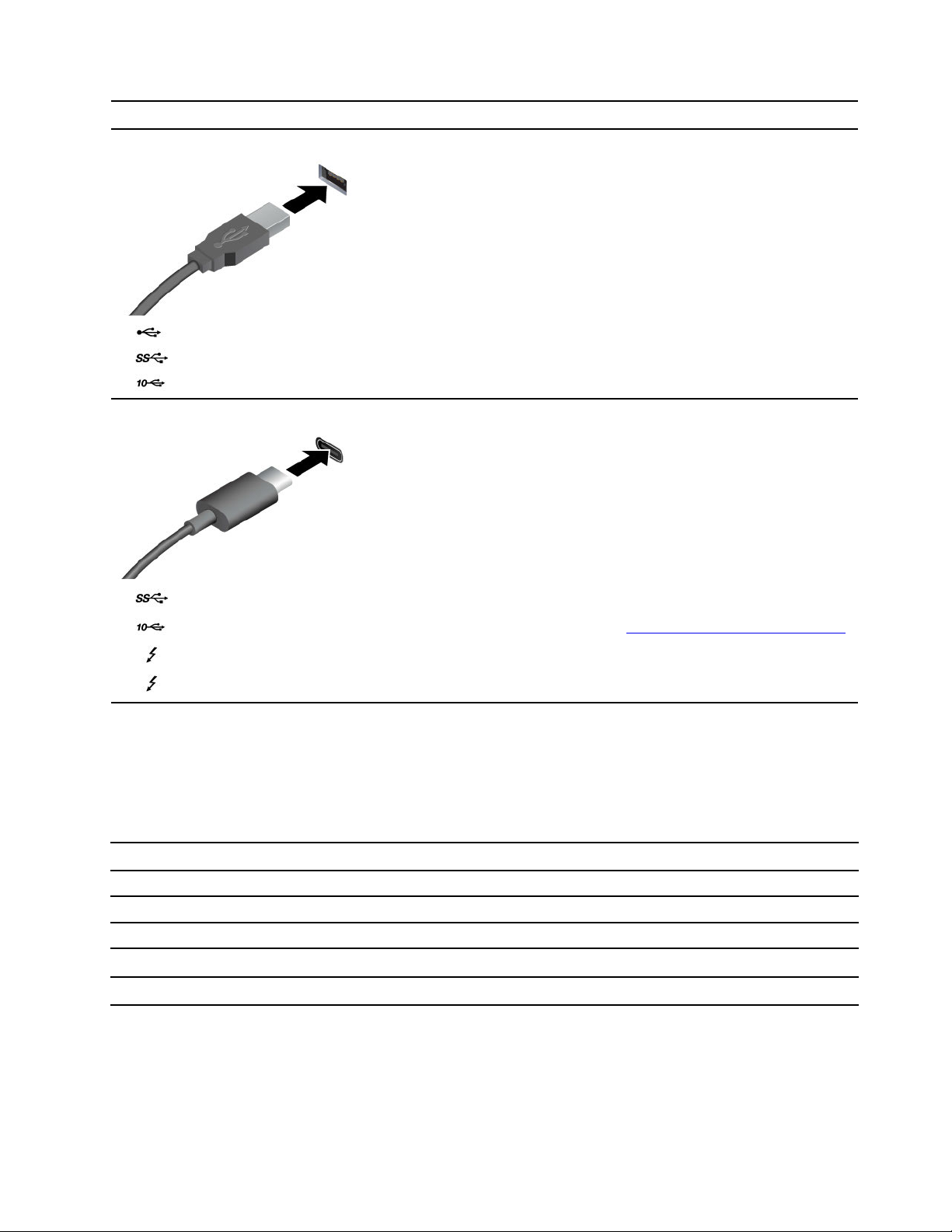

Connector name Description
• USB 2.0 connector
• USB 3.2 connector Gen 1
• USB 3.2 connector Gen 2
Connect USB-compatible devices, such as a USB
keyboard, USB mouse, USB storage device, or USB
printer.
• USB-C (3.2 Gen 1) connector
• USB-C (3.2 Gen 2) connector
• hunderbolt 3 connector (USB-C)
• hunderbolt 4 connector (USB-C)
• Charge USB-C compatible devices with the output
voltage and current of 5 V and 3 A.
• Connect to an external display:
– USB-C to VGA: 1900 x 1200 pixels, 60 Hz
– USB-C to DP: 3840 x 2160 pixels, 60 Hz
• Connect to USB-C accessories to help expand your
computer functionality. o purchase USB-C
accessories, go to https://www.lenovo.com/accessories.
Statement on USB transfer rate
Depending on many factors such as the processing capability of the host and peripheral devices, file
attributes, and other factors related to system configuration and operating environments, the actual transfer
rate using the various USB connectors on this device will vary and will be slower than the data rate listed
below for each corresponding device.
USB device Data rate (Gbit/s)
3.2 Gen 1 / 3.1 Gen 1 5
3.2 Gen 2 / 3.1 Gen 2 10
3.2 Gen 2 × 2 20
hunderbolt 3 (USB-C) 40
hunderbolt 4 (USB-C) 40
Chapter 1.Meet your computer 5

Operating environment
Temperature
• Operating: From 5°C (41°F) to 35°C (95°F)
• Storage or transportation:
– For common desktop computers: From -40°C (-40°F) to 60°C (140°F)
– For all-in-one desktop computers: From -20°C (-4°F) to 60°C (140°F)
Relative humidity
• Operating: 20%-80% (non-condensing)
• Storage: 10%–90% (non-condensing)
ltitude
• Operating: -15.2 m (-50 ft) to 3048 m (10,000 ft)
• Storage: -15.2 m (-50 ft) to 12192 m (40,000 ft)
6IdeaCentre 3 User Guide

Chapter 2. Get started with your computer
Work with Windows
he following table contains Windows frequently used settings. You can learn the basics and start working
with Windows right away.
o configure settings, type the corresponding keywords in the Windows search box and select the best
match. Follow the on-screen instructions to customize settings.
Table 1. Basic settings
Functions Descriptions Search by
keywords
Control Panel View or change Windows settings, including hardware and software setup
and configuration.
Control Panel
Connect to Wi-Fi
networks
For models with a wireless LAN module, you can connect your computer to
a Wi-Fi® network. Click the network icon in the Windows notification area,
and then select a network for connection.
Note: he wireless LAN module on your computer may support different
standards. For some countries or regions, use of 802.11ax may be disabled
according to local regulations.
Wi-Fi
Connect to wired
networks
For models with an Ethernet (RJ-45) connector, you can use an Ethernet
cable to connect your computer to a wired network.
—
Airplane mode Airplane mode is a convenient setting to turn all wireless communications of
your computer on and off. You may need to turn it on when boarding an
airplane.
Airplane mode
Night light mode Night light is a switch in Windows that you can turn on and off. When it is
turned on, your screen shows warmer colors and the amount of emitted
blue light is reduced. Enabling night light reduces the chances of developing
eye fatigue or eye strain.
Note: For more guidance on reducing eye fatigue or eye strain, go to
https://www.lenovo.com/us/en/compliance/visual-fatigue.
Night light
Adjust color
temperature
If night light mode is turned on, you can adjust the color temperature of the
screen.
Note: Selected Lenovo computers are low blue light certified. hese
computers are tested with night light turned on and color temperature set to
the default value of 48.
Night light
Windows
Updates
Microsoft periodically releases feature and security updates to the Windows
operating system. Updates that are applicable to your Windows version are
downloaded automatically when your computer is connected to the
Internet. When updates are downloaded, you are prompted to restart the
computer to install these updates. You can also manually check if there are
available updates for the installed version of Windows.
ttention: Only use Windows Update to download and install updates.
Updates downloaded from other sources may include security risks.
Windows Updates
Windows help information
If the on-screen instructions cannot solve your problem, refer to the following to get the online Windows help
information.
© Copyright Lenovo 2021 7

• ype Get Help or ips in the Windows search box and then press Enter. When the app opens, type the
problem description and select the matched result.
• Visit Microsoft support Web site: https://support.microsoft.com. Enter what you are looking for in the
search box and get search results.
Connect an external display
Connect a projector or a monitor to your computer to give presentations or expand your workspace.
Connect a wireless display
Ensure that both your computer and the wireless display support Miracast®.
Press the Windows and K Keys, and then select a wireless display to connect.
Change display settings
o change display settings, type display settings in the Windows search box and then press Enter.
8IdeaCentre 3 User Guide

Chapter 3. Explore your computer
Lock the computer
Note: Lenovo makes no comments, judgments, or warranties about the function, quality, or performance of
the locking device and security feature. You can purchase computer locks from Lenovo.
Padlock
Locking the computer cover through a padlock prevents unauthorized access to the inside of your computer.
© Copyright Lenovo 2021 9

Kensington-style cable lock
Lock your computer to a desk, table, or other fixtures through a Kensington-style cable lock.
Lenovo Vantage
he preinstalled Lenovo Vantage is a customized one-stop solution to help you maintain your computer with
automated updates and fixes, configure hardware settings, and get personalized support.
ccess Lenovo Vantage
ype Lenovo Vantage in the search box and then press Enter.
o download the latest version of Lenovo Vantage, go to Microsoft Store and search by the app name.
Key features
Lenovo Vantage enables you to:
• Know the device status easily and customize device settings.
• Download and install UEFI BIOS, firmware and driver updates to keep your computer up-to-date.
• Monitor your computer health, and secure your computer against outside threats.
• Scan your computer hardware and diagnose hardware problems.
• Look up warranty status (online).
• Access User Guide and helpful articles.
Notes:
10 IdeaCentre 3 User Guide

• he available features vary depending on the computer model.
• Lenovo Vantage makes periodic updates of the features to keep improving your experience with your
computer. he description of features might be different from that on your actual user interface.
Set the power plan
For ENERGY S AR® compliant computers, the following power plan takes effect when your computers have
been idle for a specified duration:
• turn off the display: After 10 minutes
• put the computer to sleep: After 25 minutes
o awaken the computer from Sleep mode, press any key on your keyboard.
o change or customize a power plan:
1. ype power plan in the Windows search box and then press Enter.
2. Customize a power plan of your preference.
Transfer data
Quickly share your files using the built-in Bluetooth technology among devices with the same features. You
also can install a disc or media card to transfer data.
Connect to a Bluetooth-enabled device (for selected models)
You can connect all types of Bluetooth-enabled devices to your computer, such as a keyboard, a mouse, a
smartphone, or speakers. o ensure that the connection is successful, place the devices 10 meters (33 feet),
at most, from the computer.
1. Click the action center icon in the Windows notification area. Enable the Bluetooth feature.
2. Click the bluetooth options to add a bluetooth device, and then follow the on-screen instructions.
Chapter 3.Explore your computer 11

Use the optical drive (for selected models)
If your computer has an optical drive, read the following information.
Know the type of your optical drive
o view the type of the optical driver, type device manager in the Windows search box and then press Enter.
Install or remove a disc
1. With the computer on, press the eject button on the optical drive. he tray slides out of the drive.
2. Insert a disc into the tray or remove a disc from the tray, and then push the tray back into the drive.
Note: If the tray does not slide out of the drive when you press the eject button, turn off the computer. hen,
insert a straightened paper clip into the emergency-eject hole adjacent to the eject button. Use the
emergency eject only in an emergency.
Record a disc
1. Insert a recordable disc into the optical drive that supports recording.
2. Do one of the following:
• Open Windows Media Player.
• Double-click the ISO file.
3. Follow the on-screen instructions.
Use a media card (for selected models)
If your computer has a SD-card slot, read the following information.
Install a media card
1. Locate the SD-card slot.
2. Ensure that the metal contacts on the card are facing the ones in the SD-card slot. Insert the card firmly
into the SD-card slot until it is secured in place.
Remove a media card
ttention: Before removing a media card, eject the card from the Windows operating system first.
Otherwise, data on the card might get corrupted or lost.
o remove a media card, type remove hardware and eject media in the Windows search box and then press
Enter.
Purchase accessories
Lenovo has a number of hardware accessories and upgrades to help expand the capabilities of your
computer. Options include memory modules, storage devices, network cards, power adapters, keyboards,
mice, and more.
o shop at Lenovo, go to https://pcsupport.lenovo.com/warrantyupgrade.
12 IdeaCentre 3 User Guide

Chapter 4. CRU replacement
Customer Replaceable Units (CRUs) are parts that can be upgraded or replaced by the customer. Lenovo
computers contain the following types of CRUs:
• Self-service CRUs: Refer to parts that can be installed or replaced easily by customer themselves or by
trained service technicians at an additional cost.
• Optional-service CRUs: Refer to parts that can be installed or replaced by customers with a greater skill
level. rained service technicians can also provide service to install or replace the parts under the type of
warranty designated for the customer’s machine.
If you intend on installing the CRU, Lenovo will ship the CRU to you. CRU information and replacement
instructions are shipped with your product and are available from Lenovo at any time upon request. You
might be required to return the defective part that is replaced by the CRU. When return is required: (1) return
instructions, a prepaid shipping label, and a container will be included with the replacement CRU; and (2) you
might be charged for the replacement CRU if Lenovo does not receive the defective CRU within thirty (30)
days of your receipt of the replacement CRU. For full details, see the Lenovo Limited Warranty
documentation at:
https://www.lenovo.com/warranty/llw_02
CRU list
he following is the CRU list of your computer.
Self-service CRUs
• Computer cover
• Front bezel
• Storage drive
• Storage drive bracket
• Keyboard*
• Memory
• Mouse*
• M.2 solid-state drive
• Power cord
• Screw kit
Optional-service CRUs
• Coin-cell battery
• Heat sink
• PCI Express card
• PCI Express card reader
• PCI Express card holder
• Power supply assembly
* for selected models
© Copyright Lenovo 2021 13

Remove or replace a CRU
his section provides instructions on how to remove or replace a CRU.
Power cord
Prerequisite
Before you start, read Generic Safety and Compliance Notices, and print the following instructions.
Before you remove the power cord, turn off the computer and wait several minutes until the computer is cool.
Note: Do not remove the power cord when the computer is connected to ac power. Otherwise, there might
be a risk of short circuits.
Removal steps
1. urn off the computer and remove all connected devices and cables.
2. Remove the power cord.
Computer cover
Prerequisite
Before you start, read Generic Safety and Compliance Notices, and print the following instructions.
14 IdeaCentre 3 User Guide
