Hardware Replacement Guide
31032753 IdeaCentre K_HRG_EN.indd 31 2007.12.10 3:53:38 PM

Contents
Overview ..................................................................................... 1
Chapter 1 Locations ................................................................. 4
Locating components ...................................................................4
Locating connectors on the front of the computer ........................5
Locating connectors on the rear of the computer ..........................6
Identifying parts on the system board ...........................................9
Chapter 2 Replacing hardware .............................................. 11
Removing the computer cover ....................................................11
Removing and replacing the front bezel .......................................12
Replacing the power supply ........................................................13
Replacing the heat sink assembly ...............................................15
Replacing a memory module ......................................................16
Replacing an adapter ..................................................................17
Replacing the hard disk drive ......................................................21
Replacing an optical drive ...........................................................22
Replacing the system fan assembly ............................................23
Replacing the keyboard ..............................................................25
Replacing the mouse ..................................................................26
Replacing the External speaker ...................................................27
Completing the installation ..........................................................27
Appendix. ................................................................................. 29
31032753 IdeaCentre K_HRG_EN.indd 32 2007.12.11 9:13:40 AM

1
Hardware Replacement Guide
Overview
This guide is intended to be used by customers who are replacing Customer
Replaceable Units (CRUs) as well as trained service personnel who are replacing
Field Replaceable Units (FRUs). In this guide, CRUs and FRUs will often be referred
to as parts.
Note
Trained service personnel should refer to the Hardware Maintenance Manual
(HMM) for parts ordering information.
This guide does not include procedures for all parts. It is expected that cables,
switches, and certain mechanical parts can be replaced by trained service
personnel without the need for step-by-step procedures.
Note
Use only parts provided by Lenovo™.
The description of the TV card in this manual is only used for the machines which
have the TV card. It is invalid for those machines which do not have TV card.
This guide contains procedures for replacing the following parts:
• Power supply
• Memory modules
• Adapter
• Hard disk drive
• Optical drive
• System fan assembly
• Keyboard
• Mouse
• External Speakers
Safety information for replacing CRUs
Do not open your computer or attempt any repair before reading the “Important
safety information” in the Safety and Warranty Guide that was included with your
computer. If you no longer have this copy of the Safety and Warranty Guide, you
can obtain one online from the Support Web site at http://www.lenovo.com/
support.
31032753 IdeaCentre K_HRG_EN.indd 1 2007.12.10 3:53:07 PM

2Hardware Replacement Guide
Safety information for replacing FRUs
Do not attempt any repair before reading the “Important safety information” in the
Hardware Maintenance Manual (HMM) for the computer. You can find the HMM on
the Support Web site at http://www.lenovo.com/support.
Additional information resources
If you have Internet access, the most up-to-date information for your computer is
available from the World Wide Web.
You can find the following information:
• CRU removal and installation information
• Publications
• Troubleshooting information
• Parts information
• Links to other useful sources of information
To access this information, go to http://www.lenovo.com/support.
Tools required
To replace some parts in your computer, you will need a flat-blade or Phillips
screwdriver. Additional tools might be needed for certain parts.
Handling static-sensitive devices
Static electricity, although harmless to you, can seriously damage computer
components.
When you are replacing a part, do not open the static-protective package
containing the new part until the defective part has been removed from the
computer and you are ready to install the new part.
When you handle parts and other computer components, take these precautions
to avoid static-electricity damage:
• Limit your movement. Movement can cause static-electricity to build up
around you.
• Always handle parts and other computer components carefully. Handle
adapters, memory modules, system boards, and microprocessors by the
edges. Never touch any exposed circuitry.
• Prevent others from touching the parts and other computer components.
31032753 IdeaCentre K_HRG_EN.indd 2 2007.12.10 3:53:07 PM

3
Hardware Replacement Guide
• Before you replace a new part, touch the static-protective package containing
the part to a metal expansion-slot cover or other unpainted metal surface on
the computer for at least two seconds. This reduces static electricity in the
package and your body.
• When possible, remove the new part from the static-protective packaging,
and install it directly in the computer without setting the part down. When this
is not possible, place the static-protective package that the part came in on a
smooth, level surface and place the part on it.
• Do not place the part on the computer cover or other metal surface.
31032753 IdeaCentre K_HRG_EN.indd 3 2007.12.10 3:53:07 PM

4Hardware Replacement Guide
Locations
Chapter
This chapter provides illustrations to help locate the various connectors, controls
and components of the computer. To remove the computer cover, refer to
“Removing the computer cover”.
Locating components

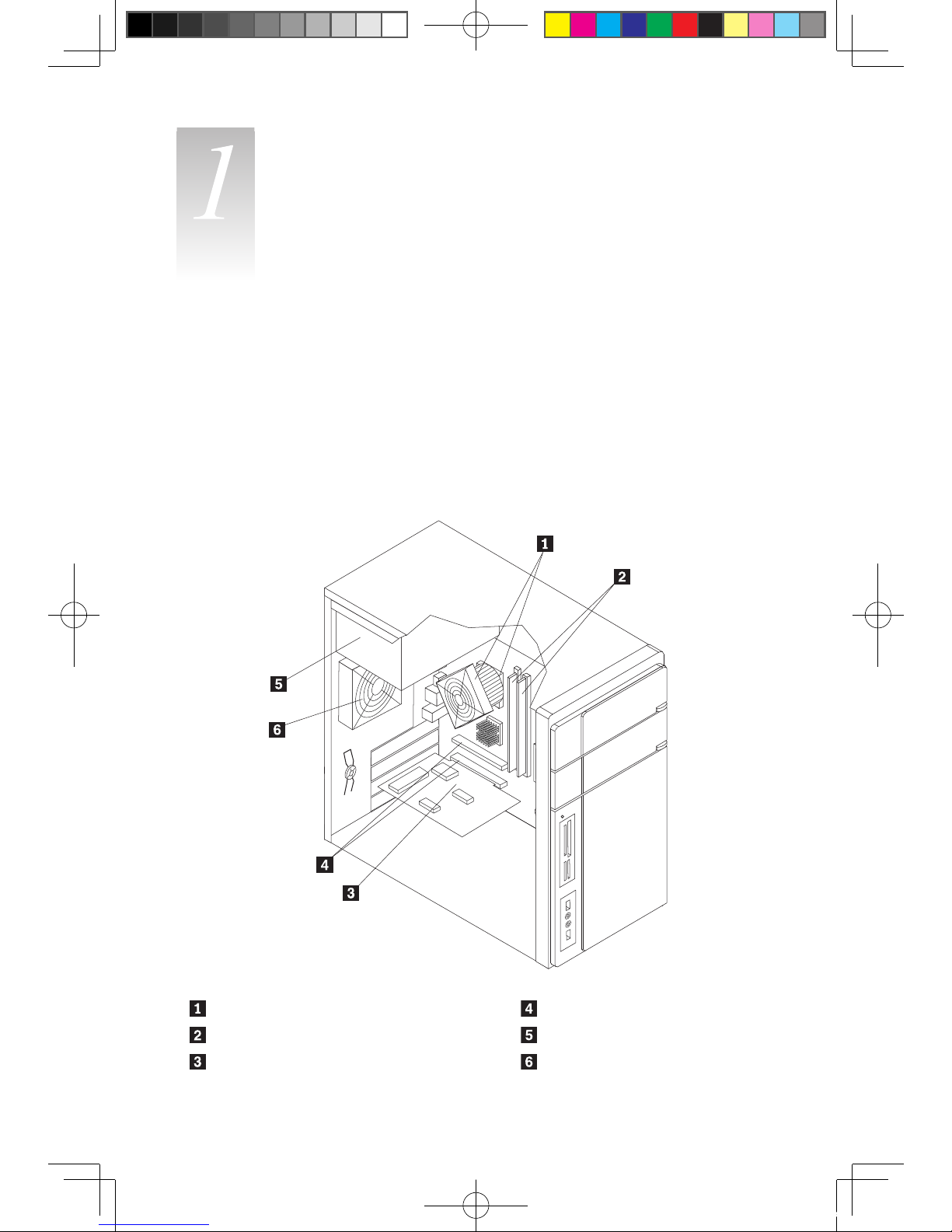

The following illustration will help you locate the various components in your
computer.
Microprocessor fan and heat sink PCI adapter connectors
Memory modules Power supply
PCI adapter card System fan
31032753 IdeaCentre K_HRG_EN.indd 4 2007.12.10 3:53:08 PM

5
Hardware Replacement Guide

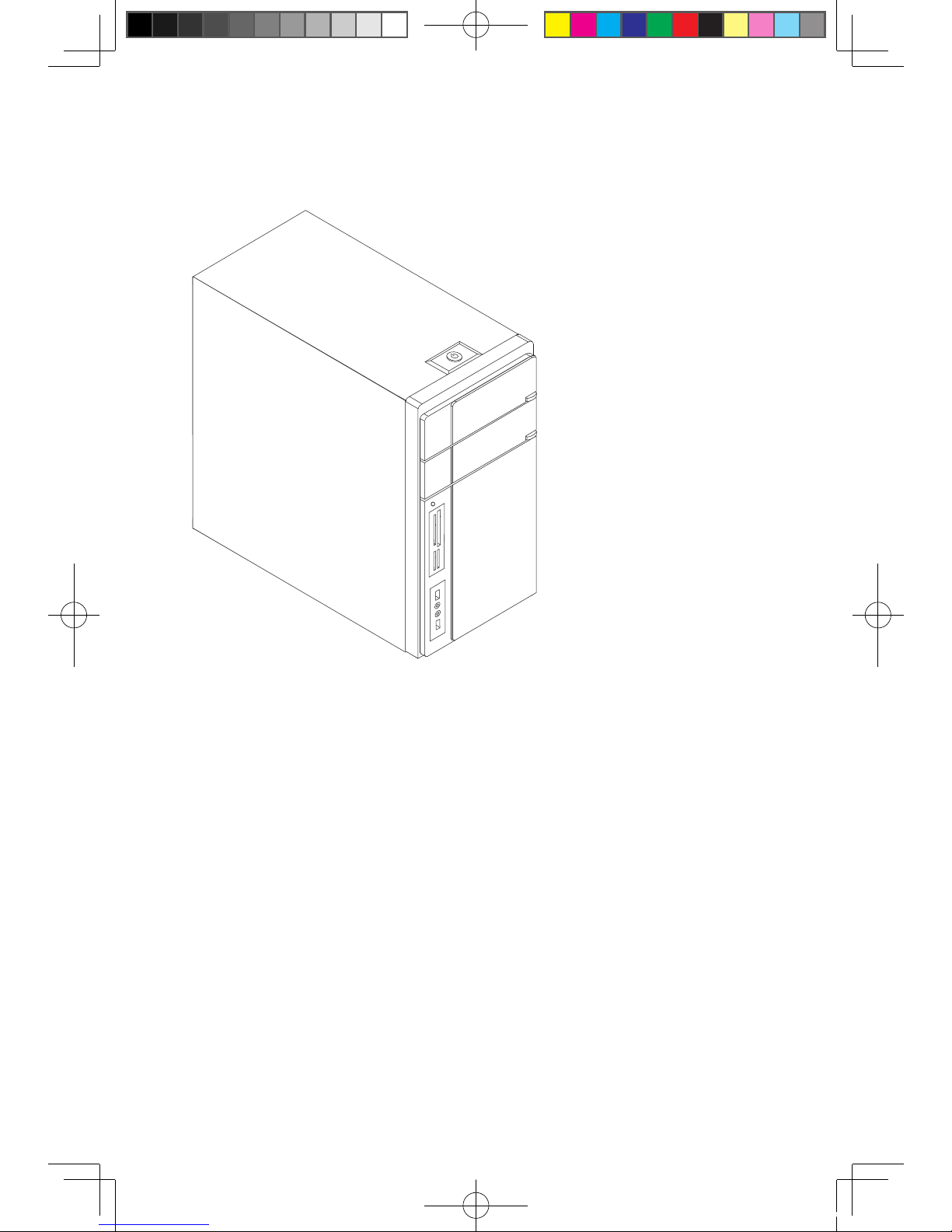

Locating connectors on the front of the computer

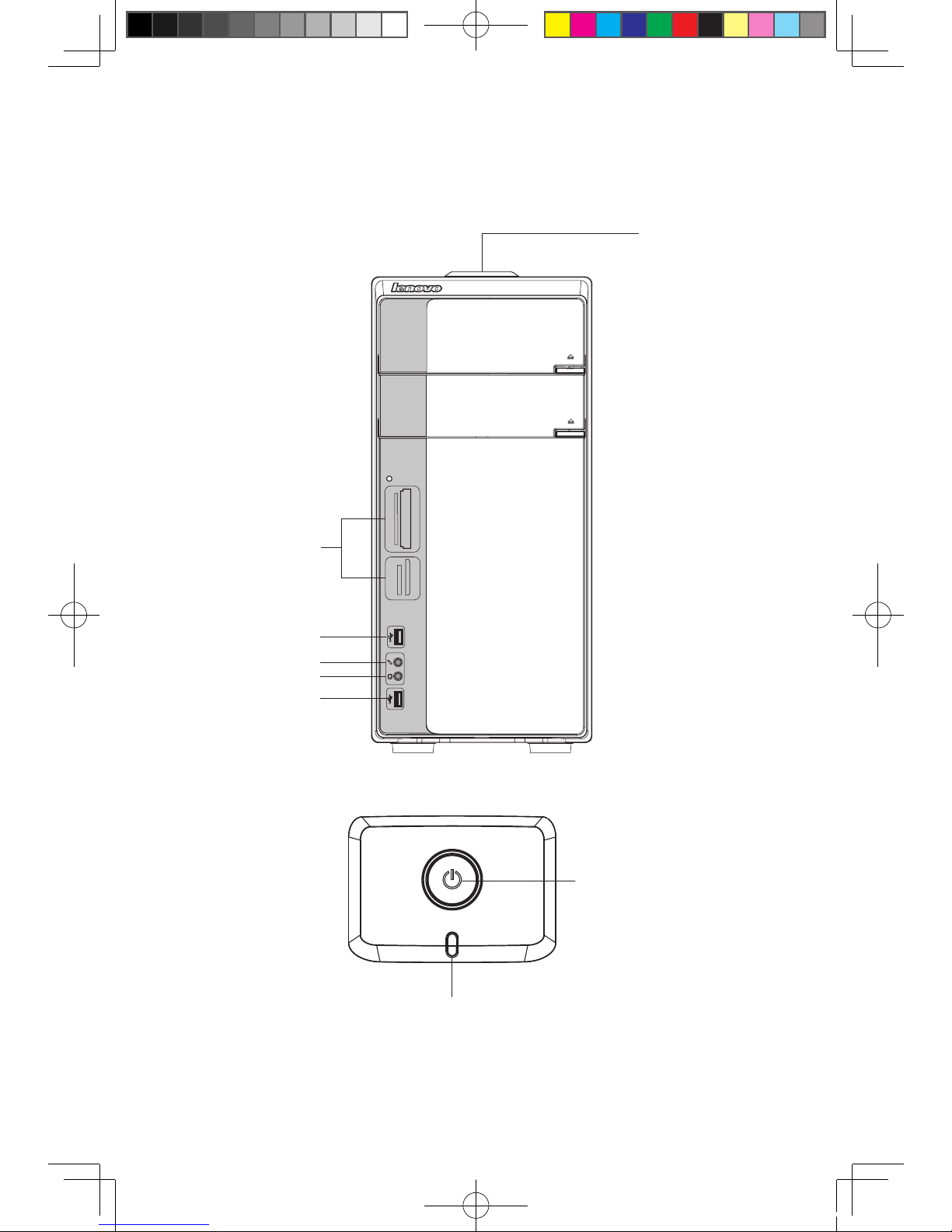

The following illustration shows the location of connectors on the front of the
computer.
F-1
D-1
MS/Pro/Duo/P roDuo
CF/I/II/MD
xD
SD/Mini/HC/M iniHC MMC/RS/Plus/ Mob
D-2
D-3
D-4
D-2
F-1 Power switch on the top
[1-1]
[1-2]
[1-1] Power Switch [1-2] Hard Disk Drive Indicator
31032753 IdeaCentre K_HRG_EN.indd 5 2007.12.10 3:53:09 PM

6Hardware Replacement Guide
F-2 Digital connector (open the Digital Panel)
[D-5]
[D-1]
[D-2]
[D-3]
[D-4]
[D-2]
MS/Pro/Duo/ProDuo
CF/I/II/MD
xD
SD/Mini/HC/MiniHC MMC/RS/Plus/Mob
[D-1] Card Reader [D-4] Headphone connector
[D-2] USB connector [D-5] Card Reader Status Indicator
[D-3] Microphone connector
Locating connectors on the rear of the computer
The following illustration shows the location of connectors on the rear of the
computer.
The following illustrations show connections located at the rear of some computer
models. The locations of connectors on your computer will be similar to, but
possibly not identical to these. Following the illustrations is a key that explains the
symbol callouts used in the figures.
31032753 IdeaCentre K_HRG_EN.indd 6 2007.12.10 3:53:10 PM

7
Hardware Replacement Guide
X-1
X-2
DVI
Key to symbols used in the above illustrations of the rear of the
chassis:
——— Power Connector: To supply power to the computer.
———— PS/2 Mouse Connector: To connect a mouse having a PS/2
connector.
—— PS/2 Keyboard Connector: To connect a keyboard having a PS/2
connector.
—— Serial Connector: To connect devices requiring a serial connection
(COM Connector).
31032753 IdeaCentre K_HRG_EN.indd 7 2007.12.10 3:53:12 PM

8Hardware Replacement Guide
——— Parallel Connector: To connect devices requiring a parallel
connection.
X-1 —— On-board VGA Card Connector: To connect with the signal cable
of a monitor. On computer models that have an external graphics
card, on-board graphics card signals are shielded and there are
no VGA signal outputs - some models are equipped with this
connector.
——— USB Connector: To connect USB devices.
—— Ethernet Connector: To connect LAN or broadband network
devices.
X-2 —— External VGA Card Connector: To connect with the signal cable
of a monitor. It connects with the data cable of the monitor. (Some
models are equipped with this connector.)
DVI —— External DVI Card Connector: To connect to the data cable of
the DVI connector. (Some models are equipped with this connector)
S-1 —— S Video Connector: To connect the data cable of the S video. (You
cannot connect with the data cable of the S video provided with the
computer.) Some models are equipped with this connector.
——— Chassis Side Lock: After installing the side panel of the chassis,
push the lock upward to lock the side panel in place. To remove the
side panel, depress the lock first.
——— Audio Line-in Connector: To connect audio input to the computer.
— Audio Line-out Connector: To connect to the speakers or
headphones.
———— Microphone Jack: To connect to audio input from a microphone.
———— Used to attach your computer to a telephone line for modem use.
(some models equipped with this connector)
——— Used to attach a telephone line to your computer for modem use.
31032753 IdeaCentre K_HRG_EN.indd 8 2007.12.10 3:53:14 PM

9
Hardware Replacement Guide
(some models equipped with this connector)
—— Voltage: selection switch (Some models are equipped with this
switch)
115
230
Figure 1 Figure 2
Check the position of the voltage-selection switch on the rear of the computer. Use
a ballpoint pen to slide the switch, if necessary.
1. If the voltage supply range is 100-127 V ac, set the switch to 115 V.
2. If the voltage supply range is 200-240 V ac, set the switch to 230 V.
Identifying parts on the system board
The system board (sometimes called the planar or motherboard) is the main circuit
board in your computer. It provides basic computer functions and supports a
variety of devices that are factory-installed or that you can install later.

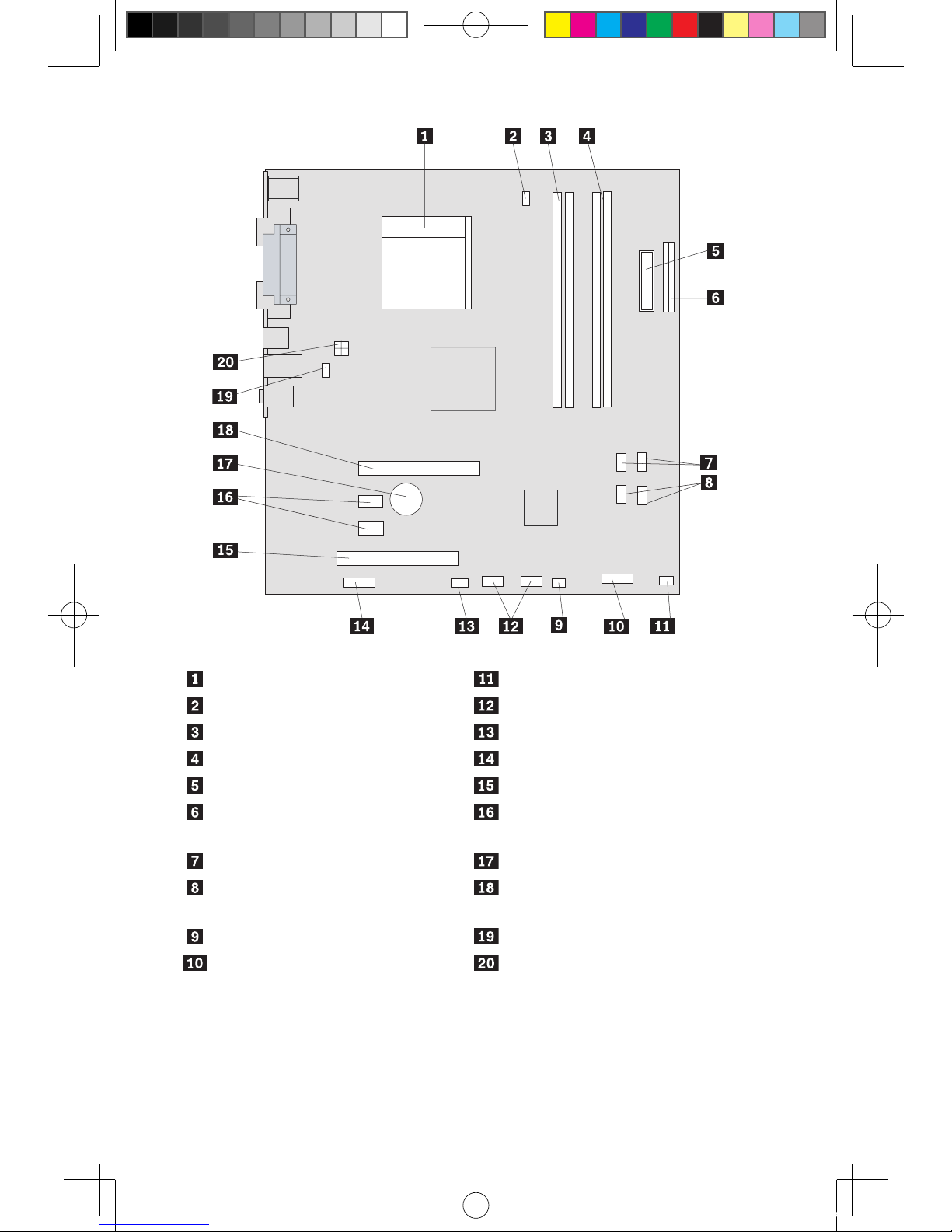

The following illustration shows the locations of parts on the system board (some
models).
31032753 IdeaCentre K_HRG_EN.indd 9 2007.12.10 3:53:16 PM

10 Hardware Replacement Guide
Microprocessor and heat sink Clear CMOS/Recovery jumper
Microprocessor fan connector Front USB connectors (2)
Memory connector 1 Serial (com2) connector
Memory connector 2 Front audio connector
Power connector PCI adapter connectors (1)
Diskette drive connector PCI Express x1 adapter
connector
SATA IDE connectors (2) Battery
SATA IDE connectors (2) PCI Express x16 graphics
adapter connector
Power fan connector System fan connector
Front panel connector 12v power connector
31032753 IdeaCentre K_HRG_EN.indd 10 2007.12.10 3:53:18 PM

11
Hardware Replacement Guide
Replacing hardware
Attention
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://www.lenovo.com/support.
Note
Use only parts provided by Lenovo.
Removing the computer cover
Important
Turn off the computer and wait 3 to 5 minutes to let the computer cool
before removing the computer cover.
To remove the computer cover:
1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down your
operating system, turn off all attached devices, and the computer.
2. Unplug all power cords from electrical outlets.
3. Disconnect all cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer. Refer to “Locating connectors on the front of the computer” and
“Locating connectors on the rear of the computer”.
4. Remove any locking devices that secure the computer cover.
Chapter
31032753 IdeaCentre K_HRG_EN.indd 11 2007.12.10 3:53:19 PM

12 Hardware Replacement Guide
5. Pull down the switch at the rear of the chassis and slide the computer cover to
the rear to remove.
Removing and replacing the front bezel
To remove and replace the front bezel:
1. Remove the computer cover. Refer to “Removing the computer cover”.
2. Remove the front bezel by releasing the three plastic tabs inside the chassis
and push the bezel outward as shown.
31032753 IdeaCentre K_HRG_EN.indd 12 2007.12.10 3:53:20 PM

13
Hardware Replacement Guide
3. To reinstall the bezel, align the plastic tabs on the bottom of the bezel with the
corresponding holes in the chassis, then snap it into position at the bottom
and top of the chassis.
4. Refer to the “Completing the installation”.
Replacing the power supply
Attention
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://www.lenovo.com/support.
31032753 IdeaCentre K_HRG_EN.indd 13 2007.12.10 3:53:21 PM

14 Hardware Replacement Guide
To replace the power supply:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.
2. Disconnect the power supply cables from the system board and from all
drives. Refer to “Identifying parts on the system board”.
3. Remove the four screws that secure the power supply at the rear of the
chassis.
4. Lift the power supply out of the chassis.
5. Install the new power supply into the chassis so that the screw holes in the
power supply align with those in the chassis.
6. Install the four screws to secure the power supply. Note: Use only the screws
provided by Lenovo.
7. Reconnect the power supply connectors to the system board.
8. Reconnect a power supply connector to each of the drives.
9. Refer to the “Completing the installation”.
31032753 IdeaCentre K_HRG_EN.indd 14 2007.12.10 3:53:22 PM

15
Hardware Replacement Guide
Replacing the heat sink assembly
Attention
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://www.lenovo.com/support.
To replace the heat sink assembly:
1. Remove the computer cover. Refer to “Removing the computer cover”.
2. Lay the computer on its side.

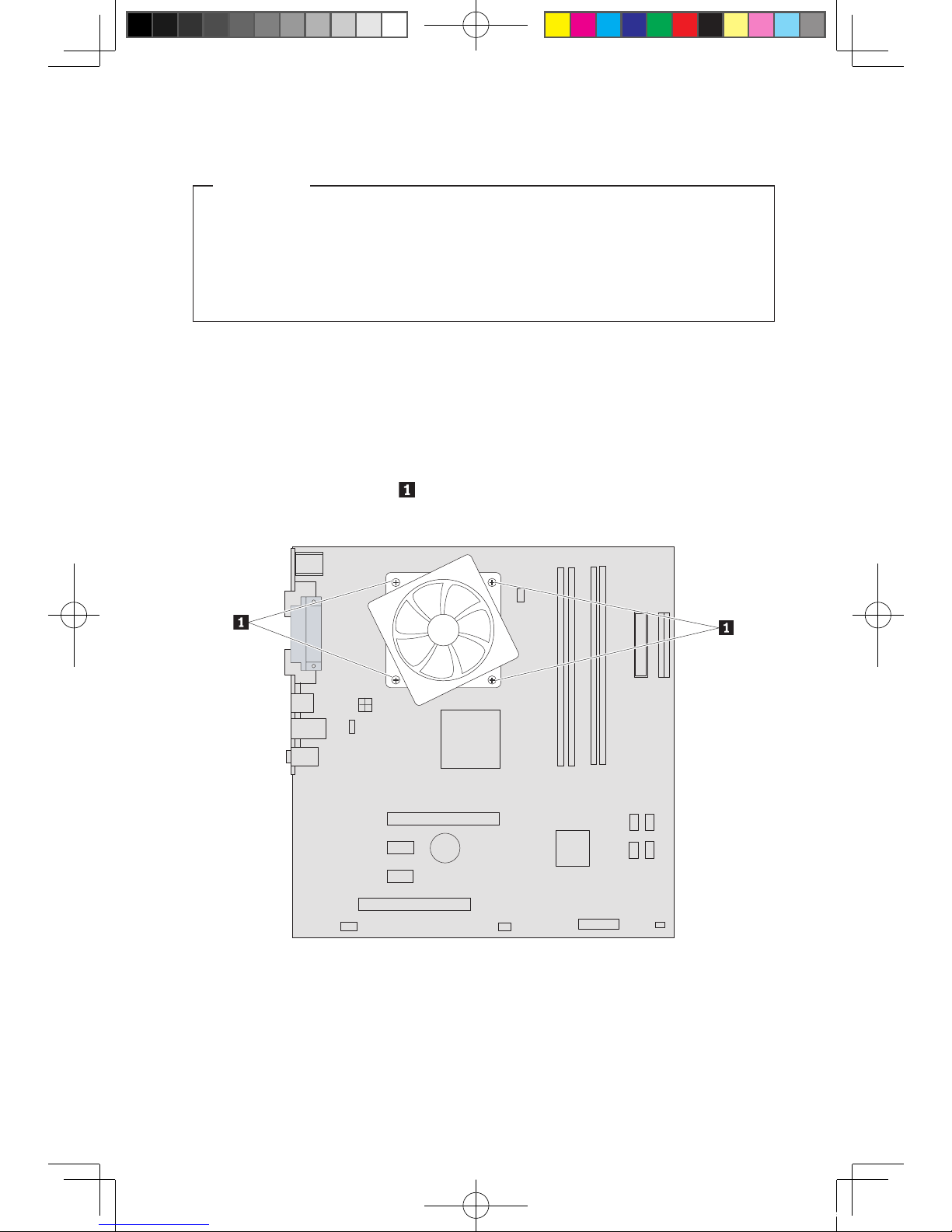

3. Locate the heat sink. Refer to “Identifying parts on the system board”.
4. Disconnect the heat sink and the fan assembly cable from the system board.
5. Remove the four screws securing the heat sink and fan assembly to the
system board.
6. Lift the failing heat sink and fan assembly off the system board.

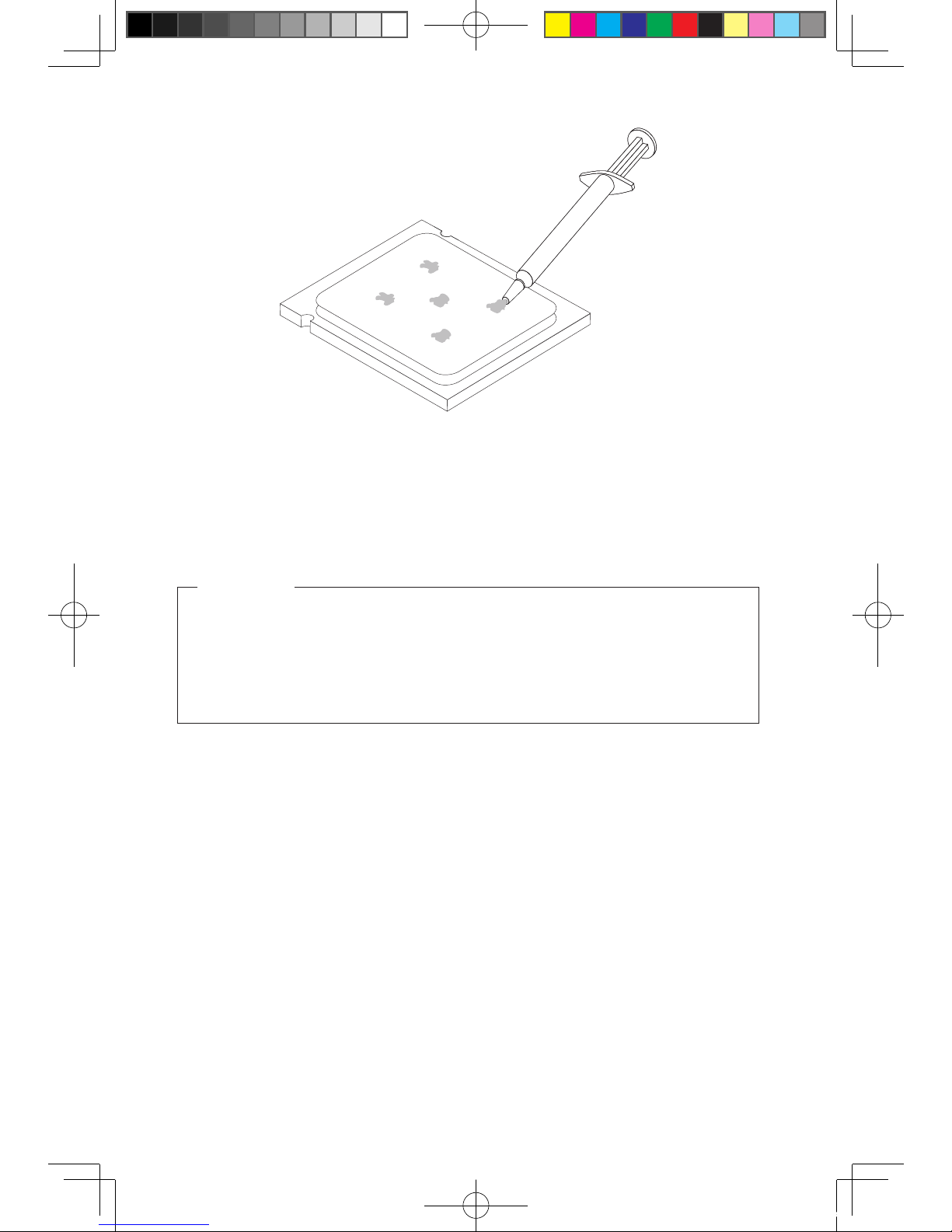

7. Use the thermal grease syringe to place five drops of grease on the top of the
microprocessor. Each drop of grease should be 0.03ml (3 tick marks on the
grease syringe).
31032753 IdeaCentre K_HRG_EN.indd 15 2007.12.10 3:53:22 PM

16 Hardware Replacement Guide
8. Install the heat sink and fan assembly on the heat sink retention bracket.
9. Reconnect the disconnected cables to the system board.
10. Refer to the” Completing the installation”.
Replacing a memory module
Attention
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://www.lenovo.com/support.
To replace a memory module:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.
2. Locate the memory module connectors. Refer to “Locating components”.

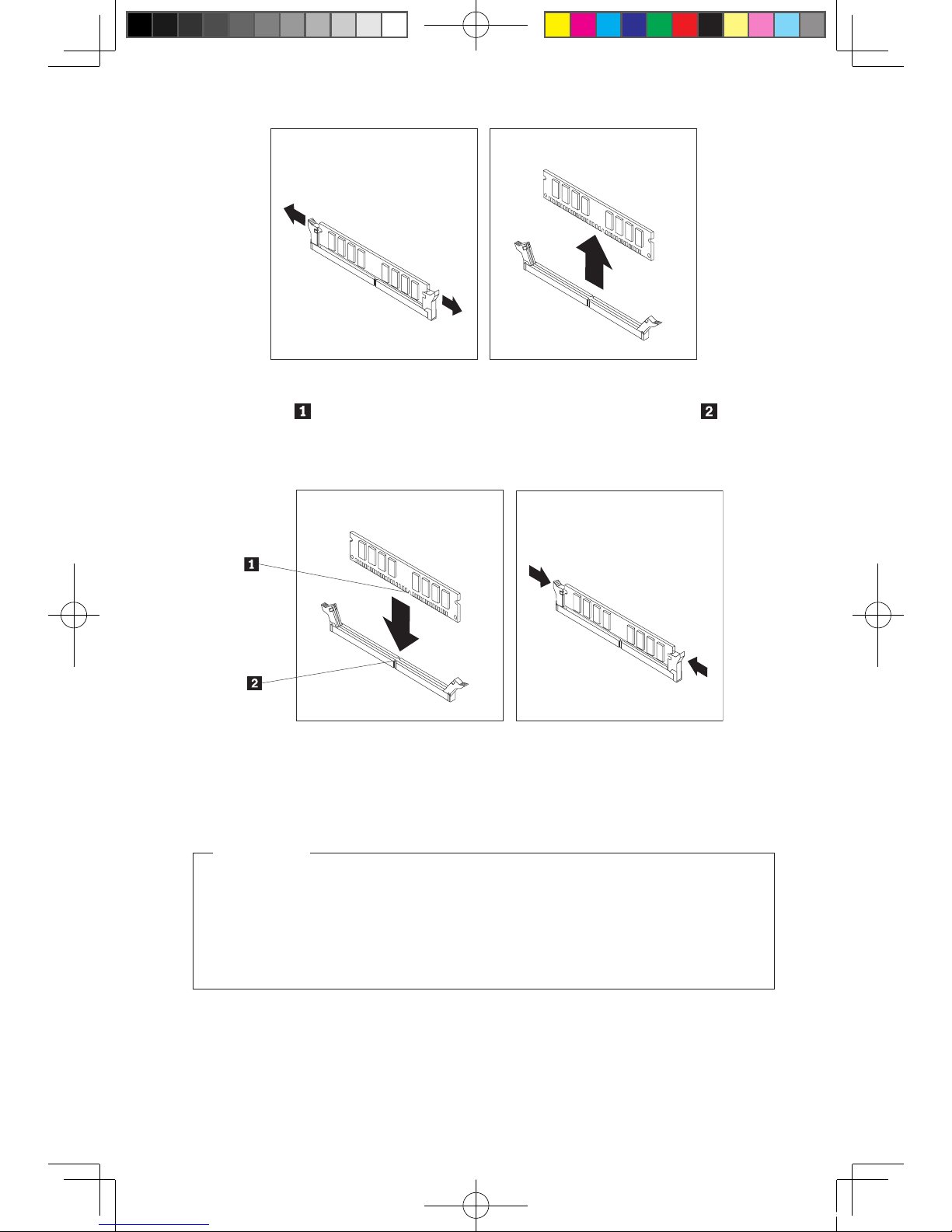

3. Remove the memory module being replaced by opening the retaining clips as
shown.
31032753 IdeaCentre K_HRG_EN.indd 16 2007.12.10 3:53:23 PM

17
Hardware Replacement Guide
4. Position the new memory module over the memory connector. Make sure
the notch on the memory aligns correctly with the connector key on the
system board. Push the memory module straight down into the connector
until the retaining clips close.
5. Refer to the “Completing the installation”.
Replacing an adapter
Attention
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://www.lenovo.com/support.
To replace an adapter:
1. Remove the computer cover. Refer to “Removing the computer cover”.
31032753 IdeaCentre K_HRG_EN.indd 17 2007.12.10 3:53:23 PM
