1

Chapter 1. About this manual
This manual contains service and reference information for IBM® computer Types Natucket.
This manual is divided into product service sections and a related service section, as follows:
ʳ ʳ The product service sections include procedures for isolating problems to a
FRU, a Symptom-to-FRU Index, additional service information and an
illustrated parts catalog.
ʳ The related service section includes safety notices and safety information, and problem
determination tips.


Chapter 2. General information
This section lists the physical specifications for your computer
Dimensions
Height: 352 mm (13.86 in.)
Width: 180 mm (7.09 in.)
Depth: 407 mm (16.02 in.)
Weight
Minimum configuration as
shipped: 9.1 kg 20.06 lb)
Maximum configuration: 9.2 kg (20.29 lb)
Environment
Air temperature:
System on: 10° to 35°C (50° to 95° F)
System off: 10° to 43°C (50° to 110° F)
Maximum altitude: 3000 m (10000 ft)
Note: The maximum altitude, 3000 m
(10000 ft), is the maximum altitude at
which the specified air temperatures apply.
At higher altitudes, the maximum air
temperatures are lower than those
specified.
Humidity:
System on: 10% to 90%
System off: 10% to 90%
Electrical input
Input voltage:
Low range:
Minimum: 100 V ac
Maximum: 127 V ac
Input frequency range: 50–60 Hz
Voltage switch setting: 115 V ac
High range:
Minimum: 200 V ac
Maximum: 240 V ac
Input frequency range: 50–60 Hz
Voltage switch setting: 230 V ac
Input kilovolt-amperes (KVA)
(approximate):
Minimum configuration as shipped: 0.158
KVA
Maximum configuration: 0.213 KVA
Note: Power consumption and heat output
vary depending on the number and type of
optional features installed and the
power-management optional features in use.
Heat output (approximate) in British thermal
units (Btu) per hour:
Minimum configuration: 95.6 Btu/hr (28
watts) Maximum configuration: 129.7
Btu/hr (38 watts)
Airflow
Approximately 2.45 cubic meters every
minute (66 cubic feet every minute)
maximum
Acoustical noise-emission values
Average sound-pressure levels:
At operator position:
Idle: 32dBA
Operating: 42dBA
At bystander position - 1 meter (3.3 ft):
Idle: 28dBA
Operating: 38dBA
Declared (upper limit) sound-power
levels:
Idle: 4.5bels
Operating: 5.2bels
Note: These levels were measured in
controlled acoustical environments according
to the procedures specified by the American
National Standards Institute (ANSI) S12.10
and ISO 7779 and are reported in accordance
with ISO 9296. Actual sound-pressure levels
in a given location might exceed the average
values stated because of room reflections and
other nearby noise sources. The declared
sound-power levels indicate an upper limit,
below which a large number of computers will
operate.


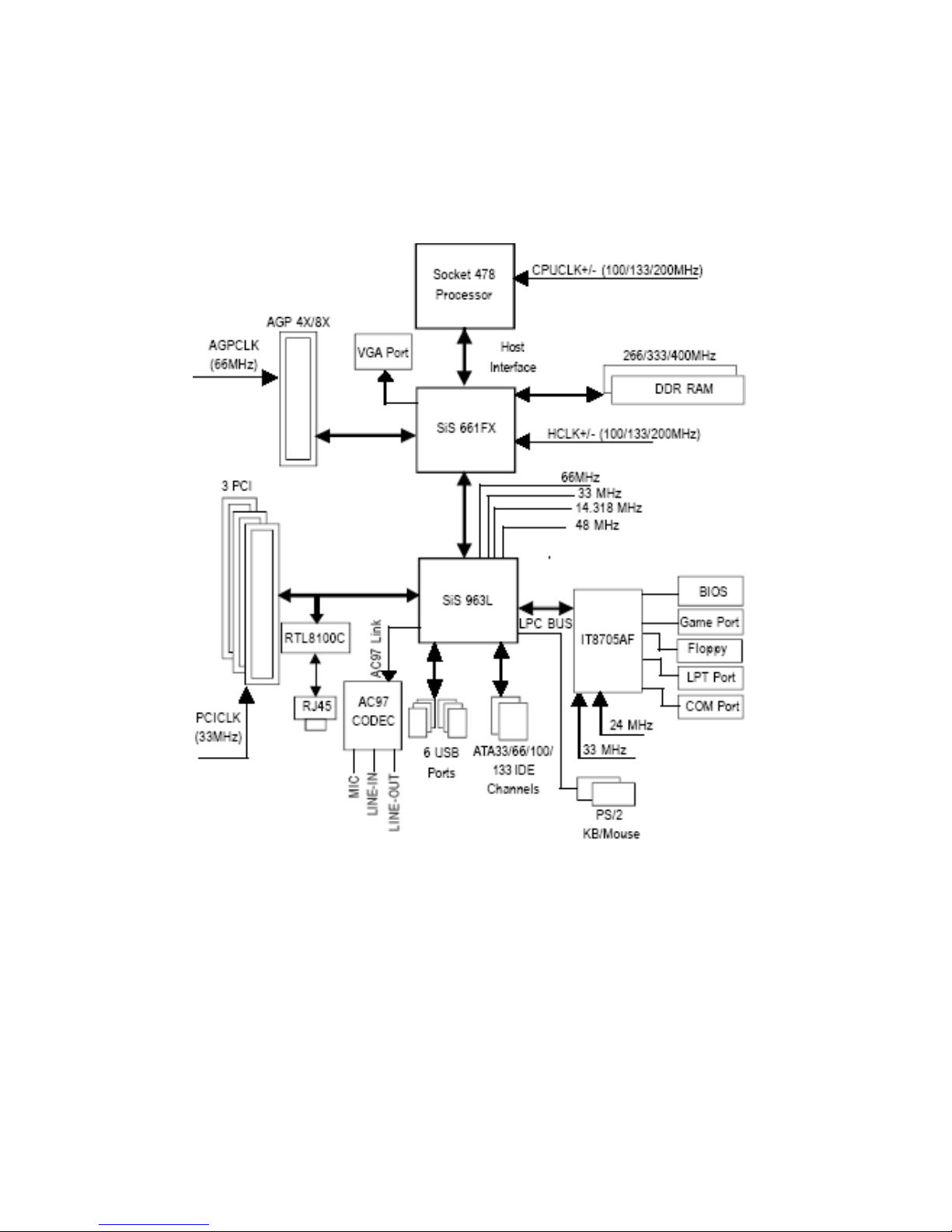

Block Diagram


CPU Socket 478 for Intel®Pentium®4 (Northwood, Prescott) processor with
HT Technology
Supports 800/533/400 MHz FSB
L2 cache varies with processors
Chipset Northbridge:SiS®661FX
Southbridge: SiS®963L
Memory 2 184-pin DDR DIMM slots
Supports DDR400/333/266 DIMM
Supports up to 2GB (Max.)
Slots 1 AGP slot 4X/8X (1.5V) device support
3 PCI slots
IDE Connections 2 IDE connection (UDMA 33/ATA 66/ATA 100/ATA133), allows connection of
4 IDE devices
FDD Connections 1 FDD connection, allows connection of 2 FDD devices
Peripherals 1 parallel port supporting Normal/EPP/ECP mode
1 VGA port, 1 COM port
6 USB 2.0/1.1 ports (rear x 2, front x 4 via cable)
1 front audio connector
1 PS/2 keyboard port
1 PS/2 mouse port
Onboard VGA Built-in SiS®661FX Chipset
Onboard LAN RTL8100C chip
1 RJ45 port
Onboard Audio Realtek ALC655 CODEC
Supports Line In ; Line Out ; MIC In
Supports 2 / 4 / 6 channel audio
SPDIF In/Out connection
CD In connection/Game port
I/O Control IT8705AF
Hardware Monitor CPU/System fan speed detection
System voltage detection
CPU/System temperature detection
CPU Smart Fan Control
BIOS Use of licensed AWARD BIOS
Form Factor Micro-ATX form factor; 24.4cm x 23.0cmCH
Feature Summary


Parts Listing

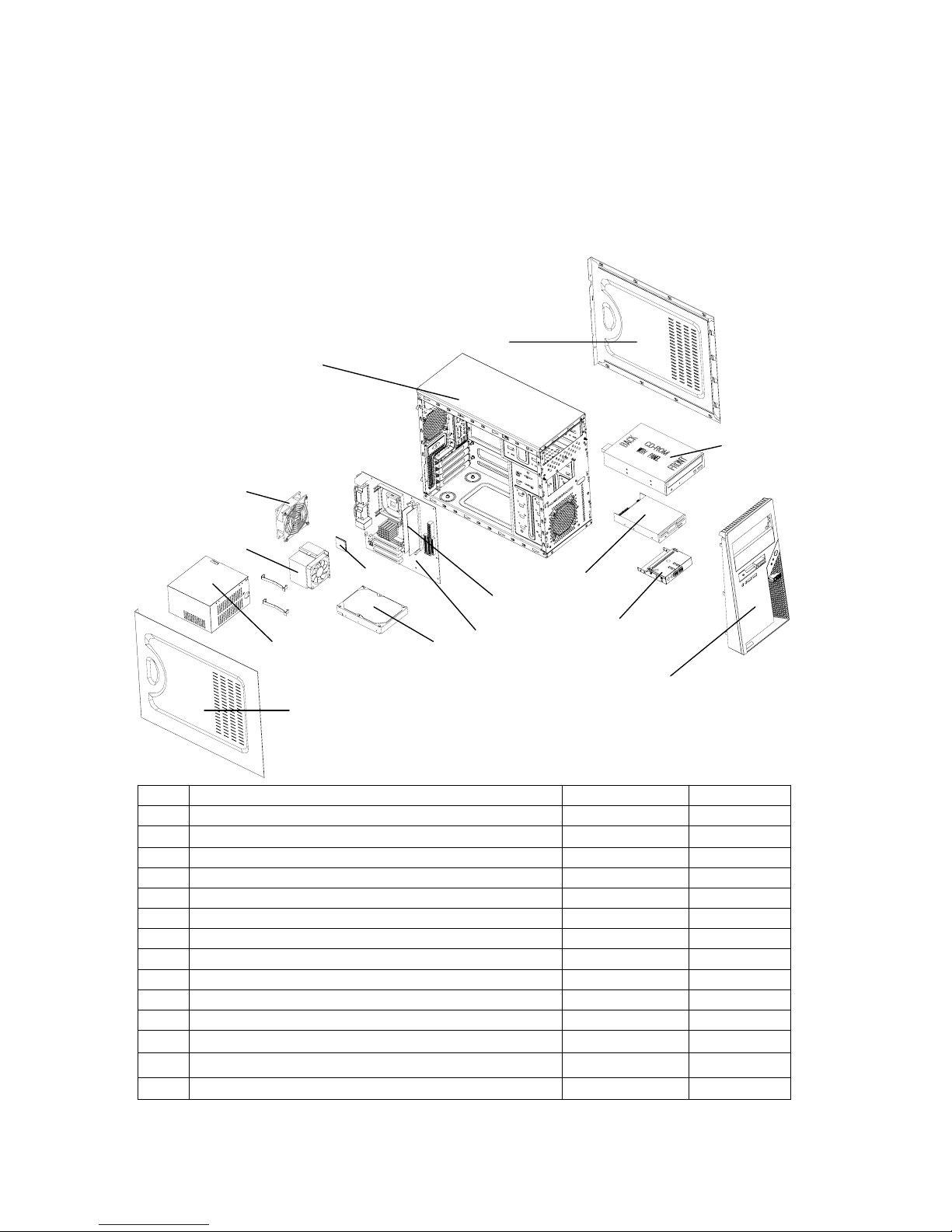

The following illustration will help you locate the various
Components in the computer
2
14
13
12
11
10
9
8
7
6
5
4
3
1
Item Parts listing FRU CRU
1 SPS-PAINTED TOP COVER 3SA72-051
2 SPS-HDD, 40GB 7200 EIDE ATA-100 3SA72-261
2 SPS-HDD, EIDE 80GB 7200 ATA-100 3SA72-271
3 SPS-POWER SUPPLY, 250W 3SA72-001
4 SPS-FANSINK, Celeron D 2.66GHz 3SA72-201
4 SPS-FANSINK, P4, Prescott 2.8GHz 3SA72-211
5 SPS-SYSTEM FAN (FOR P4 CPU ONLY) 3SA72-031
6 SPS-CPU, Celeron D 2.66 3SA72-221
6 SPS-CPU, P4 2.8GHz,Prescott 3SA72-231
6 SPS-CPU, P4 Northwood 3.0GHz 3SA72-241
7 SPS-MOTHER BOARD 3SA72-011
8 SPS-MOMORY, DDR 256MB PC3200 3SA72-251
9 SPS-WHU PACKAGING 3SA72-181
10 SPS-RIGHT SIDE COVER(PAINT) 3SA72-161


Item Parts listing FRU CRU
11 SPS-5.25" ODD BLANK BEZEL 3SA72-101
11 SPS-ODD/HDD Cable 3SA72-121
12 SPS-FDD 3SA72-021
12 SPS-FDD BEZEL ASSY 3SA72-081
12 SPS-FDD BLANK BEZEL 3SA72-091
13 SPS-USB BOARD 3SA72-151
13 SPS-USB CABLE ASSY 3SA72-141
14 SPS-BEZELASSY 2LB64-01


Description: A35 Tower 8139 Recovery CD
Ship support date: A35 Tower 8139 03/01/2005
Owner: Robert Ferrier, T/L 441-0891
Change/Edit FRU p/n Description Models
Add 13G 39J7402 US/UK/AP/TH XP-H Recovery C
D
13G
Add 13G 39J7403 FR/CF XP-H Recovery CD 13G
Add 13G 39J7404 GR XP-H Recovery CD 13G
Add 13G 39J7405 SP/LA XP-H Recovery CD 13G
Add 13G 39J7406 IT XP-H Recovery CD 13G
Add 13G 39J7407 SV (Swedish) XP-H Recovery CD 13G
Add 13G 39J7408 DK XP-H Recovery CD 13G
Add 13G 39J7409 FI XP-H Recovery CD 13G
Add 13G 39J7410 NO XP-H Recovery CD 13G
Add 13G 39J7411 NL XP-H Recovery CD 13G
30R4863 Korean XP-H Recovery CD
30R4868 Hong Kong-TC XP-H Recovery CD
30R4873 Taiwan-TC XP-H Recovery CD
30R4878 Japanese XP-H Recovery CD
Add 13G 39J7412 HE XP-H Recovery CD 13G
Add 13G 39J7413 PL XP-H Recovery CD 13G
Add 13G 39J7414 CZ XP-H Recovery CD 13G
Add 13G 39J7415 AE XP-H Recovery CD 13G
Add 13G 39J7416 RU XP-H Recovery CD 13G
Add 13G 39J7417 TR XP-H Recovery CD 13G
Add 13G 39J7418 HU XP-H Recovery CD 13G
Add 13G 39J7419 PO XP-H Recovery CD 13G
Add 13G 39J7420 GK XP-H Recovery CD 13G
rcdXPP_fr XP Pro
Add 12U 12A 14A 15U 39J7241 US/UK/AP/TH XP-P Recovery CD 12U 12A 14A 15U
Add 16G 39J7242 FR/CF XP-P Recovery CD 16G
Add 16G 39J7243 GR XP-P Recovery CD 16G
Add 16G 39J7244 SP/LA XP-P Recovery CD 16G
Add 16G 39J7245 IT XP-P Recovery CD 16G
Add 16G 39J7246 SV (Sweedish) XP-P Recovery C
D
16G
Add 16G 39J7247 DK XP-P Recovery CD 16G
Add 16G 39J7248 FI XP-P Recovery CD 16G
Add 16G 39J7249 NO XP-P Recovery CD 16G
Add 16G 39J7250 NL XP-P Recovery CD 16G
30R4842 Korea XP-P Recovery CD
30R4847 Hong Kong-TC XP-P Recovery CD
30R4852 Taiwan-TC XP-P Recovery CD
30R4857 Japanese XP-P Recovery CD
Add 16G 39J7251 HE XP-P Recovery CD 16G
Add 16G 39J7252 PL XP-P Recovery CD 16G
Add 16G 39J7253 CZ XP-P Recovery CD 16G
Add 16G 39J7254 AE XP-P Recovery CD 16G
Add 16G 39J7255 RU XP-P Recovery CD 16G


Add 16G 39J7256 TR XP-P Recovery CD 16G
Add 16G 39J7257 HU XP-P Recovery CD 16G
Add 16G 39J7258 PO XP-P Recovery CD 16G
Add 16G 39J7259 GK XP-P Recovery CD 16G
Add 16G 39J7260 SL XP-P Recovery CD 16G
Model List
MT Model Geography
Add model 12U US/Canadian English
Add model 12A ASEAN English
Add model 13G EMEA
Add model 14A ASEAN English
Add model 15U US/Canadian English
Add model 16G EMEA
Country Code Matrix
Suffix Country Geo
U US/Canadian English NA
F Canadian French NA
S Spanish LV LA
P Portuguese LA
L LA English LA
D Spanish HV LA
Y APU Spanish HV LA
G EMEA EMEA
A ASEAN English AP
Q Indian English AP
M ANZ/ASEAN English (OEM) AP
N China English AP
T Thailand AP
C Simplified Chinese AP
B HK Traditional Chinese AP
V Taiwan Trad Chinese AP
H HK English AP
K Korean AP
J Japanese AP
E Japanese English AP
O CTO: NA & EMEA CTO
R Korean English AP


10
Chapter 3 Hardware Installation
Considerations Prior to Installation
Preparing Your Computer:
The motherboard contains numerous delicate electronic circuits and components which can become damaged as a
result of electrostatic discharge (ESD). Thus, prior to installation, please followthe instructions below:
1. Please turn off the computer and unplug its power cord.
2.When handling the motherboard, avoid touching anymetalleads or connectors.
3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components(CPU, RAM).
4. Prior to installing the electronic components, please have these items on top of an antistatic pad or within a
electrostatic shielding container.
5. Please verifythat you the power supply is switched off before unplugging the power supply connector from the
motherboard.
Installation Notices:
1. Prior to installation, please do not remove the stickers on the motherboard. These stickers are required for
warrantyvalidation.
2. Prior to the installation of the motherboard or anyhardware, please first carefully read the information in the
provided manual.
3. Before using the product, please verifythat all cables and power connectors are connected.
4. To prevent damage to the motherboard, please do not allowscrews to come in contact with the motherboard
circuit or its components.
5. Please make sure there are no leftover screws or metalcomponents placed on the motherboard or within the
computer casing.
6. Please do not place the computer system on an uneven surface
7. Turning on the computer power during the installation process can lead to damage to systemcomponents as well
as physicalharm to the user.
8. If you are uncertain about anyinstallation steps or have a problem related to the use of the product, please
consult a certified computer technician.

11
Screw
1. Using the screw
drive remove the
marked screw and set
aside as shown
Screw
9. Assemble of the two
panels in both sides as
the shown, then using
screw drive assemble
of the screw.
4. Using the screw
drive remove the
marked screw and set
aside as shown.
8. Gently plug into
the power of cable
and the data of the
cable as shown.
6. Gently remove the
HDD from the
bracket as the shown
direction. Then gently
assemble the HDD
into the bracket
5. Using the screw
drive remove the
marked screw and set
aside..
Screw
7. Using the screw
drive assemble of the
marked screw as
shown.
2. Remove two panels
in both sides as shown
3. Remove the power
of cable and the data
of cable as shown
Cable
Screw
Screw

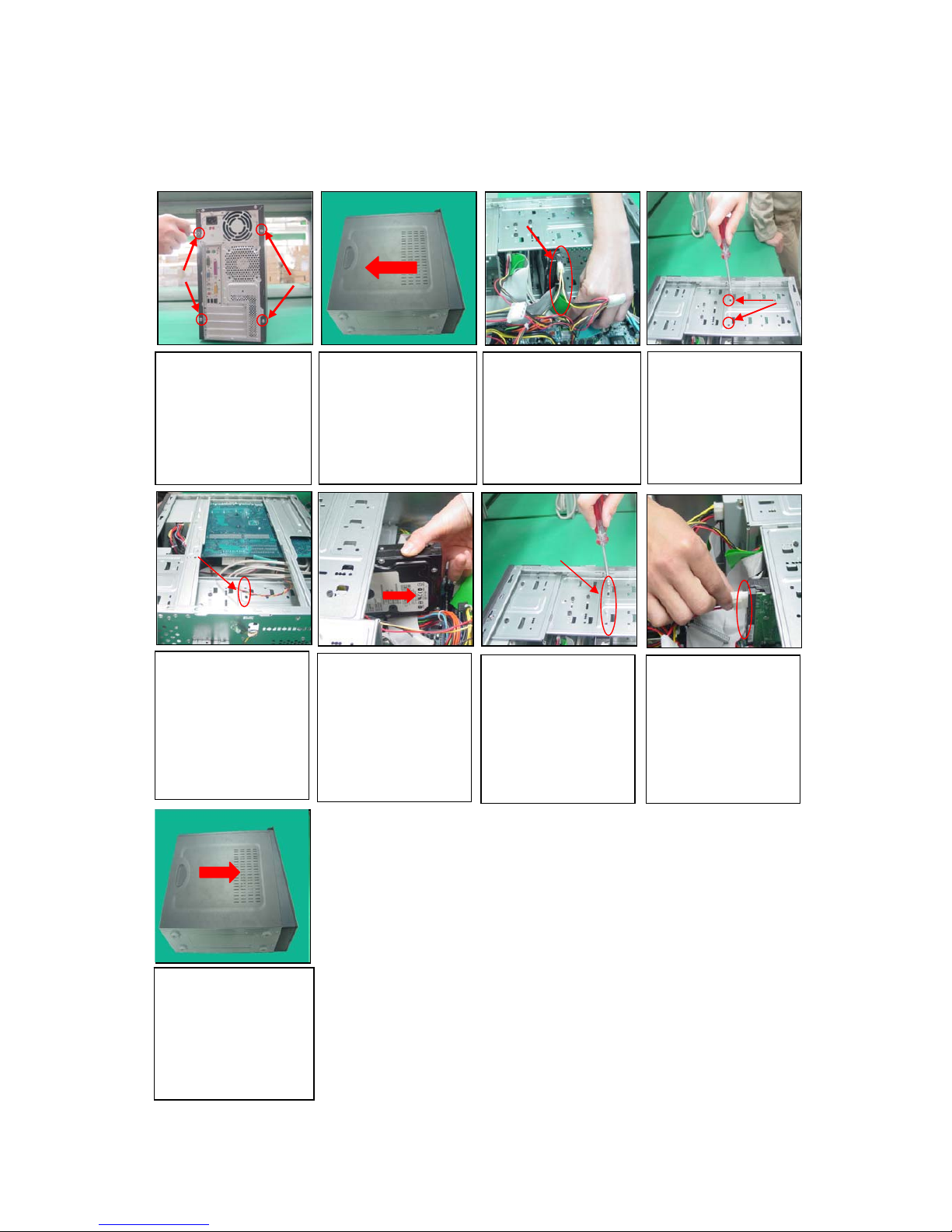

Exchange of the HDD

12
Exchange of the ODD
screw
screw
screw
1. Using the enclosed
magnetic screw-drive,
remove the marked
screw and set aside as
shown
2. Remove the two
panels in both sides as
shown
5. Using the screw
drive remove the
marked screw and set
aside.
8. Using the screw
drive assemble of the
screw.
9.Gently plug into the
power of cable and the
data of the cable as
shown.
10. Assemble of the
two panels in both
sides as shown, then
using screw drive
assemble of the screw.
4. Using the screw
drive remove the
marked screw and set
aside.
6. Gently remove the
ODD from the bracket
as shown
3. Gently remove the
data of cable and the
power of the cable as
shown.
7. Gently assemble of
the ODD into the
bracket as shown
direction.
Screw
Screw
Screw
Screw
Screw

13
Exchange of the FDD
2. Remove the two
panels in both sides as
shown
3. Gently remove the
data of cable and the
power of the cable as
shown.
8. Assemble of the two
panels in both sides as
shown, then using
screw drive assemble of
the screw.
1. Using the screw
drive remove the
marked screw and set
aside.
Screw Screw
4. Using the
screw-drive remove
the marked screw and
set aside
Screw
5. Using the
screw-drive, remove
the marked screw and
set aside as shown
6. Gently remove the
FDD from the bracket,
then gently plug the
FDD into the bracket as
shown.
7. Using the screw drive
assemble of the screw,
then plug into the data
of cable and the power
of cable.
Screw
Screw

14
Installation of the CPU and Heat-sink
Before installing the CPU, please comply with the following conditions:
1. Please make sure that the motherboard supports the CPU.
2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong direction, the CPU
will not insert properly. If this occurs, please change the insert direction of the CPU.
3. Please add an even layer of heat sink paste between the CPU and heat-sink.
4. Please make sure the heat-sink is installed on the CPU prior to system use, otherwise overheating and permanent
damage of the CPU may occur.
5. Please set the CPU host frequency in accordance with the processor specifications. It is no true commended
that the system bus frequency be set beyond hardware specifications since it does not meet the required
standards for the peripherals. If you wish to set the frequency beyond the proper specifications, please do so
according to your hardware specifications including the CPU, graphics card, memory, hard drive, etc.
HT functionality requirement content :
Enabling the functionality of Hyper-Threading Technology for your computer system requires all of the following
platform components:
- CPU: An Intel® Pentium 4 Processor with HT Technology
- Chipset: An SiS® Chipset that supports HT Technology
- BIOS: A BIOS that supports HT Technology and has it enabled
- OS: An operation system that has optimizations for HT Technology1-3-1Installation of the CPU

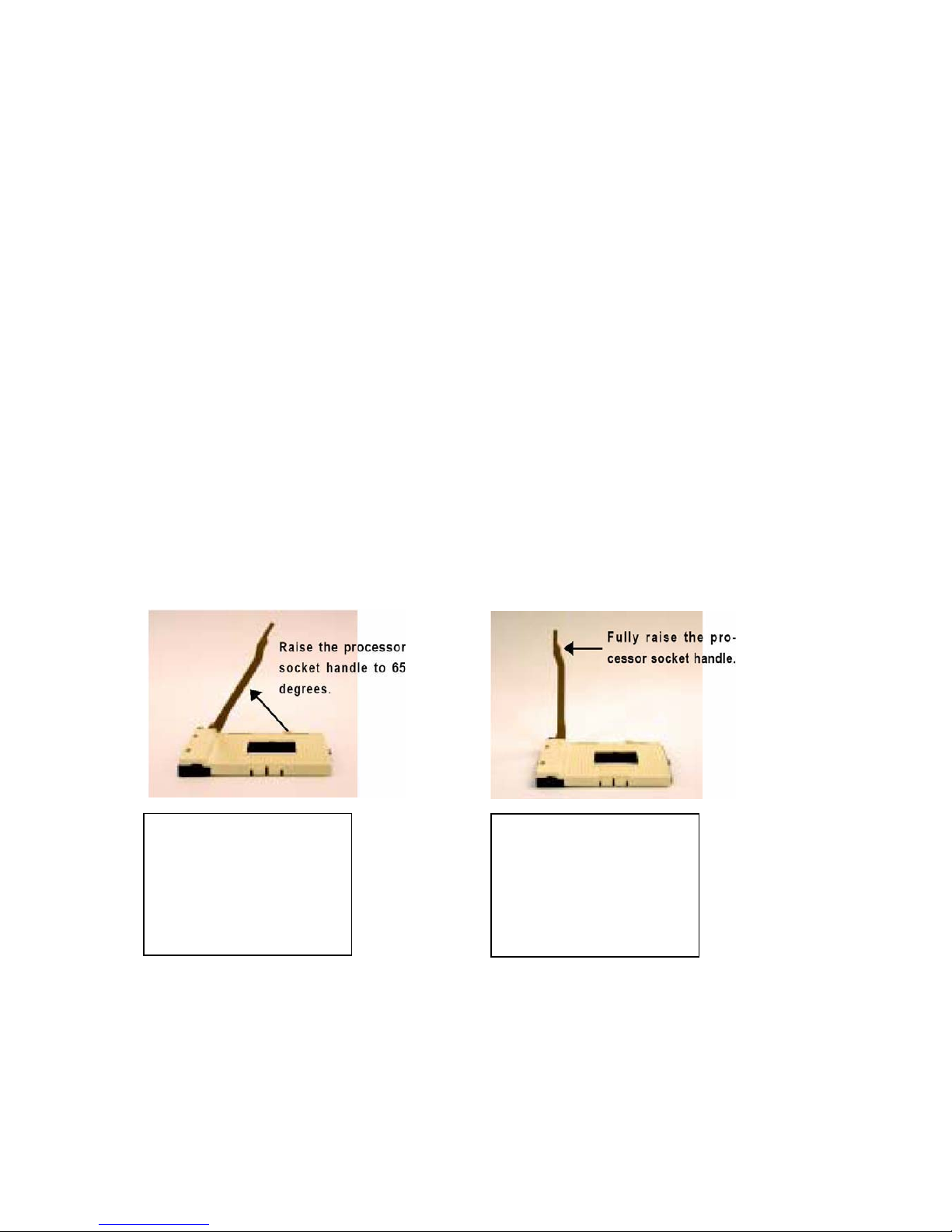

Installation of the CPU
1.Raise the processor socket
handle to 65 degrees. You
maybe feel a kind of tight
2.Raise the processor socket
handle all the way up to a fully
raised position (around
90degrees) till you hear a
"click."

15
Installation of the heat-sink
Note:
1. Please use Intel® approved cooling fan.
2. We recommend you to apply the thermal tape to provide better heat conduction between your
CPU and heat-sink. (The CPU cooling fan might stick to the CPU due to the hardening of the
thermal paste. During this condition if you try to remove the cooling fan, you might pull the
processor out of the CPU socket alone with the cooling fan, and might damage the processor. To
avoid this from happening, we suggest you to either use thermal tape instead of thermal paste, or
remove the cooling fan with extreme caution.)
3. Make sure the CPU fan power cable is plugged in to the CPU fan connector this completes the
installation.
4. Please refer to CPU heat sink user’s manual for more detail installation procedure

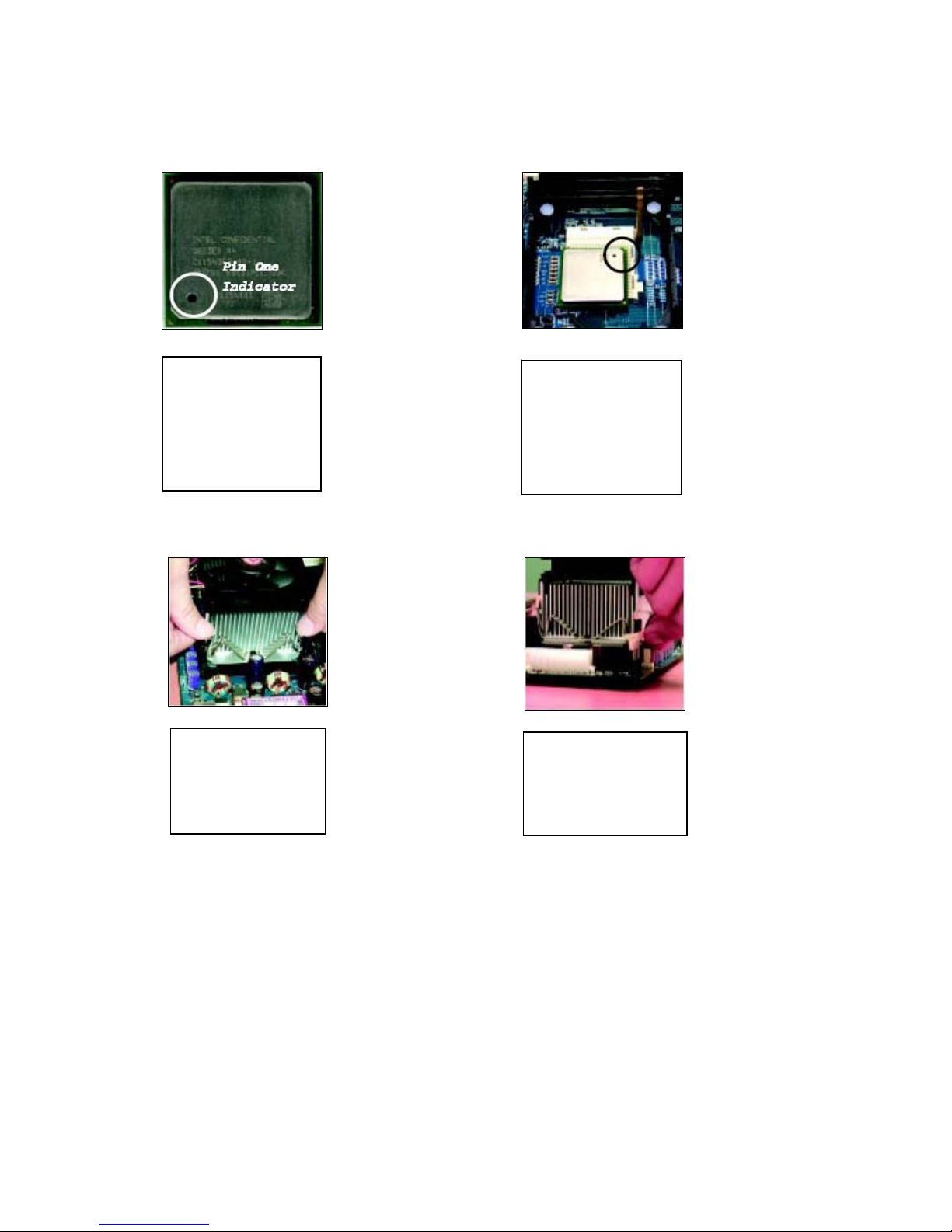

3. Locate the Pin One
Indicator on the
processor.
4. Locate Pin One in
the socket and look for
a (golden) cut edge on
the CPU upper corner.
Then insert the CPU
into the socket and
close the socket handle
1. Push down the
cooler clip to secure
to the retention
mechanism hooks for
all four corners.
2. Plug the cooler
power cable into the
CPU fan connector on
the motherboard.

16
Installation ofMemory
Before installing the memorymodules, please comply with the following conditions:
1. Please make sure that the memoryused is supported bythe mother-board. It is recommended that memoryof
similar capacity, specifications and brand be used.
2. Before installing or removing memorymodules, please make sure that the computer power is switched off to
prevent hardware damage.
3. Memorymodules have a foolproof insertion design. A memorymodule can be installed in only one direction.
4. If you are unable to insert the module, please switch thedirection.1-4Installation of Memory
The motherboard has 2dualinline memorymodule (DIMM) sockets. The BI OSwill automatically detect memory
type and size. To install the memorymodule, just push it vertically into the DIMM socket. The DIMM module can
only fit in one direction due to the notch. Memorysize can varybetween sockets.
1. The DIMM socket has a notch, so the
DIMM memorymodule can only fit in one
direction. Insert the DIMM memory
modulevertically into the DIMM socket.
Then push it down.
Notch
16

17
Installation of Expansion Cards
You can install your expansion card byfollowing the steps outlined below:
1. Read the related expansion card's instruction document before installing the expansion card into the computer.
2. Removeyour computer's chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metalcontacts on the card are indeed seated in the slot.
5. Replace the screwto secure the slot bracket of the expansion card.
6. Replace your computer's chassis cover.
7. Power on the computer, if necessary, setup BIOSutilityof expansion card from BIOS.
8. Install related driver from the operating system.
Installing a AGP expansion card:
AGP Card
2.Close the plastic clip at both edges of
the DIMM sockets to lock the DIMM
module. Reverse the installation steps
when you wish to remove the DIMM
module.
Please carefully pull out the small
white-drawable bar at the end of the
AGP slot when you tryto
install/uninstall the VGA card. Please
align the VGAcard to the onboard AGP
slot and press firmly down on the slot.
Make sure your VGA card is locked by
the small white-drawable bar.

18
I/O BackPanel Introduction
a. PS/2 Keyboard and PS/2 Mouse Connector
To install a PS/2port keyboard and mouse, plug the mouse to the upper port (green) and the keyboard to the
lower port (purple).
b. Parallel Port
The parallelport allows connection of a printer, scanner and other peripheraldevices.
c. Serial Port (COMA)
Devices like mouse, modems, and etc. can be connected to Serialport.
d. VGA Port
Monitor can be connected to VGA port.
e. Game/MIDI Port
This connector supports joystick, MIDI keyboard and other related audio devices.
f. Line Out (Front Speaker Out)
Connect the stereo speakers, earphone or front surround channels to this connector.
g. Line In
Devices like CD-ROM, walkman etc. can be connected to Line In jack.
h. MIC In
Microphone can be connected to MIC In jack.
i. LAN Port
The LANport provides Internet connection.
j. USBport
Before you connect your device(s) into USB connector(s), please make sure your device(s) such as USB
keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface. Also make sure your OSsupports
USB controller. If your OSdoes not support USB controller, please contact OSv
endor for possible patch or
driver upgrade. For more information please contact your OSor device(s) vendors.

19
Connectors Introduction

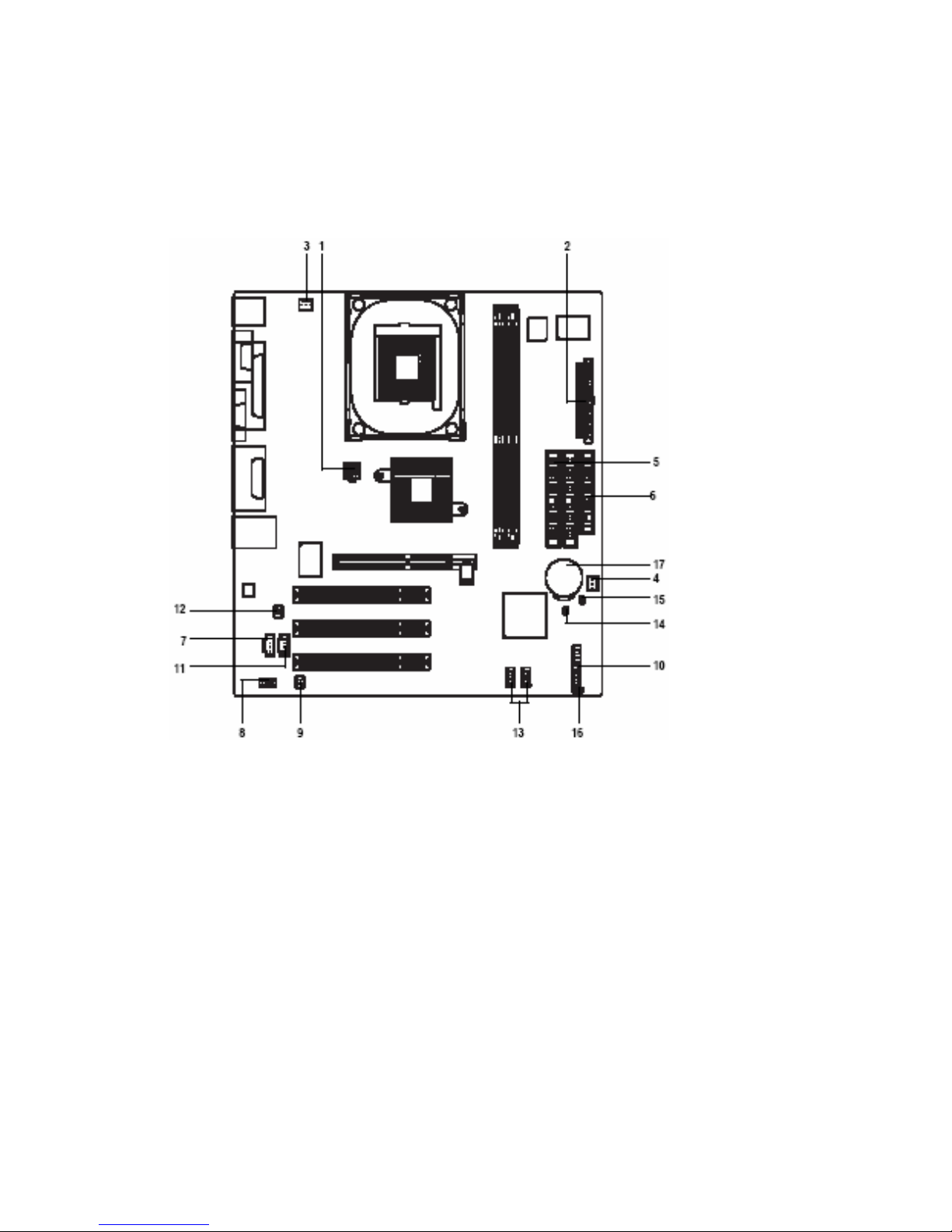

1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN
5) IDE1/IDE2
6) FDD
7) AUX_IN
8) F_AUDIO
9) SUR_CEN
10) F_PANEL
11) CD_IN
12)SPDIF_IO
13) F_USB1/F_USB2
14) CI
15) CLR_CMOS
16) PWR_LED
17) BAT
