Overview
This manual contains instructions for removing and replacing the following
customer replacement units (CRUs):
v Power supply
v System board
v Microprocessor
v Memory
v Hard disk drive
Information resources
The Quick Reference that comes with your computer provides information for
installing your computer and starting the operating system. It also includes basic
troubleshooting information, software recovery procedures, help and service
information, and warranty information.
Access IBM, on your desktop, provides a link to more information about your
computer.
If you have Internet access, the most up-to-date manuals for your computer are
available from the World Wide Web. To access this information, point your browser
to
http://www.ibm.com/pc/support
Type your machine type and model number in the Quick Path field, and click Go.
Tools required
To install some options in your computer, you might need a flat-blade or Phillips
screwdriver. Additional tools might be needed for certain options. See the
instructions that come with the option.
Handling static-sensitive devices
Static electricity, although harmless to you, can seriously damage computer
components and options.
When you add an option, do not open the static-protective package containing the
option until you are instructed to do so.
When you handle options and other computer components, take these precautions
to avoid static electricity damage:
v Limit your movement. Movement can cause static electricity to build up around
you.
v Always handle components carefully. Handle adapters and memory modules by
the edges. Never touch any exposed circuitry.
v Prevent others from touching components.
© Copyright IBM Corp. 2004 v

v When you install a new option, touch the static-protective package containing
the option to a metal expansion-slot cover or other unpainted metal surface on
the computer for at least two seconds. This reduces static electricity in the
package and your body.
v When possible, remove the option and install it directly in the computer without
setting the option down. When this is not possible, place the static-protective
package that the option came in on a smooth, level surface and place the option
on it.
v Do not place the option on the computer cover or other metal surface.
vi Hardware Removal and Replacement Guide

Replacing customer replaceable units (CRUs)
Attention
Do not open your computer or attempt any repair before reading the
“Important safety information” in the Quick Reference that was included with
your computer. If you no longer have this copy of the Quick Reference, you
can obtain one online from the IBM Web site at
http://www.ibm.com/pc/support.
Removing the cover
Important
Turn off your computer and wait 3 to 5 minutes to let the computer cool
before removing the cover.
To remove the cover:
1. Shut down your operating system, remove any media (diskettes, CDs, or tapes)
from the drives, and turn off all attached devices and the computer.
2. Unplug all power cords from electrical outlets.
3. Disconnect all cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer.
© Copyright IBM Corp. 2004 1

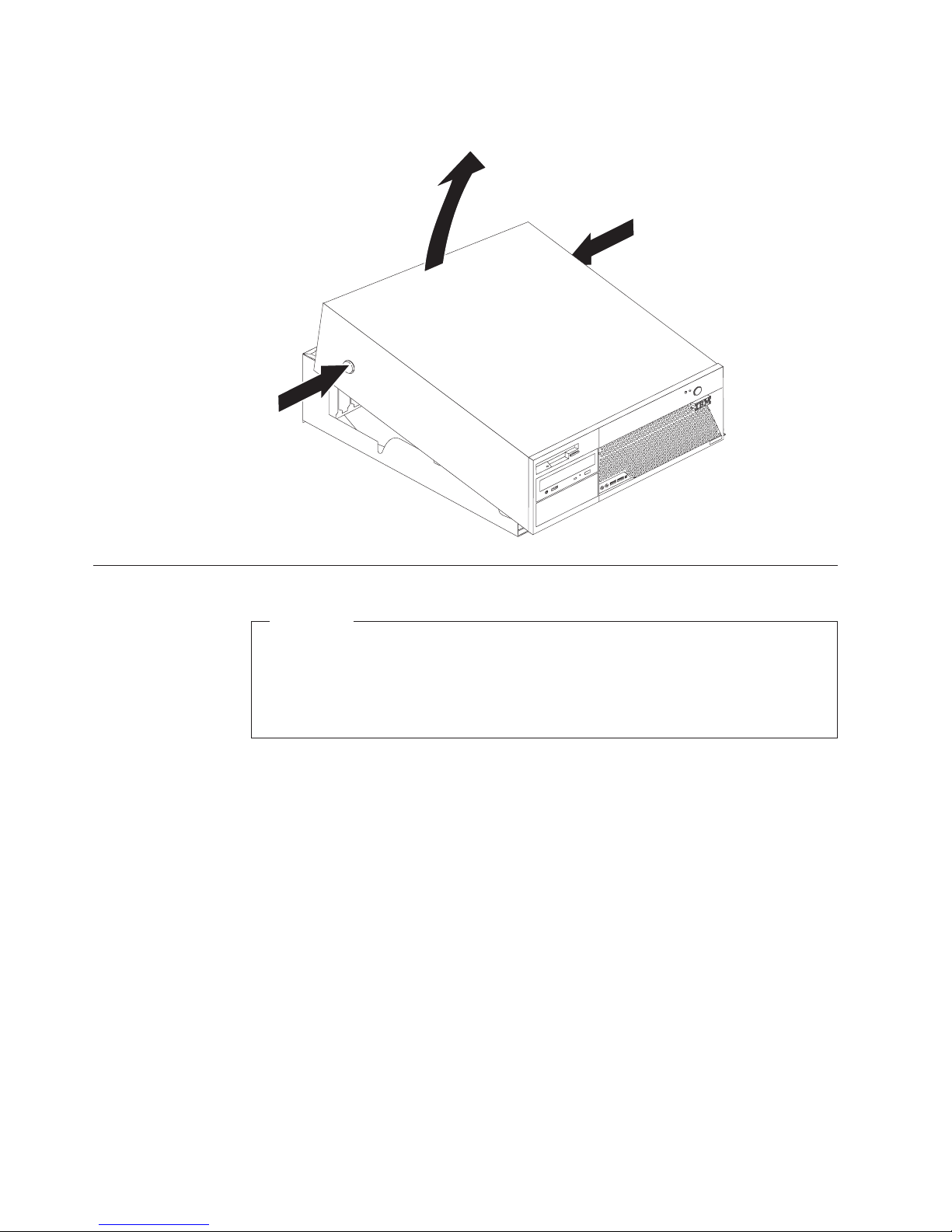

4. Press the buttons on the sides of the computer and pivot the rear end of the
cover up toward the front of the computer.
ThinkCentre
Removing and replacing the power supply
Attention
Do not open your computer or attempt any repair before reading the
“Important safety information” in the Quick Reference that was included with
your computer. If you no longer have this copy of the Quick Reference, you
can obtain one online from the IBM Web site at
http://www.ibm.com/pc/support.
This section provides instructions on how to remove and replace the power supply.
1. Remove the cover. See “Removing the cover” on page 1.
2 Hardware Removal and Replacement Guide

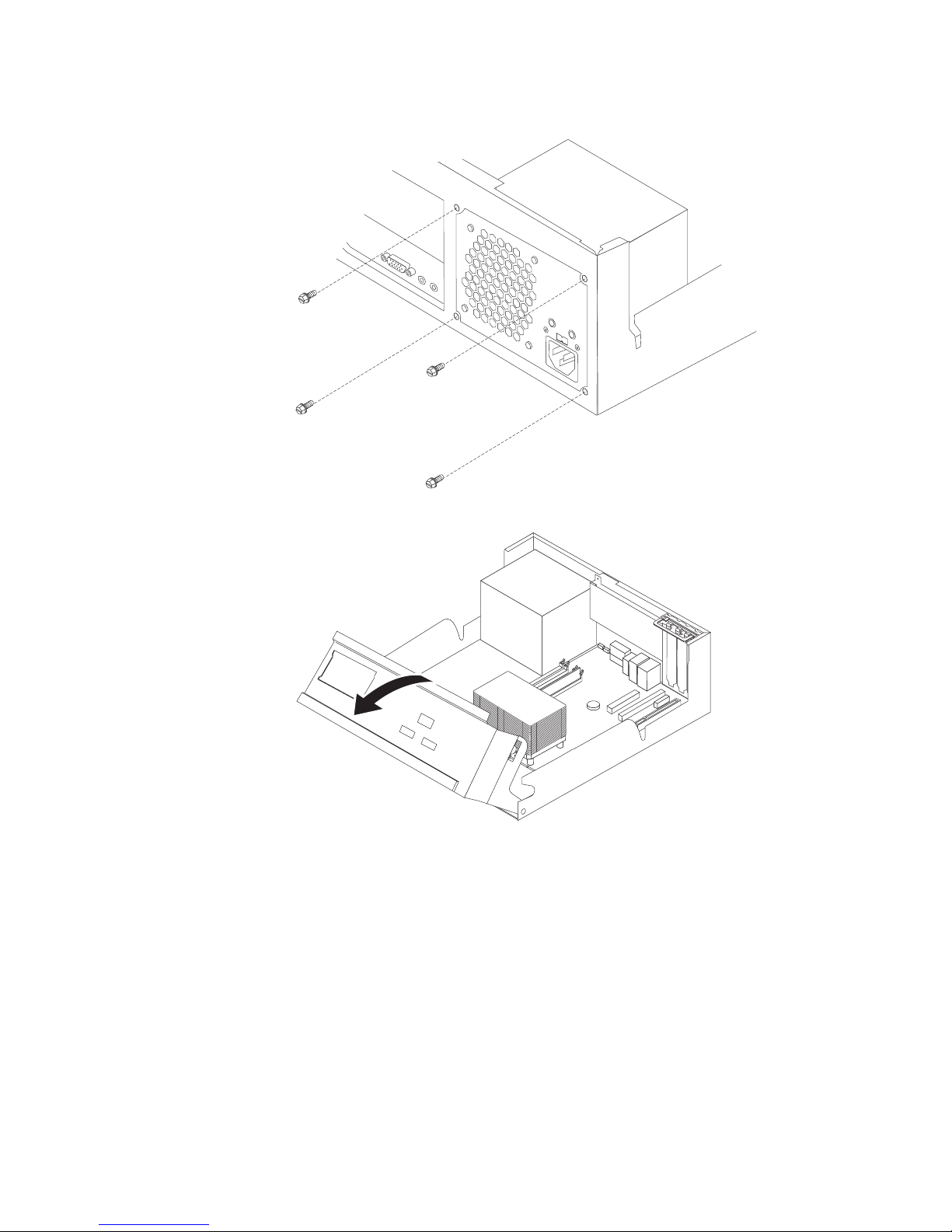

2. Remove the four screws at the rear of the chassis.
3. Rotate the drive bay assembly upward to gain access to the system board.
*XXXXXXXXX*
*XXXXXXXXX*
4. Disconnect all power supply cables from the drives and the system board.
Remove the cables from the cable clips and ties. See Figure 1 on page 5.
Note: Take note of the locations of the power supply cables.
Replacing customer replaceable units (CRUs) 3

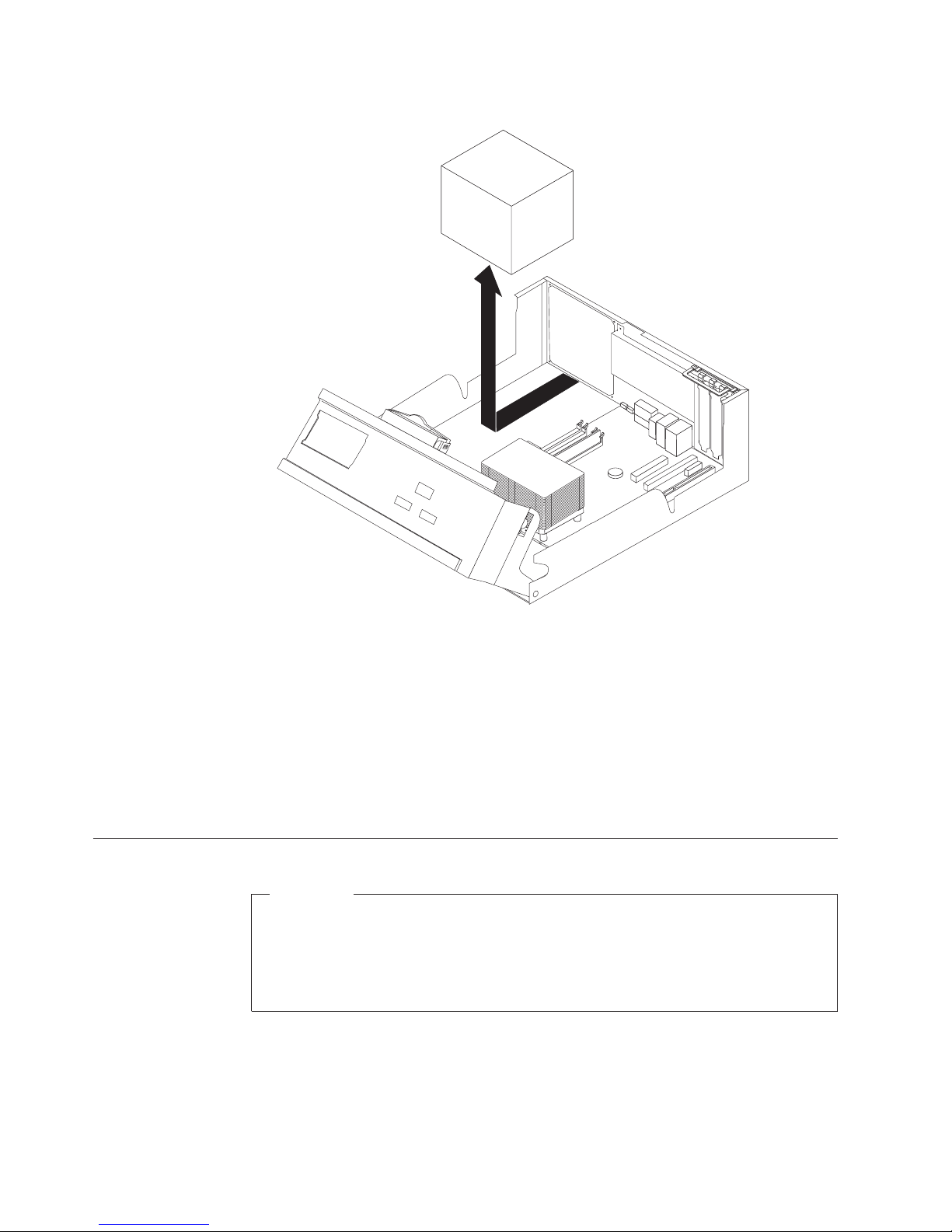

5. Remove the power supply assembly from the computer.
*XXXXXXXXX*
*XXXXXXXXX*
6. Install the new power supply assembly into the chassis so that the screw holes
in the power supply assembly align with those in the chassis.
Note: Use only the screws provided by IBM.
7. Install and tighten the four power supply assembly screws into the rear of the
chassis.
8. Route the cables through the cable clips and ties. Reconnect all the power
supply cables to the drives and the system board.
9. To complete the installation, go to “Completing the CRU replacement” on page
16.
Removing and replacing the system board
Attention
Do not open your computer or attempt any repair before reading the
“Important safety information” in the Quick Reference that was included with
your computer. If you no longer have this copy of the Quick Reference, you
can obtain one online from the IBM Web site at
http://www.ibm.com/pc/support.
This section provides instructions on how to remove and replace the system board.
1. Remove the cover. See “Removing the cover” on page 1.
2. Remove any PCI adapters. See “Removing and replacing a PCI adapter” on
page 15.
4 Hardware Removal and Replacement Guide

3. Carefully take note of the location of all cable connections on the system
board. It will be necessary to reconnect them properly when installing a new
system board.
4. Disconnect all cables connected to the system board.
1 12v power connector 13SATA 2 connector
2 Diskette drive connector 14SATA 1 connector
3 Speaker connector 15Cover presence switch connector
4 DIMM connector 4 16Power supply connector
5 DIMM connector 3 17PCI Express (x16) graphics slot
6 DIMM connector 2 18PCI Express (x1) slot
7 DIMM connector 1 19PCI slot 2
8 Clear CMOS/Recovery jumper 20PCI slot 1
9 Front panel connector 21Battery
10Parallel ATA IDE connector 22Microprocessor
11SATA 4 connector 23Microprocessor fan connector
12SATA 3 connector 24Microprocessor heat sink
Figure 1. System board
Replacing customer replaceable units (CRUs) 5

5. Remove the seven screws that attach the system board to the chassis and slide
the system board toward the drive bay assembly. Carefully lift out the system
board.
*XXXXXXXXX*
*XXXXXXXXX*
6. Take note of the location of the DIMMs and remove them from the system
board. See “Removing and replacing memory” on page 13.
7. Install the DIMMs on the new system board in the same location as they were
on the system board being replaced.
8. Remove the microprocessor from the failing system board and install it on the
new system board. See “Removing and replacing the microprocessor” on page
7.
9. Install the new system board by aligning the slots in the metal plate on the
bottom of the system board with the tabs on the chassis then slide the system
board toward the rear of the computer.
*XXXXXXXXX*
*XXXXXXXXX*
6 Hardware Removal and Replacement Guide

Important
If the metal plate is not aligned correctly when you install the screws,
you might damage the system board.
10. Install the screws that secure the system board to the chassis.
11. Reconnect all cables that were disconnected from the system board. See
Figure 1 on page 5.
12. Replace any PCI adapters that were removed. See “Removing and replacing a
PCI adapter” on page 15.
13. To complete the installation, go to “Completing the CRU replacement” on
page 16.
Removing and replacing the microprocessor
Attention
Do not open your computer or attempt any repair before reading the
“Important safety information” in the Quick Reference that was included with
your computer. If you no longer have this copy of the Quick Reference, you
can obtain one online from the IBM Web site at
http://www.ibm.com/pc/support.
Important
Shut down and turn off your computer for at least one hour before removing
the microprocessor to allow the thermal interface between the microprocessor
and the heat sink time to cool down.
When you receive a new microprocessor, you will also receive a new heat sink and
vacuum pen. You must also replace the heat sink when replacing the
microprocessor. If you use the old heat sink with the new microprocessor, your
computer might over heat and periodically shut down.
This section provides instructions on how to remove and replace the
microprocessor.
1. Remove the cover. See “Removing the cover” on page 1.
Replacing customer replaceable units (CRUs) 7

2. Rotate the drive bay assembly upward to gain access to the system board.
*XXXXXXXXX*
*XXXXXXXXX*
3. Remove the heat sink 2 from the system board by rotating the lever 1
securing the heat sink until it is fully in the up position. Carefully lift the heat
sink off of the system board.
Note: If you are only replacing the system board, place the heat sink on its
side on a clean, flat surface so the thermal interface on the bottom of the heat
sink does not touch the surface.
8 Hardware Removal and Replacement Guide

4. Release the lever 2 securing the microprocessor 1 then rotate the
microprocessor retainer 3 until it is fully in the up position.
5. Remove the microprocessor from the system board socket using the vacuum
pen1.
Important
Do not touch the gold contacts on the bottom of the microprocessor. If
you must touch the microprocessor, touch only the sides.
Notes:
a. Take notice of the orientation of the notches on the microprocessor. This is
important when reinstalling the microprocessor on the system board.
b. Do not drop anything on the socket while it is open. Keep all contacts as
clean as possible.
6. Make sure that the lever on the microprocessor retainer is fully in the up
position.
Replacing customer replaceable units (CRUs) 9

7. When installing a new microprocessor2, loosen the black cover 3that
protects the gold contacts on the microprocessor, but do not remove it. Use the
vacuum pen 1 to pick up the new microprocessor then completely remove
the black cover.
* XXXXXXXXX*
8. Position the microprocessor so that the notches 1 on the microprocessor are
aligned with the tabs in the microprocessor socket.
Important
To avoid damaging the microprocessor contacts, do not tilt the
microprocessor when installing it into the socket.
* XXXXXXXXX*
9. Use the vacuum pen to lower the microprocessor straight down into the
system board socket.
10 Hardware Removal and Replacement Guide

10. Lower the microprocessor retainer 3 and then lower the lever 2 to secure
the retainer. Make sure the lever is securely locked into position.
Note: If you are replacing the system board, a piece of black plastic will cover
the microprocessor retainer. When you lock the microprocessor in position,
remove the cover.
11. Place the new heat sink2into position and lower the lever 1 to secure the
heat sink.
Note: If you are only replacing a system board, install and secure the original
heat sink on the microprocessor.
12. If you are replacing the system board, continue at Removing and replacing the
system board at step 9 on page 6. If you are replacing a failing microprocessor,
continue at step 13 on page 12.
Replacing customer replaceable units (CRUs) 11

13. To complete the installation, go to “Completing the CRU replacement” on
page 16.
Removing and replacing the hard disk drive
Attention
Do not open your computer or attempt any repair before reading the
“Important safety information” in the Quick Reference that was included with
your computer. If you no longer have this copy of the Quick Reference, you
can obtain one online from the IBM Web site at
http://www.ibm.com/pc/support.
This section provides instructions on how to remove and replace the hard disk
drive.
1. Remove the cover. See “Removing the cover” on page 1.
2. Rotate the drive bay assembly upward to gain access to the system board.
*XXXXXXXXX*
*XXXXXXXXX*
3. Disconnect the signal and power cables from the rear of the hard disk drive.
4. Lift the hard disk drive and bracket up to remove it from the drive bay.
*XXXXXXXXX*
*XXXXXXXXX*
12 Hardware Removal and Replacement Guide
