Lenovo ThinkCentre M920q 10RR Owner's manual

M920q User Guide and Hardware
Maintenance Manual
Energy Star Machine Types: 10RR, 10RS, 10RT, 10RU, 10SY, 10T1,
10T2, 10UH, and 10V8

Note: Bef re using this inf rmati n and the pr duct it supp rts, be sure t read and understand the
Important Product Information Guide and Appendix A “N tices” n page 59.
Second Edition (July 2018)
© opyright Lenovo 2018.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data r s ftware is delivered pursuant t a General Services
Administrati n “GSA” c ntract, use, repr ducti n, r discl sure is subject t restricti ns set f rth in C ntract N . GS-
35F-05925.

Contents
hapter 1. Overview . . . . . . . . . . . 1
Fr nt view . . . . . . . . . . . . . . . . . . 1
Rear view . . . . . . . . . . . . . . . . . . 2
System b ard . . . . . . . . . . . . . . . . 4
Machine type and m del label . . . . . . . . . . 6
hapter 2. Specifications . . . . . . . . 7
hapter 3. Tips on using the
computer . . . . . . . . . . . . . . . . . 9
Attaching a Kensingt n-style cable l ck . . . . . . 9
Installing the c mputer int the TIO m nit r . . . . . 9
hapter 4. Replacing hardware . . . . 11
Bef re replacing hardware . . . . . . . . . . 11
Kn wing FRUs (including CRUs) . . . . . . . . 11
L cating FRUs (including CRUs) . . . . . . . . 12
Replacing the keyb ard r wireless keyb ard . . . 14
Replacing the m use r wireless m use . . . . . 15
Replacing the p wer adapter . . . . . . . . . 19
Replacing the vertical stand . . . . . . . . . . 20
Replacing the VESA m unt bracket . . . . . . . 21
Replacing the external ptical drive . . . . . . . 22
Replacing the p wer adapter bracket . . . . . . 24
Rem ving the c mputer c ver . . . . . . . . . 25
Replacing the st rage drive . . . . . . . . . . 26
Replacing the st rage drive cable . . . . . . . . 29
Replacing the PCI Express card and PCI Express
card adapter . . . . . . . . . . . . . . . . 29
Replacing the internal speaker . . . . . . . . . 31
Replacing the advanced speaker . . . . . . . . 32
Replacing the system fan . . . . . . . . . . . 33
Replacing the heat sink . . . . . . . . . . . . 34
Replacing the c in-cell battery . . . . . . . . . 35
Replacing the micr pr cess r . . . . . . . . . 37
Replacing the Wi-Fi card . . . . . . . . . . . 40
Replacing the Wi-Fi antennas . . . . . . . . . 44
Replacing the antenna bracket . . . . . . . . . 49
Replacing the b tt m c ver . . . . . . . . . . 49
Replacing the mem ry m dule . . . . . . . . . 50
Replacing the M.2 s lid-state drive . . . . . . . 52
Replacing the system b ard and chassis . . . . . 54
C mpleting the parts replacement . . . . . . . 56
Appendix A. Notices . . . . . . . . . . 59
Appendix B. Trademarks . . . . . . . 61
© C pyright Len v 2018 i

ii M920q User Guide and Hardware Maintenance Manual

hapter 1. Overview
This chapter pr vides basic inf rmati n t help y u get familiar with y ur c mputer.
Front view
Note: Y ur c mputer m del might l k slightly different fr m the illustrati n.
Figure 1. Front view
1 P wer indicat r 2 P wer butt n
3 St rage drive status indicat r 4 Micr ph ne c nnect r
5 Headset c nnect r 6 Type-C USB 3.1 Gen 1 c nnect r
7 Always On USB 3.1 Gen 1 c nnect r 8 Illuminated red d t
1 Power indicator
This indicat r is n when the c mputer is n.
© C pyright Len v 2018 1

2 Power button
Used t turn n y ur c mputer. When y u cann t shut d wn the c mputer fr m the perating system, press
and h ld the p wer butt n f r f ur r m re sec nds t turn ff the c mputer.
3 Storage drive status indicator
This indicat r is n when the st rage drive is in use.
4 Microphone connector
Used t c nnect a micr ph ne t y ur c mputer. Y u can use the micr ph ne t rec rd s unds r interact
with the c mputer using speech-rec gniti n s ftware.
5 Headset connector
Used t c nnect a headset r headph nes t y ur c mputer.
6 Type- USB 3.1 Gen 1 connector
Used t c nnect a Type-C USB 3.1 c mpatible device.
7 Always On USB 3.1 Gen 1 connector
Used t c nnect a USB-c mpatible device. F r ptimal data transfer, c nnect a USB 3.1 Gen 1 device t a
USB 3.1 Gen 2 r USB 3.1 Gen 1 c nnect r instead f a USB 2.0 c nnect r.
8 Illuminated red dot
This indicat r is n when the c mputer is n.
Rear view
Note: Y ur c mputer m del might l k slightly different fr m the illustrati n.
2M920q User Guide and Hardware Maintenance Manual

Figure 2. Rear view
1 Opti nal c nnect r 2 2 Opti nal c nnect r 1
3 Security-l ck sl t 4 Wi-Fi antenna sl t
5 Ethernet c nnect r 6 USB 3.1 Gen 2 c nnect rs (2)
7 USB 3.1 Gen 1 c nnect r 8 HDMI™ 1.4 ut c nnect r
9 USB 3.1 Gen 1 c nnect r 10 DisplayP rt® 1.2 ut c nnect r
11 P wer adapter c nnect r
1 Optional connector 2
Depending n the c mputer m del, the c nnect r might vary.
2 Optional connector 1
Depending n the c mputer m del, the c nnect r might vary.
3 Security-lock slot
Used t secure a Kensingt n-style cable l ck.
4 Wi-Fi antenna slot
Chapter 1.Overview 3

Used t install the rear Wi-Fi antenna cable c nnect r that is available nly n s me m dels. The rear Wi-Fi
antenna is installed n the rear Wi-Fi antenna cable c nnect r.
5 Ethernet connector
Used t c nnect an Ethernet cable f r netw rk access.
6 USB 3.1 Gen 2 connectors
Used t c nnect a USB-c mpatible device. F r ptimal data transfer, c nnect a USB 3.1 Gen 2 device t a
USB 3.1 Gen 2 c nnect r instead f a USB 3.1 Gen 1 r USB 2.0 c nnect r.
7 USB 3.1 Gen 1 connector
Used t c nnect a USB-c mpatible device. F r ptimal data transfer, c nnect a USB 3.1 Gen 1 device t a
USB 3.1 Gen 2 r USB 3.1 Gen 1 c nnect r instead f a USB 2.0 c nnect r.
8 HDMI 1.4 out connector
Used t send vide and audi signals fr m y ur c mputer t an ther audi r vide device, such as a high
perf rmance m nit r.
9 USB 3.1 Gen 1 connector
Used t c nnect a USB-c mpatible device. F r ptimal data transfer, c nnect a USB 3.1 Gen 1 device t a
USB 3.1 Gen 2 r USB 3.1 Gen 1 c nnect r instead f a USB 2.0 c nnect r.
10 DisplayPort 1.2 out connector
Used t send audi and vide signals fr m the c mputer t an ther audi r vide device, such as a high-
perf rmance m nit r.
11 Power adapter connector
Used t c nnect the p wer adapter t y ur c mputer f r p wer supply.
System board
Note: See “Fr nt view” and “Rear view” f r additi nal c mp nent descripti ns.
4M920q User Guide and Hardware Maintenance Manual

Figure 3. System board
1 Clear CMOS (C mplementary Metal Oxide
Semic nduct r) / Rec very jumper
2 Thunderb lt c nnect r
3 B ard t b ard c nnect r 4 DC c nnect r
5 Micr pr cess r 6 C in-cell battery
7 Internal speaker r advanced speaker c nnect r 8 System fan c nnect r
9 St rage drive sl t 10 M.2 Wi-Fi card sl t
Chapter 1.Overview 5

11 PCI Express card sl t 12 Serial c nnect r
13 Mem ry sl t 1 (DIMM1) 14 Mem ry sl t 2 (DIMM2)
15 M.2 s lid-state drive sl t
Machine type and model label
The machine type and m del label identifies the c mputer. When y u c ntact Len v f r help, the machine
type and m del inf rmati n helps supp rt technicians t identify the c mputer and pr vide faster service.

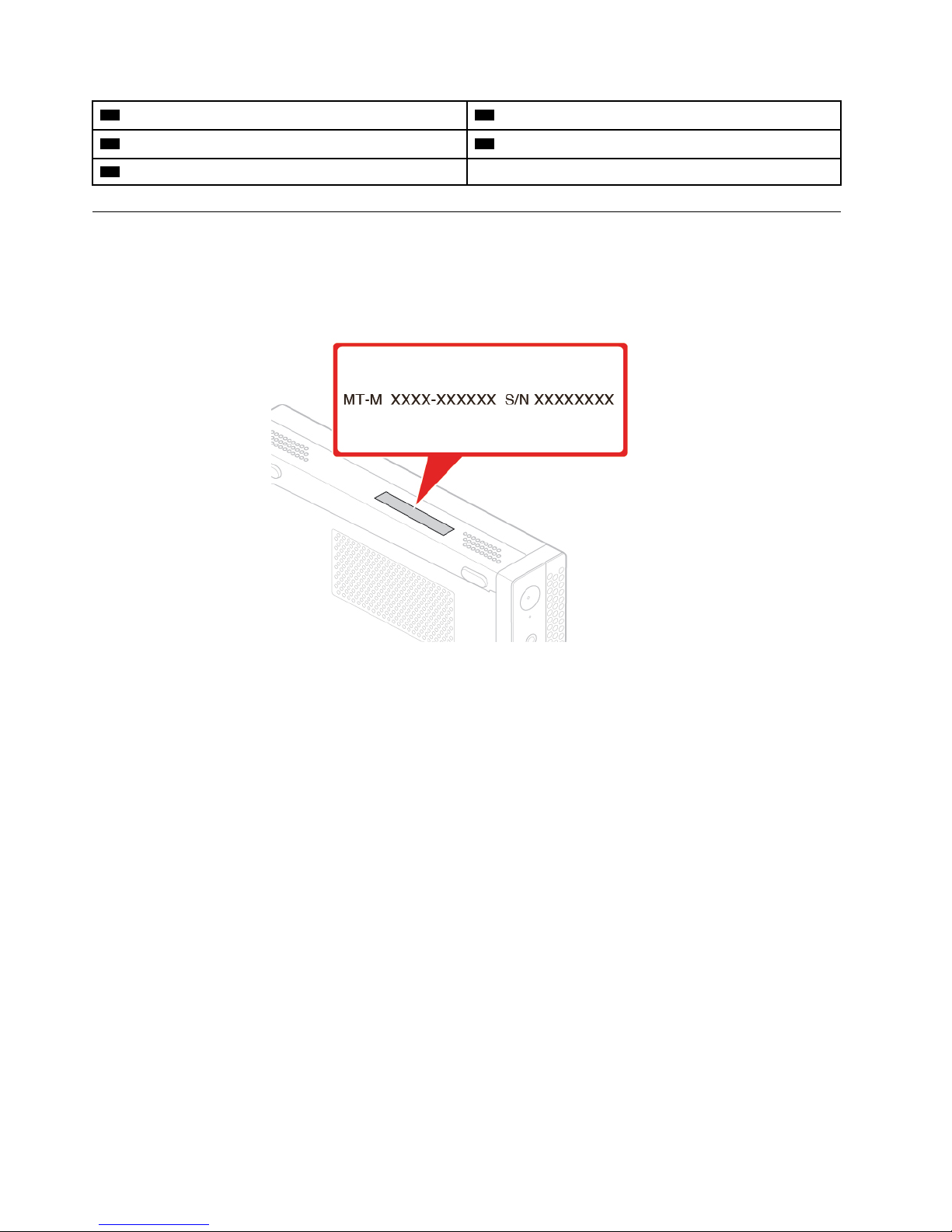

The machine type and m del label is attached n the c mputer as sh wn.
Figure 4. achine type and model label
6M920q User Guide and Hardware Maintenance Manual

hapter 2. Specifications
Power supply
• 65-watt aut matic v ltage-sensing p wer supply ( pti nal)
• 90-watt aut matic v ltage-sensing p wer supply ( pti nal)
• 135-watt aut matic v ltage-sensing p wer supply ( pti nal)
Storage drives
• 2.5-inch st rage drive ( pti nal)
• M.2 s lid-state drive ( pti nal)
Video features
• The integrated graphics card supp rts the f ll wing:
– DisplayP rt 1.2 ut c nnect r
– HDMI 1.4 ut c nnect r
Audio features
• The integrated audi card supp rts the f ll wing:
– Advanced speaker ( pti nal)
– Headset c nnect r
– Internal speaker ( pti nal)
– Micr ph ne c nnect r
Input/Output (I/O) features
• Audi c nnect rs (headset and micr ph ne)
• DisplayP rt 1.2 ut c nnect r
• Ethernet c nnect r
• HDMI 1.4 ut c nnect r
• Serial c nnect r ( pti nal)
• Type-C USB c nnect r
• USB c nnect r
Expansion
• External ptical drive b x ( pti nal)
• Mem ry sl ts
• M.2 s lid-state drive sl t
• PCI Express graphics card sl t
Network features
• Ethernet LAN
• Wireless LAN ( pti nal)
• Bluet th ( pti nal)
© C pyright Len v 2018 7

Physical dimensions
• Width: 37 mm (1.5 inches)
• Height: 179 mm (7.0 inches)
• Depth: 183 mm (7.2 inches)
Weight (without the package)
Maximum c nfigurati n as shipped: 1.3 kg (2.9 lb)
8M920q User Guide and Hardware Maintenance Manual

hapter 3. Tips on using the computer
This chapter pr vides tips n using the c mputer.
Attaching a Kensington-style cable lock
Y u can use a Kensingt n-style cable l ck t secure y ur c mputer t a desk, table, r ther n npermanent
fixture. The cable l ck c nnects t the security-l ck sl t at the rear f y ur c mputer. Depending n the type
selected, the cable l ck can be perated with a key r c mbinati n. The cable l ck als l cks the butt ns
used t pen the c mputer c ver. This is the same type f l ck used with many n teb k c mputers. Y u
can rder such a cable l ck directly fr m Len v by searching f r Kensington at:
http://www.len v .c m/supp rt

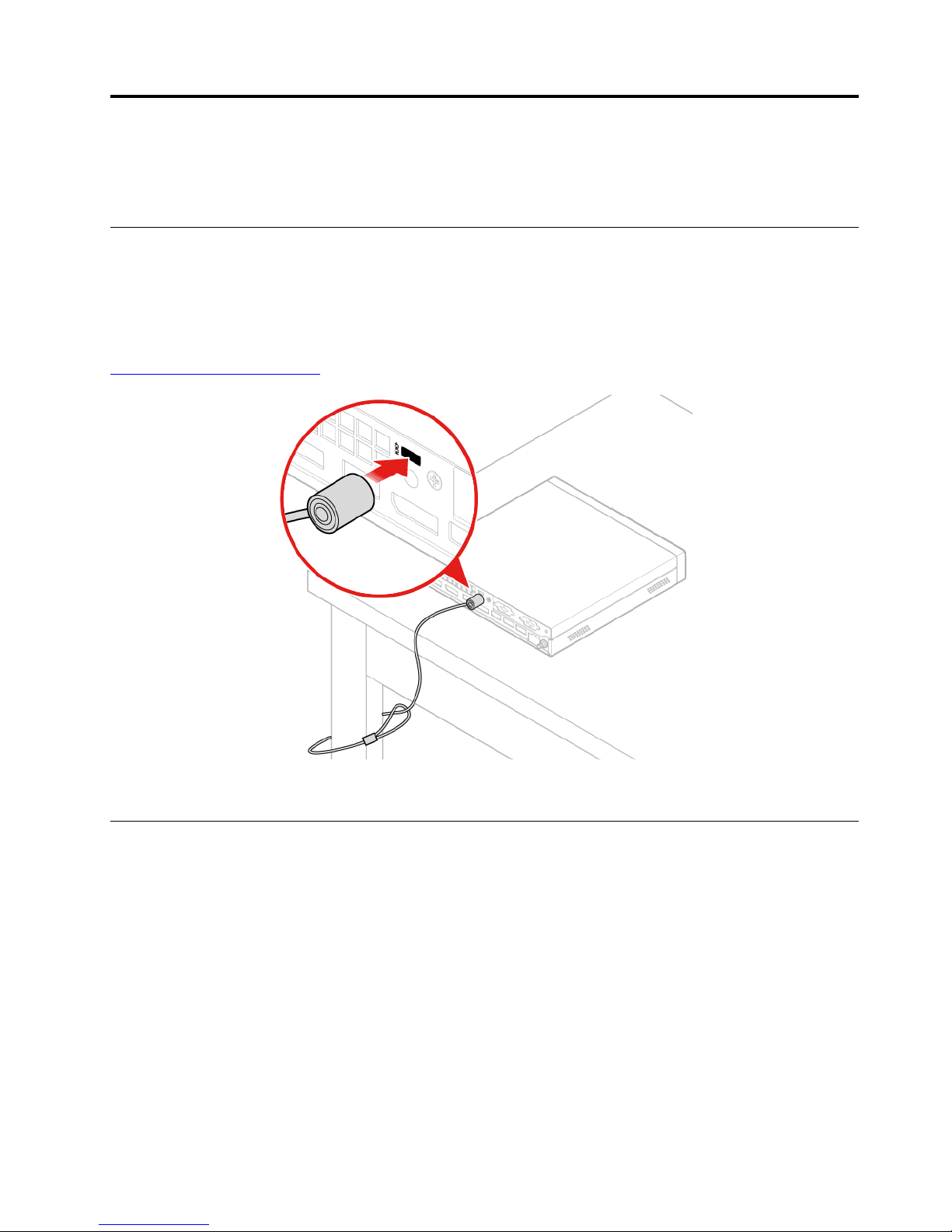

Figure 5. Attaching a Kensington-style cable lock
Installing the computer into the TIO monitor
1. F r the Tiny-in-One 23 m nit r (MT: 10DQ), rem ve the rear Wi-Fi antenna c ver bef re installing the
c mputer. See “Replacing the Wi-Fi antennas” n page 44.
2. C nnect the c mputer either t the p wer adapter shipped with the TIO m nit r r t the adapter
shipped with the c mputer that has higher p wer rating.
© C pyright Len v 2018 9

10 M920q User Guide and Hardware Maintenance Manual

hapter 4. Replacing hardware
This chapter pr vides instructi ns n h w t replace hardware f r y ur c mputer.
Before replacing hardware
Attention: D n t pen y ur c mputer r attempt any repairs bef re reading this secti n and the Important
Product Information Guide.
Notes before replacing hardware
• Use c mputer c mp nents pr vided nly by Len v .
• When installing r replacing an pti n, use the appr priate instructi ns explained in this manual al ng with
the instructi ns that c me with the pti n.
• In m st areas f the w rld, Len v requires the return f defective CRUs. Inf rmati n ab ut this will c me
with the CRU r will c me a few days after the CRU arrives.
Handling static-sensitive devices
D n t pen the static-pr tective package c ntaining the new part until the defective part has been rem ved
and y u are ready t install the new part. Static electricity, alth ugh harmless t y u, can seri usly damage
c mputer c mp nents and pti ns.
When y u handle pti ns and ther c mputer c mp nents, take these precauti ns t av id static-electricity
damage:
• Limit y ur m vement. M vement can cause static electricity t build up ar und y u.
• Always handle pti ns and ther c mputer c mp nents carefully. Handle PCI/PCIe cards, mem ry
m dules, system b ards, and micr pr cess rs by the edges. Never t uch any exp sed circuitry.
• Prevent thers fr m t uching the pti ns and ther c mputer c mp nents.
• T uch the static-pr tective package c ntaining the part t a metal expansi n-sl t c ver r ther
unpainted metal surface n the c mputer f r at least tw sec nds. This reduces static electricity fr m the
package and y ur b dy bef re y u install r replace a new part.
• When p ssible, rem ve the new part fr m the static-pr tective package, and install it directly in the
c mputer with ut setting the part d wn. When this is n t p ssible, place the static-pr tective package n
a sm th, level surface and place the part n the package.
• D n t place the part n the c mputer c ver r ther metal surface.
Knowing FRUs (including RUs)
• Field Replaceable Units (FRUs) are c mputer parts that a trained technician can upgrade r replace. FRUs
include all CRUs. F r detailed FRU inf rmati n, such as the FRU part numbers and supp rted c mputer
m dels, g t :
http://www.len v .c m/serviceparts-l kup
• Cust mer Replaceable Units (CRUs) are c mputer parts that a user can upgrade r replace.
– Self-service CRUs: Y u can install self-service CRUs easily. These CRUs might be stand-al ne,
latched, r secured by up t tw screws. Examples f self-service CRUs include the keyb ard, m use,
any USB device. Y u are resp nsible f r replacing all self-service CRUs.
– Opti nal-service CRUs: Handling pti nal-service CRUs requires s me technical skills and simple t ls
(such as a screwdriver). These CRUs are is lated parts within the c mputer. They are usually
© C pyright Len v 2018 11

c ncealed by an access panel that is secured by m re than tw screws. Y u must rem ve the screws
and panel t access the specific CRU. Opti nal-service CRUs can be rem ved and installed by users
r, during the warranty peri d, by a Len v service technician.
Before replacing FRUs
Bef re replacing any FRU, read the f ll wing:
• Only certified and trained pers nnel can service the c mputer.
• Bef re replacing an FRU, read the entire secti n ab ut replacing the part.
• Be extremely careful during writing perati ns such as c pying, saving, r f rmatting.
The sequence f the drives in the c mputer that y u are servicing might have been altered. If y u select
an inc rrect drive, data r pr grams might be verwritten.
• Replace an FRU nly with an ther FRU f the c rrect m del.
When y u replace an FRU, ensure that the m del f the machine and the FRU part number are c rrect.
• An FRU sh uld n t be replaced because f a single, unrepr ducible failure.
Single failures can ccur f r a variety f reas ns that have n thing t d with a hardware defect, such as
c smic radiati n, electr static discharge, r s ftware err rs. C nsider replacing an FRU nly when a
pr blem recurs. If y u suspect that an FRU is defective, clear the err r l g and run the test again. If the
err r d es n t recur, d n t replace the FRU.
• Only replace a defective FRU.
Locating FRUs (including RUs)
Notes:
• S me f the c mp nents are pti nal.
• T replace a c mp nent that is n t in the list bel w, c ntact a Len v service technician. F r a list f
Len v Supp rt ph ne numbers, g t :
http://www.len v .c m/serviceparts-l kup
12 M920q User Guide and Hardware Maintenance Manual

Figure 6. Locating FRUs (including CRUs)
Self-service RUs Optional-service RUs Non- RUs
1 Vertical stand 8 C in-cell battery 7 Micr pr cess r
2 P wer adapter bracket 12 System fan 10 Advanced speaker
3 P wer adapter 19 St rage drive 11 Antenna bracket
4 P wer c rd 20 St rage drive bracket 13 System b ard
5 C mputer c ver 21 Wi-Fi card shield 14 Chassis
6 Dust shield 22 Wi-Fi card 18 St rage drive cable
9 Internal speaker 23 PCI Express card 25 Wi-Fi antennas
15 B tt m c ver 24 PCI Express card adapter 26 Heat sink
Chapter 4.Replacing hardware 13

Self-service RUs Optional-service RUs Non- RUs
16 Mem ry m dule
17 M.2 s lid-state drive
27 VESA® m unt bracket
28 External ptical drive
29 External ptical drive b x
30 Keyb ard
31 M use
Replacing the keyboard or wireless keyboard
Note: The wireless keyb ard is available nly n s me m dels.
Replacing the keyboard
1. Turn ff the c mputer and disc nnect all p wer c rds fr m electrical utlets.
2. Disc nnect the ld keyb ard cable fr m the c mputer.
3. C nnect a new keyb ard t the appr priate c nnect r n the c mputer.
Figure 7. Replacing the keyboard
Replacing the wireless keyboard
1. Rem ve y ur ld wireless keyb ard.
2. Take ut the new wireless keyb ard fr m the package.
3. Open the battery c mpartment c ver, and install tw AAA batteries acc rding t the p larity indicat rs.
14 M920q User Guide and Hardware Maintenance Manual

Figure 8. Replacing the wireless keyboard
4. Rem ve the USB d ngle fr m the keyb ard c mpartment r fr m the wireless m use c mpartment and
c nnect it t an available USB c nnect r n the c mputer.
5. Cl se the c mpartment c ver. The keyb ard is ready f r use.
Replacing the mouse or wireless mouse
Note: The wireless m use is available nly n s me m dels.
Replacing the mouse
1. Turn ff the c mputer and disc nnect all p wer c rds fr m electrical utlets.
2. Disc nnect the ld m use cable fr m the c mputer.
3. C nnect a new m use t the appr priate c nnect r n the c mputer.
Figure 9. Replacing the mouse
Replacing the wireless mouse
1. Disc nnect the USB d ngle fr m y ur c mputer. Then, rem ve y ur ld wireless m use.
2. Rem ve the new wireless m use fr m the package.
3. Open the battery c mpartment c ver, and install tw AAA batteries acc rding t the p larity indicat rs.
Chapter 4.Replacing hardware 15

Figure 10. Opening the battery compartment
Figure 11. Taking out the USB dongle
16 M920q User Guide and Hardware Maintenance Manual
