Lenovo Regulatory Notice
Read first — regulatory information
Please read this document before you use the Lenovo computer.
Lenovo computer complies with the radio frequency and safety
standards of any country or region in which it has been approved for
wireless use. You must install and use your computer in strict
accordance with the instructions as described hereafter.
You are prohibited to replace or remove the preinstalled Wireless LAN
Mini PCI Express Card and the Bluetooth module in your computer, it
is not a Customer Replaceable Unit (CRU). If one of your cards
requires replacement or repair, Lenovo will request you to send your
computer with the preinstalled card(s) to Lenovo so that Lenovo will
repair it.
Veuillez lire ce document avant d’utiliser l’ordinateur Lenovo.
L’ordinateur Lenovo est conforme aux normes de sécurité et de
radiofréquence du pays ou de la région où son utilisation sans fil est
agréée. Vous devez installer et utiliser votre ordinateur en respectant
scrupuleusement les instructions décrites ci-après.
Vous êtes interdit de remplacer la carte de réseau local sans fil Express
mini-PCI et le module Bluetooth qui sont préinstalles dans votre
ordinateur, ce ne sont pas des Unités remplaçables par
l’utilisateur(CRU). Si l’une de votre carte a besoin d’être remplacée ou
reparée, Lenovo va vous demander de lui envoyer votre ordinateur
avec des cartes préinstallees, pour qu’il puisse le réparer.
RN_US.fm Page 1 Friday, August 21, 2009 4:35 PM

2
USA — Federal Communications Commission (FCC)
I. Factory preinstalled Wireless LAN/WiMAX module
• Model: 512AN_HMW FCC ID: PD9512ANHU
• Model: 512ANX_HMW FCC ID: PD9512ANXHU
• Model: BCM94312HMG FCC ID: QDS-BRCM1030
Wireless LAN Mini PCI Express Cards marketed in the USA and Canada
do not support nor function in the extended channels (12ch, 13ch).
i) The FCC RF Exposure compliance:
The radiated energy from the Main and Auxiliary antennas connected
to the Wireless LAN Mini PCI Express Card conforms to the FCC limit
of the SAR (Specific Absorption Rate) requirement regarding 47 CFR
Part 2 section 1093, when the computer was tested in the conventional
notebook setting.
Note: The transmission diversity function is implemented for this
product. For WLAN card (Model: BCM94312HMG) using Main
and Auxiliary antennas for transmission in the IEEE 802.11 b/g
transmission mode, radio frequency energy is not emitted
simultaneously from both Main and Auxiliary antennas. One of
the antennas is selected automatically or manually (by users) to
have good quality of radiocommunication (transmission
diversity function). For WLAN cards (Model: 512AN_HMW,
512ANX_HMW) in the IEEE 802.11 a/b/g, or MIMO ( Multiple
In Multiple Out ) transmission mode, the radio frequency
energy is emitted from Main antenna.
United States and Canada
RN_US.fm Page 2 Friday, August 21, 2009 4:35 PM

3
ii) FCC ID of wireless module:
There is no FCC ID shown on the outside of your computer for the
preinstalled Mini PCI Express Card wireless module. Instead you will
find a label that will be of the format “Contains Transmitter Module:
FCC ID: XXXX”, where XXXX represents the FCC ID that corresponds
to your preinstalled Wireless LAN/WiMAX module.
iii) Radio Frequency interference requirements:
• The devices have been tested and found to comply with the limits
for a Class B digital device pursuant to FCC Part 15 Subpart B. The
model BCM94312HMG was subject to DoC. Refer to “Electronic
emission notices” on page 11. The models 512AN_HMW,
512ANX_HMW underwent the certification process with each
respective FCC ID number listed in “I. Factory preinstalled Wireless
LAN/WiMAX module” on page 2.
• Each device is restricted to indoor use due to its operation in the 5.15 to
5.25 GHz frequency range. FCC requires these products to be used
indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential
for harmful interference to co-channel Mobile Satellite systems.
• High power radar are allocated as primary users of the 5.25 to 5.35
GHz and 5.65 to 5.85 GHz bands. These radar stations can cause
interference with and/or damage this device.
RN_US.fm Page 3 Friday, August 21, 2009 4:35 PM

4
II. Preinstalled integrated Bluetooth module
• FCC ID: MCLBCM92046 (Model: BCM92046)
i) FCC ID and installation of the module:
If you find an indication “Contains Transmitter Module: FCC ID:
MCLBCM92046 on the label at the bottom side of your computer,
your computer contains the Bluetooth transmitter module (Model:
BCM92046). The Bluetooth module is preinstalled by Lenovo, and is
not removable by users.
ii) The FCC RF safety requirement:
The radiated output power of the Bluetooth module is far below the
FCC radio frequency exposure limits. Therefore, a 20 cm of separation
between the Bluetooth antenna and human body is not required.
iii) Radio Frequency interference requirements:
The Bluetooth devices have been tested and found to comply with the
limits for a Class B digital device pursuant to FCC Part 15 Subpart B by
the DoC process. Refer to “Electronic emission notices” on page 11. In
addition, the models BCM92046 underwent the certification process
for FCC Part 15 Subpart C.
RN_US.fm Page 4 Friday, August 21, 2009 4:35 PM

5
III. Simultaneous use of RF transmitters
Your Lenovo computer is approved for simultaneous use of the
transmitters listed below:
• Wireless LAN adapter (FCC ID: PD9512ANHU, FCC ID:
PD9512ANXHU or FCC ID: QDS-BRCM1030)
•Bluetooth module (FCC ID: MCLBCM92046)
Please make sure of the following conditions on use of these wireless
features:
1. When you use any other RF option device, all other wireless features
including the above integrated devices in your Lenovo computer are
required to be turned off.
2. Users must follow the RF Safety instructions on wireless option
devices that are included in the RF option device’s user’s manual.
RN_US.fm Page 5 Friday, August 21, 2009 4:35 PM

6
Canada — Industry Canada (IC)
IC Certification number
I) Factory preinstalled Wireless LAN modules:
• IC: 1000M-L512ANHU (Model: 512AN_HMW)
• IC: 4324A-BRCM1030 (Model: BCM94312HMG)
Wireless LAN Mini PCI Express Cards marketed in the USA and Canada
do not support nor function in the extended channels (12ch, 13ch).
There is no Industry Canada certification number shown on the outside of
your computer for the preinstalled Mini PCI Express Card wireless
module. Instead you will find a label will be of the format “Contains
Transmitter Module: Canada IC: XXXX”, where XXXX represents the IC
ID that corresponds to your preinstalled WLAN module.
II) Preinstalled integrated Bluetooth module:
• IC: 2878D-BCM92046 (Model: BCM92046)
RN_US.fm Page 6 Friday, August 21, 2009 4:35 PM

7
If you find an indication “Contains Transmitter Module: Canada IC:
2878D-BCM92046 on the label at the bottom side of your computer,
your computer integrates the
Bluetooth transmitter module. The Bluetooth
module is preinstalled by Lenovo, and is not removable by users.
III) Low power license-exempt radiocommunication devices (RSS-210):
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. this device must accept any interference, including interference that
may cause undesired operation of the device.
The transmitter devices have been designed to operate with the antennas
integrated in Lenovo computer, and having a maximum gain of within 3 dBi.
The maximum antenna gain permitted for devices in the 5250-5350 MHz,
5470-5725 MHz, and 5725-5825 MHz bands complies with the e.i.r.p.
limit in section A9.2 of RSS-210.
When you use the model 512AN_HMW and BCM94312HMG
• The devices for the band 5150–5250 MHz are only for indoor usage
to reduce potential for harmful interference to co-channel Mobile
Satellite systems.
• High power radars are allocated as primary users (meaning they
have priority) of 5250–5350 MHz and 5650–5850 MHz and these
radars could cause interference and/or damage to LELAN (Licence-
Exempt Local Area Network) devices.
RN_US.fm Page 7 Friday, August 21, 2009 4:35 PM

8
IV) Exposure of humans to RF fields (RSS-102):
Lenovo computers employ low gain integral antennas that do not emit
RF field in excess of Health Canada limits for the general population;
consult Safety Code 6, obtainable from Health Canada’s Web site at
www.hc-sc.gc.ca/rpb
The radiated energy from the antennas connected to the wireless
adapters conforms to the IC limit of the RF exposure requirement
regarding IC RSS-102, Issue 2 clause 4.2.
Numéro d’homologation IC
I) Modules de réseaux local sans fil pré-installé à l’usine:
• IC: 1000M-L512ANHU (Model: 512AN_HMW)
• IC: 4324A-BRCM1030 (Model: BCM94312HMG)
Les cartes de réseau local sans fil Express mini-PCI commercialisées
aux Etats-Unis et au Canada ne prennent pas en charge les canaux
étendus (12ch, 13ch) et ne fonctionnent donc pas sur de tels canaux.
Le boîtier de votre ordinateur ne comporte pas de numéro d’homologation
d’Industrie Canada pour la carte mini-PCI Express sans fil préinstallée. Vous
trouverez plutôt une étiquette indiquant “Contains Transmitter Module:
Canada IC: XXXX”, où XXXX représente le numéro IC qui correspond à
votre module WLAN préinstallé.
RN_US.fm Page 8 Friday, August 21, 2009 4:35 PM

9
II) Module Bluetooth intégré préinstallé:
• IC: 2878D-BCM92046 (Model: BCM92046)
Si la mention “Contains Transmitter Module: Canada IC:
2878D-BCM92046 figure sur l’étiquette située au bas de votre
ordinateur, cela signifie que ce dernier intègre le module de
transmission Bluetooth. Le module Bluetooth est préinstallé par
Lenovo et ne peut pas être retiré par les utilisateurs.
III) Remarque relative aux appareils de communication radio de
faible puissance sans licence (CNR-210):
Le fonctionnement de ce type d’appareil est soumis aux deux
conditions suivantes:
1. Cet appareil ne doit pas perturber les communications radio, et
2. cet appareil doit supporter toute perturbation, y compris les
perturbations qui pourraient provoquer son dysfonctionnement.
RN_US.fm Page 9 Friday, August 21, 2009 4:35 PM

10
Les périphériques d’émission sont conçus pour fonctionner avec des antennes
intégrées aux Lenovo et ayant un gain maximal de moins de 3 dBi.
Le gain d’antenne maximal pour les périphériques dans les bandes de
fréquence 5250-5350 MHz, 5470-5725 MHz, et 5725-5825 MHz est conforme à
la limite p.i.r.e énoncée dans la section A9.2 de la CNR-210.
Lorsque vous utilisez le modèle 512AN_HMW and BCM94312HMG
• Tout appareil destiné à la bande 5150-5250 MHz devra être
exclusivement utilisé en intérieur afin de réduire les risques de
perturbations électromagnétiques gênantes sur les systèmes de
satellite mobile dans un même canal.
• Les radars à forte puissance sont désignés comme les utilisateurs
principaux (c’est-à-dire qu’ils sont prioritaires) des bandes 5250-5350
MHz et 5650-5850 MHz. Ils peuvent provoquer des perturbations
électromagnétiques sur les appareils de type LELAN (réseau de
communication local sans licence) ou les endommager.
IV) Exposition des êtres humains aux champs radioélectriques (RF)
(CNR-102):
L’ordinateur Lenovo utilise des antennes intégrales à faible gain qui
n’émettent pas un champ électromagnétique supérieur aux normes
imposées par le Ministére de la santé canadien pour la population.
Consultez le Safety Code 6 sur le site Web du Ministére de la santé
canadien à l’adresse “www.hc-sc.gc.ca/rpb”.
L’énergie émise par les antennes reliées aux adaptateurs sans fil respecte
la limite d’exposition aux radiofréquences telle que définie par Industrie
Canada dans la clause 4.2 du document CNR-102.
RN_US.fm Page 10 Friday, August 21, 2009 4:35 PM

11
Electronic emission notices
Federal Communications Commission (FCC) Statement
• Model: BCM94312HMG
• Model: BCM92046
Note: The compliance of the FCC Part 15 Subpart B for Models:
512AN_HMW and 512ANX_HMW were proceeded by certification,
thus the FCC ID: PD9512ANHU, PD9512ANXHU, respectively
include both compliances of Part 15 Subpart B and C/E.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
RN_US.fm Page 11 Friday, August 21, 2009 4:35 PM

12
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult an authorized dealer or service representative for help.
Lenovo is not responsible for any radio or television interference
caused by unauthorized changes or modifications to this equipment.
Unauthorized changes or modifications could void the user’s
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Responsible Party:
Lenovo (United States) Incorporated
1009 Think Place - Building One
Morrisville, NC 27560
Telephone: [phone]
FOR HOME OR OFFICE USE
Industry Canada Class B Emission Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
Tested To Comply
With FCC Standards
RN_US.fm Page 12 Friday, August 21, 2009 4:35 PM

13
Lenovo Regulatory Notice
Europe — EU Declaration of Conformity
Products intended for sale within the European Union are marked with the
Conformité Européenne (CE) Marking, which indicates compliance with
the applicable Directives and European Norms, and amendments,
identified below.

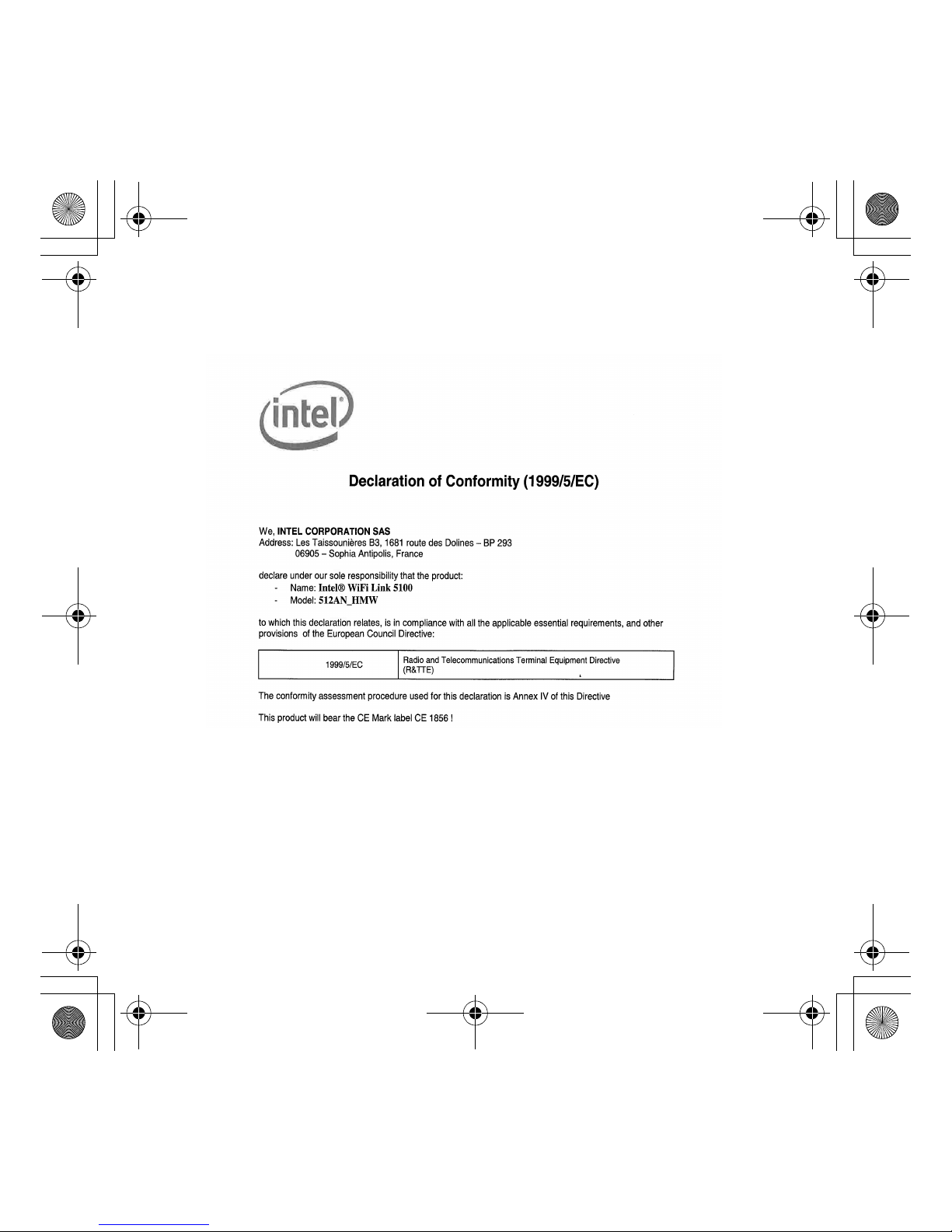

For model: 512AN_HMW
For model: BCM94312HMG
For model: BCM92046
EU countries
RN_EU.fm Page 13 Friday, August 21, 2009 4:36 PM

14
U450
U450
U450
U450
U450
U450
U450
U450
U450
U450
U450
U450
U450
RN_EU.fm Page 14 Friday, August 21, 2009 4:36 PM

15
U450
U450
U450
U450
U450
U450
U450
U450
U450
U450
U450
RN_EU.fm Page 15 Friday, August 21, 2009 4:36 PM

16
For model: 512AN_HMW
RN_EU.fm Page 16 Friday, August 21, 2009 4:36 PM
