Lenovo IdeaPad Z400 Touch User manual

V1.0_en-US
Lenovo Z/P Series
Read the safety notices and important tips in the
included manuals before using your computer.
©Lenovo China 2012
User Guide V1.0

The Regulatory Notice provides information about the radio frequency and safety
standards. Be sure to read it before using wireless devices on your computer.
To refer to it, go to http://www.lenovo.com, click Support, and then click User’s guides
and manuals.
Regulatory Notice
First Edition (September 2012)
© Copyright Lenovo 2012.
Before using the product, be sure to read Lenovo Safety and General Information Guide first.
The features described in this guide are common to most models. Some features may not
be available on your computer or your computer may include features that are not
described in this user guide.
Some instructions in this guide may assume that you are using Windows®8. If you are
using another Windows operating system, some operations may be slightly different. If
you are using other operating systems, some operations may not apply to you.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General
Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set
forth in Contract No. GS-35F-05925.
Notes
•
•
•
The illustrations in this manual may differ from the actual product. Please refer to the
actual product.
•
This manual applies to the following models: Lenovo Z400/Z500/Z400 Touch/
Z500 Touch/P400 Touch/P500/P500 Touch. The illustrations used in this manual are for
Lenovo Z500 unless otherwise stated.
•
•
•

i
Chapter 1. Getting to know your computer ..................................................................................... 1
Top view ......................................................................................................................................................... 1
Left-side view ................................................................................................................................................ 6
Right-side view.............................................................................................................................................. 9
Front view .................................................................................................................................................... 10
Bottom view ................................................................................................................................................. 11
Chapter 2. Starting to use Windows 8............................................................................................12
Configuring the operating system for the first time .............................................................................. 12
Operating system interfaces ...................................................................................................................... 12
The Charms .................................................................................................................................................. 13
Putting the computer to sleep or shutting it down ................................................................................ 15
Touch screen operation(on select models) .............................................................................................. 17
Connecting to wireless LAN ..................................................................................................................... 21
Help and support ........................................................................................................................................ 22
Chapter 3. Lenovo OneKey Recovery system............................................................................... 23
Chapter 4. Troubleshooting ............................................................................................................ 24
Frequently asked questions ....................................................................................................................... 24
Troubleshooting .......................................................................................................................................... 26
Trademarks....................................................................................................................................... 29
Contents

1
Chapter 1. Getting to know your computer
Top view --------------------------------------------------------------------------------------------------------------------------
Z400
1
2
3
4
5
6

2
Chapter 1. Getting to know your computer
Z500/P500
Note: The dashed areas indicate parts that are not visible externally.
Attention:
•When closing the display panel, be careful not to leave pens or any other objects in between the display
panel and the keyboard. Otherwise, the display panel may be damaged.
1
2
3
4
5
6


Chapter 1. Getting to know your computer
3

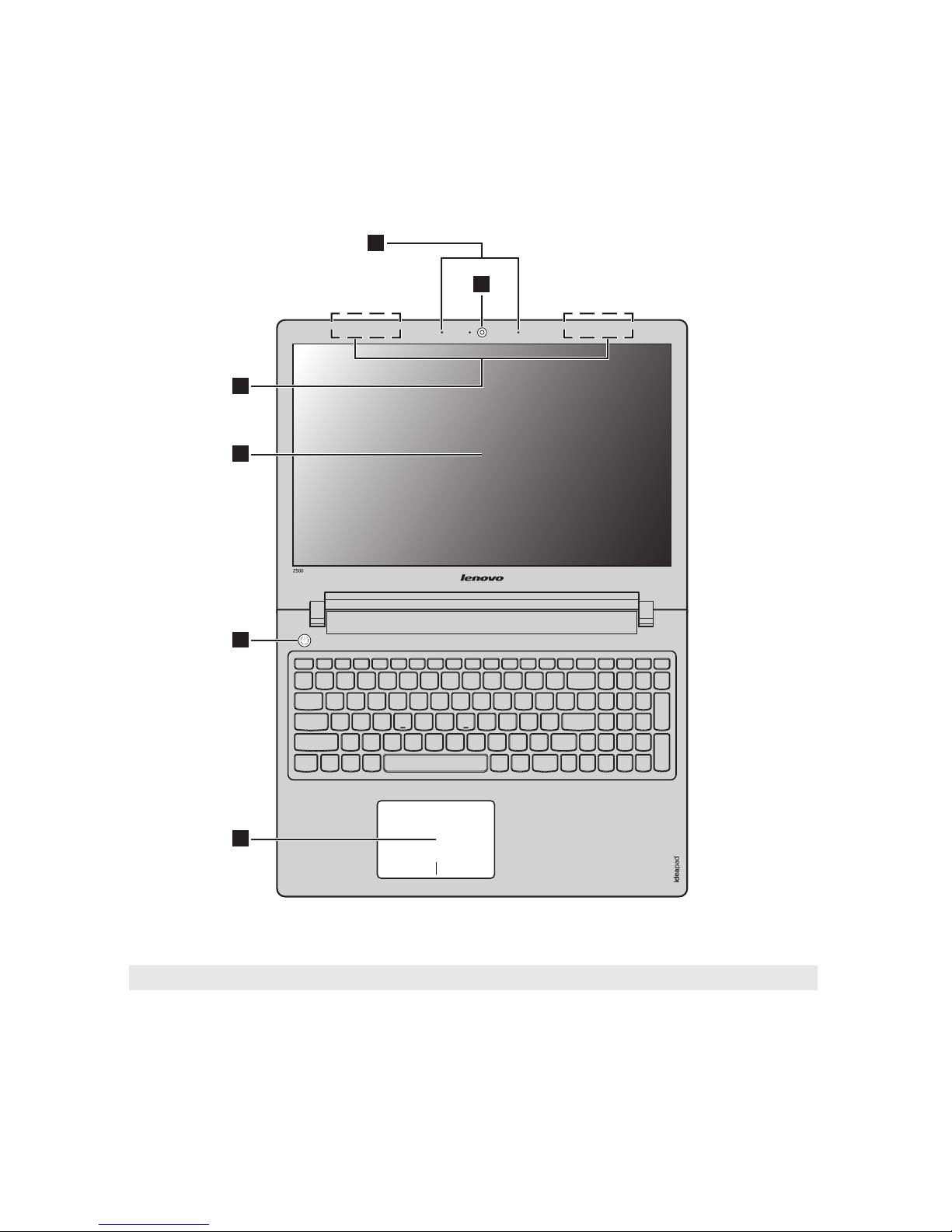

Integrated camera Use the camera for video communication or taking photos.
Built-in microphone Captures sound which can be used for video conferencing, voice narration,
or audio recording.
Wireless LAN
antennas
Connect to the wireless LAN adapter to send and receive wireless radio.
Computer display The computer display with LED backlight provides brilliant visual output.
Note: Select models may have a multi-touch screen. Please refer to the actual product. For details, see
“Touch screen operation(on select models)” on page 17 .
Power button Press this button to turn on the computer.
Touchpad The touchpad functions as a conventional mouse.
Touchpad: To move the pointer on the screen, slide your fingertip over the
pad in the direction in which you want the pointer to move.
Touchpad buttons: The functions of the left/right side correspond to that
of the left/right mouse button on a conventional mouse.
Note: You can enable/disable the touchpad by pressing F6.
a
b
c
d
e
f

4
Chapter 1. Getting to know your computer

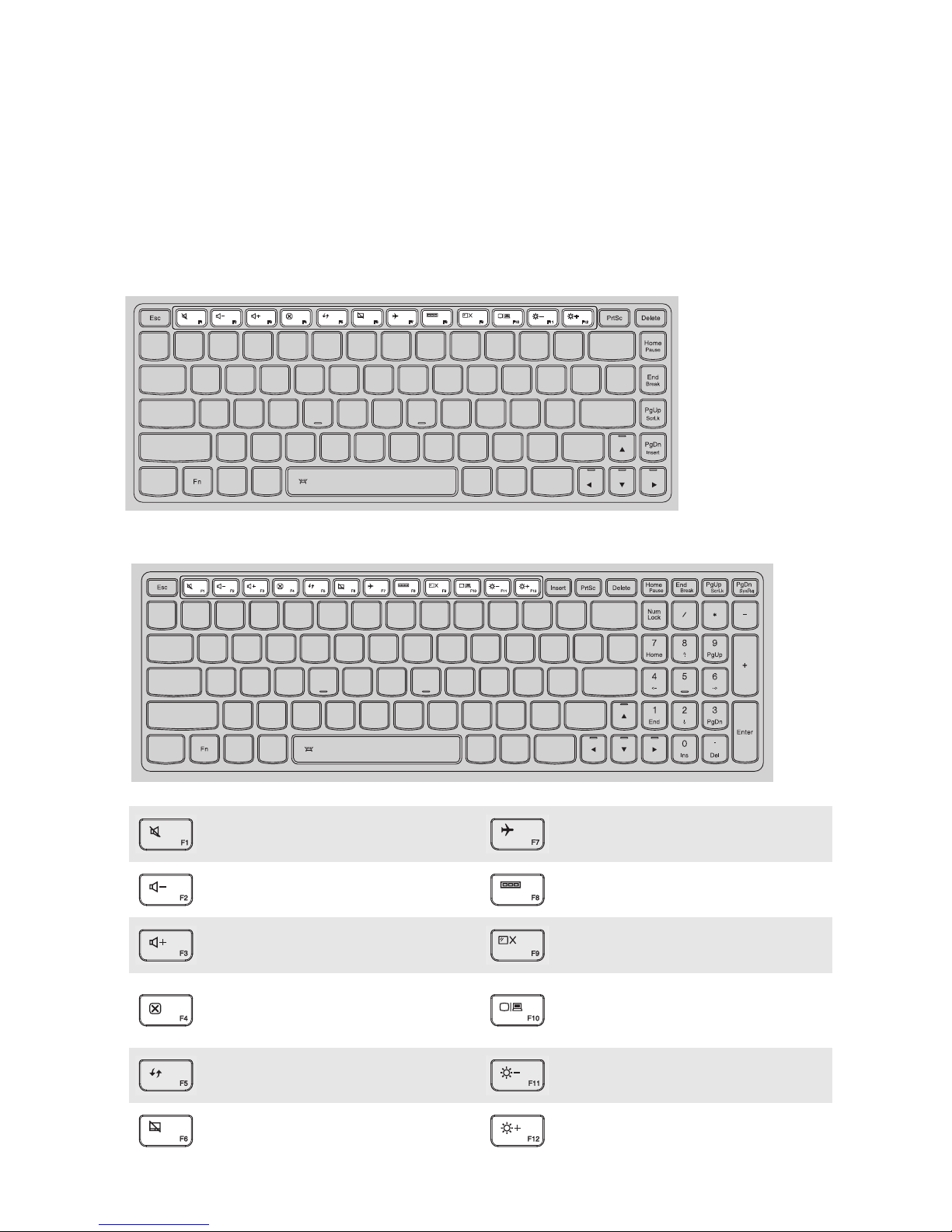

Hotkeys
The hotkeys are located on the function key row on the keyboard. You can access certain system
settings quickly by pressing the appropriate hotkey.
Z400
Z500/P500
:Mutes/unmutes the sound. :Enables/disables Airplane
mode.
:Decreases the volume level. :Displays all currently active
apps.
:Increases the volume level. :Turns on/off the backlight of
the LCD screen.
:Closes the currently active
window. :
Toggles the display between the
computer and an external
device.
:Refreshes the desktop or the
currently active window. :Decreases display brightness.
:Enables/disables the touchpad. :Increases display brightness.

Chapter 1. Getting to know your computer
5
Function key combinations
Through the use of the function keys, you can change operational features instantly. To use this
function, press and hold Fn ; then press one of the function keys .
Z400
Z500/P500
The following describes the features of each function key.
Fn + PgUp: Enables/disables the scroll lock.
Fn + PgDn: Activates the system request.
Fn + Home: Activates the pause function.
Fn + End: Activates the break function.
Fn + Space (on select models): Enables/disables the keyboard backlight.
a b

6
Chapter 1. Getting to know your computer
Left-side view ------------------------------------------------------------------------------------------------------------
AC power adapter
jack
Connect the AC power adapter here.
Novo button When the computer is off, press this button to start the Lenovo Recovery
system or the BIOS setup utility, or to enter the boot menu.
Note: For details, see “Lenovo OneKey Recovery system” on page 23.
Fan louvers Dissipate internal heat.
Note: Make sure that none of the fan louvers are blocked or else overheating of the computer may occur.
VGA port Connects to external display devices.
RJ-45 port This port connects the computer to an Ethernet network.
HDMI port Connects to devices with HDMI inputs, such as a TV or an external display.
USB port Connects to USB devices.
Note: For details, see “Connecting USB devices” on page 8.
Memory card slot Insert memory cards (not supplied) here.
Note: For details, see “Using memory cards (not supplied)” on page 8.
87654321
a
b
c
d
e
f
g
h

Chapter 1. Getting to know your computer
7

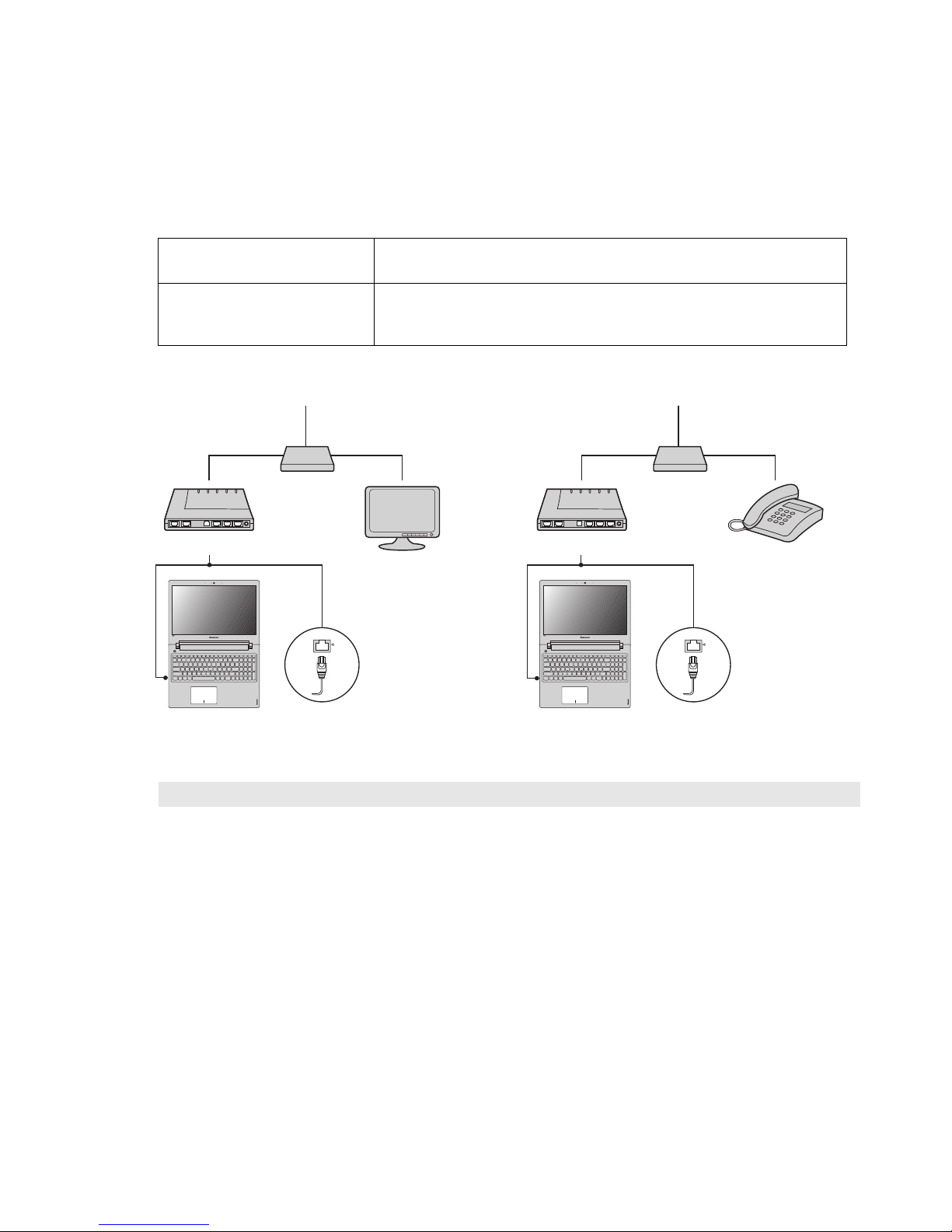

Connecting to wired LAN
Wired connections are a reliable and safe way to connect the computer to the Internet.
Hardware connection:
Cable DSL
Software configuration
Consult your Internet Service Provider (ISP) for details on how to configure your computer.
Cable •Cable Internet services use a cable modem connected to the
residential cable TV line.
DSL •DSL is a family of related technologies that bring high-speed
network access to homes and small businesses over ordinary
telephone lines.
Note: The above diagrams are for reference only. Actual connection method may vary.
*
*
**
TV cable
Splitter *
Cable modem *
* Not supplied.
Telephone line
Splitter *
DSL modem *

8
Chapter 1. Getting to know your computer
Connecting USB devices
Your computer comes with two USB ports compatible with USB devices.
The first time you plug a USB device into a particular USB port on your computer, Windows
automatically installs a driver for that device. After the driver has been installed, you can
disconnect and reconnect the device without performing any additional steps.
Before disconnecting a USB storage device, make sure your computer has finished transferring
data by that device. Click the Safely Remove Hardware icon in the notification area of Windows
to remove the device before disconnecting.
Using memory cards (not supplied)
Your computer supports the following types of memory card:
• Secure Digital (SD) card
• MultiMediaCard (MMC)
Inserting a memory card
1 Push the dummy card in until you hear a click.
2 Gently pull the dummy card out of the memory card slot.
3 Slide the memory card in until it clicks into place.
Removing a memory card
1 Push the memory card in until you hear a click.
2 Gently pull the memory card out of the memory card slot.
Note: Typically, Windows detects a new device after connecting it, and then installs the driver
automatically. However, some devices may require you to install the driver before connecting.
Check the documentation provided by the device’s manufacturer before connecting the device.
Note: If your USB device uses a power cord, connect the device to a power source before connecting it.
Otherwise, the device may not be recognized.
Notes:
•Insert only one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
Note: The dummy card is used for preventing dust and small particles from entering the inside of your
computer when the memory card slot is not in use. Retain the dummy card for future use.
Note: Before removing the memory card, disable it by using the Windows safely remove hardware and
eject media utility to avoid data corruption.

Chapter 1. Getting to know your computer
9
Right-side view ---------------------------------------------------------------------------------------------------------
Attaching a security lock (not supplied)
You can attach a security lock to your computer to help prevent it from being removed without
your permission. For details on installing the security lock, please refer to the instructions
shipped with the security lock that you have purchased.
Combo audio jack Connects to headsets.
Notes:
•The combo audio jack does not support conventional microphones.
•The recording function may not be supported if third-party headphones or headsets are connected,
due to different industry standards.
USB port Connects to USB devices.
Note: For details, see “Connecting USB devices” on page 8.
Optical drive Reads/burns optical discs.
Kensington slot Attach a security lock (not supplied) here.
Notes:
•Before purchasing any security product, verify that it is compatible with this type of security keyhole.
•You are responsible for evaluating, selecting, and implementing the locking devices and security
features. Lenovo offers no comment judgment or warranty regarding the function, quality or
performance of locking devices and security features.
1 42 3
a
b
c
d

10
Chapter 1. Getting to know your computer
Front view ---------------------------------------------------------------------------------------------------------------------
System status indicators
Symbol Indicator Indicator
status
Charge
Status Meaning
Power
On (solid
white) --- The computer is powered on.
Blinking ---
The computer is in sleep mode and
is connected to the AC power
adapter.
Off --- The computer is powered off.
Battery
On (solid
white)
Charging The battery has more than 80%
charge.
Discharging The battery has more than 20%
charge.
On (solid
amber) Discharging The battery has between 5% and 20% charge.
Blinking
slowly
(white)
Charging
The battery has between 20% and
80% charge. When the battery
reaches 80% charge, the light will
stop blinking. However, charging
will continue until the battery is
fully charged.
Blinking
slowly
(amber)
Charging
The battery has less than 20%
charge. When battery charge
reaches 20%, the blinking color will
change to white.
Blinking
quickly
(amber)
Charging/
Discharging The battery has less than 5% charge.
1
a

Chapter 1. Getting to know your computer
11
Bottom view -----------------------------------------------------------------------------------------------------------------
Z400
Z500/P500
Speakers Provide audio output.
Note: The dashed areas indicate parts that are not visible externally.
1
1
a

12
Chapter 2. Starting to use Windows 8
Configuring the operating system for the first time ---------------
You may need to configure the operating system when it is first used. The configuration process
may include the procedures below:
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account
Operating system interfaces ------------------------------------------------------------------------
Windows 8 comes with two main user interfaces: the Start screen and the Windows desktop.
To switch from the Start screen to the Windows desktop, do one of the following:
• Select the Windows desktop tile on the Start screen.
• Press the Windows key + D.
To switch from desktop to Start screen, do one of the following:
• Select Start from the Charms.
• Move the pointer to the lower-left corner and then select the Start screen thumbnail when it is
displayed.

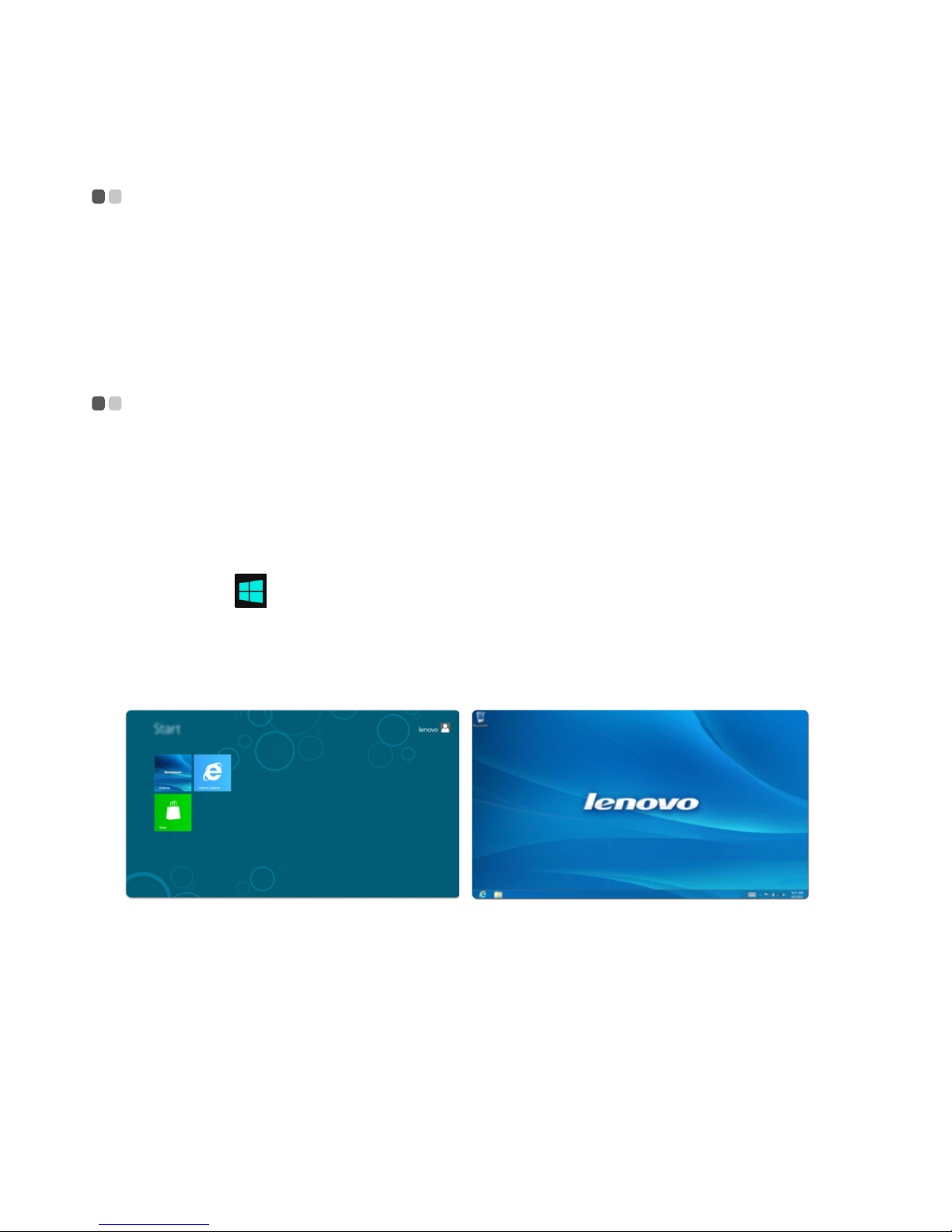

Start screen Desktop

Chapter 2. Starting to use Windows 8
13
The Charms ------------------------------------------------------------------------------------------------------------------
The five Charms provide new and faster ways to perform many basic tasks and are always
available regardless of which app you are currently in.
To display the Charms, do one of the following:
• Move the pointer to the upper-right or lower-right corner until the Charms bar is displayed.
• Press Windows key + C.
• Use one finger to swipe in from the right edge of the screen until the Charms bar is displayed.
(on select models)
Search charm

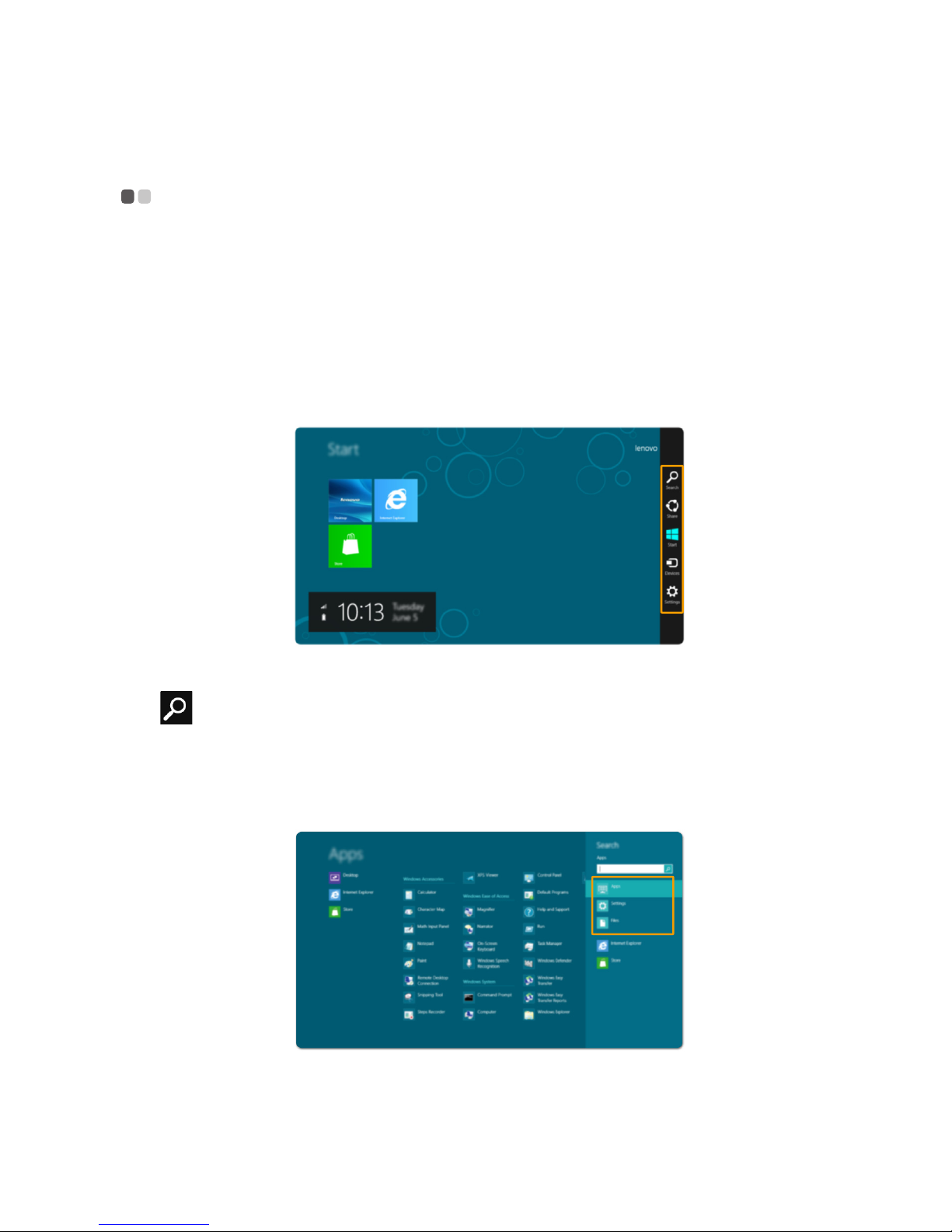

The Search charm is a powerful new way to find whatever you are looking for, including apps,
settings and files.

14
Chapter 2. Starting to use Windows 8
Share charm
The Share charm lets you send links, photos, and more to your friends and social networks
without leaving the app you are in.
Start charm
The Start charm is a fast way to go to the Start screen.
Devices charm
The Devices charm allows you to connect or send files to any external devices, such as digital
cameras, TVs, or printers.

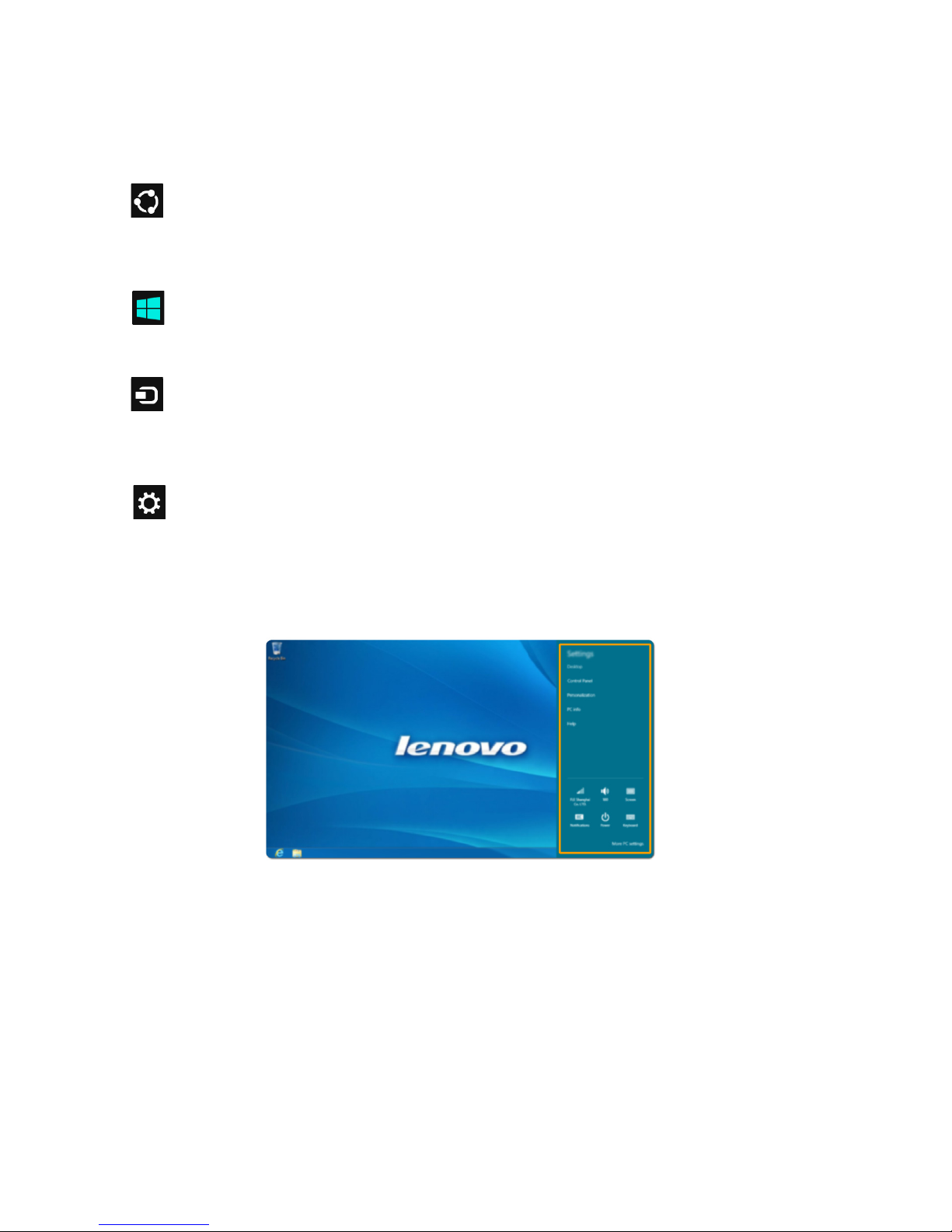

Settings charm
The Settings charm lets you perform basic tasks, such as setting the volume or shutting down
the computer. Also, you can get to the Control Panel through the Settings charm when using the
desktop screen.

Chapter 2. Starting to use Windows 8
15
Putting the computer to sleep or shutting it down -------------------
When you have finished working with your computer, you can put it to sleep or shut it down.
Putting your computer to sleep
If you will be away from your computer for a short time, put the computer to sleep.
When the computer is in sleep mode, you can quickly wake it to resume use, bypassing the
startup process.
To put the computer to sleep, do one of the following:
• Close the display panel.
• Press the power button.
• Open the Charms and then select Settings →Power →Sleep.
To wake the computer, do one of the following:
• Press the power button.
• Press any key on the keyboard.
Note: Wait until the power indicator light starts blinking (indicating that the computer is in sleep mode)
before you move your computer. Moving your computer while the hard disk is spinning can
damage the hard disk, causing loss of data.

16
Chapter 2. Starting to use Windows 8
Shutting down the computer
If you are not going to use your computer for a long time, shut it down.
To shut down your computer:
1 Open the Charms, and then select Settings .
2 Select Power →Shutdown.
1
2
