Lenovo Type 8332 User manual

-
Secure Managed Client
Storage Array User Guide
Machine Type 8332

Secure Managed Client - Storage Array
User Guide

Note
Before using this information and the product it supports, be sure to read the Safety and Warranty Guide that came with this
product.
First Edition (October 2008)
© Copyright Lenovo 2005, 2008. All rights reserved.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and
are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted
rights to use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered
pursuant a General Services Administration ″GSA″ contract, use, reproduction, or disclosure is subject to restrictions
set forth in Contract No. GS-35F-05925.

Contents
Introduction . . . . . . . . . . . . .v
Product contents, order options, and accessories . .v
Chapter 1. Important safety information 1
Chapter 2. Features . . . . . . . . . .3
Enclosure subsystem . . . . . . . . . . . .4
Enclosure chassis . . . . . . . . . . . . .5
Server board subdivision . . . . . . . . . .6
Server board I/O panel . . . . . . . . . .6
Front operator's panel . . . . . . . . . . .7
Rear panel . . . . . . . . . . . . . . .8
Power supply unit . . . . . . . . . . . .8
Power supply output connectors . . . . . . .9
Cooling fans . . . . . . . . . . . . . .9
Drive carrier module . . . . . . . . . . .10
Drive status indicator . . . . . . . . . .11
Anti-tamper locks . . . . . . . . . . .11
Chapter 3. Getting Started . . . . . .13
Planning your installation . . . . . . . . .13
Drive bay numbering convention . . . . . . .13
Enclosure installation prerequisites . . . . . .14
Preparation of site and host server . . . . . .14
Unpacking the enclosure system . . . . . .14
Planning and configuring your installation . . .15
Rack installation prerequisites . . . . . . .15
Installing the enclosure in a rack . . . . . . .16
Rail kit assembly . . . . . . . . . . .16
Enclosure installation . . . . . . . . . .16
Power cord connection . . . . . . . . . .17
Grounding checks . . . . . . . . . . .17
Chapter 4. Operation . . . . . . . . .19
Power on . . . . . . . . . . . . . . .19
Power supply unit LED . . . . . . . . .19
Front operator's panel LEDs and switches . . . .20
Starting the drives . . . . . . . . . . . .21
Disk drive LEDs . . . . . . . . . . . .21
Engaging the drive module anti-tamper locks . .21
BIOS settings . . . . . . . . . . . . . .22
Turning off . . . . . . . . . . . . . .22
Chapter 5. Troubleshooting and
problem solving . . . . . . . . . . .23
Initial start-up problems . . . . . . . . . .23
Faulty cords . . . . . . . . . . . . .23
Alarm sounds and power up . . . . . . .23
Computer doesn't recognize the subsystem . . .23
LEDs . . . . . . . . . . . . . . . .23
Power supply units . . . . . . . . . . .23
Front operator's panel . . . . . . . . . .24
Cooling fan LEDs . . . . . . . . . . .25
Drive carrier module LEDs . . . . . . . .25
Rear panel LED . . . . . . . . . . . .25
Server board LEDs . . . . . . . . . . .25
Audible alarms . . . . . . . . . . . . .26
Alarm interpretation . . . . . . . . . . .26
Troubleshooting . . . . . . . . . . . . .28
System faults . . . . . . . . . . . . .28
Power supply unit faults . . . . . . . . .28
Cooling fan faults . . . . . . . . . . .29
Thermal cooling . . . . . . . . . . . .29
Drive carrier module faults . . . . . . . . .30
Dealing with hardware faults . . . . . . . .30
Continuous operation during replacement . . . .31
Chapter 6. Notices . . . . . . . . . .33
Trademarks . . . . . . . . . . . . . .34
© Copyright Lenovo 2005, 2008 iii

iv User Guide

Introduction
The Secure Managed Client (SMC) - Storage Array is a 2U (rack space) disk drive
enclosure, currently housing 12 low-profile 2.54-cm (1-inch) high, 1.5/3.0 Gb/s,
8.89-cm (3.5-inch) form factor SATA disk drives. Each individual disk drive is field
replaceable.
This guide is written for system technicians who are responsible for setting up,
installing, and troubleshooting this storage system. This document provides a brief
overview of the features of this product, a list of accessories or other components
you may need, instructions on setting up the system, and troubleshooting
information.
Product contents, order options, and accessories
The SMC - Storage Array ships with the following items:
v Secure Managed Client (SMC) - Storage Array Setup Poster, in the product box
v AC power cord(s) (North America only)
v 50 Phillips head screws
v Resource CD
v Rail kit
v T10 TORX screwdriver
v 12 hard drive labels
For information about which accessories and third-party hardware have been
tested and can be used with your storage system, and for ordering information for
Lenovo products, visit http://www.lenovo.com.
© Copyright Lenovo 2005, 2008 v

vi User Guide

Chapter 1. Important safety information
CAUTION:
Before using this manual, it is important that you read and understand all the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading
and understanding this safety information reduces the risk of personal injury
and or damage to your product.
© Copyright Lenovo 2005, 2008 1

2 User Guide

Chapter 2. Features
Figure 1 shows a front view of the Secure Managed Client (SMC) - Storage Array
while Figure 2 shows a rear view with the lid removed, showing those areas
accessible to service personnel only.
1 SAS expander card
2 Power supply unit
3 Cooling fans (10)
4 Boot drive
5 Server board
6 PCI slots
Figure 1. SMC - Storage Array front view
Figure 2. SMC - Storage Array rear view, showing service areas
© Copyright Lenovo 2005, 2008 3

Enclosure subsystem
The SMC - Storage Array design concept is based on an enclosure subsystem
together with a set of plug-in modules and (as supplied) consists of:
v An enclosure chassis with:
– A backplane PCB
– An enclosure management PCB
– A SAS expander PCB, to branch from 4 to 12 SAS ports, supporting SATA
tunnelling protocol
– A front operator's panel
– An integral rear panel, incorporating an enclosure ID LED
– A power supply mounting cage containing one 850-W plug-in power supply
unit (PSU)
Note: A blanking plate must be installed over the empty upper bay.
v
A server subsystem comprising:
– An Intel Server Board S5000PSL with integral I/O panel
– An Intel RAID Controller SRCSATAWB
– A boot drive module
v
A cooling module containing 10 high-speed, single-rotor axial fans, which are
individually pluggable
v 12 SATA hard drives
1Empty power supply bay 11USB port 1
2PS2 mouse port 12USB port 3
3System status LED 13USB port 2
4MSB (POST LED) 14Video port
5Bit 1 (POST LED) 15LSB (POST LED)
6Serial port 16Bit 2 (POST LED)
7NIC port 1 (1 Gb) 17PS2 keyboard
8NIC port 2 (1 Gb) 18ID LED
92 dual-port Ethernet cards 19Power supply unit 1
10USB port 0
Figure 3. Enclosure subsystem rear view
4 User Guide

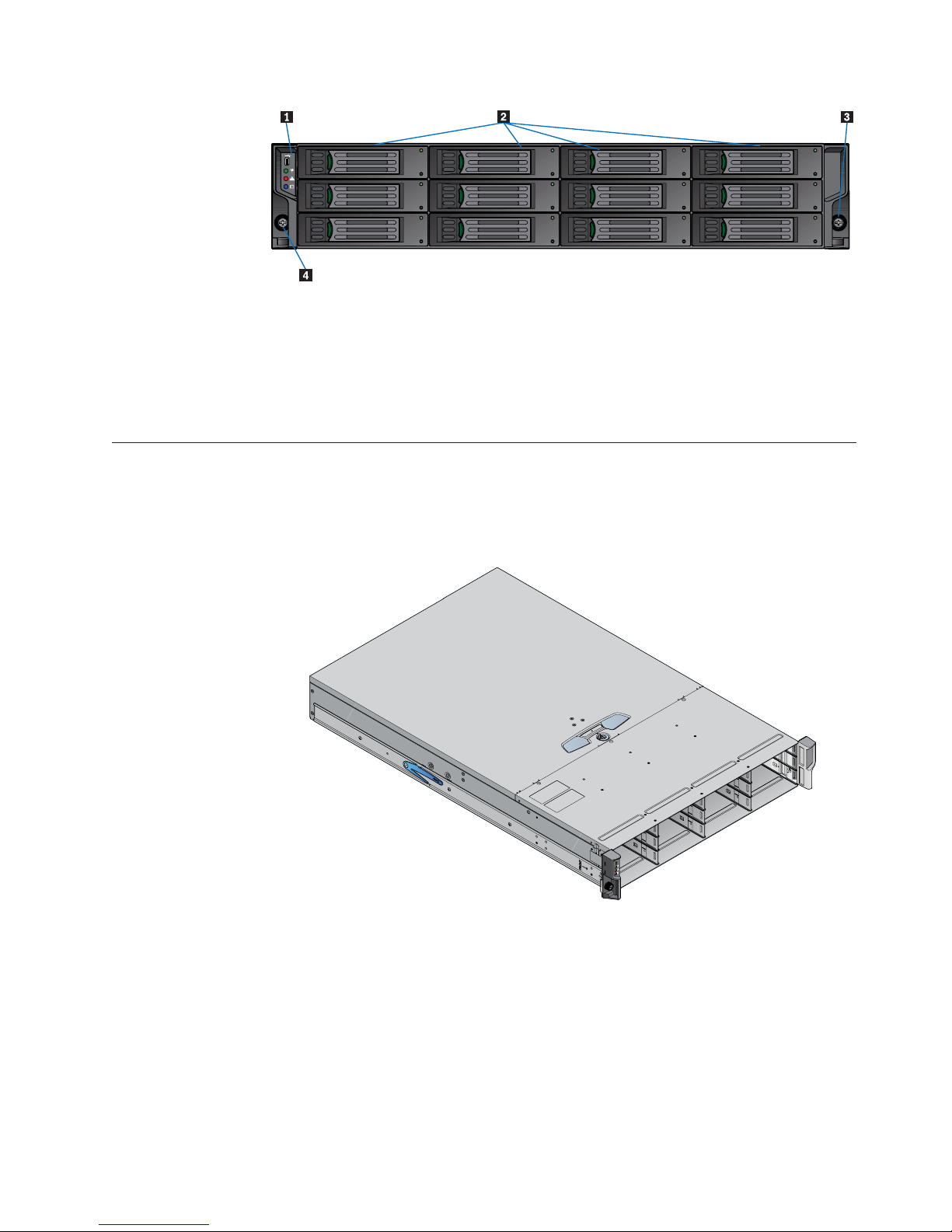

1Front panel
2Drive bays
3Rack retaining screw
4Rack retaining screw
Enclosure chassis
The chassis is installed with 48.26-cm (19-inch) rack-mounting features, which
enable it to be installed to standard 48.26-cm (19-inch) racks. One chassis occupies
two units of rack space (3.5 inches or 8.89 cm high).
The backplane PCB provides 12 direct dock SAS/SATA connectors to the drives
and acts as the connectivity hub of the enclosure, connecting to the enclosure
management PCB.
The ten cooling fans are connected to the system by the enclosure management
PCB.
There are 12 drive bays at the front of the enclosure. Each drive bay accommodates
a plug-in drive carrier module that can house one low-profile 2.54-cm (1-inch) high
Figure 4. Enclosure subsystem front view
Figure 5. Enclosure chassis
Chapter 2. Features 5

8.89-cm (3.5-inch) form factor drive. In addition, two 6.35-cm (2.5-inch) boot drives
can be installed in the boot drive module.
Note: A bay is defined as the space required to house a single 2.54-cm (1.0-inch)
high 8.89-cm (3.5-inch) disk drive in its carrier module (limitation of 1 TB
size).
At the rear, the chassis assembly accommodates one PSU and a server board
subsystem.
A top cover on the enclosure provides access to the cooling fans and the server
board subsystem.
Note: The enclosure cover should only be removed by qualified service personnel
as it provides access to a service area. Upon replacement, the cover MUST
be secured by tightening the lock mechanism to the locked position with a
screwdriver.
Server board subdivision
The server board subdivision consists of:
v An Intel Server Board S5000PSL
v Slots for up to six low-profile 1.905-cm (3/4-inch) PCI cards, installed in a
vertical orientation. The following PCBs are installed as standard configuration:
– An Intel RAID Controller SRCSATAWB, in the left-hand slot (when viewed
from the rear)
v A boot drive module, which contains two 6.35-cm (2.5-inch) SATA boot drives
Server board I/O panel
The server board I/O panel consists of various connectors and LEDs.
Figure 6. Locking the enclosure cover
Figure 7. Server board I/O panel connectors
6 User Guide

1PS2 mouse port 9Bit 2 (POST LED)
2System status LED 10LSB (POST LED)
3MSB (POST LED) 11Video port
4Bit 1 (POST LED) 12USB port 2
5Serial port 13USB port 3
6NIC port 1 (1 Gb) 14USB port 1
7NIC port 2 (1 Gb) 15USB port 0
8PS2 keyboard
Connectors
The following connectors are located on the server board I/O panel:
v PS2 mouse port
v PS2 keyboard port
v Serial port
v Video port
v Two RJ-45 ports - NICs 1 and 2 (1Gb each)
v Four USB ports: 0, 1, 2, and 3
Server board LEDs
Status LEDs: Diagnostic LEDs are located on the server board I/O panel to assist
in identifying failed and failing components. See “Server board LEDs” on page 25
for a summary of status LED states.
NIC LEDs: The NIC LEDs at the right and left of each NIC port provide
information on NIC status. See “I/O panel NIC LEDs” on page 25 for a summary
of NIC LED states.
Front operator's panel
A front operator’s panel, consisting of a USB port, three LEDs and three
push-button switches, are located on the front of the enclosure.
Note: The front operator’s panel is an integral part of the enclosure assembly and
is not field replaceable.
1USB port 5Power active LED
2Unit fault LED 6ID LED
Figure 8. Front operator’s panel components
Chapter 2. Features 7

3On/off switch 7Reset button (recessed)
4ID LED activation switch
Table 1. Functions of front operator's panel LEDs and switches
LED Push-button switch USB Port
Power Active (Green) Power On/Off Intended for service use only.
Unit Fault (Amber) Reset Button Intended for service use only.
Enclosure ID (Blue) Enclosure ID LED Activation Intended for service use only.
For a full description of LED and switch functions, see “Front operator's panel
LEDs and switches” on page 20.
Rear panel
A rear panel, consisting of a blue enclosure ID LED (see Figure 2 on page 3), is
located on the rear of the enclosure.
Note: The rear panel is an integral part of the enclosure assembly and is not field
replaceable.
Table 2. Rear Panel ID LED Status
Enclosure ID LED Blue (when activated) Activated by push button on
the Front Operator's Panel,
or by system software.
Used to identify a server
from among several servers.

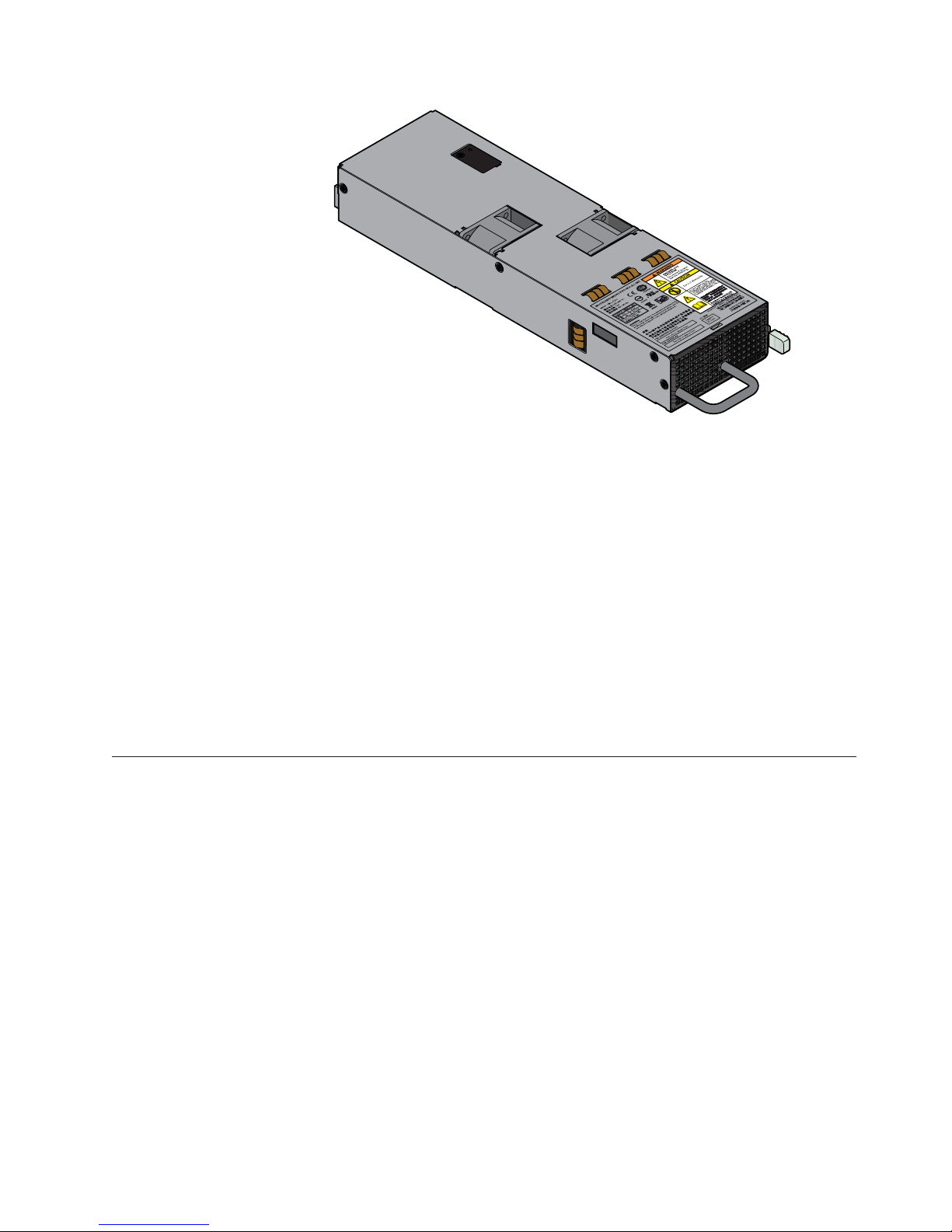

Power supply unit
AC-DC power is provided by a power supply with specific load capability,
mechanical packaging, and output connectors to suit this product.
A power supply mounting cage is installed in the rear of the enclosure as part of
the subsystem core product. The cage houses one individually hot pluggable
850-W AC power supply unit (PSU) with its own IEC inlet connector and failure
indicator.
8 User Guide

Power supply unit voltage operating ranges are nominally 100V - 240V AC,
selected automatically.
The PSU has an audible alarm to indicate a fault state and a bi-color (green/red)
LED to indicate PSU status.
Power supply output connectors
The power supply output connectors provide the following outputs:
v P1 server board main power connector (1 x 24 pin)
v P2 processor power connector (8 pin)
v P3 12-V power connector
v P4 peripheral power connector (2 x 4 pin)
v P5 PSU1 connector (5 pin)
Cooling fans
Ten high-speed single-rotor axial fans are housed in a cooling cage, located
centrally within the enclosure, between the drive bays and the server board, as
shown in Figure 2 on page 3. This ensures maximum airflow through the PSU and
minimizes noise.
Figure 9. Power supply unit
Chapter 2. Features 9

Airflow is front to rear with cooling air being drawn across the drives, through the
fans and pressurizing the rear of the enclosure. The pressurized rear allows the
PSU to draw the air that it requires; perforations at the rear of the chassis allow
cooling air to flow over the processor heatsinks, server board and PCI cards.
The cooling system must be operated with low-pressure rear exhaust installation
(back pressure created by rack doors and obstacles not to exceed 5 pascals [0.5mm
Water gauge]).
The cooling system provides sufficient capacity to ensure that drive maximum
temperatures have not exceeded at 35°C (95°F) with one failing fan at sea level.
The cooling cage contains ten individual high-speed single-rotor axial fans,
individually connected to and interfacing with the enclosure management PCB.
This interface provides power and speed control to the fans and returns speed
output from each fan to the management system.
Drive carrier module
The drive carrier module consists of a hard disk mounted in a drive carrier. Each
drive bay can house a single low-profile 2.54-cm (1.0-inch) high, 8.89-cm (3.5-inch)
form factor SATA disk drive in its drive carrier. The drive carrier has mounting
locations for SATA drives.
Each disk drive is enclosed in a sheet steel carrier which provides excellent thermal
conduction, radio frequency and electro-magnetic induction protection, as well as
affords the drive with maximum physical protection.
The front cap of the drive carrier supports an ergonomic handle, which provides
the following functions:
v Camming of drive carrier into and out of drive bays.
v Positive "spring loading" of the drive/backpane connector.
Figure 10. Cooling fan
10 User Guide

Drive status indicator
Disk drive status, under ESI processor control, is monitored by two LEDs (a green
LED and an amber LED) mounted on the front cap of each drive carrier module.
See “Disk drive LEDs” on page 21 for a description of LED states.
1Green LED
2Amber LED
3Torque screw
4Drive lock indicator opening
Anti-tamper locks
Anti-tamper locks are installed in each drive carrier handle and are accessed with a
TORX screwdriver through the small cutout in the latch section of the handle.
When activated, the locks disable the normal "pinch" latch action of the drive
carrier handle. A drive is locked when the red lock symbol appears in the indicator
opening.
Figure 11. Driver carrier module
Figure 12. Drive status LEDs and components
Chapter 2. Features 11

12 User Guide
