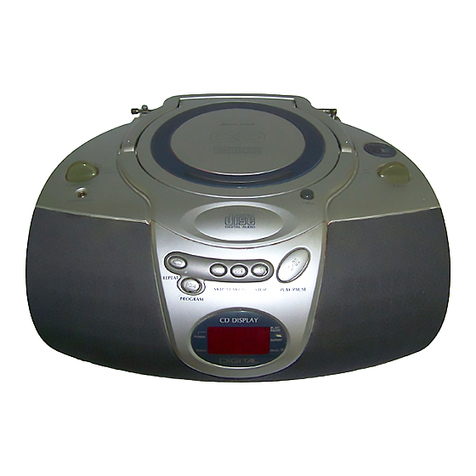

Lenoxx Sound CD-110 User manual

®
PORTABLE CD PLAYER
WITH AM/FM RADIO RECEIVER
PLAYS MUSIC COMPACT DISCS
FULLY PROGRAMMABLE CD PLAYER WITH REPEAT PLAY
RECEIVES AM/FM BROADCASTS
POWER LED INDICATOR
2 WAY POWER - AC/DC
REQUIRES 6 SIZE D BATTERIES not included)
MODEL CD-110
OPERATING INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE USE
IB-CD110(SY)-WM-E-V1

SAFETY INSTRUCTIONS
The lightning lash
and arrow head
within the triangle is
a warning sign
alerting you o
dangerous voltage
inside the product.
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER
SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point
within the triangle is a
warning sign alerting
you o important
instructions
accompanying the
product.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
THESE IMPORTANT SAFETY INSTRUCTIONS ARE INCLUDED, AS APPLICABLE TO THE
APPLIANCE, CONVEYING TO THE USER THE INFORMATION ITEMIZED BELOW:
1. Read Instructions - All the sa ety and operating instructions should be read be ore
the appliance is operated.
2. Retain Instructions - The sa ety and operating instructions should be retained or
uture re erence.
3. Heed Warnings - All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow Instructions - All operating and use instructions should be ollowed.
5. Water and Moisture - The appliance should not be used near water - or example near a
bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool,
and the like.
6. Wall or Ceiling Mounting - The appliance should not be mounted to a wall or ceiling.
7. Ventilation - The appliance should be situated so that its location or position does not
inter ere with its proper ventilation. For example, the appliance should not be situated on a
bed, so a, rug, or similar sur ace that may block the ventilation openings; or,
placed in a built-in installation, such as a bookcase or cabinet that impede the low o air
through the ventilation openings.
8. Heat - The appliance should be situated away rom heat sources such as radiators,
heat registers, stoves, or other appliances (including ampli iers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only o the
type described in the operating instructions or as marked on the appliance.
10. Grounding or Polarization - Precautions should be taken so that the grounding or
polarization means o an appliance is not de eated.
11. Power Cord Protection - Power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular
attention to cords at plugs, convenient receptacles, and the point where they exit
rom the appliance.
12. Cleaning - The appliance should be cleaned only as recommended by the manu acturer.
13. Nonuse periods - The power cord o the appliance should be unplugged rom the
outlet when le t unused or a long period o time.
1
SEE BOTTOM OF THE SET
IB-CD110(SY)-WM-E-V1

EXAMPLE OF ANTENNA GROUNDING AS PER
NEC - NATIONAL ELECTRICAL CODE
Do not apply oil or petroleum products or solvents to any part o this set.
CAUTION
Use o controls or adjustments or per ormance o procedures other than those
speci ied herein may result in hazardous radiation exposure.
This compact disc player is classi ied as CLASS 1 LASER PRODUCT as stated
on the bottom o the set.
14. Object and Liquid Entry - Care should be taken so that objects do not all and liquids
are not spilled into the enclosure through openings.
15. Damage Requiring Service - The appliance should be serviced by quali ied service
personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have allen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked change in
per ormance; or
E. The appliance has been dropped, or the enclosure damaged.
16. Servicing - The user should not attempt to service the appliance beyond that described in the
operating instructions. All other servicing should be re erred to quali ied service personnel.
17. Power lines - An outdoor antenna should be located away rom power lines.
18. Outdoor Antenna Grounding - I an outside antenna is connected to the receiver, be sure the
antenna system is grounded so as to provide some protection against voltage surges and
built up static charges. Section 810 o the National Electrical Code, ANSI/NFPA 70 provides
in ormation with respect to proper grounding o the mast and supporting structure, grounding
o the lead-in wire to an antenna discharge unit, size o grounding conductors, location o
antenna-discharge unit, connection to grounding electrodes, and requirements or the
grounding electrode. See Figure.
ANTENNA
LEAD IN WIRE
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
ELECTRIC
SERVICE
EQUIPMENT
GROUND
CLAMP
GROUND CLAMPS
SAFETY INSTRUCTIONS
2IB-CD110(SY)-WM-E-V1

1. Use only the type and size o batteries mentioned in the operating instructions
booklet (batteries are not included with this set, please buy the proper batteries).
2. Do not dispose the batteries into a ire. The cells may explode. Check with local
codes or possible special disposal instructions.
3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be toxic i swallowed.
4. Be care ul when handling batteries in order not to short the battery with conducting
materials such as rings, bracelets and keys. The battery or conductor may over
heat and cause burns.
5. Do not attempt to recharge non-rechargeable batteries. The batteries may leak
corrosive electrolyte or explode.
6. Do not attempt to rejuvenate the batteries identi ied or use with this product by
heating them. Sudden release o the battery electrolyte may cause burns or
irritation to eyes or skin.
7. All batteries should be replaced at the same time. Mixing resh and discharged
batteries could increase internal cell pressure and rupture the batteries.
8. When inserting batteries into this product, the proper polarity ( and ) or
direction must be observed. Reverse insertion o some or all o the batteries may
result in battery electrolyte leakage or explosion.
9. Remove the batteries rom this product i the product will not be used or a long
period o time (several months or more) since during the period the batteries could
leak, damaging the product.
10. Discard weak or dead batteries as soon as possible since they are more likely to
leak in the product. Batteries should be replaced (depending on the product) when
the display gets dim or i the Low Battery Indicator shows or i the sound gets
distorted.
11. Do not store this product in high temperature areas. Batteries that are stored in a
reezer or re rigerator or the purpose o extending shel li e should be protected
rom condensation during storage and de rosting. Batteries should be stabilized at
room temperature prior to use a ter cold storage.
12. I this product does not operate normally, see TROUBLE SHOOTING in this
instruction manual. I you cant resolve the problem, or i the product is damaged, re er to the
LENOXX WARRANTY INFORMATION. Opening or removing covers may expose you to
dangerous voltages or other risks. Incorrect reassembly can cause electric shock when
the appliance is subsequently used.
13. I liquid leaks rom the batteries, care ully wipe this liquid. Do not allow it to touch your skin,
and discard the leaking batteries.
14. Do not mix batteries (OLD and NEW or CARBON and ALKALINE, etc.).
15. The use o rechargeable batteries is not recommended or this set because their
voltage and li e is lower than standard batteries.
16. Installation o batteries should be done by an adult only.
SAVE THESE INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF FIRE OR PERSONAL INJURY OR DAMAGE TO YOUR
SET, READ AND FOLLOW THESE INSTRUCTIONS.
3
BATTERY SAFETY INSTRUCTIONS
IB-CD110(SY)-WM-E-V1

CHOOSING THE POWER SOURCES
You can use the AC power or batteries as a power source.
TIP
I the plug o the AC power
cord does not match your
outlet, do not orce it.
Reverse it and try again.
The plugs are polarized
and only its one way into
the wall outlet and back o
the set.
TIP
Replace the batteries
when the POWER lamp
dims or when the player
stops operating. Replace
all the batteries with new
ones. Be ore you replace
the batteries, be sure to
take out the CD rom the
player and remember to
check the Battery Sa ety
Instructions on Page 3.
1. Connecting the AC power
cord
Insert one end o the supplied AC power cord
(located in the battery compartment) into the socket
located at the rear o the player, and the other end
to the wall outlet.
2. Using the player on batteries
Insert 6 size D batteries (not supplied) into the
battery compartment.
To use the player on batteries, disconnect the AC
power cord rom the player.
4
AC SOCKET
Battery compartment
(on the bottom o the set)
To a wall outlet
NOTE: One blade o plug
and outlet is wider.
+
+
+
+
+
+
REMOVE
BATTERY
DOOR
IB-CD110(SY)-WM-E-V1

1Rotate the FUNCTION
switch to the CD position.
The POWER lamp will turn
on.
3Close the CD DOOR by
pushing it down. The display
will show the total tracks on
that CD.
4
1
3
Press the OPEN button to
open the CD door and place
the CD in the CD
compartment. The label side
o the CD should ace
upward.
2
Press the CD PLAY button.
The PLAY/PAUSE lamp will
be steady on, the player
plays all the tracks once.
4
Connect the supplied AC power cord or batteries (see page 4).
Track
number PLAY/PAUSE
lamp
PLAYING A CD
5
POWER lamp
TRACK
TRACK
2
OPEN
IB-CD110(SY)-WM-E-V1
NOTE: Make sure the handle
is olded in its position,
otherwise the CD door will be
barred by the erected handle.

USE THESE BUTTONS FOR
ADDITIONAL OPERATIONS
To Press or Adjust
Adjust the volume VOLUME control (on le t side)
Stop playback
Pause playback The PLAY/PAUSE lamp will
lash during pause. Press
again to resume play a ter
pause.
Go to the next track
Go back to the previous
track
Locate a point in a song
or
Press and hold down while
playing until you ind the
point you like.
TIP
When CD play is
paused, the PLAY/
PAUSE lamp will
lash and no music
will play.
Remove the CD Press the OPEN button
(press STOP irst).
VOLUME CONTROL
(at the le t side o the set)
FUNCTION SWITCH
Turn o the power Rotate the FUNCTION switch
to OFF position.
To resume play,
press the PAUSE
button again, the
PLAY/PAUSE lamp
will stop lashing
and music will play.
OPEN BUTTON
6
I you bump the set
during CD play, the
music will stop or
skip or a ew
seconds. This is
normal or this type
o player.
TIP FORWARDS
BACKWARDS
To enjoy the music
without disturbing others
Insert your headphone plug
into the HEADPHONES jack
(Headphones is not included).
HEADPHONES
JACK
PLAY
STOP
SKIP/SEARCH
STOP
PLAY/PAUSE
IB-CD110(SY)-WM-E-V1

PLAYING CD TRACKS REPEATEDLY
REPEAT PLAY)
1. Rotate the FUNCTION switch to CD position.
2. Select the track by pressing or , and then press .
3. Press the CD REPEAT button.
To repeat Press
a single track (song) Press the REPEAT button once
all the tracks (all songs)
You can play CD tracks over and over in normal or program play modes (see page 8).
Press the REPEAT button twice
programmed tracks During programmed play, press
the REPEAT button twice
FUNCTION
SWITCH
Repeat Lamp
Flashing
Steady on
Steady on
(the PROGRAM
lamp also on)
PROGRAM
LAMP
REPEAT
LAMP
To cancel Repeat Play
Press the REPEAT button until the REPEAT lamp goes o .
7
REPEAT
BUTTON
BACKWARD
FORWARD
PLAY/PAUSE
IB-CD110(SY)-WM-E-V1

You can make a program o up to 16 tracks in the order you want them to be
played.
1. Rotate the FUNCTION switch to CD position.
2. Press the PROGRAM button. The letters Pr and
the PROGRAM lamp will lash.
3. Press or to select the tracks you want to
program in the order you want.
4. Press the PROGRAM button to con irm. The letters
Pr and the PROGRAM lamp will lash.
5. Repeat steps 3 and 4. You can program up to 16
tracks.
6. Press to start your programmed play. The
PROGRAM lamp will be steady on.
To check the order of tracks before play
Press the PROGRAM button, the programmed track number appears in the display
automatically.
To change the current program
Just create a new program ollowing the programming procedure.
PROGRAM LAMP
To cancel Program Play
Press the STOP button twice and the PROGRAM lamp goes o .
PROG.
8
SELECTING YOUR OWN MUSIC PLAYING ORDER
Programmed Play)
NOTE: Programming is only done during stop mode.
PROGRAM
BUTTON
STOP
PROG.
PLAY/
PAUSE
TRACK
PROGRAM
PROGRAM
PROG.
PROG.
PLAY/
PAUSE
TRACK
IB-CD110(SY)-WM-E-V1

LISTENING TO THE RADIO
Connect the supplied AC power cord or batteries (see page 4).
Rotate the FUNCTION switch to
RADIO position, the POWER
lamp will be on.
12
3
1
2
3
Rotate the BAND switch to the
proper band position (AM or FM)
that you want.
Tune into the station you pre er
using the TUNING control (at the
right side o the set). Adjust or
the clearest sound.
4The station you are listening will
show in the window o the AM/
FM dial lens.
9
4
IB-CD110(SY)-WM-E-V1

USE THESE BUTTONS FOR
ADDITIONAL OPERATIONS
To Rotate
Adjust the volume VOLUME control (at the
le t side o the set)
TIP
Turn o the Radio Rotate the FUNCTION
switch to OFF position
To improve broadcast reception
•Next time you want to
listen to the radio, just
Rotate the FUNCTION
switch to RADIO. The
player automatically
starts playing the
previously tuned
station.
10
FUNCTION SWITCH
VOLUME
CONTROL
Change position o
the antenna or FM. Move the set itsel
or AM.
•In steel rame buildings,
you can improve AM
reception by bringing
the set closer to a
window.
IB-CD110(SY)-WM-E-V1

PRECAUTIONS
On Safety
The laser beam used in the CD
player section may be harm ul to the
eyes, do not attempt to disassemble
the cabinet. Re er servicing to
quali ied personnel only.
Should any solid object or liquid all
into the player, unplug the player, and
have it checked by quali ied personnel
be ore operating it any urther.
On Power Sources
For battery operation, use 6 size D
batteries. We recommend alkaline
batteries or longer li e.
When the batteries will not be used
or a ew weeks or more, remove them
to avoid damage that can be caused
by battery leakage or corrosion.
11
On Operation
I the player is brought directly rom a
cold to a warm location, or is placed
in a very damp room, moisture may
condense on the lens inside the CD
player section. Should this occur, the
player will not operate properly. In
this case, remove the CD and wait
about an hour or the moisture to
evaporate.
This CD player is designed to be
played on a stable no vibration
position. I you bump the set during
CD play, the music will stop or skip or
a ew seconds. This is normal or this
type o player.
I you have any questions or problems
concerning your player, please contact
our customer service department.
On Placement
Do not leave the player in a location
near a heat source, or in a place
subject to direct sunlight, excessive
dust or mechanical shock.
Do not place the player on an inclined
or unstable place.
Do not place anything within 1 inch o
the back o the cabinet. The
ventilation holes must not be covered
or the player to operate properly and
prolong the li e o its components.
I the player is le t in a car parked in
the sun, be sure to choose a location
in the car where the player will not be
subjected to the direct rays o the
sun.
Since a strong magnet is used or the
speakers, keep personal credit cards
using magnetic coding or springwound
watches away rom the player to
prevent possible damage rom the
magnets.
IB-CD110(SY)-WM-E-V1

PRECAUTIONS continued)
Notes on CDs
Be ore playing, clean the CD with a
cleaning cloth. Wipe the CD rom the
center out.
Do not use solvents such as benzene,
thinner, commercially available
cleaners or anti-static spray intended
or vinyl LPs.
Do not expose the CD to direct
sunlight or heat sources such as hot
air ducts, nor leave it in a car parked
in direct sunlight as there can be a
considerable rise in temperature inside
the car.
Do not stick paper or stickers on the
CD, nor scratch the CD.
 A ter playing, store the CD in its case.
I there is a scratch, dirt or ingerprints
on the CD, it may cause a tracking
error or skipping.
12
MAINTENANCE
Cleaning the Lens
Cleaning the Cabinet
Clean the cabinet, panel and controls
with a so t cloth slightly moistened
with a mild detergent solution. Do
not use any type o abrasive pad,
scouring powder, or solvent, such as
alcohol or benzene.
I the lens becomes dirty, it may
cause a skipping o sound during CD
operation. Clean with a commercially
available lens cleaner and blower.
IB-CD110(SY)-WM-E-V1

TROUBLE SHOOTING
Problem Remedy
The power is not on. Connect the AC power cord to a wall
outlet securely and make sure AC cord is
inserted properly in the back o the set.
Make sure the batteries are inserted
correctly and they are resh.
There is no sound.
Make sure the FUNCTION switch is at the
right position as you want.
Adjust the volume.
Unplug the headphones when listening
through speakers.
 appears in the display
even when a CD is inside.  Insert the CD with the label side up.
CD does not play.
 Make sure that the CD compartment is
closed.
 Place the CD with the label side up.
 Clean the CD.
 Take out the CD and leave the CD DOOR
open or about an hour to dry moisture
condensation.
 Make sure the FUNCTION switch is in the
CD position.
Clean the CD, or replace it i the CD is
badly damaged.
Place the player in a location ree rom
vibration.
 Check i your batteries are resh.
(NOTE: Your batteries may have some li e
in them, enough or radio use, but not
enough or CD play.
The sound is weak or has
poor quality.
Replace all the batteries with new ones i
they are weak, or bring the set near a
window, or rotate the set.
GeneralCD player
Radio
The sound drops out.
13 IB-CD110(SY)-WM-E-V1

SPECIFICATION
General Description
Power source: AC 120V, 60Hz 12Watts
DC 9V (6 size D batteries)
(Alkaline batteries are recommended)
Speakers: 2 - 3^ 8 ohm
Output power: 1.5W/channel
Dimensions: Width: 13^
Depth: 10 1/2^
Height: 5^
Weight: 4.5LBs (without batteries)
CD Section
Plays disc type: Any normal music CD used in portable players
Laser wavelength: 760 - 800 NM
Tracking method: 3 - spot error detection 3.86 mm lens
Radio Section
Frequency range: FM: 88 - 108 MHz
AM: 530 - 1700 kHz
LENOXX reserves the right to make design and speci ication changes or
product improvement.
PROTECT YOUR FINE FURNITURE!
WE RECOMMEND A CLOTH OR OTHER PROTECTIVE MATERIAL BE PLACED
UNDER THE SET WHEN PLACING IT ON SURFACE WITH A NATURAL OR
LACQUER FINISH.
© 2001 LENOXX ELECTRONICS CORP.
2 GERMAK DRIVE
CARTERET, N.J. 07008
MADE & PRINTED IN CHINA
Frequency response: 50Hz - 15kHz +1/-2dB
14
NOTE: This CD player will only play NORMAL music CDs (or CD-R CDs).
This set will not play CDRW encoded discs.
For customer service
Dial 1-800-315-5885 (MONDAY - THURSDAY 9:00 AM - 5:00 PM, FRIDAY 9:00 AM - 1:00 PM EST)
or Visit Our Website: http://www.lenoxx.com
IB-CD110(SY)-WM-E-V1
