Lenoxx 90313 Quick start guide




CHILDRENSELECTRONICBATTERYOPERATEDMOTORTRICYCLE
OPERATIONALINSTRUCTIONS
Pleasereadthismanualindetailbeforeuse.
Modelno:90313




















WARNING:
Adultsupervisionisrequired.Donotdriveanywheredangerousincluding
slopeswithmorethan10degrees,streets,nexttobodiesofwaterandaway
fromotherobstacles.Thedrivermustsitontheseattodrive.Readthe
instructionmanualandacknowledgeitbeforeuse.
1. Adultsupervisionrequired
2. Readtheinstructionmanualandinstructthechilduser
3. Theweightlimitis25kg
4. Onlyoneridertouseattheonetime
5. Pleasewearabikehelmetwhenriding
6. Sitstraightontheseatwhenriding
7. Rideonlyonflatsurfaces
8. Rideawayfromothervehiclesandbodiesofwater
9. Rechargethebatteriesoutofreachofchildren
10.Donotchargethebatteryformorethan12hours
11.Wearshoeswhenriding
12.Onlyuseapoweradaptorandbatterybythemanufacturersadvice












1. SPECIFICATIONSOFTHEMOTORCYCLE:
Agerange:3–7
Maxspeed:3km/h
Measurements:80cmx36cmx52cm
Battery:Sealedanddry,6V4AH
Chargingtime:8hours
Loadingcapacity:25kg
2. HOWTOOPERATETHEBATTERYOPERATEDMOTORCYCLE:
1. Steponthepedaltostart,liftfootoffthepedaltostop.
2. Pressgoaheadtogoforward,pressbacktoreverse.Whentheswitch
isnotoneithermode,thebikewillnotdrive.
3. Wheningoforward,theheadlightwillbeon.
4. Wheninreverse,thetaillightwillbeon.
5. Pressthesirenbuttontohearthesiren,pressthemusicbuttonto
hearthemusic.
3. SAFETY:
Pleaseinstructthechildonthecorrectwaytodrivethemotortricycle.
Pleasekeepinmindtheconditionoftheareatheyareridinginandthe
child’sdrivingability.
Designedforusebychildrenbetweentheagesof3–7years,weighing
lessthe25kg.Thisisadvisabletoavoiddamagetothemotor,gearsand
toprohibitoverloading.
Donotletchildrenrideinthestreet,anywheredangerousincluding
slopeswithmorethan10degrees,streets,nexttobodiesofwaterand
awayfromotherobstacles.Useduringdaylighthoursorinan
illuminatedareaisadvisedtoavoidaccidentsinthedark.
Whenthemotortricycleisrunning,donotplaceanythingonthemoving
partssuchasthemotor,gearbox,wheelsorsteeringwheel.
Donotdriveonlongorwetgrass,mud,softground,gravelorsand.
Donotdriveneatanythingflammableorexplosive.Keepanyhazardous
chemicalsoutofthedriversreach.



4. HOWTOUSETHEBATTERY:
Itisnormalforthebatterytobewarmwhencharging.
1. Themotortricyclemustbechargedpriortoitsfirstuse.
WorkingACvoltageis220V(or1100V)(+/‐10%).
2. Chargingtimeis8‐12hours.Thefirsthourofchargingcangetback
60%ofthebatteriesenergyback.Youmayleaveittocharge
overnight,butNEVERcontinuouslyover20Hours.Otherwiseyouwill
shortenthebatterieslife.

5. MAINTENCEANDTROUBLESHOOTING:
Factorswhichmayinfluencethemotortricyclesperformanceandlife
span:
‐Howflatthedrivingsurfaceis
‐Theweightofthedriver
‐Whetherthebatteryhasbeenfullycharged
‐Whetherthemotortricycleisregularlyused
‐Wetherwateroranyotherliquidhaserodedtheelectrical
components
Cleaning:Cleanthemotortricyclewithasoftdrycloth.Donotuseany
waxorsprayliquidsforcleaning.Itcoulderodethepowerswitch.
Storage:Donotstorethemotortricycleinanareaofhightemperature,
humidityornearflames.Whenrainingorsnowing,keepthemotor
tricycleundercoverandoutoftheweather.
Donotchangethebatteriessetting,asitcancausefireanddamagethe
electricalcircuitsystem.Donotchangethemotortricycleselectrical
circuitsystem.Anyrepairsdonetothisunitmustbecarriedoutby
authorisedandqualifiedservicepersonnel.
Donotallowchildrentochargethemotortricycle,playwiththebattery
ormotor.




Ifthemotortricyclewillnotbeusedforalongperiodoftime(3months
orlonger),itisadvisedthatyoufullychargethebatteryanddisconnect
itfromtheconnections.
Alongperiodofnonusewilldamagethebattery.Itisadvisedthatthe
batteryshouldbechargedonceamonth,evenifthemotortricycleis
notbeingused.
Anewbatterymustbefullychargedbeforeitsfirstuse.
Pleasetakecarewiththebatteryasitcontainsacidelectrolyte.Handling
ofthebatterybyadultsonly.
Ifthebatteryhasleaked,donottouchtheacid.Placethebatteryintoa
polybaganddisposeofit.
Iftheelectrolytesplashesonyourskinorintoyoureyes,immediately
washwithwaterforatleast15minutesandconsultyourdoctor.
Donotcontactthebatteriestwoterminalswithanyothermetalobjects.
Itwillcauseshortcircuiting,damageorfire.
Adjustthef/rswitchtoonandpressthesirenbuttontocheckfor
power.Ifyouhearnomusic,checkthatthebatteryhasbeenjoinedup
correctly.Correctifrequired.
Neverpushorpullthemotortricyclebackwardwhenitisrunning.
Donotplugthechargerintoanynon‐workingorfaultywallsocket.This
couldcauseshortcircuitingorfire.
Inthecircumstanceofunstablevoltage,wesuggestthatyouequipa
regulator.






6. ASSEMBLY:
Warning:Childrencouldbeinjuredbysharpedges,sharpangles,small
componentsorelectricalcomponents.Takecarewhenassemblingor
disassemblingthemotortricycle.Keepthecomponentsandbatteryout
ofreachofchildren.

1. Themethodfromonesidetotheotherwhencompletedwillbe:
Nut,washer,passthroughtheholeofthefork,plasticwasher,
spacer,wheelcap,wheel,wheelcap,spacer,plasticwasher,pass
throughtheholeofthefork,washer,nut.
2. Putonthewheelcapsontothefrontwheelonbothsides.
3. Addthespaceraftereachwheelcap,followedbytheplasticwasher
aftereachwheelcap.
4. Insertthefrontaxelontotheholesofthefork.
5. Putawasheroneachsideofthewheel.
6. Fastenthenutoneachsidewithaspanner.












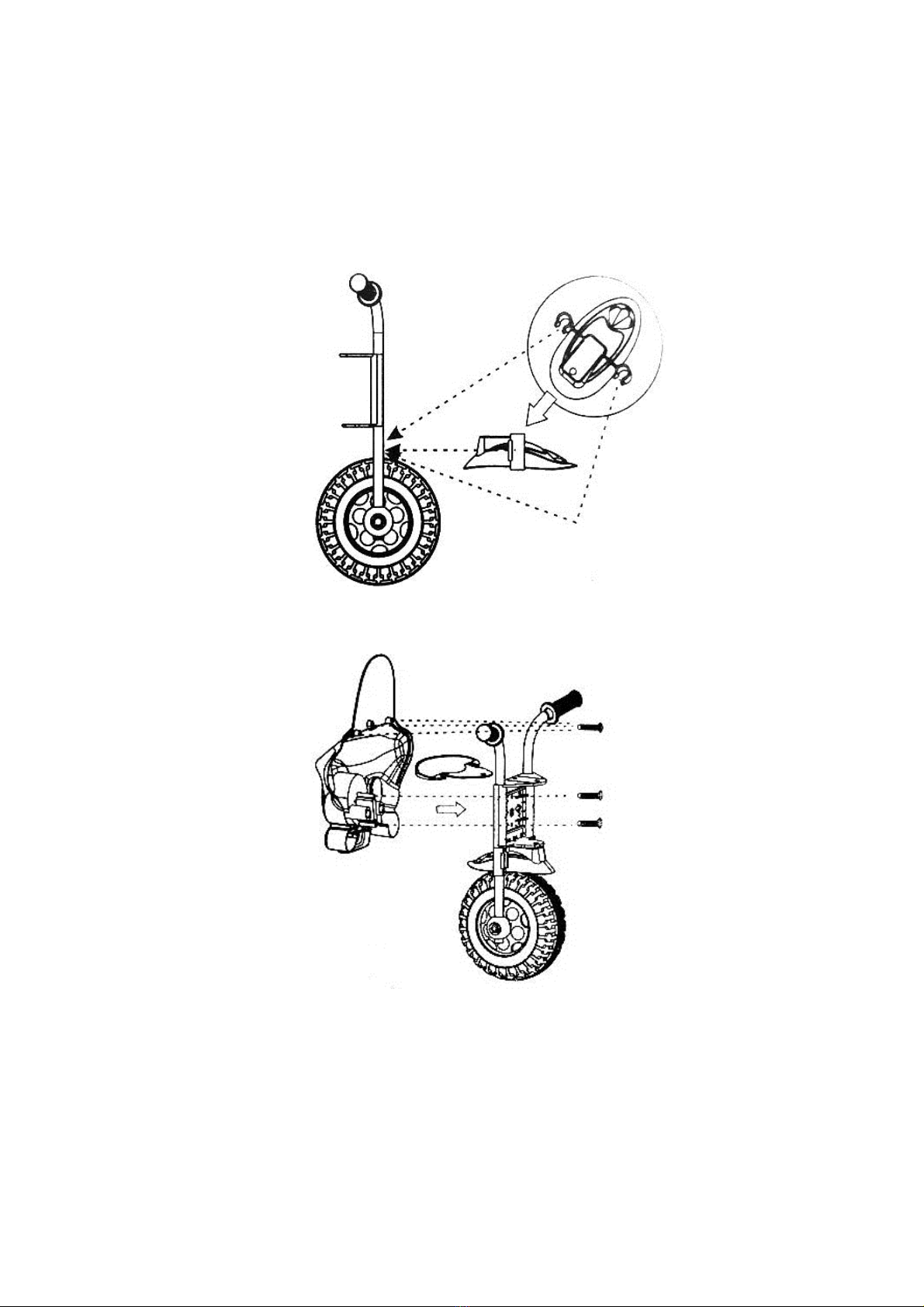

Addthefrontwheelcoverbyclippingitontotheforkabovethefrontwheel.




Fixthewindshieldontotheheadcoverwiththreeselftappingscrews.








Fixtheheadcoverontothebracketonthehandlebarusing3self
tappingscrews.

Ensuretheheadlightleadispassedthroughthebackofthehandlebars
forconnectionlateron.

Attachtheplasticgaugepiecetothefrontbarsasbelow










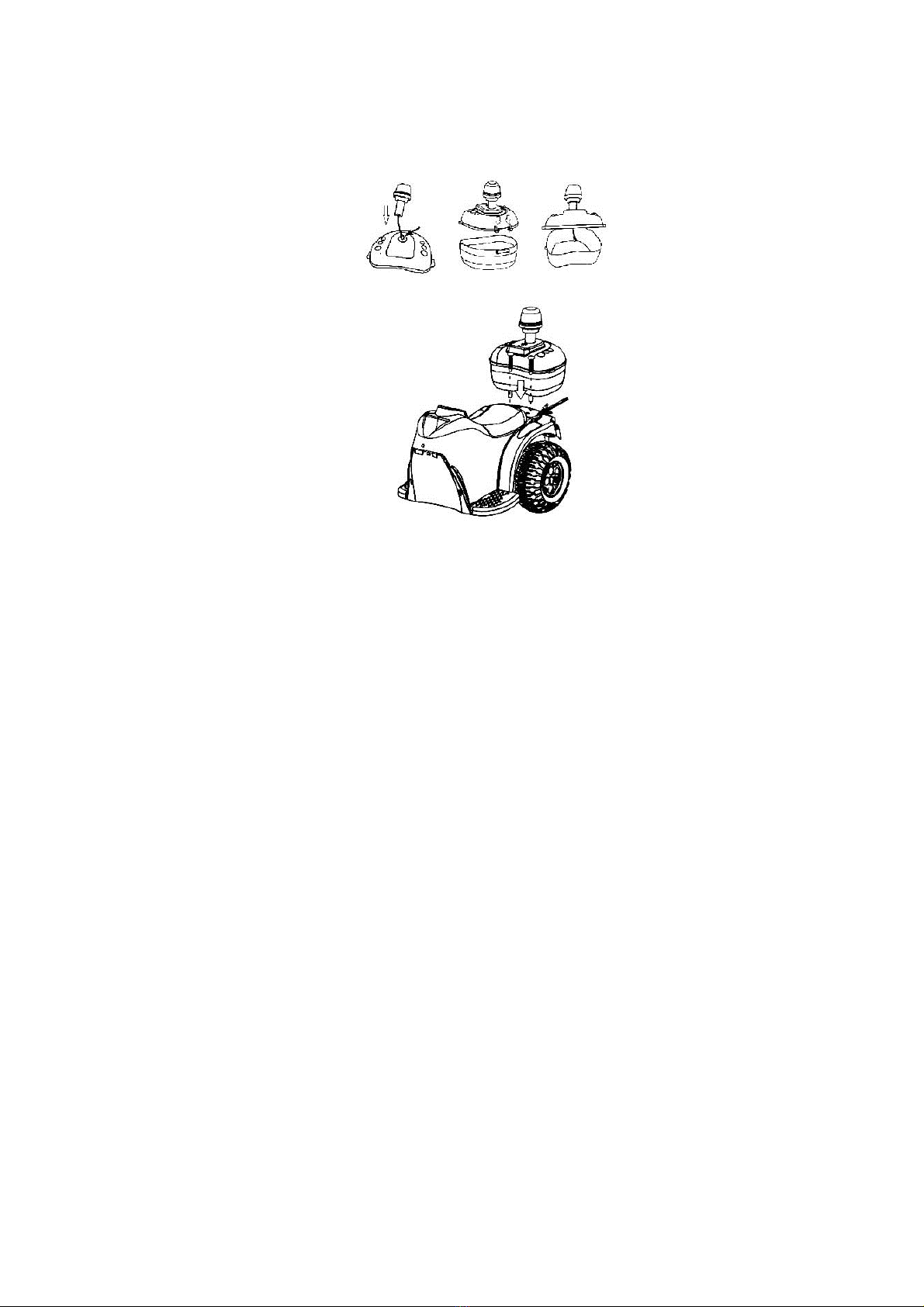

Addthetoolboxtothemainbodyofthebike.
Insertthewiresofthesirenlightthroughtheholesofthetoolbox.
Fixthealarmlightusing2selftappingscrews.
Fixthebracketunderthetoolboxusing4selftappingscrews.
Connectthetwopartsofthetwothetoolbox(asshownintheabove
diagram).
Connectthewiresofthesirenlighttothetothoseofthemainbodyof
thebike.
Addthetoolboxandthebrackettotheholesonthemainbodyofthe
work.
Fastenwith2selftappingscrews.


















Jointhemainbodyofthemotortricycletothefrontendwiththefront
wheelusingtheboltandwasherandnutincluded.
















Usethenuttoscrewontothebolttoholdthepiecestightlytogether.
Headlightconnection:
Oncethemainbodyandthefrontendofthemotortricyclearejoined,youcan
thenconnectthewiresfromthemainbodytothewiresonthefrontend.This
isoptionalifyouwouldlikethemotortricycletohaveaheadlightcomeon
whenthepedalispresseddownandthemotortricycleisdriving.






1.Steponthepedaltostart,liftfootoffthepedaltostop.
2.Pressgoaheadtogoforward,pressbacktoreverse.
Whentheforward/reverseswitchisnotoneithermode,thebikewill
notdrive.
3.Wheningoforward,theheadlightwillbeon.
4.Wheninreverse,thetaillightwillbeon.
5.Pressthesirenbuttontohearthesiren,pressthemusicbuttontohear
themusic.










Thebatteryislocatedundertheseat.

Toaccess,removethescrewholdingtheheatdownandthentaketheseatoff
thebody.

Thebatteryisheldinplacewithaplasticcover.Youcanremoveittoaccess
thebatterybyunscrewingthe4screws.
Plugtheredconnectorontotheredterminalofthebattery.Plugtheblack
connectorontotheblackterminalofthebattery.
Ifthebatteryisnotconnectedandyouchargethemotortricycle,thebattery
willnotbecharging.





Plugtheredconnectorontotheredterminalofthebattery.Plugtheblack
connectorontotheblackterminalofthebattery.
Ifthebatteryisnotconnectedandyouchargethemotortricycle,thebattery
willnotbecharging.
Theforward/reverseswitchmustnotbeoneithermodewhencharging.
Chargingtimeis8–12hours.Thefirsthourofchargingcangetback60%of
thebatteriesenergyback.Youmayleaveittochargeovernight,butNEVER
continuouslyover20Hours.Otherwiseyouwillshortenthebatterieslife.
Itisnormalforthebatterytobewarmwhencharging.
Themotortricyclemustbechargedpriortoitsfirstuse.
WorkingACvoltageis220V(or1100V)(+/‐10%).










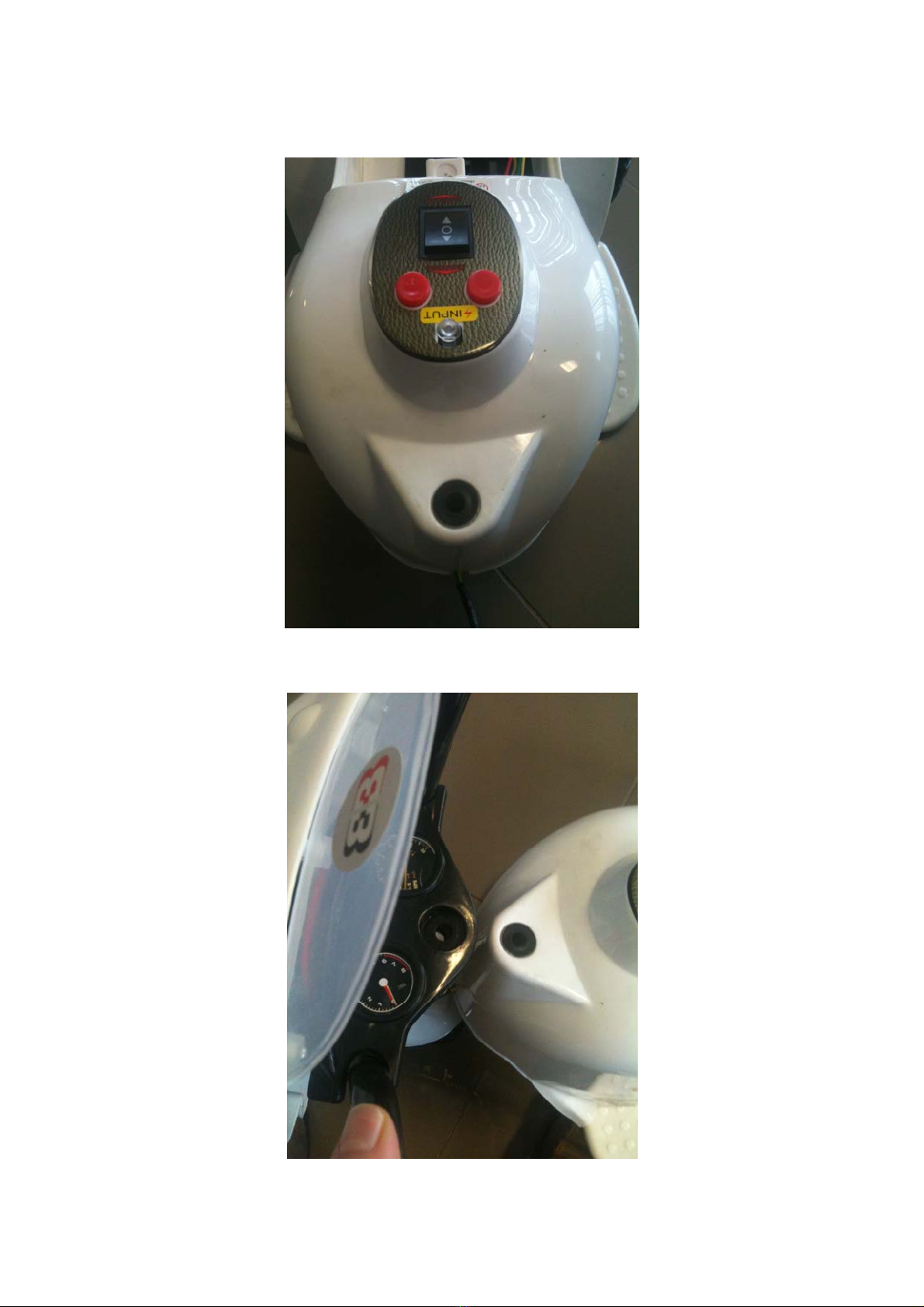

Inserttheplugofthechargerintothechargingsocketwhichisonthemain
bodyofthebikeabovethesirenandmusicbuttons.
Connectthechargertothemotortricyclefirst,andthenconnecttheplugto
power.Pleasenote,themotortricyclecannotbedrivenwhencharging.
Donotinsertanymetalpiecesintothechargingholeastoavoidshort
circuitingandanydamagetotheelectrocircuit.
Thisvehiclehasafunctionofchargingprotectionandwhileitisbeing
charged,otherfunctionscannotbeused.
Thisvehiclealsohasafunctionofoverloadprotection.Ifthevehicleis
overloadedoroperatedincorrectly,theoverloadpreventerwillcutoff
automatically.Itwillconnectautomaticallyin20minutes.
















