Lenoxx DENVER User manual

JUKE BOX DENVER BLUETOOTH
ART. 5090

IMPORTANT SAFETY INSTRUCTION
Please read this owner’s guide
Please take the time to follow the instructions in this owner’s guide carefully. It
will help you set up and operate your system properly and enjoy all of its
advanced features. Please save this owner’s guide for future reference.
WARNIN :
To reduce the risk of fire or electrical shock, do not expose the product to rain
or moisture. Liquids can cause a failure and/or a fire hazard. DO NOT
OPEN THE BACK PANEL FOR RISK OF ELECTRICAL SHOCK
This symbol indicates that there are important operating instructions in
the literature accompanying this unit. This symbol indicates that
dangerous voltage constituting a risk of electric shock is present within
this unit. To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture.
This product is intended to be used only with the power supply provided.
This product must be used indoors. It is NOT designed for outdoors use.
WARNIN :
Keep the remote control battery away from children. It may cause a fire
or chemical burn if mishandled. Dispose of used batteries promptly.
Please dispose of used batteries properly, following any local regulations.

Bluetooth Jukebox Instructions
Put the mode selector switch to “BT-AUX” position.,
Adjust your settings on the Bluetooth device and ensure that Bluetooth connection is turned on.
The LED light will be flashing on the Bluetooth indicator on the juke box. Pair your device with
the jukebox. The device will be displayed as “JUKEBOX”, the password is “0000”
When the red LED light begins to flash slowly, device and Bluetooth pairing has been successful
and you can now begin your music playback.
Note: If pairing of red LED does not blink, turn the selector switch off the “Bluetooth position” and
try again.
Note: also ensure the “AUX” in switch on the back of the juke box is in the off position.

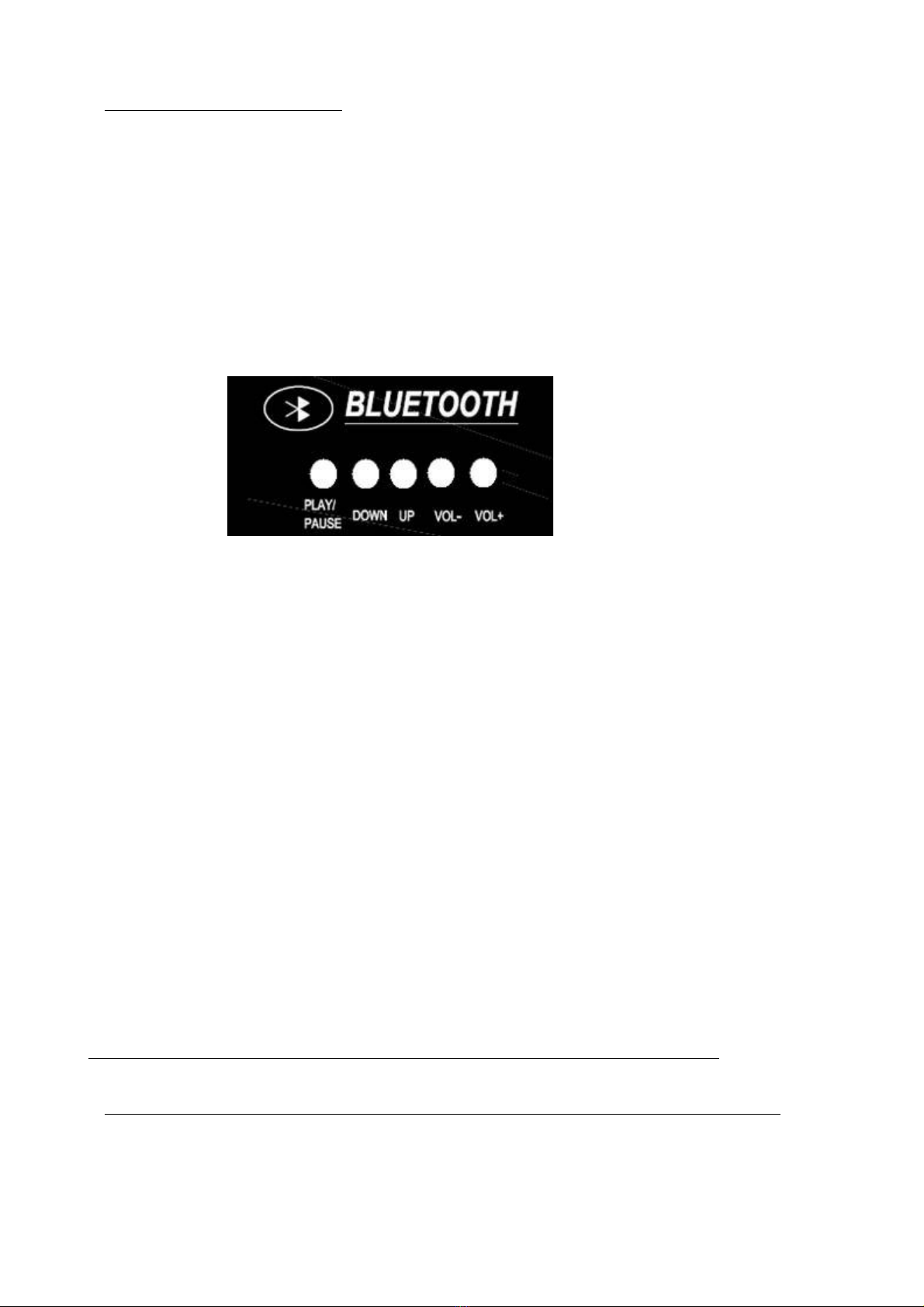

Bluet th c ntr l panel n the side f the juke b x
“PLAY”/”PAUSE”: Press the PLAY button for music playback, press again during music playback
to pause music playback. Pressing the PLAY/PAUSE button when music is paused will resume
music playback.
“DOWN ”: Press to play the next track
“UP ”: Press to play the previous track
“Vol- “: Press to decrease volume
“V l+ ”: Press t increase v lume
*3: AUX IN SWITCH:
For use when playing back through an AUX in device.
Turn the AUX in switch to the ON position when you wish to playback using the AUX in
lead plugged into the devices headphone jack.
Turn the AUX in switch to the OFF position when you want to use a different function, eg:
Bluetooth connection.
*4: LINE OUT SWITCH:
Switch in ON position: for playback through connection to an external amplifier device
through the left/right channel.
Switch in OFF position: for playback through the jukebox’s internal speakers.
*7: SPEAKER SWITCH:
Switch in ON p siti n: f r playback thr ugh the jukeb x’s internal speakers.

Switch in OFF position: for playback through connection of external speakers.
TO HEAR YOUR MUSIC PLAYBACK THROU H THE SPEAKERS IN THE JUKE BOX:
ENSURE THE LINE OUT SWITCH IS IN THE OFF POSITION AND ENSURE THE
SPEAKER SWITCH IS IN THE ON POSITION.
LI HT OPERATION:
The light button on the front of the unit turns the lights on or off.
The colours of the lights are continually changing.
Press the colour flash button once to hold the lights colour. Press it again to resume colour
changing.
The lights can hold on 7 different colours (light blue, dark blue, green, pink, red, yellow or
white).

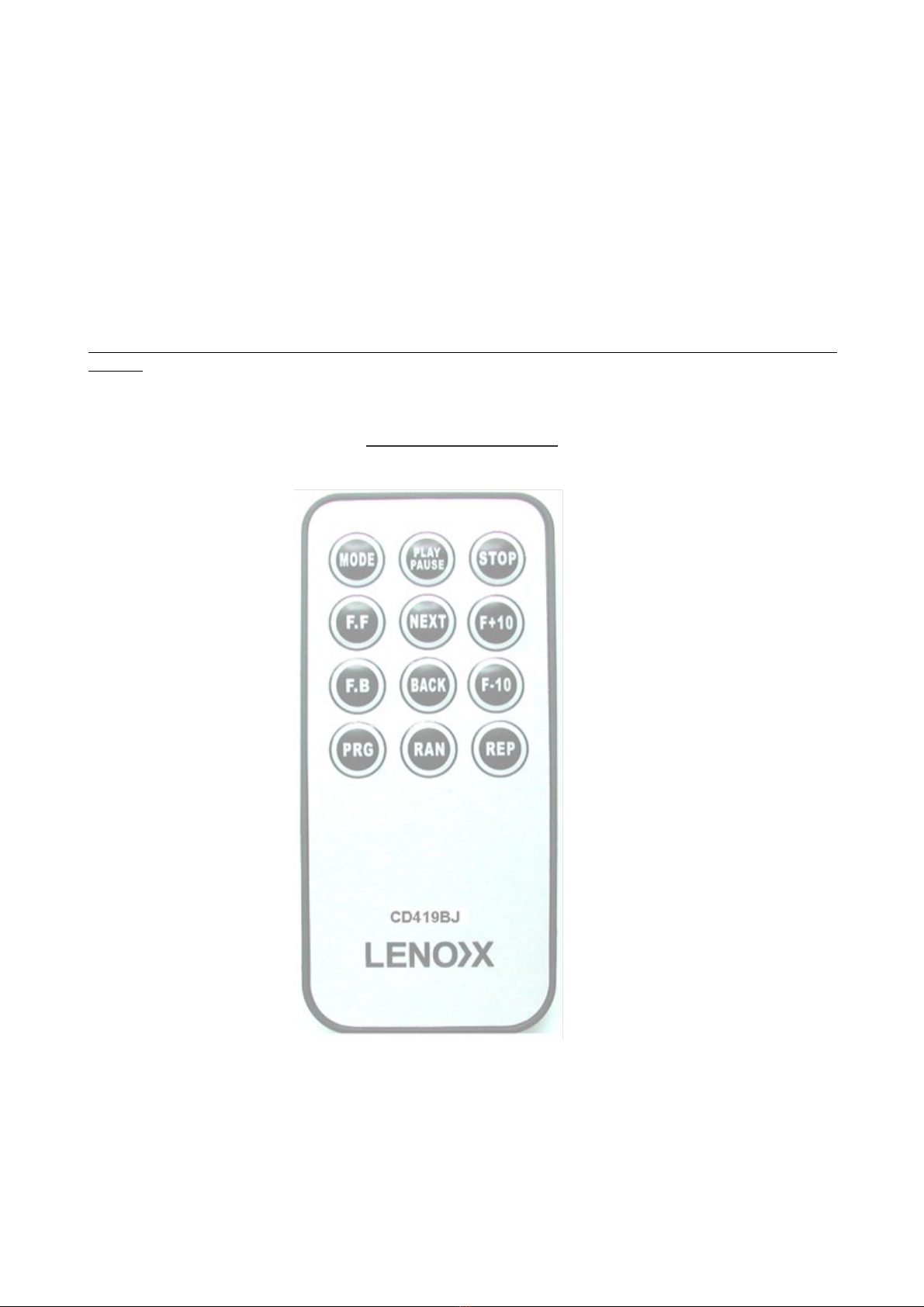

REMOTE CONTROL

FUNCTIONS ON THE REMOTE CONTROL
1. Mode: press to change the mode of playback, choose from CD/USB or memory card (SD/MMC card).
2. Play/pause button: press to play or pause a track.
3. Stop button: press to stop a track.
4. F.F: fast forward, press to fast forward through a track. You can then press the playback button to
start playback.
5. Next: press to go to the next track.
6. F+10: press to go forwards 10 tracks.
7. F.B: fast back: press to rewind back through a track. You can then press the play button to start
playback.
8. Back: press to go back one track.
9. F-10: press to go back 10 previous tracks.
10. Program: Allows you to program only
particular songs of your choice to playback from your music source. Further info on this function on
page 10.
11. Random: press to playback in no particular order.
12. Repeat: press to replay one particular song.
The word REP will be displayed on the LCD display screen on the juke box. Press the repeat button
again will play the whole contents of the disc, USB stick, memory card or Aux in source. Press the
repeat button again to exit the repeat mode (REP will not be displayed on the LCD screen).

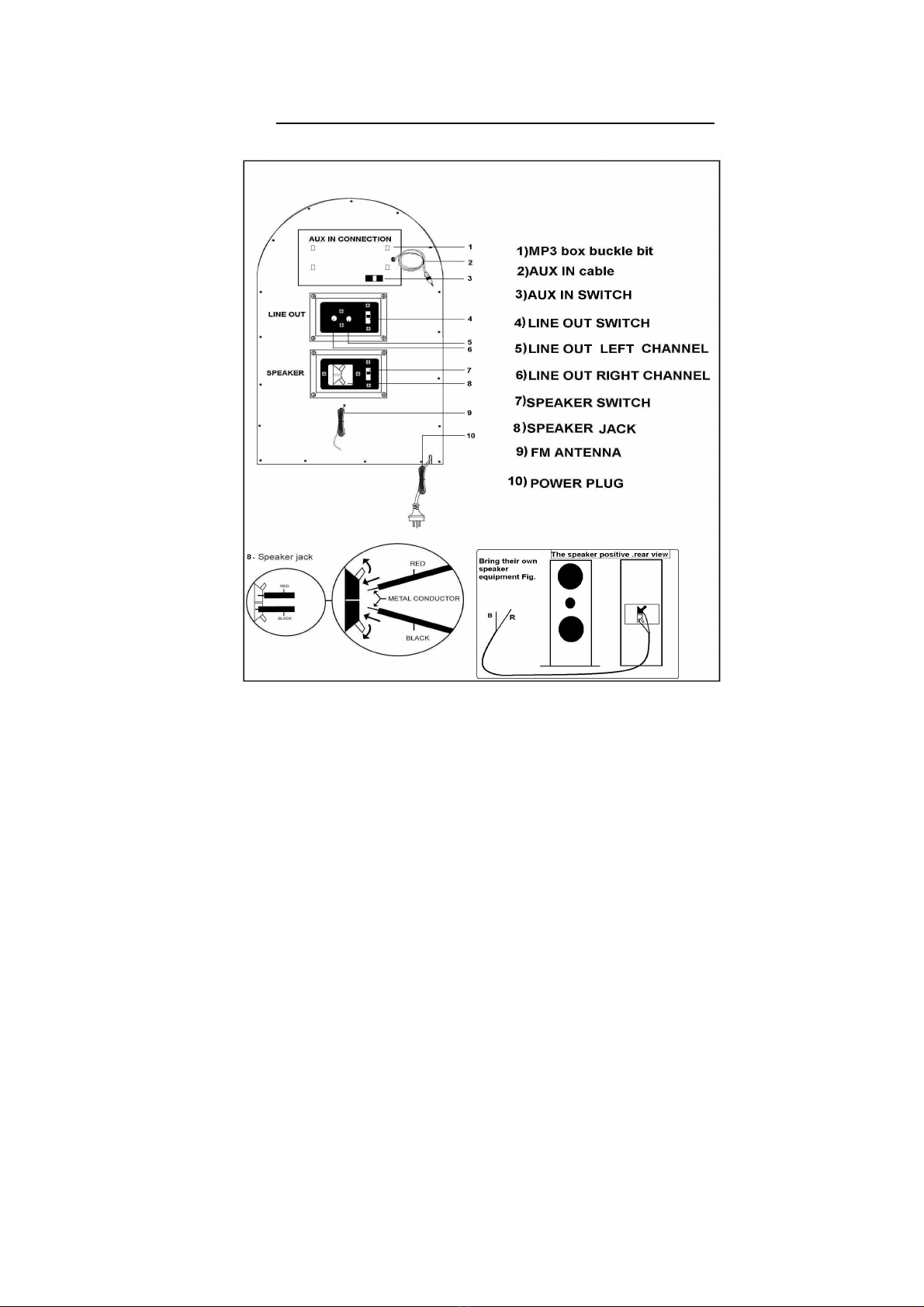

JUKE BOX functi nal diagram n the back
MUSIC PLAYBACK
AUX IN:
Ensure the AUX IN switch at the back of the juke box is in the ON position.
Ensure the function knob on the front of the juke box is turned to AUX in position, the last setting on
the knob.
Plug the AUX in lead at the back of the juke box into your iPhone/iPod or other MP3 device. The AUX
lead needs to be plugged into the earphone socket of your iPhone/iPod or other MP3 device.
Ensure line out switch at the back of the juke box is in the off position when using AUX in.
Ensure the speaker switch is switched to on if none are connected.
You can then begin playback from your iPhone/iPod or MP3 device.
If you cannot hear anything, turn up the volume on the juke box.
LINE OUT SWITCH, SPEAKER SWITCH:
You have the option to use the line out ports to connect an external amplifier device, and the option
to connect your own external speakers.
If you do not connect anything to line out ensure the LINE OUT SWITCH is in the OFF position to
playback through the juke box.
If you do not connect any external speakers, ensure the SPEAKER SWITCH is in the ON position to
playback through the juke box.

PROGRAM MODE USING THE REMOTE CONTROL OR JUKE BOX
•While playing back from a music source, press the stop button.
•Press the program button to enter the program mode. The word PRO will flash in
the bottom left corner of the display screen. A position number will also be flashing
on the screen (eg: p01).
•Press the next or back buttons to select which track you want to program into
position. When you have made your selection, press the program button to save it.
•You can then repeat the same steps to fill in more positions.
•When done, press play to begin your music playback. You can do this at any stage
once you have programmed the amount of tracks you want.
•At any stage during the program process you can press stop to cancel.
•FUL will display on the LCD screen when the max amount of positions have been
filled.

IMPORTANT NOTES FOR LED LI HTS
The colour changing sequences of the lights are controlled by an IC (Integrated Circuit).
The lights may turn off when the light mode is in the HOLD position, this is normal and not
a malfunction.
FUNCTIONS ON THE JUKE BOX
1. CD-MP3/USB/SD MODE button: press to change playback mode between CD,
USB or memory card.
2. Colour flash: when the lights are displayed (by turning on the main light button on
the front of the juke box), you can press the colour flash button to hold one color on
the lights. Press again to resume colour changing.
3. Play/pause: press to play or pause a track.
4. Stop: press to stop a track. Press the play button to re-start music playback.
5. Program: allows you to program only particular songs of your choice to playback
from your music source. Further info on this function on page 10.
6. Next: press to play the next track.
7. Back: press to play the previous track.
8. F+10: press to go forwards 10 tracks.
9. F-10: press to go back 10 previous tracks.
10. Repeat: press to replay one particular song.
The word REP will be displayed on the LCD display screen on the juke box. Press the
repeat button again will play the whole contents of the disc, USB stick, memory card or
Aux in source. Press the repeat button again to exit the repeat mode (REP will not be
displayed on the LCD screen).
MUSIC PLAYBACK
USB/Memory card:
To avoid malfunction on both of your devices, make sure the juke box is turned off before
you insert or remove a USB device or memory card.
Once you have safely inserted your device,
Mode selector knob tuned to CD/USB/SD card.
Select your device by pressing the CD-MP3, USB SD mode button on the juke box or on the
remote control.
Because of non-standardised format definition/production of an USB flash drive or
SD/MMC memory card, playback quality and performance are not guaranteed.
The manufacturer is not responsible for playability of an USB flash drive or SD/MMC
memory card due to recording conditions, such as PC performance, writing software,
media ability, etc.
The manufacturer is not responsible for any loss or damage of data.

MUSIC PLAYBACK
To access the top compartment to load a CD, USB device or memory card, gently push in
the bottom right corner of the display window. There is a push to open mechanism. You
may close the window and push in again to have it shut.
To play a CD:
Place a CD on to the disc tray.
Take care not to touch the CD laser and ensure that the CD label is facing upwards.
ently move the switch arm so that it is on top of the CD. The CD will then start spinning
and play.
If the message ‘OP’ appears on the juke boxes LCD display screen in the mode for CD
playback, the tone arm has not been moved across so it is on top of the CD. The correct
position is for the tone arm to be angled to the right and be on top of the CD.
Mode selector knob tuned to CD/USB/SD card.
CD mode selected by pressing the CD-MP3, USB SD mode button on the juke box or on the
remote control.
Please note:
If the disc is seriously scratched or too dirty, the disc may not start. If an improperly
centred disc is played, noise can be heard in the mechanism. The use of such discs
should be avoided.
Notes on CD-R/RW
Because of non-standardised format definition/production of CDR/RW, playback quality
and performance are not guaranteed.
The manufacturer is not responsible for playability of CDR/RW due to recording conditions,
such as PC performance, writing software, media ability, etc.
Do not attach or deal a label to either side of the CDR/RW disc as it could cause a
malfunction

FUNCTIONS ON THE JUKE BOX
• Volume control knob: turn the knob to increase or decrease volume.
• Treble: turn the knob to increase or decrease treble.
• Tuning: for use when in AM or FM radio mode. Turn the know left or right to tune to
different radio stations. See the tuning dial above the controls to see the band. FM on
top, AM below.
• Bass: turn the knob to increase or decrease bass.
• Mode selector: a 4 position knob for 4 different functions.
AM radio: when selected use the tuning knob to tune to different AM stations.
FM radio: when selected, use the tuning knob to tune to different FM stations.
CD/USB/SD card: when selected, you can playback from either CD, USB or SD/MMC
memory card. To select between CD, USB or memory card, press the CD-MP3, USB SD
mode button on the juke box or on the remote control.
BT-AUX in: when selected, you can playback from a connected Bluetooth or AUX in device.
