Sound Leisure Rocket User manual

Rocket CD Jukebox User Manual
Series 3 : Build 7.0

2
Contents
1. Introduction Pg 3
2. Important safety instructions Pg 4
3. Taking delivery / Transit mode Pg 7
4. Label magic Pg 11
5. Inserting title cards Pg 12
6. Loading compact discs Pg 14
7. Playing the Jukebox Pg 16
8. Connecting external audio devices Pg 20
9. Adding additional speakers Pg 22
10. Adjusting amplifier settings Pg 24
11. Jukebox lighting adjustment Pg 27
12. Bluetooth Pg 30
13. Troubleshooting and error codes Pg 32

3
Introduction
Thank you for purchasing a Classic Jukebox from Sound Leisure, the world’s
premier Jukebox manufacturer. This product has been designed and built to give
you many years of enjoyment and trouble free use.
This owner’s guide provides all the information you will need to install and
operate the Jukebox safely.
About Sound Leisure
Sound Leisure have been manufacturing Jukeboxes in Leeds, UK since 1978.
The family owned and run business was originally formed by Alan Black and
three generations of the family now work alongside a team of skilled craftsmen
and women, all dedicated to manufacturing the finest Jukeboxes in the world.

4
Important Safety Instructions
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the
manufacturers instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves
or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has 2 blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
• Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only the cart, stand, bracket or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long
periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as if a power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally or has been dropped.

5
Additionally
• This Jukebox contains high voltage & high temperature parts. Do not attempt
to carry out any work that is not specifically instructed in this manual. If the
Jukebox fails to operate correctly, switch off the machine and contact Sound
Leisure.
• This Jukebox is heavy. DO NOT attempt to lift the unit.
• DO NOT attempt to move the Jukebox with the front glass/door open. The
Jukebox is top heavy and may tip forward if moved with the front glass/
door open.
• This appliance must be connected to a mains socket with a protective earth
connection.
• The mains plug is the designated ‘disconnection device’ and as such should
be readily operable.
• ‘WARNING’ To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
• Fuses should be replaced like for like at all times.
• Terminals marked with the symbol above are considered hazardous live
and external wiring connected to these terminals requires installation by an
instructed person or the use of ready made contact leads.
• Jukebox contains transmitter module FCC ID : T9J-RN52
• Refer to Bluetooth section for more information.
• This Jukebox is approved for operation :
below 2000m elevation
between 0°C and 40°C

6
Main cabinet locks.
Please note there are
locks on the left and right
sides of the Jukebox.
Rear cabinet door lock
Mains power socket
and switch
Earth bond
Audio Out
sockets and
RESET button
FIG1 :
Lock locations & rear panels
Coin reject cup

7
Taking Delivery / Transit Mode
Once the Jukebox has been positioned in its designated space the following
instructions will allow you to prepare it for use. The keys to open the Jukebox
will be found in the coin reject cup. The keys will open the side locks and the
rear cabinet lock. See opposite page FIG1.
Transit Mode
Upon delivery the Jukebox CD player mechanism will be locked in “Transit
Mode.” The following pages explain how to remove the transit fixings and
prepare the Jukebox for use. Please work through this guide in order.
To reduce the risk of accidental damage to the Jukebox when removing transit
bars, it is recommended to carry out this procedure with the Jukebox powered
OFF.

8
Mechanism retaining wingnuts (underside)
Mechanism retaining
wing nuts (loosen) x4
Vertical retaining
transit bolt
Horizontal retaining
transit bar
Transit bar thumb
screw (R)
Transit bar post (R)
Transit bar thumb
screw (L)
Transit bar post (L)

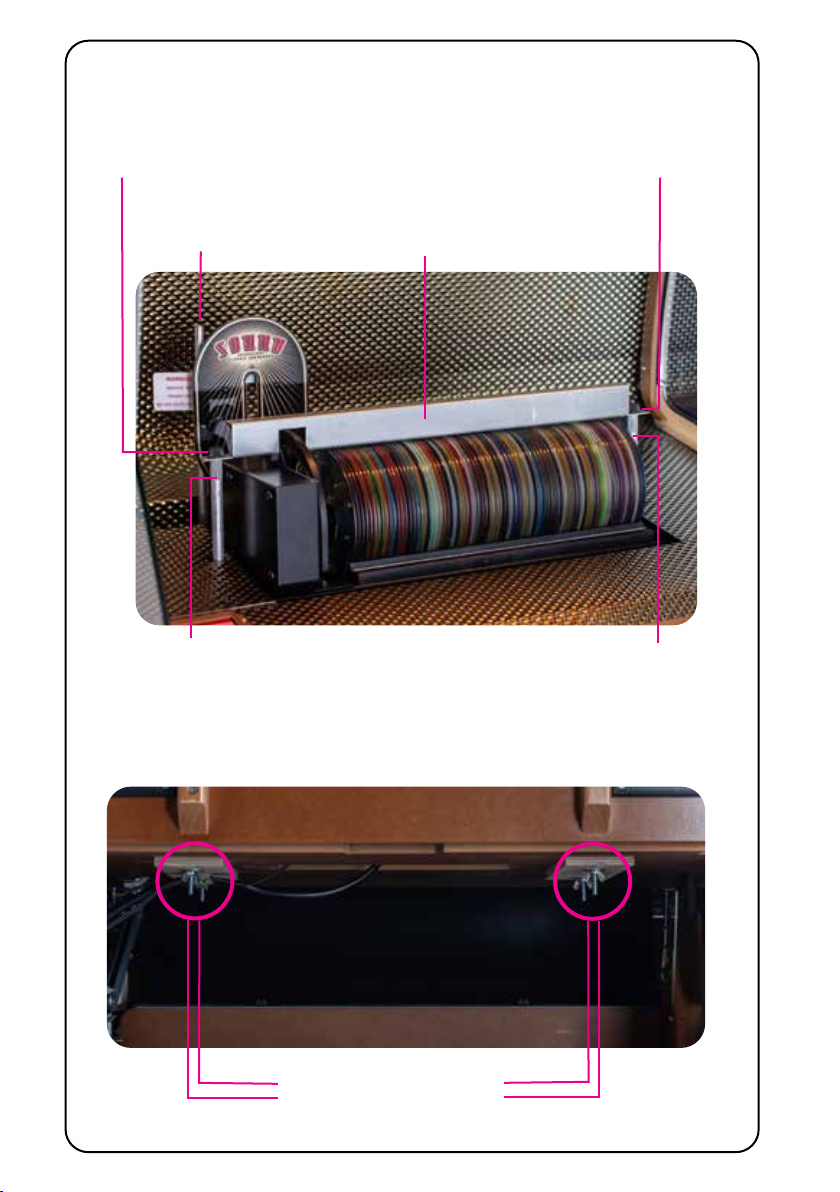

FIG2 : Retaining transit bar locations (mechanism)

9
How to remove the transit bars on the CD mechanism.
Please refer to the images opposite for the location of components.
• Ensure the Jukebox is powered OFF.
• Carefully remove the ‘horizontal retaining transit bar’ by loosening and
removing the left and right ‘transit bar thumb screws’.
• Remove the left and right ‘transit bar posts’ by turning anti-clockwise.
• Unscrew and remove the ‘vertical retaining transit bolt’.
Retain and store safely the removed transit components for future use.
• Moving to the rear of the Jukebox, unlock and remove the rear door and
locate the 4 mechanism retaining wingnuts securing the mechanism.
• Loosen these wingnuts to the bottom of the screw threads. The wingnuts do
not have to be fully removed.
• Replace the Jukebox rear door.
• Power on the Jukebox.
The Jukebox display will show “TRANSIT”
• At the rear of the Jukebox press the “RESET” button once. The location of
this button is shown in FIG1.
The Jukebox mechanism will move to the end of the CD rack then centre
itself. The display will no longer show “TRANSIT”
The Jukebox is now ready for operation.

10
How to place the Jukebox into transit mode.
If the Jukebox is to be moved any distance, where the mechanism or CD’s are
in danger of moving, it is recommended that the Jukebox be placed into Transit
Mode. You will require the transit retaining bars that were delivered with your
Jukebox. The location of the following items listed is shown in Fig 2
• With no discs playing, press and hold the “RESET” button on the rear of the
Jukebox for 5 seconds. The location of this button is shown in FIG1.
The CD mechanism will park in the transit position and the display will
show “TRANSIT.”
• Power OFF the Jukebox.
• Open the rear door of the Jukebox and locate the 4 wingnuts secured to the
retaining bolts of the Mechanism.
• Tighten the wingnuts against the washers so that they securely hold the
mechanism down to the shelf.
• Close and lock the rear door of the Jukebox.
• Open the front glass/door of the Jukebox.
• Replace the left and right transit bar posts by turning clockwise.
• Carefully replace the horizontal retaining transit bar, holding it in place by
the transit bar thumb screws.
• Replace the vertical retaining transit bolt by turning clockwise.
• Close and lock the front door/glass of the Jukebox.
The Jukebox can now be safely moved.

11
Label Magic
Sound Leisure has developed the
Label Magic title card printing
software to facilitate the easy design
and printing of title cards for your
Sound Leisure Jukebox.
Included in the welcome pack
supplied with your Jukebox is a FREE 12 month subscription to Sound Leisure’s
Label Magic title card printing software.
To get started creating your cards, download your free copy of Label Magic
from:
www.label-magic.com/sl
Once you have installed Label magic, use the code printed on the postcard
included in your welcome pack to activate your free 12 month subscription.
Once you have printed your title cards follow the steps overleaf for how to insert
these in the Jukebox.
jukebox title card printing software
included free with every sound leisure jukebox.
check your welcome pack for your 12 month subscription card

12
Inserting title cards
Title Cards
Perforated blank title cards and Sound Leisure’s Label Magic printing software
are included in your Jukebox welcome pack. For further details on installing
your software and your FREE 12 month subscription code please see the
postcard included in the welcome pack or visit :
soundleisure.com/classic-Jukeboxes/accessories/label-magic-title-card-software
This will assist you in designing and printing title cards. Additional cards are
available to purchase through our website.
https://soundleisure.com/classic-jukeboxes/accessories/title-cards-1-part
The title cards start at selection no. 100 and finish at 179.
Once the title cards have been printed and separated they need to be inserted
into the holders so that the small plastic tabs hold them in place.
Starting from the left (card 100) - Insert the left edge of the title card under the
plastic tabs.
Gently bend the title card to insert the right hand edge into the tabs.
To move to the next card use the < > buttons on the button bank.
WARNING : DO NOT FLIP THE TITLE RACK PAGES BY HAND AS THIS CAN
DAMAGE THE MOTOR OR SNAP THE PAGE ASSEMBLY! ONLY TURN THE
PAGES USING THE RED BUTTONS SITUATED ON THE FAR RIGHT HAND SIDE
OF THE BUTTON BANK.

13
Left and Right (title rack flip) buttons as seen on
the Jukebox button bank
FIG3 : Title cards inserted into title rack

14
Loading Compact Discs
The mechanism rack that holds the CDs is numbered to correspond with the title
selection cards.
Slot 00 = title card 100
Slot 01 = title card 101
Slot 02 = title card 102 etc.

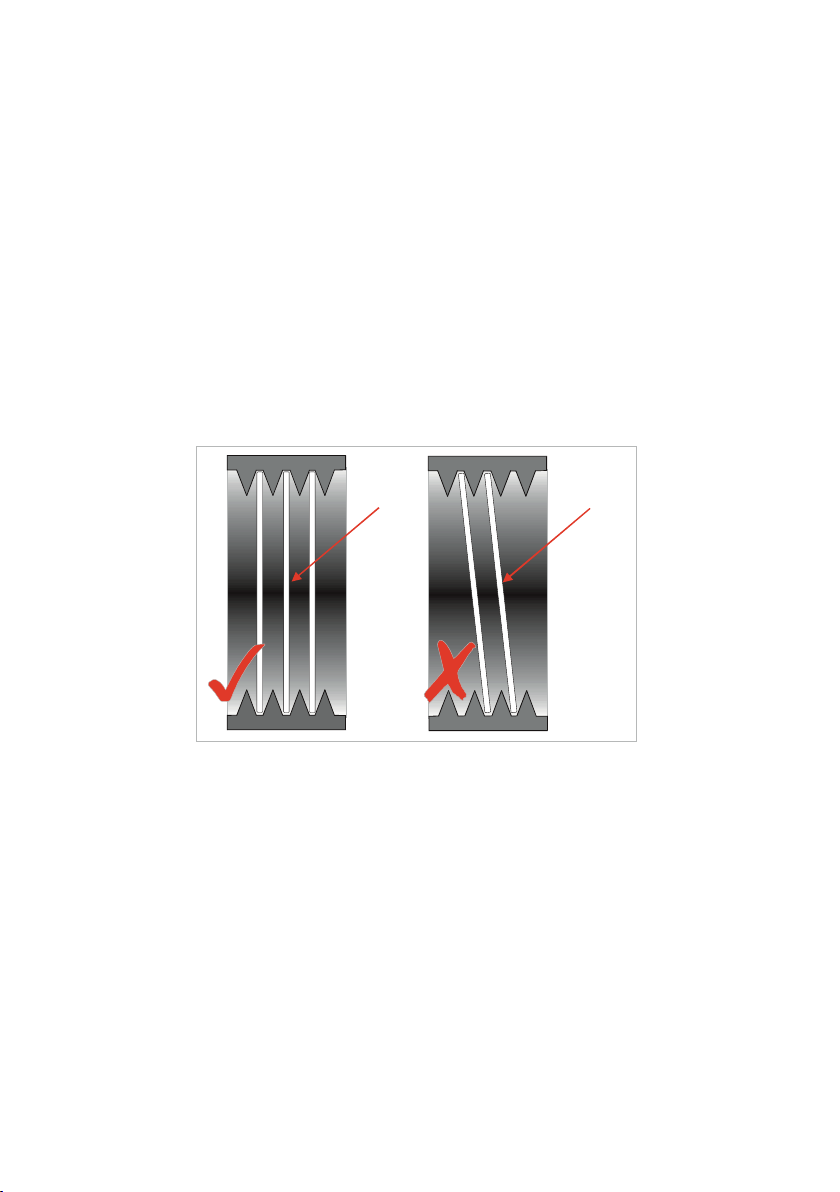

Insert the CDs with the CD label facing TO THE RIGHT, (see fig 4).
PLEASE ENSURE THAT THE CDs ARE INSERTED ABSOLUTELY STRAIGHT
Failure to do so can result in the mechanism mishandling the CD’s which can
cause damage to the CD’s or the mechanism.
If the jukebox is moved for any reason, please check again that all the CDs are
aligned correctly, and none have been displaced. If moving the Jukebox over
an uneven surface or any significant distance please replace the transit bars as
specified in the section on page 10.
Compact Disc’s
Compact Disc’s

15
FIG4 : CDs inserted into the mechanism
Note the printed side is facing towards the right

16
Playing the Jukebox
Making Selections
• When the discs and labels are installed, selections can be made using the
keyboard at the front of the Jukebox or via the remote control.
• To “flip” the title rack pages press the red buttons located on the far right
hand side of the button bank. (FIG3) or by using ‘F3’ or ‘F4’ on the remote
control. (FIG5)

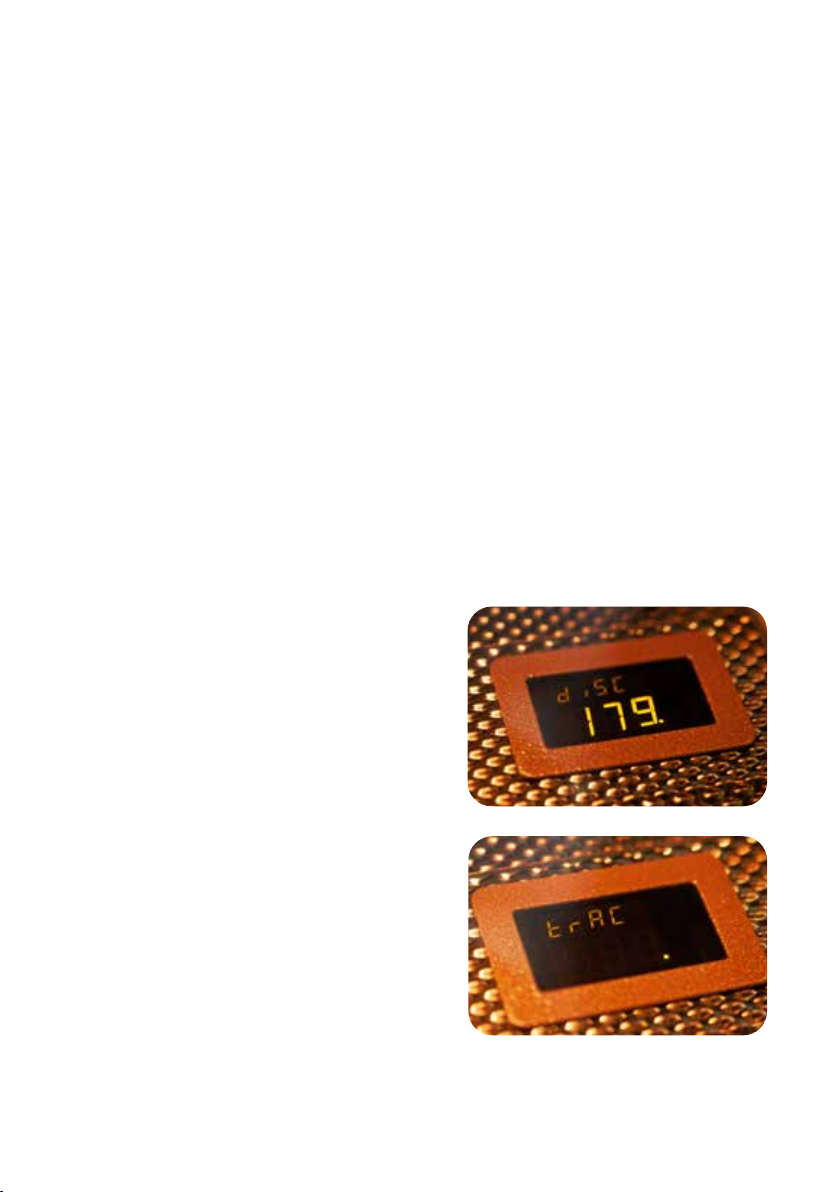

• When making selections the Jukebox will require a disc number (which is
the 3 digit number specified on the title card) and a 2 digit track number
(either 00 to play the entire disc - or the track number as specified on the
title card)
• If you make a mistake while entering a selection press ‘C’ on either the
remote or Jukebox button bank to re-start the selection process.
Playing a single track
• To play a track, select the 3 digit number for the disc, and then the 2 digit
number of the individual track. These numbers will show up on the display
as they are entered.
• This process can then be repeated to build up the “playlist” on the Jukebox.
Playing an entire CD album
• To play an entire CD disc, select the 3 digit disc number then enter the 2
digit track number as ‘00’.
• When playing the whole of an album, the ‘SKIP’ buttons |<< / >>| can be
used to select the next or previous track on that disc.
• When playing individual tracks from multiple albums the buttons can be
used to reject the track or skip back to the beginning of the track playing.
• Multiple discs or tracks can be selected to build a “playlist” on the Jukebox.
• Playlists can be cleared by pressing the “F1” button on the remote control.
Ejecting a track or disc
• To eject an entire disc press ‘REJECT DISC’ on the remote.
• To reject a single track press ‘REJECT TRACK’ on the remote.
Display
• When the Jukebox is playing, the display will switch off. Pressing the “C”
button will show which disc/track is currently playing.

17
Selections and additional functionality of the Jukebox can be controlled via the
remote control supplied with your Jukebox.
Vol 1
(stereo pair)
Jukebox
speakers
Vol 2
(stereo pair)
external speakers
if installed
Mute vol
Sleep mode
(places the Jukebox into low
power standby)
Switches amplifier to
Jukebox input
Switches amplifier to
bluetooth input
Switches amplifier
to Aux input
Numeric selection keys.
Used to make track
selection
Reject track
Skip Backwards
(Replays current track)
Turn Shuffle Mode ON
Title rack page flip Title rack page flip
Bluetooth pairing
Lighting Control
(See lighting section)
Clear playlist
Turn Shuffle Mode OFF
Skip Forwards
(Plays next track if applicable)
Reject disc
Keyboard
cancel
FIG5 : remote control

18
Adjusting Volume
As a precaution against overloading the speakers when switching the Jukebox
on, the volume is preset to a low level.
• To raise the volume to the preferred level, select a track, wait until the CD
is playing, then adjust the volume using the ‘VOL 1’ volume keys on the
remote control.
• The display will briefly show the volume level as ‘L -’. The number will vary
dependant on the volume level with 0 for off and 50 for full volume.
• The ‘VOL 2’ volume keys (on the remote) are used to adjust the volume of
the spare amplifier channels, please refer to page 22 “Adding additional
speakers”.
• Pressing the ‘MUTE’ key on the remote, will instantly mute the amplifier and
the display will show ‘L —‘, to return the volume to the previous level press
any of the volume keys.
Powering Off the Jukebox : Sleep Mode
It is recommended that the Jukebox is powered off using the standby procedure
and then to “full off” at the mains switch if required. This ensures that CDs are
ejected and the mechanism is in a safe position. Failure to power the Jukebox
down in this way could damage the jukebox mechanism.
To power off the Jukebox
• Press the “POWER” button on the remote control. (FIG 5) If a CD is playing
it will be returned to its position in the mechanism stack. The mechanism will
then return to its home position at the left hand side. “Sleep” will show on
the Jukebox display.
NOTE : Sleep mode is useful if you are going to be using your Jukebox within a
day or so. This will conserve power but still “wake’ the Jukebox quickly should
you wish to use it.
If you are not going to use the Jukebox for a few days then it is recommended to
use sleep mode followed by a full power off using the power switch on the back
of the Jukebox.

19
Shuffle Mode
The Jukebox features a random shuffle mode. This feature allows continuous
play until the function is disabled. If a manual selection is made when shuffle
mode is enabled then the currently playing track will play out before the chosen
selection is played. Once the manual selection has been played shuffle mode
will continue.
Shuffle mode has two settings : shuffle disc and shuffle track.
Shuffle disc
• This mode will play the entirety of a CD before randomly selecting another
CD and playing. This is to listen to complete albums. This setting will
continue to play random CD albums until the mode is disabled.
Shuffle track
• Shuffle track mode will play a random track from a random CD until the
mode is disabled.
How to enable or disable Shuffle modes
• The shuffle modes are enabled by
pressing the “shuffle on” button on the
remote control.
• Pressing the “shuffle on” button ONCE
enables the Shuffle DISC mode.
When enabled the Jukebox display
will show : “DISC” and a small dot
will appear in the lower section of the
display.
• Pressing the “shuffle on” button TWICE
enables the shuffle TRACK mode.
When enabled the Jukebox display
will show : TRAC and a small dot will
show in the bottom half of the display.
• To disable shuffle mode press the “Shuffle Off” button on the remote control.
The small dot will no longer show to indicate that shuffle mode is not
enabled.

20
Connecting external audio devices
Connecting an audio source to the Jukebox input
Audio sources, such as DAB radios or streaming devices can be connected to Aux
2 input on the D4 amplifier. (FIG7) The Jukebox automatically switches inputs.
• The player mechanism is the default device and will always take priority over
any other audio sources.
• If the player mechanism is idle (no disc playing), the Bluetooth will take
priority.
• If the player and Bluetooth are not playing then the Aux 2 input will take
priority.
FIG6 : Rear of Jukebox : Door open
Audio Out connection and
RESET button
Mains input
and switch
D4 Digital
Amplifier
Speaker
matching
pad
Bluetooth
Module
