Lenyo Mobile Port User manual

USER MANUAL
Mobile Port

7
www.hippocampus-brt.com
The device and its accessories
The software that contains the programs is delivered on a USB stick. The
device operates with an internal signal emitter. Connecting an external
antenna is not possible.
The components of the Lenyo Mobile Port kit:
Lenyo Mobile Port device
Information and installation software
Download cable for PC connection (in case of whole set order)
User manual

8www.lenyo.hu
Operation Guide
The buttons of the device
During the development of the front panel
of Lenyo Mobile Port, our primary goal was
simplicity and transparency. The buttons are on
the front panel of the device. The button on the
left is to start and stop program running, while
the button on the right is to select the program
(1, 2, 3, 4) and for volume settings. The device
operates with a built-in signal emitter. It is not
possible to connect an external signal emitter.
Four programs can be downloaded to the Lenyo
Mobile Port device, thus the device can be used
en route as well.

10 www.lenyo.hu
Important! In case the device is not used for an extended period of time, it
is advisable to remove the batteries.

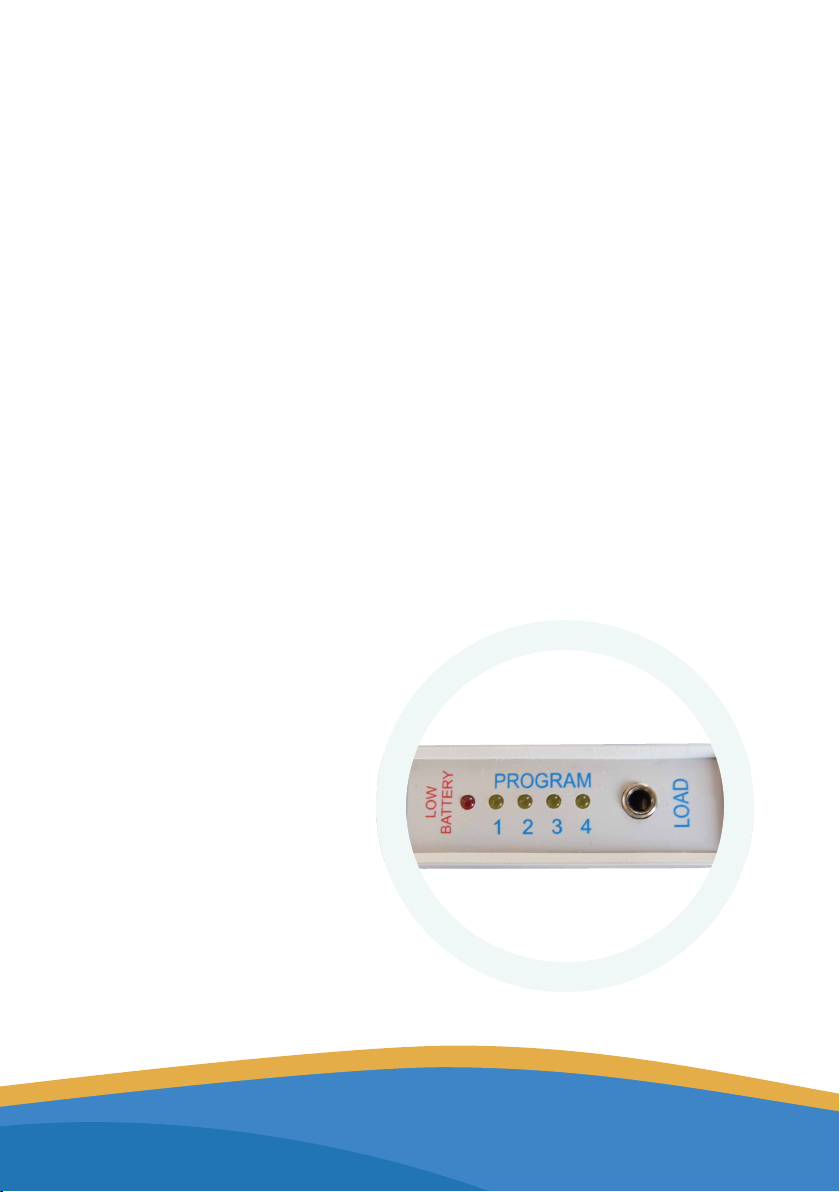

During operation, the device is continuously checking the supply voltage.
A blinking red LED (low battery) on the side of the device indicates that the
batteries in the device are running low. The longer the blink lasts, the less
energy the batteries have. Thus, the LED will blink more often and longer,
as the batteries gradually run out. Finally, when reaching a supply voltage
limit, the device will automatically switch off with a buzzing sound.
The device is an electronic instrument built in a plastic box. It is controlled
by an internal microprocessor. It can contain a maximum of four programs,
selected by the user. The programs consist of sub-programs built on each
other, thus they reach their full effectiveness only if their operation is not
interrupted during use. After the entire subprogram series constituting the
whole program has been finished, the device stops automatically.
Switching on
By pressing the ON-OFF button, the
device gives a short sound and the
four LEDs (1, 2, 3, 4) start to blink
alternately.
Program selection
After switching on the
device, press the right button
(SELECT) and select the
desired program. The LED
corresponding to the selected
program will light up.

12 www.lenyo.hu
It is recommended to start and finish with the Energy Balancing program.
For children, a daily maximum of 6 programs is recommended, each
program not more than once per day. In case of an acute problem, each
program may be run maximum twice per day, maximum four times all
together.
Downloading programs from the PC
The description of the software can be found in the Lenyo Mobile Port
Software Guide. After familiarizing yourself with the Guide and the
programs, and having composed the desired program sets (protocols),
connect the device to the USB port of the PC with the download cable.
Then, switch on the Lenyo Mobile Port device. Now the downloading will
work. After downloading the programs, switch off the Lenyo Mobile Port
device, then disconnect it from the PC, and switch the device on again.
In case you close the software, the Lenyo Mobile Port device, in order to
save battery energy, will automatically switch off after 2 minutes.

14 www.lenyo.hu
Technical data of Lenyo Mobile Port
Brand-name Lenyo
Type Mobile Port
Principle of operation Generating magnetic field, according to preset
programs
Indicators 4 x LED
Signal emitter internal signal emitter panel
Magnetic induction
(on the surface of radiator) 10 µT (peak-to-peak amplitude of the
fundamental harmonic in the whole range)
Frequency range 1 Hz – 200 kHz (-3dB)
Supply 2 batteries (AA), 1.5 V
Operating temperature +5 °C to +40 °C
Storage temperature -20 °C to +50 °C
Relative humidity max. 80 %
Sizes [mm] H 100 x W 61 x L 21
Mass 100g
Manufacturer Hippocampus-BRT Ltd.
Made in EU
