Leone ARROW User manual

2• USER MANUAL LEONE ARROW E-SCOOTER
Introduction
Thank you for purchasing the electrical powered scooter.
Wow! You are excited! You have just received our brand new E-Scooter! We are excited too, we
want to make you happy, and we believe that your new E-Scooter will give you lots of fun.
I know that you want to get your E-Scooter on the road immediately, but please STOP!
Why? Well, rst of all, you need to charge your batteries fully before using it. So, while your
E-Scooter is charging, take the time to read this manual. We have worked hard to make it as read-
able and fun as possible! This manual will help prevent injury and teach you how to care for your
new E-Scooter.
It is the owner’s responsibility to carefully read all of the contents of this manual and to comply
with all laws pertaining to the operation of (electric) scooters in your local jurisdiction. If you have
any questions, please consult your local department of motor vehicles for clarication.
We have worked hard to provide you a quality product, well designed, and without defects. That is
our responsibility. You too have a part to play with proper care and maintenance and attention to
motorbike safety rules, our E-Scooter will give you years of enjoyment.
Please read the instructions carefully before using. Do not ride this E-Scooter until you have read
and thoroughly understand the instruction manual. It contains information critical to your safety.
If you have questions about the operation of this electric scooter, consult your authorized dealer.
It is extremely important that you follow the safety guidelines contained in this manual in order
to ensure your maximum safety. If you loan your E-Scooter to anyone make sure they also know
how to operate it safely.
When using it, the loading should not exceed the maximum capacity, and please pay attention to
the braking distance during rainy or snowy days.
This E-Scooter is not afraid of the rain and snow, but it can’t be submerged in water. It will cause
short circuit and damage to the electric apparatus when water submerges the rear wheel elec-
tronic hub.
The exposed metal contact on the battery box can’t be touched with wet hands, otherwise it will
cause short circuit and accidents!
Please don’t dismantle and repair the spare parts by yourself, please go to the local distrib-
utor or the servicing station to repair if necessary.

USER MANUAL LEONE ARROW E-SCOOTER • 3
x
x
x
x
x
x
x
x
x
.................................
.....................................
.....................................................
.......................................................
..................................................
..........................................................
...............................................
.....................................................
..............................................................
Table of contents
Chapter One Schematic Diagram of Components
Chapter Two Safety Guidelines & Restrictions
Chapter Three Before Each Ride
Chapter Four After Each Ride
Chapter Five Battery Instructions
Chapter Six Maintenance
Chapter Seven Operating Instructions
Chapter Eighth Troubleshooting
Chapter Nine Warranty
Chapter one: SCHEMATIC DIAGRAM OF CONTROLS
1 - Display
2 - High beam switch
3 - Rear brake
4 - Directional light switch
5 - Horn
6 - Storage compartiment
7 - Frame number
8 - Power mode selector
9 - Light switch
10 - Throttle
11 - Front brake
12 - Reverse drive
1
2
3
4 5 6
12
11
9
810
7

4• USER MANUAL LEONE ARROW E-SCOOTER
1 - Rear rack
2 - Rear light
3 - Rear directional light
4 - Rear side reector
5 - Rear reector
6 - Rear fender and registration plate holder
7 - Rear wheel
8 - Centre stand
9 - Passenger footrest
10- Front wheel
11 - Front fender
12 - Front directional light
13 - Front light
14 - Rearview mirror
15 - Ignition
16 - Battery box + connection point charger
17 - Saddle
1
2
4
3
5
6
7
8
9
10
11
12
13
14
15
16
17

USER MANUAL LEONE ARROW E-SCOOTER • 5
Chapter two: SAFETY GUIDELINES & RESTRICTIONS
This Manual contains many WARNING notes concerning the consequences of failure to maintain
or inspect your E-Scooter. A • WARNING means that failure to follow the instructions following
it may result in injury to the rider or others during use, which may include losing control and
falling. Because any fall can result in serious injury or even death, we do not repeat the warning of
possible injury or death whenever the risk of falling is mentioned. A •CAUTION on the other hand
means that failure to follow the instructions may result in damage to the E-Scooter or component
during installation or use. (I.e. risk or property (product) damage only). The E-Scooter complies
with the Electric Motor Vehicle Safety Regulation.
1. Don’t weave through trac or make any moves that may surprise people with whom you are
sharing the road.
2. Never carry anything which obstructs your vision or your complete control of the E-Scooter or
which could become entangled in the moving parts of the E-Scooter.
3. Never hitch a ride by holding on to another vehicle.
4. The E-Scooter should not be operated by any person with vision, balance, hearing or coordina-
tion impairments
5. The E-Scooter should not be operated by any person using headphones or a cellular phone [
They mask trac sounds and emergency vehicle sirens, distract you from concentrating on what’s
going on around you, and their wires can tangle in the moving parts of the E-Scooter , causing you
to lose control ].
6. The E-Scooter should not carry more than 4.5 kg of cargo in the cargo compartment (in addition
to the rider).
7. The E-Scooter should not be operated in excess of 45 km/h (with or without the motor activat-
ed)
8. The E-Scooter should not be operated by barefoot riders or those wearing sandals, open toed,
high heeled, platform or slip- on footwear
9. The E-Scooter should not be operated by any person who has ingested any alcohol or drug that
could impair their ability to operate the E-Scooter.
10. The E-Scooter should not be operated without 2 hands on the handle bar.
11. The E-Scooter should not be operated while not seated on the seat.
12. The E-Scooter should not be used to jump ramps, curbs, or objects or attempt any stunts.
13. The E-Scooter should not be operated with excessive speed for the terrain, circumstances or
maneuver with clothing or extremities in close proximity to any moving parts.
14. The E-Scooter should not be operated beyond your ability or prior experience.
15. The E-Scooter should not be stopped with only the front brake. Use both brakes simultane-
ously.
16. Do not try to accelerate and have the brake (s) on at the same time. [This may cause damage
to the motor or drive train or cause the motor or drive train to overheat.]

6• USER MANUAL LEONE ARROW E-SCOOTER
NEITHER MANUFACTURE NOR THE RETAIL SELLER OF THE E-Scooter IS
RESPONSIBLE FOR THE CONSEQUENCES OF FAILURE TO COMPLY WITH FEDERAL AND PROVIN-
CIAL ORDINANCES RELATING TO THE USE OF THE E-Scooter.
WARNING!
ALWAYS USE A CERTIFIED HELMET WHILE RIDING THE E-Scooter.
The safety regulations require that you use a helmet while riding the E-Scooter.
The E-Scooter should not be used under any circumstances without properly wearing a helmet.
WARNING!
IN ADDITION TO THE REQUIREMENTS ABOVE, THE E-Scooter IS NOT
TO BE RIDDEN / USED:
1. on any roadways where the speed limit is in excess of 45 km/h
2. on any sidewalks or pedestrian walkways
3. on any bumpy, rough or unpaved surfaces
4. in darkness without lights on
5. on sandy or gravel covered surfaces
6. by any person weighing more than 150 kgs
7. by any person with an inseam of less than 55 cm
Diagram: measurements (in cm)
A
B
C
55 cm
2,5 cm

USER MANUAL LEONE ARROW E-SCOOTER • 7
Chapter three: BEFORE EACH RIDE
WARNING! CAUTION!
1. Make sure you properly wear a helmet.
2. Wear protective clothing and gloves.
3. Wear eye protection that does not interfere with your peripheral vision.
4. Check local and state laws before operating the E-Scooter in any area.
5. Make sure all tail/brake lights, turn signals and headlight are operational.
6. Make sure the horn is operational.
7. Make sure the brakes are properly adjusted and working correctly (see further detailed instruc-
tions).
8. Make sure you understand how the brakes work and that your hands can reach and squeeze
the levers comfortably and hard enough to stop the E-Scooter safely.
9. Make sure all parts of the E-Scooter are properly and securely fastened and adjusted.
10. Make sure the tires are not excessively worn, do not have tears or cuts, and are properly
seated on the rim and inated to the proper pressure on the sidewall (DO NOT USE GAS STATION
PUMPS FOR INFLATION).
11. Make sure the wheels spin straight and that the rims are not bent or damaged (front wheel
must be undamaged for front brake to work properly).
12. Make sure the throttle is in the “OFF” position before turning E-Scooter key on. This will pre-
vent the E-Scooter from moving forward without notice once the ignition key is turned.
13. Make sure the “Air Switch” under the seat is in the “On” position before turning key on.

8• USER MANUAL LEONE ARROW E-SCOOTER
Chapter four: AFTER EACH RIDE
WARNING! CAUTION!
1. Make sure that the ignition key is turned OFF and that all keys are removed and kept in a safe
place.
2. Make sure the throttle is rotated to the o position.
3. Ensure that the kickstand is used so the E-Scooter will not fall over and get damaged.
4. Ensure the E-Scooter is not kept outdoors or where moisture can damage it.
5. Do not charge or store the E-Scooter closer than 6 meter from any ame (e.g. furnace, re-
place, water heater, space heater).
6. Do not allow children under 16 to play on or near the unattended E-Scooter.
WARNING!
FAILURE TO FOLLOW THESE OPERATION INSTRUCTIONS CAN RESULT IN SERIOUS INJURY OR
DEATH OR COULD RESULT IN AN ELECTRICAL SHORT AND OR FIRE.
WARNING!
DO NOT MAKE ANY ALTERATIONS OR MODIFICATIONS TO THE
MOTOR, OR ADD ANY PARTS NOT AUTHORIZED BY MANUFACTURER EXCEPT THOSE DISCUSSED
IN THIS MANUAL OR THOSE REQUIRED BY LAW.
WARNING!
DO NOT REMOVE ANY REFLECTORS, LIGHTS OR OTHER STANDARD EQUIPMENT. DOING THAT
WILL VOID YOUR WARRANTY.

USER MANUAL LEONE ARROW E-SCOOTER • 9
Chapter five: BATTERY INSTRUCTIONS
BEFORE OPERATING YOUR NEW E-SCOOTER FOR THE FIRST TIME, CHARGE THE BATTERY FOR 3
to 8 HOURS, BUT UNDER NO CIRCUMSTANCES IN EXCESS OF 18 HOURS. Be sure to charge the
E-Scooter after each use. Keeping the battery properly charged will help extend the battery life.
Do not use the E-Scooter while the power indicator on the instrument panel shows low energy. If
the E-Scooter is over-used the battery’s life will be reduced. The E-Scooter uses a 60V (volt) battery
pack. To charge the battery, connect the 2-pin plug into the charging receptacle located directly
below the front seat. The battery must be charged while installed in the E-Scooter. If you notice
anything unusual about the battery such as a cracked or leaking battery case, a battery that gets
hot while being used or charged, a battery case that appears “puy” or “bloated” etc, or there are
any other problems with the battery, please contact your local dealer. The battery is sealed and is
NOT user serviceable. Do not attempt to repair, remove, Adjust or in any way alter any internal or
electrical components, controls or wiring without rst speaking with a customer service repre-
sentative.
The main battery weighs approximately 10 kg. There is no need to remove it from the E-Scooter.
Use caution on removal. To replace the main battery pack, unlock the under seat storage com-
partment by turning the ignition key to the left. Lift the saddle. Turn o the main switch. Unscrew
the two screws of the battery cover panel. Unplug the cable from the battery. Take out the bat-
tery. To place back the battery, reconnect the cable. Place the cover and tighten the screws.
Turn on the main switch. Close the saddle.
The E-Scooter is equipped with a 60V battery charger that will interrupt the charging process
once the battery has received a sucient charge. Hereby strongly suggests that the charger not
be used in excess of 18 hours to prevent any unnecessary wear on the battery or charger itself.
Charging for periods greater than 18 hours may reduce the overall life expectancy and Eciency
of these items. If you have a second battery, turn o the main breaker switch and change the
cable to the second battery. Turn on the main breaker switch to continue using your E-Scooter.
CAUTION
DO NOT DROP THE BATTERY
CAUTION
TO AVOID DAMAGE TO THE BATTERY WHEN CHARGING, USE ONLY THE CHARGER PROVIDED
WITH YOUR E-Scooter.
CAUTION
DO NOT EXPOSE THE BATTERY TO WATER AND PREVENT IT FROM BEING DAMPED BY WATER.

10 • USER MANUAL LEONE ARROW E-SCOOTER
1. WARNING! DO NOT CHARGE OR STORE THE E-SCOOTER CLOSER THAN 6 METER FROM ANY
FLAME (E.G. FURNACE, FIREPLACE, WATER HEATER, SPACE HEATER)
2. Be sure to only use 230V AC charger for Europe.
3. PLUG the POWER INPUT CORD into the E-Scooter charging receptacle located below the front
of the seat.
4. Plug the 60V battery charger into a 230V AC power source.
5. WARNING! DO NOT KEEP THE E-SCOOTER CONNECTED TO THE CHARGER
FOR LONGER THAN 18 HOURS UNDER ANY CIRCUMSTANCES! DOING SO COULD CAUSE THE BAT-
TERY OR CHARGER TO OVERHEAT AND CAUSE A FIRE.
6. When the light on the charger is red, the E-Scooter battery is being properly charged. When the
E-Scooter battery is fully charged, the light will turn green. If this does not occur after 18 hours of
charging, unplug the charger and call your local dealer.
7. Disconnect the charger from the 230V Power Source.
8. Disconnect the Input Cord from the Charging Receptacle.
9. WARNING! NEVER LEAVE THE BATTERY CHARGER CONNECTED TO THE 230V POWER SOURCE
OR THE E-SCOOTER WHEN NOT CHARGING THE BATTERY.
KEEPING THE CHARGER PLUGGED INTO THE 230V POWER SOURCE AND NOT THE BATTERY
COULD CAUSE THE CHARGER TO OVERHEAT AND OR CAUSE A FIRE.
10. When storing your E-Scooter for lengthy periods of time, the battery should be charged at
least once a month to avoid full depletion.
WARNING!
FAILURE TO KEEP THE E-SCOOTER BATTERY CHARGED WILL CAUSE TOTAL BATTERY FAILURE. DO
NOT ALLOW THE BATTERY TO BECOME FULLY DISCHARGED!!! ALWAYS RECHARGE THE BATTERY
BEFORE THE POWER INDICATOR ON THE INSTRUMENT PANEL SHOWS NO POWER. ALLOWING
THE BATTERY TO FULLY DISCHARGE WILL REDUCE BATTERY LIFE AND MAY RUIN THE BATTERY OR
COULD CAUSE THE BATTERY OR CHARGER TO OVERHEAT AND CAUSE A FIRE THE NEXT TIME THE
E-SCOOTER IS CHARGED.

USER MANUAL LEONE ARROW E-SCOOTER • 11
BATTERY RECYCLING
When maintained and used properly, (by following charging and storage guidelines,) the Lithi-
um-Ion Battery Pack used in this product has a normal lifespan of two to three years. When the
battery pack no longer holds a charge or is unable to be charged properly, it should be removed
from the E-Scooter and delivered to a recycling facility. It is prohibited to dispose of batteries in
everyday trash. Please contact your local solid waste or recycling authority for recycling informa-
tion in your area.
GENERAL USAGE NOTES
Break-in Period: Your E-Scooter will last longer and work better when it is broken in properly.
Brake control cables and axle nuts may get loose when a new E-Scooter is rst used and may
require an adjustment. We suggest that the brakes and axle nuts be checked every 30 days and
adjusted if necessary.
Turning the throttle all the way up and riding the E-Scooter all the time on a full throttle will
reduce the range and the battery life. We suggest you to start smoothly and turn the throttle 1/4
turn down when you have built a momentum.
If your E-Scooter sustains an impact:
WARNING!
A CRASH OR OTHER IMPACT CAN PUT EXTRAORDINARY STRESS ON COMPONENTS, CAUSING
THEM TO FATIGUE PREMATURELY. COMPONENTS SUFFERING FROM STRESS FATIGUE CAN FAIL
SUDDENLY AND CATASTROPHICALLY, CAUSING LOSS OF CONTROL, SERIOUS INJURY OR DEATH.
First, check yourself for injuries, and take care of them as best you can.
Seek medical help if necessary. Next, if your E-Scooter is damaged, perform the checks described
in this manual. If you are unable to x any or all damage/problems, or if you nd any bent,
scored, or discolored parts, please call your local dealer.
WARNING!
IF YOU HAVE ANY DOUBT ABOUT THE CONDITION OF THE E-SCOOTER OR ANY OF ITS PARTS,
DONT USE IT . CALL YOUR E-SCOOTER DEALER.

12 • USER MANUAL LEONE ARROW E-SCOOTER
Chapter six: MAINTENANCE
Technological breakthroughs have made components more complex than ever before, and the
pace of innovation is increasing. This on-going revolution makes it impossible for this manual to
provide all the information required to properly repair and/or maintain your E-Scooter. In order
to help minimize the chances of an accident and possible injury, it is critical that you have all
repair and maintenance work performed regularly. For more detailed maintenance instructions
or for ordering replacement parts please contact your E-Scooter dealer. Local bicycle retail stores,
which have service facilities in your area, can also assist you with certain non-electrical repairs
or adjustments that you are not qualied to make or for which you do not have the specic or
specialized tools needed for repair.
The fact that these scooters have no combustion engine, no transmission, no belts, no chains, no
clutch, no ignition plugs, no carburetor, and uses no gasoline and no lubricants means it requires
basically no maintenance. The unique design of the direct drive system and the use of regenera-
tive brushless motor braking system conne all friction in the E-Scooter only in the two bearings
of the front axle and the two bearings in the motor and make it much easier to maintain than
other electric scooters.
In generally all the regular mechanic maintenance is to:
• Adjust the brakes
• Check the nuts and bolts
• Check the tire pressure, the suggested tire pressure is 36 psi (or 2.48 bar) for the front and
the rear wheel.
• Check both axle nuts regularly and especially the rear one. Make sure to tighten the nuts
rmly when you change a tube.
ROUTINE CLEANING
Please use clean water and neutral detergent to clean the scooter and use soft cloths and spong-
es to clean the surface. It is prohibited to use metal brushes, sandpaper or the like to clean it in
order not to scratch the surface. After cleaning dry with soft cloths.
Please disconnect the main breaker switch before cleaning.
Do not use a water jet to directly wash it, so as to avoid the defect of mechanical parts caused be
water invasion.
BRAKES MAINTENANCE
The rear brake cable may get stretched. Tighten the nut at the threaded end of the cable to ad-
just. If the braking power decreases, check the brake pads. If the brake pads are worn out, replace
them. If the brake cable is stretched to the point that there is no more threads left at the end,
unscrew the lever and turn it away from the cable.

USER MANUAL LEONE ARROW E-SCOOTER • 13
REGULAR INSPECTION AND MAINTENANCE
The new scooter must be subject to the rst inspection and maintenance when it reaches 1000km
or two months after rst use.
The scooter is recommended to be subject to regular inspection and maintenance in the service
center at every 3000 km.
FLAT TIRE REPAIR
Your E-Scooter may come with tubeless tires or tires with tubes. For tubeless tires we recommend
to carry with you a tubeless tire repair kit and use it if the magnitudes of puncture permits. Then
consult with professional tire repair service shop if this is sucient.
WARNING!
Don’t ride or push your E-Scooter with at tire. This will cause the tire beads to detach from the
rim and possibly bent the rim.
WARNING!
IF THE TIRE IS CUT, YOU MUST REPLACE THE TIRE TO PREVENT ANY SUDDEN AND CATASTROPHIC
FAILURE CAUSING LOSS OF CONTROL, SERIOUS INJURY OR DEATH. Replacement parts are able to
be purchased by calling your local SCOOTER dealer.

14 • USER MANUAL LEONE ARROW E-SCOOTER
Chapter seven: OPERATING INSTRUCTIONS

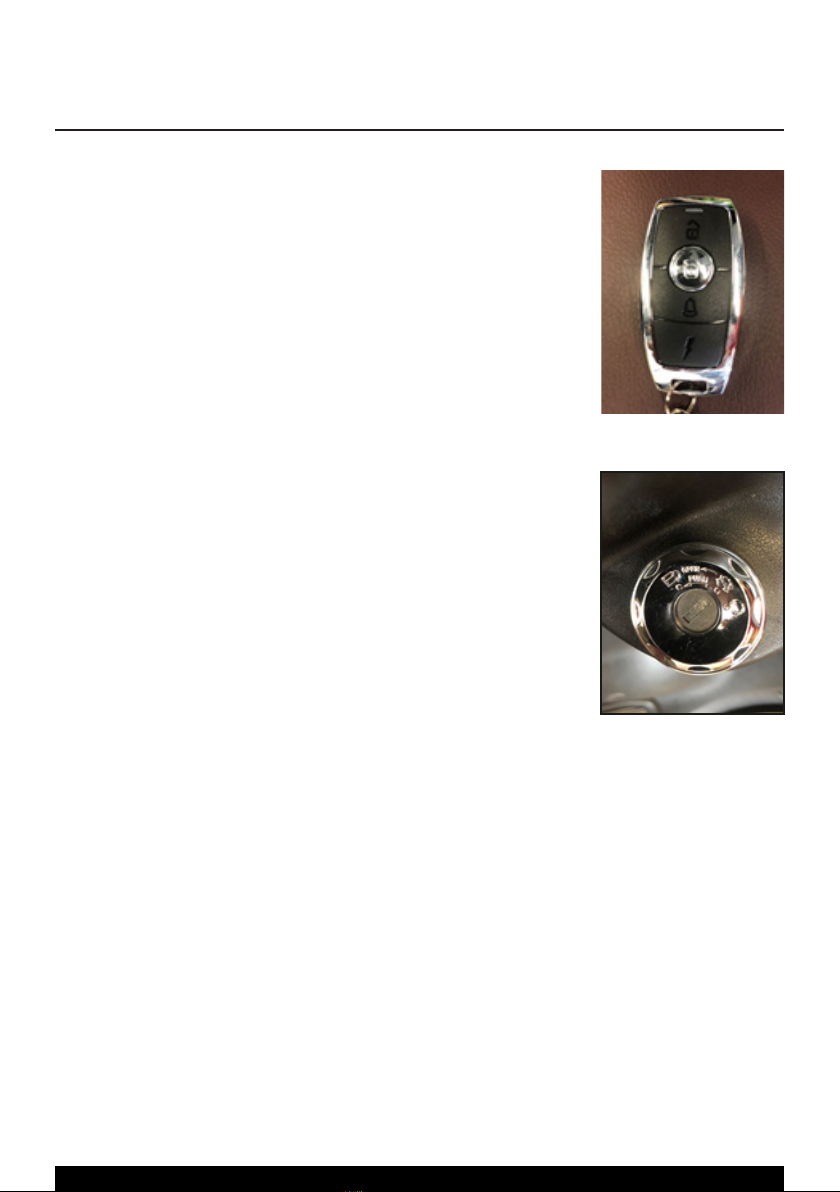

ALARM OPERATION:
Alarm Operation:Use the remote to operate the alarm.
Turn o the alarm by pushing the top button with the UNLOCK
symbol. Turn on the alarm by pushing the silver button with the LOCK
symbol.
The button with the bell symbol generates a tune and can be used for
easy location of your E-Scooter. Shortly press the Lightning bolt button
and then press the button twice again to start the E-Scooter without
using the Key. To deactivate the scooter, press the “unlock sign”.
When you turn on the underseat main breaker switch you will hear a
single signal, this is normal and conrms the E-Scooter is now live.
KEY AND THROTTLE OPERATION
ON/OFF Switch: (ignition)
Insert the key, E-Scooter is OFF.
Turn it to the right to turn the E-Scooter ON. Turn it ON only when you
are ready to go.
On the display you see the total KM on startup, then it switches to trip
KM. The trip km is added to the total. The trip KM is reset each time
you turn the key.
Turn it OFF when you are not riding and remove key. Turn it OFF when not in use to preserve the
battery. Turn it to the LEFT to unlock the seat and access the under-seat storage area.
To activate the steering lock, turn the handlebar to the left, and while pressing the key inward
turn it left.
CAUTION!
BEFORE OPERATING YOUR E-Scooter, MAKE SURE THAT THE THROTTLE GRIP IS NOT ROTATED TO
THE “ON” POSITION!!! MAKE ALSO SURE THAT YOUR THROTTLE IS NOT “STICKY” AND ROTATES
FREELY BACK TO THE INITIAL POSSITION SEE PICTURE FOR CORRECT PLACEMENT OF LEVER BE-
FORE USAGE!!!

USER MANUAL LEONE ARROW E-SCOOTER • 15
THROTTLE CONTROL
The E-Scooter uses a speed changing throttle grip. It is on the right side of the handlebar. Rotate
the throttle grip toward the seat to accelerate and rotate forward away from the seat to slow
down. It is suggested after acceleration to turn back 1/4 turn the throttle. This will increase your
range and increase your battery life.
THROTTLE OPERATING INSTRUCTIONS
1. Turn the key to the ‘ON’ position, then turn the Throttle Gradually to accelerate.
2. To prevent losing control of the vehicle, please turn the Throttle slowly until the speed increas-
es.
3. Do not turn the Throttle until you are in the position to drive.
4. To stop, release the throttle and apply the front and rear brake simultaneously. You can decel-
erate by slightly pressing the brakes to start regeneration mode.
5. To move, release the brakes and turn the Throttle gradually.
6. When you turn move the turn signal switch left or right and don’t forget to turn it o by center-
ing the button.
7.The brush-less motor makes a small electromagnetic noise when turning the Throttle to start.
This is normal.
8. Please, for your safety and security, take the key out when you are not riding.
POWER MODE SELECTOR
The power mode selector is located beside the throttle. If you are driving on a at or low hill road,
you will achieve a maximum range when you ride on low speed (economy mode, power mode
1) When you ride on moderate hills, you will achieve a maximum speed for the hill if you switch
to high power (power mode 3). When you ride on steep hill you should switch to high speed for
maximum performance. Power mode 2 is the in between setting.
1 - Eco = less speed, less torque
2 - Comfort = more speed, more torque
3 - Max power = maximum speed, maximum torque
For safety the E-Scooter always starts in power mode 1 = Eco
REVERSE DRIVE
The travel direction switch (D-R) is located on the right handlebar. The D (Drive) position is the
normal position for driving forward. The R (Reverse) position is used to drive the E-Scooter in
reverse. We recommend that you use the throttle with great care when using the R position.
Although the speed for reversing is limited, it is still advisable never to fully open the throttle!
CAUTION!
Before switching on the scooter, always check whether the button is in the D position.

16 • USER MANUAL LEONE ARROW E-SCOOTER
CAUTION!
BEFORE OPERATING YOUR E-Scooter MAKE SURE THAT THE THROTTLE GRIP IS NOT ROTATED TO
THE “ON” POSITION!!! MAKE ALSO SURE THAT YOUR THROTTLE IS NOT “STICKY” AND ROTATES
FREELY BACK TO THE INITIAL POSSITION.
The distance and speed depend upon various elements of the rider’s style and the road condi-
tions. A constant speed and less stops will ensure longer range. Other factors include weather,
vehicle condition, and battery charge. Drivers must be cautious when driving on rough roads, in
poor weather, or when the battery charge is low. Always check the battery gauge while you are
riding and be sure that it does not get too low too often.
OPERATING INSTRUCTIONS
The E-Scooter’s driving system consist of four main components :
- Battery
- Controller
- Throttle
- Motor
When the throttle is twisted, a signal goes to the controller, relevant to the angle of turning. Then
the controller draws from the battery current, relevant to the required speed, controlled by the
throttle and the power necessary to start the E-Scooter or drive it uphill. The higher the driving
speed is and the steeper the hill is, the lower the range of the E-Scooter is. A second battery can
be connected to extend the range. The main breaker switch under the seat works as a high cur-
rent protector. 60V DC to 12V DC invertor inverts the voltage to 12V. All light bulbs work on 12V.
The alarm works on 60V. It is vibration sensitive. No matter that it consumes very little amount of
power, it is recommended when the E-Scooter is stored for a long period of time the main break-
er switch to be turned OFF.

USER MANUAL LEONE ARROW E-SCOOTER • 17
Chapter eight: TROUBLESHOOTING
Problem Condition Check Solution
When I turn
my Vehicle on no-
thing happens.
1. No Indications on the
display.
1.Check the main
breaker under the seat
if it is on “ON” position.
2. Check power
Connection
and battery level.
1. Flip the breaker lever on
“ON”
2. Fasten connections.
2.Power indication light
is on
3. Check battery and
motor connection
3. Clean and fasten battery
terminal connectors.
4. Fasten the motor
connections. With the controller
under seat.
3.Power indication light
is on and the brake light
is “on”.
4. Check the brake
levers if they return to
normal position.
5. Loosen the brake. If there
is any corrosion replace. Contact
the supplier.
6. Charge or replace
battery. Contact the supplier.
5 . Battery voltage is
below 42 volts.
The Throttle does not
work or switch on,
the vehicle moves
without acceleration.
1. The Throttle does not
return to stop position.
1. Check the grip for
damage
2. Check the Throttle
spring.
3. The Throttle handle if
it is loose
1. Use a at head screwdriver
to adjust the gap between the
rubber handle and the cover.
2. Re-adjust the throttle spring
position. Contact
the supplier
3. Check Throttle connections.
Contact the
supplier.
The range is low
Charger light is
o
1. Bad connection bet-
ween the charger and
the battery.
2. Charger doesn’t
charge
1. Check the charger plug
position.
2. Replace the charger
Battery doesn’t hold the
charge
1. Connections between
the batteries are
not good
2. Bad battery cell
1. Check all connections between
the batteries
2. Replace the bad
battery cell
The brakes are not
working
properly
1. Brake levers go too
deep
2. No braking
power
4. Check the brake
1. Adjust the brake cable - see
instructions
2. Clean brake pads using
sand paper or replace

18 • USER MANUAL LEONE ARROW E-SCOOTER
WARRANTY INTRODUCTION:
Manufacture warrants to the original retail purchaser (“you”) that the E-Scooter for which this
warranty has been issued is free from defects in material and workmanship as follows:
24 months warranty
• Frame
• Electric Motor
• Controller and electric circuits
• Battery and charger
Please be aware that it is normal for the battery to lose 15-20% capacity per year. After two years
this means 60-70% capacity is still normal. Battery capacity will be reduced when placed in a
low-temperature environment.
This warranty is not transferable to a subsequent purchaser. The manufacture’s sole obligation
under this warranty is to repair or replace the product at manufacture’s option. The manufacturer
must be notied in writing of any claim under this warranty within 15 days of any claimed lack of
conformity of the product. Immediate report to E-Scooter dealer is required if abnormal behavior
of the product is noticed.
WARRANTY LIMITATIONS:
The duration of any implied warranty or condition, of merchantability for a particular purpose,
or otherwise, on this product shall be limited to the duration of the express warranty set forth
above. In no event shall E-Scooter dealers be liable for any loss, inconvenience or damage, wheth-
er direct, incidental consequential or otherwise, resulting from breach of any express or implied
warranty or condition, of merchantability for a particular purpose, or otherwise with respect to
this product, except as set forth herein. This warranty gives you specic legal rights, and you may
also have other rights, which may vary, from location to location.
This warranty will be interpreted pursuant to the laws of EUROPE or NA. The original English lan-
guage version/meaning of this warranty controls over all translations and LEONE is not responsi-
ble for any errors in translation of this warranty or any product instructions. This warranty is not
intended to confer any additional legal, jurisdictional or warranty rights to you other that those
set forth herein or required by law. If any portion of this warranty is held to be invalid or unen-
forceable for any reason, such nding will not invalidate any other provision. For products pur-
chased in countries please contact a E-Scooter authorized distributor in that respective country.
Chapter nine: WARRANTY

USER MANUAL LEONE ARROW E-SCOOTER • 19
WARRANTY SERVICE OPTIONS
To obtain service under this warranty you must Call your E-Scooter dealer for Customer Service/
Technical Support on your Product BEFORE returning your Product back to the place of pur-
chase. If you return your Product for warranty service you must obtain a return authorization by
contacting the dealer. Send your product (with the return authorization), together with the retail
seller’s original receipt or other satisfactory proof of the date of purchase to the dealer you have
purchased it from.
THE PRODUCT MUST BE RETURNED IN ITS ORIGINAL STATE, ALONG WITH ALL KEYS, CHARGER,
MIRRORS & LOCKS, FLOOR MATS, AND ANY OTHER ACCESSORIES THAT CAME WITH YOUR UNIT.
DUE TO TRANSPORTATION AND RECLAMATION ISSUES , IF THE PRODUCT IS NOT IN THE ORIGI-
NAL STATE IT MAY NOT BE RETURNED UNDER ANY CIRCUMSTANCES.
Any postage, insurance or other shipping costs incurred in sending your product for service under
either option above is your responsibility. The Manufacturer will not be responsible for products
lost or damaged in shipping.
Warranty Exclusions are listed below:
• Retailers and sellers are not authorized to modify this warranty in any way. It is your re-
sponsibility to regularly examine the product to determine the need for normal service or
replacement. This warranty does not cover the following:
1. Products that have been modied, neglected or poorly maintained, used for commer-
cial purposes, misused or abused or involved in accidents .
2. Damage occurring during shipment of the products (such claims must be presented
Directly to the shipper).
3. Damage to products resulting from improper assembly or repair, the use or instal-
lation of parts or accessories not compatible with the original intended use of the
product, or the failure to follow the product warnings and usage instructions.
4. Damage or deterioration to the surface nish, aesthetics or appearance of the prod-
uct.
5. The labor required to remove and/or re-t and re-adjust the item covered by this
warranty.
6. Normal wear to the product.
7. Light bulbs and tyres
8. Any products for which the consumer does not follow the warranty procedures out-
lined above.

20 • USER MANUAL LEONE ARROW E-SCOOTER
READ THIS MANUAL BEFORE OPERATING YOUR E-Scooter WE STRONG-
LY SUGGEST THE OPERATOR OF THIS PRODUCT BE 16 YEARS OF AGE OR
OLDER
For the most recent version of this user’s manual and for all updated prod-
uct information, please contact the local dealer.
YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCI-
DENTS INVOLVING USE OF THE E-Scooter. TO DETERMINE IF COVERAGE IS
PROVIDED YOU SHOULD CONTACT YOUR INSURANCE COMPANY
