User Manual

``
2
WARNING
Read the User Manual carefully before operating AFISCOOTER M.
If you do not fully understand any part of this manual, please contact your dealer or
any of our Service Centres.
Read this manual step by step, as injury or damage may occur from misuse!
WARNING
Electromagnetic Interference (“EMI”) can cause powered vehicles to behave
erratically, which could be dangerous to the user.
For your safety and protection, it is IMPERATIVE that you take time to read
Chapter 9 (“EMI WARNING”) before operating AFISCOOTER M.
Serial Number and Manufacturer’s data are fixed at the front, on the plastic mud
guard cover on the metal label of the AFISCOOTER M.

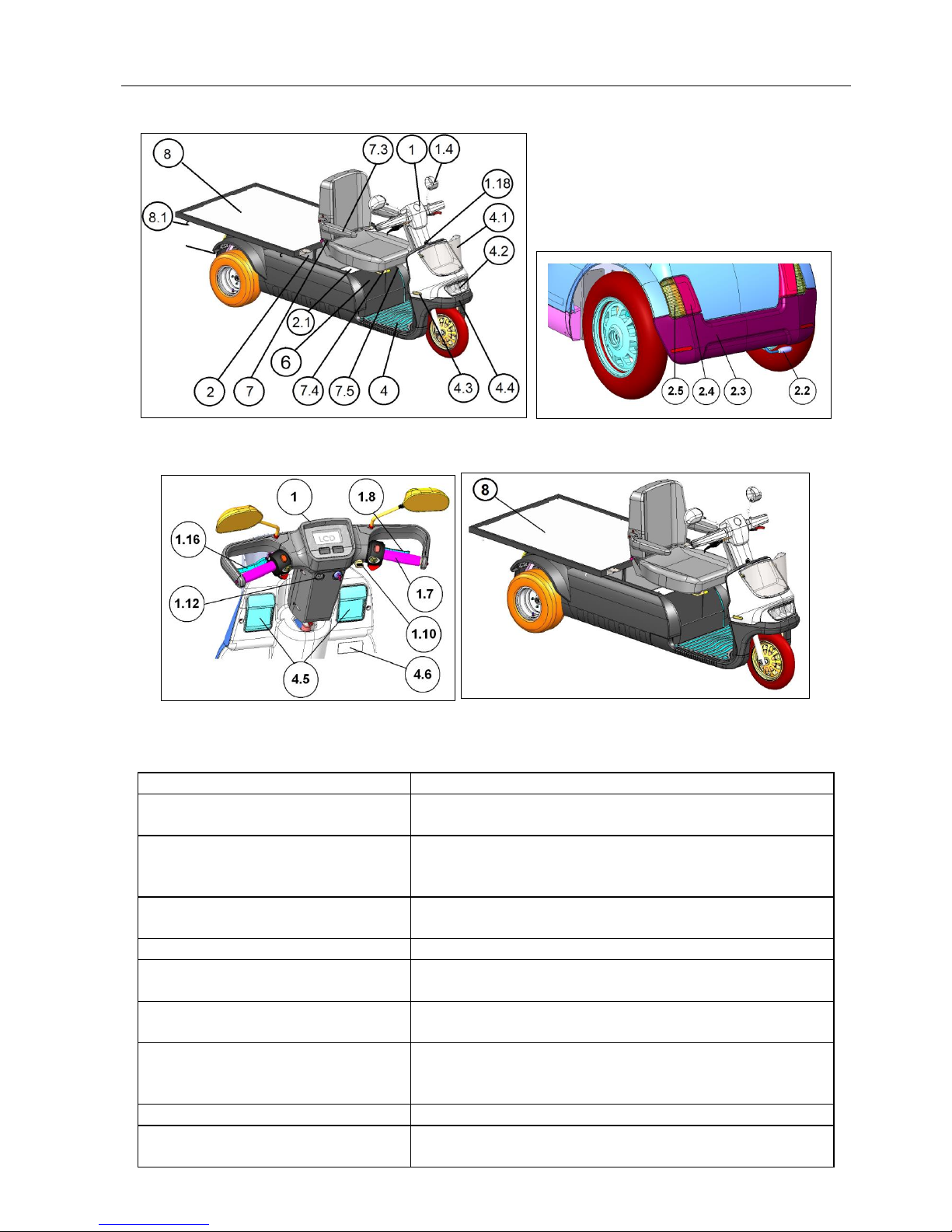

(See 4.6 in figure 3, page 18)
WARRANTY
AFIKIM ELECTRIC VEHICLES strives continuously to improve its products, their
quality and reliability, in constant effort to ensure its customers’ satisfaction as well
as its place in the market.
Warranty for AFISCOOTER M is subject to your local distributor's warranty.
CE CERTIFICATION
The Afikim Electric Vehicles Ref. Registration Number with the Competent
Authority (UK) is: CA000292.
Our Authorized Representative with the Competent Authorities is:
MEDES LTD. , POB 231
Stanmore, Middlesex, HA7 4YA, England
TEL/FAX: [phone]

``
3
CONTENTS
CHAPTER 1 –OVERVIEW OF THE AFISCOOTER M (MAIN FEATURES) 4
CHAPTER 2 –SAFETY SYMBOLS FOR THE AFISCOOTER M 5
CHAPTER 3 –SAFETY INSTRUCTIONS FOR AFISCOOTER M 9
CHAPTER 4 –GENERAL DESCRIPTION OF THE AFISCOOTER M 17
CHAPTER 5 –ADJUSTMENT INSTRUCTIONS 19
CHAPTER 6 –OPERATING INSTRUCTIONS 20
6.1 GENERAL 20
6.2 LCD DISPLAY USE 22
6.3 DRIVING AND GENERAL USE 23
6.4 USE OF THE PLATFORM 25
CHAPTER 7 –CHARGING 27
CHAPTER 8 –MAINTENANCE 28
CHAPTER 9 –TROUBLESHOOTING AND REPAIR 31
CHAPTER 10 –EMI WARNING 32
Appendix A –Specification Sheet 33

``
4
CHAPTER 1 –OVERVIEW OF THE AFISCOOTER M (MAIN FEATURES)
Congratulations on choosing the AFISCOOTER M as your electrically powered scooter.
AFISCOOTER M is a scooter designed for load and cargo transportations.
Scooter classification: Class C in accordance with EN12184.
AFISCOOTER M is designed for a maximum driver load of 160 Kg (352 lbs) and total load of
300Kg (660 lbs) including the driver.
AFISCOOTER M is an outdoor scooter designed to work in normal environmental conditions:
from very cold temperatures (-30ºC/-22ºF) to very hot temperatures (+45ºC/+113ºF).
AFISCOOTER M will operate in light rain showers, but extended use is not recommended in
heavy rain or snow.
AFISCOOTER M is easy to operate. The relatively large wheels allow the user drive on
unpaved roads, over moderately rough terrain and over obstacles as high as 5” (12 cm).
Refer to Appendix A: Specification Sheet (Page 30) for the required tyre pressure.

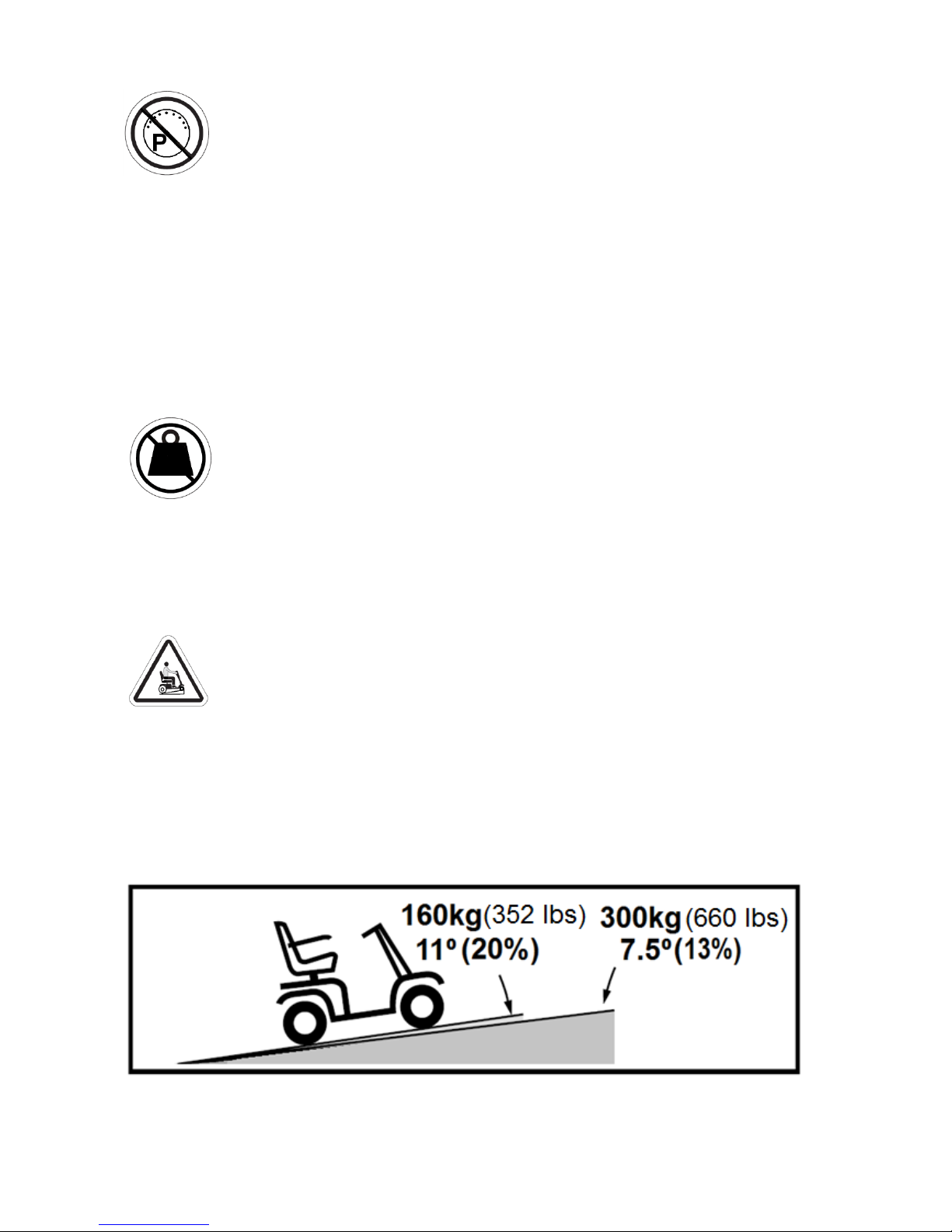

AFISCOOTER M maximum safe slope is: 11.3º (20%). Afiscooter M loaded max. safe slope
is 7.4 º (13%).
The braking system stops AFISCOOTER M smoothly and within a short distance after the
throttle control lever is released.
AFISCOOTER M is equipped with both front and rear shock absorbers to give the user a
comfortable and smooth drive, even when using the vehicle on moderately rough roads.
A standard handbrake is also provided for backup.
The seat is spacious and comfortable, and can be rotated for easy access (standard seats). It
can be adjusted forward and backward. The seat can also be adjusted up and down by a
technician.
All controls are conveniently mounted on the tiller and are simple to operate.
Under normal conditions, AFISCOOTER M can travel approximately 50 km (33 miles) before
the batteries require recharging.
After reading through this entire manual and before using AFISCOOTER M, do a visual
check of all the parts, of the vehicle, to make sure that there is no visible damage. If you have
any questions or concerns, contact your dealer.
AFISCOOTER M was developed to use maintenance-free sealed batteries only.
A Maintenance Manual is available for trained technicians.

``
5
CHAPTER 2 –SAFETY SYMBOLS FOR THE AFISCOOTER M
WARNING! An authorized supplier or qualified technician must perform
the initial setup of this scooter, and must perform all of the procedures in
this manual.

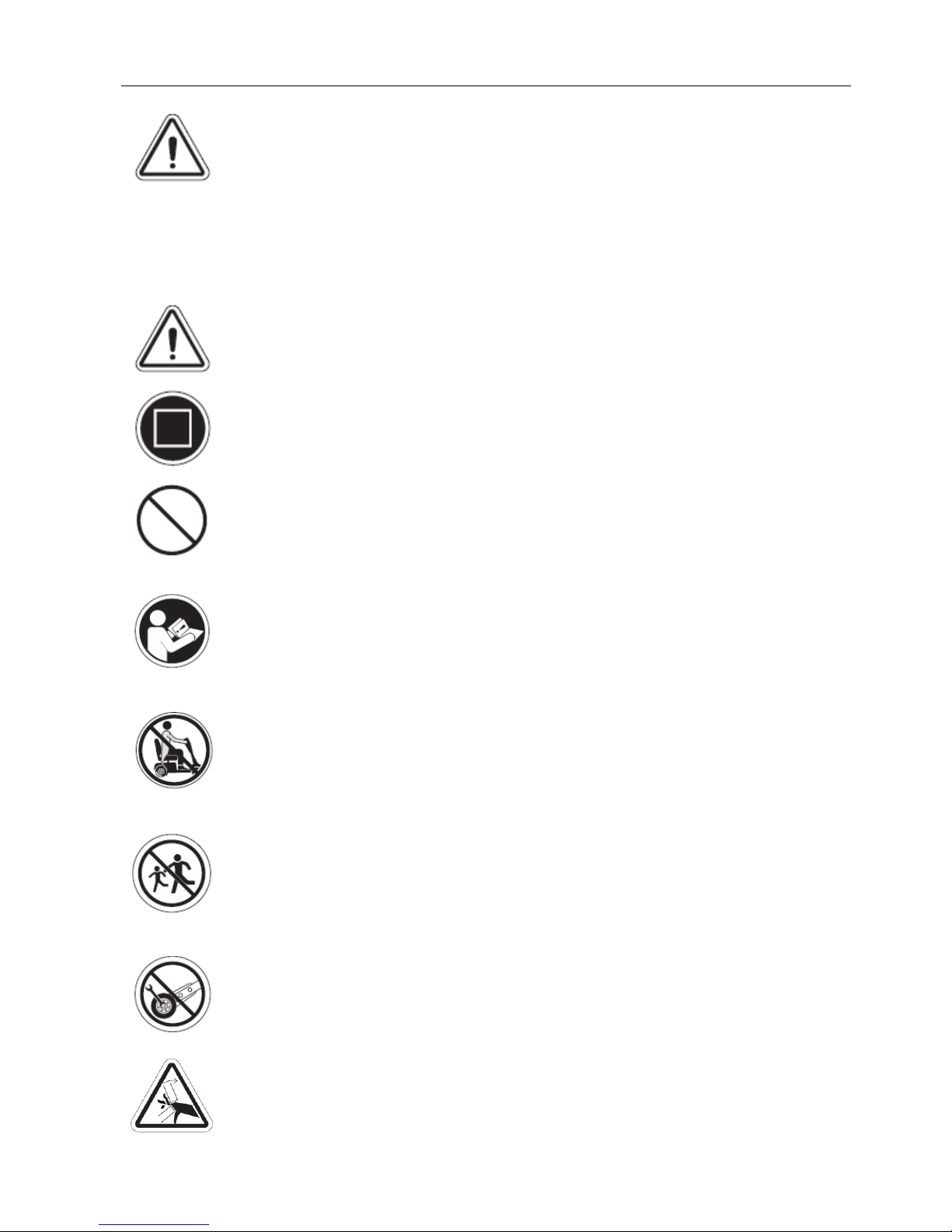

The symbols below are used throughout this user’s manual and on the scooter to
identify warnings and important information. It is very important for you to read them
and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure
to follow designated procedures can cause either personal injury,
component damage, or malfunction.
On the scooter, this is a triangular black symbol.
MANDATORY! These actions must be performed as specified. Failure to
perform mandatory actions can cause personal injury and/or equipment
damage. On the scooter, this is a white symbol on a dark background.
PROHIBITED! These actions are prohibited. These actions must not be
performed at any time or under any circumstances. Performing a
prohibited action can cause personal injury and/or equipment damage.
On the scooter, this is a black symbol with a circle and slash.
Please note and strictly adhere to the following Safety Instructions. Additional
Warnings and Notices are printed in this user manual; it is imperative that you
read carefully all chapters of this manual before operating the AFISCOOTER
M.It is also advisable to refresh your memory by re-reading this manual
periodically.
Get acquainted with AFISCOOTER M and its operational features before
driving it.
Drive slowly (speed limit dial set to MIN) until you get used to AFISCOOTER
M, its various functions, safety features, and to its braking capabilities and
limitations.
Watch carefully for pedestrians and drive your AFISCOOTER M accordingly.
In crowded areas, always drive with the speed limit dial set to MIN.
Drive only where permitted according to all applicable local laws and
ordinances. AFISCOOTER M is 88 cm (~35") wide. Take great care not to hit
persons or any objects around the vehicle.
Never remove any of the AFISCOOTER M safety parts such as fenders,
plastic covers or emergency brake lever.
Never remove any of the Warning labels. If any of the Warning labels is
removed, gets worn off or painted over, etc. ask your dealer to supply you with
a new label.
Never put your hands, fingers, or legs into any moving parts or under any
protective cover, since moving parts and hot surfaces are under those covers.

``
6
When making adjustments (folding the seat back, adjusting the armrest,
moving the seat forward or backward, adjusting the tiller distance), as well as
when squeezing the throttle control lever or handbrake, always take care that
your hands and fingers are not trapped between any of the moving parts.
When moving the tiller forward or backward, be careful not to trap your fingers
in the mechanism.
Never load AFISCOOTER M more than 300 kg (660 lbs) total load (user
weight and all other loads combined, including baskets).
The load in the front basket must not exceed 5 kg (11 lbs).
AFISCOOTER M is designed to carry ONE person only on the Single Seat
model. Never operate it with an additional person on board, including a child.
Never inflate AFISCOOTER M tyres more than the manufacturer’s
recommended pressure, shown on the tyres.
Never use AFISCOOTER M on stairs.
Never try to go over an obstacle that is more than the maximum recommended
slope angle and obstacle height given in the specification sheet. When driving
over an obstacle, always drive so that the front of AFISCOOTER M is facing
the obstacle.
If for any reason AFISCOOTER M does not stop when you release the throttle
control lever, or takes longer to stop than it should (3 meters on a level
surface), immediately use the handbrake to stop AFISCOOTER M, turn the
main key switch to OFF, and contact your dealer.
Do not use AFISCOOTER M in heavy rain or extreme humidity, or at
temperatures below -30ºC (-22ºF) or above +45ºC (+113ºF).
The seat weighs 15 kg (33 lbs). Each battery weighs a minimum of 37 kg (82
lbs). Be careful when lifting the seat and the batteries.
See instruction for lifting the seat and the batteries in Chapter 8: Maintenance,
and Chapter 9: Troubleshooting and Repair. Always lift using your knees and
legs, not your back.
If the AFISCOOTER M is involved in any kind of an accident in which parts are
damaged, you must get a qualified technician to examine it before continuing to
use it.
Batteries contain lead and acid, which are very corrosive. Batteries must be
disposed of in accordance with proper procedures.
When driving, always make sure that the backrest is in its fully upright position.

``
7
Use lead acid maintenance-free sealed batteries only, according to the
specification in the specifications table.
WARNING!!! Special care must be taken to prevent children from operating the
AFISCOOTER M.
Do not allow unsupervised children to play near the AFISCOOTER M scooter
while the batteries are charging.
Always drive carefully. Adjust your speed according to road conditions.
When turning at high speed, the AFISCOOTER M can become unstable.
Before making sharp turns, reduce speed to minimum, to prevent roll-over.
The AFISCOOTER M is able to go up slopes higher than the recommended
safe slope. However, do not drive on slopes whose incline you do not know.
Always drive very slowly and do not drive on the side of such slopes.
Before starting to drive, make sure your emergency brake operates properly.
Do not release either the manual or the manual release lever of the
electromagnetic brake (EMB) when the AFISCOOTER M is on a slope.
When on any sort of an incline, never place the AFISCOOTER M in freewheel
mode while seated on it or standing next to it.
The lights of AFISCOOTER M should be on, when visibility is reduced, day or
night.
Since your seat upholstery is fire resistant, do not cover it or replace with any
upholstery other than upholstery of the same kind.
When removing the battery cover, watch out for hot parts. The motor, axle,
EMB, electronic cards and electronic controller might be hot. Do not touch them
until you have checked their temperature.
Make sure your fingers are not squeezed between the levers and the rubber
grip.
Do not use a cell phone, walkie-talkie, laptop, or other radio transmitter while
operating AFISCOOTER M.
Removal of the grounding prong can create an electrical hazard. If it is
necessary to use a 3-pronged electrical outlet , properly install an approved 2-
pronged adapter.

``
8
Do not connect an extension cord to the AC/DC converter or to the battery
charger.
Keep tools and other metal objects away from the battery terminals. Contact
with tools can cause electrical shock.
Do not sit on the AFISCOOTER M when it is on any type of lift/elevation
product.
Explosive conditions exist
Disposal and recycling: Contact your authorized dealer for information on
proper disposal of your AFISCOOTER M and its packaging.
Wear safety glasses.
Contains lead.
The battery charger is for indoor use only.
Flammable material. Do not expose to open flame.
At the rear of the AFISCOOTER M is the manual release lever of the EMB.
When using this lever, be careful not to touch the surface of the motor, as it
could be very hot and cause injury. See the warning label at the rear of the
scooter near the lever.

``
9
CHAPTER 3 –SAFETY INSTRUCTIONS FOR AFISCOOTER M
GENERAL MANDATORY! Do not operate your new AFISCOOTER M scooter for the first
time without reading and understanding this user manual completely.
Your AFISCOOTER M is a state-of-the-art life-enhancement device designed to
increase mobility. We provide an extensive range of products to best fit the
individual needs of the user. Please be aware that the final selection and
purchasing decision regarding the type of AFISCOOTER M scooter to be used is the
responsibility of a user who is capable of making such a decision and of his or her healthcare
professional (i.e., medical doctor, physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has
properly fitted AFISCOOTER M scooter to the user and has assisted the prescribing
healthcare professional and/or the authorized dealer to give instructions for the use of the
product.
There are certain situations, including some medical conditions, where the user will need to
practice operating the AFISCOOTER M in the presence of a trained attendant. A trained
attendant can be defined as a family member or a professional specially trained in assisting a
user in various daily living activities.
As you begin using your AFISCOOTER M during daily activities, you will probably encounter
situations in which you will need some practice. Simply take your time and you will soon be in
full and confident control as you manoeuvre through doorways, on and off elevators, up and
down ramps, and over moderately rough terrain.
Below are some precautions, tips, and other safety considerations that will help you operate
the AFISCOOTER M safely.
MODIFICATIONS
We have designed and engineered your AFISCOOTER M to provide maximum
mobility and utility. Under no circumstances should you modify, add, remove, or
disable any feature, part, or function of your
AFISCOOTER M.
WARNING! Do not modify your AFISCOOTER M in any way not authorized by
the manufacturer. Do not use accessories if they have not been tested or approved by the
manufacturer.
REMOVABLE PARTS
WARNING! Do not attempt to lift or move your AFISCOOTER M by any of its
removable parts, including the armrests, seat, or shroud.
PRE-RIDE SAFETY CHECK
Get to know the feel of your AFISCOOTER M and its capabilities. We recommend
that you perform a safety check before each use to make sure your AFISCOOTER
Moperates smoothly and safely.
Perform the following inspections prior to using your scooter:
Check for proper tyre inflation. Maintain but do not exceed the psi/bar/kPa air pressure
rating indicated on each tyre.
Check all electrical connections. Make sure they are secure and not corroded.
Check all harness connections. Make sure they are secured properly.
Check the brakes.
Check the battery charge.
If you discover a problem, contact your authorized AFISCOOTER M dealer for assistance.

``
10
TYRE INFLATION
Your AFISCOOTER M is equipped with pneumatic tyres. Check the tyre
pressure at least once a week. Proper inflation pressures will prolong the life of
your tyres and help ensure the smooth operation of your AFISCOOTER M.
WARNING! It is critically important that the psi/bar/kPa air pressure indicated on
each tyre is maintained at all times. Do not under-inflate or over-inflate your
tyres. Under-inflation may result in loss of control, and over-inflation may burst the tyre.
Failure to maintain the indicated pressure rating at all times may result in tyre and/or wheel
failure.
WARNING! Inflate your scooter tyres from a regulated air source with an attached pressure
gauge
NOTE: If the tyres on your AFISCOOTER M are marked with a psi rating only, use the
following conversion formulas to find the bar or kPa rating:
Bar = psi x 0.06895 
kPa = psi x 6.89476.
WEIGHT LIMITATIONS
Your scooter is rated for a maximum weight capacity. Refer to Appendix A –
Specification Sheet for details.
MANDATORY! Stay within the specified weight capacity for your AFISCOOTER
M. Exceeding the weight capacity voids your warranty. We will not be held
responsible for injuries and/or property damage resulting from failure to observe weight
limitations.
WARNING! Do not carry passengers on your scooter. Carrying passengers on your
AFISCOOTER M may result in instability.
INCLINE AND LOAD INFORMATION
More and more buildings have ramps with specified degrees of inclination,
designed for easy and safe access. Some ramps may have turning switchbacks
(180-degree turns) that require you to have good cornering skills on your
AFISCOOTER M.
Proceed with extreme caution as you approach the downgrade of a ramp or incline.
Take wide turns with your AFISCOOTER M around any tight corners. If you do that, the
scooter’s rear wheels will follow a wide arc. Do not cut the corner short, and do not bump into
or get hung up on any railing corners.
When driving down a ramp, keep the AFISCOOTER M scooter’s speed adjustment set to
the slowest speed setting to ensure a safely controlled descent.
Avoid sudden stops and starts.
Figure A. Maximum Recommended Incline Angle
