Leonics BLUE-800 User manual
USER’S GUIDE
MICROPROCESSOR CONTROL AND
LINE INTERACTIVE UPS WITH STABILIZER
CONTENT
1. SAFETY INSTRUCTIONS ...........................................................................................1
1.1 Warning, caution and note ...................................................................................................... 1
1.2 Electrical safety ............................................................................................................................ 1
1.3 Safety instruction for installation and operation ............................................................ 2
1.4 Battery safety ................................................................................................................................ 3
2. INTRODUCTION ...................................................................................................... 4
3. FRONT AND REAR PANEL ........................................................................................ 4
3.1 Front panel .................................................................................................................................... 4
3.2 Rear panel ...................................................................................................................................... 6
4. INSTALLATION ......................................................................................................... 7
4.1 Preparation ....................................................................................................................................7
4.2 Installation and operation ....................................................................................................... 7
5. OPERATION .............................................................................................................. 8
5.1 Turn on and turn o the UPS ................................................................................................. 8
5.2 Software installation .................................................................................................................. 8
5.3 Testing operation ........................................................................................................................ 8
5.4 Storage ........................................................................................................................................... 8
5.5 Battery replacement.................................................................................................................. 8
6. TROUBLESHOOTING ...............................................................................................10
7. SPECIFICATIONS ......................................................................................................11
- 1 -
SAFETY INSTRUCTIONS
Please read carefully and follow this user’s guide carefully and completely.
Important: Please keep this user’s guide for reference in order to use the UPS properly and safety. This
user’s guide consists of safety instructions, introduction, front and rear panel, installation,
operation and troubleshooting.
For product safety, please check this product annually by our service qualied personnel or if there
are any symptom of problems which are not mentioned in this guide or any queries, please contact your
at www.leonics.com
For your convenience and quick reference for our service, pleas ll the requested
informations in the blanks below:
UPS Model:
Serial Number:
Purchased Date:
Purchased From:
1.1 Warning, Caution and Note
To reduce risk of electrical shock hazards, and to make sure the inverter is safety installed, special
symbols of Warning, Catuions and Note are used in this guide to highlight potential safety hazards
and important safety information as follow:
Warning: Indicates a potentially hazardous situation or safety information important for
human safety. Violation of warnings may result in death or serious injury and
damage to the unit or other equipment.
Caution: Indicates a potentially hazardous situation or the information important for the
protection of property. Violation of caution may result in minor or moderate
injury and damage to the unit or other equipment.
"Note: Indicates useful additional information that helps you make better use of product
and system.
1.2 Electrical Safety
Warning: Risk of electric shock, DO NOT remove cover. No user serviceable parts inside,
please refer servicing to qualied service personnel.
Warning: DO NOT work alone where there are electrically hazardous conditions.
Warning: Contact with live conductors will cause burns and dangerous electric shock.
DO NOT touch any terminal or internal parts of the unit while the unit is
operating.
- 2 -
●Only qualied electricians allow to install and wiring this unit and system.
●Periodically check your cable, outlets, terminal blocks and power source to make sure that they
are in good condition.
●To reduce risk from electric shock, if you cannot nd the electrical ground ( ) of the building,
unplug UPS from AC power source before connect loads to the UPS. Then, plug in the UPS to AC
power source.
●Use ONLY one hand when plugging or unplugging the loads in order to avoid electric shock
from touching two surfaces with dierent potential.
●It is recommended to connect the UPS to a three wires AC power source (two live wires and an
electrical ground) which connects to a protected circuit such as employs a fuse or circuit breaker.
1.3 Safety instruction for installation and operation
Caution: Before installing or using this unit, read all instructions and caution markings
on the UPS and all connected loads, and all sections of this user guide.
Caution: Install this unit in a temperature and humidity controlled area with adequate
air ow and away from chemical particles or ammable substances. Avoid
installing the unit near radio transmission station, heat dissipation equipment
and direct sunlight.
Caution: For AC power source connection, it is recommended to connect with a properly
grounded power source which connects to a protected circuit such as employs
a fuse or circuit breaker according to the electricity authority’s standards. The AC
power source connection point must be a proper location and easyily accessible.
Caution: DO NOT connect the AC input cable into the AC output terminal. This may cause
the unit damaged.
Caution: DO NOT block the ventilation grills and DO NOT put any objects on the top of
the unit. Ensure that sucient ventilation is provided.
Caution: This UPS is not intended for use with life rescue equipment! A failure of the
UPS might cause the life rescue equipment to fail and endanger human lives.
Caution: Periodically check your cable, terminal and power source to make sure that they
are in good condition.
●The distance of minimum 30 cm. between the wall and the unit is necessary for adequate
ventilation and easy access for installation, operation and maintenance.
●Use insulated tools to reduce your risk of electric shock.
●Remove all jewelry or other metal objects such as rings, necklace, bracelets and watches when
installing this product.
●Verify correct terminal block connections to prevent the damage occurs.
- 3 -
●Before connecting the communication interface signal cable, turn o the UPS and disconnect
the UPS from AC power source.
●DO NOT clean the UPS with benzene, thinner or any solvent, use only soft cloth to clean the UPS
after it has been turned o.
●Turn on the UPS before turn on all connected loads to prevent surge damage.
●During a heavy rain storm, avoid using electrical appliances including the UPS to prevent
damage from lightning strike.
1.4 Battery Safety
Warning: Even the UPS is disconnected from AC power source, the UPS OUTPUT outlets
may have hazardous voltage because of battery may continue supply power.
Warning: DO NOT dispose of battery in a re. They may be exploded.
Caution: DO NOT disassemble battery. They contains poisonous electrolyte which is
harmful to your skin and eyes.
Caution: For battery replacement, replace battery with the same type and rating as
originally installed battery.
Caution: The UPS contains sealed lead acid battery and must be recycled properly. For
recycling, please return it to ypur local distributor or service center or contact
your local recycling center for proper disposal information.
Caution: When the UPS has not been used for a long period of time or UPS is stored for an
extended period of time, battery should be fully recharged every three months
by plugging the UPS with the AC power source. Then, turn on the UPS and let
the UPS charge battery for 6 hours.
●When replacing a battery, use tools with insulated handles and remove any watch, rings or
other metal objects that you wear in order to avoid electric shock.
- 4 -
INTRODUCTION
2.1 General
BLUE series is an uninterruptible power supply for oce automation equipment (computers
and peripherals such as monitors, modem, printers, fax machines, etc). Its major function is to
eliminate any power problems such as a blackout, brown out, sag, surge, spike, etc. that might
cause malfunctions of the connected loads. It also provide automatic voltage regulator (AVR), surge
suppressor and backup power system.
The BLUE series UPS can be started when there is no utility power to supply power the connected
loads in an emergency. It display the electrical status and operating status on LCD display and on
computer's monitor via UPS monitoring software.
FRONT AND REAR PANEL
3.1 Front panel
- 5 -
3.1.1 button: The button to turn on and turn o the UPS.
3.1.2 : Indicates input voltage.
3.1.3 : Indicates output voltage.
3.1.4 : Indicates the UPS is operating in AC mode.
3.1.5 : Indicates the UPS is operating in battery mode.
3.1.6 : Each bar represent 25% of battery backup power starting from the left to right.
3.1.7 : Each bar represent 25% of full load capacity starting from the left to right.
3.1.8 : Indicates low battery status.
3.1.9 : Indicates fault status.
3.1.10 : Indicates UPS is overloaded.
Table shows symbol on LCD and UPS status
Symbol on LCD Alarm sound UPS status
Show - UPS is operating normally.
blinks Alarm beep sound
every 0.5 seconds
UPS is overloaded.
Show Alarm beep sound
every 10 seconds
Blackout or power failure. UPS is supplying backup
power from battery.
blinks Alarm beep sound
every 1 seconds
Battery backup power is running out.
Show Alarm long beep sound UPS malfunction.
- 6 -

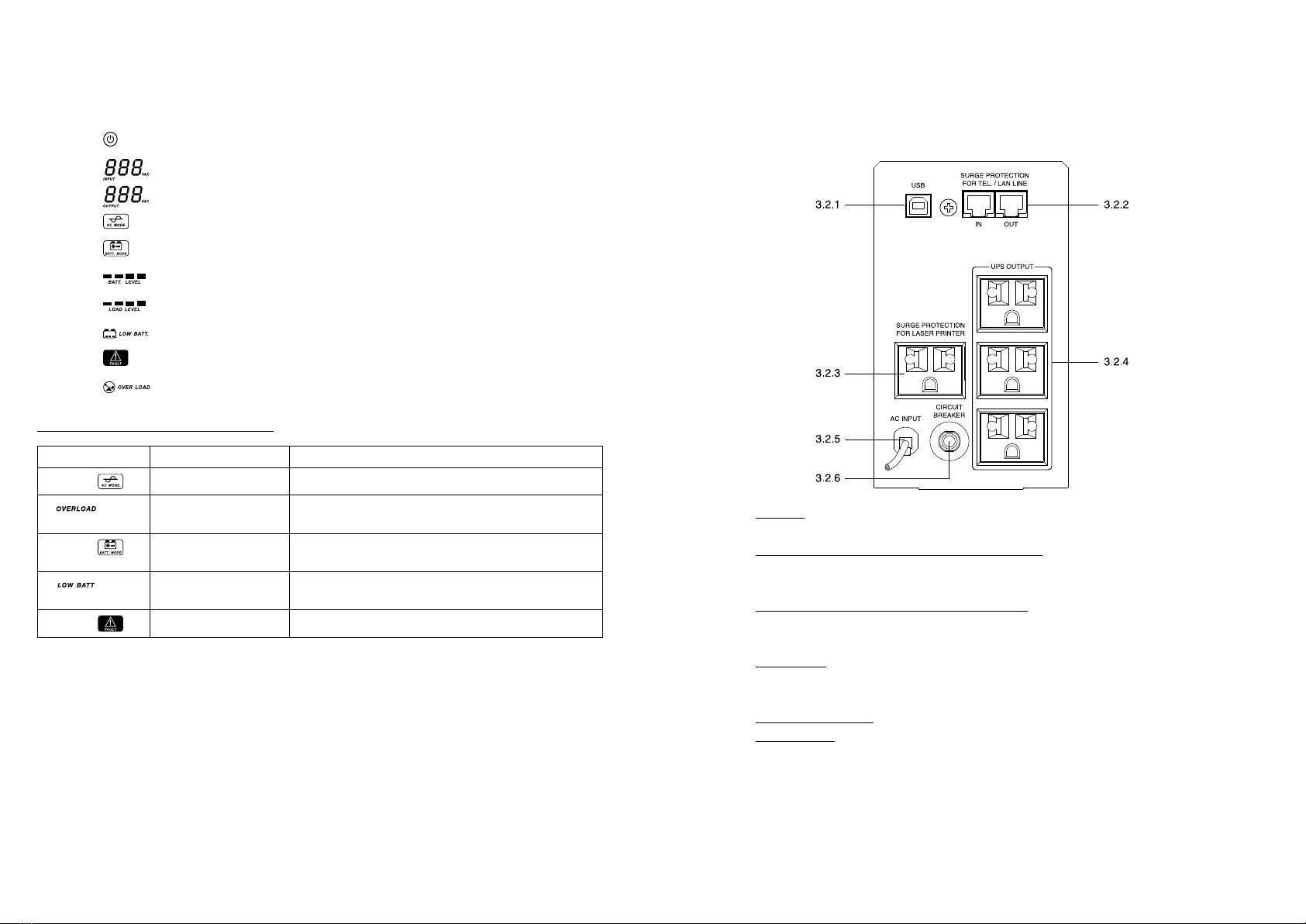

3.2 Rear panel
3.2.1 USB port: The communication port for connecting the UPS to computer and display data on
Easy-Mon V software.
3.2.2 SURGE PROTECTION FOR TELEPHONE LINE/LAN LINE: The ports to plug in telephone or
LAN jacks before fax machine, modem, telephone or computer in order to protect them
from signal surge.
3.2.3 SURGE PROTECTION OUTPUT FOR LASER PRINTER: The socket which connects to surge
protection circuit for laser printer. (This socket does not supply backup power when power
fails)
3.2.4 UPS OUTPUT: The sockets which are connected to the UPS backup power system for
connecting to electrical appliances such as computer, monitor, modem, printer, fax
machine, etc.
3.2.5 AC INPUT power cord: The input power cord to connect to utility line.
3.2.6 Circuit Breaker: The resettable circuit breaker for protects against damage due to overload or
short circuit.
- 7 -
INSTALLATION
Caution: The warranty will be voided, if this product has been improper installation,
not following the installation instruction that mentioned in this user’s guide.
4.1 Preparation
4.1.1 Before you install the UPS, give it a through visual examination to ensure it has not been
subjected to shipping damage. If it is not in perfect condition, please contact your local
4.1.2 Before installing or using this unit, read all instructions and caution markings on the UPS and
all connected loads, and all sections of this user guide.
4.1.3 Check the rating of your AC power source and all connected loads to suit with the UPS rating
4.1.4 Transportation
Transport the UPS with its packaging until it arrive the installation location to avoid
shipping damages.
4.1.5 Location
Install the UPS at least 30 cm free space from wall for adequate ventilation and easy
access for installation, operation and maintenance.
4.2 Installation
4.2.1 Connect a USB signal cable from computer to the USB port of the UPS for monitoring the
operating status via Easy-Mon V software.
Caution: Before connecting the signal cable, turn o the POWER switch and disconnect
the AC INPUT power cord from the wall outlet.
4.2.2 Connect the telephone cable plug or LAN cable plug into the SURGE PROTECTION FOR TEL./
LAN LINE socket at the rear panel of the UPS.
IN : Connect telephone or LAN line to the UPS
OUT : Connect telephone line or LAN line from the UPS to the input socket of the
telephone, fax machine, modem or LAN card.
"Note: To achieve maximum performance of surge protection, UPS must be connected
to grounded electrical system to work properly. Connecting to non-grounded
electrical system, it will not be able to properly protect your electrical equipment
from transient voltage surge suppression.
4.2.3 Plug in the computer and peripherals to the UPS OUTPUT outlets at the rear side of the UPS.
4.2.4 Plug in the laser printer to the SURGE PROTECTION FOR LASER PRINTER outlet which is
connected to surge protection system. (This socket does not supply backup power when
power fails).
4.2.5 Plug in the AC INPUT power cord to the wall outlet. The LCD screen is lit and shows the input
voltage and battery level.
- 8 -
OPERATION
5.1 Turn on and turn o the UPS
5.1.1 Turn on the UPS by pressing the button at the front panel. The LCD screen is lit and shows
the input voltage, output voltage, AC mode status and battery level. Wait for alarm stop
beeping then turn on all connected loads.
5.1.2 For turning o the UPS, the computer and peripherals must be turned o before pressing
the
button of the UPS.
5.2 Software Installation
After turn on the UPS and computer, insert the software CD into the CD-ROM drive of the
computer. Then, the computer monitor shows the UPSilon program. Choose the “View Manual” to
read the user manual before installation. After that select the “Install Program”.
5.3 Testing Operation
After battery is fully charged for at least 6 hours, you can test operation by turning on the UPS
follow the item 5.1.1.Then, test UPS operation by unplugging the AC INPUT power cord from the wall
outlet to simulate a blackout event, UPS will automatically supply battery backup power.
The LCD shows with alarm beep sound every 10 seconds. That means UPS supplies backup
power to computer and peripherals. Then, plug the AC INPUT power cord into the wall outlet as
before, the alarm will stop sounding and LCD shows and computer and peripherals are still
operating both in blacktou and normal situation.
5.4 Storage
Before store the UPS for a long period of time, be sure that the battery is fully charged by turning
on the UPS for 6 hours. Then, turn o the UPS and unplug the UPS power cord. Store the UPS in dry
and cool place. Battery should be fully recharged every three months to preserve the condition of
the internal battery.
If the UPS have to store in above 25°C and 80°F area, it need to be recharged every 2 months.
5.5 Battery Replacement
Typically battery life is 3-6 years at operating temperature below 25°C and 2-3 years at below 35°C,
depending on operating condition. After that battery will deteriorate and nally it can not store
energy. It need to replace new battery every 2-3 years by qualied technician only. Please return the
UPS to your local distributor or service center or follow these instruction carefully.
Caution: The battery may be replaced without having to turn o the UPS due to the hot
swappable battery feature. For your safety, we recommend to turn o all connected
loads and UPS before battery replacement.
- 9 -

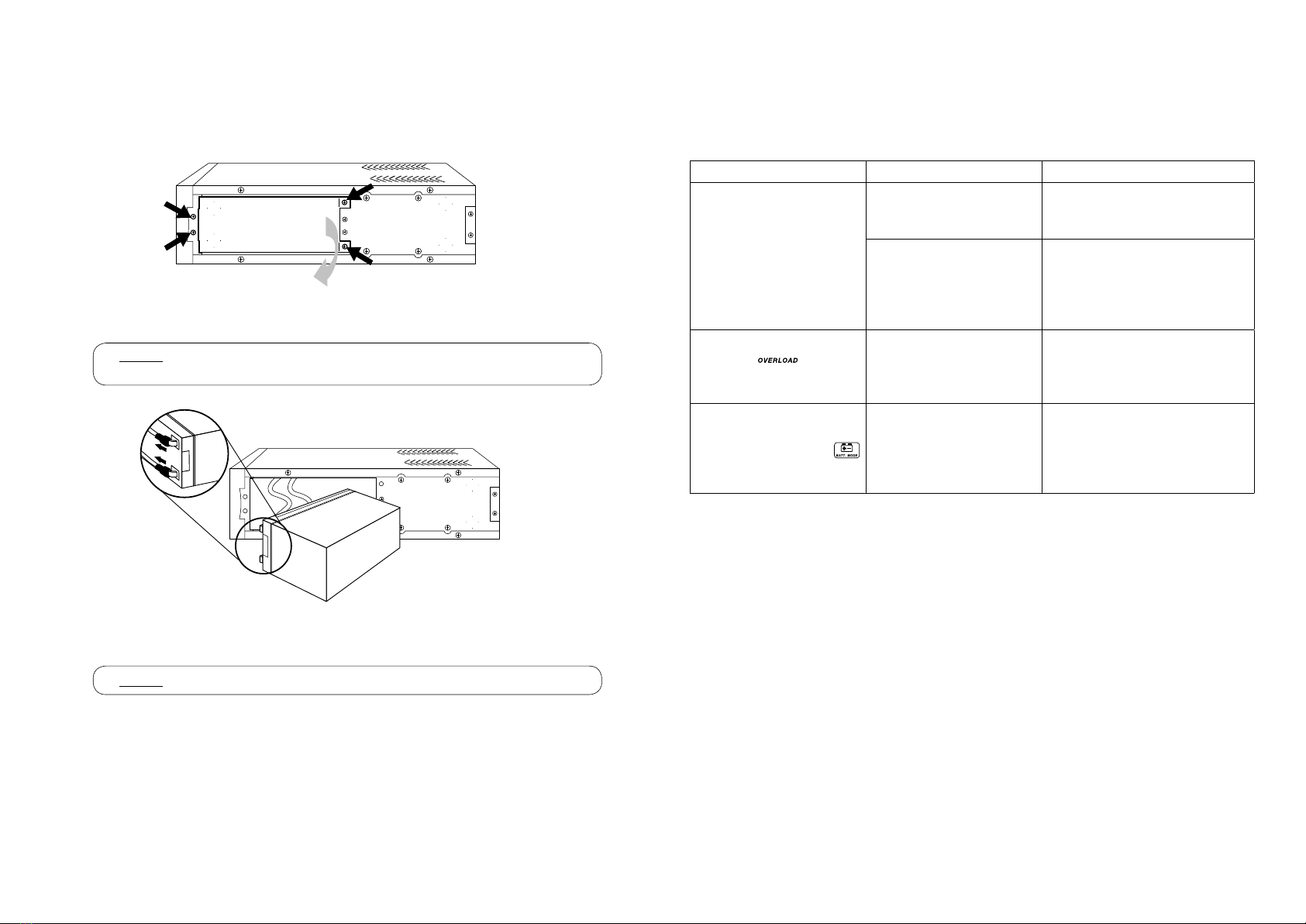

5.5.1 Lay down the UPS on the at surface and unscrew 4 fasteners from the battery cover plate
as shown in below gure. Then, remove the battery cover plate.
5.5.2 Tilt the UPS and gently pull the battery out of the UPS. Then, disconnect black and red wires
from the battery terminal respectively.
Caution: While disconnecting the battery wires, beware the battery wires end are not
touching each other to prevent the UPS damage.
5.5.3 Replace new battery by reconnect the black ( - ) and red ( + ) wire to the battery terminals
respectively.
Caution: Replace battery with the same number and type as originally installed battery.
5.5.4 Replace and screw the battery cover in place and continue using the UPS normally.
- 10 -
TROUBLESHOOTING
Symptoms Possible causes Solutions
Blackout occured, but UPS
does not supply backup pow-
er.
Battery power is running out. Once the utility line turns back to
normal, turn on the UPS at least 6
hours to recharge battery.
Battery is deteriorating. Turn on the UPS for at least 6 hours
to recharge its battery, then test. if
the symptom persists, it need to re-
place the new battery. Please con-
tact service personnel.
Utility line is normal, but the
LCD shows blinks with
alarm beep sound every 0.5
seconds
UPS is overloaded. Reduce loads to 75-89% to keep the
remaining power for instantaneous
power consumption of some loads.
Utility line is normal, but UPS
is supplying backup power
and the LCD shows
binks.
There is no power supply to
AC input power cord or the
AC INPUT power cord is not
properly plugged in to the
wall outlet.
Verify the wall outlet and properly
plug in the AC INPUT power courd.
- 11 -
SPECIFICATIONS
MODEL BLUE-800
CAPACITY 800 VA / 400 W
SYSTEM UPS system Line interactive UPS with stabilizer
Control system Microprocessor control
Stabilizer function Buck / Boost
LOAD APPLICATION The number of PC* 2 set + printer**
INPUT Input voltage 220 Vac ± 25%
Frequency 50 Hz ± 10% (60 Hz ± 10%) auto sensing
OUTPUT Voltage battery mode 220 Vac ± 5%
Voltage AC mode 220 Vac ± 10%
BATTERY Type Sealed lead acid (maintenance free)
Capacity 1 x 12V 7.2 Ah
Backup time 15 - 40 min (depending on connected load)
Continuous recharging time 6 - 8 hours (90% after full discharged)
PROTECTION Over voltage Mains to UPS backup 220 Vac + 25%
Under voltage Mains to UPS backup 220 Vac - 25%
Transfer time 2 - 6 msec typical, 10 msec maximum
Overload (AC/DC mode) yes
Output short circuit yes
Surge energy dissipation 125 Joules / 2 msec x 3
Power dissipation 1,000,000 W within 100 microsec
Acoustic noise less than 40 dBA at 1 metre
OUTPUT OUTLET Number of backup outlet 3
Number of surge protection
outlet (not backup)
1
FEATURE AC/DC start yes
Communication interface USB port
Monitoring and management
software
yes
Surge protection for telephone
and LAN line
yes
Surge protection for laser printer yes
Auto restart function yes
Off mode charging yes
Hot swappable battery yes
INDICATOR LCD AC mode, Battery mode, Load level, Battery level, Input voltage,
Output voltage, Low battery, Overload, Fault
AUDIBLE ALARM Battery mode audible beep every 10 seconds
Low battery audible beep every second
Overload audible beep every 0.5 seconds
Fault continuous beep
ENVIRONMENT Temperature 0 - 40°C
Relative humidity 0 - 90% (non-condensing)
CONFORMANCE Design regulation EMC category C2
DIMENSION W x H x D (mm.) 95 x 160 x 330
WEIGHT Approximate in kg. 6.35
*Personal computer with 17”LED monitor, **Bubble jet or Dot matrix printer.
Continuous product development is our commitment. In that manner, the above specication may be changed without prior notice. LEN.MAN.UPS.204 Rev.1.00/2016
█www.leonics.com █Copyright © 2016 Leonics Co., Ltd. All rights reserved.
Table of contents
Other Leonics UPS manuals
