less care Ultra G Series User manual

www.lesscare.com
INSTALLATION INSTRUCTIONS
SHOWER DOORS • SHOWER ENCLOSURES
SHOWER DOORS:
LBSDG3072
LBSDG3072+LBSEG3072
LBSDG3072+LBSEG3472
LBSDG3472
LBSDG3472+LBSEG3072
LBSDG3472+LBSEG3472
LBSDG3072+LBSEG3072
LBSDG3472+LBSEG3072
LBSDG3072+LBSEG3472
LBSDG3472+LBSEG3472
SHOWER ENCLOSURES:
Version 4.0
G

www.lesscare.com 1
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
PREPARATION FOR INSTALLATION
Soft Cloth
or Blanket
Silicone Tape
Measure
Pencil/Marker Philips/Straight
Screwdriver
Drill Bit
ø = 5/16"
Drill Bit
ø = 1/8"
Safety Glass LevelKnife CaulkGun Drill Hammer
PREPARATION FOR INSTALLATION

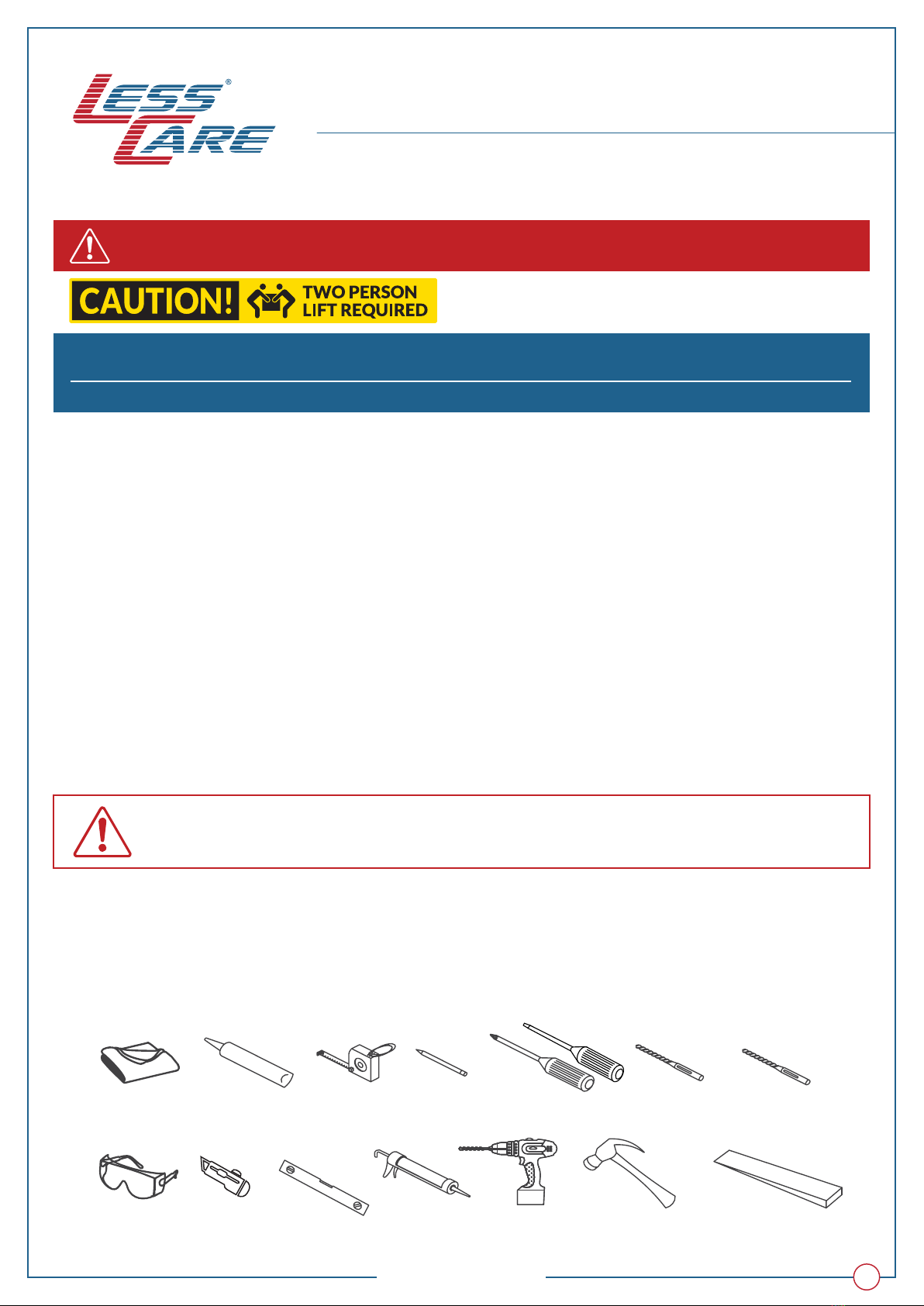

TOOLS REQUIRED
READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT
IMPORTANT UNPACKING INSTRUCTIONS:
When you have open top carton box lid, do not take shower glass doors or panels out before you read this and have this items in place. Have a soft
cloth blanket min ¼" thick and make sure cloth blanket is bigger then your glass doors or panels in your working area place. Set this soft cloth
blanket on the floor of working area. Take out shower glass doors or panels out from the Carton box and set it on the soft cloth blanket. Do not
lean it on the wall or floor without the soft cloth blanket.
ATTENTION! Never set glass on floor or tile or solid floor or wall surface without a soft cloth blanket if you set it without soft cloth blanket it will
cause scratches to the tempered glass and this will cause it to shatter right away or when installed or when you start using it, improper handling
causes scratches on the glass doors or panels. When installing glass doors or panels be sure your have inspected glass doors or panels fully before
installing it. Do not install and Stop installation if you see or find scratches or chipped corners on your glass doors or panels. NEVER set glass doors
or panels on its corners make sure the your floor is level with the soft cloth blanket when preparing glass doors or panels for installation.
After opening all boxes and packages, read this introduction carefully. Check that all of the needed parts are included in the package by checking
all the components on the diagram of components. Examine boxes and packages for shipping damage. If the unit has been damaged or missing
parts, please contact our customer support department immediately. Please note that LessCare will not replace any damaged products or missing
parts after 2 business days of the order receipt.
VERY IMPORTANT! Double check all glass corners and four edges of all glass door and panels to make sure that all the glass are in perfect
condition and without any scratches or chipped corners. Do not try to install the shower door, if there is any scratches or chipped corners. Note,
that you should consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary from
state to state and location. LessCare is not responsible for code compliance standards for your project and will not accept any returns. Prior to
installation, ensure that the installation surface is leveled and solid, and will be able to support the total weight of the unit. Also, make sure the
walls are at the right angles. Irregular installation surface level or improper angle of side walls will result in serious problems during installation.
Note, that some adjustments and drilling will be necessary during the installation process.
VERY IMPORTANT! Installation of this extremely heavy product to the wall requires minimum of 2" x 4" wood stud framing behind the wall.
INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN SERIOUS INJURY OR DEATH
CAUSED BY INCORRECT HANDLING OR INSTALLATION OF THE PRODUCT.
THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION!
LICENSED AND INSURED PROFESSIONAL CONTRACTOR IS REQUIRED TO INSTALL
THIS PRODUCT INCLUDING ASSISTANCE OF A SECOND PERSON DURING INSTALLATION
2 PEOPLE ARE REQUIRED TO LIFT AND DURING
ENTIRE INSTALLATION OF THIS PRODUCT
Soft Wood
Shim
LessCare reserves the right to change, update, modify, alter, redesign this manual/product or its policies without prior notice!
It is your responsibility to visit website to download or contact customer service for the most updated version of the installation instructions.
No modifications to the product are allowed. Modifications of any types to the product will result in serious injuries or may cause death.
LessCare shall not be liable for any injuries or property damages in connection with this product during installation or use of this product!
OTHER TOOLS MAY BE REQUIRED
IMPORTANT: Do not the handle on to the glass door until the instruction tells you to do so. Never lift the glass using the handle. Failure to do so will result in serious
personal injury and could cause damages to the glass. Professional graded glass suction cups are highly recommended while handling extremely heavy glass. This
product must be installed on a finished threshold and against finished walls only. This product is intended for residential use only.

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
2

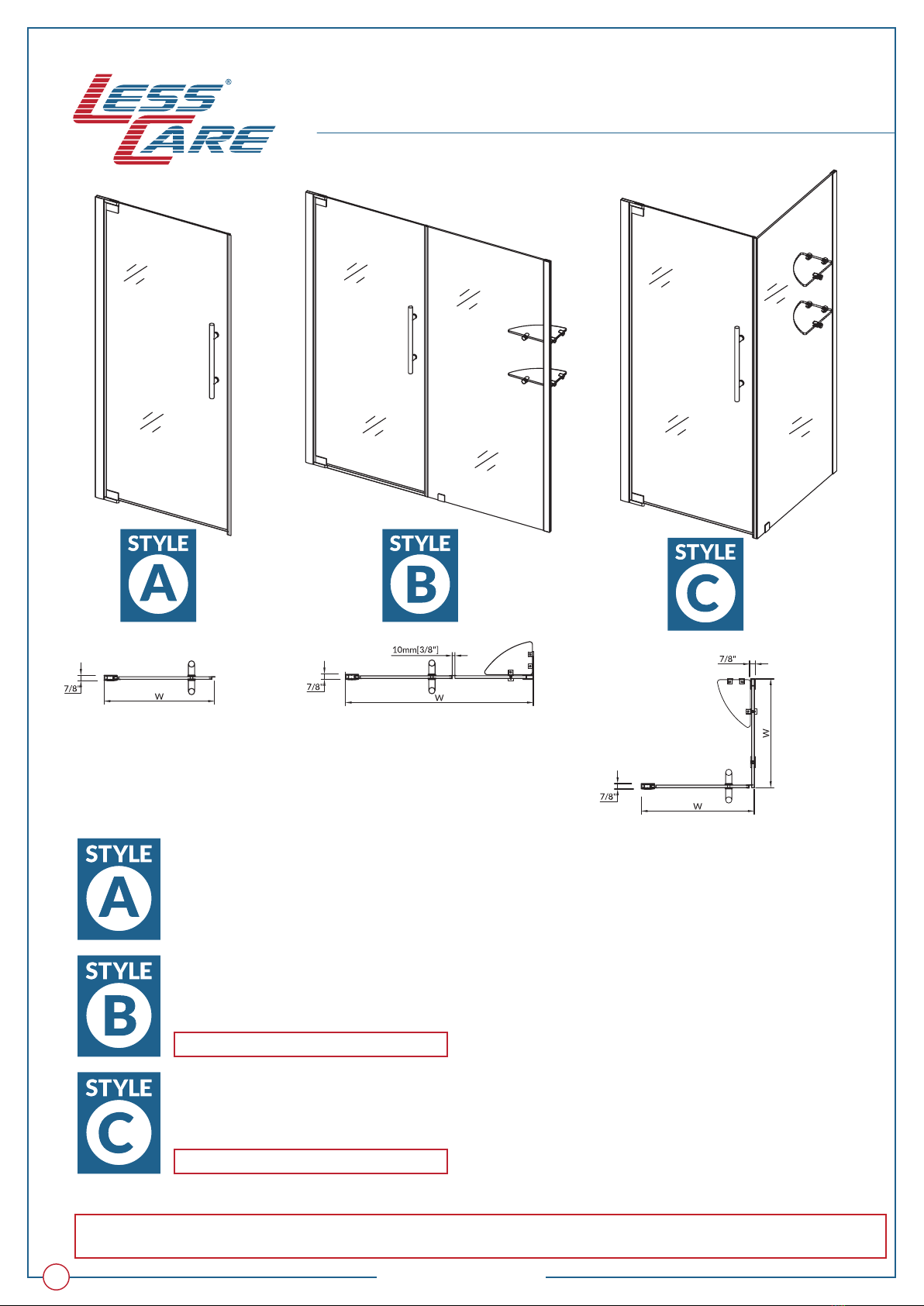

CONFIGURATION STYLES
Shower door
Please use Diagram A for assembly reference.
Pages: 6-12

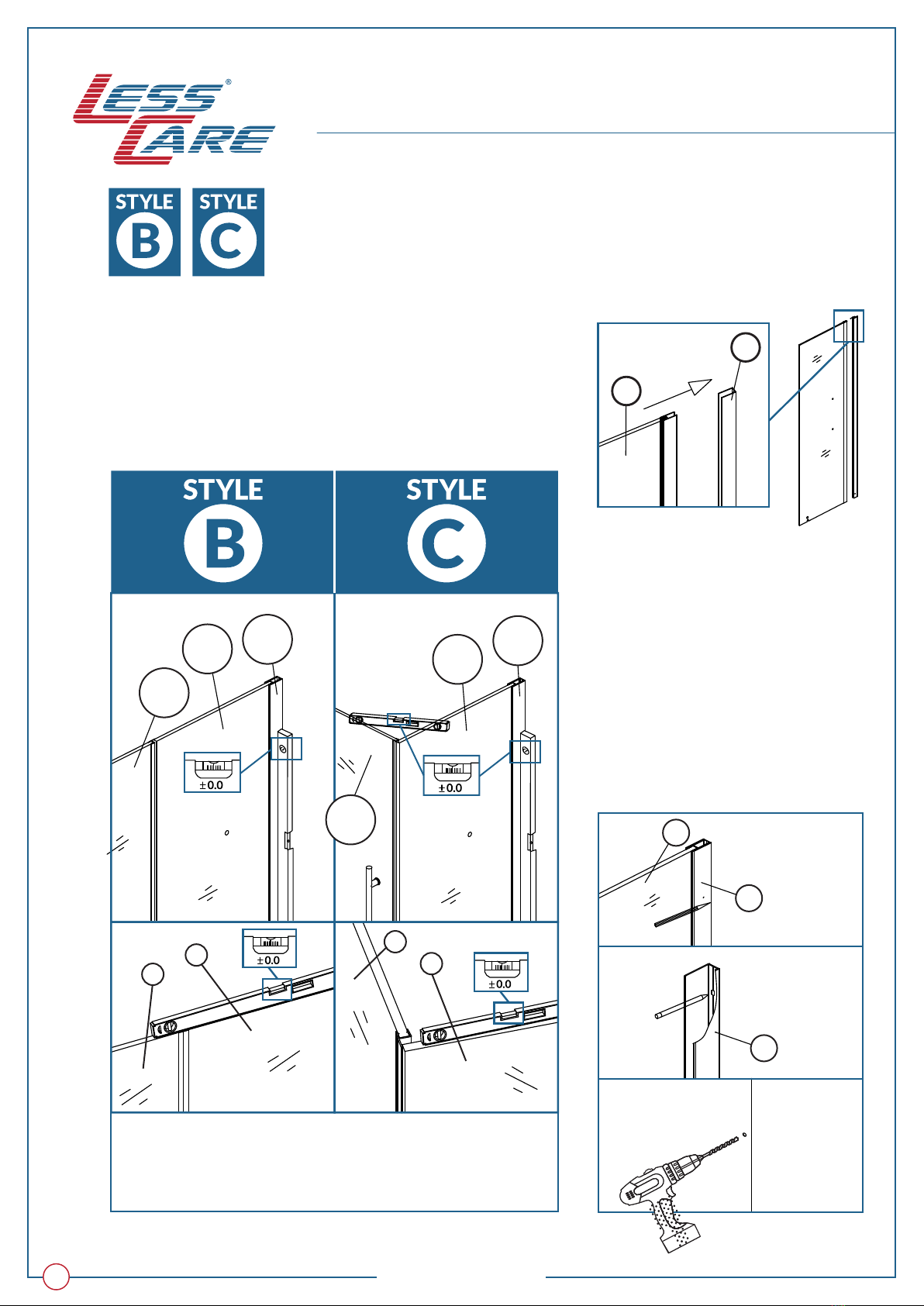

Shower Door with Stationary Panel (Enclosure Installation)
Please use Diagram A and Diagram B for assembly reference.
Pages: 6-12, 14-19
Shower door with Stationary Panel (Straight Installation)
Please use Diagram A and Diagram B for assembly reference.
Pages: 6-12, 14-19
SHOWER DOOR MUST BE INSTALLED FIRST
SHOWER DOOR MUST BE INSTALLED FIRST
Min. Threshold
Requirement
Min. Threshold
Requirement
Min. Threshold
Requirement
Min. Threshold
Requirement
Threshold Requirement (Size): 7/8"
SAFETY IMPORTANT NOTE: Installation of shower or bathtub door requires to be installed
only on smooth and flat surface of both walls and threshold base (shower base or bathtub).

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES

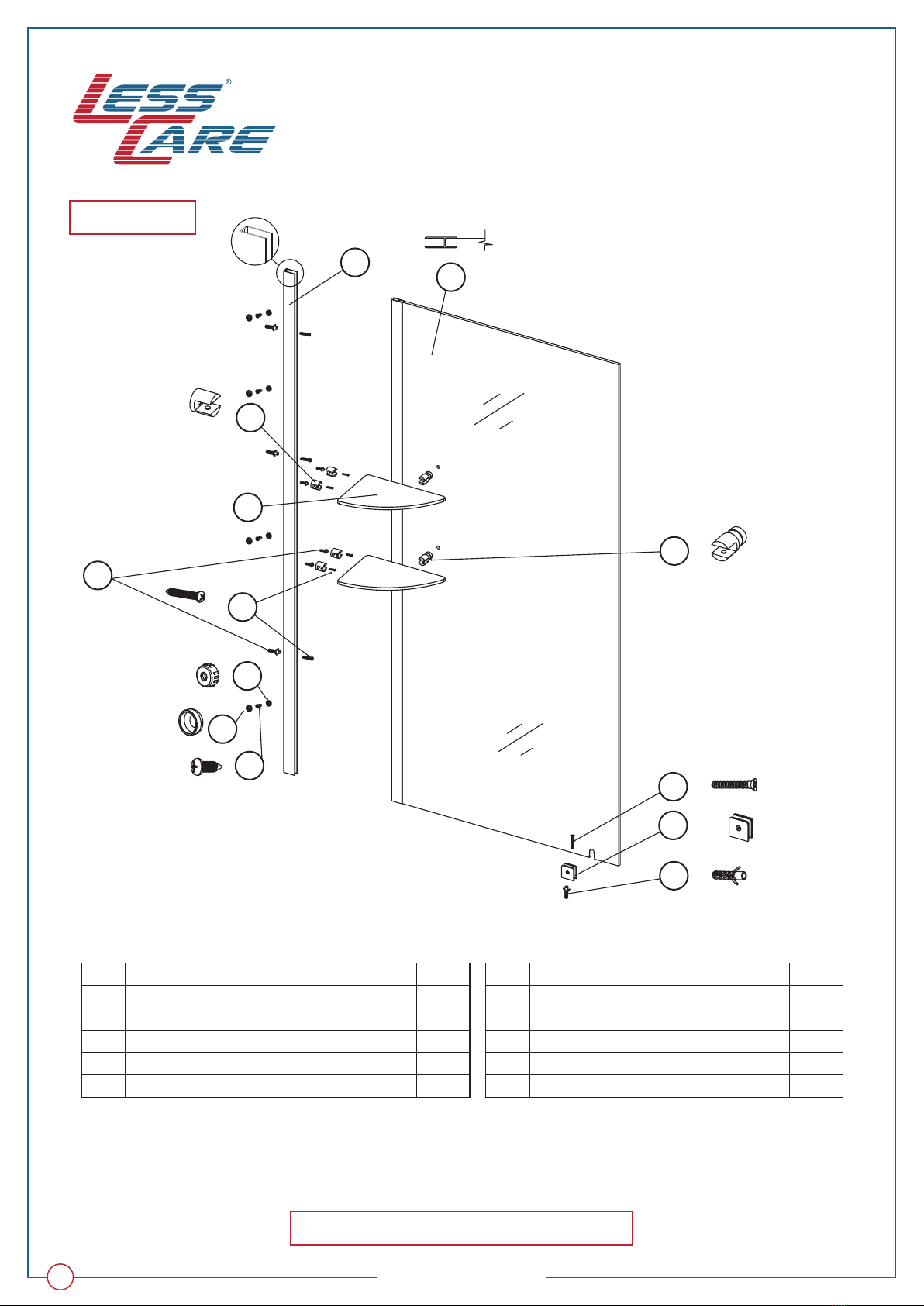

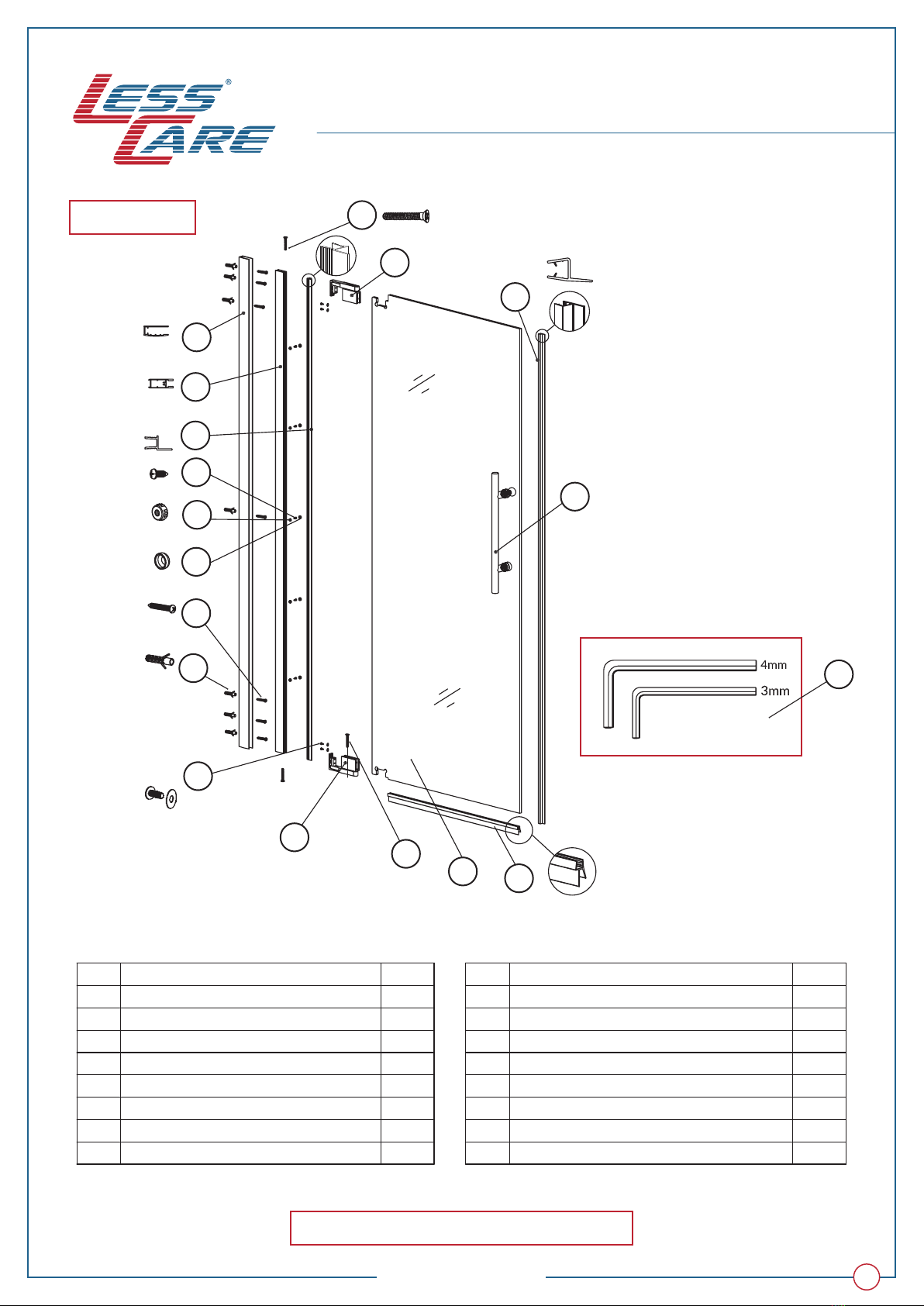

SHOWER DOOR COMPONENTS
3
DIAGRAM A
16
4
6
7
18
17
15
5
14
13
12
11
10
3
2
1
1
2
3
4
5
6
7
8
9
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
5 pcs
Wall profile for glass door
Glass profile for glass door
Side anti-water strip
Upper pivot assembly
Lower pivot assembly
Anti-water strip
Handle
Bottom anti-water strip
Washer for screw
10
11
12
13
14
15
16
17
18
Round head screw M3.5x13
Screw decorative cover
Round head screw M5x60
8mm (5/16") wall anchor
Round head screw M4x12 with Washer
Countersunk Screw M4x40 (optional)
Countersunk screw M4x30
Glass door
Allen key (1 - 3mm, 1 - 4mm)
Item# Item#Qty
5 pcs
5 pcs
7 pcs
7 pcs
4 pcs
1 pc
2 pcs
1 pc
2 pcs
QtyDescription Description
9
8
LBSDG3072
LBSDG3472
MODELS:
This door has 1" out-of-plumb adjustment

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
SHOWER ENCLOSURE/STATIONARY PANEL COMPONENTS
4
19
20
21
22
23
24
1 pc
1 pc
7 pcs
4 pc
2 pc
2 pc
Wall profile for stationary glass panel
Stationary glass panel with profile
Round head screw M4x60
Shelf bracket (for wall)
Shelf bracket (for stationary glass panel)
Glass shelf
25
26
27
28
29
30
Washer for screws
Round head screw M3.5x13
Screw decorative cover
Countersunk screw M5x30
Bottom bracket
8mm (5/16") wall anchor
Item# Item#Qty
4 pcs
4 pcs
4 pcs
1 pcs
1 pcs
8 pcs
QtyDescription Description
DIAGRAM B
19 20
23
28
29
30
26
25
21
30
24
22
LBSEG3072
LBSEG3472
MODELS:
IMPORTANT: Stationary glass with profile has
been factory pre-assembled. Do not try to detach
the stationary glass panel with profile (20).
GLASS
PROFILE
This panel has 1" out-of-plumb adjustment
27

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES

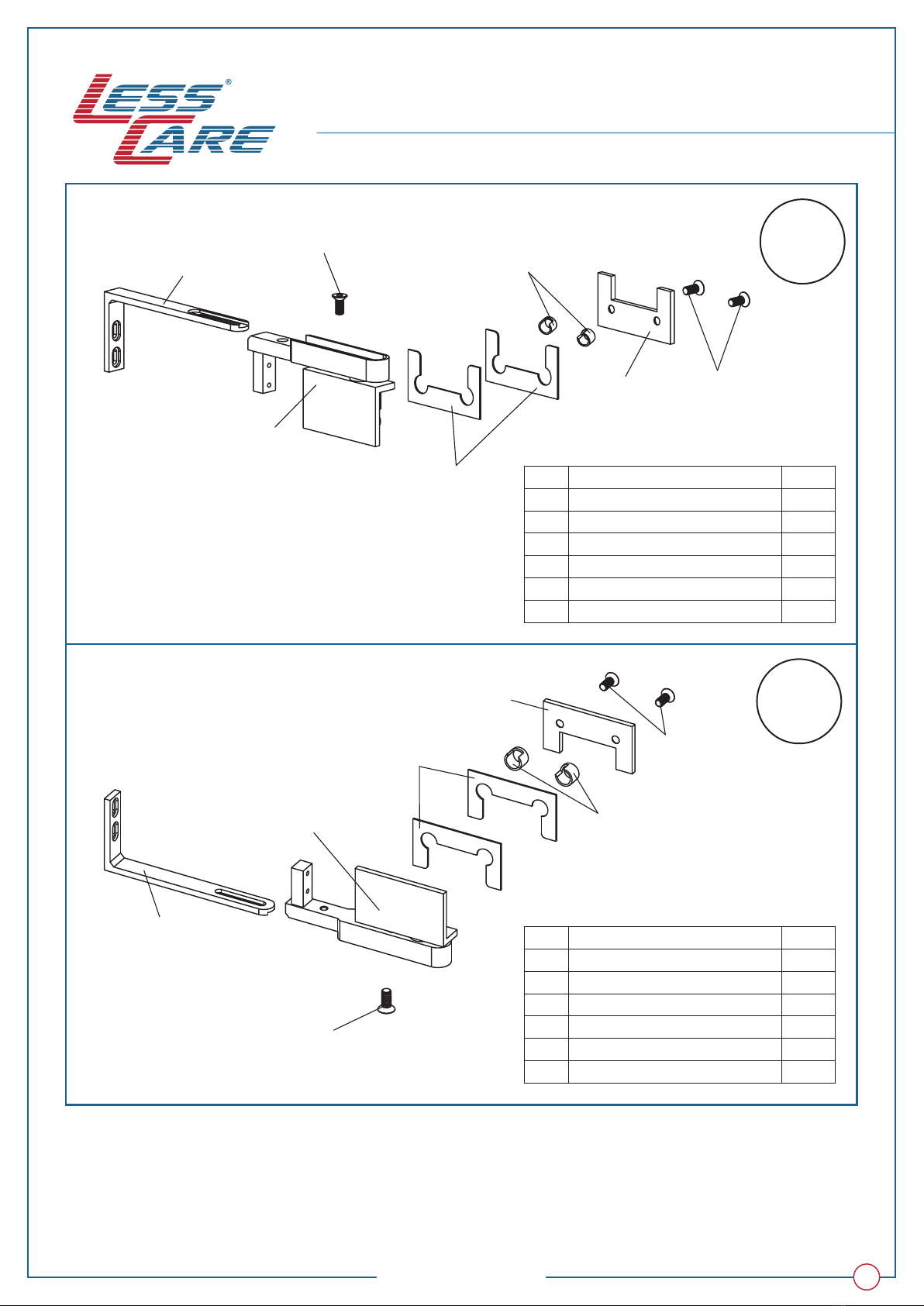

PIVOT ASSEMBLY COMPONENTS
5
4A
4B
4C
4D
4E
4F
4G
1 pc
1 pc
1 pc
2 pc
2 pc
1 pc
2 pc
Upper Pivot retainer
Countersunk screw M6x14
Pivot body
Plastic washer
Gasket
Back plate
Countersunk screw M6x14
Item# QtyDescription
5A
5B
5C
5D
5E
5F
5G
1 pc
1 pc
1 pc
2 pc
2 pc
1 pc
2 pc
Lower Pivot retainer
Countersunk screw M6x14
Pivot body
Plastic washer
Gasket
Back plate
Countersunk screw M6x14
Item# QtyDescription
4
5
Upper Pivot Assembly and Lower Pivot Assembly Disclaimer
Upper and lower pivot assemblies are reversible. For left opening installation Upper Pivot Assembly (4) is used as upper pivot and
Lower Pivot Assembly (5) as lower pivot. If you plan to open shower door to the right side, use Lower Pivot Assembly (5) as upper
pivot and Upper Pivot Assembly (4) as lower pivot.
NOTE: After installation of all pivots you will have one Countersunk screw M6x14(5B or 4B) unused, because only installation of top
pivot requires that screw. Countersunk screw M6x14(5B or 4B) is optional during Installation of Lower pivot assembly (5 or 4) .
4A
4C
4B
4E
4D
4F 4G
5G
5F
5D
5E
5A
5B
5C

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
INSTALLATION STEPS
6
Single Shower Door Assembly
and Installation
NOTE: Use parts from Diagram A for Single
Shower door assembly and installation.

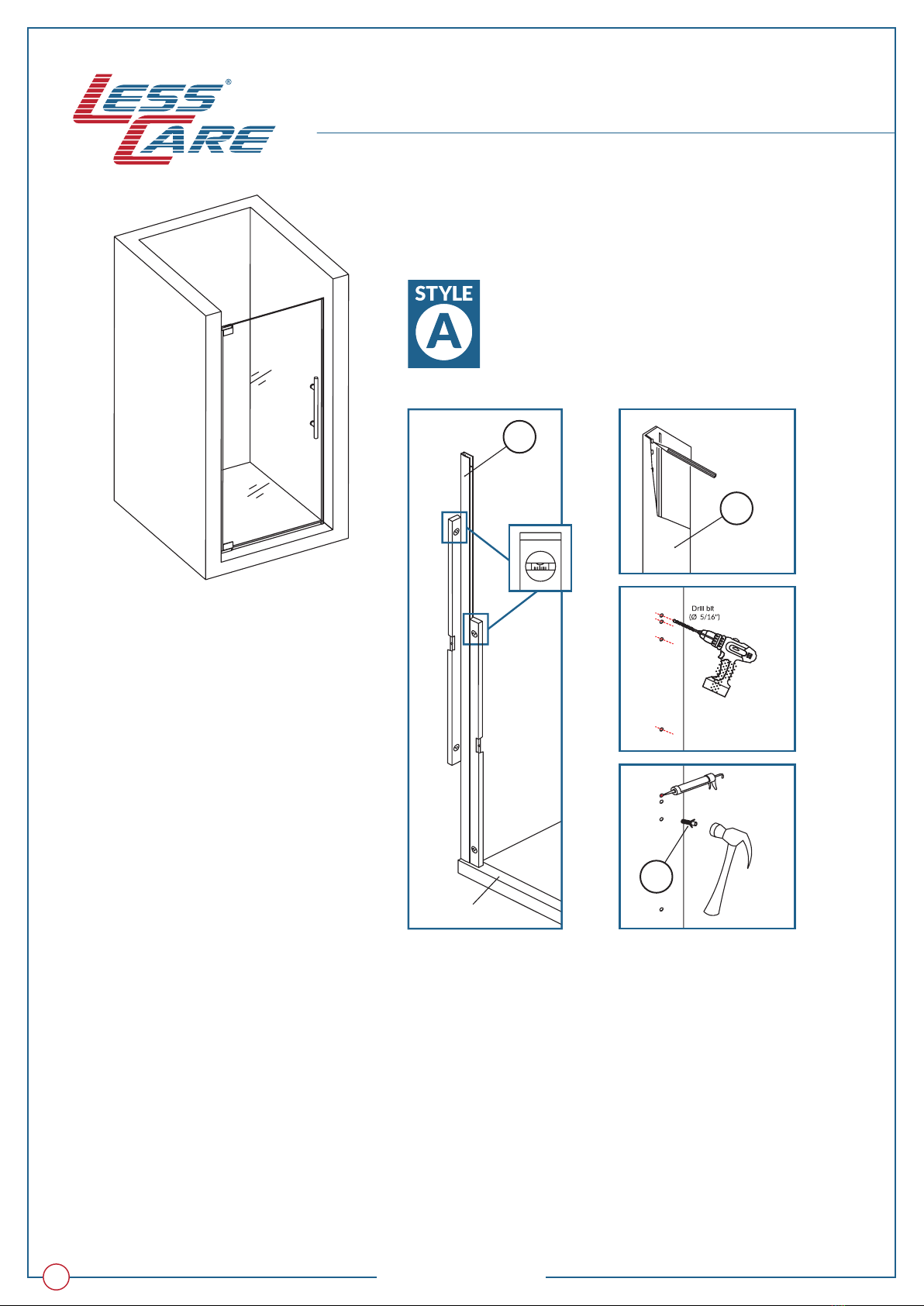

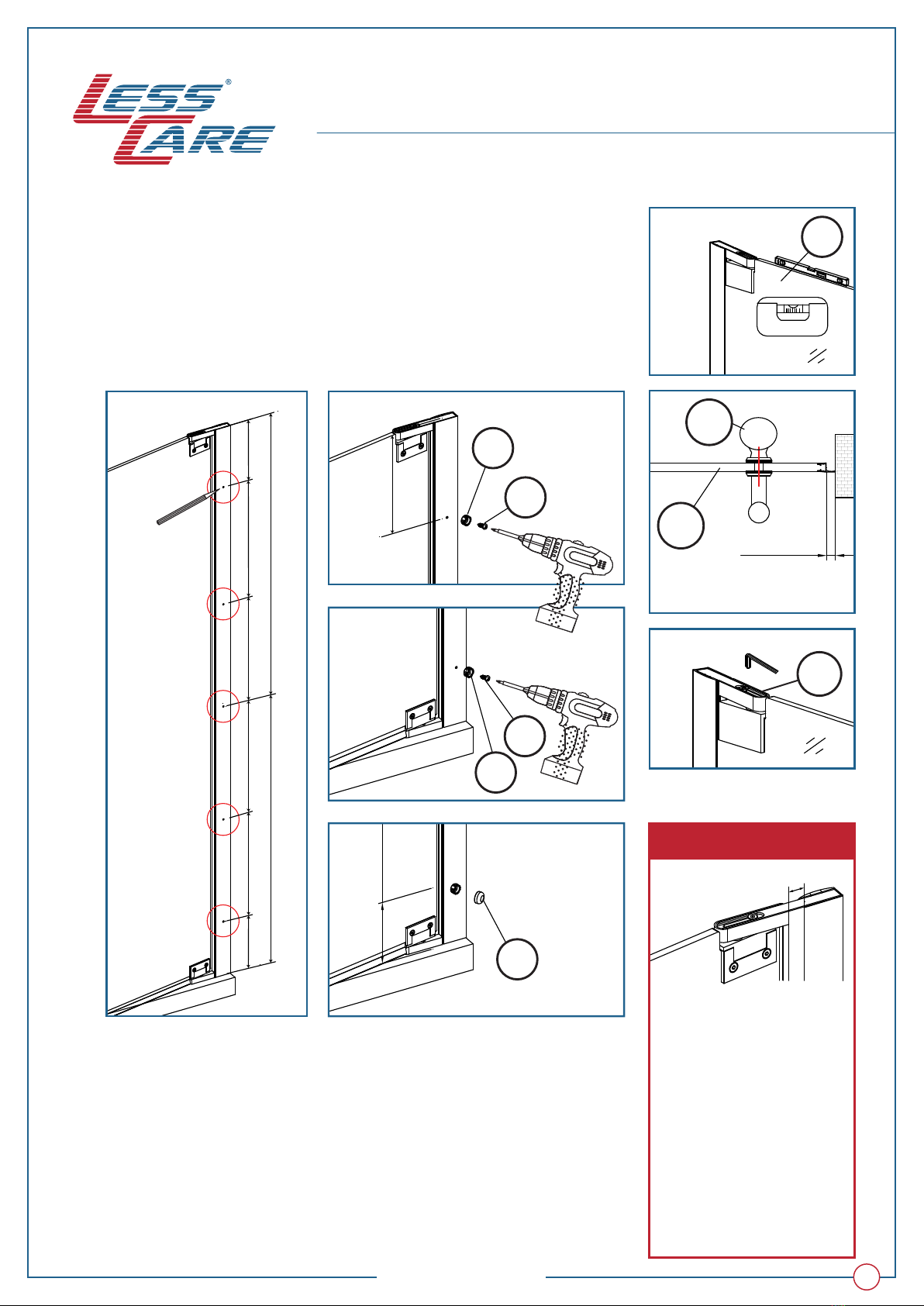

1.1 Place the Wall Profile For Glass Door (1) vertically against the wall
and set it to the shower base or the threshold.
Using a level to level the wall profile upright mark 7 pre-drilled holes on
the wall, using a pencil or marker, to prepare for drilling.
Now, drill 7 holes in the wall using 8mm (5/16") Drill Bit. Apply silicone
into the holes on the wall. Insert seven 8mm (5/16") Wall anchors (13)
and hammer them in.
See Figure 1 for details
b
a
c
d
Figure 1
1. Wall profile and Pivot retainers installation
Shower Base
1
1
13
+0.0
Installation requires
minimum of 2" x 4"
wood stud framing
behind the wall.

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
7

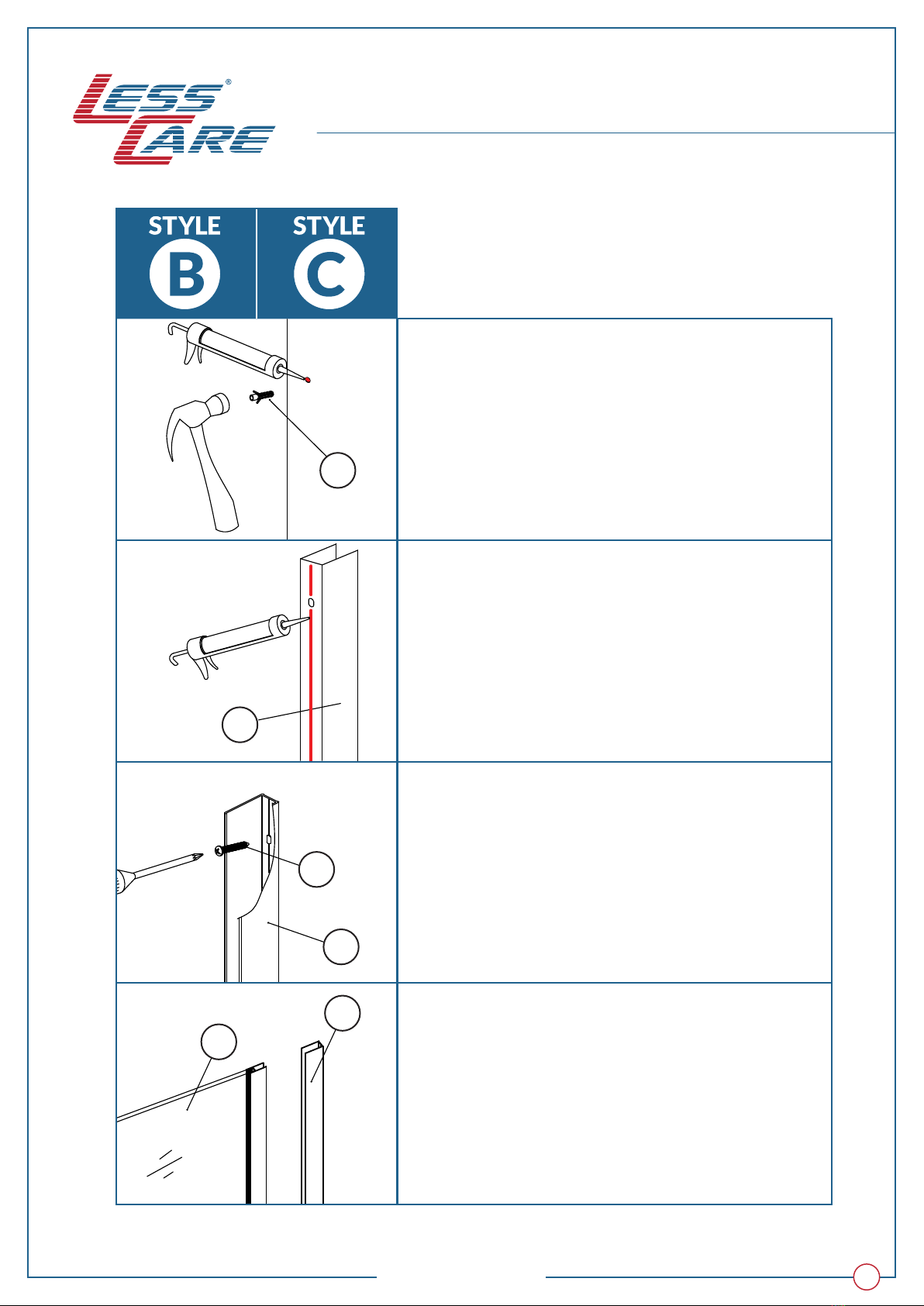

1.3 Secure the Wall Profile For Glass Door (1)
with both Pivot Retainers (4A/5A) and middle
section to the wall together by using 7 Round
Head Screws M5x60 (12).
See Figure 3 for details
1.2 Insert Upper Pivot Retainer (4A) and Lower Pivot Retainer (5A)
into both ends of the Wall Profile For Glass Door (1). Apply silicone from
top to bottom along the back edge (edge facing the wall) of Wall profile
for glass door (1)
See Figure 2 for details
Figure 2
Figure 3
INSTALLATION STEPS
a c d
4A 1
1
5A
b
12
Bottom
b
12
Top
a
12
Middle
c
1
OUTSIDE (BATHROOM)
TOP VIEW
INSIDE (SHOWER)
WALL
NOTE: Wall Profile For Glass Door (1) must
be attached to the wall with the rounded edge
facing outside (bathroom).
e

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
8
Figure 4 Figure 5
Upper
Lower

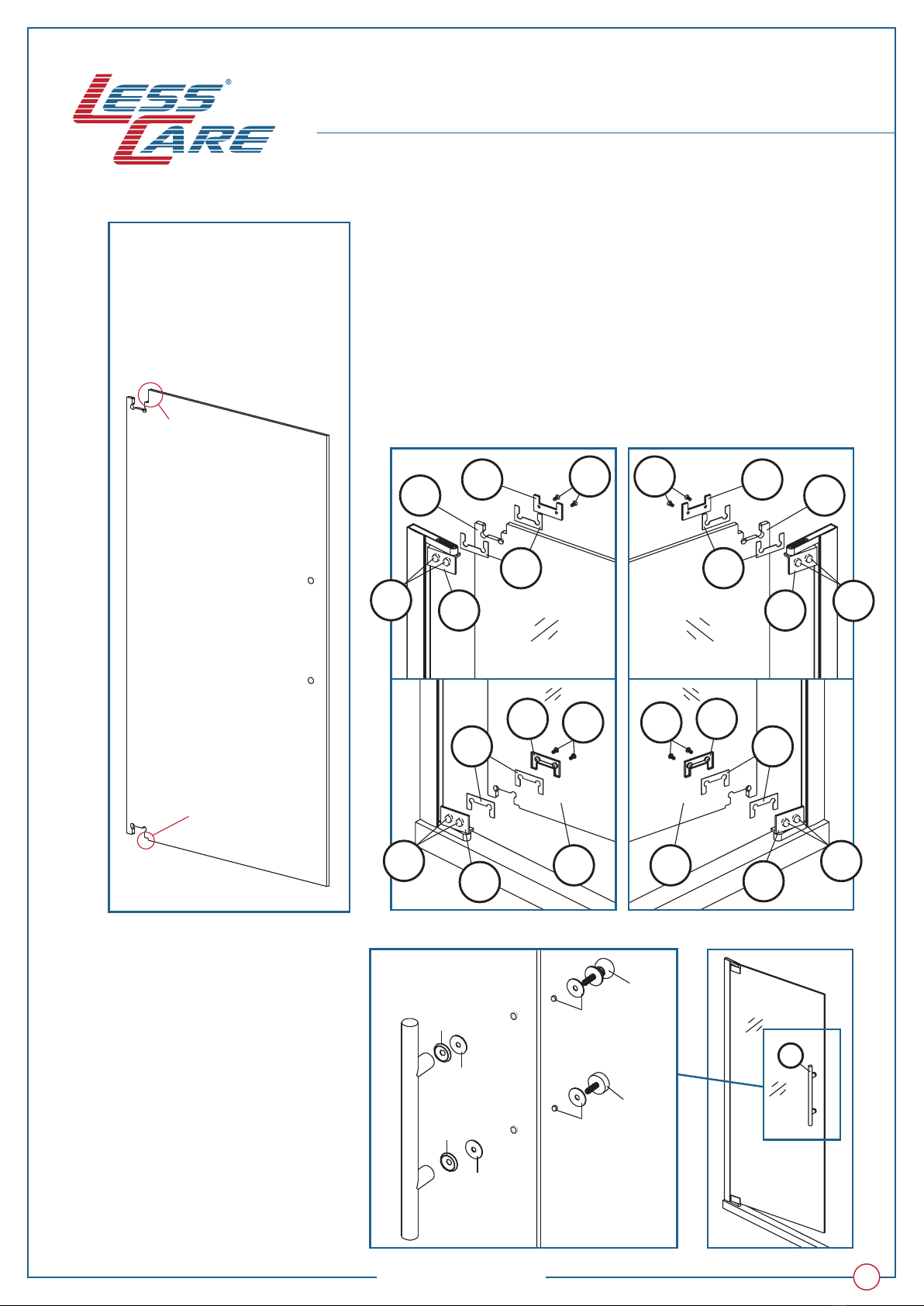

2.1 Install both Pivot Assemblies (4/5) to the top and the
bottom ends of the Glass Profile For Glass Door (2). Secure
both Pivot Assemblies (4/5) and Glass Profile (2) together
with Countersunk Screw M4x30 (16) and Round Head
Screws M4x12 with Washers (14).
See Figure 4 for details
NOTE: Back Plates (4F/5F) of both Pivot Assemblies (4/5)
should face inside of your shower.
TIP: Lower Pivot Assembly (5A) is installed in the same way as
the Upper Pivot Assembly (4A).
2.2 Slide the assembled Glass Profile For Glass Door (2) with
Pivot Assemblies (4/5) into the slot of the Wall Profile For
Glass Door (1) and fasten the Upper Pivot Retainer (4A) to the
Pivot Body (4C) with Countersunk Screw M6x14 (4B).
See Figure 5 for details
2. Installation of Upper and Lower
Pivot Assembly to the Glass Profile
a
16
2
4
c
ab
c
4B
INSTALLATION STEPS
NOTE: Do not screw together
Lower Pivot Retainer (5A)
with Pivot Body (5C)
using Countersunk Screw
M6x14 (5B) this step.
10º
10º
UPPER PIVOT
LOWER PIVOT
INSTALLATION FOR
LEFT HAND OPENING
5
4
INSTALLATION FOR
RIGHT HAND OPENING
Figure 5-1 Figure 5-2
This side
facing
outside
(bathroom)
This side
facing
outside
(bathroom)
10º
10º
UPPER PIVOT
LOWER PIVOT
4
5
This side
facing
outside
(bathroom)
This side
facing
outside
(bathroom)
Decide whether you want to install the door
for the left or the right hand opening. If you
want to open your door to the left side, use
Pivot Assembly (4) as upper pivot and Pivot
Assemby (5) as lower pivot.
See Figure 5-1 for details
If you plan to open shower door to the right
side, use Pivot Assembly (5) as upper pivot
and Pivot Assemby (4) as lower pivot.
See Figure 5-2 for details
IMPORTANT: In both installations, Back
Plates (4F/5F) of all Pivot Assemblies (4/5)
should face inside of your shower.
Left or Right Opening Installation?
14
b

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
9
Clear Rubber
Gasket
Figure 7 Figure 8
Figure 6
Figure 9
Left Side Installation Right Side Installation

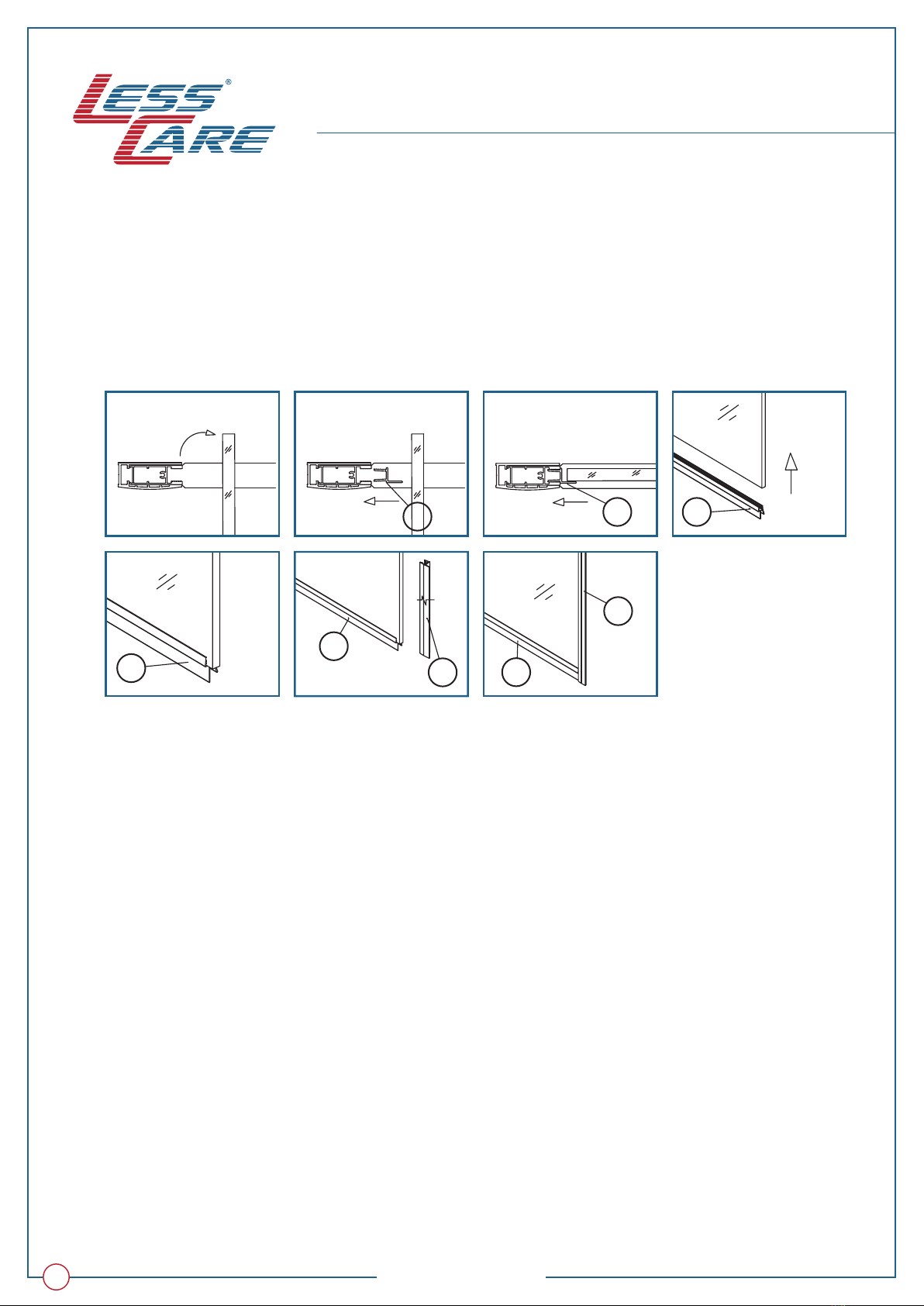

3. Glass Door Installation
Install the Handle (07) onto the
Glass door (17).
IMPORTANT: Make sure that Clear
Rubber Gaskets are in between the
Glass Door (17) and knob; between
washer and glass; between Cap and
Glass Door (17). Then, tighten Knob
and Cap by hand only. Do not use
any types of tools to tighten it
See Figure 9 for details.
4. Handle Installation
INSTALLATION STEPS
5C
17
5F
4C
17
5G
5E
4E
4F
4G
4C
17
4F
5C 17
4G
4E
5E
5F 5G
4D 5D
5D 4D
Disassemble the Upper And Lower Pivot Assemblies (4/5). Mount the Glass
Door (17) into Pivot Bodies (4C/5C) (see page 5).
NOTE: Use of soft wood shim is recommended to support Glass door (17)
from the bottom, during installation and all adjustments and it will prevent
Glass Door (17) from scratched on the bottom.
IMPORTANT: Make sure that clear rubber Gaskets (4E/5E) are in between
the Glass Door (17) and the Back Plates (4F/5F). Then, fasten tight
Countersunk Screws M6x14 (4G/5G). Make sure parts (4D/5D) are in the
right position.
IMPORTANT: Do not let any metal parts come into contact directly with glass,
which will damage the glass notches and cause scratches or damage to the
Glass Door (17) and, If ignored, could result in serious injury or death.
See Figure 7 (left side installation) and 8 (right side installation) for details.
ATTENTION! Glass Door (17) has
2 notches for the Pivot assemblies.
The deeper notch must be on the
upper pivot assembly. Shallower
notch must be on the bottom of
Glass Door (17)
See Figure 6
Deeper Notch
must be on top
Shallower Notch
must be on bottom
7
Clear Rubber
Gasket
Clear Rubber
Gasket
Clear Rubber
Gasket
Washer
Knob
Cap
Washer

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
10
INSTALLATION STEPS
Open Glass Door (17) by approximately 90º then push the Side Anti-water Strip (3) into the vertical slot of the Glass Profile For
Glass Door (2). Install the Bottom Anti-water Strip (8) onto the bottom of the Glass Door (17). Place the Anti-water Strip (6) to
the long side of the Glass Door (17)
NOTE: You can cut the strips to size by using a knife if necessary, do not cut ant-water strips while they are installed on the
glass. You must take off the anti-water strip cut them as needed and re-install them. Normally, the strips are pre-cut to the size
of the glass door.
See Figure 10 for details
6. PVC strips Installation
ad
b
ef
c
g
Figure 10
338
8
8
6
6
8
Outside
(bathroom)
TOP VIEW Inside
(shower)
Outside
(bathroom)
Inside
(shower)
Outside
(bathroom)
Inside
(shower)

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
11
INSTALLATION STEPS
7.1 Make your out of plumb adjustment as needed by slightly loosen Countersunk
screw M6x14(4B). Important, do not remove Countersunk screw M6x14(4B)
completely. Now, level your door and make necessary out-of plumb adjustment by
pulling in or out Glass profile assembly from Wall profile for glass door (1) (there is
maximum of 1" out-of-plumb adjustment). Make sure that there is 3/16" - 7/16" gap
between the glass door and wall. Once all adjustments are made and the Glass
Doors (17) is leveled with walls, tighten Countersunk screw M6x14(4B).
See Figure 11 for details
Glass Door Profile (Top View)
Required distance between the wall
and edge of the Glass Door (17).
7.2 Mark all screwing points in the middle of overlap between Wall Profile for Glass
Door (1) and Glass Profile For Glass Door (2). Secure Wall Profile for Glass Door (1)
and Glass Profile For Glass Door (2) together by inserting 5 Round head screws
M3.5x13 (10) through Washers for screw (9) and screwing them in through Wall
Profile for Glass Door (1) and Glass Profile For Glass Door (2) using electric
powered screwdriver (do not pre-drill holes for screws), then clip on Screw
Decorative Cover (11).
IMPORTANT: Be sure not to screw Round head screws M3.5x13 (10) through the
glass itself (always double check!)
See Figure 12 for details.
7. Adjust, Level, and Secure Shower Door
+0.0
3/16"~7/16"
Figure 12
Figure 11
6"
"51
"51
6"
6"
6"
9
9
10
10
11
7
17
17
4B
a
a
b
c
b
c
"51
"51
elddiM
IMPORTANT: If installation
of the shower door requires
out-of-plumb adjustability,
find the middle of overlap
between Wall Profile for
Glass Door (1) and Glass
Profile For Glass Door (2)
and mark all screwing points
with a pencil or marker.
KEEP IN MIND if you are
planing to install this shower
door with stationary panel
as enclosure it will add 3/8”
(10mm) to total installation
width of the door.
Out-of-Plumb Adjustability
1" MAX
LLAW

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
12
Apply silicone sealant between the wall and the pivot
bracket. Also, apply silicone between the wall and the wall
profiles from outside(bathroom), from inside (shower),
and hole in lower pivot body.
See Figure 14 for details
Open then door 90º and you will see a hole
beneath the Pivot body (5C). This step is not
required. You may optionally drill a hole through
the Pivot body (5C) hole directly into your
threshold. Apply silicone in the drilled hole, insert,
and screw in Countersunk Screw M4x40 (15).
Apply silicone on top of the screw head.
See Figure 13 for details.
8. Apply Silicone
This step is optional
MUST ALLOW SILICONE TO DRY FOR 24 HOURS
BEFORE STARTING USING THE SHOWER
Figure 14
Figure 13
INSTALLATION STEPS
b
15
5C
a
c
5C

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
MAINTENANCE, USE, AND CARE
Long lasting life is guaranteed while maintaining proper care of your shower door and/or enclosure. To prevent a build-up of soap,
after each use, rinse the glass and wipe it with a glass squeegee and soft cloth material. Glass parts may be cleaned with designated
cleaning solutions only. All hardware parts must be cleaned with designated cleaning solutions only. Hardware parts must be
cleaned at least once a week. When applying stainless steel cleaner or polish, work with grain, not against grain.
LessCare products must be installed by a fully insured and licensed professional only. Installation of any LessCare product by
anyone other than fully insured and licensed professionals shall void limited warranty. LessCare recommends that such
licensed professionals have experience in the installation of products. This limited warranty voids on any commercial installation.
INSTALLATION OF LESSCARE PRODUCTS BY AN
INEXPERIENCED INSTALLER MAY RESULT
PERSONAL INJURY OR DEATH!
LessCare is not responsible for local code compliance. Building and plumbing codes may vary from state-to-state in accordance to
your location. LessCare is not responsible for providing any compliance certifications.
Retain these installation instructions for future reference!
Maintenance & Care
13
IMPORTANT!
DO NOT USE: Abrasive cleaners such as: acid, ammonia, bleach, and simmilar solutions. Use of such solutions may cause
corrosion, finish peeling, and/or dull the surface.
DO NOT USE: Abrasive sponges or cloth. Never use steel, wool, or wired brushes that will permanently scratch the surface.
After installation use the shower door for approximately 2-3 weeks or 20-25 times (whichever comes first). Be sure to
re-inspect all screws, make sure they are tight and tighten them if necessery. Repeat this adjustments when necessary.
When opening and closing the glass door. Be sure not to slam it. Always, open or close the glass door gently. Never slam the
shower door against glass shower enclosure panel or wall. Slaming the glass door will cause immediate shattering and will
cause personal injury or death.
Never leave kids unattended. Be sure to explain safety rules and train kids how to use the shower door to prevent any
injuries or death. It is very important to inform all family members living with you about this safety operation instructions.

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
14
9. Shower Enclosure/Stationary Panel Assembly and Installation
Stationary Panel Assembly and Installation
NOTE: Use parts from Diagram B on page 4 for Shower Enclosure/Stationary Panel
assembly and installation.
Figure 15
9.1 Insert Stationary glass panel with profile (20) into Wall profile for
stationary glass panel (19). Position the assembly of (20 and 19) against the
wall (do not screw or drill anything at this step).
See Figure 15 for details.
IMPORTANT: Stationary glass panel with profile (20) has been factory
pre-assembled. Do not try to detach the stationary glass panel from the
aluminum profile.
9.2 Level the assembly of Wall profile for stationary glass panel (19)
and Stationary glass panel with profile (20) with already installed
Shower door (17). Now, level Stationary glass panel with profile (20)
to Shower door (17).
17
20
19 20 19
17
20
17
20
17
INSTALLATION STEPS
20
19
Figure 16
Drill bit
Ø 5/16"
b
c
d
20
19
19
Once, all are leveled and lined-up draw a
line along the inner and outer sides of Wall
profile for stationary glass panel (19).
Detach Stationary glass panel with profile
(20) from Wall profile for stationary glass
panel (19). Place the Wall profile for
stationary glass panel (19) to the outlined
position and mark down 3 drilling holes
through the pre-drilled holes in the Wall
profile for stationary glass panel (19)
using pencil or marker. Now, drill the holes
using ø 5/16" drill bit in the wall.
See Figure 16 for details.

Apply silicone inside the holes and insert three 8mm Wall
anchors (30) into the holes.
Apply silicone along the back edge (edge facing the wall) of Wall
profile for stationary glass panel (19), put the wall profile
against the wall.
Fasten the Wall profile for stationary glass panel (19) to the
wall with three Round head screws M4x60 (21) through
pre-drilled holes.
Push Stationary glass panel with profile (20) into the slot of the
Wall profile for stationary glass panel (19).
19
20
19
19
21
30
Figure 17
www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
15
INSTALLATION STEPS

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
16
9.4 Using level align and level the
Stationary glass panel with profile (20)
with Glass Door (17). If needed, adjust the
position of Stationary glass panel with
profile (20) by pulling it out from the Wall
profile for stationary glass panel (19) or
push it into Wall profile for stationary
glass panel (19) to make sure the
Anti-Water strip (6) and the Glass door
(17) align to position.
See Figure 18 for details.
a
20
17
a
bb
17
20
17
20
Figure 18
9.5 Align and level Stationary glass panel with profile (20) position to ensure
that when the Glass Door (17) is closed, there is a gap (1/16"-1/8") between
the two glass panels. Secure Stationary glass panel with profile (20) in place
by installing the Bottom Bracket (29) to Stationary glass panel with profile
(20).
Attach the Bottom Bracket (29) assembly to leveled and aligned Stationary
glass panel with profile (20). Draw a line with a pencil or mark it along the
Bottom Bracket's (29) side that faces inside the shower.
Detach the Stationary glass panel with profile (20). Align Bottom Bracket
(29) with the drawn line and marked drilling hole for the bracket on the
shower base threshold. Make sure the mark is clear and visible. Drill the hole
using 1/8" drill bit. Use the Countersunk screw M5x30 (28) to secure the
Bottom Bracket (29) to the shower base threshold.
Insert Stationary glass panel with profile (20) back into Wall profile for
stationary glass panel (19). Assemble Bottom Bracket (29) and tighten the
screw.
IMPORTANT: Make sure that Clear Rubber Gaskets are in between the
Stationary glass panel with profile (20) and bracket's panels. Make sure
Stationary glass panel with profile (20) and Glass Door (17) are aligned
between each other and leveled.
See Figure 19 for details
10. Bottom Bracket Installation
INSTALLATION STEPS
Figure 19
1/16"-1/8"
Drill Bit
Ø1/8"
1/16"-1/8"
aa
b
c
d
17
29 20
20 17 20
29
29
28
Screw
Back bracket
panel Clear rubber
gaskets
Front bracket
panel
Inside
(shower)
Inside
(shower)
Outside
(bathroom)
Outside
(bathroom)
17
20

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
17
Figure 20
10. Secure the Stationary Glass Panel with Wall Profile and Shower Base Threshold
INSTALLATION STEPS
a
b
c
25
25
25
27
27
26
Inside
(shower)
outside
(bathroom)
6"
20" 20" 20" 6"
10.1 After leveling Stationary glass panel with profile (20) with the Glass door (17) mark all screwing points in the middle of
overlap between Stationary glass panel with profile (20) and Wall Profile for stationary panel (19). Secure Wall Profile for
stationary panel (19) and Stationary glass panel with profile (20) together by Inserting 4 self screwing Round head screws
M3.5x13 (26) through Washer for screw (25) and screw them in through Stationary glass panel with profile (20) and Wall
Profile for stationary panel (19) using electric powered screwdriver (do not drill holes for screws). Cover the exposed screw
heads with Screw Decorative Cover (27).
See Figure 20 for details IMPORTANT: Be sure not to screw Round
head screws M3.5x13 (26) through the
glass itself (always double check!)
NOTE: In case if you over-tighten any of
Round head screws M3.5x13 (26) while
securing Stationary glass panel with
profile (20) and Wall Profile for stationary
panel (19). Find and Mark another location
slightly upper or lower away from the
screwed hole and screw in Round head
screw M3.5x13 (26). Apply a small amount
of silicone into wrongly screwed hole.
IMPORTANT: If installation of
the stationary panel requires
out-of-plumb adjustability,
find the middle of overlap
between Stationary glass
panel with profile (20) and
Wall Profile for stationary
panel (19) and mark all
screwing points with a pencil
or marker.
1" MAX
Out-of-Plumb Adjustability

www.lesscare.com
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
18
11.1 Align center of the hole on Stationary glass
panel with profile (20) with the the wall. Mark a dot
using pencil or marker on the wall. From the marked
dot level, measure, and mark 2" and 6" dots from Wall
profile for stationary glass panel (19) for hole drilling
while level is still in place. Repeat the step for lower
shelf.
11.2 Drill the marked holes using ø5/16" drill bit.
Apply silicone into the holes and insert 8mm (5/16")
wall anchors (30) into the holes. Repeat the step for
lower shelf.
11.3 Attach Shelf brackets for Wall (22) to the wall
using the Round head screw M4X60 (21) and attach
the Shelf brackets for stationary glass panel (23) to
Stationary glass panel with profile (20). Insert each
Glass shelf (24) into the shelf brackets and fasten the
screws at the bottom of all brackets. Repeat the step
for lower shelf.
See Figure 21 for details.
11. Glass Shelves Installation
Figure 21
Figure 22
21
22
22
2"
6"
Wall Wall
Wall Wall
Wall Wall
22
Drill Bit
Ø=5/16"
a b
cd
e f
INSTALLATION STEPS
WALL
TOP VIEW TOP VIEW
WALL
23
23
IMPORTANT: Make sure that Clear Rubber
Gaskets are in between the Stationary glass
panel with profile (20) and Shelf Bracket Cap
for Stationary glass Panel; between Shelf
brackets for stationary glass panel (23) and
Stationary glass panel with profile (20). Then,
tighten Shelf Bracket Cap for Stationary glass
Panel by hand only. Do not use any types of
tools to tighten it.
See Figure 22 for details
20
20
24
23
22
24
22
Rubber Gaskets
Shelf Bracket Cap
for Stationary
glass Panel

www.lesscare.com 19
12.1 Apply clear silicone sealant between the tray or threshold. Also, apply silicone between the wall and the wall profiles from
outside(bathroom), from inside (shower). Let the applied silicone dry completely.
See Figure 23 for details
12. Apply Silicone
Figure 23
MUST ALLOW SILICONE TO DRY FOR 24 HOURS BEFORE STARTING USING THE SHOWER
ULTRA-G
SHOWER DOORS • SHOWER ENCLOSURES
INSTALLATION STEPS
