Leuze electronic BCL 358i OM 100 User manual

Part no.: 50120754
BCL 358i OM 100
Stationary bar code reader
Figure can vary
Contents
▪Technical data
▪Dimensioned drawings
▪Electrical connection
▪Diagrams
▪Operation and display
▪Accessories
▪Notes
Leuze electronic Gmb + Co. KG, In der Braike 1, D-73277 Owen [email protected] • www.leuze.com
Phone: [phone], Telefax [phone] We reserve the right to make technical changes • eng 2017-10-04
1 / 12

Technical data
Basic data
Series BCL 300i
Functions
Functions AutoReflAct
Reference code comparison
Alignment mode
LED indicator
AutoControl
Code fragment technology
AutoConfig
Characteristic parameters
MTTF 110 years
Read data
Code types, readable EAN 8/13
Code 93
UPC
Codabar
Code 128
2/5 Interleaved
GS1 Databar Limited
GS1 Databar Expanded
GS1 Databar Omnidirectional
Code 39
Scanning rate, typical 1,000 scans/s
Bar codes per reading gate, max. number 64 Piece(s)
Optical data
Reading distance 40 ... 300 mm
Light source Laser, Red
Laser light wavelength 655 nm
Laser class 2, IEC/EN 60825-1:2007
Transmitted-signal shape Continuous
Module size 0.2 ... 0.5 mm
Reading method Oscillating-mirror scanner
Beam deflection Via rotating polygon wheel + stepping motor with mirror
Light beam exit Zero position at side at angle less than 90°
Oscillating mirror frequency 10 z
Max. swivel angle 20 °
Electrical data
Protective circuit Polarity reversal protection
Performance data
Supply voltage 18 ... 30 V, DC
Power consumption, max. 9 W
Inputs/outputs selectable
Current, max. 60 mA
Number of inputs/outputs selectable 2 Piece(s)
Input current, max. 8 mA
Interface
Part no.: 50120754 – BCL 358i OM 100 – Stationary bar code reader
Leuze electronic Gmb + Co. KG, In der Braike 1, D-73277 Owen [email protected] • www.leuze.com
Phone: [phone], Telefax [phone] We reserve the right to make technical changes • eng 2017-10-04
2 / 12

Type EtherNet IP
EtherNet IP
Function Process
Address assignment Manual address assignment
D CP
Switch functionality Integrated
Transmission speed 10 Mbit/s
100 Mbit/s
Service interface
Type USB
USB
Function Configuration via software
Service
Connection
Number of connections 1 Piece(s)
Connection 1
Type of connection Plug connector
Function BUS IN
Connection to device
PWR / SW IN/OUT
Service interface
Data interface
No. of pins 32 -pin
Type Male
Mechanical data
Design Cubic
Dimension (W x x L) 125 mm x 58 mm x 110 mm
ousing material Metal, Diecast aluminum
Lens cover material Glass
Net weight 580 g
ousing color Red
Black
Type of fastening Fastening on back
Via optional mounting device
Dovetail grooves
Operation and display
Type of display LED
Number of LEDs 2 Piece(s)
Type of configuration Via web browser
Environmental data
Ambient temperature, operation 0 ... 40 °C
Ambient temperature, storage -20 ... 70 °C
Relative humidity (non-condensing) 0 ... 90 %
Certifications
Degree of protection IP 65
Protection class III
Certifications c UL US
Part no.: 50120754 – BCL 358i OM 100 – Stationary bar code reader
Leuze electronic Gmb + Co. KG, In der Braike 1, D-73277 Owen [email protected] • www.leuze.com
Phone: [phone], Telefax [phone] We reserve the right to make technical changes • eng 2017-10-04
3 / 12

Test procedure for EMC in accordance with standard EN 61000-4-2, 3, -4, -6
EN 55022
Test procedure for shock in accordance with standard IEC 60068-2-27, test Ea
Test procedure for continuous shock in accordance with standard IEC 60068-2-29, test Eb
Test procedure for vibration in accordance with standard IEC 60068-2-6, test Fc
Classification
eCl@ss 8.0 27280102
eCl@ss 9.0 27280102
ETIM 5.0 EC002550

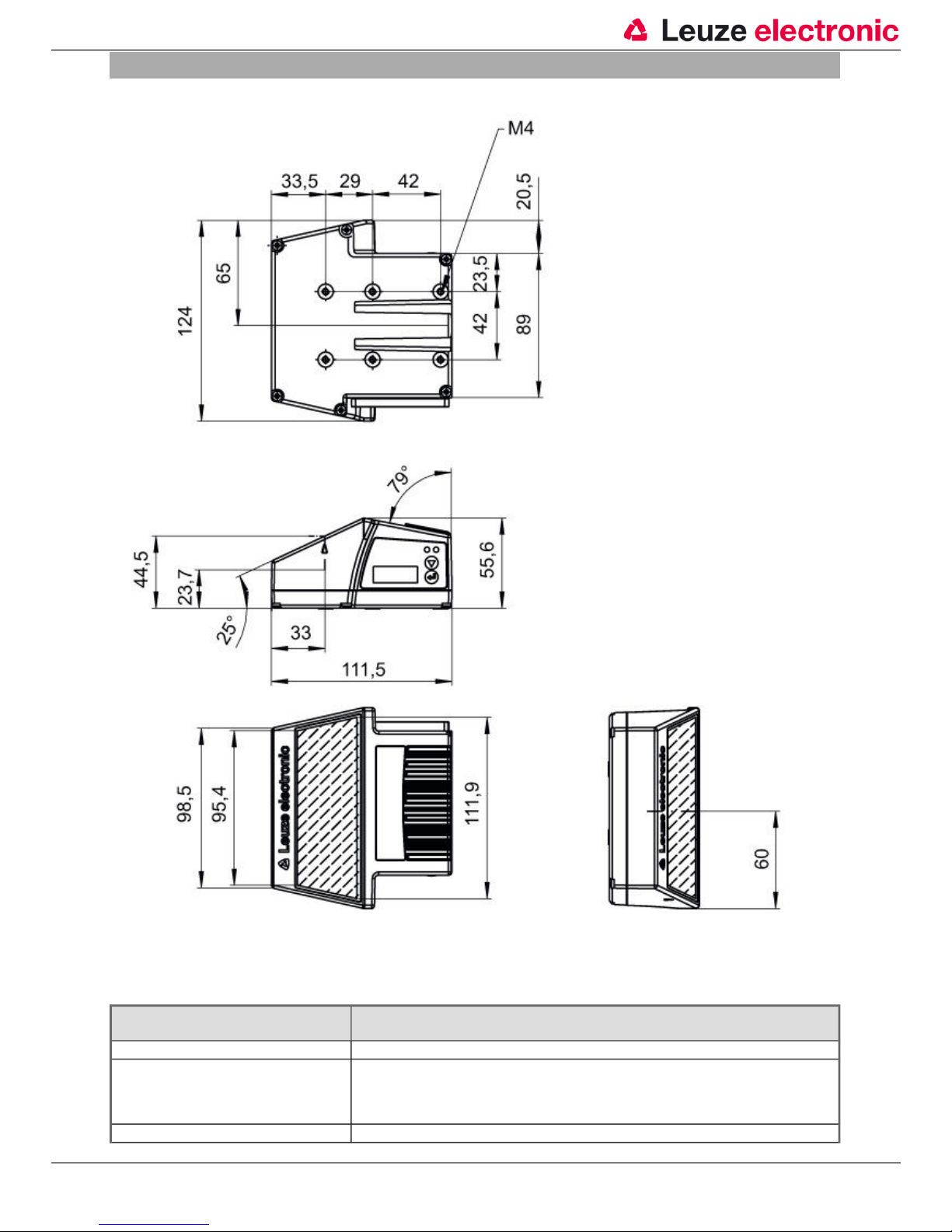

Dimensioned drawings
All dimensions in millimeters
Part no.: 50120754 – BCL 358i OM 100 – Stationary bar code reader
Leuze electronic Gmb + Co. KG, In der Braike 1, D-73277 Owen [email protected] • www.leuze.com
Phone: [phone], Telefax [phone] We reserve the right to make technical changes • eng 2017-10-04
4 / 12

Electrical connection
Connection 1
Type of connection Plug connector
Function BUS IN
Connection to device
PWR / SW IN/OUT
Service interface
Data interface
No. of pins 32 -pin
Part no.: 50120754 – BCL 358i OM 100 – Stationary bar code reader
Leuze electronic Gmb + Co. KG, In der Braike 1, D-73277 Owen [email protected] • www.leuze.com
Phone: [phone], Telefax [phone] We reserve the right to make technical changes • eng 2017-10-04
5 / 12

Connection 1
Type Male
Diagrams
Reading field curve
x Reading field distance [mm]
y Reading field width [mm]
Part no.: 50120754 – BCL 358i OM 100 – Stationary bar code reader
Leuze electronic Gmb + Co. KG, In der Braike 1, D-73277 Owen [email protected] • www.leuze.com
Phone: [phone], Telefax [phone] We reserve the right to make technical changes • eng 2017-10-04
6 / 12

Lateral reading field curve
Operation and display
LEDs
LED Display Meaning
1 PWR Green, flashing Device ok, initialization phase
Green, continuous light Device OK
Green, briefly off - on Reading successful
green, briefly off - briefly red - on Reading not successful
Orange, continuous light Service mode
Red, flashing Device OK, warning set
Red, continuous light Error, device error
2 NET Green, flashing Initialization
Green, continuous light Bus operation ok
Red, flashing Communication error
Red, continuous light Bus error
Part no.: 50120754 – BCL 358i OM 100 – Stationary bar code reader
Leuze electronic Gmb + Co. KG, In der Braike 1, D-73277 Owen [email protected] • www.leuze.com
Phone: [phone], Telefax [phone] We reserve the right to make technical changes • eng 2017-10-04
7 / 12

Accessories

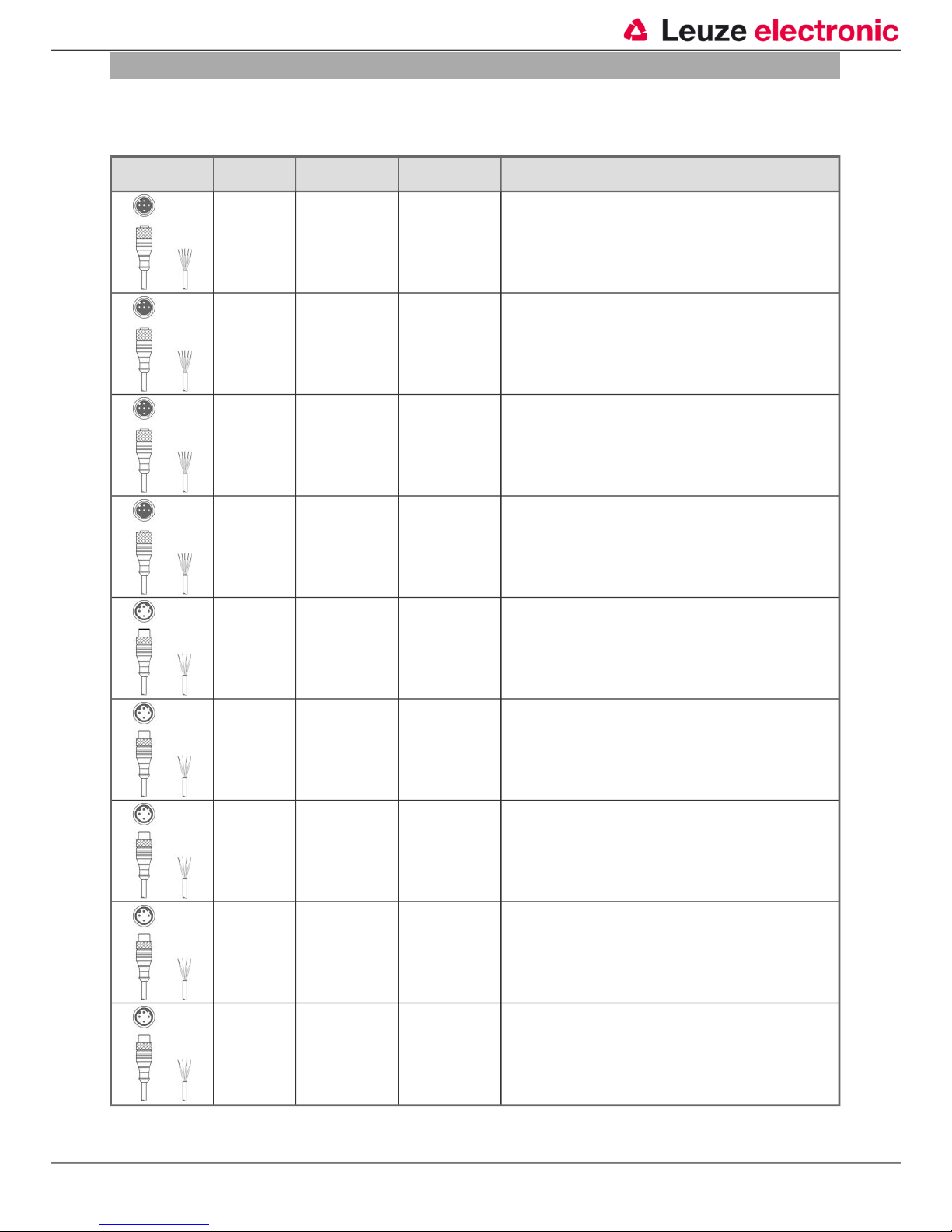

Connection technology - Connection cables
Part no. Designation Article Description
50132077 KD U-M12-5A-
V1-020
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC
50132079 KD U-M12-5A-
V1-050
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC
50132080 KD U-M12-5A-
V1-100
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PVC
50132432 KD U-M12-5A-
V1-300
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 30,000 mm
Sheathing material: PVC
50135073 KS ET-M12-4A-
P7-020
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 2,000 mm
Sheathing material: PUR
50135074 KS ET-M12-4A-
P7-050
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
50135075 KS ET-M12-4A-
P7-100
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
50135076 KS ET-M12-4A-
P7-150
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
50135077 KS ET-M12-4A-
P7-300
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 30,000 mm
Sheathing material: PUR
Part no.: 50120754 – BCL 358i OM 100 – Stationary bar code reader
Leuze electronic Gmb + Co. KG, In der Braike 1, D-73277 Owen [email protected] • www.leuze.com
Phone: [phone], Telefax [phone] We reserve the right to make technical changes • eng 2017-10-04
8 / 12

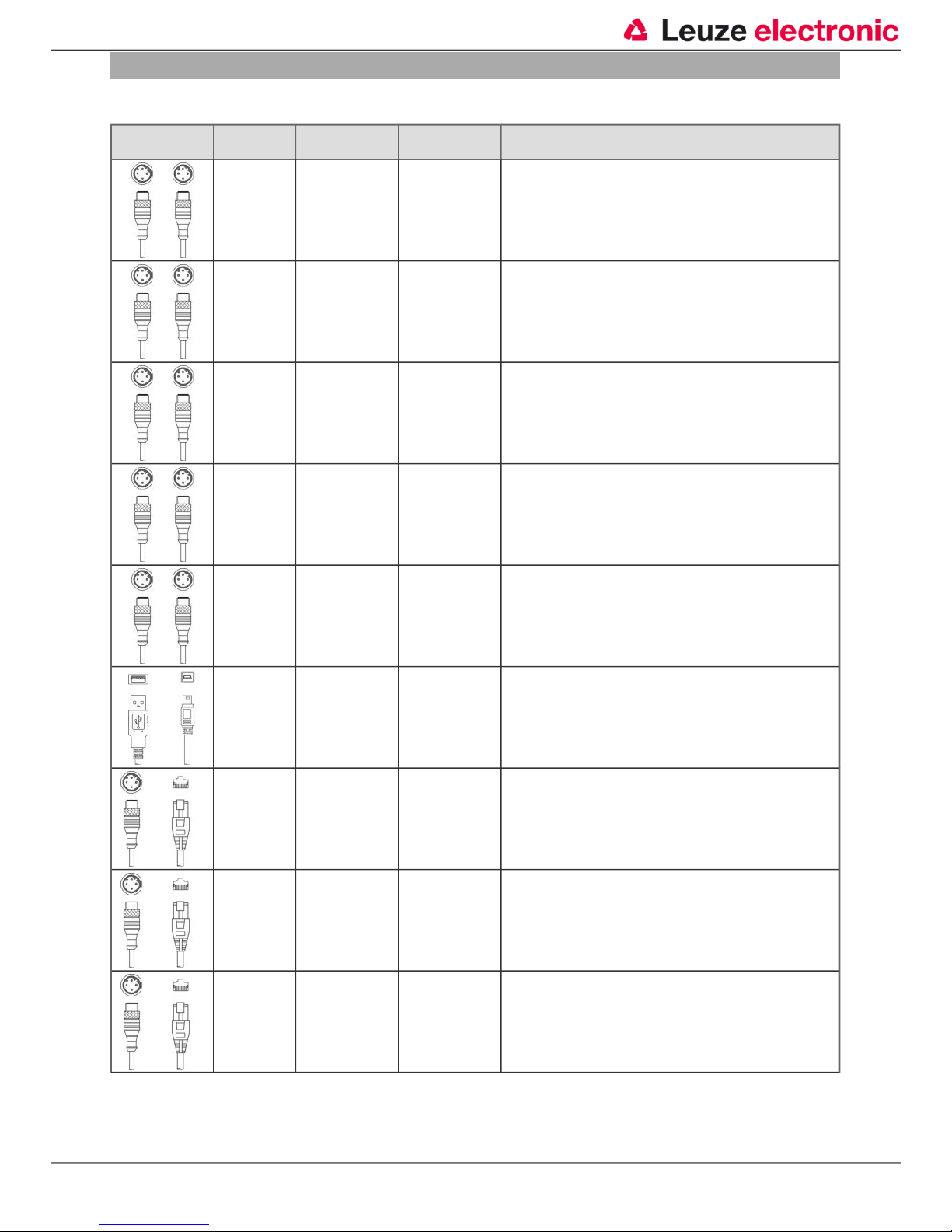

Connection technology - Interconnection cables
Part no. Designation Article Description
50106901 KB
ET-10000-SSA
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
50106902 KB
ET-15000-SSA
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
50106899 KB ET-2000-SSA Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 2,000 mm
Sheathing material: PUR
50106905 KB
ET-30000-SSA
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 30,000 mm
Sheathing material: PUR
50106900 KB ET-5000-SSA Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
50117011 KB USB A - USB
miniB
Service line Suitable for interface: USB
Connection 1: USB
Connection 2: USB
Shielded: Yes
Cable length: 1,500 mm
Sheathing material: PVC
50135080 KSS ET-M12-4A-
RJ45-A-P7-020
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable length: 2,000 mm
Sheathing material: PUR
50135081 KSS ET-M12-4A-
RJ45-A-P7-050
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
50135082 KSS ET-M12-4A-
RJ45-A-P7-100
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Part no.: 50120754 – BCL 358i OM 100 – Stationary bar code reader
Leuze electronic Gmb + Co. KG, In der Braike 1, D-73277 Owen [email protected] • www.leuze.com
Phone: [phone], Telefax [phone] We reserve the right to make technical changes • eng 2017-10-04
9 / 12

Part no. Designation Article Description
50135083 KSS ET-M12-4A-
RJ45-A-P7-150
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
50135084 KSS ET-M12-4A-
RJ45-A-P7-300
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable length: 30,000 mm
Sheathing material: PUR

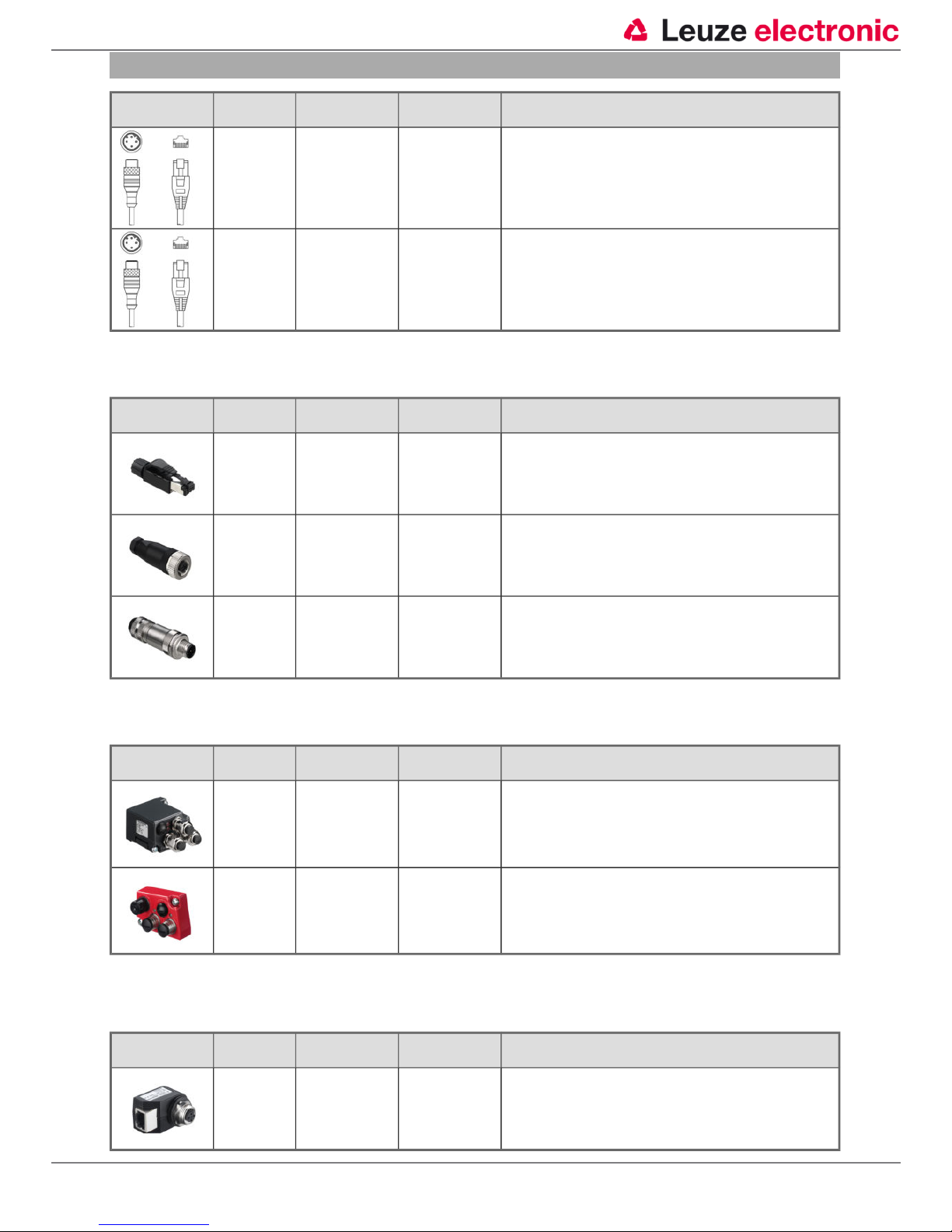

Connection technology - Connectors
Part no. Designation Article Description
50108991 D-ET1 Connector Suitable for interface: Ethernet
Connection: RJ45
50020501 KD 095-5A Connector Connection: Connector, M12, Axial, Female, A-coded, 5 -pin
50112155 S-M12A-ET Connector Suitable for interface: Ethernet
Connection: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection technology - Terminal boxes
Part no. Designation Article Description
50120796 *MK 358 Connection unit Suitable for: BCL 358i
Suitable for interface: EtherNet IP
Number of connections: 4 Piece(s)
Connection: Terminal
50120797 *MS 358 Connection unit Suitable for: BCL 358i
Suitable for interface: EtherNet IP
Number of connections: 4 Piece(s)
Connection: Connector, M12
* Necessary accessories, please order separately
Connection technology - Adapters
Part no. Designation Article Description
50109832 KDS ET-M12 /
RJ45 W-4P
Adapter Suitable for: Ethernet
Number of connections: 2 Piece(s)
Connection 1: Connector, M12, Angled, Female, D-coded, 4 -pin
Connection 2: RJ45
Part no.: 50120754 – BCL 358i OM 100 – Stationary bar code reader
Leuze electronic Gmb + Co. KG, In der Braike 1, D-73277 Owen [email protected] • www.leuze.com
Phone: [phone], Telefax [phone] We reserve the right to make technical changes • eng 2017-10-04
10 / 12

Mounting technology - Mounting brackets
Part no. Designation Article Description
50121433 BT 300 W Mounting device Contains: 4x M4 x 10 screw, 4x position washers, 4x lock
washers
Design of mounting device: Angle, L-shape
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Screw type
Type of mounting device: Adjustable
Material: Metal
Mounting technology - Rod mounts
Part no. Designation Article Description
50121434 BT 300 - 1 Mounting device Contains: 4x M4 x 10 screw, 4x position washers, 4x lock
washers
Design of mounting device: Mounting system
Mounting bracket, at system: For 12 mm rod, For 14 mm rod,
For 16 mm rod
Mounting bracket, at device: Screw type
Type of mounting device: Turning, 360°, Adjustable
Material: Metal
50027375 BT 56 Mounting device Design of mounting device: Mounting system
Mounting bracket, at system: For 16 mm rod, For 18 mm rod,
For 20 mm rod
Mounting bracket, at device: Clampable
Material: Metal
Tightening torque of the clamping jaws: 8 N·m
Functions: Static applications
50121435 BT 56 - 1 Mounting device Design of mounting device: Mounting system
Mounting bracket, at system: For 12 mm rod, For 14 mm rod,
For 16 mm rod
Mounting bracket, at device: Clampable
Material: Metal
Tightening torque of the clamping jaws: 8 N·m
Functions: Static applications
Mounting technology - Other
Part no. Designation Article Description
50111224 BT 59 Mounting bracket Mounting bracket, at system: Groove mounting
Mounting bracket, at device: Clampable
Material: Metal
50124941 BTU 0300M-W Mounting device Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable, Groove mounting
Material: Metal
Part no.: 50120754 – BCL 358i OM 100 – Stationary bar code reader
Leuze electronic Gmb + Co. KG, In der Braike 1, D-73277 Owen [email protected] • www.leuze.com
Phone: [phone], Telefax [phone] We reserve the right to make technical changes • eng 2017-10-04
11 / 12

Reflective tapes for standard applications
Part no. Designation Article Description
50106119 REF 4-A-100x100 Reflective tape Design: Rectangular
Reflective surface: 100 mm x 100 mm
Material: Plastic
Chemical designation of the material: PMMA
Fastening: Self-adhesive
Notes
Observe intended use!
• This product is not a safety sensor and is not intended as personnel protection.
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
WARNING! LASER RADIATION – LASER CLASS 2
Never look directly into the beam!
The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety regulations for a product of laser class 2 as well as
the U.S. 21 CFR 1040.10 regulations with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.
• Never look directly into the laser beam or in the direction of reflected laser beams! If you look into the beam path over a longer time
period, there is a risk of injury to the retina.
• Do not point the laser beam of the device at persons!
• Interrupt the laser beam using a non-transparent, non-reflective object if the laser beam is accidentally directed towards a person.
• When mounting and aligning the device, avoid reflections of the laser beam off reflective surfaces!
• CAUTION! Use of controls or adjustments or performance of procedures other than specified herein may result in hazardous light
exposure.
• Observe the applicable statutory and local laser protection regulations.
• The device must not be tampered with and must not be changed in any way.
There are no user-serviceable parts inside the device.
Repairs must only be performed by Leuze electronic Gmb + Co. KG.
NOTE
Affix laser information and warning signs!
Laser information and warning signs are affixed to the device. In addition, self-adhesive laser information and warning signs (stick-on labels)
are supplied in several languages.
• Affix the laser information sheet to the device in the language appropriate for the place of use. When using the device in the US, use
the stick-on label with the "Complies with 21 CFR 1040.10" note.
• Affix the laser information and warning signs near the device if no signs are attached to the device (e.g. because the device is too
small) or if the attached laser information and warning signs are concealed due to the installation position.
• Affix the laser information and warning signs so that they are legible without exposing the reader to the laser radiation of the device or
other optical radiation.
Part no.: 50120754 – BCL 358i OM 100 – Stationary bar code reader
Leuze electronic Gmb + Co. KG, In der Braike 1, D-73277 Owen [email protected] • www.leuze.com
Phone: [phone], Telefax [phone] We reserve the right to make technical changes • eng 2017-10-04
12 / 12
