Levana LV-TW502 User manual

USeR MANUAL
www.myLevana.com
Model #:
Model #: LV-TW502
Safe N’ See™ Advanced
Digital Video Monitor
With Talk To Baby™ Intercom

2
Need
heLp?
DO NOT RETURN THIS
PRODUCT TO THE STORE
Please contact a Levana customer support representative regarding any additional information on product
features, specications or if you need any help with set-up, we are available 24/7!
Please contact us via one of the methods below:
Toll free telephone:
1.866.946.7828
For more product information visit www.mylevana.com
Email:
[e-mail]
Online live web chat:
Visit www.mylevana.com
Toll free fax:
1.888.771.1701
Note: This is manual version 1.0 for this product, you may nd updated versions by visiting our website
IMPORTANT! PLEASE READ

3
INTRODUCTION
NEED HELP?................................................................................................................................................... 2
INTRODUCTION ............................................................................................................................................ 3
FEATURES..................................................................................................................................................... 4
BUTTONS AND CONNECTIONS - MONITOR ..................................................................................................... 6
BUTTONS AND CONNECTIONS - CAMERA....................................................................................................... 8
CAMERA SETUP AND MOUNTING GUIDE....................................................................................................... 10
SETTING UP YOUR SYSTEM.......................................................................................................................... 11
BATTERY OPERATION ................................................................................................................. 11
ATTACHING POWERTOTHE CAMERA ......................................................................................... 11
INSTALLING THE RECHARGEABLE BATTERY................................................................................. 12
CHARGINGTHE MONITOR AND RECHARGEABLE BATTERY........................................................... 12
CAMERA OPERATION .................................................................................................................................. 12
SWITCHINGTHE CAMERA ON/OFF ............................................................................................. 12
NIGHTVISION ............................................................................................................................ 13
MONITOR OPERATION ................................................................................................................................ 13
SWITCHINGTHE MONITOR ON/OFF............................................................................................. 13
SETTING THE BRIGHTNESS ......................................................................................................... 14
ADJUSTINGTHETEMPERATURE DISPLAY.................................................................................... 14
SWITCHINGTHE NIGHT LIGHT ON/OFF........................................................................................ 14
SELECTING A LULLABY............................................................................................................... 14
ADJUSTINGTHEVOX SENSITIVITY .............................................................................................. 15
INTERCOM FEATURE................................................................................................................... 15
RANGE ...................................................................................................................................... 15
ADJUSTINGTHEVOLUME............................................................................................................ 15
PAIRING ..................................................................................................................................................... 16
TROUBLESHOOTING.................................................................................................................................... 17
SPECIFICATIONS ......................................................................................................................................... 18
FCC STATEMENT ......................................................................................................................................... 19
SAFETY INSTRUCTIONS............................................................................................................................... 20
PRODUCT WARRANTY INFORMATION.......................................................................................................... 21
TABLE OF CONTENTS
Congratulations on your purchase of the LevanaTW502 Digital Video
Baby Monitor!This monitor uses advanced Clearvu® digital technology
that will deliver a crystal clear view of your baby’s room on the 3.5"
LCD screen, from anywhere in your home! Feel free to relax and take
comfort in knowing that your child is in good hands with Levana.

4
FEATURES
ClearVu® Digital Wireless Technology
ClearVu® technology ensures outstanding image and sound clarity so that you can
watch and listen to your child up to 500ft away1. Feel free to move around the house and no matter where you go, you
will always see your baby. With Levana, you’ll never miss a moment.
Large LCD for Superior Viewing Quality
Imagine what you will catch your baby doing on this bright and clear, large 3.5”LCD screen.With an LCD of this size
you will be able to set the monitor down and still see your baby clearly!
Temperature Monitoring to Ensure Safety
Studies indicate that your baby’s room should be between 61-68° F (16-20° C).This system is equipped with
temperature monitoring so you can monitor the temperature in your baby’s room and know they are always
comfortable.
Talk to Baby Intercom
Soothe your baby from a distance with the talk-to-baby intercom.With the simple press of a button you can let your
baby know you are on your way to their nursery or simply talk to them until they fall back to sleep without having to
go into his or her room.
Five Soothing Lullabies
Choose from ve dierent lullabies to soothe your baby to sleep. Turn lullabies on and o as well as change the song
being played all from the parent unit with the simple push of a button. Choose from Rock-a-Bye Baby, Hush Little
Baby, Itsy-Bitsy Spider, Sleep Baby Sleep andTwinkleTwinkle.
Night Vision
The built-in night vision allows you to see your child, even in complete darkness up to 10ft away. When the lights go
down the system automatically adjusts to the level of light. The camera can be placed anywhere in your child’s room
while still displaying a precise image of your baby2.
Relaxing Nightlight
The baby unit has a gentle nightlight that you are able to turn on and o from the parent unit. Turn the light on if your
baby is getting restless to calm them and turn it o when your baby is asleep, all without going into the baby’s room.
Voice Activated Control
Conserve battery power and sleep well at night withVOX activation.VOX allows you to turn o the monitor while your
child is safe and sound. It will only turn on when they make noise.You have the ability to adjust the level of sound
needed in order for your monitor to turn on.
Rechargeable Monitor
Enjoy up to four hours of continuous audio and video monitoring with a fully charged unit3.
LED Noise Level Indication Lights
The monitor has LED lights on it that light up to display up to ve dierent levels of sound.
This means you can turn the volume all the way down, relax and still know when and how much noise your baby is
making.

5
FEATURES
All-in-One Table Stand and Belt Clip
The table-stand also functions as a belt clip for ultra usability. Place the monitor upright with the table stand when
you are in the same room.You can also carry the monitor with you and still have both hands available by using the
belt clip.
Energy Ecient Power Adapter
The power adapters save you on power all while saving the environment.They are rated with a LevelV eciency
standard which means they are 30% more energy ecient then other conventional power adapters.
Wall Mount on Baby Camera for the Best Viewing Angle
The camera can be wall mounted so you can easily view your baby in its crib as well as see all other parts of the
nursery.
Lifetime Live Customer Support
Our customer support team can be reached by phone, by email and live web chat. Our experts will be happy to assist
you in English, French and Spanish.
Disclaimers
1. Optimum range is 150ft when signal is passing through walls or oors. Microwave ovens (when in use) may cause signal disruption at close
range. Buildings with metal frames may also cause signal disruption. Maximum transmission range is 500ft.
2. Night vision range up to 10ft under ideal conditions. Objects at or beyond this range may be partially or completely obscured, depending on
the camera application.
3. Battery life of 4 hours based on full duration testing. Battery life may vary depending on usage.
4. Product may not be exactly as shown on the package. Some images are used for illustration purposes only.
Notes
• Levana does not endorse any of its products for illegal activities. Levana is not responsible or liable in any way for any damage, vandalism,
theft or any other action that may occur while a Levana product is in use by the purchaser.
• Forsafetyreasons,babymonitorswithpowercordsshouldneverbehungonornearthecrib.Powercordsshouldbekeptatleast3feetaway
from the crib and baby’s reach at all times.
OPTIONAL ACCESSORIES
Extra Camera: LV-TW501-C
This system supports up to 3
additional cameras!

6
BUTTONS AND CONNECTIONS - MONITOR

7

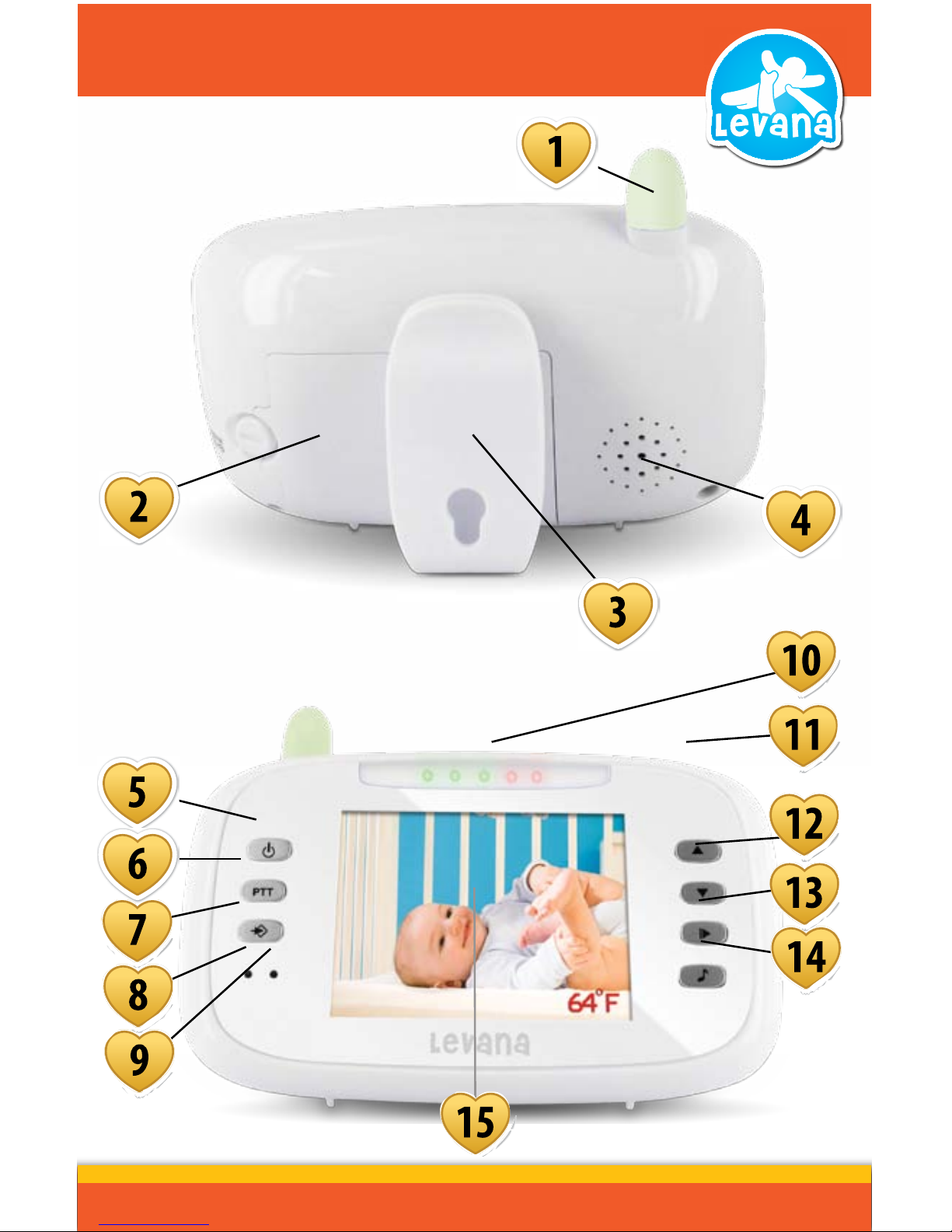

1. Antenna
Transmits and receives signals
2. Rechargeable Battery Compartment
Insert the rechargeable battery here
3. Belt Clip and Support Stand
Flip up to use as a belt clip, or down to use as a support stand
4. Speaker
5. ON/OFF Button
Turns the unit ON and OFF
6. Talk Button
Enables you to speak through the camera intercom
7. Menu Button
Brings up the menu options
8. Power LED
Indicates the amount of battery left, green means the battery is charged, red means the battery
power is low
9. VOX LED
Illuminates green whenVOX is enabled
10. Volume Level LEDs
Indicates the amount of sound being heard by the camera
11. Microphone
Press the talk button and speak into the microphone to talk to your baby
12. Volume Buttons
Increases/decreases the volume through the speakers; adjust settings in the menu
13. Play/Pause
Plays or pauses the lullaby playing through the camera
14. Lullaby Selector
Selects the lullaby that the camera will play
15. LCD Screen
Displays video of your baby
BUTTONS AND CONNECTIONS - MONITOR

8
BUTTONS AND CONNECTIONS - CAMERA

9
1. Antenna
Transmits and receives signals
2. Night Vision IR LEDs
Allows you to see up to 10 feet in complete
darkness
3. Camera Lens
Point at what you would like to view on the
monitor
4. Microphone
Captures all sounds in the baby’s room
5. Night Light
Soothe baby to sleep with the built in night
light
6. CDS Light Sensor
Detects the absence of light
and turns on night vision
7. Power LED
Indicates that the camera is
powered on
8. Power Input
Plug the included adapter into
this jack
9. Temperature Sensor
Reads the temperature and displays it on the
monitor
10. Battery Compartment
Remove screw to install 4 AAA batteries (not
included) for a completely wireless system
BUTTONS AND CONNECTIONS - CAMERA

10
This is a safety notice that is aimed at educating parents and caregivers of the
potential safety hazards associated with power cords being placed too close to a crib, play
area, or other baby sleep environment. Power cords should NEVER be placed within 3 feet of a crib, or within
baby’s reach. Using Levana’s Camera Setup and Mounting Guide, you can monitor your baby while they sleep
safely in their crib.
To Mount on a Tabletop Safely (Figure A):
1. Place the camera on a tabletop at least 3 feet away from your baby’s crib.
2. Feed the power cord down the back of the table or use wall clips to secure the cord away so baby cannot
reach.
3. Pluginthepowercord,checktoensurethatyoucanseeyourchildandtherearenoviewingobstructions.
To Mount on a Wall Safely (Figure B-C):
Before drilling a hole, it is important to check the reception and camera positioning in the place that you
intend on hanging it to the wall. Ensure you are hanging the camera at least 3 feet away from baby’s crib.
1. Pre-drill a hole in the wall using a 3/16", 4.8mm drill bit.
2. Insert a wall anchor into the wall and tap gently with a hammer until the anchor is ush with the wall.
3. Insert a screw into the wall anchor and tighten until the screw only sticks out about 1/2 inch.
4. Plug the power cord into the power jack of the camera.
5. Locate the wall mounting hole on the bottom of the camera.
6. Slide the hole over the screw sticking out of the wall (Figure C).
7. Check to see that the monitor is secure, if it is loose you may have to tighten the screw more.
8. Use wall clips to secure the power cord away from the crib or baby’s reach.
C
B
A
CAMERA SETUP AND MOUNTING GUIDE
For more information please visit our website:
www.mylevana.com/safety
