LevelOne Infinity IES-0920 User manual

IES-0920
8 FE + 1 MM SC Unmanaged Switch -40 to 75, DIN-rail
User Manual
v1.00 - 1206

IES-0920 UserManual Page 1
Preface
Thismanual describeshowtoinstallandusetheIndustrial Ethernet Switch.Thisswitch
integratesfull wirespeedswitchingtechnology.Thisswitchbringsthe answerto
complicatedIndustrial networking environments.
To get the most out of this manual, you should havean understanding of Ethernet
networking concepts.
In this manual, you will find:
•Features on the switch
•Illustrative LED functions
•Installation instructions
•Specifications

IES-0920 User Manual Page 2
Table of Contents
PREFACE .................................................................................................................. 1
PRODUCTOVERVIEW............................................................................................. 3
INDUSTRIAL ETHERNET SWITCH .........................................................................................................3
PACKAGE CONTENTS...........................................................................................................................3
PRODUCT HIGHLIGHTS.......................................................................................................................4
FRONT PANEL DISPLAY .......................................................................................................................5
PHYSICAL PORTS ................................................................................................................................6
INSTALLATION ........................................................................................................ 7
DINRAIL MOUNTING.........................................................................................................................8
CONNECTINGTOPOWER....................................................................................................................9
CONNECTINGTOYOUR NETWORK ...................................................................................................12
SPECIFICATIONS................................................................................................... 13
APPENDIX A – CONNECTOR PINOUTS................................................................. 15

IES-0920 UserManual Page 3
Product Overview
Industrial Ethernet Switch
Package Contents
When you unpack the product package, youshall find the items listed below. Please
inspect the contents, andreport any apparent damage or missing items immediately to
your authorized reseller.
•IES-0920
•QuickInstallationGuide
•CD User Manual

IES-0920 User Manual Page 4
Product Highlights
Basic Features
•Meets NEMATS1/TS2 Environmental requirements such as temperature, shock, and
vibration for traffic control equipment.
•Meets EN61000-6-2 & EN61000-6-3 EMC Generic Standard Immunity for industrial
environment.
•UL1604 Class I, Division 2 classifiedfor use in hazardous locations (applicable to
versions with terminal blockpower option).
•Supports 802.3/802.3u/802.3X.
•Auto-negotiation: 10/100Mbps, full/half-duplex. Auto MDI/MDIX.
•Supports 2048 MAC addresses.
•Provides 768K bits memory buffer.
•Alarms for power and port link failure by relay output 1.5A @ 24VDC.
•Operating voltage and Max. current consumption: 0.76A @ 12VDC, 0.38A @ 24VDC,
0.19A @ 48VDC. Power consumption: 9.12W Max.
•Power Supply: Redundant DCTerminal Block power inputs or 12VDC DC JACK with
100-240VAC external power supply.
•FieldWiringTerminal: Use Copper Conductors Only, 60/75℃, 12-24 AWG torque value 7
lb-in.
•-40℃to 75℃(-40℉to 167℉) operating temperature range.Tested for functional
operation @ -40℃to 85℃(-40℉to 185℉). UL1604 Industrial Control Equipment
certified Maximum Surrounding AirTemperature @ 74℃(165℉).
•Supports DIN-Rail or Panel Mounting installation.

IES-0920 UserManual Page 5
Front Panel Display
Status LEDs
LED
Status
Description
PW 1,2
(Green) Steady PowerOn
Off Power Off
Fault
FAULT
(Red)
Steady •Redundant power is failed or not
being used
•Port failure (When Port Fault Alarm is
enabled)
Off •Redundant power isactive
•Port failure is not occurred
•Port Fault Alarm is disabled
10/100Base-TX or 100Base-FX/BX
LNK/ACT
(Green) Steady Network connection is established
Flashing Transmitting or Receiving data
100
(Yellow) Steady Connection at 100Mbps speed
Off Connection at 10Mbps speed

IES-0920 User Manual Page 6
Physical Ports
This switch provides:
Eight 10/100Base-TX ports
Eight 10/100Base-TX ports + one 100Base-FX/BX port
Six 10/100Base-TX ports + two 100Base-FX/BX ports
Four 10/100Base-TX ports + four 100Base-FX/BX ports
Connectivity
RJ-45connectors
SC or ST connector on 100Base-FX fiber port
SC connector on 100Base-BX fiber port

IES-0920 UserManual Page 7
Installation
This chapter gives step-by-step instructions about how to install the switch:
Selecting a Site for the Switch
As with anyelectric device, you should place the switch where it will not besubjected to
extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you
select should meet the following requirements:
•The ambient temperature should be between -40 to 75 degrees Celsius.
•The relativehumidity should be less than 95 percent, non-condensing.
•Surrounding electrical devices should not exceed the electromagnetic field (RFC)
standards.
•Make sure that the switch receives adequate ventilation. Do not block the ventilation
holes on each side of the switch
•The power outlet should be within 1.8 meters of the switch.

IES-0920 User Manual Page 8
DIN Rail Mounting
Fix the DIN rail attachment plate to the back panel of the switch.
Installation: Place the switch on the DIN rail from above using the slot. Push the front of
the switch toward the mounting surface until it audibly snaps into place.
Removal: Pull out the lower edgeand then removethe switch from the DIN rail.

IES-0920 UserManual Page 9
Connecting to Power
Redundant DCTerminalBlockPower Inputs or 12VDC DC Jack (Optional)
Redundant DCTerminal Block Power Inputs
There are two pairs of power inputs can be used to power up this device.You need to have
two power inputs connected to run the device, but the FAULT LED indicator will light up to
remind that the power redundant systemfunctions abnormal in case either PWR1 or PWR2
is dead.This device, however, continues working normally even fault LED indicator lights
up.
Step 1: Connect the DC power cordto the plug-able terminal block on the switch, and
then plug it into a standard DC outlet.
Step 2: Disconnect the power cord if you want to shut down the switch.
FieldWiringTerminal: Use Copper Conductors Only, 60/75℃,12-24 AWG torquevalue 7
lb-in.

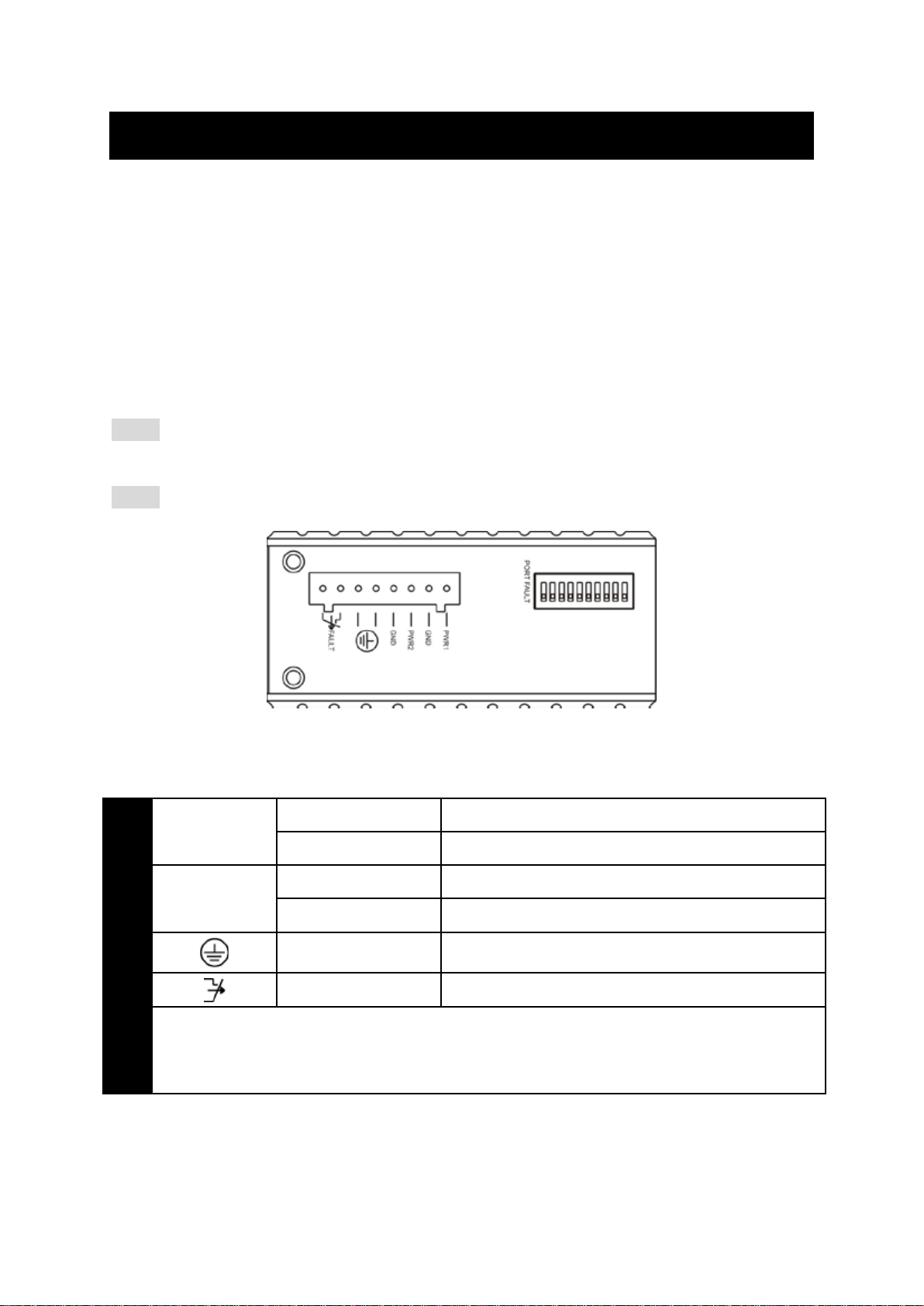

Terminal Block
PW1 + 10 – 48VDC
–
Power Ground
PW2 + 10 – 48VDC
– Power Ground
Earth Ground
Relay Output 1A @ 24VDC
1. Therelaycontact opens if Power1 or Power2 falls
2. Therelaycontact opens if the Port Link is broken
(When Link Down Detection is enabled)

IES-0920 User Manual Page 10
12VDC DC Jack Input (Optional)
Step 1: Connect the supplied AC toDC power adapter tothe receptacle onthe topside of
the switch.
Step 2: Connect the power cord to the AC to DC power adapter and attach the plug into a
standard ACoutlet with the appropriate AC voltage.
DC Jack
PW1 DC Jack 12VDC Input
Relay Output 1A @ 24VDC
1. Therelaycontact close ifpowerfalls

IES-0920 UserManual Page 11
Alarms for Power and Port Failure
Step 1:There are two pins on the terminal block are used for power failure detection. It
provides the normally closed output when the power source is active. Use this as adry
contact application to send a signal for power failure detection.

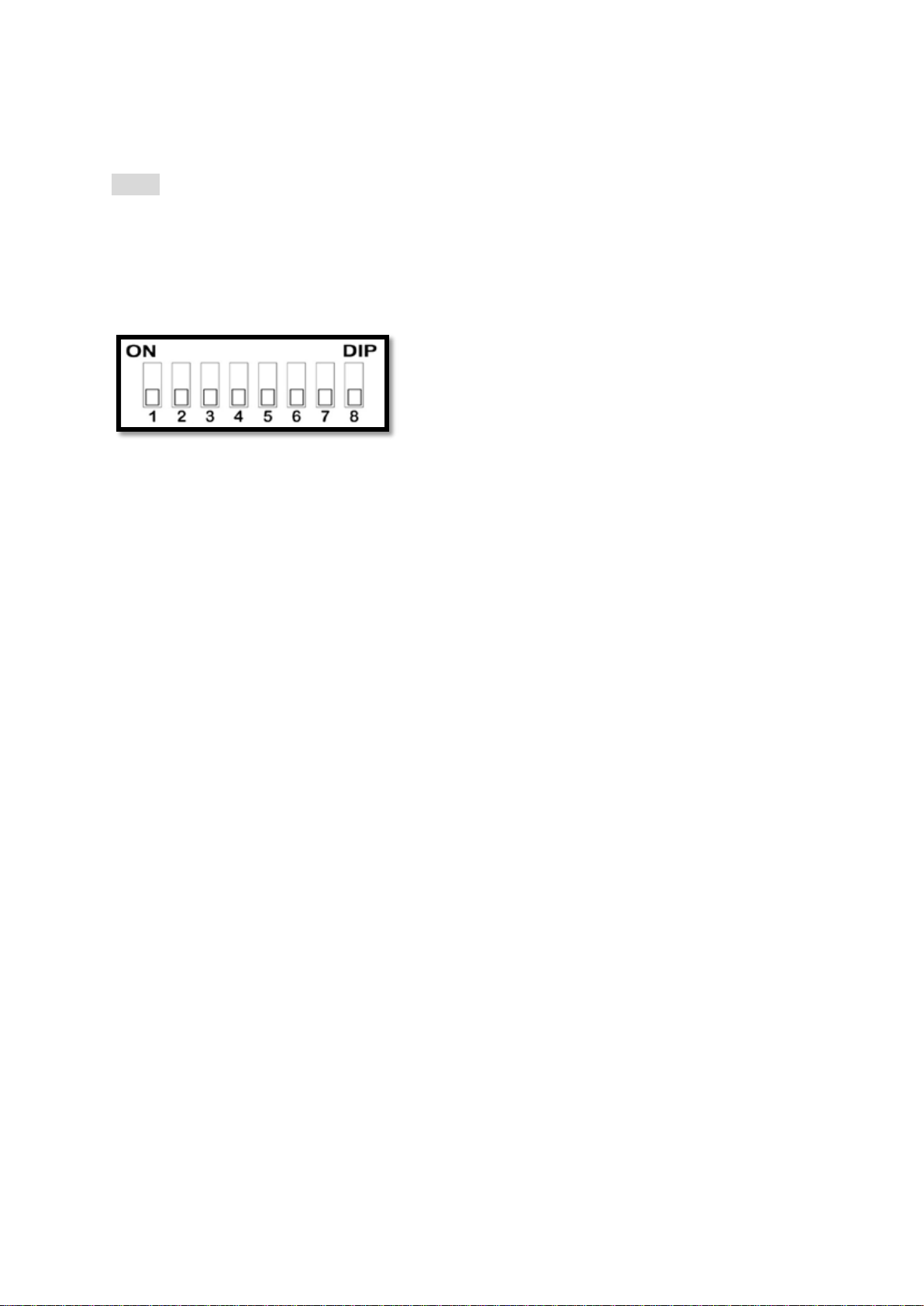

ThisDIPSwitch features the Port Fault Detection; once enabled, it sends fault signal (relay
opens) when the port link is broken
On: Enable Port Fault Detection
Off: Disable Port Fault Detection
Note: Pin No. maps to Port No & extra Pin has no function
Special note:
The relay output is normal open position when there isno power to the switch.
Please do not connect anypower source to thisterminal to prevent the shortage to
yourpower supply.

IES-0920 User Manual Page 12
Connecting toYour Network
Cable Type & Length
It is necessary to follow the cable specifications below when connecting the switch to your
network. Use appropriate cables that meet your speed and cabling requirements.
Cable Specifications
Speed Connector Port Speed
Half/Full Duplex Cable Max. Distance
10Base-T RJ-45 10/20 Mbps 2-pair UTP/STPCat. 3, 4, 5 100 m
100Base-TX RJ-45 100/200 Mbps 2-pair UTP/STPCat. 5 100 m
1000Base-T RJ-45 2000 Mbps 4-pair UTP/STP Cat. 5 100 m
100Base-FX ST, SC 200 Mbps MMF (62.5μm) 2 km
100Base-FX ST, SC 200 Mbps SMF (10μm) 20, 40, 75, 100 km
100Base-BX SC 200 Mbps MMF (62.5μm) 2, 5 km
100Base-BX SC 200 Mbps SMF (10μm) 20, 40 km
1000Base-SX SC 2000 Mbps MMF (62.5μm) 220 m, 2 km
1000Base-SX SC 2000 Mbps MMF (50μm) 550 m
1000Base-LX SC 2000 Mbps SMF (10μm) 10, 20, 50 km
1000Base-BX SC 2000 Mbps SMF (10μm) 20, 40 km
SFP
1000Base-SX Duplex LC 2000 Mbps MMF (62.5μm) 550 m, 2 km
1000Base-LX Duplex LC 2000 Mbps SMF (9μm) 10, 40, 60 km
1000Base-BX Duplex LC 2000 Mbps SMF (9μm) 70 km
Cabling
Step 1: First, ensure the power of the switch and end devices are turned off.
<Note> Always ensure that the power is offbefore any installation.
Step 2: Preparecable with corresponding connectors for each type of port in use.
Step 3: Consult the previous section for cabling requirements based on connectors and
speed.
Step 4: Connect one end of the cable to the switch and the other end to a desired
device.
Step 5: Once the connections between two end devices are made successfully, turn on
the power and the switch is operational.

IES-0920 UserManual Page 13
Specifications
Ethernet Switch 10/100Base-TX auto-negotiating ports with RJ-45
connectors, 100Base-FX/BX fiberports
Applicable Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/FX
SwitchingMethod Store-and-Forward
Forwarding Rate
10Base-T:
100Base-TX:
100Base-FX/BX:
10 / 20Mbps half / full-duplex
100 / 200Mbps half / full-duplex
200Mbps full-duplex
Performance 14,880pps for 10Mbps
148,810pps for 100Mbps
Cable
10Base-T:
100Base-TX:
100Base-FX/BX:
2-pair UTP/STP Cat. 3, 4, 5
2-pair UTP/STP Cat. 5
Up to 100m (328ft)
MMF (50 or 62.5μm), SMF (9 or 10μm)
LED Indicators Perunit–Power status (Power 1, Power 2)
FAULT
Per port –10/100TX or 100FX/BX -
LNK/ACT (Green), 100(Yellow)
Dimensions 50mm (W) × 110mm (D)× 135mm (H)
(1.97”(W) x 4.33”(D) x 5.31”(H))
NetWeight 0.8Kg (1.76lbs.)
Power Terminal Block: 10-48VDC
DC Jack: 12VDC, External AC/DC required
OperatingVoltage & Max.
Current Consumption 0.76A @ 12VDC, 0.38A @ 24VDC,
0.19A @ 48VDC
Power Consumption 9.12WMax.
OperatingTemperature -40
℃
to 75
℃
(-40
℉
to 167
℉
)
Tested for functionaloperation @
-40℃to 85℃(-40℉to 185℉)
UL1604 Industrial Control Equipment certified
Maximum Surrounding AirTemperature @ 74
℃
(165
℉
)
StorageTemperature -45
℃
to 85
℃
(-40
℉
to 185
℉
)
Humidity 5%-95% non-condensing
Safety Hazardouslocation: Class I, Division 2 group A, B,
C & D
UL60950-1, EN60950-1, IEC60950-1
EMI FCC Part 15, Class A
EN61000-6-3:
EN55022, EN61000-3-2, EN61000-3-3

IES-0920 User Manual Page 14
EMS
EN61000-6-2:
EN61000-4-2 (ESD Standards)
EN61000-4-3 (Radiated RFI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-5 (Surge Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)
EnvironmentalTest Compliance
IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
IEC60068-2-32 Ed (Free Fall)
NEMATS1/2 Environmental requirementsfor traffic
controlequipment

IES-0920 UserManual Page 15
Appendix A – Connector Pinouts
Pin arrangement of RJ-45 connectors:
RJ-45ConnectorandCablePins
The following table lists the pinout of 10/100Base-TX ports.
Pin Standard Port Uplink Port
1 OutputTransmitData + Input Receive Data+
2 OutputTransmitData - Input ReceiveData -
3 Input ReceiveData + OutputTransmitData +
4 NC NC
5 NC NC
6 Input ReceiveData - OutputTransmitData -
7 NC NC
8 NC NC
