Leviton 1-0085 User manual

Literature # 28-MKCTN-000
P.O. Box 2210 • Tualatin, Oregon 97062 Phone: [phone] • Fax: [phone]
Copyright © 1994, 2001, Leviton Mfg. Co. Inc.
P.O. Box 2210 • Tualatin, Oregon 97062 Phone: [phone] • Fax: [phone]
Copyright © 1994, 2001, Leviton Mfg. Co. Inc.
Photometric Performance
• 2kW Fresnel, Lamp No. 176-075 1000W ANSI Code CYX
• For field diameter at any distance, multiply that distance by .265 for spot and 1.32 for flood
Beam Candlepower
Spot 366,000
Flood 39,500
Features
• High intensity spot with a smooth, even flood field
• Pole-operated versions provide maximum flexibility
for studio lighting applications
• State-of-the-art ventilation system guarantees cooler
unit operations with extended lamp and gel life
• All operating controls thermally insulated for cool
handling operations
• Torlon‚ insulators provide smooth focusing operation
• Lightweight, rugged construction
• Split diamond design for extreme reliability
2kW Studio Fresnel
2kW Studio Fresnel
Dimensional Data – in. [cm] lbs.[kg]
A17.25 [43.85]
B18.00 [45.72]
C16.25 [41.27]
Weight 31.00 [14.00]
Description Cat. No.
2kW Studio Fresnel Manual1-0085
with wire leads only Pole OP 1-1085
2kW Studio Fresnel stand
model with 12’,
3-wire cable OPT-00001
2kW Studio Fresnel
w/20A, 2 pole, 3 wire OPT-00002
grounding pin connector same
2kW Studio Fresnel
w/36” cable and 20A OPT-00004
U-ground connector same
2kW Studio Fresnel
w/ 20A 2 pole 3 wire OPT-00006
grounding twistlock same
2kW Studio Fresnel
with variation on standard OPT-00007
(describe) same
Accessories Cat. No.
8" Eight Leaf Barndoor 118-020
8" Diffusion Frame 120-015
8" Scrim Set 122-148
Safety Cable 138-059
Combo Stud (Stand mount) 138-012
8" High Hat 138-051
Compact Stand (Castered) 152-053
1 1/8" stud adapter for
pole-operated yokes 1-9501
1 1/8" stud adapter for
manual yokes 532-012
6" Scrim Set, single &
half single 122-147
Compact Stand (Castered) 152-053
Operating Pole 1-9701
C-clamp for up to 2" I.D. pipe
(furnished w/hanging model) 158-003
Lamps Cat. No.
For 120V applications
1000W, 120V, 3200˚K,
250 Hrs., ANSI Code EGT 176-097
2000W, 120V, 3200˚K,
200 Hrs., ANSI CodeCYX 176-075
1500W, 120V, 3200˚K,
300 Hrs., ANSI CodeCXZ 176-157
Specifications subject to change without notice
Specifications
• Housing is constructed of extruded and die-cast
aluminum, sheet steel and sheet aluminum with a high-
temperature baked finish.
• Optical Train consists of one bipost halogen lamp, one
specular pure aluminum coated Alzak® reflector, and
one low expansion fresnel lens mounted in a hinged
door for rapid lamp reinforcement.
• Socket assembly shall be porcelain ceramic, with
floating diamond, four point, forged brass contacts.
• Voltage 120/240V AC/DC
• Performance with catalog number 176-075 (ANSI code
CYX) lamp in a 15.1° ( field with 366,000 beam
candlepower in spot focus and in flood focus a 67° (field
with 39,500 beam candlepower.
• Mounting heavy steel yoke, with reinforced cast
aluminum corners for easy carrying. Manual version fits
5/8" combo stud or C-clamp to fit up to 2" ID pipe.
Pole-operated yoke equipped with panning gear
mechanism which accommodates 1 1/8" stud or C-
clamp to fit up to 2" ID pipe.
• Electrical 36" cable, 3 wire leads.
2kW Studio Fresnel

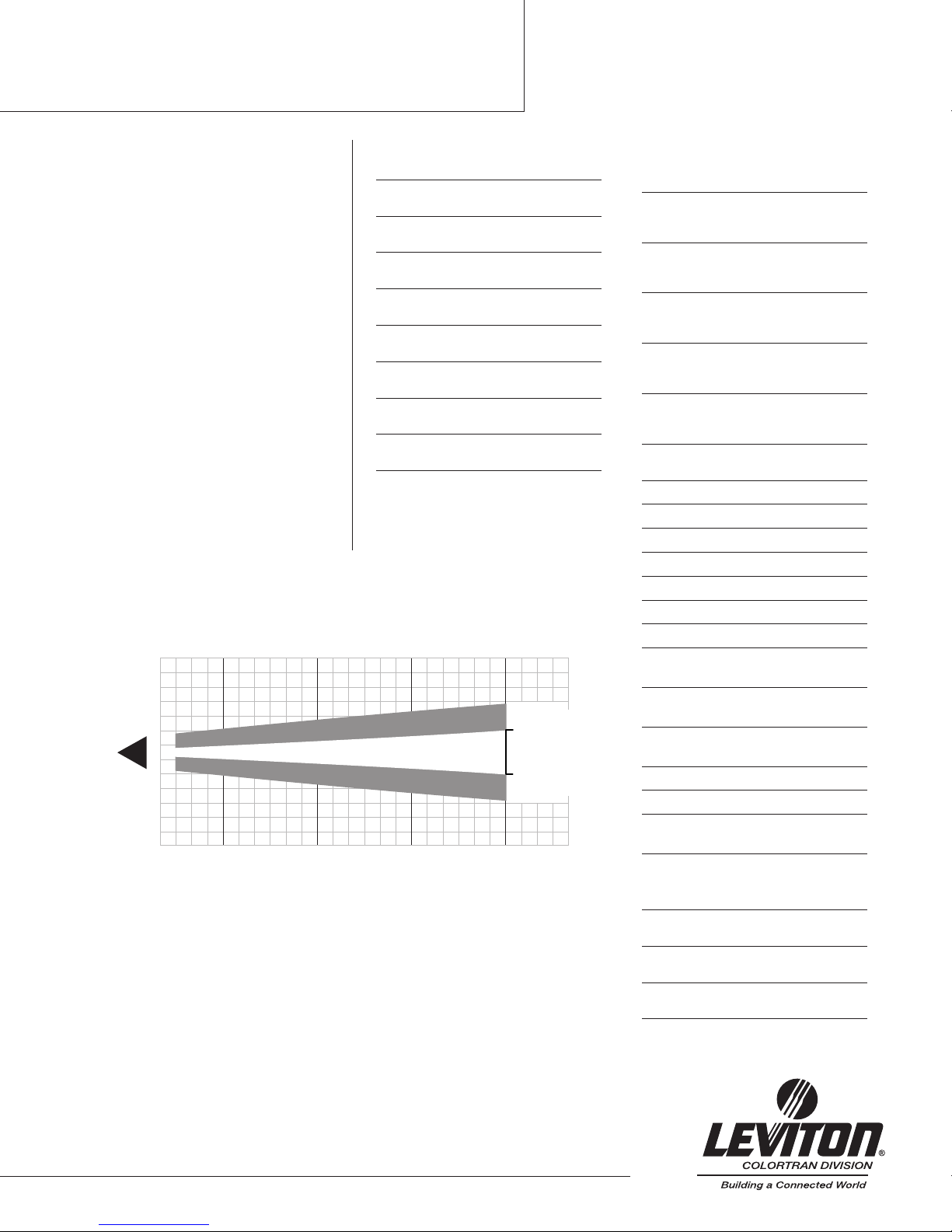

Beam Angle
(50% of max. int.)
Field Angle
(10% of max. int.)
Spot Focus (Beam angle 8.1˚, Field angle 15.1˚)
Illumination* 229/2342 121/1266 75/792 51/547
(footcandles/lux)
Diameter Beam: Field 5.7/1.8:10.6/3.3 7.8 /2.4:14.6/4.5 9.9/3.0:18.2/5.7 12.0/3.7:22.5/6.9
(feet/meters)
Distance 40/12.5 55/14 70/21.5 85/26
(feet/meters)
Flood Focus (Beam angle 58.5˚, Field angle 67˚)
Distance (feet/meters) 12.4/4 17.5/5.5 22.5/7 27.5/8.5
Diameter Beam: Field 14/45:16.5/5.3 19.6/6.2:23.2/7.3 25.2/7.82:25.8/9.3 30.8/9.5:36.4/11.3
(feet/meters)
Illumination* 230/2250 118/1190 71/735 48/498
(footcandles/lux)
*All illumination data is measured at beam center
Manual 1-0085
Pole-Op 1-1085
............................ Manual 1-0085
Pole-Op 1-1085
............................
Lamps Cat. No.
For 120V applications
1000W, 120V, 3200˚K,
250 Hrs., ANSI Code EGT 176-097
2000W, 120V, 3200˚K,
200 Hrs., ANSI Code CYX 176-075
1500W, 120V, 3200˚K,
300 Hrs., ANSI Code CXZ 176-157
For 220/240V applications
2000W, 240V, 3200˚K,
200 Hrs., ANSI Code CP41 476-055
2000W, 220V, 3200˚K,
200 Hrs., ANSI Code CP41 476-066
1000W, 240, 3200˚K,
200 Hrs., ANSI Code CP40 476-060
1000W, 220, 3200˚K,
200 Hrs., ANSI Code CP40 476-061
