USER MANUAL
EN FR DE CZ PL SK

ENFRDUCZSKFREEFREE PL
9. MISSION CONTROL ________________________________________________19
9.1. MISSION CONTROL FUNCTIONS __________________________________________________ 19
9.2. IN-APP HELP GUIDE __________________________________________________________ 20
9.3. DOWNLOAD AND INSTALL MISSION CONTROL _______________________________________ 20
9.4. PAIRING YOUR Bike WITH MISSION CONTROL ________________________________________ 21
9.5. CUSTOMIZING THE TCU 2 DISPLAY________________________________________________ 21
10. BATTERY AND CHARGER____________________________________________22
10.1. CHARGING AND USING THE BATTERY _____________________________________________ 22
10.2. CHARGE LEVEL DISPLAY ______________________________________________________ 24
10.3. REMOVING THE BATTERY______________________________________________________ 25
10.4. CLEANING_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 26
10.5. STORAGE _________________________________________________________________ 26
10.6. TRANSPORT _______________________________________________________________ 27
10.7. DISPOSAL_________________________________________________________________ 27
10.8. BATTERY TECHNICAL DATA ____________________________________________________ 27
10.9. CHARGER TECHNICAL DATA____________________________________________________ 27
11. SPECIFICATIONS __________________________________________________28
11.1. GENERAL SPECIFICATIONS _____________________________________________________ 28
11.2. SHOCK CUSTOMIZATION_______________________________________________________ 29
11.3. MAXIMUM FORK LENGTH, TIRE, AND CHAIN-RING SIZE _________________________________ 29
11.4. TOOLS REQUIRED_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 29
11.5. BOLT SIZE / TOOLS / TO TORQUE SPECIFICATIONS ____________________________________ 29
11.5. BEARING SPECIFICATIONS _____________________________________________________ 31
11.6. SPACER/AXLE/BOLT SPECIFICATIONS _____________________________________________ 31
12. FLIP CHIPS______________________________________________________34
12.1. ADJUSTING THE HORST PIVOT FLIP CHIP ___________________________________________ 35
12.2. ADJUSTING THE HEAD TUBE ANGLE ______________________________________________ 35
13. AIR SHOCK SETUP ________________________________________________38
13.1. SETTING AIR PRESSURE _______________________________________________________ 38
13.2. ADJUSTING REBOUND________________________________________________________ 39
13.3. ADJUSTING COMPRESSION ____________________________________________________ 39
14. DERAILLEUR HANGER______________________________________________40
15. REGULATORY STATEMENTS__________________________________________41
16. EC – DECLARATION OF CONFORMITY ___________________________________42
CONTENTS
1. INTRODUCTION____________________________________________________1
1.1. WARRANTY _________________________________________________________________ 1
2. LEVO COMPONENTS________________________________________________2
3. GEOMETRY ______________________________________________________3
4. GENERAL INFORMATION ABOUT YOUR LEVO ______________________________4
4.1. INTENDED USE ______________________________________________________________ 4
4.2. PEDELEC / EPAC_____________________________________________________________ 4
5. GENERAL NOTES ABOUT RIDING_______________________________________5
5.1. RIDING TIPS ________________________________________________________________ 5
5.2. BEFORE RIDING _____________________________________________________________ 5
5.3. KNOW YOUR RANGE__________________________________________________________ 6
5.4. REMOVABLE YELLOW STICKER __________________________________________________ 6
5.5. RIDING WITH KIDS ___________________________________________________________ 6
6. GENERAL NOTES ABOUT ASSEMBLY ____________________________________7
6.1. HEADSET BEARINGS __________________________________________________________ 7
6.2. SEATPOST _________________________________________________________________ 7
6.3. DERAILLEUR HANGER_________________________________________________________ 8
6.4. SPEED SENSOR _____________________________________________________________ 8
6.5. CHAIN GUIDE _______________________________________________________________ 9
6.6. STEM_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 9
6.7. TCU / HANDLEBAR ___________________________________________________________ 10
6.8. DROPPER HOUSING GUIDE _____________________________________________________ 10
7. GENERAL NOTES ABOUT MAINTENANCE _________________________________11
7.1. REPLACEMENT PARTS AND ACCESSORIES __________________________________________ 11
8. SYSTEM INTERFACE________________________________________________12
8.1. TURBO CONNECT UNIT 1 (TCU 1) __________________________________________________ 12
8.2. TURBO CONNECT UNIT 2 (TCU 2) _________________________________________________ 12
8.3. HANDLEBAR REMOTE (TCU 1) ___________________________________________________ 13
8.4. HANDLEBAR REMOTE (TCU 2) ___________________________________________________ 13
8.5. STARTING THE SYSTEM ON THE TCU ______________________________________________ 14
8.6. SUPPORT MODES____________________________________________________________ 14
8.7. CHANGING SUPPORT MODES ON THE TCU __________________________________________ 15
8.8. CHANGING SUPPORT MODES ON THE REMOTE (TCU 1) _________________________________ 15
8.9. CHANGING SUPPORT MODES ON THE REMOTE (TCU 2) _________________________________ 16
8.10. CONNECTIVITY OPTIONS ______________________________________________________ 16
8.11. ERROR CODES (TCU 1) ________________________________________________________ 16
8.12. ERROR CODES (TCU 2)________________________________________________________ 17
8.13. FACTORY RESET (TCU 1) _______________________________________________________ 18
8.14. FACTORY RESET (TCU 2) ______________________________________________________ 18
8.15. CHANGING THE INTERNAL BATTERY (TCU 1 only) _____________________________________ 19
We may occasionally issue updates and addendums to this document. Please periodically check
www.specialized.com or contact Rider Care to make sure you have the latest information.
Info: specialized.com / 877-808-8154
SPECIALIZED BICYCLE COMPONENTS
15130 Concord Circle, Morgan Hill, CA 95037 [phone]
0000159790_UM_R1, 09/20

1
1. INTRODUCTION
THIS USER MANUAL CONTAINS IMPORTANT INFORMATION. PLEASE READ
CAREFULLY AND STORE IN A SAFE PLACE.
This manual was drafted in the English language (Original instructions) and may have been
translated into other languages as applicable (translation of Original instructions).
This user manual is specific to your Specialized Turbo Levo bicycle and should be read in
addition to the Specialized Bicycle Owner’s Manual (“Owner’s Manual”). It contains important
safety, performance, and technical information, which you should read before your first
ride and keep for reference. You should also read the entire Owner’s Manual because it has
additional important general information and instructions which you should follow. If you do
not have a copy of the Owner’s Manual, you can download it at no cost at www.specialized.
com, or obtain it from your nearest Authorized Specialized Retailer or Specialized Rider Care.
Additional safety, performance, and service information for specific components such as
suspension or pedals on your bicycle, or for accessories such as helmets or lights, may
also be available. Make sure that your Authorized Specialized Retailer has given you all
the manufacturers’ literature that was included with your bicycle or accessories. If there
is a difference between the instructions in this manual and the information provided by a
component manufacturer, please refer to your Authorized Specialized Retailer.
The Levo is classified as an EPAC (Electrically Power Assisted Cycle, otherwise known as a
Pedelec), and is referred to in this manual as a bicycle unless otherwise noted.
ADDITIONAL LANGUAGES ARE AVAILABLE FOR DOWNLOAD AT www.specialized.com.
When reading this user manual, you will note various important symbols and warnings, which
are explained below:
WARNING! The combination of this symbol and word indicates a potentially
hazardous situation which, if not avoided, could result in serious injury or
death. Many of the warnings say “you may lose control and fall.” Because
any fall can result in serious injury or even death, we do not always repeat
the warning of possible injury or death.
CAUTION: The combination of the safety alert symbol and the word CAUTION
indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury, or is an alert against unsafe practices.
The word CAUTION used without the safety alert symbol indicates a situation
which, if not avoided, could result in serious damage to the bicycle or the
voiding of your warranty.
INFO: This symbol alerts the reader to information which is particularly
important.
GREASE: This symbol means that high quality grease should be applied as
illustrated.
CARBON FRICTION PASTE: This symbol means that carbon friction paste
should be applied as illustrated to increase friction.
TORQUE: This symbol highlights the correct torque value for a specific bolt.
In order to achieve the specified torque value, a quality torque wrench must
be used.
TECH TIP: Tech Tips are useful tips and tricks regarding installation and
use.
1.1. WARRANTY
Please refer to the written warranty provisions provided with your bicycle, or visit www.
specialized.com. A copy is also available at your Authorized Specialized Retailer.

2
ENFRDECZSKFREEFREE PL
2. LEVO COMPONENTS
25
27
26
24
2
42
12 1
3
4
8
41
5673334
9
10
11
13 14 15 43 17 37
21
30
29
31
3940323635353637 18 19 2016 3838
23
22
28
2.1
1. TOP TUBE
2. DOWN TUBE
3. SEAT TUBE
4. HEAD TUBE
5. CHAINSTAY
6. CHAINSTAY PROTECTOR
7. SEAT STAY
8. FORK
9. SADDLE
10. SEATPOST
11. SEATPOST CLAMP
12. REAR SHOCK
13. CASSETTE
14. DERAILLEUR HANGER
15. REAR DERAILLEUR
16. CHAIN
17. CHAINRING
18. CHAIN GUIDE
19. CRANK ARM
20. PEDAL
21. MOTOR
22. HANDLEBAR
23. SHIFTER
24. BRAKE LEVER
25. REMOTE
26. TCU 2 DISPLAY
27. STEM
28. ADJUSTABLE HEADSET
29. INTERNAL RECHARGEABLE BATTERY
30. CHARGING SOCKET
31. FRONT BRAKE CALIPER
32. FRONT BRAKE ROTOR
33. REAR BRAKE CALIPER
34. REAR BRAKE ROTOR
35. SPOKE
36. RIM
37. TIRE
38. VALVE
39. HUB
40. THRU-AXLE
41. WATERBOTTLE CAGE
42. SWAT TOOL
43. ADJUSTABLE HORST PIVOT

3

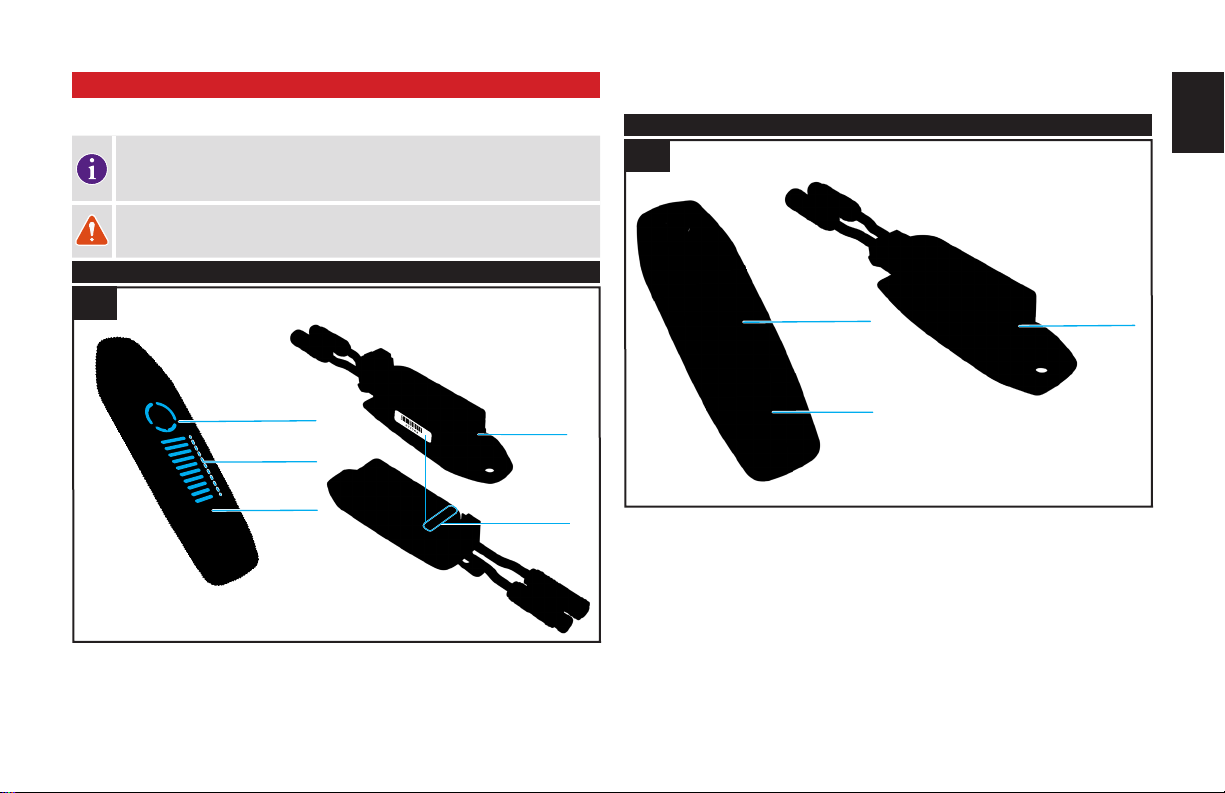

TURBO CONNECT UNIT (TCU)
Fig. 2.2
Some Levo models are equipped with the
TCU 1 display. The display turns on the motor,
and provides access to the support modes
options, battery charge level and error codes.
TURBO CONNECT UNIT 2 (TCU 2)
Fig. 2.3
Other Levo models are equipped with the TCU
2 display. The display turns on the motor, and
provides a visual on the display for Speed,
Battery charge level, Mode, Heart Rate, Error
Codes, Distance Ridden, Elevation, Rider
Power, Odometer, Time Ridden, and Time
of Day.
3. GEOMETRY
B
A
C
D
O
E
F
G
H
I
J
K
L
M
N
2.2
2.3

4
ENFRDECZSKFREEFREE PL
FRAME SIZE S1 S2 S3 S4 S5 S6
ASTACK 605 618 626 635 644 653
BREACH 412 432 452 477 502 532
C HEAD TUBE LENGTH 105 105 115 125 135 145
DHEAD TUBE ANGLE 64.5 64.7 64.7 64.7 64.7 64.7
E BB HEIGHT 352 350 350 350 350 350
F BB DROP 25 27 27 27 27 27
G TRAIL 131 129 129 129 129 129
H FORK LENGTH (FULL) 557 567 567 567 567 567
IFORK RAKE/OFFSET 44
J FRONT CENTER 737 759 784 813 842 877
K CHAINSTAY LENGTH (SHORT SETTING) 441
L WHEELBASE 1179 1200 1224 1254 1283 1381
M BIKE STANDOVER HEIGHT 750 775 785 785 790 790
N SEAT TUBE LENGTH 380 390 405 425 445 465
OSEAT TUBE ANGLE 78 77.5 76.7 76.2 76.2 76.2
P CRANK LENGTH (MM) 160
HANDLEBAR WIDTH (MM) 780
STEM LENGTH (MM) 35/40 35/40 50 50 50 50
SADDLE WIDTH (MM) 155 155 143 143 143 143
SEAT POST MAX INSERTION (MM) 210 220 240 260 280 295
SEAT POST MIN INSERTION 100
REAR WHEEL WIDTH 30
FORK SIZE (MM) 160
The above table shows the standard geometry for the bicycles as shipped.
Visit www.specialized.com for all possible geometry configurations.
4. GENERAL INFORMATION ABOUT YOUR LEVO
4.1. INTENDED USE
The Levo is intended and tested for All Mountain mountain biking (Condition 4) use only.
For more information on the intended use and structural weight limits, please refer to the
Specialized Owner’s Manual.
INFO: Before using your Levo bicycle, please inform yourself of all applicable
legal requirements and regulations in your country or state. There may be
restrictions on riding your Levo bicycle on public roads, cycling paths, and/
or trails. There may also be applicable helmet requirements, age restrictions,
or license, or insurance requirements. Specialized does not, and will not,
make any promise, representation, or warranty regarding the use of your Levo
bicycle. As laws and regulations regarding electric bicycles vary by country
and/or state and are constantly changing, please make sure to obtain the
latest information. You should also regularly see your Authorized Specialized
Retailer for updated information.
CAUTION: All Levo bicycles have a fixed pre-set speed limit at which the motor
support will automatically shut off. Any unauthorized (attempted) tampering
with the power output and/or system is prohibited and will void the warranty.
4.2. PEDELEC / EPAC
The Levo is classified as an EPAC.
Your motor support will automatically shut off when you reach a maximum assistance speed
depending on the country of purchase. A driver’s license or insurance is typically not required.
Per EN 15194: The A-weighted emission sound pressure level at the driver ears is less than 70
dB(A).

5
WARNING! The acceleration of an electric bicycle can be faster than
anticipated and may feel unusual at first. Before your first ride, you should use
the lowest power ECO mode and become familiar with the operation of the
electric bicycle by practicing starting and stopping, cornering and navigating
obstacles in a safe environment away from other bicycles, pedestrians and/or
vehicles. Due to the greater acceleration of an electric bicycle, you should also
pay particular attention to terrain conditions as you may approach obstacles
faster than expected. Please note the default motor support mode upon
startup is always TRAIL mode.
CAUTION: The weight of your Levo is significantly higher than a bicycle
without motor support. Use caution when handling the bicycle (including, but
not limited to parking, lifting, pushing, loading it into a car or onto a bicycle
carrier and unloading it).
WARNING! Use caution when viewing or using the display while riding, as it
can be distracting and can lead to accidents. You should always stop before
changing settings or operating the various functions of the display.
5.2. BEFORE RIDING
Regardless of your experience level, you should read the “FIRST” section of your Owner’s
Manual (Bike Fit, Safety First, Mechanical Safety Check and First Ride) and carry out all
important safety checks. In addition, make sure you are familiar with the following areas of the
bicycle that are specific to electric bicycles.
BEFORE YOUR FIRST RIDE:
BATTERY: Is the battery fully charged?
TCU DISPLAY: Are you familiar with the function of the display features?
REMOTE: Are you familiar with the function of the buttons on the remote?
BEFORE EVERY RIDE:
BATTERY: Do you have sufficient battery charge?
TCU DISPLAY: Is the display functioning correctly?
REMOTE: Do you know how to use the remote to change the motor support level from OFF
to ECO to TRAIL to TURBO?
5. GENERAL NOTES ABOUT RIDING
The Levo motor provides pedal assistance only while you are pedaling and the bicycle is in
motion. The amount of pedal assistance will be higher or lower depending on the amount of
force applied to the pedals. If you stop pedaling, the motor will stop providing any assistance.
The Levo bicycle can also be ridden as a normal bicycle without motor assistance by switching
the display to the OFF mode. The same applies if the battery charge drops below 5% - 3%.
5.1. RIDING TIPS
Because of the electric motor assist, the Levo offers a unique riding experience compared to
a bicycle without motor assist. Below are some riding tips which may also reduce component
wear and increase battery range:
Pay attention to your speed going into a corner and be sure to stop pedaling well before
entering the corner. Otherwise you may carry too much speed when entering a corner.
Ride efficiently and look ahead. Any time braking force is applied, more energy is needed
to get the bicycle back up to speed.
Shift gears regularly to stay in an optimal cadence range and downshift before coming to
a stop.
Reduce pedal force before initiating a gear shift to reduce drivetrain wear.
Braking while steering may reduce the ability to control your bicycle.
Check the tire pressure regularly. Low pressure can cause the tires to roll inefficiently.
Only carry the cargo you need. More weight will drain the battery faster.
If your bicycle is exposed to cooler temperatures (0 degrees), keep the bicycle stored
indoors until just before riding.
WARNING! The motor support is activated as soon as you step onto the pedals
and the bicycle is in motion. You should be seated on the bicycle and engage
at least one brake before starting to pedal. Do not put one foot on a pedal and
throw a leg over the bicycle, as it could accelerate unexpectedly. Failure to
follow this warning may result in serious personal injury or even death.

6
ENFRDECZSKFREEFREE PL
WARNING! If your battery, charger or other component exhibits any signs of
damage, do not use the bicycle and immediately bring it to your Authorized
Specialized Retailer for inspection.
5.3. KNOW YOUR RANGE
Know the range of your electric bicycle before you start your ride. You can calculate your range
by visiting www.specialized.com, selecting your Turbo bicycle model, then clicking on the
range calculator. In addition to the range calculator, we recommend using the Smart Control
feature in the Mission Control App to control your range.
5.4. REMOVABLE YELLOW STICKER
Your Levo bicycle has a removable
yellow sticker adhered to the frame,
stating the bicycle serial number and
your personal BLE (BLUETOOTH
LOW ENERGY) pairing code.
Remove this sticker from the bicycle
and place it on the last page of this
manual for future reference.
Models equipped with the TCU 2 will not show the BLE Code.
5.5. RIDING WITH KIDS
There are many different setups that allow you to ride with kids. Please look at the Riding
Safely section in the Owner’s Manual regarding general information and instructions on child
carriers or trailers.
If you regularly ride with kids on your bicycle, your Authorized Specialized Retailer should
conduct a periodic safety inspection.
WARNING! Specialized bicycles are only designed and tested for use by one
person at a time. Carrying a child on your Specialized bicycle is at your own
risk. If you choose to install an accessory on your Specialized bicycle such
as a trailer, carrier, or trailer cycle, make sure it is compatible and refer to
the manufacturer’s instructions and your Authorized Specialized Retailer.
You should make sure your bicycle is still safe to ride with the accessory
installed. Be sure to not exceed the structural weight limit of the bicycle when
using a trailer, trailer cycle or child carrier. Also make sure not to exceed the
maximum cargo weight when using a child carrier.
WARNING! Riding with kids on your bicycle will affect the handling by altering
the center of gravity, weight and balance. It may also negatively impact your
cornering ability, increase your stopping distance and reduce your ability to
slow down and maneuver, especially at higher speeds or down a steep grade.
All of this can result in a loss of control, potentially causing serious injury and/
or death. You should also become familiar with and practice riding with the
accessory in a controlled environment away from traffic.
WARNING! Do not attach a child carrier, trailer or similar accessory to a
composite or carbon fiber part or component, either directly or indirectly.
For example, do not attach a trailer to a rear axle when the rear triangle is
made of composite or carbon fiber. Likewise, do not attach a trailer cycle to
a composite or carbon seatpost or a child carrier to a composite or carbon
fork. Either may potentially apply unusual forces on your bicycle frame or
component which could result in damage and cause a complete failure,
with the risk of serious injury or death. If you have previously attached an
accessory to a composite or carbon fiber part or component, do not ride until
you have had your Authorized Specialized Retailer conduct a careful safety
inspection.
Before riding with kids on your bicycle, please inform yourself of all applicable
legal requirements and regulations in your country and state. There may be
restrictions on riding your bicycle with certain or any accessory(ies). This is
especially true for electric and pedal-assist bicycles.
BLE:
599716
5.1

7
No tools are needed for installation or removal of both bearings. Grease the bearing
surfaces before installation.
For more information on the installation of the headset bearings see section 12 in this manual.
WARNING! Burrs and sharp edges can damage the carbon and alloy surfaces
of the components. Any deep scratches or gouges in the stem or fork can
weaken the components.
6.2. SEATPOST
SEATPOST MINIMUM INSERTION:
Both the frame and seatpost have
minimum insertion requirements. In
addition, the frame has a maximum
insertion requirement to prevent damage
to the frame and seatpost.
MINIMUM INSERTION: The seatpost
must be inserted into the frame deep
enough so the minimum insertion/
maximum extension (min/max) mark
on the seatpost is not visible. The
frame requires a minimum of 100 mm
of insertion.
MAXIMUM INSERTION: The seat
tube is reamed to a specified
maximum insertion depth for each
frame size. This ream depth limits
the insertion depth of the seatpost.
Please refer to the table in Fig.6.1.
If the desired seat height cannot be
achieved within the minimum and maximum insertion requirements, the seatpost should be
replaced for a shorter or longer one.
Once the saddle height is determined, torque the seatpost collar bolt to 55 in-lbf / 6.2 Nm.
6. GENERAL NOTES ABOUT ASSEMBLY
This manual is not intended as a comprehensive assembly, use, service, repair or maintenance
guide. Please see your Authorized Specialized Retailer for all service, repairs or maintenance.
Your Authorized Specialized Retailer may also be able to refer you to classes, clinics or books
on bicycle use, service, repair, and maintenance.
WARNING! Due to the complexity of the Levo bicycle, proper assembly
requires a high degree of mechanical expertise, skill, training and specialty
tools. Therefore, it is essential for your safety that the assembly, maintenance
and troubleshooting be performed by an Authorized Specialized Retailer.
Before your first ride, make sure your components, such as brakes and
drivetrain, are assembled and adjusted in accordance with the manufacturer’s
instructions and are functioning properly.
WARNING! Many components on the Levo, including, but not limited to
the motor, battery and cable guides, are proprietary to the Levo. Only use
originally supplied components and hardware at all times. Use of other
components or hardware will compromise the integrity and strength of the
assembly. Levo specific components should only be used on the Levo and not
on other bicycles, even if they fit. Failure to follow this warning could result in
serious injury or death.
WARNING! Never modify your frame or bicycle in any way. Do not sand, drill,
file or remove parts from your bicycle. Do not install incompatible components
or hardware. Failure to follow this warning may result in serious personal
injury or death.
WARNING! Electrical components can be exposed when working on your
bicycle. Do not touch any part of the electrical system while under electric
charge. Do not expose the connections of the battery and frame to water. If
any live components or the battery are damaged, stop riding immediately and
bring your bicycle to your Authorized Specialized Retailer.
6.1. HEADSET BEARINGS
The headset uses a 1 1/8” (42 mm x 30.5 x 8 mm, 45 x 45°) Campagnolo Standard
compatible upper bearing and a 1.5” (52 mm x 40 x 7 mm, 45 x 45°) lower bearing. Ensure
that replacement bearings are compatible with the Specialized headset specification.
6.1
SIZE MAX
INSERTION
S1 210
S2 220
S3 240
S4 260
S5 280
S6 295 MAX

8
ENFRDECZSKFREEFREE PL
CAUTION: If a cable-actuated seat post is inserted too far into the seat-tube,
the housing can be damaged and cause the seat post to not function properly.
6.3. DERAILLEUR HANGER
The Levo frame uses the SRAM UDH (Universal Derailleur Hanger) at the rear dropout.
This hanger must be installed following SRAM’s installation instructions. Please refer to the
installation steps in section 14, or refer to the SRAM UDH User Manual.
6.4. SPEED SENSOR
The Levo is equipped with a Speed Sensor magnet, located on the rear hub/disc rotor
interface. Dirt and/or metal debris may accumulate on the Speed Sensor magnet. Too much
accumulation may result in interruptions in motor support and/or inaccurate speed readings.
Regularly check your Speed Sensor magnet for an accumulation of dirt and/or metal debris,
and clean accordingly. The frequency of the cleaning depends on your riding conditions, ride
frequency and/or brake pad material. Removing metal debris may require the use of a magnet
stronger than the Speed Sensor magnet.
When assembling the rear brake disc, the Speed Sensor Magnet must be installed on the
rotor. Four of the six bolts are standard rotor bolts. The remaining two bolts (M5 x 0.8 pitch x
15 mm length, with a countersunk flat head) attach the Speed Sensor Magnet to the rotor.
INFO: The Levo is equipped with a Seat post stopper located on the rear of the
seat tube, the stopper is designed to stop the seatpost from being inserted too
far and impacting the motor.
TECH TIP: The fit between the seatpost and the seat tube must allow the
seatpost to slide into the seat tube smoothly and without twisting, but not so
loosely that there’s excessive side-to-side play/wiggle. Any fit and/or torque
issues should be inspected by your Authorized Specialized Retailer. If the
seatpost does not fit properly or moves in the frame even though it is torqued
to spec, you should have it inspected by your Authorized Specialized Retailer.
TECH TIP: Do not apply grease to the contact surfaces between the seatpost
and the seat tube. Grease reduces friction, which is critical to proper seatpost
grip. Specialized recommends the application of carbon assembly compound
(fiber paste), which can increase friction between carbon surfaces. Please
visit your Specialized Authorized Retailer for additional information.
TECH TIP: The specified ream depths are listed in the table in Fig.6.1. The
tolerance of the ream depth can vary from frame to frame. Install a regular
34.9 seatpost in the seat tube to verify the actual ream depth of the frame.
INFO: The seat tube is designed for a 34.9 mm post but a smaller diameter
seatpost can be used with a shim.
WARNING! Failure to follow the seatpost and frame insertion requirements
(Fig. 6.1) may result in damage to the frame and/or seatpost, which could
cause you to lose control and fall.
If the seatpost is cut short, the min/max mark on the seatpost may no longer
be accurate. Before cutting the seatpost, note the min/max depth required by
the seatpost manufacturer.
WARNING! For general instructions regarding the installation of the seatpost,
refer to the appropriate section in the Owner’s Manual. Riding with an
improperly tightened seatpost can allow the saddle and seatpost to slide
down, which can damage the frame and cause you to lose control and fall.
WARNING! Inspect the seatpost and seat tube to ensure that there are
no burrs or sharp edges. Remove any burrs or sharp edges using fine-grit
sandpaper.

9
6.6. STEM
Some Levo models are equipped with an Alloy Trail Stem.
WARNING! The stem is designed with no gap between the stem body and the
faceplate at the upper bolt area. The upper bolts must be tightened such that the
faceplate bottoms out against the stem body before being torqued. Failure to
bottom out the faceplate against the stem body can result in structural damage to
the handlebar.
A
B
6.3

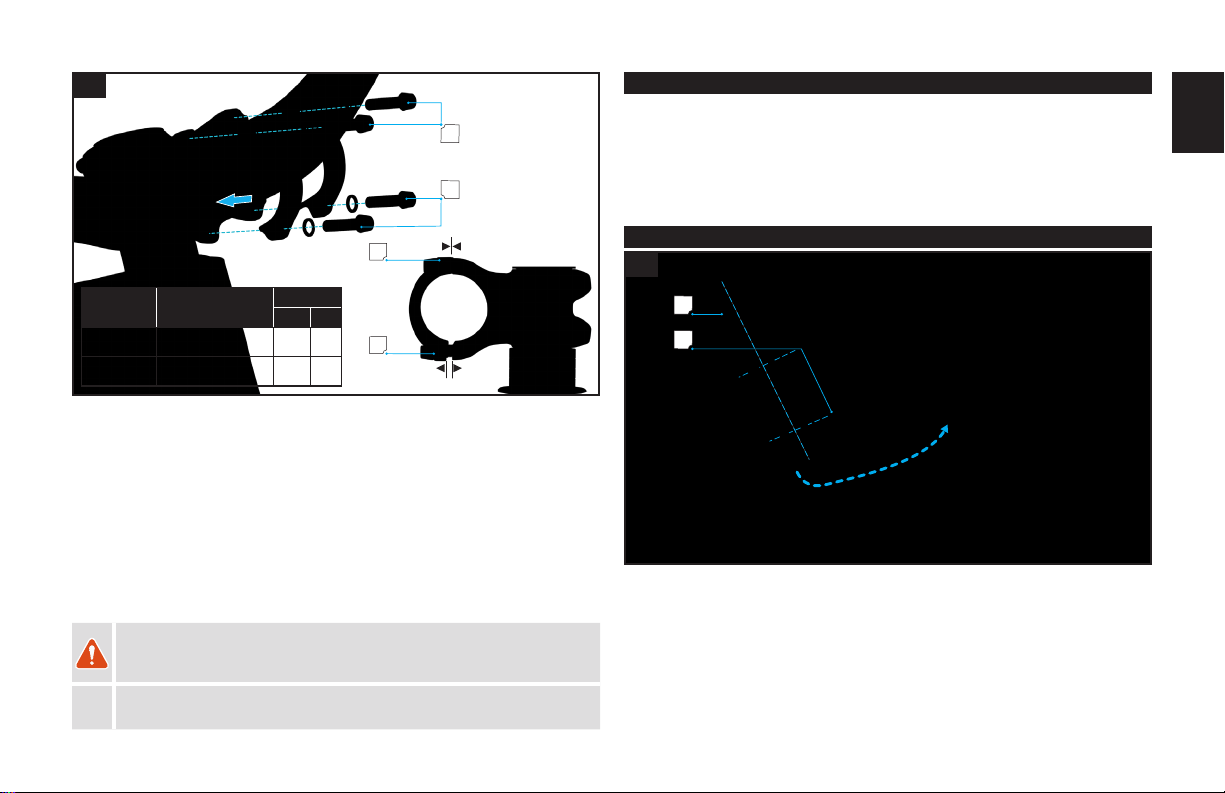

Fig. 6.3
Install the stem on the steerer tube, followed by the top cap and bolt (A), then tighten the
top cap bolt.
Align the stem with the front wheel and torque the rear stem bolts (B) to specification.
6.5. CHAIN GUIDE
5 MM
A
B
6.2
Fig. 6.2
Setting the chain guide position:
Shift to the lowest gear.
Rotate the outer chain guide face upwards (A).
Loosen the chain guide bolt (B) with a 5 mm hex key and align the lower edge of the inner
chain guide face to 5 mm above the chain.
Tighten the chain guide bolt (B) to 4.5 Nm 40 in-lbf.
Rotate the outer chain guide face downwards (A) and locate it into position.

10
ENFRDECZSKFREEFREE PL
C
D
C
D
LOCATION DESCRIPTION TORQUE
in-lbf Nm
BSteerer Bolts 71 8
C / D Faceplate Bolts 53 6
6.4
GAP
NO GAP
Fig. 6.4
Loosely thread the stem bolts through the faceplate and into the stem body.
Position the handlebar to the desired position.
Gradually torque the upper bolts to spec alternating from the left to right bolt to evenly
increase the torque until the spec is reached (C).
Gradually torque the lower bolts, alternating from the left to right bolt to evenly increase the
torque until the spec is reached (D).
Check the handlebar is installed correctly by rotating the handlebars up and down, then
twisting the handlebars side to side while holding the front wheel. If there is any movement
the stem is not sufficiently tightened and should be re-torqued.
WARNING! Burrs and sharp edges can damage the carbon and alloy surfaces
of the components. Any deep scratches or gouges in the stem or fork can
weaken the components.
CAUTION: All edges of the stem in contact with the steerer tube should be
rounded out to eliminate any stress points.
6.7. TCU / HANDLEBAR
The TCU sits above the top tube and has the potential to be struck by the handlebar or stem
when the handlebar is rotated fully. When assembling the bicycle, make sure to have enough
clearance between the handlebar, stem, and the TCU.
The number of spacers below the stem necessary to clear TCU will depend on several factors.
These include stem model/length/orientation, which TCU version your bicycle is equipped
with, and the head angle adjustment position.
6.8. DROPPER HOUSING GUIDE
A
B
6.5
Fig. 6.5
The dropper housing runs down the down tube above the battery and is held in place by
a guide (A) at the motor housing by the bottle cage bolts (B), the guide may come loose
when removing the bottle cage.
Should you want to replace the bottle cage it might be necessary to remove the main
battery from the down tube to align the dropper housing guide with the cage bolt holes.
For more information on removing and replacing the battery see section 10 of this manual.

11
7. GENERAL NOTES ABOUT MAINTENANCE
The Levo is a high performance bicycle. All regular maintenance, troubleshooting, repair and
parts replacement must be performed by an Authorized Specialized Retailer. For general
information regarding maintenance of your bicycle, please refer to the Owner’s Manual. In
addition, routinely perform a Mechanical Safety Check before each ride, as described in the
Owner’s Manual.
Great care should be taken to not damage carbon fiber or composite material. Damage
may result in a loss of structural integrity, which may result in a catastrophic failure. This
damage may or may not be visible during inspection. Before each ride, and after any crash,
you should carefully inspect your bicycle for any fraying, gouging, scratches through the
paint, chipping, bending, or any other signs of damage. Do not ride if your bicycle shows
any of these signs. After any crash, and before you ride any further, take your bicycle to an
Authorized Specialized Retailer for a complete inspection.
While riding, listen for any creaks, as a creak can be a sign of a problem with one or more
components. Periodically examine all surfaces in bright sunlight to check for any small
hairline cracks or fatigue at stress points, such as welds, seams, holes, and points of
contact with other parts. If you hear any creaks, see signs of excessive wear, discover any
cracks, no matter how small, or any damage to the bicycle, immediately stop riding the
bicycle and have it inspected by your Authorized Specialized Retailer.
Lifespan and the type and frequency of maintenance depends on many factors, such as
use, rider weight, riding conditions and/or impacts. Additionally, the Levo uses a power-
assisted drive system, which means more distance is covered in the same amount of
time. Components may be subject to increased wear at different rates, depending on the
component. Drivetrain and brake components are especially subject to wear. Periodically
have your Authorized Specialized Retailer inspect your bicycle and components for wear.
Exposure to harsh elements, especially salty air (such as riding near the ocean or in the winter),
can result in galvanic corrosion of components such as the crank spindle and bolts, which
can accelerate wear and shorten the lifespan. Dirt can also accelerate wear of surfaces and
bearings. The surfaces of the bicycle should be cleaned before each ride. The bicycle should
also be maintained regularly by an Authorized Specialized Retailer, which means it should be
cleaned, lubricated, and (partially) disassembled and inspected for signs of corrosion and/or
cracks . If you notice any signs of corrosion or cracking on the frame or any component, the
affected item must be replaced.
Regularly clean and lubricate the drivetrain according to the drivetrain manufacturer’s
instructions.
Do not use a high pressure water spray directly on the bearings. Even water from a garden
hose can penetrate bearing seals and crank interfaces, increasing bearing and crank wear.
Use a clean, damp cloth and bicycle cleaning agents for cleaning.
Do not expose the bicycle to prolonged direct sunlight or excessive heat, such as inside a
parked car or near a heat source such as a radiator.
From time to time, clean the Speed Sensor magnet on the rear wheel with a soft cloth.
Depending on your ride conditions and brake pad choice, dirt and/or metal shavings can
collect on the Speed Sensor magnet, which could lead to interruptions in motor support or
wrong speed readings.
WARNING! Failure to follow the instructions in this section may result in
damage to the components on your bicycle and will void your warranty, but,
most importantly, may result in serious personal injury or death. If your bicycle
exhibits any signs of damage, do not use it and immediately bring it to your
Authorized Specialized Retailer for inspection.
WARNING! Use a repair stand to support the bicycle during assembly or
maintenance, and a bicycle rack for transportation.
When placing the frame and/or bicycle in a repair stand, clamp the stand to
the seatpost and not the frame. Clamping the frame can cause damage to the
frame that may or may not be visible, and you may lose control and fall.
WARNING! Always turn off the battery when not in use and/or when working
on the bicycle.
CAUTION: Do not open the motor assembly. The motor assembly is a
sealed maintenance-free system. Any work on the motor assembly must be
performed by a Specialized Service Center.
7.1. REPLACEMENT PARTS AND ACCESSORIES
Specialized replacement parts and accessories are available through your Authorized
Specialized Retailer.

12
ENFRDECZSKFREEFREE PL
8. SYSTEM INTERFACE
Depending on the model, your Levo is equipped with either the TCU 1 or TCU 2 display.
The functionality of the system interface as summarized in this manual is
current as of the date this manual was written and is subject to change.
Specialized reserves the right to change the functionality at any time and
without notice, including modifying, reducing, and/or adding features.
WARNING! Use caution when viewing or using the display while riding, as it
can be distracting and can lead to accidents. You should always stop before
changing settings or operating the various functions of the display.
8.1. TURBO CONNECT UNIT 1 (TCU 1)
8.1
BATTERY LEVEL
ERROR CODES
POWER
ON/OFF
MODE BUTTON USB BATTERY
DOOR
BLE PAIRING
CODE
Fig. 8.1
Some Levo models are all equipped with the TCU 1 display. The display turns on the system
and provides access to the support modes options, battery charge level and error codes.
The six-digit BLE code for Bluetooth pairing is found underneath the TCU 1 on the top tube,
as well as on the removable yellow sticker, see section 5.4.
8.2. TURBO CONNECT UNIT 2 (TCU 2)
8.2
POWER
ON/OFF
DISPLAY USB C PLUG
DOOR
Fig. 8.2
Other Levo models are equipped with the TCU 2 display. The display turns on the system,
provides information on the display, and has GPS tracking capabilities.
The TCU 2 has customizable screens that show options such as Speed, Battery Charge
Level, Mode, Heart Rate, and more.
To fully customize the setup of the TCU 2, pair your bicycle to Mission Control and adjust
your preferred settings in the app.
You are also able to set up units, date and time, see legal information and pair sensors on
the TCU display directly by pressing and holding the (+) and (-) button on the remote for
two seconds. To navigate and adjust the settings on the TCU 2 use the remote (+), (-), F1,

13
and F2 buttons.
For more information on connecting to and using Mission Control, see section 9 of this
manual.
8.3. HANDLEBAR REMOTE (TCU 1)
7
i
n
-
l
b
f
0
.
8
N
m
2 MM
BA
C
8.3
Fig. 8.3
The TCU 1 handlebar remote is included on some Levo models and controls the level of motor
support.
A: (+)(-) Support adjustment buttons
B: Function Buttons, pressing and holding the lower function button activates the walk-
assist mode.
C: Compression Screw (2 mm Hex Key 0.8 Nm 7 in-lbf)
8.4. HANDLEBAR REMOTE (TCU 2)
7
i
n
-
l
b
f
0
.
8
N
m
2 MM
BA
C
8.4
Fig. 8.4
The TCU 2 handlebar remote is included on some Levo models and controls the level of motor
support and controls the functions and scrolling of the TCU 2.
A: (+ -) Support adjustment buttons. (Scrolling and setting up of the TCU 2)
B: Function Buttons F1 and F2 (Scrolling and setting up of the TCU 2) Pressing and holding
the F2 button activates the walk-assist mode.
C: Compression Screw (2 mm Hex Key 0.8 Nm 7 in-lbf).

14
ENFRDECZSKFREEFREE PL
8.5. STARTING THE SYSTEM ON THE TCU
8.5 8.6
Fig. 8.5 TCU 1
To start the system, press and hold the POWER button located on the TCU top tube LED
display unit until the horizontal LEDs glow blue.
To turn the battery (and support) off again, press and hold the POWER button until the
LEDs turn off.
Fig. 8.6 TCU 2
To start the system, press and hold the POWER button located on the TCU 2 top tube
display unit, until the display turns on.
To power off the system, press the POWER button and the display turns off.
If the system does not power on after a long period on non-use, remove the
TCU2 from the top tube and charge the TCU 2 via a USB-C cable.
8.6. SUPPORT MODES
The Levo motor offers 6 Assist Modes, TURBO, TRAIL, ECO, OFF, SMART CONTROL, and
MICRO TUNE mode.
STANDARD BIKE ASSIST MODES:
TURBO MODE: Maximum power mode for high speed sections and climbing.
TRAIL MODE: Maximum control, with sufficient power on demand.
ECO MODE: Most efficient mode for maximum range while offering good power.
OFF MODE: The motor will not offer any assistance, but the display and lights will still function.
SMART CONTROL MODE: The motor, while pedaling, adjusts the power output based on
the ride parameters determined in the Mission Control App.
TURBO TRAIL ECO OFF SMART WALK
8.7
Fig. 8.7 (TCU 2 ONLY)
When changing support modes the color on the display will change based on the support
mode selected for quick reference.
INFO: The SMART CONTROL indicator light will only be visible on the TCU
when the bicycle is connected to the Mission Control App and is in SMART
CONTROL mode.

15
8.8. CHANGING SUPPORT MODES ON THE REMOTE (TCU 1)
B
D
C
A
8.9
Fig. 8.9
A -TURBO BUTTON:
• Automatically changes to TURBO mode regardless of the mode the bicycle is in.
B - WALK-ASSIST BUTTON:
• Pressing and holding activates the walk-assist mode. This provides motor assist at 6 km/h / 3.7
mph to help push the bicycle uphill when walking.
C - (+) BUTTON:
• Increases the amount of support.
D - (-) BUTTON:
• Decreases the amount of support.
NOTE: On the remote, after reaching the strongest or weakest mode, the system will not
continue to switch. To reduce from TURBO to TRAIL to ECO to OFF, you have to press the -
button. To increase from OFF to ECO to TRAIL to TURBO, you have to press the + button.
MICRO TUNE MODE:
Long pressing the (+) button on the remote will switch to Micro Tune mode, this mode
allows you to change the level of support in small increments while riding.
To switch out of Micro Tune and back to standard settings long-press the (+) button again.
8.7. CHANGING SUPPORT MODES ON THE TCU
TURBO
TRAIL
ECO
OFF
SMART
CONTROL
+
2 SEC
Bluetooth
8.8
Fig. 8.8
The drive setting modes are displayed around the S-Button (mode) (Fig. 8.1). Pressing the
S-Button cycles through the modes (Fig. 8.8).
The modes will cycle through the three main support modes, starting at TRAIL (default).
OFF MODE is activated by a long press of the S-Button (MODE).
Modes cannot be changed directly on the TCU 2, all interactions other than
powering the bicycle on and off are performed with the remote.

16
ENFRDECZSKFREEFREE PL
8.9. CHANGING SUPPORT MODES ON THE REMOTE (TCU 2)
B
D
C
A
8.10
Fig. 8.10
A - F1 BUTTON:
• Toggles pages on the TCU 2.
• Settings & Menu navigating.
B - F2 BUTTON:
• Pressing and holding activates the walk-assist mode. This provides motor assist at 6 km/h / 3.7
mph to help push the bicycle uphill when walking.
Settings & Menu navigating.
C - (+) BUTTON:
• Short press increases the amount of support.
• Long press toggles standard modes and Micro Tune mode.
D - (-) BUTTON:
• Short press decreases the amount of support.
• Long press resets the trip.
C&D - (-+) DUAL BUTTON PRESS:
• Long dual press opens the settings menu on the TCU 2.
NOTE: On the remote, after reaching the strongest or weakest mode, the system will not
continue to switch. To reduce from TURBO to TRAIL to ECO to OFF, you have to press the -
button. To increase from OFF to ECO to TRAIL to TURBO, you have to press the + button.
8.10. CONNECTIVITY OPTIONS
The Turbo Technology System provides a high degree of interface flexibility through Bluetooth
and/or ANT+ connectivity.
BLUETOOTH LOW ENERGY (BLE)
BLE is used for connecting to the bike to the Mission Control app.
ANT+
ANT+can be used to connect to the sensors for Speed, Rider Power, and Cadence. The
sensor data can be received via the ANT+ module built into the TCU.
In your ANT+ device, search for those sensors and connect to them.
Some bicycle-specific ANT+ devices feature so-called "LEV" data fields you can use to see
all available e-bike data.
8.11. ERROR CODES (TCU 1)
The Levo is equipped with a built-in diagnostic system to automatically check and identify the
functionality of the system. If the system detects an error, the TCU display will alert the user
with an error code of red and blue LEDs, as shown below.
If you receive such an error, please restart the system. If the error message continues to
be shown, please contact your Authorized Specialized Retailer for further instructions.
Depending on the type of error message, the system may be switched off automatically. In
any case, the bicycle can be ridden without motor support, with the system turned off.
Mission Control supports the rider with User Actions for errors and diagnostic
reports which can be shared with Retailers who can give further advice based
on the bicycle serial number.

17
8.12. ERROR CODES (TCU 2)
8.12
Fig. 8.12
TCU 2 equipped models have a built-in diagnostic system to automatically check and identify
the functionality of the system. If the system detects an error, the TCU 2 will show the error on
the display. In some cases, the error message can be dismissed by pushing any button on the
remote.
Depending on the type of error message, the system may be switched off automatically. If
you receive an error message, please restart the system. If the error message continues to
be shown, please contact your Authorized Specialized Retailer for further instructions. In any
case, the bicycle can be ridden without motor support, with the system turned off.
Mission Control supports the rider with User Actions for errors and diagnostic
reports which can be shared with Retailers who can give further advice based
on the bicycle serial number.
1
3
5
26
34
8.11
ERROR SOLUTION
1. BATTERY ERROR For Error Codes 1-4 try the following solutions.
• Reboot your bicycle.
• Check Mission Control App for more information.
• If the problem persists contact your Authorized
Specialized Retailer.
2. BATTERY NOT FOUND
3. MOTOR ERROR
4. MOTOR NOT FOUND
5. BATTERY & MOTOR ERROR Contact your Authorized Specialized Retailer.
6. TCU COIN CELL BATTERY LOW Replace the coin cell battery in the TCU.

18
ENFRDECZSKFREEFREE PL
8.13. FACTORY RESET (TCU 1)
When a new or used bicycle is sold, a factory reset should be performed, including resetting
the peak power and support mode settings.
1
2
10
SEC
+
1
3
5
4
6
7
8.13
Fig. 8.13
Long-press the Mode button. (1)
Press and release the Power button (2) continue pressing the Mode button (1). LEDs will
light up (3).
Continue to long-press the Mode button for 10 seconds (4), until the LEDs turn off (5) and
turn back on (6).
Release the Mode button (7).
8.14. FACTORY RESET (TCU 2)
When a new or used bicycle is sold, a factory reset should be performed, including resetting
the peak power and support mode settings.
45 x2
SEC
+
8.14
Fig. 8.14
Dual press and hold the (+) (-)and buttons for 45 seconds. During this process, the TCU 2
will reboot twice.
Release the buttons when the TCU 2 reboots for the second time.
