Lexmark XM7155 User manual

Built for Top Performance.
Lexmark XM7100 Series Monochrome Laser MFP
Mono 10.2-inch
Touch Screen
Solutions Security Duplex ADF
single-pass
Duplex
Printing
Up to
70 ppm
12WW1740
Model shown features additional options
Fax Finishing
Function

Lexmark XM7100 Series
Eco-responsible.
Printing responsibly and reducing the impact of printing on the environment is a win for
your business and your budget. Our goal is to design, package and deliver innovative
products and solutions that produce high quality output with reliable performance. And
at the same time, help you minimize the number of cartridges you use over the life of a
printer and conserve paper and energy.
The Lexmark Cartridge Collection Program provides a variety of methods for free returns
of your empty cartridges to Lexmark or our collection partners. Program availability and
details vary by country.
12WW1740
Environmental protection is a shared responsibility.
Through work with industry groups, Lexmark helps guide the formation of
standards and guiding principles for environmental sustainability.
Our memberships include
AeA Europe
Ecma International
Electronics Industry Citizenship Coalition (EICC)
DIGITALEUROPE
Information Technology Industry Council (ITI) Environmental Leadership Council
Why Lexmark.
Founded in 1991 from an IBM heritage in Lexington, Kentucky, Lexmark is focused on
delivering tailored solutions to solve the unique challenges businesses face. Lexmark's
broad portfolio of high quality products, solutions, and services help improve productivity,
increase efficiency and empower employees to perform at their best.

Lexmark XM7100 Series Overview
Easy and intuitive. The Lexmark XM7100 Series is designed for easy operation to
allow you to stay focused on customer engagements instead of routine maintenance.
l 
Extra large, easy to navigate 10.2-inch color touch screen provides audible and tactile
feedback to make completing tasks intuitive
l 
Print and scan preview features help you select documents or specific pages within a
document
l 
Directional lights on the device provide visual cues to guide you through tasks
l 
Extend your environmental responsibility with energy-efficient settings such as the Sleep
Button and Hibernate Mode
l 
Manage your devices with available software
Top performance. The Lexmark XM7100 Series is the ultimate in multifunction
power. A choice of configuration options and productivity solutions let your businesses
get exactly what it needs to get more done. More value and versatility in a space-saving
footprint.
l 
Process even the most complex jobs utilizing the 800MHz dual-core processing power and up
to 3GB of memory
l 
Get work done quickly with print and copy speeds up to 70 ppm and produce your first page
in as little as 4 seconds
l 
Produce professional output with a system that delivers consistent image quality on a diverse
range of materials
l
Instant warm-up fuser helps reduce energy consumption and improve time to first page
Business productivity. The Lexmark XM7100 Series combines exceptional
multifunction performance with time-saving applications designed to make you more
productive.
l 
Save time with fast 2-sided color scanning in a single pass and quickly convert hard-copy
documents into a digital format
l 
Advanced copy functions let you interrupt long print runs to make a quick copy and proof the
first copy set before completing your copy job
l 
Scan to multiple destinations, including scan to network, email, FTP, fax, and more
l 
Select from a number of output options and finishing features including a four-bin user-
assignable mailbox, offset stacker or staple finisher
12WW1740

SFP MFP Scan
to Network Card Copy
SFP MFP Scan
to Network Card Copy
12WW1740
Multi Send
Capture and route a document to multiple
destinations simultaneously and print a copy
if you choose. Documents can be routed to
email, network folders, or FTP sites.
Forms and Favorites
Eliminate waste and inefficiencies associated
with preprinted forms. Store frequently printed
forms, marketing materials or other documents
online, then print them on demand.
Scan to Network Basic
Scan a hard copy document and route the
image to one of 30 predefined or public
shared network folders.
The following are examples of preloaded solutions
on XM7100 Series MFPs.
Customer Support
This application provides you with an easy
way to send information about your device to
your authorized dealer or internal help desk.
Additional Lexmark solutions are available through your
authorized Lexmark Business Solutions Dealers.
Navigate to efficiency. The Lexmark color touch screen is a key access point to
your device. The extra large, customizable, 10.2-inch interface gives you the ability to
preview thumbnails of documents prior to printing, as well as change print job settings
at the device. You can even view, select and print specific pages within a document
directly from the touch screen. Its easy-to-use, intuitive navigation provides fast access
to the functions and shortcuts.
Our solutions are designed with your productivity in mind.
The Lexmark XM7100 Series platform lets you interact with
business applications directly on the device or with a server,
on premise or hosted in "the cloud". Reduce unnecessary
printing and simplify work processes with Lexmark solutions.
Lexmark XM7100 Series Solutions
Propel your business forward
Device Quotas
Lexmark Device Quotas allows an
administrator to configure user level quotas
for print, scan, copy, and outbound fax.

Lexmark XM7100 Series Vertical Solutions
Professional quality output is only part of the story
By leveraging our industry expertise, you can generate efficiency and increase productivity
across business processes to gain the power you need to move ahead. Lexmark technology
solutions are tailored to your business environment – where business interactions and decisions
are happening.
Empower your employees with workflow solutions that refine work processes, capture critical
data, and deliver information to the right place, at the right time, and in the right format.
Contact your Lexmark Business Solutions Dealer for specific vertical solutions*. Solutions are
customized through your dealer.
* Optional software available. Licensing fees may apply.
Device management. Tools include administrative access and passwords, HTTPS,
SNMPv3, IP security (IPSec), and 802.1x support to remotely monitor and manage
device usage.
Device hardening. Includes port filtering, TCP connection filtering, hard disk encryption,
hard disk wiping and digitally signed firmware updates that enhance the security of the
device’s network interface.
Device operation. Reduce vulnerabilities with authentication and authorization features,
address book lookup via LDAP over SSL and device lockout for protection of user
information.
Lexmark has shown its strength and leadership with respect to security.
l 
Forming and chairing the group that created the IEEE 2600 standards for security on
hard copy devices.
l 
Becoming the first hard copy device manufacturer to take a holistic approach with
the National Information Assurance Partnership (NIAP) Common Criteria evaluation.
Keep sensitive information and documents secure
Lexmark builds network devices with security in mind to protect your data and
documents throughout your entire workflow. Our wide range of security functions
include device management, device hardening and device operation.
12WW1740

3
7
4
1
2
6
5
XM7100 model with Staple Finisher
Features that help you optimize your work
2) Flexible output options
Choose from multiple output
options, including a 4-bin mailbox,
an offset stacker, and a staple
finisher.
3) Single-pass duplex
automatic document feeder
Save time by scanning both
sides of your document in one
pass with robust color-scanning
capabilities and ultrasonic multi-
feed detection to prevent jams.
4) Direct USB
The front USB port allows for
convenient walk-up preview, and
printing and is compatible with
most printable image file formats.
7) Eco-friendly features
Easy-to-access features like
Eco-Mode to reduce paper and
toner consumption, the Sleep
Button and Hibernate Mode
make it easy to print responsibly
and help you save energy.
6) Lexmark’s Unison™ Toner
Advanced toner science
– powerful enough to deliver
consistently outstanding image
quality, with a shake free print
system.
1) 10.2-inch color touch screen
Operate your device with ease
through smart and intuitive
navigation. Receive audible and
tactile feedback when you use the
touch screen.
Lexmark XM7100 Series Key Features
12WW1740
5) Lexmark solutions
Reduce unnecessary printing and
simplify work processes through
solutions applications preloaded
on your device. Choose additional
Lexmark solutions to fit your
unique workflow needs.

Model shown:
XM7155x, XM7163x or XM7170x with Staple Finisher
Model shown:
XM7155, XM7163 or XM7170 with Staple Finisher
XM7100 Series
Lexmark XM7100 Series Ordering Information
Part # Model
24T8402 Lexmark XM7155
24T8403 Lexmark XM7163
24T8404 Lexmark XM7170
24T8350 Lexmark XM7155x
24T8351 Lexmark XM7163x
24T8352 Lexmark XM7170x
Part # Supplies
24B6020 XM7155, XM7163, XM7170 Toner Cartridge
24B6025 Imaging Unit
25A0013 Staple Cartridges (3 pack)
40X8420 Fuser Maintenance Kit
40X8431 ADF Maintenance Kit
Part # Paper Handling
24T7300 XM7155, XM7163, XM7170 550-Sheet Tray
24T7350 XM7155, XM7163, XM7170 2100 Sheet Tray
24T8999 Oset Stacker
40G0850 Staple Finisher
40G0852 4-Bin Mailbox
Part # Memory Options
57X9101 256MB User Flash Memory
57X9016 1GBx32 DDR3 RAM
57X9012 2GBx32 DDR3-RAM
Part # Font Cards
57X9110 Traditional Chinese Font Card
57X9112 Simplied Chinese Font Card
57X9114 Korean Font Card
57X9115 Japanese Font Card
Part # Application Solutions
24T7351 XM7155, XM7163, XM7170 Card for IPDS
24T7352 XM7155, XM7163, XM7170 Forms and Bar Code Card
24T7353 XM7155, XM7163, XM7170 Card for PRESCRIBE Emulation
Part # Connectivity
27X0225 MarkNet N8350 802.11b/g/n Wireless Print Server
1021294 USB (2 Meter) Cable
14F0000 Parallel 1284-B Interface Card
1021231 Parallel (10') Cable
14F0100 RS-232C Serial Interface Card
Standard
Optional
550-Sheet Tray
550-Sheet Tray
10.2-inch Touch Screen Offset Stacker
Select one preconfigured
model with finisher
Staple Finisher
4-Bin Mailbox
550-Sheet Tray
2100-Sheet Tray
Caster Base Caster Base
100-Sheet
Multipurpose Feeder
10.2-inch Touch Screen
550-Sheet Tray
550-Sheet Tray
100-Sheet
Multipurpose Feeder
12WW1740

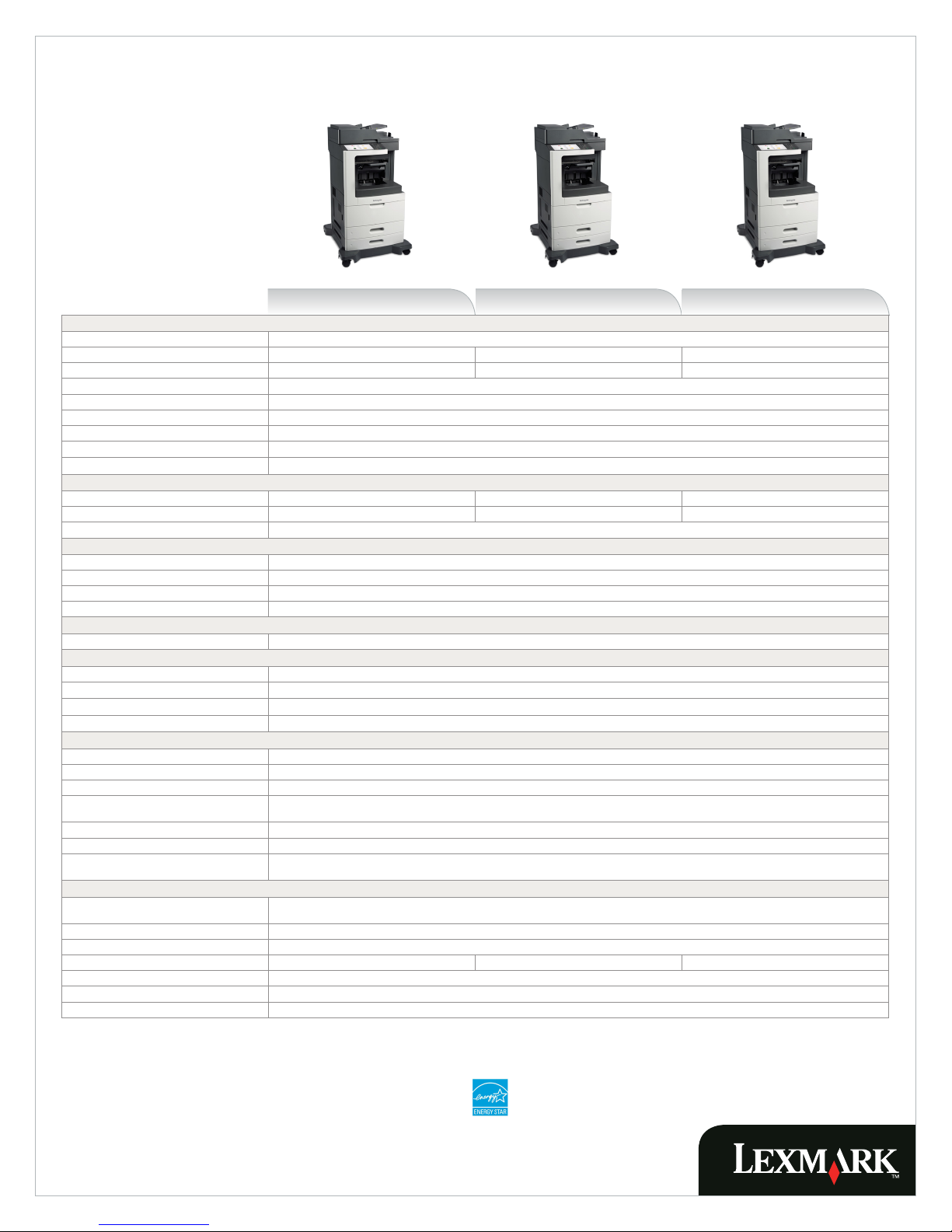

Lexmark XM7100 Series Product Specifications
Lexmark and Lexmark with the diamond design are trademarks of Lexmark International, Inc.,
registered in the United States and/or other countries. All other trademarks are the property of their
respective owners. ENERGY STAR® is a U.S. registered mark. Information in this document is
subject to change without notice. Unison is a trademark of Lexmark International, Inc. Information in
this document is subject to change without notice.
1 Based on approximately 5% print coverage. Actual yields may vary based on factors such as page coverage,
image type, job size, print/copy/fax modes, and duplexing.
2 "Recommended Monthly Page Volume" is a range of pages that helps customers evaluate Lexmark’s product
offerings based on the average number of pages customers plan to print on the device each month. Lexmark
recommends that the number of pages per month be within the stated range for optimum device performance,
based on factors including: supplies replacement intervals, paper loading intervals, speed, and typical customer
usage.
3 "Maximum Monthly Duty Cycle" is defined as the maximum number of pages a device could deliver in a month
using a multishift operation. This metric provides a comparison of robustness in relation to other Lexmark printers
and MFPs.
Lexmark XM7155 Lexmark XM7163 Lexmark XM7170
Printing
Display 10.2-inch (25.9 cm) color touch screen with audible and tactile feedback
Print Speed: Up to Black: 55 ppm Black: 63 ppm Black: 70 ppm
Time to First Page: As fast as Black: 4.8 seconds Black: 4.4 seconds Black: 4.0 seconds
Print Resolution 1200 Image Quality, 1200 x 1200 dpi, 2400 Image Quality, 600 x 600 dpi
Processor Speed Dual Core, 800 MHz
Memory Standard: 1024 MB / Maximum: 3072 MB
Hard Disk Included in configuration
Recommended Monthly Page Volume25000 - 35000 pages
Maximum Monthly Duty Cycle: Up to3300000 pages per month
Copying
Copy Speed: Up to Black: 55 cpm Black: 63 cpm Black: 70 cpm
Time to First Copy: As fast as Black: 4.5 seconds Black: 4.2 seconds Black: 4.0 seconds
Reduce / Enlarge Range 25 - 400%
Scanning
Duplex Scan Speed: Up to A4/Ltr, Black: 70 / 72 sides per minute - A4/Ltr, Color: 66 / 68 sides per minute
Simplex Scan Speed: Up to A4/Ltr, Black: 67 / 70 sides per minute - A4/Ltr, Color: 67 / 70 sides per minute
Scanner Type / ADF Scan Flatbed scanner with ADF / DADF (Single Pass Duplex) / 150 pages 20 lb or 75 gsm bond
Optical Scanning Resolution 300 x 300 ppi (color), 600 X 600 ppi (black)
Faxing
Modem SpeedITU ITU T.30, V.34 Half-Duplex, 33.6 Kbps
Supplies
Laser Cartridge Yields 35,0001-page Toner Cartridge
Cartridges shipping with product Up to 25000 pages1 Starter Toner Cartridge
Imaging Unit 100000 pages
Staple Cartridge (3-pack) 15000
Paper Handling
Paper Handling Standard 550-Sheet Output Bin, Integrated Duplex, 100-Sheet Multipurpose Feeder, 550-Sheet Input, 1x 550-Sheet Tray
Paper Handling: Standard (x) 550-Sheet Output Bin, Integrated Duplex, 100-Sheet Multipurpose Feeder, 550-Sheet Input, 1x 2100-Sheet Tray
Paper Handling Optional 4-Bin Mailbox, 550-Sheet Drawer, 500-Sheet Offset Stacker, 500-Sheet Staple Finisher
Paper Input Capacity: Up to Standard: 1200 pages 20 lb or 75 gsm bond / Maximum: 2300 pages 20 lb or 75 gsm bond /
(x) Standard: 2750 pages 20 lb or 75 gsm bond / Maximum: 2750 pages 20 lb or 75 gsm bond
Paper Output Capacity: Up to Standard: 1050 pages 20 lb or 75 gsm bond / Maximum: 1050 pages 20 lb or 75 gsm bond
Media Types Supported Card Stock, Dual Web Labels, Envelopes, Integrated Labels, Paper Labels, Plain Paper, Transparencies, Refer to the Card Stock & Label Guide
Media Sizes Supported 10 Envelope, 7 3/4 Envelope, 9 Envelope, A4, A5, A6, B5 Envelope, C5 Envelope, DL Envelope, Executive, Folio, JIS-B5, Legal, Letter, Ocio,
Statement, Universal
General
Standard Ports One Internal Card Slot, USB 2.0 Specification Hi-Speed Certified (Type B), Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed
Certified Port (Type A), Rear USB 2.0 Specification Hi-Speed Certified port (Type A)
Optional Network Ports Internal MarkNet™ N8350 802.11b/g/n Wireless
Optional Local Ports Internal RS-232C serial, Internal 1284-B Bidirectional Parallel
Noise Level, Operating Print: 55 dBA / Copy: 55 dBA / Scan: 57 dBA Print: 55 dBA / Copy: 56 dBA / Scan: 57 dBA Print: 56 dBA / Copy: 56 dBA / Scan: 57 dBA
ENERGY STAR Yes
Specified Operating Environment Temperature: 16 to 32°C (60 to 90°F), Humidity: 8 to 80% Relative Humidity, Altitude: 0 - 3048 Meters (10,000 Feet)
Size (in. - H x W x D) / Weight (lb.) 47.4 x 24.05 x 25.9 in. / 247 lb.
Product specifications
12WW1740
