DYNAMIC V8®VL SERIES AIR CLEANER
INSTALLATION MANUAL
For LG High Static Ducted Indoor Units


Dynamic V8 Air Cleaner Installation Manual
Dynamic V8 Air Cleaner
| i
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
Patents, Trademarks, and Proprietary Data
Copyright © 2012 LG Electronics USA, Inc. All Rights Reserved.
This document, as well as all reports, illustrations, data, information, and other ma-
terials, is the property of LG Electronics and are disclosed by LG Electronics only in
confidence. No portion of this document may be reproduced, adapted, distributed,
displayed, or transmitted in any form by any means, whether electronic, written, me-
chanical, or otherwise, for any purpose, without prior written consent of LG Electron-
ics. Unauthorized reproduction, distribution, or use of this document, or any portion
thereof, may result in severe civil and criminal penalties, and will be prosecuted to
the full extent permitted under law.
Multi V III®is a registered trademark of LG Electronics Inc. Dynamic V8®is a regis-
tered trademark of Environmental Design Group, Inc. DBA Dynamic Air Quality Solu-
tions, Inc.
Content Updates
Information in this document is subject to change without notice. Due to continual
product development, LG Electronics and Dynamic Air Quality Solutions reserve the
right to change specifications without notice. Please visit our website at www.lg-vrf.
com to ensure that you have the latest version.
Notices
Notices


Dynamic V8 Air Cleaner Installation Manual
Dynamic V8 Air Cleaner
| iii
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
Table of Contents
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
LG Electronics, Inc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
About Dynamic Air Quality Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Air Cleaner System Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cut Sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Air Cleaners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Return-Air-Plenum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Plenum Grilles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Air Cleaner Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Required Parts and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
General Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Choosing a Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Air Cleaner Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Complete Post-Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Return Policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Dynamic V8 VL Series Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Return-Air-Plenum Grille Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Warranty Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37


Dynamic V8 Air Cleaner Installation Manual
Dynamic V8 Air Cleaner
Introduction | 1
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
Introduction
LG Electronics on page 2
LG Electronics on page 2
Commitment to Innovation on page 2
Commitment to Innovation on page 2
About DynamicAir Quality Solutions on page 3
About DynamicAir Quality Solutions on page 3
Dynamic V8 VLSeriesAir Cleaners on page 3
Dynamic V8 VLSeriesAir Cleaners on page 3
Getting Help on page 3
Getting Help on page 3

2| Introduction
Dynamic V8 Air Cleaner
Dynamic V8 Air Cleaner Installation Manual
Commitment to Innovation
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ. All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
LG Electronics
LG Electronics is a global leader and technology innovator in consumer electronics,
mobile communications, and home appliances, employing over 213,000 people in
over 115 operations worldwide. LG Electronics comprises four business units -
Home Entertainment, Mobile Communications, Home Appliance, and Air Conditioning
and Energy Solutions. LG Electronics is one of the world’s leading producers of flat panel
televisions, audio and video products, mobile handsets, air conditioners, and washing
machines. LG’s commercial air conditioning (CAC) business unit was established in
1968 and has built its lineup of residential and commercial products to include VRF,
Flex multi, duct free split systems, PTACs, and room air conditioners. In 2011, the air
conditioning and energy solutions business unit grew to include LED lighting and solar
products. For more information, visit www.lghvac.com.
Figure 1: LG Commercial Air Conditioning in Atlanta Georgia.
Commitment to Innovation
LG Commercial Air-conditioning is committed to providing a full line of productsthat
employ state of the art technology and innovation, such as our award winning Art
CoolTM Gallery, duct-free split systems, and the Multi V family of water cooled VRF
heat pumps.
As part of our commitment to bringing innovation tothe markets we serve, LG
Electronics actively seeks partnerships with other innovation leaders. For air clean-
ing, we are excited to offer the technology developed and patented by Dynamic Air
Quality Solutions. We introduce the Dynamic V8®VL series of air cleaning products
specically designed to work in harmony with LG Multi V III, Multi V Water, and Multi
V Mini VRF high static-ducted indoor units.

Dynamic V8 Air Cleaner Installation Manual
Dynamic V8 Air Cleaner
Introduction | 3
Getting Help
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
About Dynamic Air Quality Solutions
In 1982, two university professors from Carleton University in Ontario, Canada
developed a design for a residential air-cleaning application that provided a simple
means of replacing dirty media. They started Engineering Dynamics, Ltd. (EDL) and
began manufacturing 1” and 2” polarized-media electronic air cleaners, room con-
sole units, and overhead ceiling-mount units. All of the polarized-media air cleaners
on the market today can be traced back to beginnings at EDL, although subsequent
patents and refinements have created discernible differences in product designs and
features.
EDL was acquired in 1993 by Environmental Dynamics Group, now known as Dy-
namic Air Quality Solutions, the manufacturer of Dynamic Air Cleaners. Initially the
focus was residential, but there was a clear need for improved air quality in com-
mercial and industrial applications. This resulted in a focus on technology enhance-
ments, new configurations, and a complete line of commercial products that now
dominate in some applications, such as casinos.
Although there were a number of different configurations that came before the Dy-
namic V8, all were based on polarizing (charging) fibers in a filter and particles in
the air to generate an electric force between those fibers and particles. While the
underlying principles have been around for many decades, only in recent years has
the technology been fully understood and optimized to provide consistent, reliable
performance.
As a result of this research and development, we proudly present the Dynamic V8
Air Cleaner. As the new standard in air cleaning, the Dynamic V8 VL Series deliv-
ers maximum performance using an insignificant energy volume. The Dynamic V8
outperforms all existing air cleaning and filtration products in the market. It controls
contaminants and slashes filter-related maintenance costs, resulting in the lowest
total cost of building ownership. The Dynamic V8 is designed to meet the rigorous
requirements of green buildings, data centers, hospitals, and pharmaceutical and
clean manufacturing.
Dynamic V8 VL Series Air Cleaners
The Dynamic V8’s patented technology has been commercially available for years
in a heavy duty arrangement with eight filter media pads. The Dynamic V8 VL Series
of air-cleaners are compact and designed to work specifically with LG Multi V line of
High-Static-Ducted Indoor Units. They are available in two configurations: The low-
profile 4VL, model and the ultra-low-profile 2VL model.
Getting Help
For technical assistance with the air cleaner itself, please contact Dynamic Air Quali-
ty Solutions (DAQS) at (609) 924-4489. For layout and installation questions, please
contact your LG CAC representative. For warranty issues and repair parts, see
"DAQS Policies and Warranties" on page 35. For replacement filter media, please
contact your LG CAC representative.


Dynamic V8 Air Cleaner Installation Manual
Dynamic V8 Air Cleaner
Air Cleaner System Configurations | 5
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
Air Cleaner System
Configurations
Configurations on page 6
Configurations on page 6
Configuration Code on page 7
Configuration Code on page 7
Configuration Code Examples on page 7
Configuration Code Examples on page 7
Selecting a Configuration on page 7
Selecting a Configuration on page 7
Plenum-Area Height Restrictions on page 7
Plenum-Area Height Restrictions on page 7
Configurations S1R1 and L1R1 on page 9
Configurations S1R1 and L1R1 on page 9
Configurations S2R1, L2R1, and L1S1R1 on page 10
Configurations S2R1, L2R1, and L1S1R1 on page 10
Configurations S2R2, L2R2, and L1S1R2 on page 11
Configurations S2R2, L2R2, and L1S1R2 on page 11

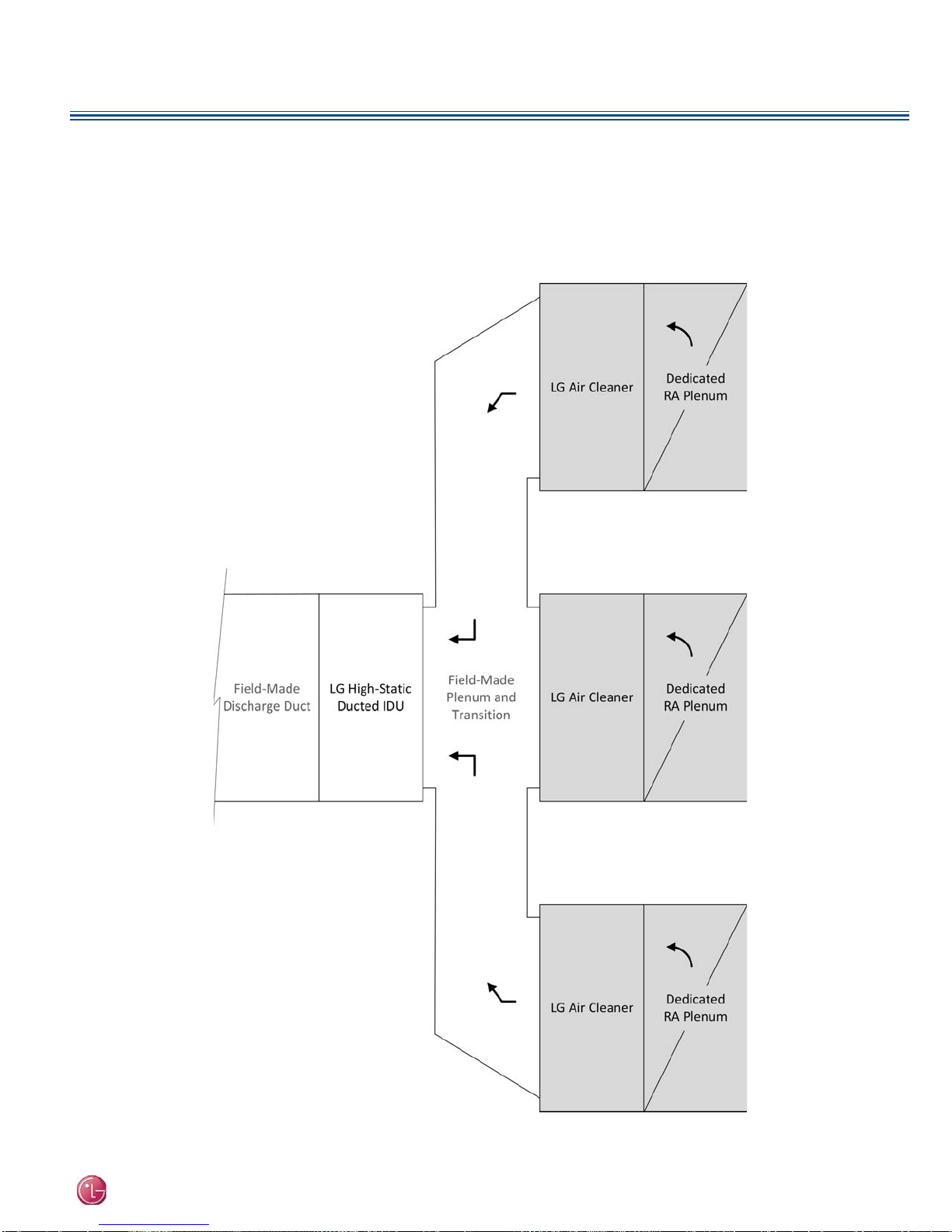

Configurations S3R2 and L3R2 on page 12
Configurations S3R2 and L3R2 on page 12

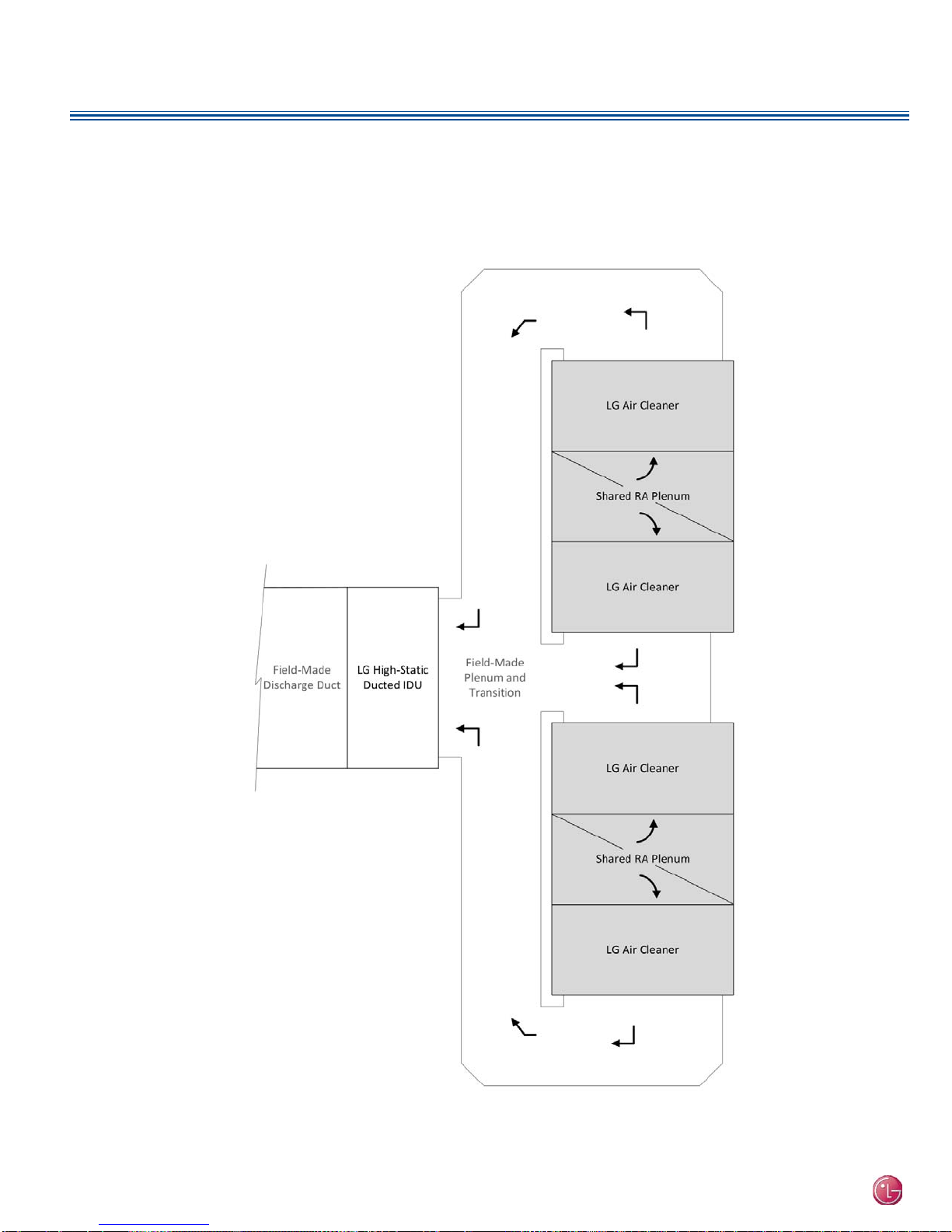

Configurations S3R3 and L3R3 on page 13
Configurations S3R3 and L3R3 on page 13
Configuration L4R2 on page 14
Configuration L4R2 on page 14
Configuration L4R4 on page 15
Configuration L4R4 on page 15

6 | Air Cleaner System Configurations
Dynamic V8 Air Cleaner
Dynamic V8 Air Cleaner Installation Manual
Configurations
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
Configurations

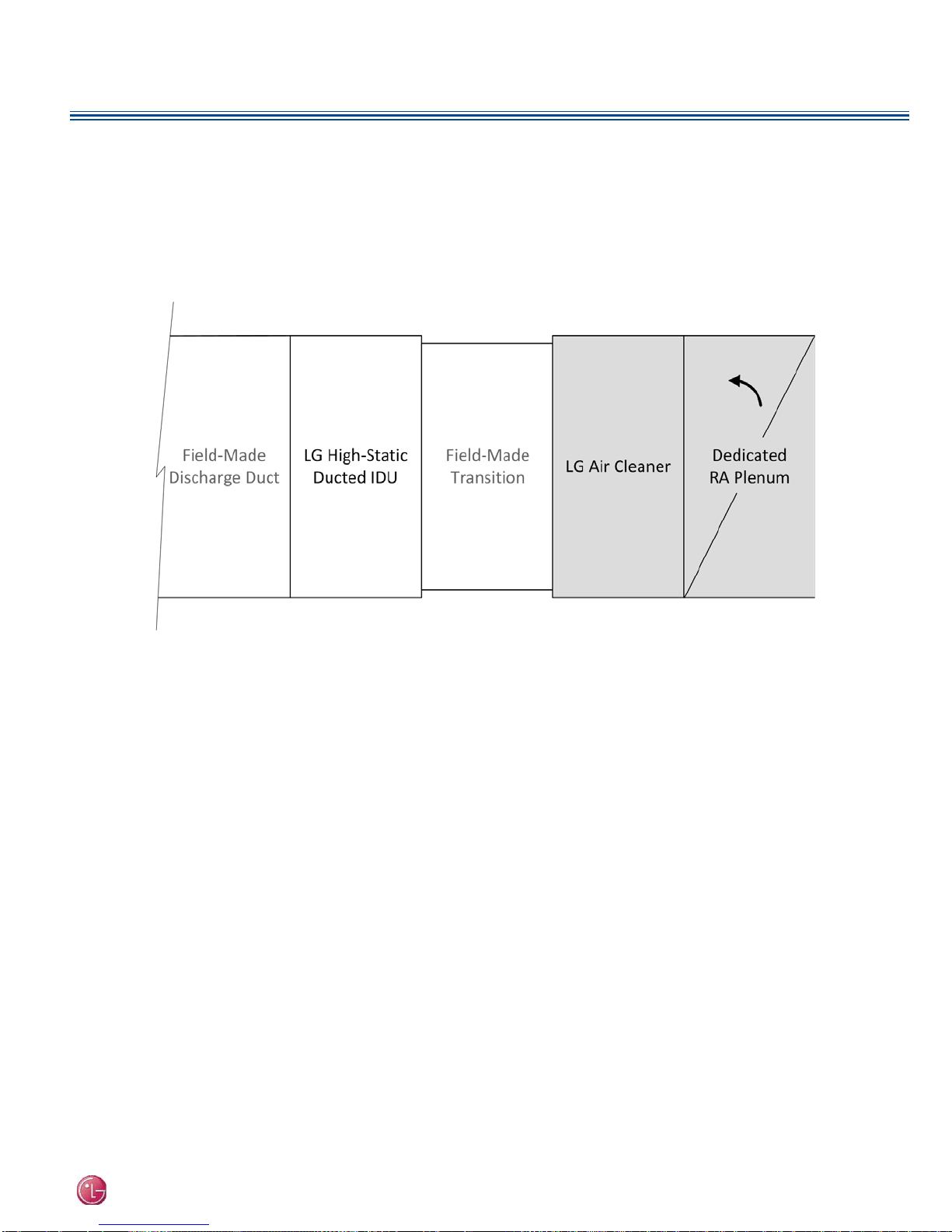

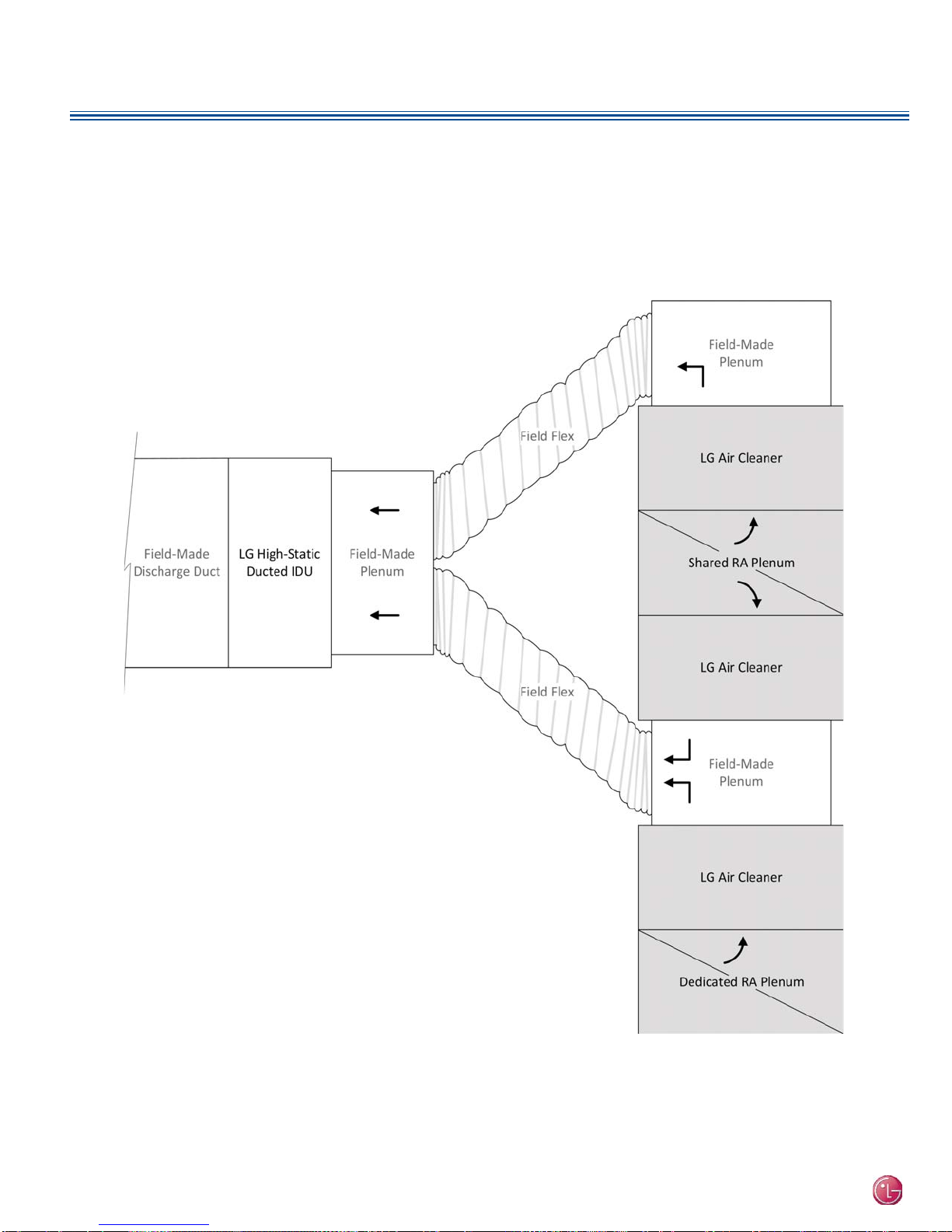

Dynamic V8 VL-series air cleaners can be installed using various configurations,
depending on the high-static-ducted indoor unit used and the height of the plenum
where they will be installed. There are five standard-profile configurations, eight
low-profile configurations, and two mixed-profile configurations. Configurations may
share the same plan (top) view because they differ only in height.
Table 1: Air Cleaner Configuration and Indoor Unit Models
Code Description
ARNU073BHA2
ARNU093BHA2
ARNU123BHA2
ARNU153BGA2
ARNU153BHA2
ARNU183BGA2
ARNU183BHA2
ARNU243BGA2
ARNU243BHA2
ARNU283BGA2
ARNU363BGA2
ARNU423BGA2
ARNU483BRA2
ARNU543BRA2
ARNU763B8A2
ARNU963B8A2
Standard-Profile (4VL) Configurations
S1R1 One 4VLair cleaners, one return-
air plenum ••••••••••
S2R1 Two 4VLair cleaners, one return-
air plenum • ••••
S2R2 Two 4VLair cleaners, two return-
air plenums • ••••
S3R2 Three 4VLair cleaners, two return-
air plenums •
S3R3 Three 4VLair cleaners, three
return-air plenums •
Low-Profile (2VL) Configurations
L1R1 One 2VLair cleaner, one return-air
plenum •••••• •
L2R1 Two 2VLair cleaners, one return-
air plenum •••
L2R2 Two 2VLair cleaners, two return-
air plenums •••
L3R2 Three 2VLair cleaners, two return-
air plenums ••••
L3R3 Three 2VLair cleaners, three
return-air plenums ••••
L4R2 Four 2VLair cleaners, two return-
air plenums •
L4R4 Four 2VLair cleaners, four return-
air plenums •
L5R3 Five 2VLair cleaners, three return-
air plenums •
Mixed-Profile (2VL/4VL) Configurations
L1S1R1 One 2VLair cleaner, one 4VLair
cleaner, one return-air plenum • ••••
L1S1R2 One 2VLair cleaner, one 4VLair
cleaner, two return-air plenums • ••••

Dynamic V8 Air Cleaner Installation Manual
Dynamic V8 Air Cleaner
Air Cleaner System Configurations | 7
Selecting a Configuration
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
Configuration Code
Each configuration is defined by three qualities:
• Which air cleaner type or types it uses
• How many of each air cleaner type it uses
• How many return air plenums it requires
Therefore, the code for each configuration is in the form:
L<count>R<count> or S<count>R<count>
Where:
S = standard profile (4VL)
L = low profile (2VL)
R = return-air plenum
<count> = quantity
Configuration Code Examples
For example, S3R3 means three standard profile (4VL) air cleaners coupled to three
return-air plenums, and L1R1 means one low profile (2VL) air cleaner coupled to
one return-air plenum.
Some profiles have both standard profile and low profile air cleaners, so their code
is slightly longer. For example, L1S1R2 means one low profile (2VL) and one stan-
dard profile (4VL) air-cleaner coupled with two return-air plenums.
Selecting a Configuration
To select a configuration, you must know the indoor unit model number in question
and the height of the plenum area you intend to install it in. The underlying property
that dictates which configurations are available to an indoor unit model is that mod-
el’s air flow requirements. The configurations available may or may not be dictated
by the available plenum area height.
Plenum-Area Height Restrictions
Plenum area height restrictions are not defined in the configuration type (S1R1,
L2R2, and others); however, which configuration you choose may be dictated by the
plenum area you have available. While perhaps not optimal, you can install the ultra
low-profile 2VL model in any plenum. In severely height constricted plenums, the
ultra low profile 2VL model will probably be your only alternative. Refer to figures 2
and 3.

8 | Air Cleaner System Configurations
Dynamic V8 Air Cleaner
Dynamic V8 Air Cleaner Installation Manual
Selecting a Configuration
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
Figure 2: Elevation view of a typical S1R1 installation.
Field-Provided Transition
(suggested design available)
Dynamic V8
Air Cleaner Return Air Plenum
Ceiling Grid
Plenum Area
Return Air Grille
Upper Floor
LG High-Static Ducted
Indoor Unit
Field-Provided
Supply-Air Duct
Figure 3: Elevation view of a typical L1R1 installation.
Field-Provided Transition
(suggested design available)
Dynamic V8
Air Cleaner Return Air Plenum
Ceiling Grid Return Air Grille
Upper Floor
Field-Provided
Supply-Air Duct
LG High-Static
Ducted Indoor Unit
у10"
Figure 4: Elevation view of S1R1 with field-provided plenum intake extension.
Field-Provided Transition
(suggested design available)
Dynamic V8
Air Cleaner Return Air Plenum
Ceiling Grid
Plenum Area
Return Air Grille
Upper Floor
Field-Provided
Plenum Intake
Extension
Field-Provided
Supply-Air Duct
LG High-Static Ducted
Indoor Unit

Dynamic V8 Air Cleaner Installation Manual
Dynamic V8 Air Cleaner
Air Cleaner System Configurations | 9
Selecting a Configuration
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
Configurations S1R1 and L1R1
The simplest configurations have one Dynamic V8 air cleaner and one return air ple-
num as shown in Figure 5. These configurations only differ in whether the engineer
decides to use a standard or low-profile air cleaner, return-air plenum, and
supporting ductwork.
Figure 5: Plan view of S1R1 and L1R1.

10 | Air Cleaner System Configurations
Dynamic V8 Air Cleaner
Dynamic V8 Air Cleaner Installation Manual
Selecting a Configuration
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
Configurations S2R1, L2R1, and L1S1R1
Two Dynamic V8 air cleaners and one return-air plenum as shown in Figure 6. As
before, these configurations only differ in whether the engineer decides to use stan-
dard or low-profile air cleaners, return-air plenums, and supporting ductwork. These
configurations require more field-provided ductwork.
Figure 6: Plan view of S2R1, L2R1, and L1S1R1.

Dynamic V8 Air Cleaner Installation Manual
Dynamic V8 Air Cleaner
Air Cleaner System Configurations | 11
Selecting a Configuration
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
Configurations S2R2, L2R2, and L1S1R2
Two Dynamic V8 air cleaners and two return air plenums as shown in Figure 7. As
before, these configurations only differ in the engineer decides to use a standard or
low-profile air cleaners, return-air plenums, and supporting ductwork.
Figure 7: Plan view of S2R2, L2R2, and L1S1R2

12 | Air Cleaner System Configurations
Dynamic V8 Air Cleaner
Dynamic V8 Air Cleaner Installation Manual
Selecting a Configuration
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
Configurations S3R2 and L3R2
Three Dynamic V8 air cleaners and two return air plenums as shown in Figure 8.
As with the other configurations, these only differ in whether the engineer decides
to use standard or low-profile air cleaners, return-air plenums, and supporting duct-
work. These configurations include some field-provided oversized flexible ducting.
Figure 8: Plan view of S3R2 and L3R2.

Dynamic V8 Air Cleaner Installation Manual
Dynamic V8 Air Cleaner
Air Cleaner System Configurations | 13
Selecting a Configuration
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
Configurations S3R3 and L3R3
Three Dynamic V8 air cleaners and three return air plenums as shown in Figure 9.
As before, these configurations only differ in whether you use standard or low-profile
air cleaners, return-air plenums, and supporting ductwork.
Figure 9: Plan view of S3R3 and L3R3.
Note: An L5R3 configuration is possible; however it is not the most economical solution.

14 | Air Cleaner System Configurations
Dynamic V8 Air Cleaner
Dynamic V8 Air Cleaner Installation Manual
Selecting a Configuration
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A. Inc., Englewood Cliffs, NJ.All rights reserved. "LG Life's Good" is a registered trademark of LG Corp./www.lghvac.com
Configuration L4R2
Four Dynamic V8 air cleaners and two return air plenums as shown in Figure 10.
Figure 10: Plan view of S4R2.
This manual suits for next models
16
Table of contents
Other LG Air Cleaner manuals
