LG W122CE User manual

www.lg.com
EN ENGLISH
*MFL71860124*
Copyright © 2022 LG Electronics Inc. All Rights Reserved
MFL71860124
Rev.00_022122
AIR CONDITIONER
Read this owner’s manual thoroughly before operating the appliance
and keep it handy for reference at all times.
OWNER’S MANUAL
TYPE : WINDOW
W121CE SL0
W122CE SL0

TABLE OF CONTENTS
SAFETY INSTRUCTIONS ..............................................................3
IMPORTANT SAFETY INSTRUCTIONS ..........................................................4

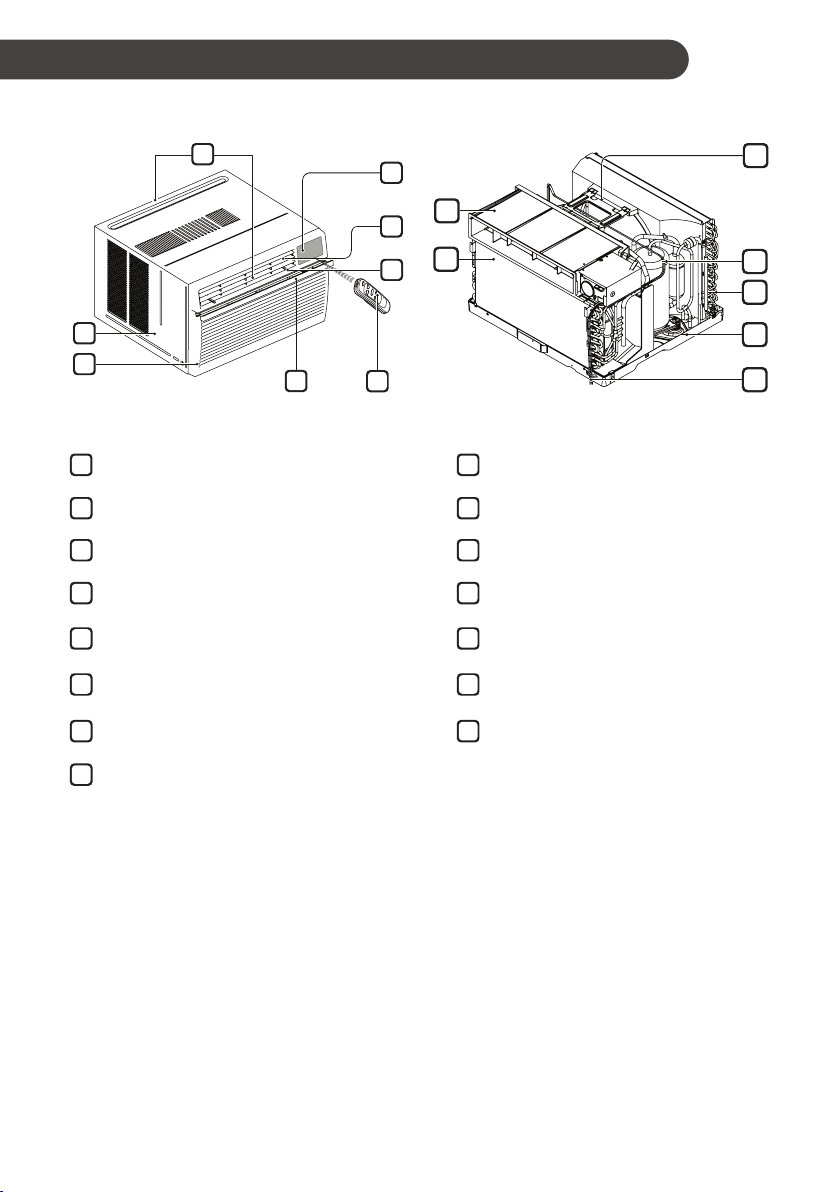

PRODUCT OVERVIEW ................................................................12
Exterior Parts ..................................................................................................12
Interior Parts....................................................................................................12

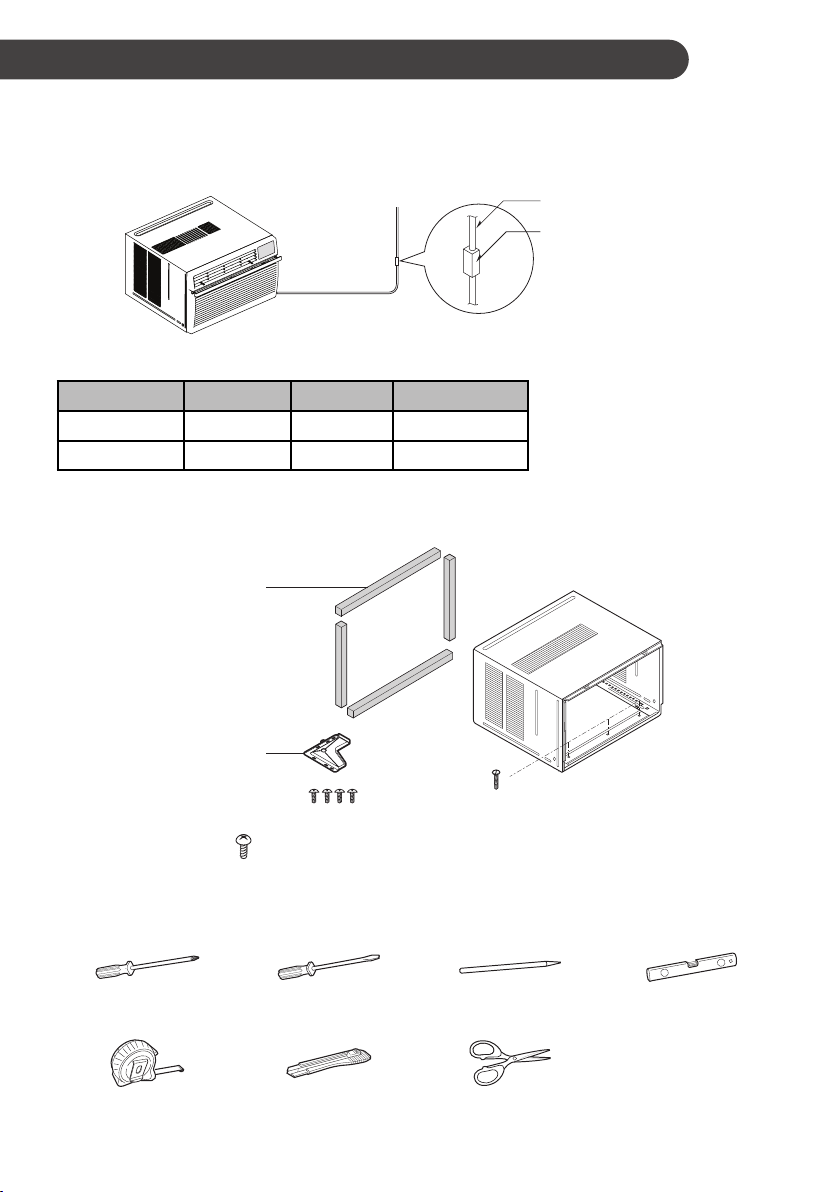

INSTALLATION.............................................................................13
Circuit Breaker Installation ..............................................................................13
Installation Overview.......................................................................................13
Tools Needed ..................................................................................................13
How to Install the Unit .....................................................................................14
Preparation of the Cabinet ..............................................................................14
Drainage (Optional).........................................................................................14
Installation of the Cabinet................................................................................15
Space for Outside Air Flow..............................................................................15
Installations of the unit into the Cabinet ..........................................................16
OPERATION .................................................................................17
Control Panel and Remote Control .................................................................17
Wireless Remote Control ................................................................................18
Air Direction.....................................................................................................19
Slinger Fan......................................................................................................19
MAINTENANCE............................................................................20
Air Filter...........................................................................................................20
TROUBLESHOOTING..................................................................21
Before Calling for Service ...............................................................................21
Normal Sounds You May Hear........................................................................21

3
EN
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on
your appliance. Always read and follow all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you
and others.
All safety messages will follow the safety alert symbol and either the
word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow
instructions.
All safety messages will tell you what the potential hazard is, tell you
how to reduce the chance of injury, and tell you what may happen if the
instructions are not followed.
The following symbols are displayed on units.
This symbol indicates that this appliance uses a flammable
refrigerant. If the refrigerant is leaked and exposure to an
external ignition source, there is a risk of fire.
This symbol indicates that the Operation Manual should be read
carefully.
This symbol indicates that a service personnel should be
handling this equipment with reference to the Installation Manual.
This symbol indicates that information is available such as the
Operating Manual or Installation Manual.

4
EN
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock, scalding or
injury to persons when using this product, follow basic precautions,
including the following:
INSTALLATION
•Before use, the appliance must be properly installed as described in this manual.
•Contact the authorized service technician for repair or maintenance of this unit.
•Contact the installer for installation of this unit.
•The air conditioner is not intended for use by young children or invalids without supervision.
•Keep any required ventilation openings clear of obstruction.
•Compliance with national gas regulations shall be observed.
•When the power cord is to be replaced, replacement work shall be performed by authorized
personnel only using only genuine replacement parts.
•Installation work must be performed in accordance with the National Electric Code by qualified and
authorized personnel only.
•Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.
•Always plug into a grounded outlet.
•Do not under any circumstances, cut or remove the third (ground) prong from the power cord.
•When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord.
•Plug in the power plug properly.
•Do not modify or extend the power cord.
•Do not start/stop operation by plugging/unplugging the power cord.
•Do not turn on the circuit breaker or power under condition that front grille, cabinet, control box are
removed or opened. Otherwise, it may cause fire, electric shock, explosion or death.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified person in order to avoid a hazard.
•Use a dedicated circuit.
•Do not disassemble or modify the product.
•Adhere to all industry recommended safety procedures including the use of long-sleeved gloves
and safety glasses.
•Disconnect the power cord or circuit breaker before installing or servicing the appliance.
•Keep packaging materials out of the reach of children. These materials can pose a suffocation risk
to children.
•Store and install the product where it will not be exposed to temperatures below freezing or
exposed to outdoor weather conditions.
•Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.

5
EN
OPERATION
•Use this appliance only for its intended purpose.
•Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or
has missing or broken parts, including a damaged cord or plug.
•Repair or immediately replace all power cords that have become frayed or otherwise damaged. Do
not use a cord that shows cracks or abrasion damage along its length or at either end.
•Do not run cord under carpets or mats where it could be stepped on and damaged.
•Keep the cord out from under heavy objects like tables or chairs.
•Do not place the power cord near a heat source.
•Do not use an adaptor or plug the product into a shared outlet.
•Do not tamper with controls.
•If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance,
unplug it immediately, and contact the LG Electronics Customer Information Center.
•Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull
straight out from the outlet.
•Do not grasp the power cord or touch the appliance controls with wet hands.
•If water enters the product, turn off the power at the main circuit, then unplug the product and call
for service.
•If the product has been submerged, contact the LG Electronics Customer Information Center for
instructions before resuming use.
•Unplug the product when unused for long periods.
•Unplug the product before cleaning.
•In the event of a gas leak (propane gas, etc.) do not operate this or any other appliance. Open a
window or door to ventilate the area immediately.
•This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with the appliance.
•The interior of the product must only be cleaned by an authorized service center or a dealer.
•Do not use solvent-based detergent on the product. Doing so can cause corrosion or damage,
product failure, electrical shock, or fire.
GROUNDING INSTRUCTIONS
•The power cord of this appliance is equipped with a three-prong (grounding) plug. Use this with
a standard three-slot (grounding) wall power outlet to minimize the hazard of electric shock. The
customer should have the wall receptacle and circuit checked by a qualified electrician to make
sure the receptacle is properly grounded. DO NOT CUT OR REMOVE THE THIRD (GROUND)
PRONG FROM THE POWER PLUG.
−Situations when the appliance will be disconnected occasionally; Because of potential safety
hazards, we strongly discourage the use of an adapter plug.
•Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the
appliance unless the cover screw is metal, and not insulated, and the wall receptacle is grounded
through the house wiring. The customer should have the circuit checked by a qualified electrician
to make sure the receptacle is properly grounded.
•Disconnect the power cord from the adapter, using one hand on each. Otherwise, the adapter
ground terminal might break. Do not use the appliance with a broken adapter plug.
−Situations when the appliance will be disconnected often; Do not use an adapter plug in these
situations. Unplugging the power cord frequently can lead to an eventual breakage of the ground
terminal. The wall power outlet should be replaced by a three-slot (grounding) outlet instead.

6
EN
CAUTION
To reduce the risk of minor or moderate injury to persons,
malfunction, or damage to the product or property when using this
product, follow basic precautions, including the following:
INSTALLATION
•Take care when installing the product that exhaust or condensation does not damage nearby
property.
•Follow installation instructions exactly to avoid excessive vibration or water leakage.
•Do not install the appliance in an area where it is directly exposed to sea air (salt spray).
−Saline conditions are a cause of corrosion. (Particularly, corrosion of the condenser and
evaporator can damage the appliance or impair its performance.)
•Set up windbreak in front of the outdoor unit if installing it in coastal areas.
−Avoid direct exposure to salt winds.
−Install a firm and stiff concrete-wind shield that can withstand salt winds.
•Wear gloves and use caution when unpacking and installing the appliance. Screws or sharp edges
can cause injuries.
OPERATION
•This appliance is not intended for use as a precision refrigeration system. Do not use it for special
purposes such as maintaining pets, food, precision machinery, or art objects.
•When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord.
•Make sure the air inlet and outlet are free from obstructions.
•Use a soft cloth to clean the appliance. Do not use waxes, thinners, or harsh detergents.
•Do not step on or place heavy objects on top of the appliance.
•Do not operate the appliance without the filter securely installed.
•Do not drink water drained from the appliance.
•Be sure to ventilate sufficiently when the air conditioner and a heating appliance such as a heater
are used simultaneously.
•Being exposed to direct airflow for an extended period of time could be hazardous to your health.
•Remove the batteries if the remote control is not to be used for an extended period of time.
•Never mix different types of batteries, or old and new batteries for the remote control.
•Stop using the remote control if there is a fluid leak in the battery. If your clothes or skin are
exposed to the leaking battery fluid, wash off with clean water.
•If the leaking battery fluid has been swallowed, rinse the inside of the mouth thoroughly and
consult a doctor.
•Do not recharge or disassemble the batteries.
MAINTENANCE
•Clean the filter every two weeks.
•Never touch the metal parts of the air conditioner when removing the air filter.
•Never use strong cleaning agents or solvents when cleaning the air conditioner or spray water.
Use a smooth cloth.

7
EN
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Checks to the area
•Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary
to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following
precautions shall be complied with prior to conducting work on the system.
Work procedure
•Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or
vapour being present while the work is being performed.
General work area
•All maintenance staff and others working in the local area shall be instructed on the nature of work
being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be
sectioned off. Ensure that the conditions within the area have been made safe by control of flammable
material.
Checking for presence of refrigerant
•The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure
the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment
being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or
intrinsically safe.
Presence of fire extinguisher
•If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate
fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher
adjacent to the charging area.
No ignition sources
•No person carrying out work in relation to a refrigeration system which involves exposing any pipe work
that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner
that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking,
should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during
which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking
place, the area around the equipment is to be surveyed to make sure that there are no flammable
hazards or ignition risks. “No Smoking” signs shall be displayed.
Ventilated area
•Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or
conducting any hot work. A degree of ventilation shall continue during the period that the work is carried
out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into
the atmosphere.
Checks to the refrigeration equipment
•Where electrical components are being changed, they shall be fit for the purpose and to the correct
specification. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in
doubt consult the manufacturer’s technical department for assistance.
•The following checks shall be applied to installations using flammable refrigerants:
−The actual refrigerant charge is in accordance with the room size within which the refrigerant
containing parts are installed.
−The ventilation machinery and outlets are operating adequately and are not obstructed.
−If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence
of refrigerant.
−Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall
be corrected.

8
EN
−Refrigeration pipe or components are installed in a position where they are unlikely to be exposed
to any substance which may corrode refrigerant containing components, unless the components are
constructed of materials which are inherently resistant to being corroded or are suitably protected
against being so corroded.
Checks to electrical devices
•Repair and maintenance to electrical components shall include initial safety checks and component
inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be
connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately
but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be
reported to the owner of the equipment so all parties are advised.
•Initial safety checks shall include:
−Capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking.
−No live electrical components and wiring are exposed while charging, recovering or purging the
system.
−Continuity of earth bonding.
Repairs to sealed components
•During repairs to sealed components, all electrical supplies shall be disconnected from the equipment
being worked upon prior to any removal of sealed covers, etc.
•If it is absolutely necessary to have an electrical supply to equipment during servicing, then a
permanently operating form of leak detection shall be located at the most critical point to warn of a
potentially hazardous situation.
•Particular attention shall be paid to the following to ensure that by working on electrical components, the
casing is not altered in such a way that the level of protection is affected.
•This shall include damage to cables, excessive number of connections, terminals not made to original
specification, damage to seals, incorrect fitting of glands, etc.
•Ensure that apparatus is mounted securely.
•Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of
preventing the ingress of flammable atmospheres.
•Replacement parts shall be in accordance with the manufacturer’s specifications.
Repair to intrinsically safe components
•Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will
not exceed the permissible voltage and current permitted for the equipment in use.
•Intrinsically safe components are the only types that can be worked on while live in the presence of a
flammable atmosphere.
•The test apparatus shall be at the correct rating.
•Replace components only with parts specified by the manufacturer.
•Other parts may result in the ignition of refrigerant in the atmosphere from a leak
Cabling Check
•Cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other
adverse environmental effects. The check shall also take into account the effects of ageing or continual
vibration from sources such as compressors or fans.
Detection of flammable refrigerants
•Under no circumstances shall potential sources of ignition be used in the searching for or detection of
refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.
Leak detection methods
•The following leak detection methods are deemed acceptable for systems containing flammable
refrigerants.
•Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be
adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free
area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant
used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall
be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is
confirmed.

9
EN
•Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing
chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-
work.
•If a leak is suspected, all naked flames shall be removed/extinguished. If a leakage of refrigerant is
found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by
means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall
then be purged through the system both before and during the brazing process.
Removal and evacuation
•When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional
procedures shall be used. However, it is important that best practice is followed since flammability is a
consideration. The following procedure shall be adhered to:
−Remove refrigerant
−Purge the circuit with inert gas
−Evacuate
−Purge again with inert gas
−Open the circuit by cutting or brazing.
•The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be
“flushed” with OFN to render the unit safe. This process may need to be repeated several times.
Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking
the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then
venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no
refrigerant is within the system. When the final OFN charge is used, the system shall be vented down
to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing
operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to
any ignition sources and there is ventilation available.
Charging procedures
•In addition to conventional charging procedures, the following requirements shall be followed.
−Ensure that contamination of different refrigerants does not occur when using charging equipment.
Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.
−Cylinders shall be kept upright.
−Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
−Label the system when charging is complete (if not already).
−Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it
shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior
to commissioning. A follow up leak test shall be carried out prior to leaving the site.
Decommissioning
•Before carrying out this procedure, it is essential that the technician is completely familiar with the
equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely.
Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is
required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the
task is commenced.
a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that:
• mechanical handling equipment is available, if required, for handling refrigerant cylinders;
• all personal protective equipment is available and being used correctly;
• the recovery process is supervised at all times by a competent person;
• recovery equipment and cylinders conform to the appropriate standards.
d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of
the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer’s instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.

10
EN
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders
and the equipment are removed from site promptly and all isolation valves on the equipment are
closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been
cleaned and checked.
Labelling
•Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The
label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment
contains flammable refrigerant
Recovery
•When removing refrigerant from a system, either for servicing or decommissioning, it is recommended
good practice that all refrigerants are removed safely.
•When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders
are employed. Ensure that the correct number of cylinders for holding the total system charge are
available. All cylinders to be used are designated for the recovered refrigerant and labelled for that
refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with
pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders
are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good
working order with a set of instructions concerning the equipment that is at hand and shall be suitable
for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be
available and in good working order. Hoses shall be complete with leak-free disconnect couplings and
in good condition. Before using the recovery machine, check that it is in satisfactory working order, has
been properly maintained and that any associated electrical components are sealed to prevent ignition
in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall
be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer
Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors
or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to
make certain that flammable refrigerant does not remain within the lubricant. The evacuation process
shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the
compressor body shall be employed to accelerate this process. When oil is drained from a system, it
shall be carried out safely.

11
EN
REFRIGERANT (FOR R32 ONLY)
WARNING
•Do not use means to accelerate the defrosting process or to clean, other than those recommended
by the manufacturer.
•The appliance shall be stored in a room without continuously operating open flames (for example
an operating gas appliance) and ignition sources (for example an operating electric heater).
•Do not pierce or burn. Be aware that flammable refrigerants may not contain an odor.
•The appliance shall be stored in a well-ventilated area where the room size corresponds to the
room area as specified for operation.
•The appliance shall be stored so as to prevent mechanical damage from occurring.
Technical Safety
•Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorises their
competence to handle refrigerants safely in accordance with an industry recognised assessment
specification.
•Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance
and repair requiring the assistance of other skilled personnel shall be carried out under the
supervision of the person competent in the use of flammable refrigerants.

12
EN
PRODUCT OVERVIEW
Exterior Parts Interior Parts
8
62
3
1
4
5
7
3
4
5
6
7
1
2
1
Control Panel
1
Evaporator
2
Remote Control
2
Air Guide
3
Air Filter
3
Brace
4
Vertical Air Deflector (Horizontal Louver)
4
Compressor
5
Horizontal Air Deflector (Vertical Louver)
5
Condenser
6
Front Grille
6
Base Pan
7
Air Outlet
7
Power Cord
8
Cabinet

13
EN
INSTALLATION
Circuit Breaker Installation
Read thoroughly and follow all directions provided.
A circuit breaker must be installed between the power source and the unit if the plug is not used (see
illustration below).
Main Power sourceMain Power source
Circuit BreakerCircuit Breaker
Use a circuit breaker or timeUse a circuit breaker or time
delay fuse.delay fuse.
NOTE
Model Voltage Frequency Circuit Breaker
W121CE SL0 115 V~ 60 Hz 20 A
W122CE SL0 220 V~ 60 Hz 15 A
Installation Overview
()
ScrewScrew
(For Front Grille, L: 10mm, 2EA)(For Front Grille, L: 10mm, 2EA)
FoamFoam
(L : 30mm, 3EA)(L : 30mm, 3EA)
Drain panDrain pan
Tools Needed
Phillips-head screwdriver Flat-blade screwdriver Pencil Level
Tape measure Cutting knife Scissors

14
EN
How to Install the Unit
1 Measure the space for installation to assure a
good fit. The air conditioner must be installed
firmly into place to prevent vibration and noise.
2 Avoid exposure to direct sunlight.
3 Remove all obstacles from the rear of the
unit. There must be at least 50 cm (20 in.)
of cleared space around the rear of the unit.
Obstacles restricting the airflow may reduce
the cooling efficiency of the unit.
4 The unit should be installed with a slight tilt
towards the outside to allow condensed water
to drain. (About 10~15 mm or 1/4 bubble with
Level)
Fence
Awning
Heat
radiation
Cooled air
10~15 mm
Over 50 cm
Foam
70-150 cm
Level
1/4 Bubble
CAUTION
•The external grille must be exposed outside for
air discharge.
Preparation of the Cabinet
1 Remove 4 screws which fasten the cabinet at
both sides and at the back. (Keep the screws
for later use.)
ShippingShipping
ScrewsScrews
2 Slide the unit from the cabinet by gripping the
base pan handle and pulling forward while
bracing the cabinet.
CAUTION
•The unit is heavy. To prevent injury, use proper
lifting techniques when pulling unit forward
from cabinet. Obtain assistance from another
person if possible.
Drainage (Optional)
The base-pan may overflow due to high humidity.
To drain the excess water, remove the drain cap
from the base pan of the unit and secure the Drain
Pan.
1 Remove the rubber cap from the hole under
the base-pan.
2 Install the drain pan over the corner of the
cabinet with 2-4 screws.
3 Connect the drain hose to the outlet located
on the bottom of the drain pan. (You can
purchase the drain hose or tubing locally to
satisfy your particular needs. Drain hose is not
supplied.)
CabinetCabinet
Drain PanDrain Pan
ScrewScrew
Drain HoseDrain Hose

15
EN
Installation of the Cabinet
1 Prepare the hole in the wall so that the bottom
of the cabinet is well supported, the top has
minimum clearace and the air inlet louveres
have clearance as shown. Holes from the
outside through to the cavity should be sealed.
The cabinet should slope down towards the
rear by about 10~15 mm to allow water formed
during operation to drain.
2 Install the cabinet into the wall and secure.
Ensure the foam seals are not damaged.
Flash, seal or fill gaps around the inside and
outside to provide satisfactory appearance
and protection against the weather, insects
and rodents.
NOTE
•Unit may be supported by a solid frame from
below or by a hanger from a solid overhead
support.
FLASH OR SEAL AROUND EXTERNAL
WALL FRAME OR ARCHITRAVE
STURDY TIMBER
FRAME ALL ROUND
UNIT
DRAIN CHUTE
EXTERNAL SUPPORT
FRAME AT BALANCE
POINT OF RAC
Preferred method of installation into
a timber framed wall, partition or window.
ALTERNATIVELY, BRACKET
S
AS ILLUSTRATED BELOW
MAY BE USED.
TIMBER FRAMED
WALL OR PARTITION
Space for Outside Air Flow
100 mm minimum
AIR IN
AIR IN
AIR OUT
OPTION A
100 mm
100 mm
LOUVRE
FRONT
45° BRICK CUT
AWAY
TO CLEAR LOUVRES
45° BRICK CUT AWAY
TO CLEAR LOUVRES
BRICK
WALL
AIR INAIR IN
BRICK
WALL
AIR OUT
TOP
VIEW
OPTION B
110~180 mm110~180 mm

16
EN
Installations of the unit
into the Cabinet
1 Slide the air conditioner into the case.
Reinstall the 2 screws removed earlier on
each side of the case.
ScrewScrew
ScrewScrew
CAUTION
•The unit is heavy. Use an assistant to help
lift the unit and set it in place. Lifting and
maneuvering the unit by yourself could result
in injury.
2 Stuff the foam around the unit to prevent air
and insects from getting into the room.
The FoamThe Foam
(Around the unit)(Around the unit)
3 Connect the wire harness from the front grille
assembly to the air conditioner.
4 Attach the front grille assembly to the cabinet
by inserting the grille tabs into the slots on the
front of the cabinet. Push the grille in until it
snaps into place.
5 Remove air filter from the front grille by pulling
the filter forward and then up slightly.
Insert 2 screws (L:10 mm) through the front
grille.

17
EN
OPERATION
Control Panel and Remote Control
7
1234
5
6
Remote Control
1
4
2
5
3
NOTE
•The feature may be changed according to the type of model.
1
Power
Press to turn the air conditioner ON or
OFF.
Energy Saver (Ahorro Energía) - In this mode
the compressor and fan turn off when the set
temperature is achieved. Approximately every
3 minutes the fan turns on to allow the unit
sensor to accurately determine if more cooling
is needed.
Cool (Frío) - This mode is ideal on hot days to
cool and dehumidify the room quickly. Use the
Temp buttons to set the desired room
temperature and use the Fan Speed (Nivel
Vent.) button to set the desired fan circulation
speed.
Fan (Vent.) - In this mode the fan circulates air
but the compressor does not run. Use the Fan
Speed (Nivel Vent.) button to set fan speed to
High, Medium or Low. In this mode, you cannot
adjust the set temperature.
Dry (Deshum) - This mode is ideal for rainy
and damp days to dehumidify the room
rather than cooling it significantly. Humidity is
removed from the room by the combination of
compressor operation and the fan speed fixed
at Low. The compressor and fan turn off once
the set temperature is reached. Fan speed
cannot be adjusted in Dry (Deshum) mode.
2
Fan Speed
Press to set the Fan Speed (Nivel Vent.) to
Low (Bajo) (F1), Medium (Medio) (F2) or
High (Alto) (F3).
3
Delay ON/OFF Timer
Delay ON - When the air conditioner is off,
set it to automatically turn on from 1 to 24
hours later, at its previous mode and fan
settings.
Delay OFF - When the air conditioner is
on, set it to automatically turn off from 1 to
24 hours later.
NOTE
•Each press of the Timer (Control
Tiempo) button advances the timer by
1 hour. After the last press the display
returns to the temperature setting.
4
Operation Mode
Press the Mode (Modo) button to cycle
between 4 types of air conditioner
operation: Energy Saver (Ahorro Energía) /
Cool (Frío) / Fan (Vent.) / Dry (Deshum)

18
EN
5
Temperature Control
The thermostat monitors room
temperature to maintain the desired
temperature. The thermostat can be set
between 16 °C–30 °C (60 °F–86 °F).
Press or arrows to increase or
decrease temperature setting.
6
Remote Control Sensor
7
Clean Filter
The Clean Filter (Limpieza Filtro) LED
lights up to notify you that the filter needs
to be cleaned. After cleaning the filter,
press Temp and together on the
control panel to turn off the Clean Filter
(Limpieza Filtro) light.
NOTE
•The filter reset must be done using the
control panel, not the remote control.
•This feature is a reminder to clean the
air filter for more efficient operation.
The LED light turns on after 250 hours
of operation.
NOTE
•Auto Restart : If the air conditioner turns
off due to a power outage, it will restart
automatically once the power is restored, with
the same settings as were set before the unit
turned off.
•Energy Saver (Ahorro Energía) : The unit
defaults to the Energy Saver (Ahorro Energía)
mode each time the unit is switched on except
in Fan (Vent.) mode or when power is restored
after an electrical power outage.
•The remote control will not function properly if
the AC infrared sensor is exposed to direct light
or if there are obstacles between the remote
controller and the air conditioner.
Wireless Remote Control
Inserting Batteries
1 Push out the cover on the back of the remote
control with your thumb.
2 With the plus and minus poles facing as
marked, and insert two new AAA 1.5 V
batteries.
3 Reattach the cover.
NOTE
•New batteries are supplied with the air
conditioner for use in the remote control.
•Do not use a rechargeable battery. Make sure
that the battery is new.
•In order to prevent discharge, remove the
battery from the remote control if the air
conditioner is not going to be used for an
extended period of time.
•Keep the remote control away from extremely
hot or humid places.
•To maintain optimal operation of the remote
control, the remote sensor should not be
exposed to direct sunlight.

19
EN
Air Direction
Airflow can be adjusted by changing the direction
of the air conditioner’s louvers.
Adjusting Horizontal Airflow
Direction
The horizontal airflow is adjusted by moving the
levers of the vertical louvers to the left or right.
Adjusting Vertical Airflow
Direction
Touch the horizontal louvers to adjust the airflow
up or down.
NOTE
•When the weather is extremely hot, the unit
may turn off automatically to protect the
compressor.
Slinger Fan
This air conditioner is equipped with a slinger fan.
(See drawing.)
The fan’s outer ring picks up the condensed water
from the base pan if the water level gets high
enough. The water is then picked up by the fan
and expelled through the condenser, making the
air conditioner more efficient.
RingRing

20
EN
MAINTENANCE
WARNING
•Before cleaning or performing maintenance,
disconnect the power supply and wait until the
fan stops.
Air Filter
Check the air filter at least twice a month to see
if cleaning is necessary. Trapped particles in the
filter can build up and block the airflow, reducing
cooling capacity and causing an accumulation of
frost on the evaporator.
Cleaning the Air Filter
1 Remove the air filter from the front grille by
pulling the filter forward and then up slightly.
2 Wash the filter using lukewarm water below
40 °C (104 °F).
3 Gently shake the excess water from the filter.
4 Dry the filter in the shade.
5 Insert the filter into the Front grille.
Cleaning the Air Conditioner
•Wipe the front grille and inlet grille with a cloth
dampened in a mild detergent solution.
•Wash the cabinet with mild soap or detergent
and lukewarm water, then polish using liquid
appliance wax.
NOTE
•To ensure continued peak efficiency, the
condenser coils (outside of unit) should be
checked periodically and cleaned if clogged
with soot or dirt from outside air.
•For repair and maintenance, contact a LG
Electronics Customer Information Center.
See the warranty card for details or call
55-5321-1919. Have your model number and
serial number available.
